JN0-452 Mist AI Wireless - Specialist (JNCIS-MistAI-Wireless) Questions and Answers

In a traditional deployment, a Juniper Mist Access Point is a "cloud-first" device, meaning it expects a constant connection to the Mist Cloud to receive configuration updates and report telemetry. When performing an "AP-on-a-Stick" (APoS) site survey, the AP is often powered by a battery pack and moved to various locations where an active Ethernet backhaul or Internet connection is unavailable.3 To ensure the AP continues to broadcast the required SSIDs for signal measurement in this "disconnected" state, two specific settings must be adjusted within the Mist dashboard.

First, AP Config Persistence must be enabled. By default, Mist APs store their configuration in volatile memory; if an AP reboots (which happens when switching battery packs or moving locations) and cannot reach the Mist Cloud, it may fail to reload its previous configuration. Enabling Config Persistence ensures that the AP writes its current configuration to non-volatile flash memory, allowing it to boot up and start broadcasting the programmed SSIDs even in the absence of a cloud connection.4

Second, AP Uplink Monitoring must be disabled. Mist APs are designed with a safety mechanism where, if the AP loses its gateway connectivity (eth0 link or ping to the gateway), it will stop broadcasting SSIDs to prevent "black-holing" client traffic. In a site survey scenario, the Ethernet port is typically connected only to a battery or a passive PoE injector with no data path.5 If Uplink Monitoring remains active, the AP will detect the lack of a backhaul and disable its radios, making the survey impossible. By disabling this feature, the AP is forced to keep its radios active regardless of the uplink status. Together, these two settings allow the AP to function as a standalone signal source, which is essential for accurate RF environment mapping and pre-deployment validation using Mist AI hardware.

According to the Mist documentation1, WLANs are wireless networks that can be configured with different settings such as SSID, security, encryption, authentication, etc. WLANs can be created and managed at different levels of hierarchy in the Mist cloud.

The site group level allows you to create and apply WLANs to a group of sites that share common characteristics or requirements2. This helps you to simplify and standardize your WLAN configuration across multiple sites.

The site level allows you to create and manage WLANs for a specific site that may have unique needs or preferences1. This gives you more flexibility and granularity for your WLAN configuration at each site.

In Juniper Networks Mist AI Wireless, the strength and quality of a client’s wireless connection are primarily evaluated using RSSI (Received Signal Strength Indicator) and SNR (Signal-to-Noise Ratio). These two metrics are core inputs into multiple Wireless Assurance SLEs, including Coverage and Throughput, and are reliable indicators when determining which client has the weakest WLAN connection.

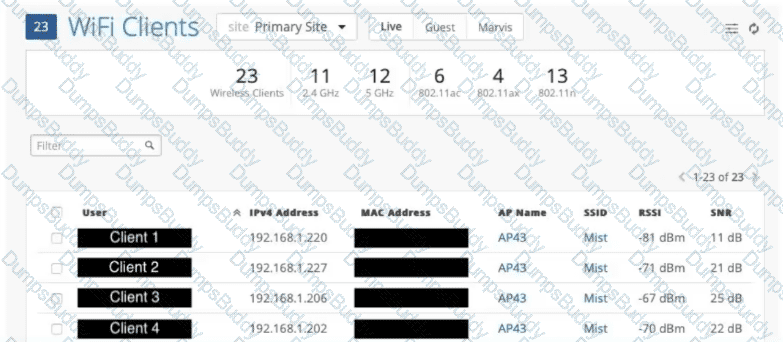

From the exhibit, the key metrics for each client are:

Client 1: RSSI –81 dBm, SNR 11 dB

Client 2: RSSI –71 dBm, SNR 21 dB

Client 3: RSSI –67 dBm, SNR 25 dB

Client 4: RSSI –70 dBm, SNR 22 dB

In wireless design, lower (more negative) RSSI values indicate weaker signal strength, and lower SNR values indicate poorer signal quality due to higher relative noise. Among all listed clients, Client 1 clearly has the weakest connection, as it has both:

The lowest RSSI (–81 dBm), indicating it is farthest from the AP or experiencing significant attenuation.

The lowest SNR (11 dB), which suggests the signal is only marginally stronger than the background noise.

Mist best practices typically consider RSSI values below –70 dBm and SNR values below ~20 dB as suboptimal for reliable performance, especially for higher modulation schemes. Client 1 falls well below these thresholds, making it the most likely to experience low data rates, retransmissions, and degraded user experience.

Mist AI would flag this client as having poor coverage and may recommend actions such as:

Improving AP placement or density

Adjusting RF power or channel plans

Enforcing minimum RSSI thresholds

Therefore, based on both RSSI and SNR, Client 1 has the weakest WLAN connection, making Option D the correct answer.

According to the Wi-Fi - Radio Modulation - TutorialsPoint document1, 64 QAM is a modulation method that will result in the highest theoretical data rates among the given options. 64 QAM uses both phase and amplitude modulation to encode six bits of information into each transmitted symbol. It can achieve up to 54 Mbps in the 802.11a and g systems.

A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It typically establishes a barrier between a trusted internal network and an untrusted external network, such as the Internet .

In Juniper Networks Mist AI Wireless, Juniper prescribes a top-down, structured troubleshooting methodology when using Service-Level Expectations (SLEs). This approach ensures that engineers identify systemic issues before drilling into individual client problems, preventing misdiagnosis and wasted effort.

The correct troubleshooting order is:

Organization → Site → SLE → Client

Organization of interestTroubleshooting always begins at the organization level. This provides a global view of overall health, license status, widespread outages, and configuration changes that may impact multiple sites. Organization-level visibility helps determine whether the issue is localized or systemic.

Site of interestAfter confirming the organization is healthy, the next step is narrowing the scope to the affected site. Site-level views expose infrastructure issues such as WAN problems, DHCP outages, AP connectivity issues, or RF-wide anomalies that affect many users simultaneously.

SLE of interestOnce scoped to the site, administrators identify the specific degraded SLE (for example, Time to Connect, Coverage, Capacity, or Throughput). Each SLE includes classifiers that pinpoint the likely root cause, such as DHCP, DNS, authentication, or RF interference.

Client of interestOnly after isolating the failing SLE should troubleshooting move to the individual client level. Client views provide detailed timelines, event history, and packet-level insights to confirm whether the issue is isolated or a symptom of a broader problem.

The other answer choices are incorrect because they start with either the SLE or client, which risks overlooking organization-wide or site-wide conditions. Juniper’s recommended workflow ensures efficient, accurate fault isolation and aligns with how Mist AI correlates telemetry and events.

Therefore, the correct answer is A. Organization of interest, site of interest, SLE of interest, client of interest.

Basic data rates are the required data rates that all devices on a wireless network must support in order to connect to the network. These rates are used for management and control frames and can affect the performance of the network.

According to the Lecture 3 - Radio Frequency and Antenna Fundamentals - Part 2 document2, basic data rates are required data rates that all devices must support to communicate on a WLAN.

In the Juniper Mist AI product portfolio, the BT11 is a specialized, enterprise-grade access point designed exclusively for Bluetooth Low Energy (BLE).4 Unlike the other access points in the Juniper Mist family (such as the AP12, AP24, and AP34), the BT11 does not contain Wi-Fi radios.5 Its sole purpose is to provide high-accuracy, enterprise-grade location-based services (LBS) by leveraging Juniper's patented 16-element virtual BLE (vBLE) antenna array.6

The primary use case for the BT11 is to augment BLE coverage in environments where Wi-Fi connectivity is already established by other APs, but the density of those APs is insufficient for precise location services. For applications like turn-by-turn wayfinding or asset tracking, the RF requirements for BLE are often more stringent than those for Wi-Fi. A facility might have enough Wi-Fi APs to provide data coverage, but may have "location holes" where the BLE signals are too sparse for 1–3 meter accuracy. By deploying BT11 units in these gaps, administrators can extend the reach of the location engine without the expense of adding full-featured Wi-Fi radios where additional capacity is not needed.7

The BT11 communicates directly with the Mist Cloud to manage virtual beacons, which eliminate the need for physical, battery-powered beacons and manual calibration.8 Because it runs on Power over Ethernet (PoE) and integrates seamlessly with the Mist AI engine, it provides a scalable and cost-effective way to ensure continuous, high-fidelity BLE coverage across a campus, hospital, or retail floor.

In Juniper Networks Mist AI Wireless Real-Time Location System (RTLS) design discussions, multiple location technologies are commonly compared based on accuracy, reliability, and use-case suitability. Among the listed options, Ultra Wide-Band (UWB) provides the greatest location accuracy.

UWB achieves superior accuracy because it uses very short-duration radio pulses across a wide frequency spectrum, enabling extremely precise time-of-flight (ToF) and time-difference-of-arrival (TDoA) measurements. This allows UWB systems to determine device location with decimeter-level precision, often in the range of 10–30 centimeters, even in complex indoor environments. UWB is also highly resistant to multipath interference, which is a major limitation of Wi-Fi and BLE-based positioning systems.

By comparison:

Wi-Fi–based location relies on RSSI and sometimes Angle of Arrival (AoA), typically achieving 3–5 meter accuracy under good conditions.

BLE badges improve accuracy over Wi-Fi by using beacon proximity and BLE signal characteristics, often achieving 1–3 meter accuracy, depending on beacon density and calibration.

SDK-enabled mobile applications can enhance BLE or Wi-Fi accuracy by leveraging motion sensors and device context, but they are still constrained by the underlying RF technology and rarely reach sub-meter precision.

While Juniper Mist’s vBLE and AI-driven probability surfaces deliver industry-leading accuracy for Wi-Fi and BLE-based RTLS use cases such as wayfinding, asset visibility, and proximity engagement, UWB remains the most accurate indoor positioning technology overall. Its precision makes it ideal for high-value use cases such as medical equipment tracking, industrial automation, and secure access control.

Therefore, the correct answer is Ultra wide-band (UWB), as it provides the highest level of location accuracy among the listed solutions.

In the IEEE 802.1X authentication process, the AP acts as an authenticator.

According to the Lecture 5 - Security - Part 1 document, the AP’s role in the IEEE 802.1X authentication process is to act as an authenticator. This means that the AP acts as a gatekeeper between the client device (supplicant) and the RADIUS server (authentication server). The AP forwards authentication messages between the supplicant and the server and grants or denies network access based on the server’s response.

According to the Mist documentation1, a Mist AP will pull a management IP address from the Native VLAN by default. However, if the Local Status Page is configured for the Site, all the site APs will pull their own IP address from the Management VLAN, but also addresses for each of the VLANs configured on the AP. This is because each AP creates a Switch Virtual Interface (SVI) for each VLAN on its eth0 interface.

The Local Status Page is a feature that allows you to access information about an AP’s status and configuration through a web browser by connecting to its IP address2. This feature can be enabled or disabled at the site level under Site Settings > Access Points > Advanced Settings.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide3, three types of devices that are counted by default for occupancy analytics are:

Mobile app clients, which are devices that have a mobile app installed with the Mist SDK or BLE beaconing enabled.

Cellular clients, which are devices that have cellular connectivity and can be detected by Mist APs using LTE sensing.

Wi-Fi clients, which are devices that have Wi-Fi connectivity and can be detected by Mist APs using Wi-Fi scanning.

Juniper Mist separates its Location-Based Services (LBS) into distinct functional areas: User Engagement (vBLE-based) and Asset Visibility (tracking assets via Wi-Fi or BLE). Understanding the licensing and default behavior is crucial for a successful deployment.

The Wi-Fi location component is designed to track devices that are connected to the Wi-Fi network or are simply probing (unconnected). While basic connectivity data is part of the standard management, the high-fidelity tracking of these devices on a map as "assets" or "clients" for location analytics is tied to specific licensing tiers.

First, Wireless Assurance (B) provides the foundational telemetry and data collection required for basic location visibility. However, to unlock the full "Asset Tracking" capabilities—where the system actively correlates coordinates and provides historical data for specific Wi-Fi devices—the Asset Visibility subscription (D) is required. This subscription is what enables the Mist Cloud to process and store the location data for tags and Wi-Fi clients beyond simple real-time display.

Regarding the other options: Statement A is incorrect because the Wi-Fi location component tracks Wi-Fi devices; tracking BLE tags (third-party or otherwise) falls under the BLE/vBLE location component. Statement C is incorrect because location services are typically not enabled by default to protect user privacy and optimize performance. An administrator must manually upload a floor plan, scale it, and enable "Wi-Fi Engagement" or "Asset Tracking" within the Site settings or individual Access Point configurations to begin collecting location data. Once enabled and properly licensed, the Mist AI engine uses RSSI data from multiple APs to provide location coordinates for any Wi-Fi-emitting device in the environment.

According to the Mist documentation1, asset tracking is a service that allows you to find key assets and people with detailed analytics based on their location using Mist-supported third-party BLE beacons. To enable asset tracking, you need to configure both the BLE beacons and the Mist cloud settings.

The Show assets check box is a setting in Live View that allows you to display or hide the assets on the floor plan2. If this check box is not selected, you will not be able to see the third-party beacons on Live View.

The Locate this Client as an Asset check box is a setting at the BLE client level that allows you to treat a BLE client as an asset for location purposes3. If this check box is not selected, you will not be able to track the BLE client as an asset.

The 37% of Successful Connects suggest that 63% failed – however, these are spread between both LD_Testbed_MD and LD_RS_Support. If the only AP with connection issues was LD_RS_Support then the reverse math may have worked.

In the Juniper Mist dashboard, managing licenses is handled through the Subscriptions page at the Organization level. This page is critical for ensuring that all deployed hardware (Access Points, Switches, and Gateways) has the necessary cloud services—such as Wi-Fi Assurance, Wired Assurance, or Marvis VNA—to function correctly. The subscription page provides a real-time overview of the organization's licensing health using specific status indicators.

The status Active (D) indicates that the subscription is currently within its valid date range and is being utilized by the hardware in the organization. When a subscription is marked as Active, it means the features associated with that license are fully operational, and the Mist Cloud is actively processing telemetry from the associated devices. This is the primary state for all correctly provisioned licenses.

The status Exceed (B) (often displayed as "Exceeded") is a unique and important state in the Mist ecosystem. Unlike many legacy controllers that might shut down services if a license count is surpassed, Mist uses an "honor-based" system combined with clear visual alerting. The Exceed status appears when the number of physical devices claimed and assigned to a site exceeds the total number of available license seats for a specific service. For example, if an organization has 100 "Wi-Fi Assurance" subscription seats but has deployed 110 Access Points, the status will show as Exceeded.

Mist provides a grace period and persistent notifications to administrators to rectify this by either purchasing more subscriptions or removing excess devices. It is important to note that while terms like "Valid" or "Demo" might be used in general conversation, the specific operational statuses tracked in the subscription table to manage license compliance and expiration are Active, Exceeded, and Expired. These statuses allow IT teams to proactively manage their operational expenditures and ensure uninterrupted service for their wireless users.

In Juniper Networks Mist AI Wireless, Marvis Minis are purpose-built synthetic clients designed to proactively validate end-user experience by continuously testing the network in the same way a real user device would. To accurately isolate the root cause of connectivity or performance issues, Marvis Minis follow a strict, layered verification sequence that mirrors the logical dependency of network services.

The verification process begins with DHCP. This is the foundational step because, without a valid IP address, no further network communication can occur. Marvis Minis first confirm that the client can successfully complete the DHCP exchange and obtain proper IP configuration, including subnet, gateway, and lease parameters.

Once DHCP is validated, Marvis Minis move to ARP verification. At this stage, the synthetic client confirms it can resolve the MAC address of the default gateway and communicate at Layer 2. ARP issues can prevent traffic from leaving the local network segment even when an IP address is present.

After Layer 2 and Layer 3 reachability are confirmed, Marvis Minis test DNS functionality. DNS resolution is critical for application access, as most modern applications rely on hostname resolution rather than raw IP addresses. Failed or slow DNS responses are a common cause of perceived “application outages.”

Finally, Marvis Minis validate the application layer. This includes testing reachability, response time, and success of specific application transactions such as HTTPS connections, SaaS access, or internal application availability. By the time application testing occurs, all prerequisite network services have already been verified.

The other options are incorrect because they test higher-layer services before validating lower-layer dependencies, which can lead to misleading conclusions. Mist’s ordered approach—DHCP → ARP → DNS → Application—ensures precise fault isolation and actionable insights, allowing Marvis AI to accurately pinpoint where the user experience is breaking down.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, you can create a new site configuration under the location hierarchy level in the Juniper Mist UI. A site is a logical grouping of devices based on physical location or other criteria.

The Wireless Assurance SLE that provides information on whether a user is able to associate to the WLAN is Successful Connect. So the correct answer is A. Successful Connect.

In the Juniper Mist architecture, the location system (often referred to as the Mist Location Engine) is the centralized intelligence residing in the cloud that transforms raw RF data into actionable business intelligence. While hardware components like location sensors (Access Points) collect raw signal strength (RSSI) from BLE tags or mobile devices, they do not possess the logic to understand the spatial context or provide data to external applications.

The location system performs the heavy lifting by taking the telemetry gathered from the vBLE antenna arrays on the APs and applying sophisticated machine learning algorithms.1 It calculates the precise X/Y coordinates of a device on a floor plan. However, the true value of the location system—as highlighted in this scenario—is its ability to correlate these coordinates with the venue's metadata, such as defined zones, virtual beacons, and map scales.

Once the location system has determined where a device is relative to the environment, it translates that physical presence into "usable data." This is primarily achieved through the Mist API and Webhooks. For example, when a tracked device enters a specific "Retail Zone," the location system generates an event that an external CRM application can ingest to push a personalized coupon to a customer. Similarly, in healthcare, the location system correlates a nurse's coordinates with a patient room to automatically log a visit in an Electronic Health Record (EHR) system.

By acting as the middleware between the wireless infrastructure and third-party software, the location system ensures that raw coordinates become meaningful data points—such as dwell times, zone entries, or asset movements—that drive automation and enhance user experiences across various industry verticals.

According to the Create a Mist Account and Organization - Mist document1, two fields that are required when creating a new site are:

Site name, which is a unique identifier for the site within the organization.

Time zone, which is used to display the correct time for events and reports related to the site.

According to the Marvis - Mist document, Correlation is a category in Marvis’ troubleshooting response that shows when the AP went offline. Correlation shows the correlation between events and SLEs for a given client or AP.

The Clone Site feature in the Juniper Mist dashboard is a powerful tool designed to streamline the deployment of new physical locations by duplicating the environmental and operational logic of an existing "gold standard" site. However, to avoid configuration conflicts (such as duplicate addresses) and to maintain the integrity of the hierarchy, Mist is selective about which objects are carried over during the cloning process.

According to Juniper Mist documentation, only the settings visible on the Site Configuration page are copied to the new site. This specifically includes:

Auto Firmware Upgrade settings (A): The specific versioning (Production vs. RC) and the weekly or daily maintenance windows defined for the site are preserved. This ensures that the new site follows the same lifecycle management policy as the primary site.

RF Templates (B): The radio resource management (RRM) profile assigned to the site is copied. This includes channel planning, bandwidth settings (20/40/80 MHz), and power level constraints tailored for that environment.

Other Site-Level Settings: This also includes Webhooks, Rogue/Honeypot AP detection rules, and Location Services settings.

Conversely, certain objects are explicitly not copied. The Site Location (C) and Site Name are excluded because each site must be geographically unique for accurate mapping and time zone calculation. WLANs (D) are also not copied through the Clone Site function; SSIDs are typically managed at the Organization level via WLAN Templates, which are then mapped to sites or site groups rather than being "hardcoded" into an individual site's local configuration. By cloning the site-specific parameters like RF templates and upgrade schedules, Mist allows administrators to rapidly scale their infrastructure while ensuring the core network access (WLANs) is maintained through the overarching organizational policy.

According to the Lecture 3 - Radio Frequency and Antenna Fundamentals - Part 2 document2, an extended service set (ESS) is a group of basic service sets (BSSs) that share a common SSID and are connected by a distribution system (DS). Each BSS within the ESS has its own unique BSSID, which is the MAC address of the AP.

Mist Radio Resource Management (RRM) performs several functions including transmit power control and channel assignment which help optimize wireless network performance by dynamically adjusting radio settings based on changing environmental conditions.So,the correct answers are A.transmit power control and C.channel assignment

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide1, two functions of Mist Radio Resource Management (RRM) are:

Transmit power control, which adjusts the transmit power of APs based on their coverage area and interference level.

Channel assignment, which assigns channels to APs based on their location and interference level.

In Juniper Networks Mist AI Wireless, Radio Resource Management (RRM) uses multiple decision-making systems to adapt the RF environment intelligently. A channel change triggered by the detection of RADAR on a DFS (Dynamic Frequency Selection) channel is a clear example of an event-driven RRM action.

DFS channels are regulated frequencies that must be shared with weather, military, and aviation radar systems. Regulatory bodies require wireless devices to immediately vacate a DFS channel when radar activity is detected. When a Juniper Mist AP operating on a DFS channel detects radar signatures, it generates a real-time RF event. This event forces the AP to immediately stop transmitting on that channel and move to a new, non-DFS or alternate DFS channel.

Mist classifies this behavior as event-driven RRM because:

The channel change is reactive, not predictive

It is triggered by a specific external RF event (radar detection)

It requires immediate action to maintain regulatory compliance and avoid interference

The other options are incorrect for the following reasons:

FCC compliance defines why the change is required, but it is not an RRM system or decision model.

Global optimization refers to long-term RF tuning across the network based on historical performance data, not immediate forced changes.

Reinforcement learning is used by Mist to optimize RF parameters over time through continuous learning, not for mandatory, instantaneous responses to radar events.

Mist RRM combines event-driven actions, AI-based global optimization, and reinforcement learning to deliver both compliance and performance. In the case of radar detection on a DFS channel, the AP’s channel change is driven by a real-time RF event, making event-driven RRM the correct answer.

According to the Marvis - Mist document, unhappy clients is a query that can be used in Marvis to identify users who cannot connect to the network. Unhappy clients shows a list of clients who have experienced poor service level expectations (SLEs) such as connection failures, coverage issues, or low throughput.

In Juniper Networks Mist AI Wireless, Service Level Expectations (SLEs) are used to measure and assure real user experience across the wireless network. Each SLE is built on specific classifiers, which break down failures into root causes such as DHCP, DNS, authentication, RF conditions, or application issues. Understanding which SLEs rely on DHCP classification is essential for accurate troubleshooting.

The two Wireless Assurance SLEs that include a DHCP classifier are Successful Connects and Time to Connect.

The Successful Connects SLE measures whether client devices are able to complete the full connection process successfully. This process includes association, authentication, and critically, DHCP address assignment. If a client fails to obtain an IP address, the connection is considered unsuccessful, and the failure is explicitly classified as a DHCP issue within this SLE.

The Time to Connect SLE measures how long it takes for a client to connect from the moment it initiates association until it is fully usable on the network. One of the key components of this timeline is the DHCP transaction time. Slow DHCP responses, retransmissions, or server delays directly increase the overall connection time, and Mist classifies these delays under DHCP within the Time to Connect SLE.

The other options are incorrect for the following reasons:

Roaming SLE focuses on re-association, authentication, and mobility events, not DHCP, since IP addressing is typically retained during roaming.

Coverage SLE evaluates RF signal strength, SNR, and cell overlap, with no dependency on DHCP.

Throughput SLE measures data transfer performance after connectivity is established and does not analyze DHCP behavior.

Therefore, the correct answer is Successful Connects and Time to Connect, as both SLEs directly depend on and classify DHCP-related performance and failures within Mist Wireless Assurance.

The Compatible WLAN data rate setting is required for legacy 2.4 GHz scanners to connect to the WLAN.

According to the Data Rates - Mist document4, the WLAN data rate setting that is required for legacy 2.4 GHz scanners to connect to the WLAN is Compatible. This setting enables all data rates from 1 Mbps to 54 Mbps for both 2.4 GHz and 5 GHz bands. This setting is recommended for legacy devices that need low data rates to connect.

Referring to the exhibit and considering that it is in the USA, the WLAN with SSID Eero1234 is not configured to industry best practices while the WLAN with SSID NETGEAR24 is configured to industry best practices.
