NSEI_OTS_AR-7.6 Fortinet NSE I - OT Security 7.6 Architect Questions and Answers

The correct answers are B. The Datasets library and D. The Chart library .

The study guide explains that a FortiAnalyzer report is built from charts, and that charts consist of two elements: datasets and format . It states: “A FortiAnalyzer report is a set of data organized in charts” and “Charts consist of two elements: Datasets … and Format.” It then goes further in the Customizing Reports section and explicitly says “By default, the Chart Library contains more than 300 charts” and “By default, the Datasets library contains almost 400 datasets.” It also states that you can clone and edit both charts and datasets, and create new ones , which is exactly how you enhance and customize an existing report.

The other options are not the best answers for this question. FortiView can export a chart into a report chart, and Log View can help build a custom dataset and chart from search results, but the question asks which options you can use to enhance the report itself. The study guide identifies the actual report-customization components as the Chart Library and Datasets library . Dashboard library is not presented as a FortiAnalyzer report customization library in this section.

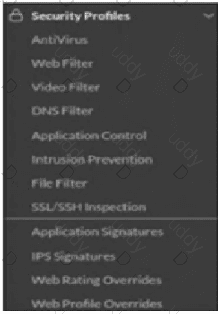

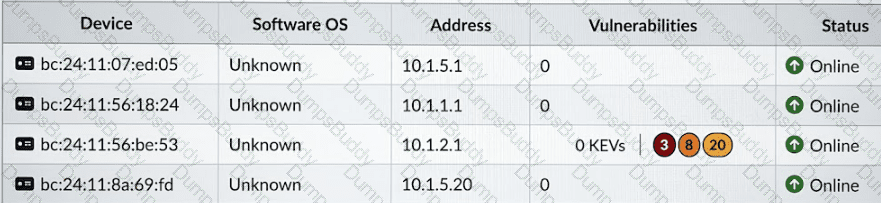

The correct answer is C. The output of the CLI command get rule otvp status . In the Virtual Patching section, the study guide shows the workflow where FortiGate queries FortiGuard for device-specific vulnerabilities, receives OT virtual patching signatures, maps them to the device MAC address, and then explicitly displays the CLI verification command get rule otvp status together with fields such as Rule-name , Vuln_type , and Cve . This is the direct confirmation mechanism shown in the guide for checking whether OT devices have virtual patching rules associated with them.

The other options are less accurate for confirmation. The OT View page is for Purdue-level visualization, and the Asset Identity List page shows device and asset information, but neither is presented in the guide as the command or control used to verify virtual patching status. The study guide specifically uses get rule otvp status as the status check tied to virtual patching behavior.

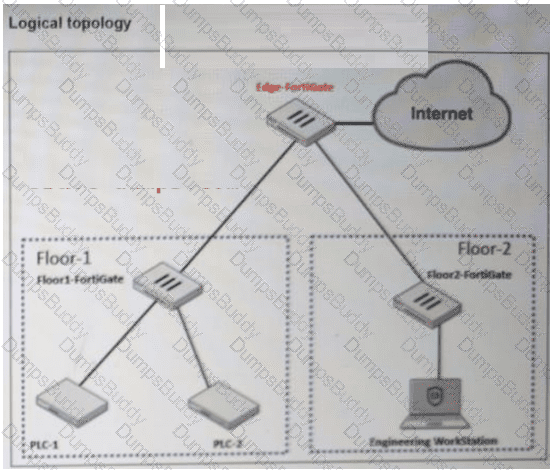

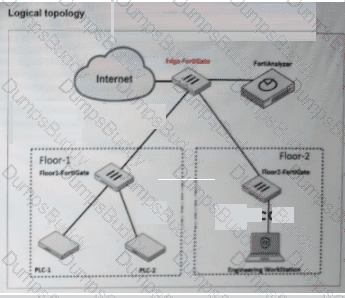

The correct answer is C. You can implement parallel redundancy protocol . The study guide explains that media redundancy involves creating a backup path that can be used when part of the network fails and specifically states that “Parallel Redundancy Protocol (PRP) can be used for a star topology.” Since the problem described is many disconnections in the links , the issue is link availability, which is a media redundancy problem rather than a firewall virtualization or policy separation problem. PRP is designed to provide a backup communication path with low recovery time when links fail.

The other options do not fit this scenario as well. HA clusters are described in the guide as a solution for network node redundancy , where a backup firewall or switch takes over when the primary device fails. SD-WAN is recommended for remote site access across multiple WAN links, not for the local floor links shown in this topology. VDOMs provide logical segmentation, not link redundancy or higher link availability. Because the question is specifically about repeated link disconnections , the best action is to implement PRP .

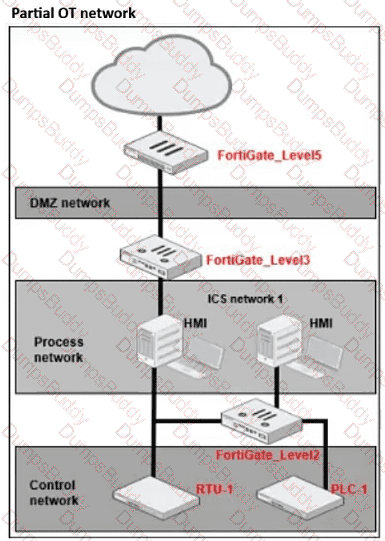

The correct answers are B. Real-time control and D. Determinism . The study guide defines industrial Ethernet as the “use of Ethernet and TCP/IP as transport mechanisms for industrial protocols” and states that it provides “real-time control,” “low latency,” and “determinism (meaning reliable and predictable data delivery)” in harsh environments. It further explains that industrial Ethernet “provides deterministic communication between machine controllers, actuators, sensors, and other units.” These statements directly confirm that the two key advantages are real-time control and determinism.

The other options are not supported by the study guide as core advantages of industrial Ethernet. Encryption is not listed as one of the benefits in this section, and remote access is discussed elsewhere in the OT architecture but not as a defining advantage of industrial Ethernet itself. The guide is explicit that the main benefits here are predictable delivery and real-time communication, which are essential in industrial control environments where timing and reliability matter.

According to the OT Security 7.6 Architect study guide section on Asset Management , specifically regarding FortiNAC Visibility :

Layer 2 Polling Data : Because each physical address is unique, FortiNAC identifies hosts as they connect to the network. The information gathered during this process fills in the physical address and location information in the database.

Visibility Components : The guide states that the physical address learned , the time it was learned , and where it was learned from provide the foundation of endpoint visibility in the form of " what, where, and when " information. This confirms that Where it was learned (Option A) and The time it was learned (Option D) are correct.

Exclusions :

Layer 3 Polling : The MAC-to-IP correlation (Option B) is explicitly defined as a function of Layer 3 polling , where the correlated IP address is added to the database record for the corresponding MAC address.

DHCP Fingerprinting : The host name or system name (Option C) and the operating system are gathered via DHCP fingerprinting , not layer 2 polling.

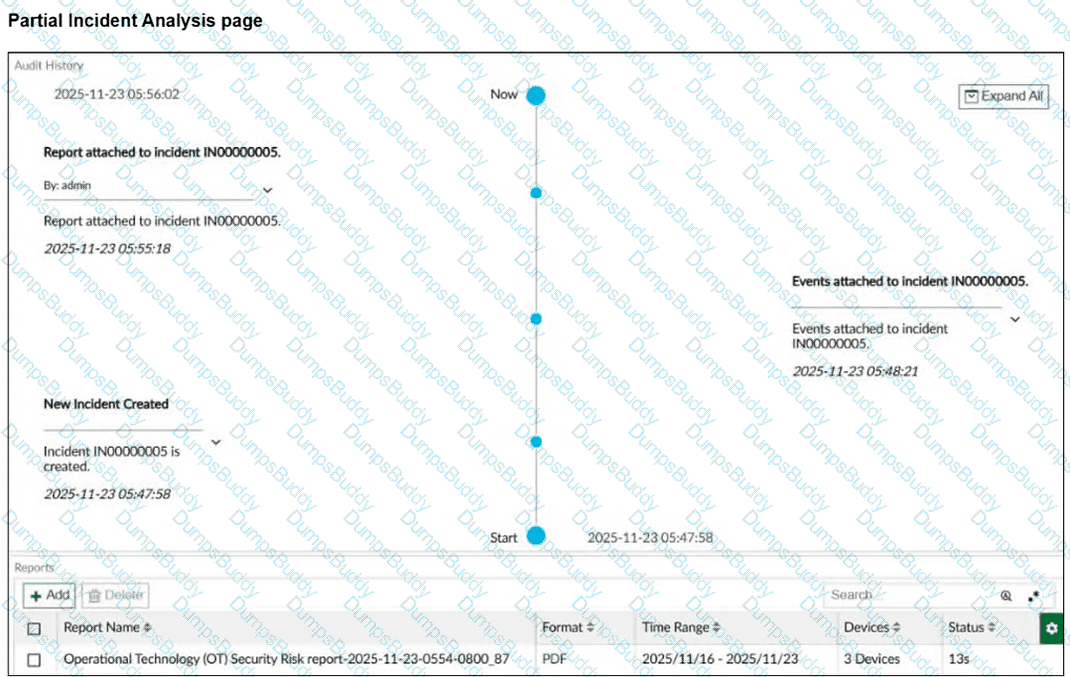

Based on the technical data provided in the exhibits and the OT Security 7.6 Architect curriculum:

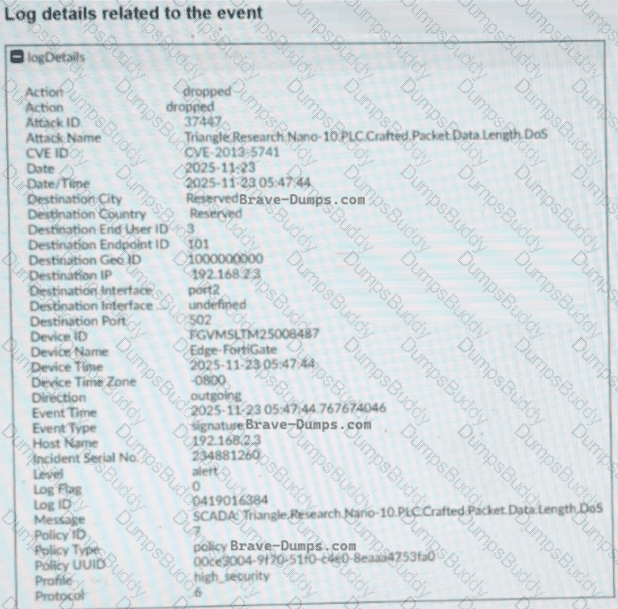

Industrial Protocol Identification (Statement A) : The log details exhibit clearly shows that the Destination Port used in the attack is 502 . According to the study guide ' s section on Industrial Protocol Protection , the standard port used by the Modbus TCP protocol is 502 . Furthermore, the attack name identifies a " Triangle.Research.Nano-10.PLC, " which are industrial controllers commonly utilizing Modbus for communications.

Attack Mitigation (Statement B) : The log details specify that the Action taken by the FortiGate (Edge-FortiGate) was dropped . In cybersecurity and Fortinet fabric operations, dropping a packet associated with an IPS signature means the traffic was blocked from reaching its target, thereby mitigating the attack.

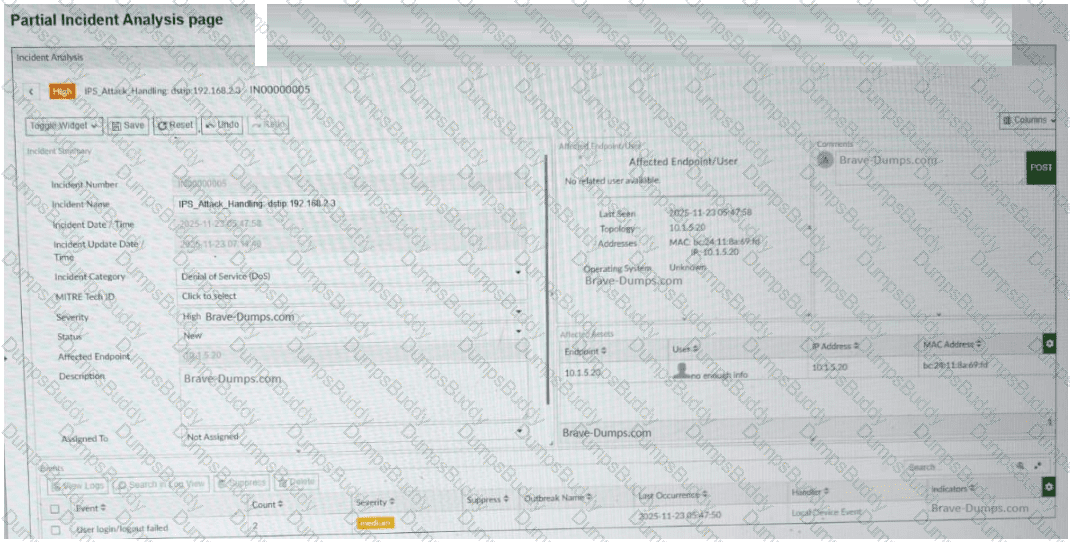

Target IP Address (Statement E) : The log detail explicitly lists the Destination IP as 192.168.2.3 . The Incident Analysis page also titles the incident with dstip:192.168.2.3. While the " Affected Endpoint " is shown as 10.1.5.20 , in an " outgoing " attack direction (as shown in the log), this likely refers to the internal source/attacker IP, whereas the target is the destination IP (192.168.2.3). Thus, Statement E is incorrect.

Protocol Conflict (Statement C) : The IEC 104 protocol typically utilizes port 2404 . Since the log specifies port 502, Statement C is incorrect.

Severity Distinction (Statement D) : While the Incident severity is marked as High , the question specifically asks about event severity. The " Events " table at the bottom of the Incident Analysis page shows a " User login/logout failed " event with a medium severity. Because there is a distinction in the management console between the severity of individual events and the aggregated incident, and Statement A and B are technically definitive based on port and action, A and B are the correct architectural choices.

The correct answers are C and D .

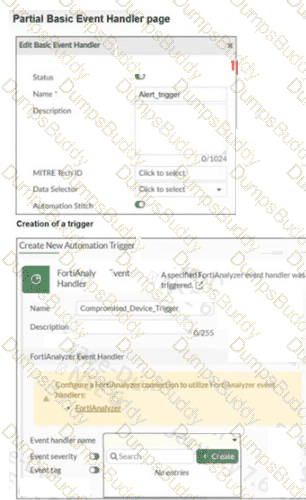

Option C is correct because the study guide explains that when “a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” and, in the Security Fabric workflow, “FortiAnalyzer parses the logs and notifies the root FortiGate.” This means FortiGate must first have the FortiAnalyzer connection configured so it can consume FortiAnalyzer event handlers and use them in automation. The wizard message in the exhibit also points to this requirement by indicating that a FortiAnalyzer connection must be configured.

Option D is also correct because the study guide explicitly says that in this automation flow “the root FortiGate triggers the action” and shows “Stitches configured on root FortiGate.” Therefore, if you want the FortiAnalyzer event handler to appear and be usable for automation, the trigger must be configured on the root FortiGate , not on an arbitrary downstream FortiGate.

Option A is incorrect because + Create is only a GUI control and does not solve the missing-event-handler visibility problem. Option B is not identified in the study guide as the requirement for making a FortiAnalyzer event handler available in the FortiGate automation trigger list.

The verified answer is C. The Fabric settings . The study guide ties FortiAnalyzer-triggered actions to the Security Fabric relationship with FortiGate, not to playbook tasks or standalone event handlers alone. It explains that “within the Security Fabric environment, FortiAnalyzer is a key element in the creation of automation stitches” and shows the flow where a downstream FortiGate sends logs to FortiAnalyzer, then FortiAnalyzer parses the logs and notifies the root FortiGate , after which the root FortiGate triggers the action . This shows that FortiAnalyzer must be configured so it can communicate with FortiGate through the Security Fabric.

The guide also states that FortiAnalyzer is the foundation of the Security Fabric , providing logging, reporting, analytics, and automation for Fabric devices and endpoints. It further explains that the FortiAnalyzer Fabric connector consolidates the traffic logs within the Security Fabric. This confirms that the automation workflow depends on proper Security Fabric integration. A playbook task is used for automated SOC actions, and an event handler is used to generate events from logs, but neither one alone establishes the direct communication path needed between FortiAnalyzer and FortiGate. Therefore, the required configuration on FortiAnalyzer is the Fabric settings .

The correct answer is A. Through device profiling rules . The study guide states: “When a rogue device record is created, the device is evaluated against the enabled device profiling rules.” It further explains that “FortiNAC evaluates a device against each rule until a failed, passed, or cannot evaluate result is reached.” That is the direct evaluation mechanism used for rogue devices in FortiNAC.

The guide also adds that “Device profiling rules are used to evaluate and classify rogue devices” and that FortiNAC applies rule methods and classification settings to determine whether the device matches a known type. This is why the other options are incorrect: FortiGuard server queries and the local device database (CIDB) relate to FortiGate device detection workflows, not FortiNAC rogue-device evaluation, and importing a devices list is not the evaluation method described for rogue devices.

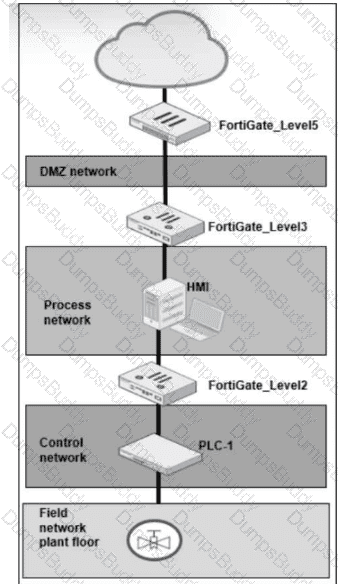

The correct answer is C. EtherCAT .

The study guide states that for industrial Ethernet protocols, “such as Ethernet/IP and Modbus/TCP, you can use VLANs to segment your physical LAN into multiple logical LANs.” This directly confirms that Ethernet/IP and Modbus/TCP support VLAN-based segmentation in the OT context.

By contrast, the guide explains that “EtherCAT skips layers 3 to 6 to deliver real-time communication” and describes it as an “Open-Software Modified-Ethernet” approach. Because it does not operate like the standard Ethernet/IP model used for normal VLAN-based segmentation, EtherCAT is the protocol identified here as not supporting VLANs in the way Ethernet/IP and Modbus/TCP do.

So, based on the study guide comparison, the verified answer is EtherCAT .
