NSE7_CDS_AR-7.6 Fortinet NSE 7 - Public Cloud Security 7.6.4 Architect Questions and Answers

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Automation Guide and the provided documentation for Ansible workflows, the following structure is required for managing multiple FortiGate nodes:

Inventory File (The Target List): The inventory is a single file that defines the list of managed nodes. It specifies critical information such as hostnames, connection details, and specifically the IP addresses of the target devices. According to the study guide, this inventory is a text file that lists all the systems you want to manage.

Playbook File (The Task List): You create and edit a separate file that acts as the playbook . This file is written in YAML format and contains the series of tasks that Ansible performs on the managed nodes to reach a desired state.

Minimum File Count: A basic Ansible workflow consists of exactly two files : one inventory file (text) and one playbook file (YAML). By listing the target IP address (e.g., 10.0.206.131) within the inventory text file, the administrator can manage the FortiGate device without needing individual files for every target.

Why other options are incorrect:

Option A & C: Creating a separate playbook or inventory file for each target is inefficient and contradicts the core Ansible workflow, which uses a single inventory to manage multiple hosts.

Option B: While the playbook is a .yaml file, the study guide specifically defines the inventory (where IP addresses are configured) as a text file in the context of the basic workflow.

According to the FortiOS 7.6 AWS Administration Guide and the Fortinet Public Cloud Security 7.4 training materials regarding centralized security inspection:

Multiple Route Tables (Option B): A single AWS Transit Gateway is designed to support multiple TGW route tables. By default, there is a soft limit of 20 route tables per Transit Gateway, which allows administrators to implement sophisticated network segmentation and granular routing policies. In a FortiGate-centric " Security Hub " or " Transit VPC " architecture, multiple route tables are used to separate " Spoke " traffic from " Security " traffic, ensuring all inter-VPC traffic is forced through the FortiGate-VM for inspection.

Associations and Propagations: * Association: Each individual TGW attachment (VPC, VPN, or Direct Connect) can be associated with exactly one TGW route table at any given time. This table dictates where packets coming from that attachment will be sent. Because of this 1:1 relationship, Option C is incorrect.

Propagation: An attachment can propagate its routes to one or many TGW route tables. This flexibility allows a VPC ' s prefix to be known in multiple routing domains, meaning that association and propagation do not need to occur in the same table, making Option A incorrect.

Default Route Table Management: When creating an AWS Transit Gateway, the options for " Default route table association " and " Default route table propagation " are enabled by default, but they can be disabled during or after creation. Disabling these is a security best practice when deploying FortiGate-VMs to prevent the TGW from automatically creating a " full-mesh " connectivity that bypasses the firewall, making Option D incorrect.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding Azure Virtual WAN (vWAN) architectures, the choice of connectivity depends on the required performance, security, and scale:

ExpressRoute (Option D): For a large-scale enterprise deployment involving a company headquarters and multiple branch sites , ExpressRoute is the " best " and most robust solution. It provides a private, dedicated, and high-throughput connection (up to 100 Gbps) that bypasses the public internet entirely. This ensures predictable low latency and higher reliability compared to internet-based tunnels.

Virtual WAN Integration: Azure vWAN Standard SKU explicitly supports ExpressRoute gateways as a primary connectivity method for on-premises sites. This allows the vWAN hub to act as a global transit point, seamlessly connecting the ExpressRoute-linked headquarters to other branch sites and VNET spokes.

Scalability for Headquarters: While site-to-site IPsec VPNs are common for smaller branches, the " main company site " or headquarters typically requires the high bandwidth and SLA guarantees provided by ExpressRoute .

Why other options are incorrect:

Option A & B: L2TP and SSL VPN are primarily used for remote user access (Point-to-Site) rather than permanent site-to-hub infrastructure connections. vWAN uses OpenVPN or IKEv2 for user VPNs, not L2TP.

Option C: While GRE tunnels are used in some networking scenarios, they are not a native, primary gateway connectivity option for the Azure vWAN hub compared to the standardized Site-to-Site VPN (IPsec) and ExpressRoute.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the Fortinet NSE 7 - Public Cloud Security 7.4/7.6 study materials and the FortiOS 7.6 AWS Administration Guide , understanding the underlying mechanisms of AWS deployment tools is essential for permission management.

Infrastructure as Code and eksctl (Option C): In the context of Amazon EKS, the eksctl command-line tool is the official CLI for creating and managing clusters on EKS. When an administrator executes the eksctl create cluster command, eksctl does not interact with the EKS API directly to provision infrastructure; instead, it generates and executes AWS CloudFormation stacks to provision the necessary VPC, IAM roles, and the EKS control plane. Therefore, users running this command must have explicit permissions to create and manage CloudFormation stacks.

Resource Provisioning via Stacks: CloudFormation is AWS ' s native service for Infrastructure as Code (IaC), allowing users to define resources in JSON or YAML templates. Commands like eksctl leverage these templates to ensure repeatable and organized deployments of complex architectures, such as those required for a FortiGate or FortiWeb cloud integration.

Why other options are incorrect:

Option A: The kubectl command interacts directly with the Kubernetes API server inside the cluster to manage pods and services; it does not trigger AWS CloudFormation processes.

Option B: Helm is a package manager for Kubernetes. While it manages " releases " within the EKS cluster, the installation of a Helm chart for a FortiWeb ingress controller happens at the Kubernetes software layer and does not utilize AWS CloudFormation stacks.

Option D: Changing the node count via CloudShell using the AWS CLI or kubectl typically modifies an Auto Scaling Group or a Kubernetes Deployment/DaemonSet directly, rather than initiating a new CloudFormation stack execution.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

As per the FortiOS 7.6 AWS Administration Guide and FortiWeb 7.4 cloud deployment documentation, understanding the AWS infrastructure layer is critical for integrating Fortinet virtual appliances. The two features that define AWS Network Access Control Lists (NACLs) are:

Stateless Nature (Option A): Unlike Security Groups, which are stateful (automatically allowing return traffic), NACLs are stateless . This means that if you allow inbound traffic on a specific port, you must also explicitly configure an outbound rule to allow the response traffic to leave the subnet. NACLs evaluate inbound and outbound traffic independently.

Default Configuration (Option C): Every VPC comes with a default NACL . By default, this NACL is configured to allow all inbound and outbound traffic . This is designed to ensure connectivity is not blocked until a custom security posture is defined. However, any custom NACL created manually starts by denying all traffic until rules are added.

Why other options are incorrect:

Option B: NACLs are associated at the subnet level , not the instance level. Security Groups are the components tied directly to an instance’s Elastic Network Interface (ENI).

Option D: NACLs and Security Groups provide defense-in-depth and are designed to be used simultaneously. Traffic must pass through the NACL (subnet level) and then the Security Group (instance level) to reach its destination.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Azure Administration Guide and standard Azure Resource Manager (ARM) deployment practices, the what-if operation allows administrators to preview how a deployment will affect the current state of resources.

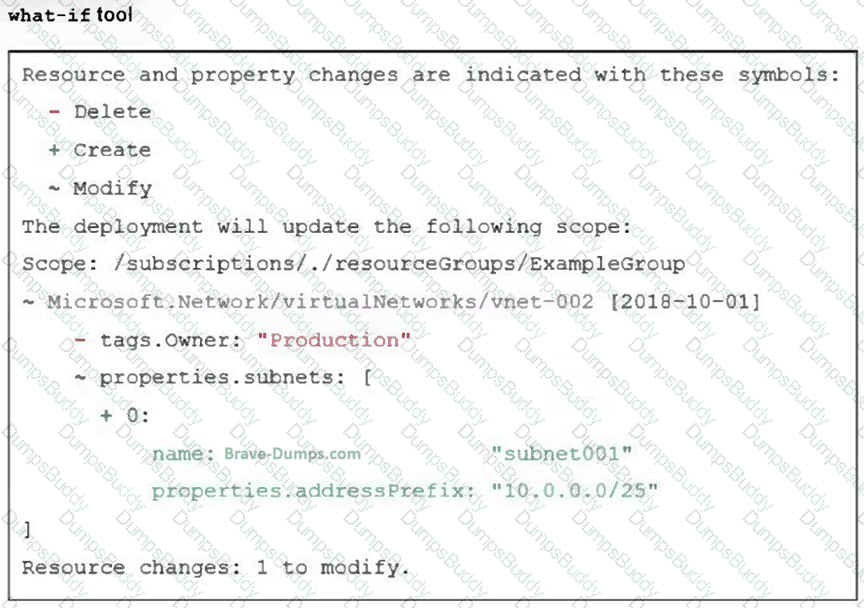

Interpreting the What-If Output (Option A): The exhibit shows the results of a change preview for a Virtual Network (vnet-002).

The symbol ~ (Modify) next to the VNet indicates that an existing resource is being updated rather than created or deleted.

The symbol - (Delete) next to tags.Owner: " Production " indicates that this specific tag will be removed from the VNet.

Crucially, the symbol + (Create) appearing inside the properties.subnets array next to index 0: indicates the addition of a new element. This confirms that a new subnet named subnet001 with the address prefix 10.0.0.0/25 will be added to the existing Virtual Network vnet-002.

Why other options are incorrect:

Option B: The text shows that the tag " Production " is being deleted (-), not that the VNet is being renamed to " Production. "

Option C: The what-if tool only displays the changes . While one subnet is being added (+), the tool does not show the deletion of other existing subnets. Therefore, we cannot conclude the resulting VNet will have only a single subnet; it will have its existing subnets plus the new one.

Option D: There is no mention of addressSpace or addressPrefixes for the VNet itself being modified (~) or added (+) in the exhibit; only a subnet-level address prefix is shown.

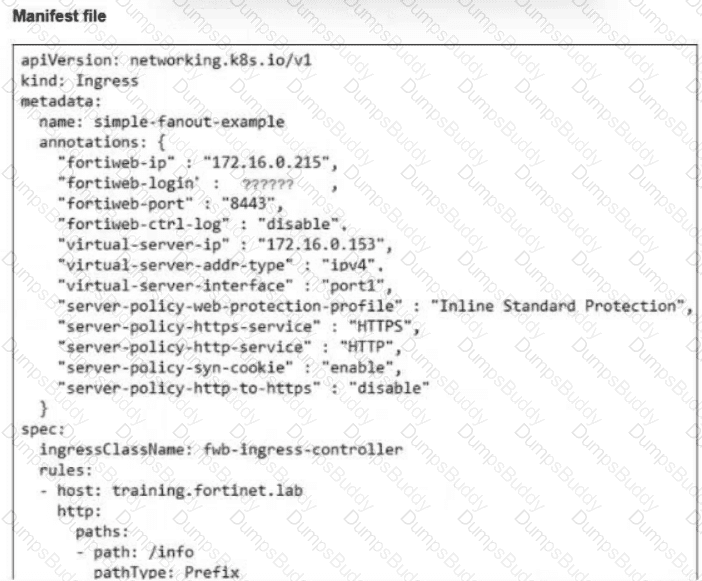

The FortiWeb ingress controller requires credentials so it can authenticate to and manage FortiWeb. The study guide defines creation of a cluster secret as an explicit installation step. After installing the Fortinet Helm chart, administrators use the kubectl create secret command to create the Kubernetes secret containing the required FortiWeb authentication information. The ingress configuration then references that secret through the fortiweb-login annotation rather than embedding the FortiWeb administrator password directly in the manifest. The value is therefore not obtained from the pod deployment manifest or from EKS cluster deployment output. Using a Kubernetes secret also follows the intended security model by separating sensitive authentication information from ordinary application configuration. Therefore, the administrators must create the required Kubernetes secret and reference it in the ingress manifest.

The Azure active-active load balance sandwich consists of two or more independent FortiGate VMs positioned between load balancers. The study guide explicitly states that FGCP configuration synchronization does not apply to this topology. Configuration synchronization can instead be implemented with FortiManager or with config system auto-scale, as shown in the exhibit. In this use case, the auto-scale configuration establishes a primary FortiGate and one or more secondary FortiGates for configuration synchronization; it does not mean Azure automatically adds FortiGate instances according to workload thresholds. The study guide also states that this synchronization copies the FortiGate configuration except for VM-specific parameters, specifically identifying the hostname as an excluded item. Therefore, the two FortiGate VMs remain independent devices, and their hostnames are not synchronized.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 AWS Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding Terraform deployments:

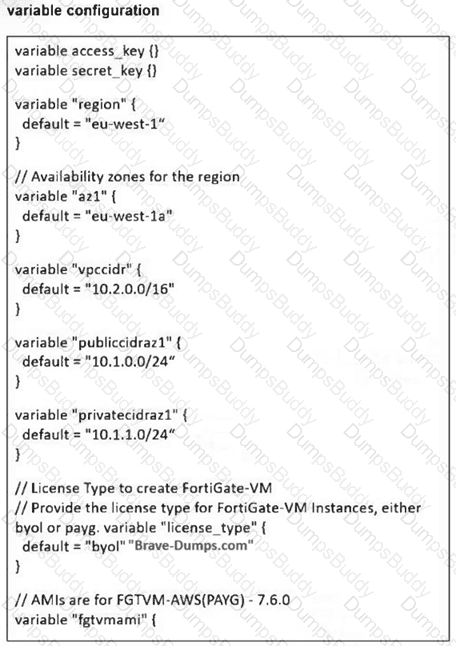

Variable Validation and Logic (Option A): The variables.tf file contains a logic error that prevents a successful deployment.

Specifically, the variable license_type has a default value defined as " byol " " Brave-Dumps.com " .

In Terraform HCL (HashiCorp Configuration Language), a variable ' s default attribute can only hold a single value string (e.g., " byol " ). The inclusion of the secondary string " Brave-Dumps.com " within the same default assignment is a syntax error.

Impact on Execution: When terraform apply is executed, the Terraform engine performs a validation check on all loaded files. Because of this syntax error in the variable definition, the validation will fail, and Terraform will stop execution with an error message before any resources—including the FortiGate VM—are created in AWS.

Network Mismatch: Additionally, the variable vpccidr is set to 10.2.0.0/16, while the public (10.1.0.0/24) and private (10.1.1.0/24) subnets are defined within a completely different address space (10.1.x.x). Even if the syntax error were fixed, the deployment would likely fail at the infrastructure level because subnets must reside within the CIDR block of their parent VPC.

Why other options are incorrect:

Option B, C, & D: None of these successful deployment outcomes can occur because the Terraform parser will identify the invalid syntax in the variables.tf file and abort the process entirely.
