NSE7_SSE_AD-25 Fortinet NSE 7 - FortiSASE 25 Enterprise Administrator Questions and Answers

To restrict endpoints from certain countries from connecting to FortiSASE , the administrator should configure Geofencing . This feature provides granular control over which geographic locations are permitted or denied access to the SASE infrastructure.

Geofencing in FortiSASE

Geofencing is the primary mechanism for controlling remote user connectivity based on their origin.

Functionality: It uses a geography-to-IP mapping database to identify the location of incoming connection requests.

Access Modes: Administrators can choose between two main modes:

Allow: Only users from specified countries can connect; all others are blocked.

Deny: Users from specified countries are blocked; all others are allowed.

Configuration Path: In the FortiSASE GUI, navigate to Configuration > Geofencing to enable the feature and add the relevant countries.

Enforcement: Once enabled, the system automatically creates " local-in " policies to drop or permit traffic at the edge of the SASE PoPs before it can consume resources or attempt authentication.

In a standard FortiSASE agent-based deployment, the FortiSASE Endpoint Management Service (EMS) acts as the central control plane for all managed FortiClient instances. When an endpoint is onboarded, the system is designed to provide " zero-touch " configuration for the core connectivity and security components.

CA Certificate (A): For SSL deep inspection to function without triggering browser certificate warnings, the endpoint must trust the FortiSASE CA. FortiSASE supports automatically installing the FortiSASE CA certificate for managed agent-based users. Once the endpoint connects to the FortiSASE EMS, the service automatically deploys the CA certificate to the trusted certificate store of the client machine.

Tunnel Profile (B): To enable Secure Internet Access (SIA), FortiClient requires a pre-configured VPN or tunnel profile that points to the FortiSASE cloud infrastructure. In a new deployment with default settings, FortiSASE automatically pushes the tunnel profile (including gateway information and auto-connect settings) to the FortiClient endpoint. This allows the user to establish a full-tunnel connection to the nearest Security PoP immediately after onboarding.

Analysis of Incorrect Options:

Real-time protection (C): While FortiSASE can manage Malware Protection and Sandbox settings, specific " Real-time protection " features often require manual activation or specific configuration within the Malware Protection profile before being pushed; they are not necessarily " automatically " active in the absolute default state without a profile assignment.

ZTNA tags (D): ZTNA tags are dynamic security posture attributes. While FortiSASE evaluates the endpoint to determine which tags apply, the tags themselves are not " pushed " to the client as a setting; rather, the ZTNA connection rules are pushed, and the tags are synchronized back to the security fabric for posture enforcement.

The correct answers are C and D . FortiSASE branch on-ramp is designed for site-based or branch users by creating IPsec connectivity from a branch location to FortiSASE. The study guide states that branches can use on-premises FortiGate or third-party routers, and that supported devices include FortiGate and third-party VPN-capable devices , so option B is false because support is not limited to FortiExtender and FortiAP. The guide further explains that the branch device is configured as the dial-up client and the branch on-ramp location acts as the server; the branch device uses the on-ramp location FQDN as the remote gateway. It also states that FortiSASE supports only IKEv2 for IPsec dial-up tunnels and that IKEv2 supports the network ID feature for establishing multiple tunnels.

Option D is also correct. Fortinet documentation states directly that BGP configuration is shared between Branch On-ramp and Secure Private Access (SPA) and that SPA network configuration must be configured before deploying a Branch On-ramp location. Option A is false because when deep inspection is enabled, FortiSASE requires the FortiSASE CA certificate to be manually installed on endpoints for Branch On-Ramp/site-based users to avoid certificate errors and allow encrypted traffic inspection.

To enable the Managed Security Service Provider (MSSP) feature on FortiSASE, the administrative framework must be established outside of the local SASE instance within the broader FortiCloud ecosystem.

FortiCloud IAM Integration: The FortiSASE MSSP portal relies on FortiCloud Identity & Access Management (IAM) to define the scope of management for internal teams. Administrators do not create local " MSSP users " within the SASE portal itself; instead, they must use the FortiCloud IAM portal to assign specific Role-Based Access Control (RBAC) to IAM users.

Permissions and Scope: These RBAC settings determine which customer tenants (Organizational Units or OUs) an MSSP administrator can view, configure, or monitor. Without the proper role assignment in the IAM portal, the MSSP portal and its multi-tenant viewing capabilities will not be accessible to the user, even if the account has the necessary licenses.

Hierarchical Management: Once RBAC is correctly assigned, the MSSP administrator can leverage the FortiCloud Organizations service to manage multiple customer accounts from a single pane of glass. This centralized approach ensures that security policies and configurations can be standardized across the entire customer base while maintaining strict data isolation between tenants.

According to the FortiSASE 25 Multitenant Deployment Guide , configuring the IAM portal is the primary prerequisite that grants an MSSP internal team the permissions necessary to perform operations on customer FortiSASE tenants.

FortiSASE Secure Private Access (SPA) provides flexible connectivity to internal corporate resources using a hub-and-spoke architecture where FortiSASE PoPs act as spokes to an organization ' s FortiGate hub.

Flow from Agent-based users to Private Resources (C): This is the core functionality of SPA. Remote users running FortiClient (agent-based) connect to the nearest FortiSASE PoP. The PoP, integrated into the corporate SD-WAN fabric, uses IPsec and BGP to route traffic to the private applications located behind the FortiGate hub or associated spokes.

Flow from Thin Branches/Branch On-ramp to Private Resources (E): FortiSASE extends its security and connectivity to physical locations through " Thin Edge " (e.g., FortiExtender, FortiAP) or " Branch On-ramp " (e.g., branch FortiGates). These sites form tunnels to the FortiSASE PoP, which then provides them with access to the same private resources in the SD-WAN network as the remote agent-based users.

Flow from Private Resources to Agent-based users (A): The SPA architecture is designed for bidirectional communication. Documentation confirms that traffic can be initiated from the FortiGate hub (or local networks behind it) to the remote VPN agents. This " Server-to-Client " flow is essential for administrative tasks, log forwarding, or real-time communication applications like VoIP.

Incorrect Options:

Option B: Traffic from private resources to the internet is handled via Secure Internet Access (SIA) or local gateway policies, not the SPA use case, which is dedicated to internal private application access.

Option D: While FortiSASE can facilitate branch-to-branch communication via ADVPN shortcuts, the term " SPA " specifically refers to the access layer for users and is not used to describe resource-to-resource or hub-to-hub traffic.

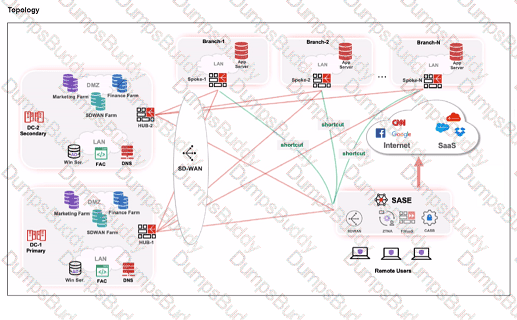

When remote users connected to FortiSASE require access to internal resources on Branch-2, the following process occurs:

SD-WAN Capability:

FortiSASE leverages SD-WAN to optimize traffic routing based on performance metrics and priorities.

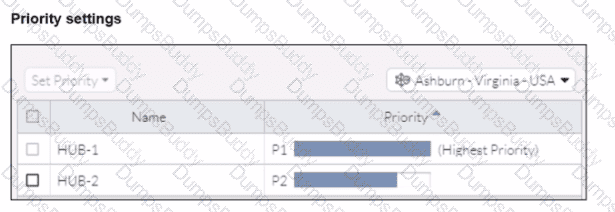

In the priority settings, HUB-1 is configured with the highest priority (P1), whereas HUB-2 has a lower priority (P2).

Traffic Routing Decision:

FortiSASE evaluates the available hubs (HUB-1 and HUB-2) and selects HUB-1 due to its highest priority setting.

Once the traffic reaches HUB-1, it is then routed to the appropriate branch based on internal routing policies.

Branch-2 Access:

Since HUB-1 has the highest priority, FortiSASE directs the traffic to HUB-1.

HUB-1 then routes the traffic to Branch-2, providing the remote users access to the internal resources.

The Secure Internet Access (SIA) use case that minimizes individual workstation or device setup is SIA for agentless remote users. This use case does not require installing FortiClient on endpoints or configuring explicit web proxy settings on web browser-based endpoints, making it the simplest and most efficient deployment.

SIA for Agentless Remote Users:

Agentless deployment allows remote users to connect to the SIA service without needing to install any client software or configure browser settings.

This approach reduces the setup and maintenance overhead for both users and administrators.

Minimized Setup:

Without the need for FortiClient installation or explicit proxy configuration, the deployment is straightforward and quick.

Users can securely access the internet with minimal disruption and administrative effort.

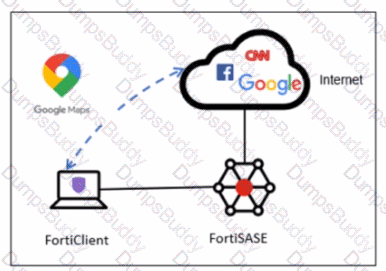

To block all video and audio application traffic while granting access to videos from CNN, you need to configure an application override action in the Application Control with Inline-CASB. Here is the step-by-step detailed explanation:

Application Control Configuration:

Application Control is used to identify and manage application traffic based on predefined or custom application signatures.

Inline-CASB (Cloud Access Security Broker) extends these capabilities by allowing more granular control over cloud applications.

Blocking Video and Audio Applications:

To block all video and audio application traffic, you can create a policy within Application Control to deny all categories related to video and audio streaming.

Granting Access to Specific Videos (CNN):

To allow access to videos from CNN specifically, you must create an override rule within the same Application Control profile.

The override action " Exempt " ensures that traffic to specified URLs (such as those from CNN) is not subjected to the blocking rules set for other video and audio traffic.

Configuration Steps:

Navigate to the Application Control profile in the FortiSASE interface.

Set the application categories related to video and audio streaming to " Block. "

Add a new override entry for CNN video traffic and set the action to " Exempt. "

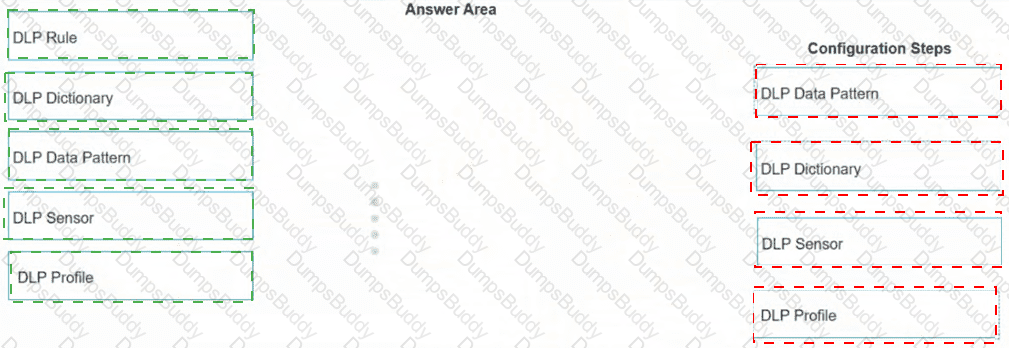

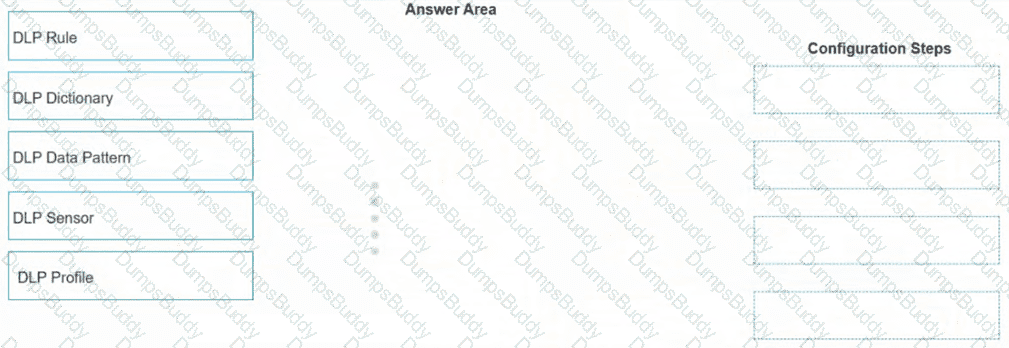

1. DLP Data Pattern

2. DLP Dictionary

3. DLP Sensor

4. DLP Profile

The FortiSASE Data Loss Prevention (DLP) framework follows a hierarchical object-oriented structure. When creating a custom DLP rule using Regular Expressions (Regex), the administrator must build the components from the most granular level upward to the policy level.

DLP Data Pattern: This is the first step where the actual Regex string is defined. The pattern specifies what specific data string (e.g., a specific credit card format or employee ID) the engine should look for.

DLP Dictionary: Once the pattern is created, it must be added to a Dictionary. The dictionary acts as a container that groups one or more data patterns together for easier management.

DLP Sensor: The dictionary is then linked to a DLP Sensor. Within the sensor, you define the " Rule " which specifies the dictionary to use and the action to take (such as block, log, or quarantine) when a match occurs.

DLP Profile: Finally, the sensor is applied to a DLP Profile. This profile is the high-level object that is ultimately selected within a FortiSASE Security Policy to inspect traffic for sensitive data.

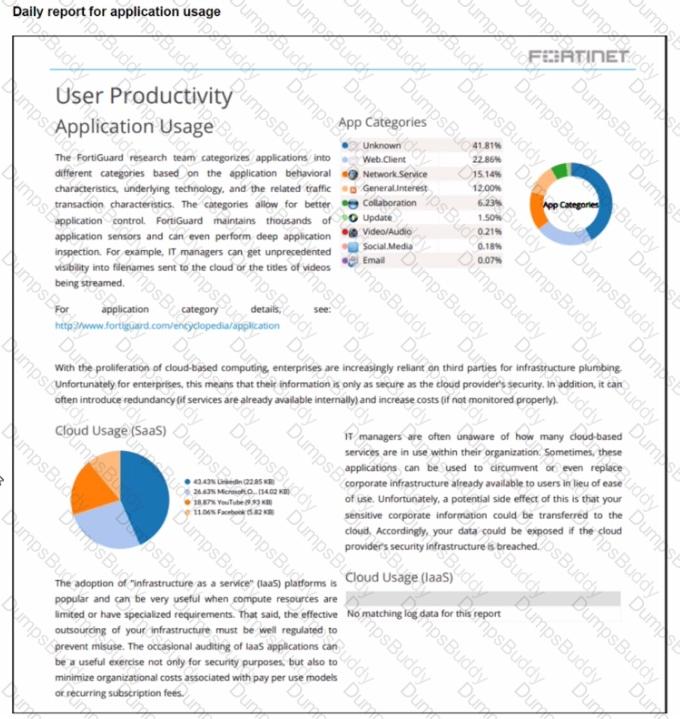

If the daily summary report generated by FortiSASE contains very little data, one possible explanation is that the " Log allowed traffic " setting is configured to log only " Security Events " for all policies. This configuration limits the amount of data logged, as it only includes security events and excludes normal allowed traffic.

Log Allowed Traffic Setting:

The " Log allowed traffic " setting determines which types of traffic are logged.

When set to " Security Events, " only traffic that triggers a security event (such as a threat detection or policy violation) is logged.

Impact on Report Data:

If the log setting excludes regular allowed traffic, the amount of data captured and reported is significantly reduced.

This results in reports with minimal data, as only security-related events are included.

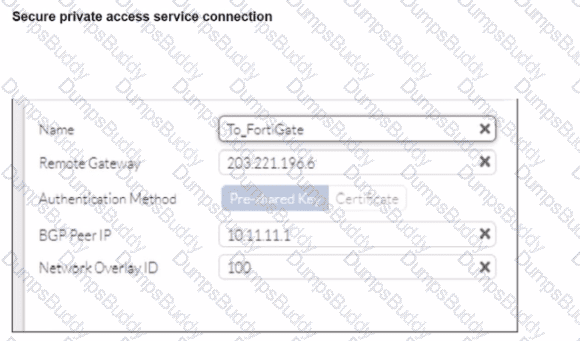

The VPN tunnel between the FortiSASE spoke and the FortiGate hub is not establishing due to the configuration of mode config, which is not supported by FortiSASE spoke devices. Mode config is used to assign IP addresses to VPN clients dynamically, but this feature is not applicable to FortiSASE spokes.

Mode Config in IPsec:

The configuration snippet shows that mode config is enabled in the IPsec phase 1 settings.

Mode config is typically used for VPN clients to dynamically receive an IP address from the VPN server, but it is not suitable for site-to-site VPN configurations involving FortiSASE spokes.

Configuration Adjustment:

To establish the VPN tunnel, you need to disable mode config in the IPsec phase 1 settings.

This adjustment will allow the FortiSASE spoke to properly establish the VPN tunnel with the FortiGate hub.

Steps to Disable Mode Config:

Access the VPN configuration on the FortiSASE spoke.

Edit the IPsec phase 1 settings to disable mode config.

Ensure other settings such as pre-shared key, remote gateway, and BGP configurations are correct and consistent with the FortiGate hub.

The correct answer is D. Web filter with inline-CASB . The FortiSASE study guide states that FortiCASB provides cloud-based and API-based capabilities for deep inspection of SaaS applications, enabling monitoring, analysis, and reporting. It also states that FortiSASE provides inline CASB functionality with a web filter and application control security features , while DLP protects data at rest and in motion.

This question specifically describes restricting Microsoft Office 365 access by tenant, meaning users should be allowed to access company-approved Microsoft 365 resources but blocked from logging in to non-company or personal resources. Fortinet’s FortiSASE documentation describes this exact use case as “restricted SaaS access,” where organizations restrict access to Microsoft Office 365, Google Workspace, and similar SaaS services by tenant to block non-company login attempts and prevent access to non-approved cloud resources. Fortinet’s Office 365 example confirms this is implemented through FortiSASE Web Filter with Inline-CASB, using inline-CASB headers to allow corporate domains and deny personal accounts.

In FortiSASE, the accuracy of application usage reports depends on two primary factors: the ability to identify the application (visibility) and the configuration to log that data (reporting).

Deep Inspection Requirement (D): Modern applications frequently use encryption (SSL/TLS) and dynamic ports. Without Deep Inspection (SSL decryption), the FortiSASE security engine cannot see the application payload and is limited to inspecting headers or SNI. This results in many applications being identified only by their generic protocol (e.g., " SSL " or " HTTPS " ) and subsequently appearing as Unknown in reports because the specific Layer 7 application signature cannot be matched.

Application Control Monitor Setting (B): Even when an application is correctly identified, it must be properly logged to appear accurately in the " Daily report for application usage " . In the inline-CASB (Application Control) profile, categories are assigned actions such as " Allow " , " Block " , or " Monitor " . If categories are set to " Allow " instead of Monitor , the traffic is permitted but granular session details—including the specific application category—may not be logged for reporting purposes, causing them to be grouped into an " Unknown " or " Uncategorized " bucket in high-level summaries.

Analysis of Incorrect Options:

Option A: While certificate inspection provides more visibility than no inspection, it is still insufficient for many applications that require deep packet inspection for identification. Therefore, the lack of Deep inspection (Option D) is the more accurate technical explanation for " Unknown " results.

Option C: ZTNA tags are used for access control and posture-based policy enforcement; they do not impact the application identification engine ' s ability to categorize traffic flows.

To configure a Secure Private Access (SPA) solution to share endpoint information between FortiSASE and a corporate FortiGate, you need to take the following steps:

Add the FortiGate IP address in the secure private access configuration on FortiSASE:

This step allows FortiSASE to recognize and establish a connection with the corporate FortiGate.

Use the FortiClient EMS cloud connector on the corporate FortiGate to connect to FortiSASE:

The EMS (Endpoint Management Server) cloud connector facilitates the integration between FortiClient endpoints and FortiSASE, enabling seamless sharing of endpoint information.

Register FortiGate and FortiSASE under the same FortiCloud account:

By registering both FortiGate and FortiSASE under the same FortiCloud account, you ensure centralized management and synchronization of configurations and policies.

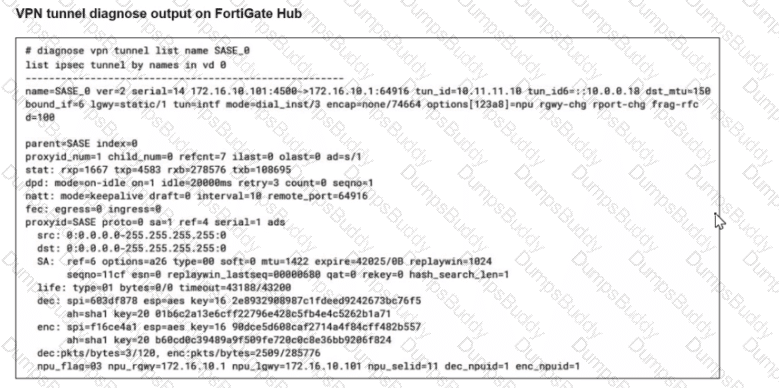

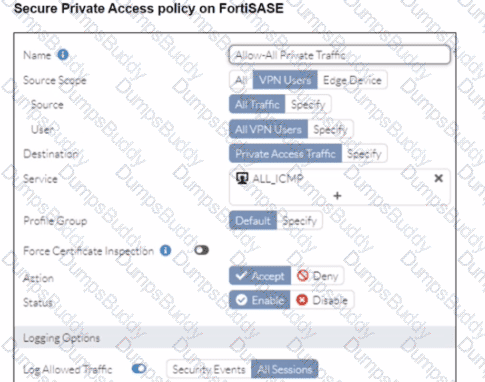

The reason for the ping failures is due to the quick mode selectors restricting the subnet. Quick mode selectors define the IP ranges and protocols that are allowed through the VPN tunnel, and if they are not configured correctly, traffic to certain subnets can be blocked.

Quick Mode Selectors:

Quick mode selectors specify the source and destination subnets that are allowed to communicate through the VPN tunnel.

If the selectors do not include the subnet of the webserver (192.168.10.0/24), then the traffic will be restricted, and the ping will fail.

Diagnostic Output:

The diagnostic output shows the VPN configuration details, but it is important to check the quick mode selectors to ensure that the necessary subnets are included.

If the quick mode selectors are too restrictive, they will prevent traffic to and from the specified subnets.

Configuration Check:

Verify the quick mode selectors on both the FortiSASE and FortiGate hub to ensure they match and include the subnet of the webserver.

Adjust the selectors to allow the necessary subnets for successful communication.

When deploying FortiSASE agent-based clients, several features are available that are not typically available with an agentless solution. These features enhance the security and management capabilities for endpoints.

Vulnerability Scan:

Agent-based clients can perform vulnerability scans on endpoints to identify and remediate security weaknesses.

This proactive approach helps to ensure that endpoints are secure and compliant with security policies.

SSL Inspection:

Agent-based clients can perform SSL inspection to decrypt and inspect encrypted traffic for threats.

This feature is critical for detecting malicious activities hidden within SSL/TLS encrypted traffic.

Web Filter:

Web filtering is a key feature available with agent-based clients, allowing administrators to control and monitor web access.

This feature helps enforce acceptable use policies and protect users from web-based threats.

Integrating FortiManager with FortiSASE allows for central management of configuration objects like addresses and 5 security 6 profiles. For this integration to function correctly, the following key prerequisites must be met:

Same FortiCloud Account: A fundamental requirement for the integration is that both 10 the FortiSASE instance and the FortiManager (whether physical, VM, or Cloud) must be registered under the same FortiCloud (FortiCare) account . This common identity allows the platforms to securely discover and authorize each other for synchronization.

Supported Firmware Version: The FortiManager must run a firmware version that is compatible with the FortiSASE release. According to the FortiSASE 25 Enterprise Administrator Study Guide , FortiManager version 7.4.4 or later is generally required to support the specific API connectors and object synchronization logic used by current FortiSASE environments. Using an unsupported version may result in synchronization failures or missing configuration features.

Management Logic: Once these prerequisites are met, the administrator can enable " Central Management " in the FortiSASE portal. This creates a one-way synchronization where FortiManager acts as the source of truth for objects like Security Profile Groups, ensuring consistent security posture across both the SASE cloud and on-premises FortiGates.

The core of the issue shown in the exhibits is the lack of visibility into encrypted traffic.

HTTPS Encryption: The eicar.org website uses the HTTPS protocol for its downloads. This means the data payload, including the test malware file, is encrypted as it traverses the network.

SSL Inspection Modes: As seen in the Security profile group exhibit (image_5705fc.jpg), the SSL inspection mode is explicitly set to Certificate inspection mode .

Visibility Gap: Certificate inspection only analyzes the initial SSL handshake, such as the server certificate and SNI (Server Name Indication). It does not decrypt the traffic payload. Consequently, the antivirus engine in FortiSASE cannot " see " or scan the eicar.com-zip file hidden within the encrypted session.

Resolution Requirement: To detect and block malicious files over HTTPS, SSL Deep Inspection must be enabled. Deep inspection allows FortiSASE to act as a proxy, decrypting the traffic for full content scanning by the antivirus and IPS engines before re-encrypting it for the endpoint.

Log Analysis: While the web filtering logs (image_5704e5.jpg) show the traffic is " Allowed " because the URL is not blocked by a web filter category, this is only the first step of inspection. The antivirus engine is present but ineffective because it is blind to the encrypted content due to the lack of deep inspection.

The integration of FortiGuard SOCaaS with FortiSASE significantly strengthens an organization ' s security posture by offloading complex security operations to Fortinet ' s expert analysts. 4

Continuous Threat Monitoring (B): FortiGuard SOCaaS provides 24x7x365 threat monitoring for all endpoints connected to the FortiSASE environment. This service eliminates the need for organizations to hire and maintain their own round-the-clock security operations staff while ensuring that threats are detected and verified in as little as 15 minutes.

Centralized Visibility (C): By forwarding FortiSASE logs to the SOCaaS cloud, administrators gain centralized visibility of all security events through a single, user-friendly portal. This portal allows security teams to track threats, review expert-led incident escalations, and communicate directly with Fortinet SOC analysts to streamline the incident response process.

Operational Efficiency: The integration uses AI-driven alert triage and automated correlation to distill data from the Fortinet Security Fabric, focusing on legitimate threats and reducing the alert fatigue often experienced by internal IT teams.

The Secure Web Gateway (SWG) policy is used to control traffic between the FortiClient endpoint and FortiSASE for secure internet access. SWG provides comprehensive web security by enforcing policies that manage and monitor user access to the internet.

Secure Web Gateway (SWG) Policy:

SWG policies are designed to protect users from web-based threats and enforce acceptable use policies.

These policies control and monitor user traffic to and from the internet, ensuring that security protocols are followed.

Traffic Control:

The SWG policy intercepts all web traffic, inspects it, and applies security rules before allowing or blocking access.

This policy type is crucial for providing secure internet access to users connecting through FortiSASE.

The correct answer is D . The FortiSASE study guide explains that SPA allows a FortiSASE POP to act as a spoke and connect to a FortiGate hub. It states that you can use FortiSASE SPA so that a POP connects to either a standalone hub using IPsec or to an existing Fortinet SD-WAN deployment . It also states that the BGP protocol is established through IPsec links for dynamic route exchange, which gives FortiSASE remote users access to private resources. For hub deployments running FortiOS 7.4.5 or later, the guide explains that an easy configuration key can simplify SPA setup on FortiSASE by automatically populating key fields in the FortiGate hub configuration.

The wrong options contradict the guide. Option A is false because FortiSASE does not apply SNAT for remote VPN user and edge device traffic destined for SPA hubs, and FortiSASE spokes support IKEv2, not IKEv1. Option B confuses agentless ZTNA with SD-WAN private access. Option C is wrong because SPA uses IPsec and BGP, and the easy configuration key is for SPA hub setup, not for securing general web traffic.

In FortiSASE, Zero Trust Network Access (ZTNA) tags—also known as security posture tags—are used to dynamically grant or deny access based on the real-time security state of an endpoint. This mechanism ensures that only devices meeting specific compliance requirements can access protected resources or the internet.

Endpoint Analysis: The Managed Endpoints exhibit shows that while Jumpbox only has the FortiSASE-Compliant tag, the Windows-AD endpoint has been assigned both FortiSASE-Compliant and FortiSASE-Non-Compliant tags. This indicates that a security posture check on the Windows-AD device has failed, triggering a rule that applies the non-compliant tag.

Policy Evaluation: The Secure Internet Access Policy table shows two custom policies. The first policy, named Non-compliant , uses the FortiSASE-Non-Compliant tag as its source and has the action set to Deny . The second policy, Web Traffic , allows access for FortiSASE-Compliant users.

Root Cause of Outage: Because FortiSASE (powered by FortiOS) processes security policies in a top-down sequence, the " Non-compliant " policy is evaluated first. Since Windows-AD matches the source criteria for this " Deny " policy, its traffic is blocked before it can reach the " Accept " policy.

Although the exhibit shows a warning icon for the FortiClient version on Windows-AD, the direct cause of the internet outage is the explicit Deny policy triggered by the change in the device ' s security posture (the application of the Non-Compliant tag).

To ensure that organizational SaaS applications (such as Microsoft 365, Salesforce, or AWS Console) are only accessible to users who are currently connected and protected by FortiSASE, administrators utilize Source IP Anchoring and IP-based access control .

Consistent Egress IPs: Every FortiSASE instance is assigned a set of dedicated public IP addresses (egress IPs) for each Security Point of Presence (PoP). Regardless of where a remote user is physically located, when they connect to a specific FortiSASE PoP, all their traffic destined for the internet or SaaS applications will appear to originate from that PoP ' s dedicated egress IP.

Whitelisting and Conditional Access: Administrators can retrieve the list of these dedicated egress IPs from the FortiSASE portal (typically found under the Support or Region IP list). These IPs are then configured as " Trusted Locations " or " Named Locations " within the SaaS provider ' s security settings (e.g., Microsoft Entra ID Conditional Access).

Enforcement Mechanism: Once the SaaS portal is configured to only permit logins from the FortiSASE egress IP ranges, any user attempting to access the application without being connected to the FortiSASE VPN will be denied access because their source IP will be their local ISP address rather than the trusted SASE IP. This effectively mandates the use of the SASE security stack for all corporate SaaS interactions.

Analysis of Incorrect Options:

Option A: CNAPP (Cloud-Native Application Protection Platform) is used for securing cloud-native applications and infrastructure, not for managing egress IP whitelisting for external SaaS providers.

Option B: While ZTNA is a secure access method, it is primarily used for Private Applications hosted by the organization, not for third-party public SaaS portals which rely on standard IP or identity-based conditional access.

Option C: SPA hubs are designed for Secure Private Access (connecting to a corporate data center), not for managing access to public SaaS applications.
