NSE6_SDW_AD-7.6 Fortinet NSE 6 - SD-WAN 7.6 Enterprise Administrator Questions and Answers

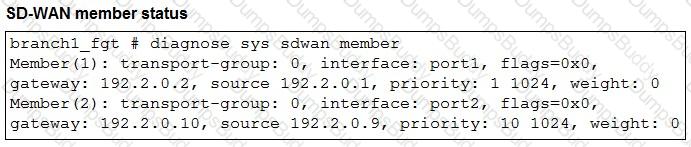

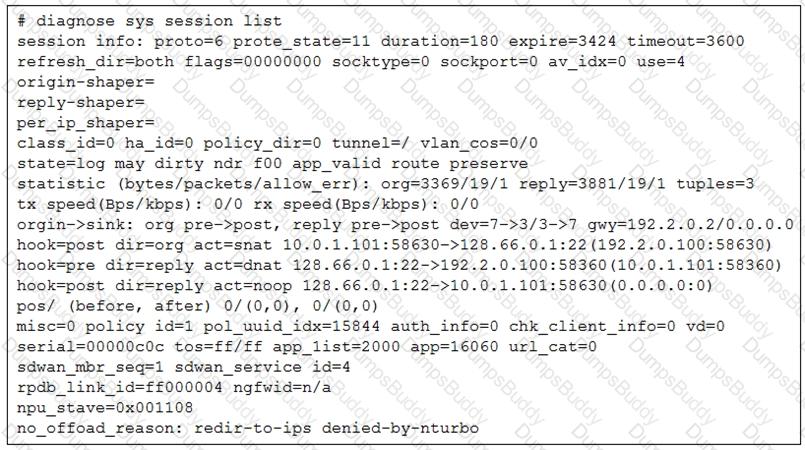

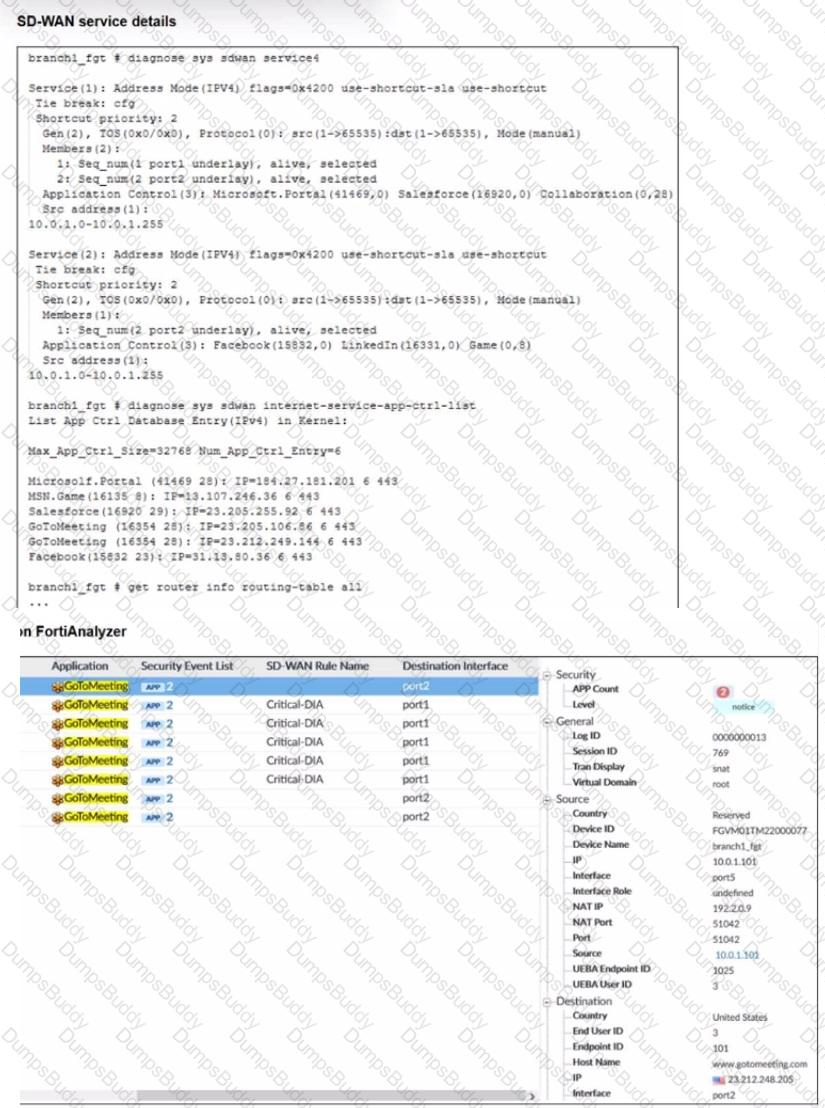

The line sdwan_mbr_seq=1 sdwan_service_id=4 indicates that this session is part of an SD-WAN rule. sdwan_service_id=4 confirms that the session is being handled by SD-WAN rule ID 4. This directly links the flow to the SD-WAN configuration.

The line no_offload_reason: redir-to-ips denied-by-nturbo shows that the session is not offloaded to the NPU (Network Processing Unit) and is being processed by the main CPU. A session that is not offloaded can be re-evaluated. If the outgoing interface (the one currently being used) goes down, the FortiGate will re-evaluate the session against the SD-WAN rules to find a new active member to steer the traffic through. This is a fundamental behavior of SD-WAN, which ensures network resilience.

When planning to deploy a large number of branches (e.g., 50), Fortinet recommends several preparatory steps to simplify and automate the rollout. Creating model devices allows you to predefine configurations and settings that can be cloned or adapted for each branch, saving time and minimizing manual errors. Preparing a Zero Touch Provisioning (ZTP) template enables automatic onboarding and provisioning of new FortiGates as soon as they come online, reducing manual intervention. Lastly, creating a policy blueprint allows for standardized policy deployment across all branches, ensuring consistent security and SD-WAN rule enforcement. This holistic approach streamlines the deployment process, allows for rapid scaling, and ensures that all devices are configured according to corporate policy from day one.

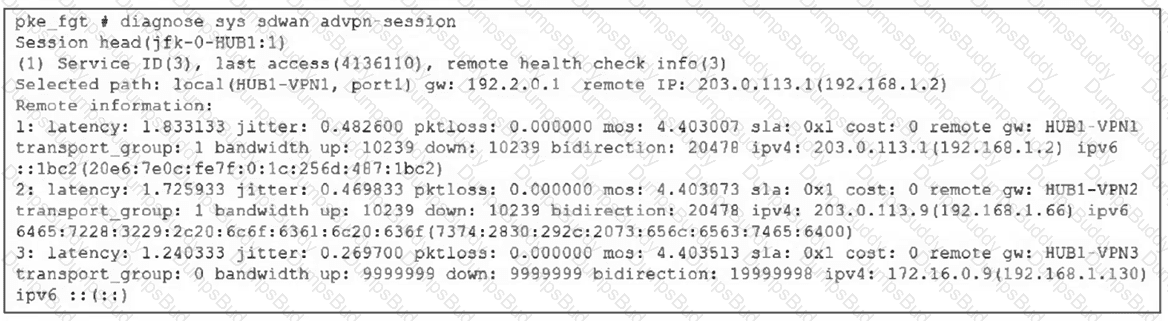

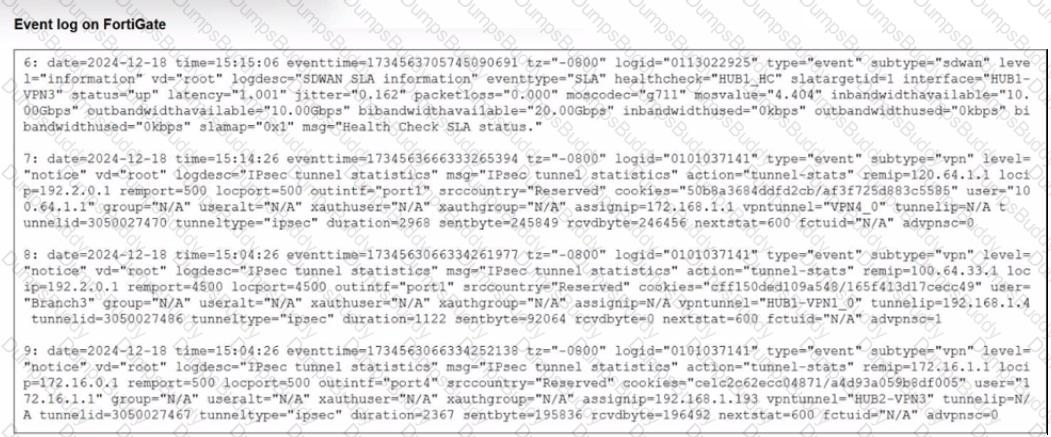

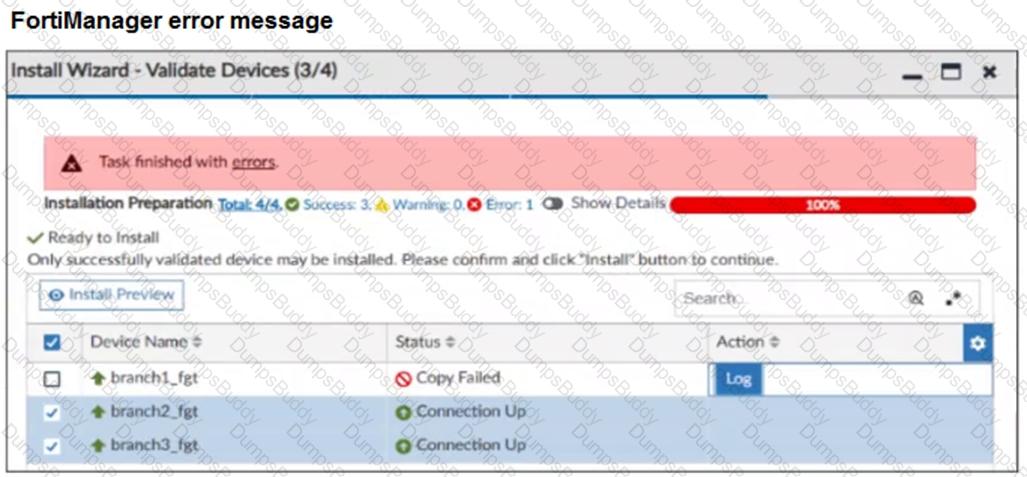

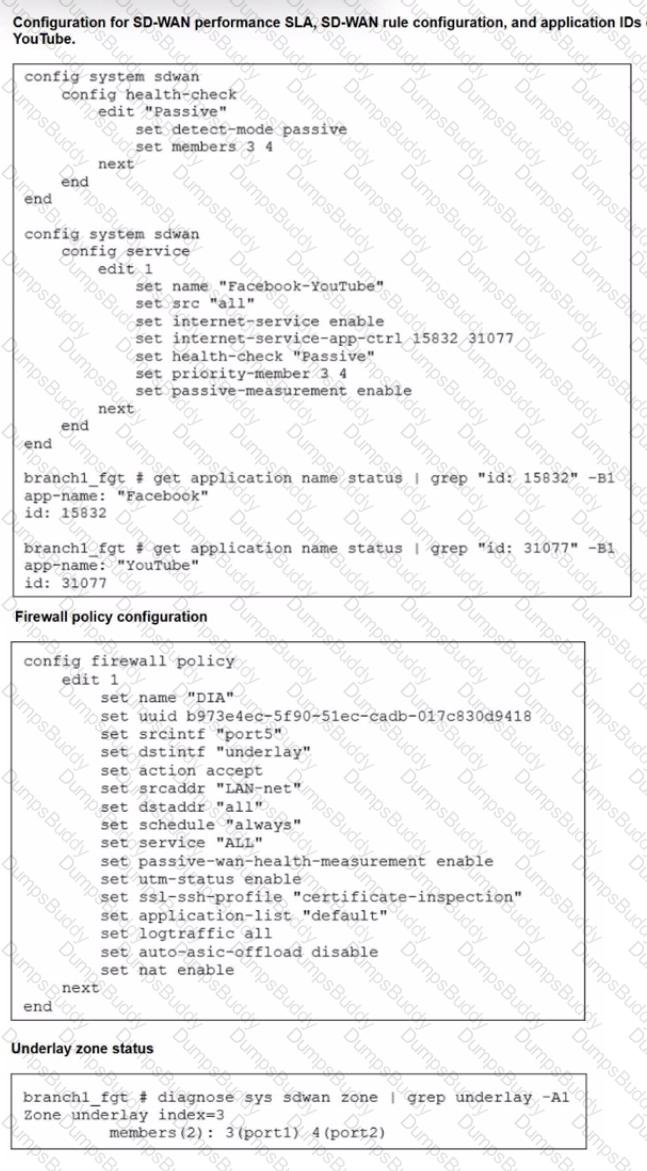

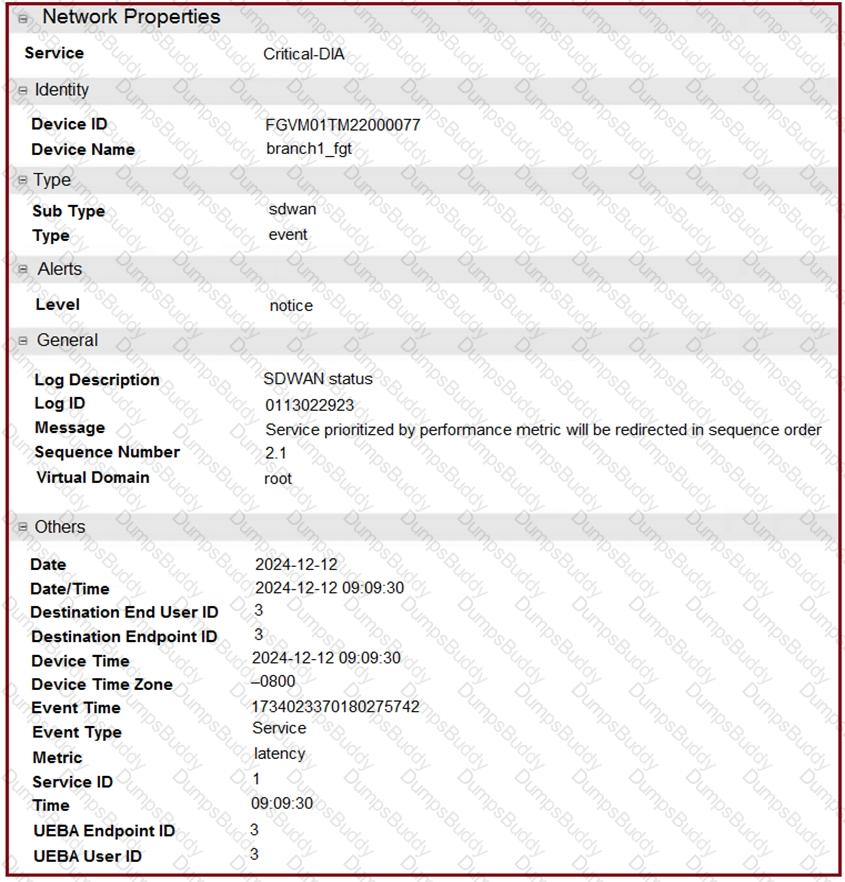

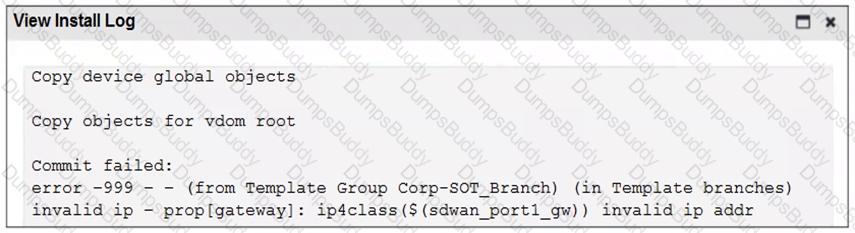

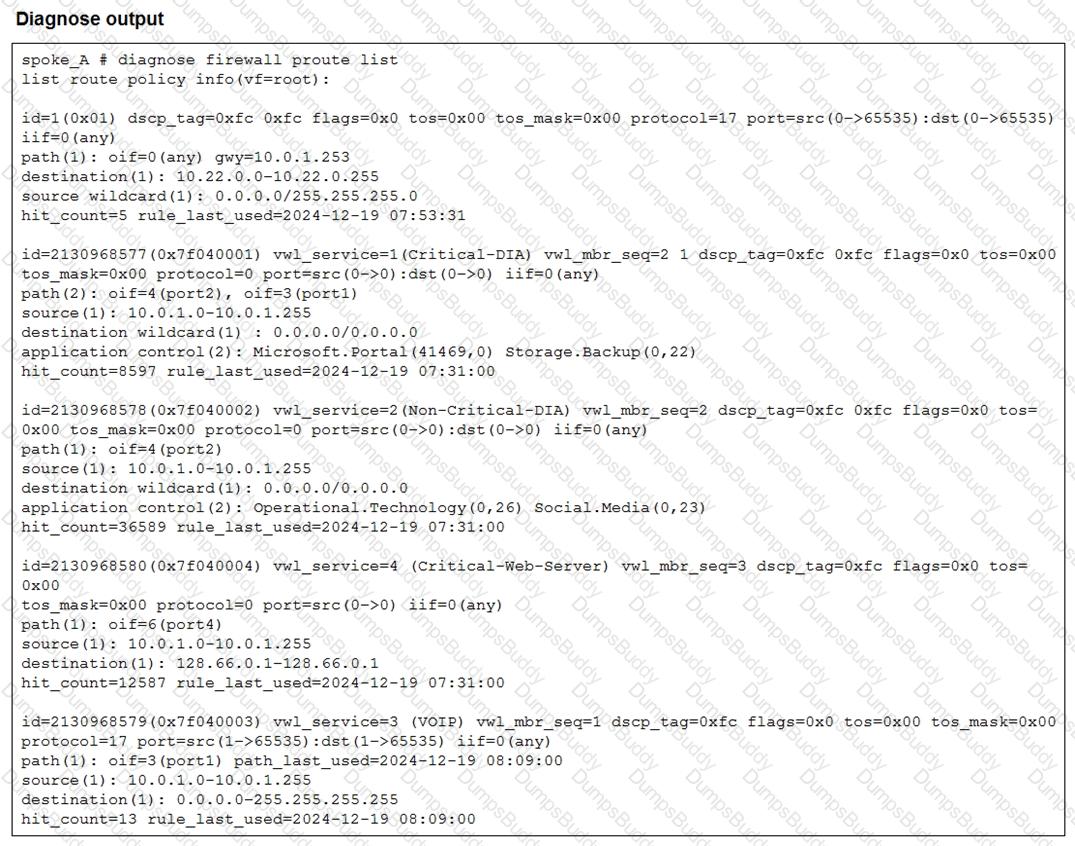

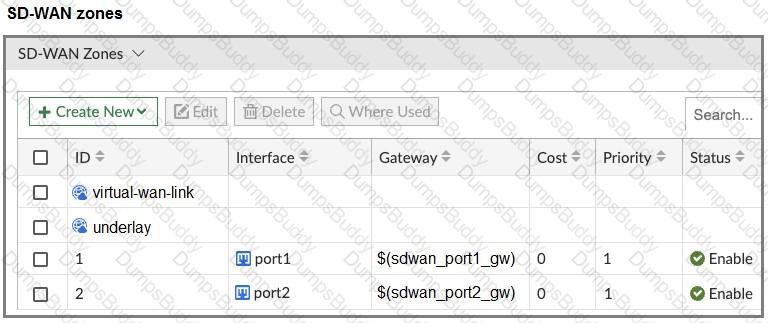

Specify the gateway of the SD-WAN member port1 with an IP address or use the default value → The error log shows invalid ip – prop[gateway]: ip4class(${sdwan_port1_gw}) invalid ip addr, meaning the variable ${sdwan_port1_gw} does not have a valid mapping. Assigning a valid IP address or default value for the gateway resolves this error.

Review the per-device mapping configuration for metadata variables → The issue is tied to how the metadata variable ${sdwan_port1_gw} is mapped for branch1_fgt. If this device does not have the variable properly defined in per-device mapping, the configuration will fail. Correcting the mapping ensures that the install works.

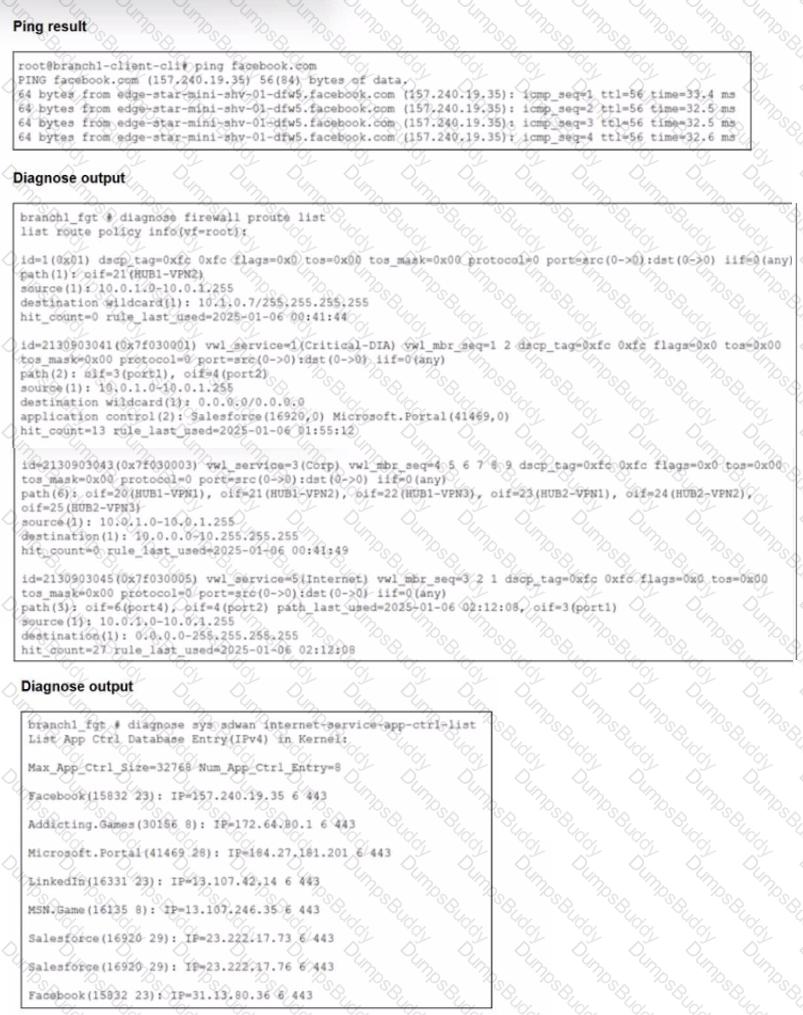

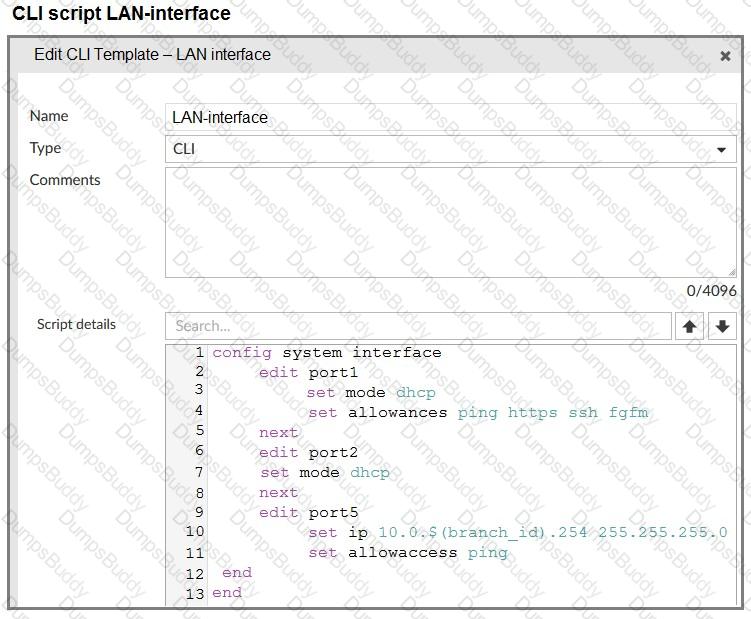

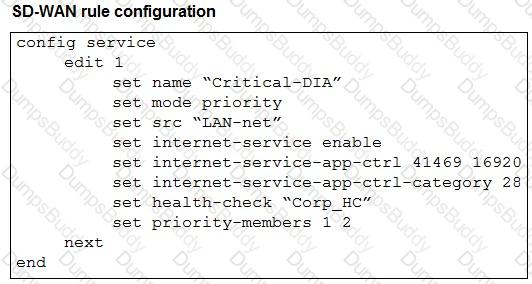

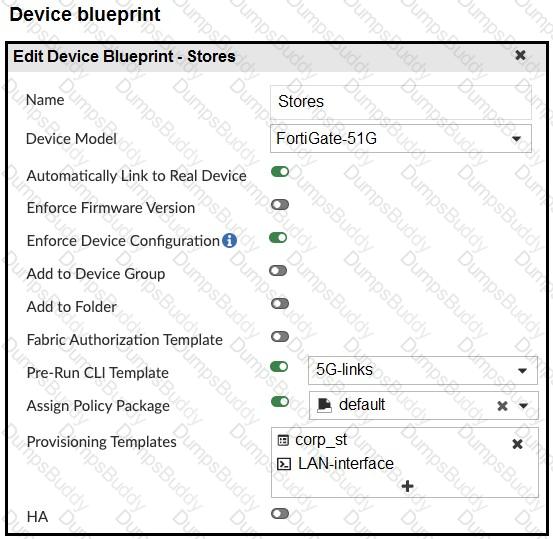

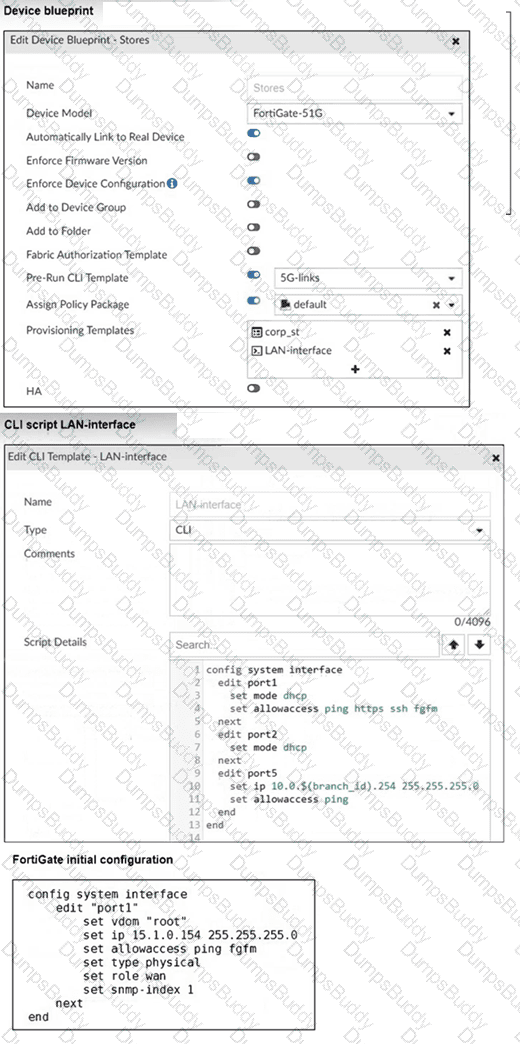

Enforce Device Configuration is enabled and the blueprint applies the provisioning CLI templates. The LAN-interface script sets port1 and port2 to DHCP and assigns a static IP to port5 (using the branch_id variable). Therefore, when FortiManager pushes the blueprint, it updates the configurations of port1, port2, and port5 - and their IP addresses may change accordingly.

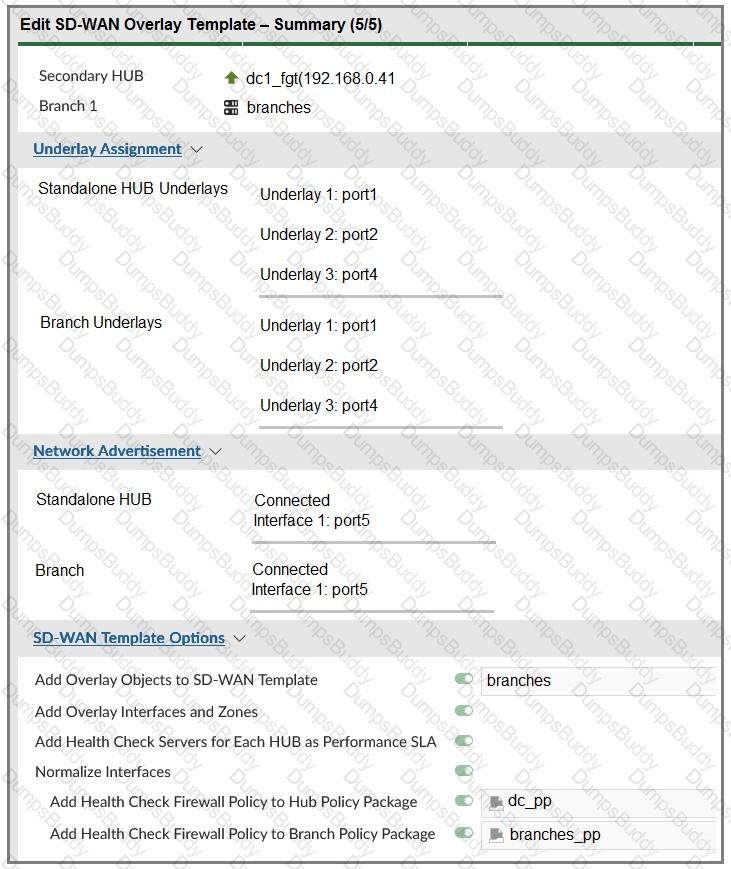

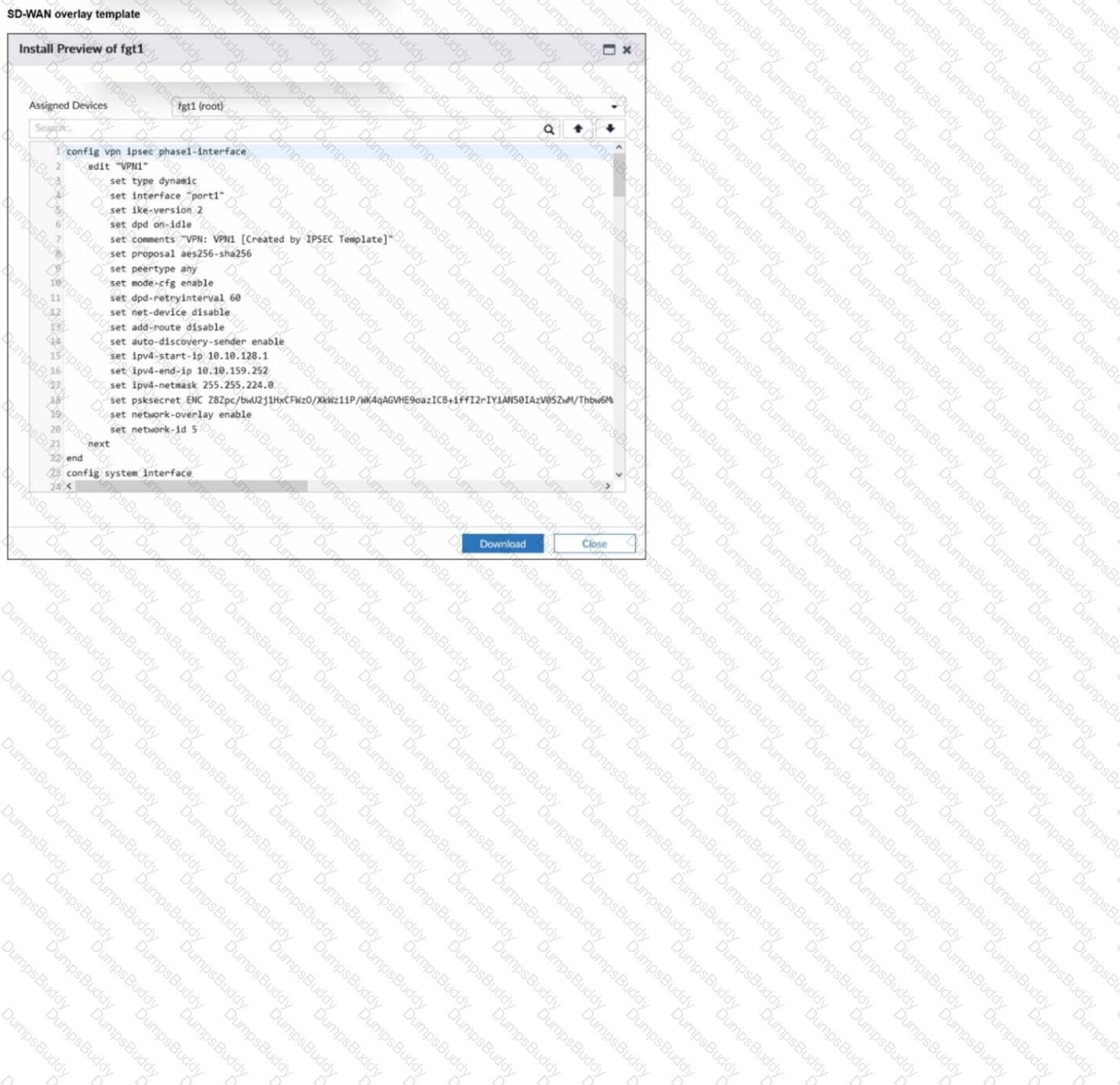

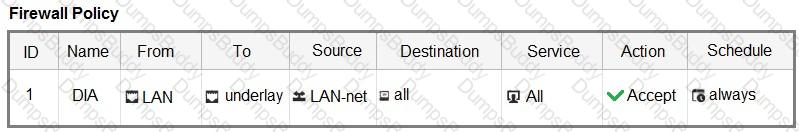

The SD-WAN overlay template defines a zone for each underlay interface and moves the interfaces into those zones. This statement perfectly describes the likely sequence of events. The template, when applied, re-organizes the interfaces and zones, causing the existing firewall policy that relies on the old zone configuration to fail. This is the most plausible root cause.

The provisioning templates in FortiManager are designed for flexible, scalable configuration of large SD-WAN deployments. The official documentation explains:

"Template groups can consist of both system and SD-WAN templates, providing a way to apply consistent settings across multiple devices. CLI templates are evaluated and executed in order from top to bottom within the template group, which is crucial for managing dependencies. Furthermore, CLI template groups can contain both regular CLI templates and advanced (Perl-script-based) templates, allowing complex or conditional configuration logic."

This modular design streamlines large deployments by separating system, SD-WAN, and CLI logic into reusable building blocks.

Within ADVPN topologies, shortcut requests and responses traverse spokes and hubs. Fortinet documentation states:

"When a spoke receives a shortcut query from another spoke, it may forward the response to its hub for validation or to facilitate dynamic shortcut tunnel setup. This mechanism allows direct spoke-to-spoke communication for optimized routing and performance, reducing latency and offloading the hub after initial control-plane mediation."

This is a core benefit of ADVPN’s dynamic shortcut feature.

Your requirements map to two key MSSP goals described in the FCSS SD-WAN 7.6 blueprint patterns:

Delegate as much administration and management as possible to the MSSPThis is best achieved when the hub security and SD-WAN control point is located on the MSSP premises, because the MSSP can centrally operate the core enforcement and overlay control. Both option B (dedicated hub at MSSP) and option D (shared hub at MSSP with customer isolation) meet this requirement.

Each site must maintain direct internet access (DIA) and be secure, with significant site-to-site trafficIn Fortinet SD-WAN MSSP designs, spokes can still use local breakout for DIA while also building secure overlays for inter-site traffic. Placing the hub at the MSSP enables centralized security services and scalable inter-site connectivity management while preserving DIA where required. Options B and D support this operating model.

Why the other options do not best match:

A includes a dedicated hub on the customer premises, which reduces how much the MSSP can centralize and operate from its own environment, so it does not maximize delegation.

C places both hub and spokes on the customer premises. While the MSSP can manage using a dedicated ADOM, this blueprint does not align as strongly with “delegate installation and management” to the MSSP as the designs where the hub is hosted and operated from the MSSP premises.

Therefore, the two MSSP deployment blueprints that address your requirements are B and D.

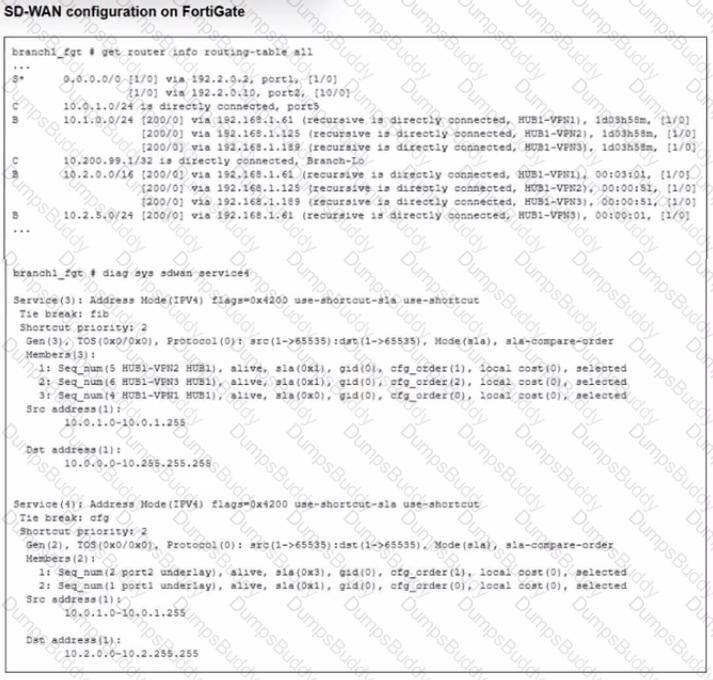

Traffic steering in Fortinet SD-WAN is based on defined rules and the corresponding outgoing interfaces. The exhibit (not shown here) would indicate that the traffic from the LAN subnet 10.0.1.0/24 to the server 10.2.5.254 is matched by SD-WAN rule 3 and sent out via the HUB1-VPN3 interface.

For FortiGate to steer traffic using SD-WAN rules, two foundational elements must be in place: available WAN paths (underlay links) and firewall policies that allow traffic to reach the SD-WAN interface.

Underlay links (Option B) are mandatory because SD-WAN operates by selecting among multiple WAN transports (for example, broadband, MPLS, LTE, or IPsec tunnels). These links are configured as SD-WAN members and form the physical or logical paths over which traffic can be steered. Without underlay links, SD-WAN has no paths to evaluate or select.

Firewall policies (Option E) are also mandatory because FortiGate only processes and forwards traffic that is explicitly permitted by a firewall policy. When SD-WAN is enabled, firewall policies must reference the SD-WAN interface or SD-WAN zone as the outgoing interface. If no such policy exists, traffic will not be forwarded and SD-WAN rules will never be evaluated.

Why the other options are incorrect:

Security profiles (Option A) are optional and relate to inspection, not SD-WAN steering.

Overlay links (Option C) are used in specific designs such as ADVPN or hub-and-spoke overlays, but SD-WAN can steer traffic without overlays (for example, DIA-only designs).

Traffic shaping (Option D) is not required for SD-WAN decision-making; it is an optional optimization feature.

Therefore, the two required features that must be configured before FortiGate can steer traffic according to SD-WAN rules are underlay links and firewall policies, which correspond to B and E.

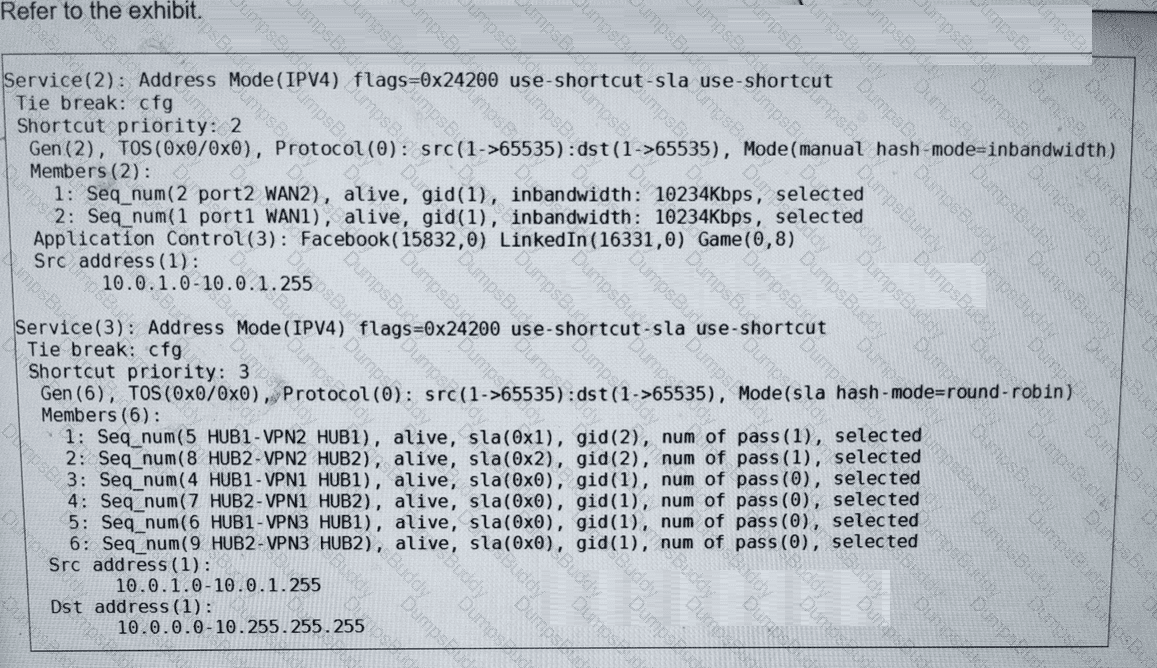

The exhibit shows the runtime details of two SD-WAN services (rules):

Service(2)

Mode(manual hash-mode=inbandwidth)

Members(2): port2 (WAN2), port1 (WAN1)

Application matching: Facebook, LinkedIn, Game

Source: 10.0.1.0–10.0.1.255This rule is clearly intended for internet/DIA application steering and does not show a corporate destination range.

Service(3)

Mode(sla hash-mode=round-robin)

Members(6): HUB1-VPN1/2/3 and HUB2-VPN1/2/3

Source: 10.0.1.0–10.0.1.255

Destination: 10.0.0.0–10.255.255.255

Traffic from 10.0.1.124 to 10.0.0.254 matches Service(3) because the destination IP 10.0.0.254 falls within the destination range 10.0.0.0–10.255.255.255.

Within Service(3), the member list shows SLA results per interface:

HUB1-VPN2 has sla(0x1) and num of pass(1)

HUB2-VPN2 has sla(0x2) and num of pass(1)

The remaining members (HUB1-VPN1, HUB2-VPN1, HUB1-VPN3, HUB2-VPN3) show sla(0x0) and num of pass(0)

This indicates that, for Service(3), only HUB1-VPN2 and HUB2-VPN2 are currently meeting the SLA requirements (passing), and because the rule uses hash-mode=round-robin, FortiGate load-balances sessions across the passing members.

Therefore, FortiGate will steer the traffic using HUB1-VPN2 or HUB2-VPN2, which corresponds to Option B.

In the SD-WAN GUI, the absence of members in a zone is visually represented, and the Fortinet guide confirms:

"If a zone such as overlay-factories contains no members, it will be displayed as empty in the SD-WAN GUI. This may occur when the zone is reserved for future expansion, or if members have been temporarily removed for maintenance or reconfiguration. Traffic cannot be steered via an empty zone until at least one SD-WAN member is added."

Such visual cues help operators quickly assess configuration status and readiness.

From the SD-WAN service configuration, rule edit 3 (name "Corp") is configured with:

set mode sla

set load-balance enable

set dst "Corp-net"

set src "LAN-net"

SLA checks referenced under config sla

Traffic from 10.0.1.101 to 10.0.0.126 matches this rule because the destination is within the corporate network range (shown in the policy-route/proute output as destination 10.0.0.0–10.255.255.255 for the Corp service).

In the diagnose firewall proute list output for vwl_service=3 (Corp), FortiGate shows which SD-WAN members are eligible based on SLA pass results:

oif=21 (HUB1-VPN3) num_pass=2

oif=20 (HUB1-VPN2) num_pass=0

oif=19 (HUB1-VPN1) num_pass=0

This indicates that, for the SLA-based rule, only HUB1-VPN3 is meeting the SLA requirements (it is the only member with num_pass=2). The other members have num_pass=0, so they are not eligible for forwarding under this SLA rule even though links are up.

The sniffer trace further corroborates the forwarding decision by showing the traffic egressing through HUB1-VPN3.

Therefore, FortiGate will steer the HTTP traffic through only HUB1-VPN3, which corresponds to Option A.

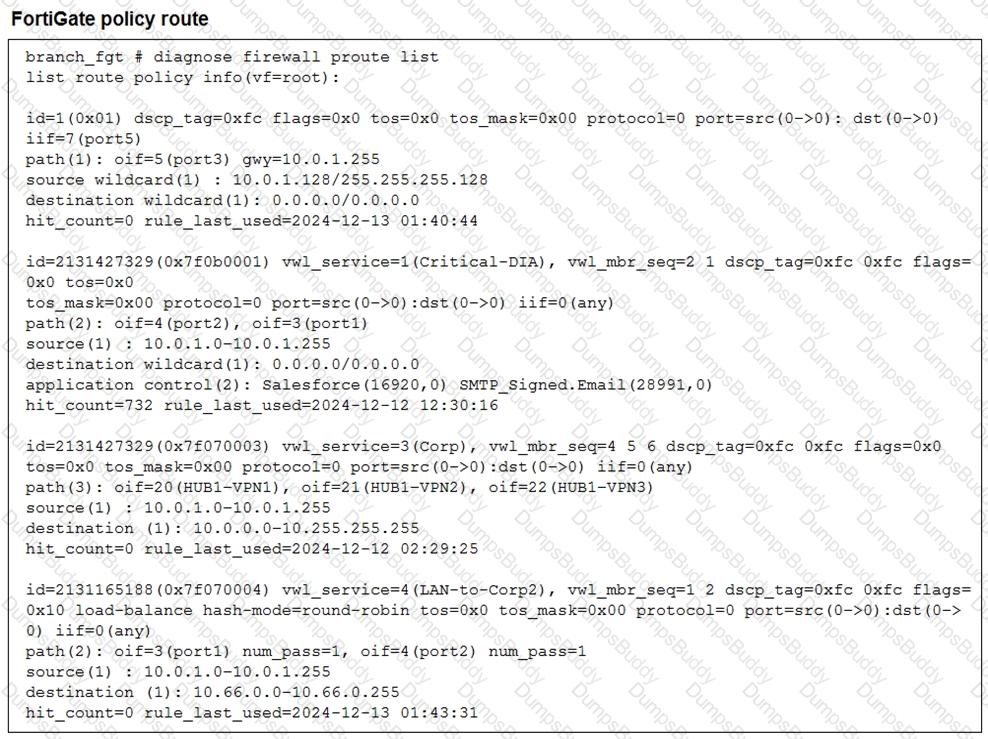

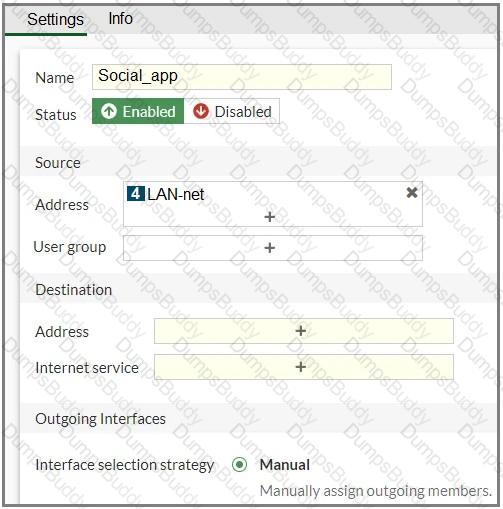

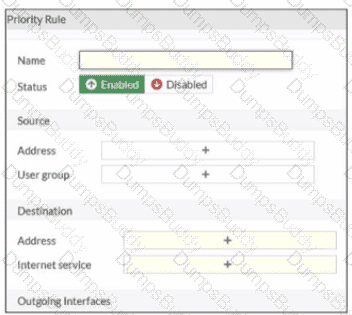

In an SD-WAN rule, you can steer application traffic by using Internet Service Database (ISDB) entries. Facebook and LinkedIn are predefined ISDB objects in FortiGate, so the correct way is to select them in the Internet service field under Destination. This ensures that all traffic to these applications is matched and routed through the chosen (less costly) link.

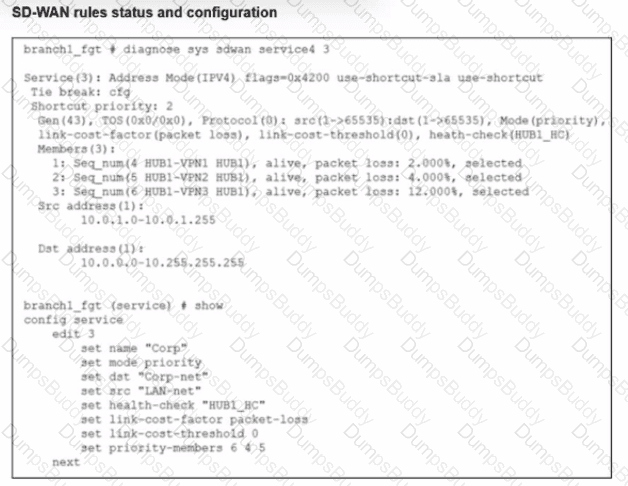

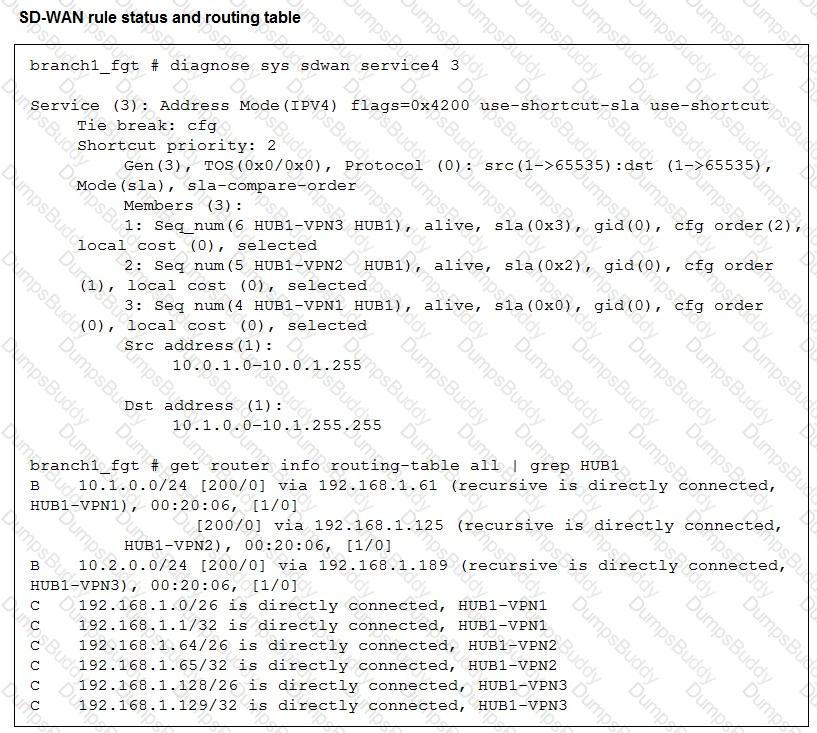

The rule is in SLA mode with two SLAs. From the status, HUB1-VPN2 and HUB1-VPN3 meet the SLA (sla(0x2) and sla(0x3)), while HUB1-VPN1 does not (sla(0x0)). Among members that meet SLA, FortiGate uses the configured order (priority-members 4 5 6) to pick the first eligible one—HUB1-VPN2—so traffic is routed over HUB1-VPN2.

From the SD-WAN rule configuration (service ID 3, name "Corp"), the rule is configured as:

set mode sla

set load-balance enable

set hash-mode source-ip-based

set priority-members 3 4 5

Two SLAs are referenced under config sla

In the diagnose firewall proute list output for service=3 (Corp), FortiGate shows the actual members considered for this rule and their SLA pass status:

oif=19 (HUB1-VPN1) num_pass=2

oif=20 (HUB1-VPN2) num_pass=2

oif=21 (HUB1-VPN3) num_pass=1

Because the rule is SLA-based, FortiGate selects only members that meet the SLA requirements for the rule. The output indicates that HUB1-VPN1 and HUB1-VPN2 pass both SLA checks (num_pass=2), while HUB1-VPN3 passes only one (num_pass=1) and therefore is not selected as an eligible forwarding interface for this rule.

Since load-balance is enabled and the rule uses hash-mode source-ip-based, FortiGate will consistently choose an eligible member based on the source IP hash. For traffic sourced from 10.0.1.101, the session can be steered through either HUB1-VPN1 or HUB1-VPN2 (whichever the hash selects), but not HUB1-VPN3.

Therefore, the correct answer is B.

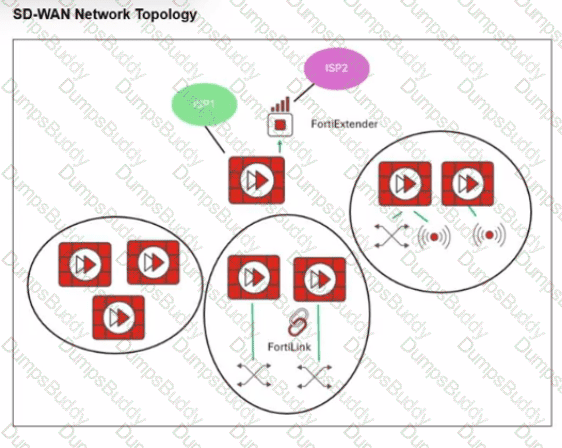

In Fortinet SD-WAN, hubs should not have extensions like FortiSwitch, FortiAP, or FortiExtender installed, as these can affect hub functionality and scalability. While all device types can be included in the topology, the hubs must be "clean" FortiGate devices without such extensions to ensure proper ADVPN and overlay management.

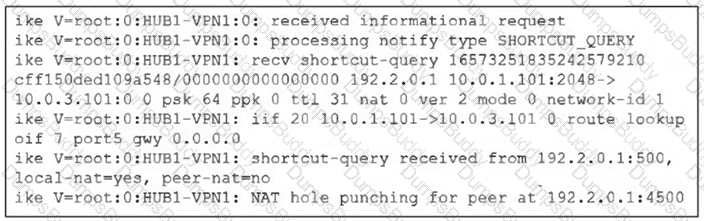

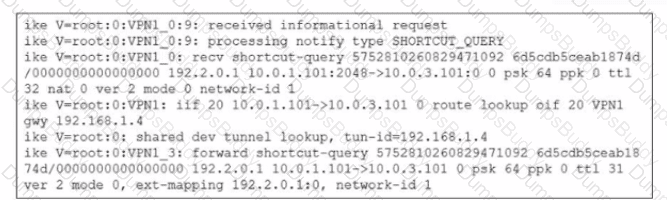

The log messages shown in the exhibit include the following key indicators:

processing notify type SHORTCUT_QUERY

shortcut-query received from 192.2.0.1

local-nat=yes, peer-nat=no

NAT hole punching for peer at 192.2.0.1:4500

In the FCSS SD-WAN 7.6 ADVPN workflow, shortcut queries are always initiated by spokes, not hubs. A spoke sends a shortcut query to its hub when it detects traffic destined for another spoke. The hub’s role is to receive this shortcut query and forward the discovery information toward the destination spoke, enabling the two spokes to build a direct shortcut tunnel.

The device name in the log (HUB1-VPN1) and the presence of NAT hole punching coordination clearly indicate that this device is acting as a hub, not a spoke. Hubs do not form shortcuts themselves; instead, they facilitate shortcut establishment between spokes by relaying discovery and negotiation information.

Option A is incorrect because a spoke does not receive shortcut queries from other spokes directly.

Option B is incorrect because the log does not indicate that the shortcut has already been established; it shows the query and coordination phase, not completion.

Option D is incorrect because hubs do not initiate shortcut queries toward spokes.

Therefore, the correct description is that this device is a hub that has received a shortcut query from a spoke and has forwarded it to another spoke, which corresponds to option C.
