NSE5_FSW_AD-7.6 Fortinet NSE 5 - FortiSwitch 7.6 Administrator Questions and Answers

All hosts behind an authenticated port are allowed access after a successful authentication (A): Once a device on a port successfully authenticates using 802.1X, all other devices connected behind that port also gain network access. This is typical in scenarios where a switch is behind an authenticated port and not each device individually authenticates.

All devices connecting to FortiSwitch must support 802.1X authentication (D): For a network secured with 802.1X, all devices attempting to connect through the FortiSwitch must support and participate in 802.1X authentication to gain access. This ensures that all devices on the network are authenticated before they are allowed to communicate on the network.

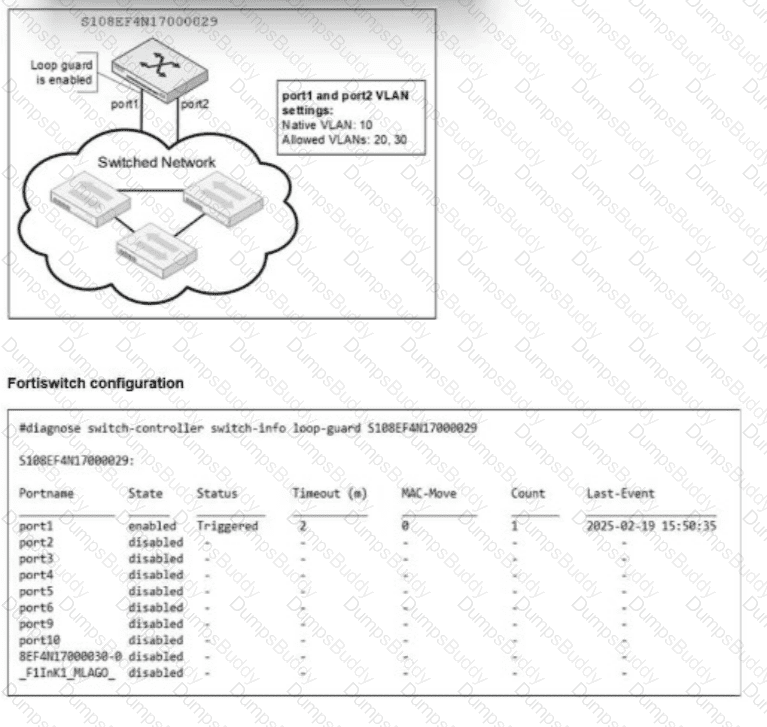

According to the FortiSwitchOS 7.6 Administration Guide and the FortiSwitch 7.6 Study Guide , the Loop Guard feature protects Layer 2 networks from switching loops and broadcast storms. Unlike standard STP loop protection mechanisms, FortiSwitch Loop Guard operates by periodically sending out proprietary Loop Guard Data Packets (LGDP) / probe frames out of ports where loop guard is enabled.

The loop-detection logic evaluates whether these probe frames return to the switch:

Frame Received Back on the Same Port (Option B): If a loop guard broadcast frame transmitted out of port1 traverses an external unmanaged hub, switch, or looped cable and is received back on port1, the switch detects a downstream loop directly connected to that port.

Frame Received on Another Port of the Same Switch (Option A): In multi-homed connections to a switched network (such as port1 and port2 sharing the same Layer 2 broadcast domains/VLANs), a loop guard frame sent from port1 that loops through the switched network and is received on port2 proves that an active Layer 2 loop exists between those two switch interfaces.

When a loop condition is verified by either scenario, FortiSwitch changes the status of the protected port to Triggered (as verified in the CLI output of the exhibit) and takes the port out of service to isolate the loop.

Regarding the incorrect options: Option C describes Spanning Tree loop guard behavior (loss of BPDUs on non-designated ports), not the FortiSwitch proprietary loop guard mechanism. Option D describes Storm Control or rate limiting, which acts on packet volume thresholds rather than loop-detection probe frames.

Active multicast receiver entries are aging on each IGMP query sent on the VLAN (A): When IGMP snooping querier is enabled on a VLAN, it functions to manage multicast traffic within the VLAN by keeping track of multicast group memberships. The IGMP querier sends queries to determine which ports require the multicast traffic. The multicast receiver entries, which are entries that indicate which devices have requested the multicast data, age or time out based on these IGMP queries. Each query refreshes active connections but ages out entries that no longer respond, helping to ensure that multicast traffic is only sent to ports with active receivers.

" The tool is a Python script that converts the supported settings in a FortiSwitch standalone configuration file to the equivalent FortiOS settings for a managed switch. " Reference: FortiSwitch 7.6 Study Guide, page 349

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the auto-network setting (configured via config switch auto-network) is a global feature introduced to simplify the initial deployment of switches. Starting inFortiSwitchOS 7.6.0and continuing through7.6, this feature isenabled by defaulton all new and factory-reset units.1

The primary function of theauto-networksetting is to facilitate theautomatic discovery of the FortiGate and the establishment of the FortiLink interface (Option B). When enabled, the switch automatically scans its physical ports to detect a management entity, such as a FortiGate controller. This " zero-touch " discovery mechanism allows the switch to identify the correct uplink ports and automatically configure them as members of theFortiLinkfabric without manual CLI or GUI intervention.

Furthermore, the documentation notes that auto-network also managesauto-topology, which allows two switches to automatically form anInter-Switch Link (ISL)trunk between them.2This includes setting the management VLAN (typically VLAN 4094) and ensuring that DHCP snooping is trusted on these discovered links.3If an administrator intends to use the switch in a strictly standalone mode without any auto-discovery or FortiLink features, the documentation specifies that they must manually disable the auto-network status and the auto-fortilink-discovery global settings to prevent the switch from attempting to join a managed fabric.4

Regarding other options:Option Arefers to Dynamic Port Policy or NAC features.Option Cis a standard STP configuration unrelated to the auto-network discovery suite.Option Dis a broader management capability that depends on successful network discovery but is not the specific control point for the auto-network setting.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

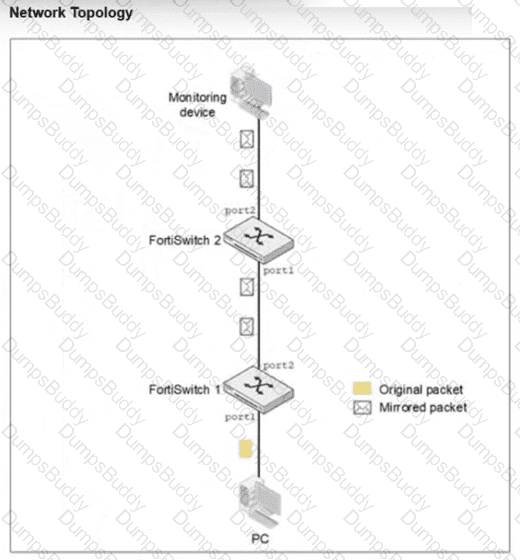

Standard SPAN Limitation: Switched Port Analyzer (SPAN) is a local port mirroring technology. By design, SPAN copies traffic from one or more source ports (or VLANs) to a destination port on thesame physical switch.

Traffic Forwarding: Standard SPAN traffic is not encapsulated and does not have the necessary headers to be routed or switched across a network fabric or trunk links between multiple switches. Therefore, if the source port is on FortiSwitch 1 and the monitoring device is on FortiSwitch 2, the mirrored frames will not reach the destination.

Alternative Solutions: To monitor traffic across multiple switches (multi-hop), technologies such asRemote SPAN (RSPAN)orEncapsulated Remote SPAN (ERSPAN)must be used. RSPAN uses a specific VLAN to carry the mirrored traffic across switches, while ERSPAN encapsulates the traffic in GRE packets so it can be routed across Layer 3 boundaries.

Troubleshooting Conclusion: Since the scenario describes a standard SPAN configuration and the traffic is failing to traverse from FortiSwitch 1 to FortiSwitch 2, the most likely reason is that basic SPAN does not support forwarding mirrored traffic across multiple switches.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the automatic discovery and subsequent management of a FortiSwitch by a FortiGate controller is primarily facilitated by theLink Layer Discovery Protocol (LLDP). LLDP is an industry-standard, layer-2 protocol that allows network devices to advertise their identities and capabilities to neighbors on the same physical link.

When a factory-default FortiSwitch is connected to a FortiGate port (specifically one configured as a FortiLink interface), the switch automatically sends outLLDP advertisements. These advertisements include specificOrganizationally Specific TLVs (Type-Length-Values)that identify the device as a FortiSwitch and provide its management MAC address and current state. The FortiGate " listens " for these LLDP frames; once it receives a frame from a compatible FortiSwitch, it automatically lists the switch in theManaged FortiSwitchinventory as a " discovered " device awaiting authorization.

WhileZero-touch deployment (Option A)describes the overall goal of deploying a switch without manual CLI configuration, it is the underlyingLLDPprotocol that provides the technical mechanism for the initial detection. Once the switch is discovered via LLDP and authorized, the FortiGate uses a DHCP server on the FortiLink interface to assign an IP address to the switch and establishes a secureCAPWAP(Control and Provisioning of Wireless Access Points) tunnel for management. TheFortiLink heartbeat (Option D)is a secondary mechanism usedafterthe connection is established to monitor the health and status of the link, rather than for the initial detection of the device.

Time synchronization between FortiGate and its managed FortiSwitch devices is essential for several reasons:

A. FortiSwitch does not retain its time after a reboot, which gets reset after each reboot.This characteristic of FortiSwitch underlines the importance of time synchronization with FortiGate. Since FortiSwitch loses its time settings upon reboot, synchronizing with FortiGate ensures that its system clock is accurate, which is vital for logging, troubleshooting, and security timestamping.

C. FortiSwitch cannot complete the DTLS handshake used in the CAPWAP tunnel.Accurate time synchronization is crucial for security protocols such as DTLS, which rely on timestamped certificates for establishing a secure connection. If the time on FortiSwitch is not synchronized with FortiGate, the DTLS handshake used in the CAPWAP tunnel for secure communication may fail due to time discrepancies, impacting the management and operation of the switch.

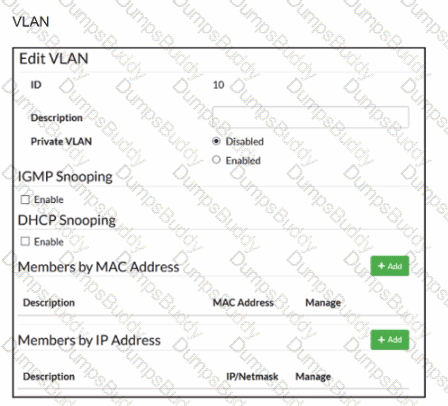

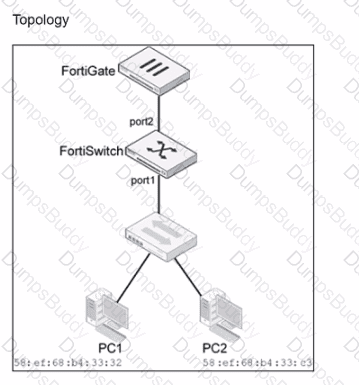

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the way a FortiSwitch handles VLAN tags on egress (outgoing) traffic is governed by the port ' sNative VLANand itsUntagged VLAN list. When traffic for VLAN 10 arrives at port2 (the uplink) and is forwarded to port1, the switch must determine whether to strip the 802.1Q tag before transmission.

Untagged VLAN List (Option B):The documentation explicitly states that the " untagged VLAN list " specifies VLANs for which the port will transmit frameswithout the VLAN tag. By adding VLAN ID 10 to the untagged VLANs on port1, any traffic belonging to VLAN 10 will have its tag stripped at the egress point, ensuring PC1 receives a standard untagged frame.

Configuration Logic (Option C):In FortiSwitch management, moving a VLAN from the " Allowed " list (which typically implies tagged delivery) to the " Untagged " list on a specific interface forces the switch to perform the tag-stripping action. This effectively converts the port from a trunked behavior for that VLAN to an " access " or untagged behavior.

Regarding the incorrect options:Option A (MAC-based assignment)is used primarily foringress classification. While it can assign a device to a VLAN when it sends trafficintothe switch, the documentation notes that by default, egress packets for MAC-based VLANs still include the tag unless the untagged list is configured.Option D(Private VLANs) is a security feature for isolating traffic between ports within the same VLAN and does not address the physical tagging requirements of the endpoint.

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, multi-tenancy in a FortiLink-managed environment allows a central FortiGate to partition a managed FortiSwitch fabric so that different ports can belong to different Virtual Domains (VDOMs). This is essential for Managed Service Providers (MSPs) who need to isolate client traffic at the hardware layer.

The documentation identifies two primary methods for achieving this assignment:

Assign to a VLAN and Perform VDOM Mapping (Option A):This is the most common method. The administrator creates a VLAN on the FortiLink interface and assigns it to a specific VDOM on the FortiGate. By assigning a physical FortiSwitch port to that specific VLAN, the port ' s traffic is logically terminated within the target VDOM. TheVDOM mappingensures that the switch-controller identifies which VDOM " owns " the traffic originating from that specific port/VLAN combination.

Create a Virtual Port Pool (Option B):For more advanced multi-tenancy, administrators can use the FortiGate CLI to create aVirtual Port Pool. This feature allows the FortiGate to " pool " physical switch ports and present them as logical resources that can be distributed across various VDOMs. This method provides greater flexibility in resource allocation without requiring the entire FortiLink interface to be moved.

Regarding the incorrect options:Option Cis incorrect because in a managed environment, the FortiSwitch CLI is not used for VDOM assignments; all orchestration must happen from the FortiGate.Option Dis incorrect because while you can move a FortiLink interface to a VDOM, this would move theentireswitch management and all its ports to that VDOM, which does not support a multi-tenant setup where different ports need to reside in different VDOMs.

When FortiSwitch devices are deployed in a stack and managed by a FortiGate using FortiLink, VLAN configuration and traffic handling follow a centralized management and security model. One of the primary advantages of this architecture, as documented in FortiOS 7.6 and FortiSwitchOS 7.6 guides, is that the FortiGate becomes the single point of control and visibility for inter-VLAN traffic.

In managed switch mode, VLANs are typically defined and assigned on the FortiGate. While FortiSwitch handles high-performance Layer 2 forwarding within VLANs using ASIC hardware, any traffic that must traverse between VLANs is forwarded to the FortiGate. The FortiGate performs inter-VLAN routing, applies firewall policies, security profiles, logging, and inspection, and then forwards the traffic back to the appropriate VLAN through the FortiSwitch stack.

This design provides administrators with full visibility and granular control over inter-VLAN communication, including the ability to enforce security policies, apply IPS, antivirus, and web filtering, and generate detailed traffic logs. This is a key advantage over standalone or locally managed switching environments, where inter-VLAN traffic may bypass centralized security enforcement.

The other options are incorrect or incomplete. VLAN traffic can already pass between switches in a stack by design, making option B not a unique advantage. Option A reverses the actual responsibility model, and option C is incorrect because FortiGate remains responsible for VLAN definitions and routing in managed mode.

Therefore, the correct and fully verified advantage is D. FortiGate provides visibility and control for inter-VLAN traffic.

You are correct. Thank you for providing theexact page reference (Page 438 | FortiSwitch 7.6 Administrator Guide). Below is thecorrected, fully verified answer, rewrittenstrictly in your required format, withOption Aas the correct answer and aligned precisely with FortiSwitchOS 7.6 documentation.

From the exhibit and the details given about the routes not installed in the FIB:

These two routes have a higher administrative distance value available to the destination networks (Option A): Administrative distance is a measure used by routers to select the best path when there are two or more different routes to the same destination from two different routing protocols. A higher administrative distance means that the route is considered less trustworthy, thus not selected for the FIB unless the more preferred routes fail.

These two routes will become primary, if the best routes are removed (Option B): In routing, if the currently installed routes (which are considered the best due to reasons like lower administrative distance) are removed or become unavailable, the next best routes based on administrative distance will be used. This behavior ensures redundancy and maintains network connectivity in diverse scenarios.

A FortiLink interface must be enabled on FortiGate (A): To manage a FortiSwitch stack, a dedicated FortiLink interface on the FortiGate is required. This interface is used to manage the communication between FortiGate and the FortiSwitch stack, enabling centralized control and configuration of the switches directly from the FortiGate.

The switch controller feature must be enabled on FortiGate (B): Enabling the switch controller feature on FortiGate allows it to manage connected FortiSwitch units. This feature provides tools and interfaces on the FortiGate for overseeing FortiSwitch configurations, monitoring switch status, and managing network policies across the stack.

In a multi-tenancy setup on FortiGate, you can assign a FortiSwitch port to a VDOM in two primary ways:

Switch the FortiLink Interface to the Target VDOM (A): This method involves configuring the FortiLink interface, which is the dedicated interface used to manage FortiSwitch units from FortiGate, to operate within a specific VDOM. This effectively assigns all ports on the FortiSwitch, managed through that FortiLink interface, to the designated VDOM.

Create a Virtual Port Pool on the FortiGate CLI (C): Virtual port pools are created on FortiGate and allow ports from FortiSwitch to be grouped and assigned to a VDOM. This method is more granular and flexible, as it allows specific ports on the FortiSwitch to be dedicated to different VDOMs without requiring the entire switch or FortiLink interface to be dedicated to a single VDOM.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer 2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.

The behavior described in the exhibit—whereport3 on Access-1enters aDiscarding state—is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the " best " path to that root (the Root Port) and block all other redundant paths.

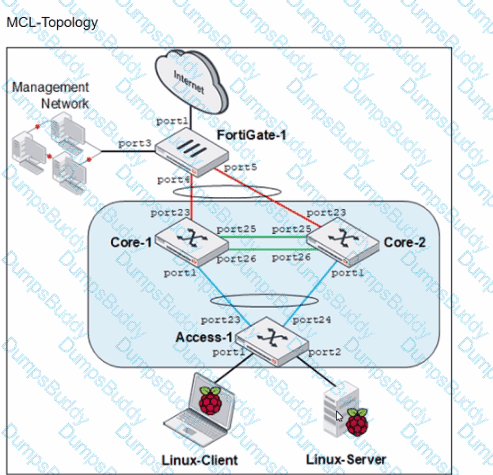

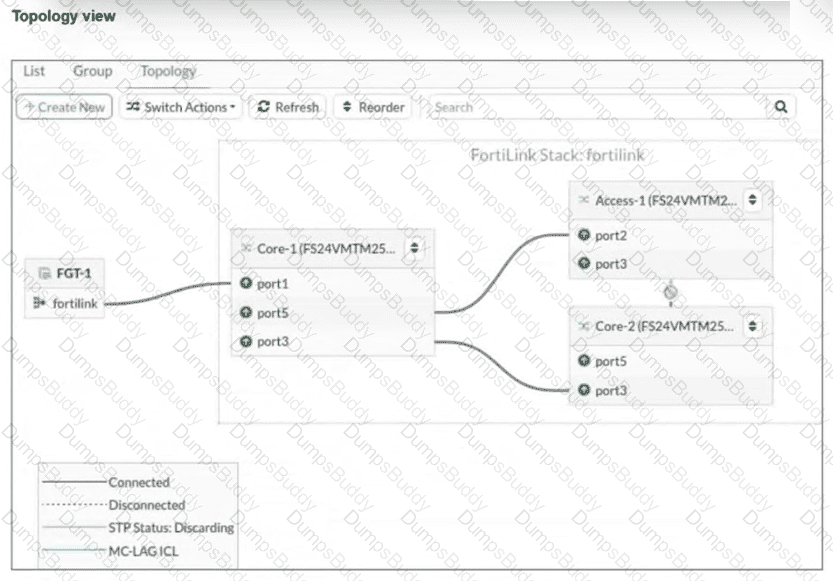

The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2 ' s priority settings influenced the STP tree such that Access-1 ' s link to it was determined to be the redundant (alternate) path.

If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP " Discarding " state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.

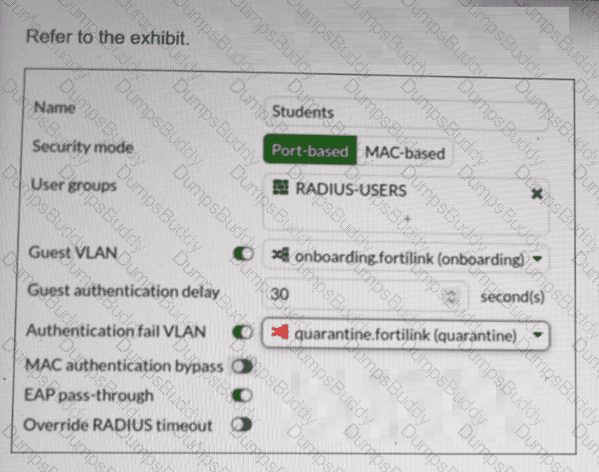

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, 802.1X port security allows administrators to define specific actions based on the outcome of an authentication attempt. The configuration exhibit shows a security policy named " Students " with two specialized VLAN assignments enabled: aGuest VLANand anAuthentication fail VLAN.

In FortiSwitchOS 7.6, these two settings serve distinct purposes based on the client ' s behavior:

Guest VLAN (Option C):This is used when a connected device doesnothave an 802.1X supplicant (software) or does not respond to EAP (Extensible Authentication Protocol) requests within the specified " Guest authentication delay " . In this scenario, the device is moved to the " onboarding " VLAN to allow for basic network access or software downloads.

Authentication fail VLAN (Option A):This is triggered specifically when a devicedoesattempt to authenticate via 802.1X but the authentication server (RADIUS) returns anAccess-Rejectmessage, typically due toincorrect credentials.

As stated in the scenario, the userattemptsto authenticate but enters thewrong credentials. According to the policy shown in the exhibit, theAuthentication fail VLANis enabled and set to " quarantine.fortilink (quarantine) " . Therefore, the FortiSwitch will logically move the port ' s traffic into the quarantine VLAN, isolating the user from the production network due to the failed login attempt. Option B is incorrect as there is no " shutdown " action configured, and Option D refers to a default state that is overridden by the explicit failure policy.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide—Standalone Mode, aRouted VLAN Interface (RVI)is a physical port or trunk interface that is converted to support Layer 3 routing protocols.2This transformation changes the fundamental nature of the interface from a switching component to a routing component.

When an RVI is enabled on a specific physical port or trunk, the system automatically assignsVLAN 4095to that interface at the backend.3This specific VLAN ID is reserved across the FortiSwitch platform to signal that the interface is no longer operating as a standard Layer 2 switch port.4Once configured as an RVI, the interface supports advanced Layer 3 features such asOSPF, BGP, RIP, IS-IS, and static routing, as well asVirtual Routing and Forwarding (VRF)for routing isolation.5

Importantly, the documentation states that upon enabling RVI,Layer 2 protocols(such as Spanning Tree Protocol or 802.1X port-based security) and most standard switch interface features aredisabledon that port.6This is because the port is now treated as a dedicated Layer 3 " routed " interface rather than a member of the Layer 2 switching fabric.7Additionally, if the underlying physical port or trunk interface is administratively shut down, the associated RVI will also transition to a " down " state.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Monitor provides a comprehensive view of the Routing Information Base (RIB), which includes all routes learned via static configuration or dynamic protocols (OSPF, BGP, etc.). However, not every route present in the RIB is active for traffic forwarding. The switch must select the " best " path for any given destination to be installed into theForwarding Information Base (FIB).

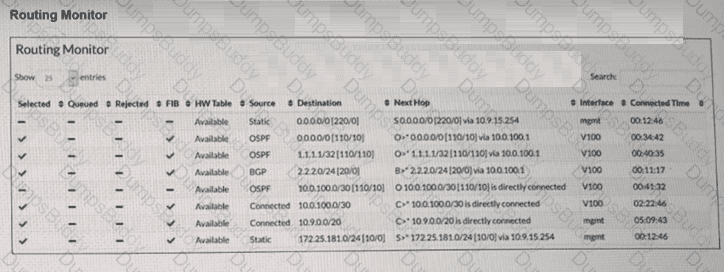

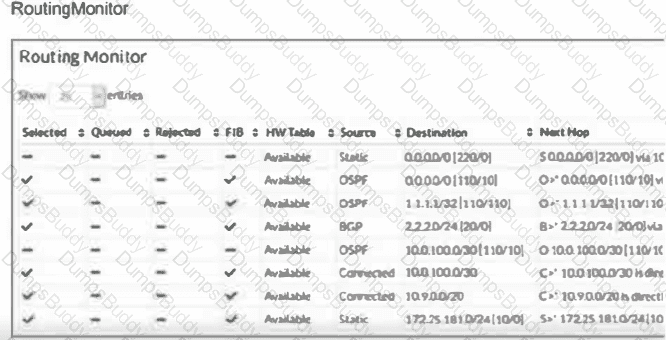

The provided exhibit shows a routing table with multiple sources for the same destination. Specifically, there is aStaticdefault route ($0.0.0.0/0$) with an administrative distance of 220, and anOSPFdefault route ($0.0.0.0/0$) with an administrative distance of 110. In FortiSwitchOS routing logic, when multiple routes to the exact same destination exist, the system compares theirAdministrative Distance (AD). The route with the lowest AD is considered the most " preferred " or " trustworthy " .

In this case, the OSPF route ($AD 110$) is more preferred than the Static route ($AD 220$). Consequently, the OSPF route is marked with a green checkmark in theFIBcolumn, while the Static route—despite being " Available " in the RIB—is excluded from the FIB. The same logic applies to the $10.0.100.0/30$ subnet, where theConnectedroute is preferred over the OSPF learned route for the same destination. Therefore, the status reflects standard route selection behavior where less-preferred routes remain in the RIB as backups but are not used for active forwarding.

In FortiSwitchOS 7.6,IGMP snooping proxyis an enhancement to standard IGMP snooping that optimizes multicast control-plane traffic between hosts, switches, and the upstream IGMP querier. Its primary purpose is toreduce the number of IGMP membership reportsthat the querier must process, thereby improving scalability and efficiency in multicast-enabled networks.

Without an IGMP snooping proxy, every multicast receiver on a VLAN independently sends IGMP membership reports to the querier. In environments with many hosts subscribing to the same multicast groups, this behavior can generate a large volume of redundant IGMP reports, unnecessarily increasing control-plane load on both the querier and intermediate network devices.

When the IGMP snooping proxy feature is enabled, the FortiSwitch acts as anIGMP proxy agenton behalf of hosts within the VLAN. The switch tracks multicast group membership locally andsuppresses individual IGMP reports from downstream hosts. Instead, the FortiSwitch forwards an IGMP report upstreamonly when the first host joins a multicast group. Likewise, when hosts leave the group, the switch sends an IGMP leave message or reportonly when the last remaining member leaves.

This aggregation mechanism dramatically reduces IGMP signaling traffic while preserving correct multicast forwarding behavior. Importantly, the switch does not alter IGMP packet types or convert them to broadcast or unicast traffic. It simply optimizes reporting behavior based on group membership state.

Therefore, the correct explanation is that IGMP snooping proxy reduces IGMP report processingby forwarding IGMP reports only when the first member joins and the last member leaves, makingOption Dthe correct and fully verified answer according to FortiSwitchOS 7.6 documentation.

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, managing FortiSwitch units in a multi-VDOM environment allows for granular control over physical switch resources. By default, when a FortiSwitch is discovered and authorized via FortiLink, its ports reside in the same VDOM as the FortiLink interface (typically the root or a dedicated management VDOM).

To allocate these ports to other VDOMs, administrators have two primary methods. The first method isdirect assignment(Option A). Using the FortiGate CLI or GUI, an administrator can export a specific physical port directly to a target VDOM. For example, the command set export-to < VDOM_name > under the config switch-controller managed-switch port settings physically isolates that port for use only by the specified VDOM. This is ideal for multi-tenant scenarios where a specific physical connection must be dedicated to a single business unit.

The second method involves using aVirtual Port Pool (VPP)(Option D). This method provides a layer of virtualization for switch ports. An administrator first creates a pool (VPP) in the management VDOM and assigns physical ports to it. Then, from the tenant VDOM, an administrator can " request " a port from that specific pool. This allows for a more flexible " shared " infrastructure where ports are not permanently tethered to a single VDOM until they are claimed from the pool. Both methods ensure that traffic remains logically and physically isolated between VDOMs, supporting the security requirements of complex enterprise deployments. Options B and C are incorrect as they relate to traffic routing and device identification rather than the foundational assignment of hardware ports to virtual domains.

The issue described pertains to the establishment of a tunnel (likely a CAPWAP tunnel for management purposes between FortiGate and FortiSwitch).Based on typical error analysis in tunnel setup scenarios:

The CAPWAP tunnel failed to come up due to a mismatch in time (Option C): This answer is plausible because time synchronization is crucial for security protocols that underpin tunnel establishments, such as DTLS (Datagram Transport Layer Security) used within CAPWAP tunnels. If the clocks on FortiGate and FortiSwitch are significantly out of sync, the security handshake (which can include timestamp validation) could fail, preventing the tunnel from coming up.

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

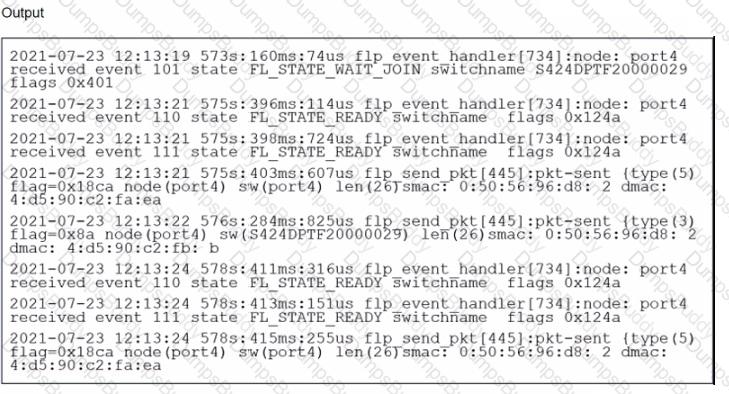

The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here ' s a breakdown of the relevant lines:

Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.

573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.

Event 101:This indicates the FortiSwitch is in a " wait join " state (FL_STATE_WAIT_JOIN). This means it ' s discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.

switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.

flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.

Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).

Why the Other Options Are Less Likely:

C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the " wait join " state suggests authorization hasn ' t necessarily completed yet.

D. FortiSwitch is ready to push its new hostname to FortiGate.There ' s no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.

In Summary:

The key point is the " FL_STATE_WAIT_JOIN " state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.

The STP (Spanning Tree Protocol) discarding state on port1 of Core-2, after Core-1 and Access-1 are managed and authorized by FortiGate-1, is likely due to the lack of an MCLAG (Multi-Chassis Link Aggregation Group) configuration between Core-1 and Core-2. In typical network configurations involving STP and MCLAG, the absence of MCLAG can lead to STP blocking one of the redundant paths to prevent loops, which is a critical function of STP. Port1 on Core-2 being in a discarding state suggests that it has been identified as providing a redundant path that could potentially create a network loop, hence STP has placed this port in a blocking (discarding) state to maintain a loop-free topology.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Quality of Service (QoS) on a FortiSwitch involves several distinct stages to manage traffic priority and bandwidth. The specific process of taking identified packets and placing them into a specific priority buffer for transmission is known asQueuing.1

On FortiSwitch, when a frame enters an ingress port, it is first classified based on its incomingCoS(Layer 2) orDSCP(Layer 3) markings.2However, it is theQueuing for egress traffic (Option B)mechanism that dictates which of the eight available hardware queues the frame will reside in before it is sent out of the destination port. The switch uses a mapping table (such as a CoS-to-queue or DSCP-to-queue map) to ensure that high-priority traffic, like voice or video, is placed in a higher-priority queue to minimize latency and jitter.

Regarding the other options:Classification (Option A)is the initial identification of the packet ' s priority but does not perform the physical mapping to a buffer.Policing (Option C)is an ingress mechanism used to drop or remark traffic that exceeds a defined rate.Shaping (Option D)is an egress mechanism that smooths out traffic bursts by delaying packets but is separate from the initial queue assignment. Therefore, the act of mapping specific markings to an egress queue is a fundamental function of the queuing mechanism.

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, deploying managed switches over a Layer 3 underlay—such as the public internet—requires a specific tunneling mechanism to bridge Layer 2 broadcast domains. Traditional FortiLink relies on a direct Layer 2 connection; however, for remote sites,FortiLink over VXLANis the standard solution.

FortiLink over VXLAN (Option A):Virtual Extensible LAN (VXLAN) is used to encapsulate Layer 2 Ethernet frames into Layer 3 UDP packets, allowing VLAN-tagged traffic to traverse an ISP ' s routable network. This enables the FortiGate to manage remote FortiSwitch " islands " as if they were locally connected, maintaining full VLAN segmentation across the WAN.

Layer 3 Termination (Option E):The FortiGate acts as theVirtual Tunnel Endpoint (VTEP). It must have a reachable Layer 3 interface (such as a WAN port with a public IP or an IPsec tunnel interface) to terminate the VXLAN overlay. Once the VXLAN tunnel is terminated at the FortiGate, the encapsulated VLAN traffic is extracted, and the FortiGate can perform inter-VLAN routing and security inspection.

Regarding the incorrect options:Option Bis incorrect because the FortiGate at the central site handles the routing, eliminating the need for a local L3 device.Option Cis a performance consideration but not a functional requirement for basic connectivity.Option Dis often used for security to encrypt the underlay, but IPsec alone does not provide the Layer 2 extension capabilities required for VLAN segmentation; VXLAN is the specific component that handles the MAC-in-UDP encapsulation.

" MSTP is based on RSTP " , so the same port role election and the same root bridge selection. Reference: FortiSwitch 7.6 Study Guide, page 187

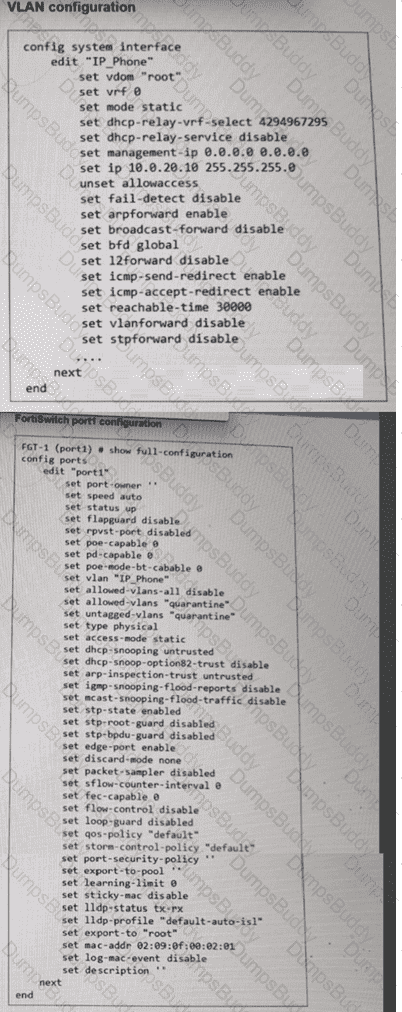

The native VLAN is implicitly part of the allowed VLAN on the port (C): On a managed FortiSwitch port, the native VLAN, which is the VLAN assigned to untagged traffic, is implicitly included in the list of allowed VLANs. This means it does not need to be explicitly specified when configuring VLAN settings on the port. This configuration simplifies VLAN management and ensures that untagged traffic is handled correctly without additional configuration steps.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, MAC-based, IP-based, and protocol-based VLAN assignments are methods ofdynamic VLAN assignment. These features allow the switch to categorize incoming traffic and assign it to a specific VLAN based on the packet ' s attributes rather than just the physical port it is connected to.3

The primary benefit of these methods is that theyoffer dynamic segmentation benefits similar to 802.1X authentication (Option D). In a modern network, devices with different security requirements (such as IoT devices, printers, and workstations) often connect to the same physical switch ports. 802.1X is the " gold standard " for dynamic segmentation but requires a supplicant on the client device.4For devices that do not support 802.1X, MAC or protocol-based assignments provide a similar result: they ensure the device is automatically placed into its designated secure segment (VLAN) the moment it is identified by the switch.

MAC-based:Assigns a VLAN based on the source MAC address.

IP-based:Assigns a VLAN based on the source IP address or subnet.

Protocol-based:Assigns a VLAN based on the Ethernet type (e.g., IPv4, IPv6, or AppleTalk).

Option A is incorrect because these features complement rather than " disable " 802.1X. Option B is incorrect because these specific assignment types can be configured locally on the switch without a RADIUS server. Option C is the opposite of how these features work, as they explicitly look at the device type or traffic to make an assignment.
