NSE5_FNC_AD_7.6 Fortinet NSE 5 - FortiNAC-F 7.6 Administrator Questions and Answers

Questions no:9

Verified Answer: B

Comprehensive and Detailed 250 to 300 words each Explanation with Exact Matched Extract from FortiNAC-F Administrator library and documentation for current versions (including F 7.2, 7.4, and 7.6) documents:

In FortiNAC-F, the integration with FortiGate for Security Fabric and Single Sign-On (FSSO) allows the system to communicate the access level of an endpoint directly to the firewall usingfirewall tags. This eliminates the need for complex VLAN steering in some environments by allowing the FortiGate to apply policies based on these dynamic tags instead of just a physical or virtual network segment.

The actual assignment of the firewall tag value occurs within aLogical Network. In the FortiNAC-F architectural model, a Logical Network acts as a container for " Access Values " . When an administrator configures a Logical Network (located underNetwork > Logical Networks), they define what that network represents—such as " Corporate Access " or " Contractor Limited " . Within that definition, they assign the specificFirewall Tagthat matches the tag created on the FortiGate. Once a user or host matches aNetwork Access Policy, FortiNAC-F identifies the associated Logical Network and pushes the defined tag to the FortiGate via the FSSO connector.

It is important to note that whileNetwork Access Policies(and by extensionSecurity Rules) are the logic engines thattriggerthe assignment, they do not hold the tag value itself. They simply point to a Logical Network, which serves as the central repository for that specific access configuration.

" To assign firewall tags, navigate toNetwork > Logical Networks. Select the desired logical network and clickEdit. Under theAccess Valuesection, selectFirewall Tagas the type and enter the tag name exactly as it appears on the FortiGate. When a Network Access Policy matches a host, FortiNAC sends this tag to the FortiGate as an FSSO message. " —FortiNAC-F Administration Guide: Logical Networks and Security Fabric Integration.

In a corporate domain environment where " enhanced endpoint visibility " is required, thePersistent Agentis the recommended choice. Unlike the Dissolvable Agent, which is temporary and intended for one-time compliance scans during registration, the Persistent Agent is an " install-and-stay-resident " application.

The Persistent Agent is specifically designed to be distributed through automated enterprise methods, includinglogin scripts, Group Policy Objects (GPO), or third-party software management tools. When deployed via a login script, the agent can be configured to silently install and immediately begin communicating with the FortiNAC-F service interface. Once active, it provides continuous visibility by reporting host details such as logged-on users, installed applications, and adapter information. It also listens for Windows session events (logon/logoff) to trigger automatic single-sign-on (SSO) registration in FortiNAC-F, ensuring that as soon as a user connects to the domain, their device is identified and assigned the correct network access policy.

" The Persistent Agent can be distributed to Windows domain machines vialogin scriptor by any other software distribution method your organization might use. The Persistent Agent remains installed on the host at all times. Once the agent is installed it runs in the background and communicates with FortiNAC at intervals established by the FortiNAC administrator. " —FortiNAC-F Administration Guide: Persistent Agent Overview.

In FortiNAC-F,Port Groupsare used to apply specific enforcement behaviors to switch ports. When a port is assigned to an enforcement group, such asForced RegistrationorForced Remediation, FortiNAC-F overrides normal policy logic to force all connected adapters into that specific state. The exhibit shows a port (IF#13) with " Multiple Hosts " connected, which is a common scenario in environments using unmanaged switches or hubs downstream from a managed switch port.

According to theFortiNAC-F Administrator Guide, it is possible for a single port to be a member of multiple port groups. However, when those groups have conflicting enforcement actions—such as one group forcing a registration state and another forcing a remediation state—FortiNAC-F utilizes aranking systemto resolve the conflict. In the FortiNAC-F GUI underNetwork > Port Management > Port Groups, each group is assigned a rank. The system evaluates these ranks, andonly the higher ranked enforcement group is appliedto the port. If a port is in both a Forced Registration group and a Forced Remediation group, the group with the numerical priority (rank) will dictate the VLAN and access level assigned to all hosts on that port.

This mechanism ensures consistent behavior across the fabric. If the ranking determines that " Forced Registration " is higher priority, then even a known host that is failing a compliance scan (which would normally trigger Remediation) will be held in the Registration VLAN because the port-level enforcement takes precedence based on its rank.

" A port can be a member of multiple groups. If more than one group has an enforcement assigned, the group with thehighest rank(lowest numerical value) is used to determine the enforcement for the port. When a port is placed in a group with an enforcement, that enforcement is applied toall hostsconnected to that port, regardless of the host ' s current state. " —FortiNAC-F Administration Guide: Port Group Enforcement and Ranking.

TheUser/Host Profileis the primary mechanism in FortiNAC-F for identifying and categorizing endpoints to determine their level of network access. According to theFortiNAC-F Administration Guide, a profile is built using a combination of criteria that define " Who " is connecting, " What " device they are using, and " Where " they are located on the network.

The three main categories of criteria available in the configuration are:

Host or User Attributes (B):This includes specific details such as the host ' s operating system, the user ' s role (e.g., Employee, Contractor), or custom attributes assigned to the record.

Host or User Group Memberships (A):Profiles can be configured to match endpoints that are members of specific internal FortiNAC groups or synchronized directory groups (like LDAP or Active Directory groups). This allows for broad policy application based on organizational structure.

Location (E):The " Where " component allows administrators to restrict a profile match to specific physical or logical areas of the network, such as a particular switch, a group of ports, or a specific SSID.

Criteria like an " applied access policy " (D) are theoutcomeof a profile match rather than a criterion used to define the profile itself. Similarly, the " Adapter current VLAN " (C) is a dynamic state that changes based on enforcement and is not a standard static identifier used for profile matching.

" User/Host Profiles are used to identify the hosts and users to which a policy will apply. Profiles are created by selecting various criteria in theWho/What(Attributes and Groups) andWhere(Locations) sections. Attributes can include Host Role, User Role, and OS. Group memberships allow matching based on internal or directory-based groups. Location criteria allow for filtering based on the device or port where the host is connected. " —FortiNAC-F Administration Guide: User/Host Profile Configuration.

The FortiNAC-FLogical Networkfeature is specifically designed to provide an abstraction layer between high-level security policies and the underlying physical network infrastructure. In large-scale deployments where different physical locations (like Building 1, 2, and 3 in the exhibit) use different local VLAN IDs for the same type of device (e.g., VLAN 10, 20, and 30 for printers), managing separate policies for each building would create significant administrative overhead.

By using aLogical Network, an administrator can create a single entity—for example, a logical network named " Printers " —and use it as the " Access Value " in a singleNetwork Access Policy. The mapping of this logical label to a specific physical VLAN occurs at theModel Configurationlevel for each network device. When a printer connects to a switch in Building 1, FortiNAC-F evaluates the policy, identifies that the printer should be in the " Printers " logical network, and checks the Model Configuration for that specific switch to see which VLAN ID is mapped to that label (VLAN 10). If the same printer moves to Building 3, the same single policy applies, but FortiNAC-F provisions it to VLAN 30 based on the local mapping for that building ' s switch.

This architectural approach ensures that policies remain consistent and easy to manage regardless of the complexity or variations in the local network topology.

" Logical Networks provide a way to define a network access requirement once and apply it across many different network devices that may use different VLAN IDs for that access... Each managed device can usedifferent VLAN IDs for the same Logical Network label. You can define the Logical Networks based on requirements and then associate the network to a VLAN ID when the managed device is configured in theModel Configuration. " —FortiNAC-F IoT Deployment Guide: Define the Logical Networks.

The correct answer is C . The Port Changes view is the correct troubleshooting location when FortiNAC-F changes endpoint network access, such as moving a switch port into a different VLAN. The study guide states that any time FortiNAC-F changes network access for an endpoint, the change is documented in Network > Port Changes . This view shows the date and time of the change, whether a CLI configuration was executed, the reason for the change, the role or access policy that caused it, the port that was changed, and the VLAN the port was changed to.

This directly matches the troubleshooting requirement in the question: the administrator needs to know when the VLAN change happened and why FortiNAC-F made that network access decision. Option A , Security Event view, is used for security-related events, not detailed port-level VLAN-change history. Option B , Reports view, is too broad and not the operational audit trail for a specific access change. Option D , Admin Auditing, tracks administrative actions, but an automatic policy-driven VLAN assignment is documented under Port Changes, not primarily as an admin audit event.

The correct answers are A and B . For FortiNAC-F to process syslog messages from a vendor that is not already known, it needs a parser so it can understand the message structure. The study guide describes this under syslog integration: syslog files must be created, and FortiNAC-F parses CSV, CEF, or tag/value messages by using column mapping or tag-to-value mapping. That parser is what allows FortiNAC-F to extract the correct event information from the incoming message.

The sending device must also be modeled in the Inventory view, normally as a pingable device, and its Incoming Events setting must be set to Syslog with the appropriate parser selected. The guide is blunt on this point: FortiNAC-F does not process syslog or trap messages unless the source address belongs to a modeled device.

Option C is wrong because adding the device as a server in the Host view does not prepare FortiNAC-F to parse syslog input. Option D is also wrong because log receivers are for sending FortiNAC-F event or alarm information out to external systems such as FortiAnalyzer, SIEM, or a syslog server, not for receiving and parsing unknown-vendor syslog messages.

The correct answer is A . In FortiNAC-F, device profiling rules are used primarily to classify unknown or untrusted devices when they are first discovered. The study guide explains that when a device does not already exist in the database, FortiNAC-F adds it, treats it as a rogue, and evaluates it against enabled device profiling rules. It also states that devices are initially evaluated against device profiling rules only if they do not already exist in the database, because this avoids unnecessary repeated evaluation of known devices.

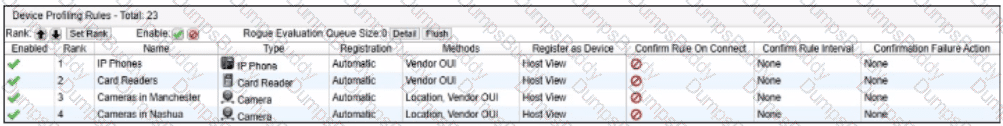

The exhibit also matters: the rules are enabled and set to Automatic registration, but Confirm Rule On Connect is not enabled and Confirm Rule Interval is set to None . That means FortiNAC-F will not automatically revalidate already-profiled or trusted devices every time they connect. Option B is wrong because trusted devices are not repeatedly evaluated unless rule confirmation is configured. Option C is too broad because all hosts are not processed through profiling rules on every connection. Option D is also wrong because changing location does not by itself force automatic device profiling; location can be used as a rule method, but the automatic evaluation described here applies when the rogue device is initially added to the database.

TheFortiNAC-F Manager (FortiNAC-M)is designed as a centralized management platform for large-scale distributed environments where multiple FortiNAC-F Control and Application (CA) appliances are deployed across different sites. According to theFortiNAC-F Manager Administration Guide, the deployment of a Manager simplifies administrative overhead in three specific ways:

First, it providesGlobal Version Control (B). The Manager serves as a central repository for firmware and software updates, allowing administrators to push specific versions to all managed CAs simultaneously, ensuring consistency across the entire fabric. Second, it enablesPooled Licenses (D). Instead of purchasing and managing individual licenses for every CA, licenses are centralized on the Manager. The Manager then distributes these licenses to the CAs as needed based on their host counts. This " floating " license model optimizes cost and prevents individual sites from running out of capacity while others have excess. Third, it offersGlobal Visibility (E). The Manager aggregates host and device data from every managed CA into a single console. This " single pane of glass " allows an administrator to search for a specific MAC address or user across the entire global organization without logging into individual servers.

While the Manager can assist with configuration templates, authentication security policies (C) and infrastructure modeling (A) are still predominantly managed at the local CA level to ensure site-specific logic and performance.

" The FortiNAC Manager provides a central management console for multiple FortiNAC-F servers (CAs). Key benefits include: •License Management: Licenses are pooled on the Manager and allocated to managed CAs as needed. •Software Management: Firmware updates can be centrally managed and pushed to all CAs from the Manager. •Centralized Monitoring: Provides a global view of all hosts, adapters, and events across the entire managed environment. " —FortiNAC-F Manager Administration Guide: Overview and Benefits.

In FortiNAC-F,Device Profiling Rulesare used to automatically identify and categorize devices (such as IP cameras, printers, or IoT devices) based on fingerprints like DHCP fingerprints, OIDs, or MAC prefixes. When a device matches a rule, it appears in theProfiled Devicesview.

However, matching a rule does not automatically register the device in the database unless the rule is configured to do so. If the devices appear in the view but remain " Unknown " and show " No " in the registration column, it indicates that the " Confirm " (or " Auto-register " ) action has not been triggered. In the Device Profiling Rule configuration, there is a setting called " Allow Auto-Approval " or " Confirm " . If this is not enabled, the system identifies the device but waits for an administrator to manually approve the match before changing the host status from " Unknown " to " Registered " .

This is a common " safety " configuration used during the initial deployment phase to ensure that the profiling rules are accurate before the system begins automatically granting network access based on those matches.

" If a device matches a rule but is not registered, check the rule configuration. TheConfirmoption (within the Method or Rule settings) determines if the system automatically registers the device upon a match. IfConfirmis not enabled, the device will remain in the ' Profiled ' state with a registration status of ' No ' until an administrator manually promotes the device. " —FortiNAC-F Administration Guide: Device Profiling Rules.

In FortiNAC-F, theSecurity Incidentsengine is used to automate responses to security threats reported by external devices. When an administrator wants to enforce a policy, such as quarantining contractors who access restricted websites, they must create aSecurity Rule. A Security Rule acts as the " if-then " logic that correlates incoming security data with the internal host database.

The documentation specifies that a Security Rule consists of three primary configurable components:

User/Host Profile:This identifieswhoorwhatthe rule applies to (in this case, " Contractors " ).

Trigger:This is theeventthat initiates the rule evaluation. In this scenario, the Trigger would be configured to match specific syslog messages or NetFlow data indicating access to prohibited websites. Triggers use filters to match vendor-specific data, such as a " Web Filter " event from a FortiGate.

Action:This defineswhathappens when the Trigger and User/Host Profile are matched. For this scenario, the administrator would select a " Quarantine " action, which instructs FortiNAC-F to move the endpoint to a restricted VLAN or apply a restrictive ACL.

While " Methods " (A) relate to authentication and " Security Strings " (E) are used for specific SNMP or CLI matching, they are not the structural components of a Security Rule in the Security Incidents menu.

" Security Rules are used to perform a specific action based on certain criteria... To configure a Security Rule, navigate toLogs > Security Incidents > Rules. Each rule requires aTriggerto define the event criteria, anActionto define the automated response (such as Quarantine), and aUser/Host Profileto limit the rule to specific groups. " —FortiNAC-F Administration Guide: Security Rules and Incident Management.

In FortiNAC-F, theInventory topologyuses specific icons to represent the status and model of discovered network infrastructure. When a switch or other network device is discovered via SNMP, FortiNAC-F retrieves itsSystem ObjectID (sysObjectID)to identify the specific make and model. This OID is then compared against the internal database of supported device mappings.

Aquestion mark (?)icon appearing on a discovered switch indicates that while the discovery process successfully communicated with the device (meaning SNMP credentials were correct), theSNMP ObjectID is not recognizedor mapped in the current version of FortiNAC-F. This essentially means the device is " unsupported " by the current software out-of-the-box. Because the OID is unknown, FortiNAC-F does not know which CLI or SNMP command set to use for critical functions like L2 polling (host visibility) or VLAN switching (enforcement). To resolve this, an administrator can manually " Set Device Mapping " to a similar existing model or a " Generic SNMP Device " if only basic L3 visibility is required.

" Discovered devices displaying a ' ? ' iconindicate the currently running version does not have a mapping for that device ' sSystem OID(device is not supported). Device mappings are used to manage the device by performing functions such as L2/L3 Polling, Reading, and Switching VLANs. " —Fortinet Technical Tip: Options for devices unable to be modeled in Inventory.

The correct answer is A . In the exhibit, Guest-VLAN is selected as the network access policy Configuration . That policy configuration points to a logical network, but the actual access value for that logical network is not defined inside the guest template, user/host profile, or guest portal. The FortiNAC-F study guide explains that logical networks translate policy-level names into device-specific access values, and those values are configured in the Model Configuration of the infrastructure device. It specifically states that device-specific configurations for infrastructure devices associate the configuration values with the devices, and that after a logical network is created, it appears within the model configuration of each modeled infrastructure device.

So, Guest-VLAN is the logical network selected by the network access policy, while the actual VLAN ID, VLAN name, SSID role, controller group, or vendor-specific access value is configured under the relevant switch, AP, controller, or firewall Model Configuration . Option B is wrong because the guest template defines guest account properties such as role, security/access value, password settings, account duration, and login availability. Option C is wrong because the user/host profile defines the matching condition for guests. Option D is wrong because the guest portal controls onboarding or login behavior, not the infrastructure access value used to provision the endpoint.

In FortiNAC-F, accountability and forensic tracking of configuration changes are managed through theAdmin Auditingfunctionality. When an administrator performs an action that modifies the system state—such as creating a policy, changing a device ' s status, or adding a switch port to anEnforcement Group—the system generates an audit record. This record is essential for troubleshooting scenarios where unauthorized or accidental configuration changes have occurred, leading to unintended network behavior.

TheAdmin Auditingview (found underLogs > Admin Auditing) provides a comprehensive log of the " Who, What, and When " for every administrative session. Each entry includes the username of the administrator, the source IP address from which they accessed the FortiNAC-F console, a precise timestamp, and a detailed description of the modification. In the scenario described, where ports have been incorrectly added to enforcement groups, the Admin Auditing view allows a supervisor to filter by the specific " Port " or " Group " object to identify exactly which administrator executed the command.

In contrast, theEvent Managementview (B) is designed to monitor system and network events, such as RADIUS authentications, host connections, and SNMP trap arrivals. While it tracks system activity, it does not typically log the manual configuration changes performed by admins. ThePort Changesview (C) tracks the operational history of a port (such as VLAN assignment changes and host movements) but does not attribute the administrative assignment of the port to a group. Finally, theSecurity Eventsview (D) is dedicated to alerts triggered by security rules and external threat feeds.

" Admin Auditing displays a record of all modifications made to the FortiNAC-F system by an administrator. This view includes the administrator ' s name, the date and time of the change, and a description of the action taken. It is the primary resource for determining which administrative user performed a specific configuration change, such as modifying port group memberships or altering policy settings. " —FortiNAC-F Administration Guide: Logging and Auditing Section.
