UiPath-ADPv1 UiPath (ADPv1) Automation Developer Professional Exam (2023.10) Questions and Answers

In UiPath coded workflows (using the SDK for .NET), theDelayAsyncmethod is used tosuspend execution asynchronouslyfor a specified duration. This allows the rest of the application to remain responsive while the delay occurs in a non-blocking fashion.

The Object Repository is a feature of UiPath Studio that allows you to store and manage UI elements that are used in your automation projects. You can create and edit UI descriptors for the UI elements, and reuse them across multiple workflows and projects. The Object Repository supports both the default UI framework and the Computer Vision framework for identifying UI elements.

The Computer Vision framework is a technology that uses artificial intelligence and machine learning to analyze the UI of any application and provide reliable selectors for the UI elements. The Computer Vision framework can handle complex and dynamic UIs that are not supported by the default UI framework, such as Citrix, SAP, or PDF applications.

The Capture All Elements feature in Object Repository is a feature that allows you to capture all the available elements of an application using the Computer Vision technology. You can use this feature to quickly and easily create UI descriptors for all the UI elements on the screen, without having to indicate each element individually. You can access this feature by clicking the Capture All Elements button on the Object Repository ribbon tab, or by using the Capture All Elements activity in the workflow.

The Capture All Elements feature has the following benefits:

It saves time and effort by capturing all the UI elements in one go, instead of indicating each element separately.

It ensures consistency and accuracy by using the same Computer Vision technology and selector logic for all the UI elements.

It allows you to edit, rename, or delete the UI descriptors after capturing them, and customize them according to your needs.

It enables you to reuse the UI descriptors across multiple workflows and projects, and share them with other developers.

The correct answer is C. To capture all the available elements of an application using the Computer Vision technology. This statement accurately describes the purpose of the Capture All Elements feature in Object Repository.

The other options are not correct statements. Option A is incorrect, because the Capture All Elements feature does not capture the selected elements of an application, but all the available elements. It also does not capture the elements from multiple screens simultaneously, but only from the current screen. Option B is incorrect, because the Capture All Elements feature does not capture the selected elements of an application, but all the available elements. Option D is incorrect, because the Capture All Elements feature does not capture the elements from multiple screens simultaneously, but only from the current screen.

This expression evaluates if the number modulo 2 equals 0, which would mean it is even. If true, it assigns the string "Even number" to the variable message. If false (meaning the number is odd), it assigns "Odd number" to message

The Verify Expression with Operator activity is used to verify an expression by asserting it in relation to a given expression with an operator1. The expressions tested with this activity must be inserted in their respective property fields. In this case, the activity is configured to verify if the expression “1” is equal to the expression “2”. The result of this verification is stored in the Result property, which reflects the state of the verification activity1. If the verification fails, the activity throws a TestingActivitiesException, which is a custom exception type defined by the UiPath.Testing.Activities package2.

The Try-Catch activity is used to catch a specified exception type in a sequence or activity, and either displays an error notification or dismisses it and continues the execution3. The activity has three main sections: Try, Catches, and Finally. The Try section holds the activity or set of activities that could throw an exception. The Catches section indicates the exception type and holds the activity or set of activities to be performed when the specified exception is thrown. The Finally section holds the activity or set of activities to be performed after the Try and Catches blocks are executed, regardless of the result3.

In this scenario, the Verify Expression with Operator activity is placed in the Try section of the Try-Catch activity. The Catches section has two exceptions caught: System.Exception and TestingActivitiesException. The Finally section is empty. During the execution of the sequence, the Verify Expression with Operator activity will throw a TestingActivitiesException, because the expressions 1 and 2 are not equal. The Try-Catch activity will catch this exception and enter the TestingActivitiesException sequence from the Catches section, where the appropriate actions can be performed to handle the error. Therefore, the correct answer is C. The Exception sequence from the Catches block within the Try-Catch activity will be entered first, after the Verify Expression with Operator activity is executed.

The other options are incorrect because:

Option A is incorrect because the Try-Catch activity will execute one of the blocks within the Catches section, depending on the type of exception thrown by the Verify Expression with Operator activity. In this case, the TestingActivitiesException sequence will be executed.

Option B is incorrect because the Finally block within the Try-Catch activity will be executed only after the Try and Catches blocks are executed, not before. The Finally block is used to perform any cleanup or final actions that are needed regardless of the outcome of the Try and Catches blocks3.

Option D is incorrect because the TestingActivitiesException sequence from the Catches block within the Try-Catch activity will be entered second, not first, after the Verify Expression with Operator activity is executed. The first block to be entered is the Try block, where the Verify Expression with Operator activity is placed.

In the BDD (Behavioral-Driven Development) template structure, the "Setup" part of a test case supports the Surround with mock feature. This section is used to set up the testing environment, including mock configurations.

LINQ (Language Integrated Query) in UiPath is used for efficient data manipulation. The LINQ query 'listOfintegers.Sum(Function(x) x)' correctly demonstrates how to sum integers in a list, making use of LINQ's straightforward and readable syntax.

In the Object Repository in UiPath, there are two types of elements: Local elements and library elements. Local elements are specific to a project, while library elements can be reused across multiple projects.

A linear process in UiPath is a type of process that is executed only once and does not involve any looping or branching logic. It is suitable for simple scenarios where the input data is fixed and the output is predictable. A linear process can be designed using a Sequence or a Flowchart diagram, but it does not use any Flow Decision, Switch, While, Do While, or For Each activity. If the process needs to process additional data, then the automation must be executed again with the new data as input. References: Framework for linear process or single transaction, How to modify ReFramework to Linear Process, Workflow Design, Difference between Linear process and Transactional process

In UiPath Testing Activities, the "Verify Expression" activity is designed to evaluate expressions and can include other activities within its body. This feature is particularly useful in test cases where you need to assert the outcome of a specific expression or condition. By embedding other activities within the "Verify Expression" activity, users can execute additional actions or checks as part of the verification process, enhancing the flexibility and depth of testing scenarios within UiPath projects.References:

UiPath Documentation: Testing Activities Guide

The Type Into activity has three input methods: Default, Simulate, and Window Messages. The Default method uses hardware drivers to send keystrokes to the target application, which means it requires the window to be active and visible. The Simulate and Window Messages methods use software drivers to send keystrokes to the target application, which means they can work in the background, even if the window is hidden or minimized. However, the Simulate method cannot send hotkeys, while the Window Messages method can. Therefore, the only input methods that can be used individually for the Type Into activity to enter text and hotkeys in a hidden or minimized window are Simulate and Window Messages. References:

•Type Into

•Input Methods

Mock Testing is a concept that allows you to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Mock Testing enables you to create a mock file of your workflow by selecting Mock workflow under test in the Create Test Case window. This creates a copy of your workflow with the name workflowName_mock and stores it in Project > Mocks. This folder mirrors the source workflow file tree structure. In the mock file, you can use the Surround with mock option to insert a mock activity that replaces the original input activity. For example, instead of asking the user to input a specific token, you can use a mock activity that assigns a predefined token value to a variable. This way, you can test the specific function of the process without having to enter the token manually every time. Mock Testing is useful for tests that have permanent effects in production or require special resources1.

The other options are incorrect because:

Option A is incorrect because Application Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Application Testing is a type of testing that focuses on verifying the functionality, usability, performance, and security of an application2.

Option B is incorrect because Data-Driven Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Data-Driven Testing is a type of testing that uses external data sources, such as Excel files or databases, to provide input values and expected results for the test cases3.

Option D is incorrect because RPA Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. RPA Testing is a type of testing that involves using robots to automate the testing of other robots or applications.

To replace the functionality of the MessageBox with a LogMessage during mock testing, the developer can perform the action of Surround activity with mock. This action inserts a mock activity around the selected activity, which allows the developer to change the behavior of the activity for testing purposes. For example, the developer can right-click on the MessageBox activity and select Surround activity with mock from the dropdown menu. This will create a mock activity that contains the MessageBox activity. The developer can then edit the mock activity and replace the MessageBox activity with a LogMessage activity, which will write the message to the output panel instead of displaying it in a dialog box. This way, the developer can test the functionality of the workflow without having to interact with the MessageBox dialog box. References: [Mock Testing], [Surround Activity with Mock]

The default URL of the OCR server that runs the Computer Vision service is https://cv.uipath.com/. The Computer Vision service is a cloud-based service that provides OCR and AI capabilities for UiPath automation projects. The service can be accessed by using the Computer Vision activities in UiPath Studio, such as CV Screen Scope, CV Click, CV Type Into, and more. The service requires an API key and a URL to connect to the OCR server. The default URL is https://cv.uipath.com/, but it can be changed to a custom URL if the developer has a self-hosted OCR server. The API key can be obtained from the UiPath Automation Cloud portal or from the UiPath Marketplace. References: [About Computer Vision], [Computer Vision Activities]

The purpose of credential stores in UiPath Orchestrator is to securely store sensitive data such as Robot credentials and Credential Assets for use in automation processes. Credential stores are external services that provide encryption and protection for sensitive data. Orchestrator can integrate with various credential stores, such as CyberArk, Azure Key Vault, and HashiCorp Vault, and use them to store and retrieve the credentials for the Robots and the Credential Assets. Credential Assets are global variables that can store passwords, usernames, API keys, and other confidential information. By using credential stores, the developer can ensure that the sensitive data is not exposed or compromised, and that the automation processes can access the data securely and efficiently. References: [Credential Stores], [Credential Assets]

UiPath Integration Service is a feature of UiPath Automation Cloud that allows you to connect to various external applications and systems using predefined connectors. A connector is a component that provides the logic and interface for interacting with a specific application or system. A connection is an instance of a connector that is configured with the credentials and parameters required to access the application or system.

UiPath Integration Service benefits automation developers by standardizing authorization and authentication, managing API connections, and enabling faster integration into SaaS platforms. By using UiPath Integration Service, automation developers can:

Use a consistent and secure way of authenticating and authorizing access to different applications and systems, such as OAuth 2.0, API keys, or basic authentication.

Manage and reuse connections across multiple automation projects, and share them with other developers using UiPath Orchestrator folders and permissions.

Integrate with popular SaaS platforms, such as Microsoft Outlook 365, Salesforce, Google Sheets, and more, using the built-in connectors and activities that are available in UiPath Studio and other products.

Trigger automations based on events or actions that occur in the external applications or systems, such as receiving an email, creating a record, or updating a spreadsheet.

Build custom connectors for any system integration using the Connector Builder, which allows you to create and publish connectors based on third-party APIs.

The correct answer is B. By standardizing authorization and authentication, managing API connections, and enabling faster integration into SaaS platforms. This statement accurately describes how UiPath Integration Service benefits automation developers.

The other options are not correct statements. Option A is incorrect, because UiPath Integration Service does not substitute the requirement for API automation with UI automation capabilities, but rather combines them and allows both capabilities to be centrally accessed within the same integration design environment. Option C is incorrect, because UiPath Integration Service does not offer a comprehensive, unified platform dedicated solely to UI automation, but rather a component of the UiPath Platform that makes the automation of third-party applications easier by using both UI and API automation. Option D is incorrect, because UiPath Integration Service does not enable developers to create custom UI elements for applications without using APIs, but rather to create custom connectors for applications using APIs.

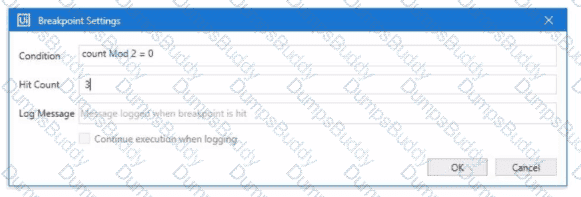

The Log Message option in the Breakpoint Settings allows the user to log custom information at each breakpoint while executing a process in Debug mode. This option can be accessed by right-clicking on a breakpoint and selecting Breakpoint Settings. The user can then enter a message that will be logged in the Output panel when the breakpoint is hit. The message can include variables, arguments, and pseudovariables, such as $PID, $TID, $FUNCTION, etc1

Option B is not recommended, because it requires the user to insert a Log Message activity before each activity with a breakpoint, which can be tedious and clutter the workflow. Option C is not relevant, because it enables or disables logging for all activities in the project, not just the breakpoints. Option D is not related, because it shows the execution flow of the process, not the custom information at each breakpoint.

A mock file is a copy of a workflow file that is used for testing purposes, where some activities are replaced by mock activities that simulate the expected behavior1. A mock file can be created by selecting Mock workflow under test in the Create Test Case window2. The mock file is stored in the Project > Mocks folder, and it has the same name as the original workflow file, with the suffix “_mock” added2. For example, if the original workflow file is named “MySequence.xaml”, the mock file will be named “MySequence_mock.xaml”.

When a mock file is created, the changes made in the original workflow file are automatically applied to the mock file when the project is saved2. This means that any new activities or modifications in theoriginal workflow file are reflected in the mock file, except for the activities that are surrounded by mock activities2. The mock activities are not affected by the changes in the original workflow file, and they can only be edited within the mock file2.

Therefore, if you update “MySequence” and add a Log Message activity and a Verify Expression activity, and then save the project, the changes will be applied to the mock file, assuming that the file is closed. This means that the mock file will also have the Log Message activity and the Verify Expression activity added, unless they are inside a mock activity

When you create a new connection and set up an event trigger on that connection, the default polling interval is set to 5 minutes. This means that the event trigger checks for new object events every 5 minutes. You can customize this interval using the Adjustable Polling Interval feature, which allows you to choose the interval on which event triggers check for new object events. The polling interval can be changed in two ways: from a specific connector’s page or from the Connections tab. The polling interval is displayed only for connections with added triggers. Updating the polling interval affects all the associated triggers on a connection

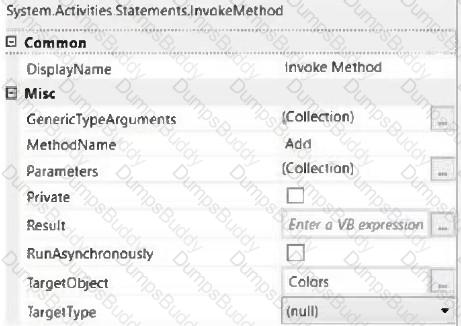

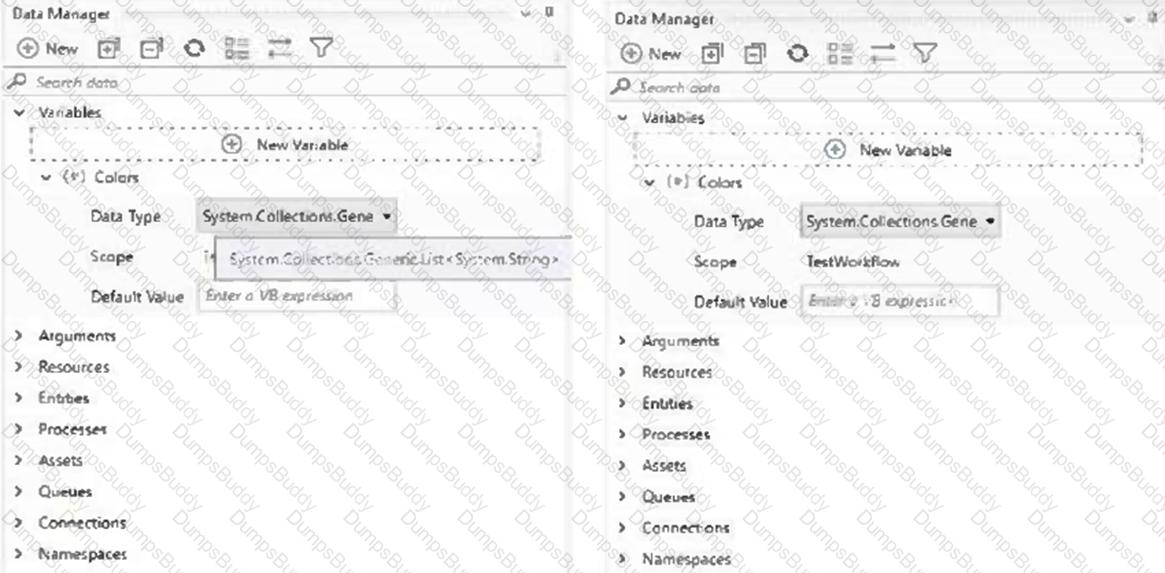

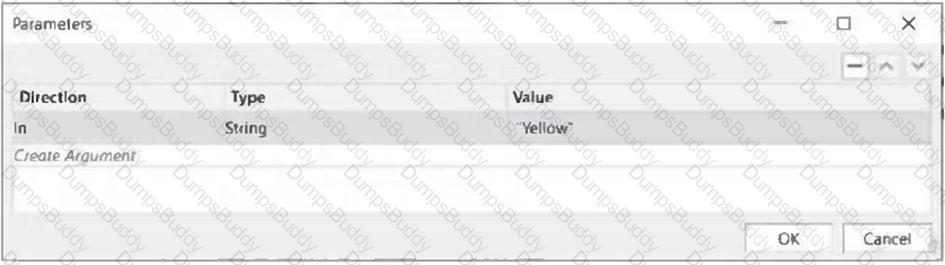

Based on the exhibits provided, the developer has set up an Invoke Method activity to add an item to the "Colors" list variable. The list is initially declared with two items "Red" and "Green". The Invoke Method activity is configured to add the string "Yellow" to this list.

The properties of the Invoke Method activity indicate that the method 'Add' will be called on the target object 'Colors' with the parameter "Yellow". This means the string "Yellow" will be added to the end of the list.

The outcome of executing this Invoke Method activity will be:

D. Colors will contain items in the following order: "Red", "Green", "Yellow".

This is because items in a List in .NET are added in sequence, and the "Add" method appends the new item to the end of the list.

To reduce the pace at which the input string characters are typed into the fields using the Hardware Events input method, the developer should modify the Delay between keys property of the Type Into activity. This property specifies the delay time (in milliseconds) between two keystrokes. The default value is 10 milliseconds. The maximum value is 1000 milliseconds. By increasing the value of this property, the developer can slow down the typing speed and avoid any errors or missed characters. For example, if the developer sets the Delay between keys property to 100 milliseconds, the activity will wait for 0.1 seconds before typing each character of the input string. References: [Type Into], [Delay Between Keys]

To print the elements of a string array separated by a specific string, the String.Join method is used in C#. This method takes two parameters: the first is the separator string and the second is the array to join into a single string.

Given the options and the requirement to separate array elements with a comma and a space (", "), the correct expression to use in a Log Message activity would be:

C. String.Join(", ", UserNames)

This will produce a single string with each element of the UserNames array separated by ", " (a comma followed by a space).

When starting a job manually in UiPath Orchestrator, the default priority value for the Job Priority field is Inherited. This means that the job inherits the priority value that was set at the process level when the package was deployed. The possible priority values are High, Normal, and Low. The priority value determines the order in which the jobs are executed by the robots, with higher priority jobs being executed first. The priority value can be changed manually when starting a job, or it can be set dynamically using the Start Job activity in a workflow. References: [Starting a Job], [Job Priority]

For a workflow that requires covering all possible cases and transitions, especially those not easily captured by loops and If statements, a State Machine layout is most suitable. It offers a flexible structure for complex workflows with numerous states.

The recommended approach for handling tabular data when building a REFramework transactional project in UiPath is to utilize a DataTable variable to store and process the tabular data. A DataTable variable can hold data in a tabular format, with rows and columns, and can be easily manipulated using built-in activities such as Read Range, Write Range, Filter Data Table, For Each Row, etc. A DataTable variable can also be used as the input for the Get Transaction Data state in the REFramework, which retrieves each row of data as a transaction item for processing. References: [UiPath Studio Guide - Data Tables], [UiPath Studio Guide - The REFramework]

In theREFramework, theTransactionItemtype depends on thedata source.

When usingQueues, the type is QueueItem.

When usingDataTables, as in this scenario (involving addresses and collections), theTransactionItem should be of type DataRowto handle each row of data individually.

The best practice for creating a repetitive process in the REFramework and defending against potential robot crashes such as “out of memory” is to mark all “Invoke Workflow File” activities from the Main.xaml file with the Isolated option. The Isolated option enables the workflow to run in a separate process, which reduces the memory consumption and the risk of memory leaks. It also improves the stability and the performance of the robot, as it isolates the errors and the exceptions that might occur in the invoked workflow. The Isolated option can be found in the Properties panel of the “Invoke Workflow File” activity, under the Options category. By marking all the invoked workflows as Isolated, the developer can ensure that the robot can handle a large number of transactions without crashing or slowing down

The current state of the job in Orchestrator is Faulted, because an error occurred during the Initialization state of the process using REFramework. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type1. The Initialization state is the first state in the REFramework, which is responsible for initializing the application, reading the configuration file, and setting the log level2. If an error occurs during the Initialization state, the process will go to the End Process state, which will perform the final actions and close the application2. The End Process state will also mark the job as Faulted in Orchestrator, if the value of the ShouldMarkJobAsFaulted argument is True2. The default value of this argument in the REFramework is True, unless it is changed in the Config.xlsx file or in the Orchestrator assets3.

Option A is incorrect, because the job is not Successful, as an error occurred during the Initialization state. Option C is incorrect, because the job is not Suspended, as the process did not pause or wait for any user input. Option D is incorrect, because the job is not Stopped, as the process did not encounter any user intervention or manual termination.

In the REFramework using Orchestrator queues, the status of each Transaction Item in the queue is updated in two states: 'Get Transaction Data' and 'Process Transaction'. This ensures proper tracking and processing of each item.

TheProfile Executiontool in Studio can be used in bothRunandDebugmodes. However, it's important to note thatprofiling data may vary between debugging and production runsdue to differences in execution behavior (e.g., breakpoints, step-by-step execution, and extra logging during debugging).

"Process A":

The process is scheduled to run at 2:00 PM, but due to busy robots, it starts at 2:05 PM.

The Schedule ending of Job execution feature is configured to stop the job after 20 minutes.

Therefore, "Process A" will be stopped 20 minutes after it started, which is at 2:25 PM.

The value that will be displayed in the Output Panel at the end of the sequence is 9. This is because the code in the Invoke Code activity is looping through the array in_numArray and setting the variable out_numVar to the highest value in the array. The array in_numArray has the values {1, 2, 7, 9, 4} as shown in the list of arguments. The variable out_numVar is initialized to 0. The For loop iterates from 0 to the upper bound of the array, which is 4. In each iteration, the If condition checks if the currentelement of the array is greater than the current value of out_numVar. If it is, then out_numVar is assigned to the current element of the array. Otherwise, out_numVar remains unchanged. Therefore, after the first iteration, out_numVar becomes 1. After the second iteration, out_numVar becomes 2. After the third iteration, out_numVar becomes 7. After the fourth iteration, out_numVar becomes 9. After the fifth iteration, out_numVar remains 9, since 4 is not greater than 9. The Write Line activity outputs the value of out_numVar to the console, which is 9. References: Invoke Code

Intrigger-based attended automation, triggers can respond toapplication events, keyboard shortcuts, or UI interactions, and theycan execute workflows in parallel, eitheronce, sequentially, or simultaneously. This capability allows multiple automations to be triggered and run concurrently, which is ideal for departments like sales handling multiple requests in real-time.

A state machine is a type of automation that uses a finite number of states in its execution. It can go into a state when it is triggered by an activity, and it exits that state when another activity is triggered1. A state machine consists of states, transitions, and actions1. The components that define a state within a state machine in UiPath Studio are:

•Entry Actions: These are the activities that are executed when the state is entered1. For example, an entry action can be used to initialize a variable, display a message, or log some information1.

•Exit Actions: These are the activities that are executed when the state is exited1. For example, an exit action can be used to clean up some resources, close an application, or update a status1.

•Transition Actions: These are the activities that are executed when a transition from one state to another occurs1. For example, a transition action can be used to assign a value, send an email, or invoke a workflow1.

•Trigger Conditions: These are the conditions that determine when a transition from one state to another should happen1. For example, a trigger condition can be based on a variable value, a user input, or a timer1.

The UiPath Integration Service supports two types of events: Generic and Predefined. Generic events are customizable, while Predefined events are specific to certain integrations and come with predefined configurations.

In the Robotic Enterprise Framework (REFramework), best practices for logging at the "Information" level suggest recording entries that are informative about the progress of the automation. This would typically include:

The start and end of a transaction.

Status updates of a transaction.

The result of an operation, like a successful data retrieval or submission.

From the provided options, the one that aligns best with this approach would be:

B. Whenever data is fetched from external sources.

This action is a significant step in most automation processes because it usually represents a point where the robot interacts with systems outside of its immediate control, and it's important to have a record that this step has been completed successfully. It provides a clear and traceable log entry that helps in understanding the workflow's progress and is useful for audit trails and troubleshooting.

Logging every time an argument or value is used (C) would be excessive and not practical for production-level processes. Logging every exception (A) and error on a Queue Item (D) would typically be done at a "Warning" or "Error" level, not "Information".

In the context of a linear process, implemented with REFramework, the process will enter the Get Transaction Data state only 1 time. This is because the Get Transaction Data state is responsible for fetching the next transaction item from the data source and assigning it to the TransactionItem variable. In a linear process, there is only one transaction item that represents the entire process, and it is fetched at the beginning of the execution. Therefore, the process will enter the Get Transaction Data state only once, and then move to the Process Transaction state, where the main logic of the process is executed. The process will not return to the Get Transaction Data state, unless there is an exception or a retry in the Process Transaction state. References: [Robotic Enterprise Framework], [REFramework for Linear Processes]

The output type returned when using a Get Test Data Queue Item activity is QueueItem. The Get Test Data Queue Item activity is an activity that allows the developer to retrieve a test data queue item from a test data queue in Orchestrator. A test data queue is a special type of queue that is used to store and manage test data for automation testing purposes. A test data queue item is a data object that contains the test data and the expected results for a test case. The Get Test Data Queue Item activity has an output property called TestDataQueueItem, which returns the test data queue item as a QueueItem type. The QueueItem type is a class that represents a queue item in Orchestrator. The QueueItem type has various properties and methods that allow the developer to access and manipulate the data and the status of the queue item. References: [Get Test Data Queue Item], [QueueItem Class]

The Strict Selector is a targeting method that uses the selector information of a UI element to identify it on the screen. It is one of the four targeting methods available in UiPath Studio, along with Fuzzy Selector, Image, and Computer Vision1. The Strict Selector is considered to be the most reliable and stable targeting method, as it uses the attributes and properties of the UI element that are unlikely to change2.

At indication time, the Strict Selector has the following functionalities available:

Open in UiExplorer: This option opens the UiPath Explorer window, where you can inspect and edit the selector information of the indicated UI element, as well as use advanced features such as anchors, wildcards, variables, and regex3.

Copy to clipboard: This option copies the selector information of the indicated UI element to the clipboard, so you can paste it elsewhere, such as in a text editor or another activity.

Show all matches: This option highlights all the UI elements on the screen that match the selector information of the indicated UI element. This helps you to check if there are any duplicates that might cause the automation to fail at runtime. You can also use the Ignore text option to exclude the text attribute from the selector information, which might reduce the number of matches4.

The other options are incorrect because:

Option A is incorrect because it does not include the Show all matches option, which is available for the Strict Selector.

Option B is incorrect because it does not include the Open in UiExplorer option, which is available for the Strict Selector.

Option D is incorrect because it includes the Accuracy option, which is not available for the Strict Selector. The Accuracy option is only available for the Image targeting method, which allows you to adjust the similarity threshold between the indicated image and the target image5.

The service mode is recommended for running unattended automations in UiPath. This mode allows robots to run without needing a user to be logged in, making it ideal for unattended scenarios.

To allowparallel execution of multiple local triggers, UiPath provides theRun Local Triggersactivity. It monitors all defined triggerssimultaneouslyand allows the automation toreact to whichever is activated first, supporting more dynamic and responsive attended automation solutions.

When you close a remote debugging connection while a debugging execution is in progress, the execution is stopped gracefully on the remote robot and the connection is closed. This means that the robot will finish the current activity and then stop the execution, without throwing any exception or error. This is the recommended way to end a remote debugging session, as it ensures that the robot is in a consistent state and ready for the next execution. References: [Remote Debugging]

UiPath Integration Service is the component of the UiPath Platform that makes the automation of third-party applications much easier by standardizing authorization and authentication, helping you manage API connections and also allowing faster integration into SaaS platforms1. By using pre-built connectors, the development of automation projects in UiPath Studio is more simple and more consistent, regardless of the third-party applications you are automating1. Some of the advantages of pre-built connectors are:

They enable automation with an out-of-the-box library of connectors for popular applications such as Salesforce, Slack, Microsoft Office 365, SAP, ServiceNow, and Google G Suite23.

They help setting up and managing connections easily with standardized authentication methods such as OAuth 2.0, Basic, API Key, and Custom1.

They enable kicking off automations with server-side triggers or events, such as receiving an email, creating a record, or updating a field1.

They provide curated activities and events (with additional data filters) for ease of use in UiPath Studio1.

They simplify automation design by providing a uniform experience across all Studio designers1.

They integrate across all UiPath Platform product solutions, such as UiPath Orchestrator, UiPath Assistant, UiPath Action Center, and UiPath Apps3.

The correct syntax for using the Vb.Net If operator is If(condition1, valueIfTrue, valueIfFalse). The If operator is a ternary operator that returns one of two values, depending on whether the condition is true or false. The condition must be a Boolean expression or a data type that can be implicitly converted to Boolean. The valueIfTrue and valueIfFalse arguments can be any data type, but they must be the same or implicitly convertible to a common type. The If operator uses short-circuit evaluation, which means that it only evaluates the argument that corresponds to the result of the condition. For example, thefollowing expression returns “Positive” if the variable number is greater than or equal to zero, and “Negative” otherwise:

VB Dim result As String = If(number >= 0, “Positive”, “Negative”) References: [If Operator], [Ternary Operator]

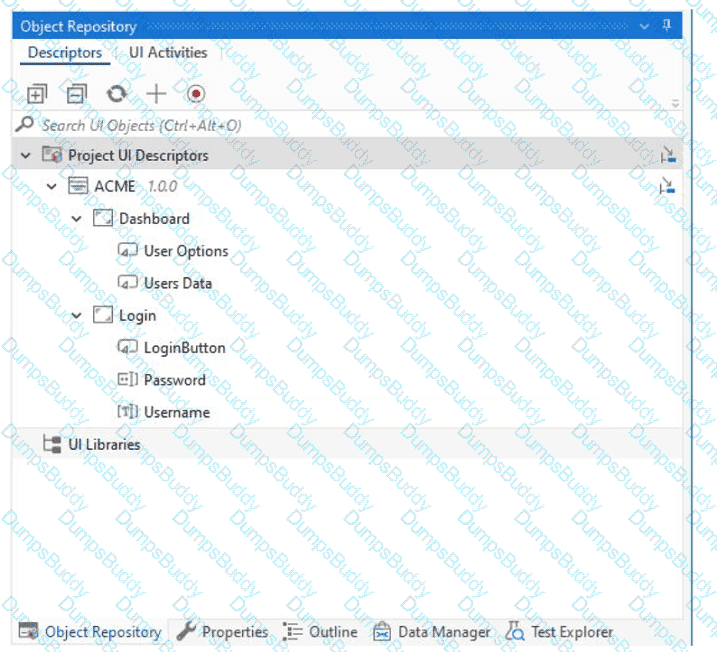

The Object Repository in UiPath organizes elements in a hierarchical structure that reflects the logical arrangement of user interfaces and elements as they are captured and used in automation projects.

The correct hierarchy for elements in the Object Repository tree structure is:

A. Version, Application, Screen, UI Element.

This hierarchy starts with the 'Version', which could refer to the specific version of the application you are automating. Under each version, there could be multiple 'Applications' that you have elements for. Within each application, you might have captured various 'Screens' or dialogs, and within each screen, there are individual 'UI Elements' like buttons, text fields, dropdown menus, etc., that the automation interacts with.

However, it's important to note that in practice, when you are working with UiPath Studio and its Object Repository, the hierarchy usually starts with the 'Application', then under it, you have different 'Screens' of the application, and under each screen, you have the 'UI Elements'. The 'Version' is typically managed separately and is not a level in the hierarchy tree but rather a property or attribute of the application or element. Therefore, the most practical answer reflecting the usage in UiPath Studio would be:

C. Application, Screen, UI Element, Version.

The 'Version' here would be understood not as a layer in the hierarchy but rather as an attribute that can be associated with the 'Application' or 'UI Element'.

A State Machine is a type of automation that uses a finite number of states in its execution. It can go into a state when it is triggered by an activity, and it exits that state when another activity is triggered. A State Machine consists of four primary components:

•States: These are the nodes that represent the possible situations or conditions of the automation. Each state can have one or more activities inside it that define the behavior of the automation in that state. There are two types of states: State and Final State. A State Machine must have one initial state and one or more final states.

•Triggers: These are the events or conditions that cause the automation to enter a state. A trigger can be an activity, a variable, or an argument that is executed or evaluated before entering a state. For example, a Click activity can be a trigger for entering a state that performs some actions after clicking a button.

•Transitions: These are the arrows or branches that connect the states and define the flow of the automation. A transition can have a condition that determines whether the automation can move from one state to another. For example, a Boolean expression can be a condition for a transition that checks if a certain condition is true or false before moving to the next state.

•Actions: These are the activities or sequences that are executed when the automation moves from one state to another. An action can be performed before or after the transition, depending on the type of the transition. For example, a Log Message activity can be an action that logs a message when the automation exits a state.

You can find out more about state machines on the Studio - State Machines - UiPath Documentation Portal or in the official Workflow Foundation documentation.

UiPath Orchestrator provides proactive monitoring and alerting features. These are designed to identify and notify about potential issues before they escalate into critical problems, enabling timely intervention and resolution.

The Show Elements button in the Computer Vision wizard is used to highlight all UI elements that have been identified by the Computer Vision analysis. This helps you to see the UI elements that are available for automation and to select the ones that you want to use in your activities. The Show Elements button is located in the top-right corner of the Computer Vision wizard. When you click it, the UI elements are highlighted with different colors and shapes, depending on their type and category. You can hover over each UI element to see its name and properties. You can also use the Filter Elements button to filter out specific UI elements from being processed by the Computer Vision engine.

In long-running workflows, when aform actionis sent toAction Center, the job issuspendeduntil the form is completed by theassigned user. Only uponcompletion of the actiondoes the job resume execution. This ensures that business-critical human validation is accounted for before the process continues.

The UiPath Remote Runtime component is a component that facilitates the communication between a remote application or desktop, such as Citrix Virtual Apps, and the dedicated UiPath extension – the UiPath Extension for Citrix, the UiPath Extension for Windows Remote Desktop and Apps, or the UiPath Extension for VMware Horizon1. It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension, so that selectors are natively generated in UiExplorer1. The UiPath Remote Runtime component is required to establish the connection between an application or desktop server and a corresponding UiPath extension installed on a client machine, where Studio is installed1. This way, selectors are natively generated on the client machine, without having to rely on OCR and image recognition activities1. .

The Verbose logging level includes the following information by default:

Execution Started log entry - generated every time a process is started.

Execution Ended log entry - generated every time a process is finalized.

Transaction Started log entry - generated every time a transaction item is obtained by the robot from Orchestrator.

Transaction Ended log entry - generated every time the robot sets the transaction status to either Success or Failed.

Activity Information log entry - generated every time an activity is started, faulted or finished inside a workflow.

Arguments and Variables Information log entry - show values of the variables and arguments that are used.

The Verbose logging level is the most detailed one and it is useful for debugging purposes, as it provides a lot of information about the execution flow and the data used by the robot. However, it also generates a lot of log entries, which can affect the performance and the storage space of the robot and Orchestrator. References: [Logging Levels]

In a Try Catch activity within UiPath, when an exception is thrown that does not match any of the exception types specified in the Catches section, the exception is unhandled by the Catches section. If the thrown exception is an ApplicationException and the Catches section is only configured to handle an InvalidOperationException, then the ApplicationException is not caught because it is a different type of exception.

However, regardless of whether the exception is caught, the Finally block always executes. The Finally block is designed to run after the Try block and after any Catch blocks are checked for matches (regardless of whether a match is found or not).

Therefore, the correct answer is:

A. The Finally block is executed and the Catches section catches the exception.

In this context, "the Catches section catches the exception" means that the Catches section is evaluated for a match. Since ApplicationException is not handled by the InvalidOperationException catch block, the exception is not actually caught, but the Finally block will still execute.
