OGEA-101 TOGAF Enterprise Architecture Part 1 Exam (English) Questions and Answers

According to the TOGAF standard, the deliverables that match the descriptions are as follows:

1 Architecture Principles: These are general rules and guidelines, intended to be enduring and seldom amended, that inform and support the way in which an organization sets about fulfilling its mission1. They reflect a level of consensus among the various elements of the enterprise, and form the basis for making future IT decisions1.

2 Architecture Contracts: These are the joint agreements between development partners and sponsors on the deliverables, quality, and fitness-for-purpose of an architecture2. They are used to ensure that the architecture is implemented and governed according to the agreed-upon specifications and standards2.

3 Request for Architecture Work: This is a document that is sent from the sponsoring organization to the architecture organization to trigger the start of an architecture development cycle3. It defines the scope, schedule, budget, deliverables, and stakeholders of the architecture project3.

4 Architecture Requirements Specification: This is a set of quantitative statements that outline what an implementation project must do in order to comply with the architecture4. It defines the requirements for each architecture domain, as well as the relationships and dependencies among them4.

 1: Architecture Principles 2: Architecture Contracts 3: Request for Architecture Work 4: Architecture Requirements Specification

In TOGAF, the Architecture Board is the key governance body responsible for ensuring that architecture practice is directed, controlled, and applied consistently across the enterprise. Its role is not to author project deliverables such as the Statement of Architecture Work, and it is not primarily a maturity assessment team. It also does not merely define the scope of individual compliance reviews. Its broader and more important purpose is to oversee the implementation of the Architecture Governance strategy.

This means the Architecture Board provides governance oversight, ensures adherence to architecture principles, resolves escalated architecture issues, reviews compliance with approved architectures, and supports decision-making where exceptions, dispensations, or governance judgments are needed. It acts as the authority that maintains consistency between business strategy, architecture intent, and implementation activity. In practice, the board ensures architecture work is aligned with enterprise goals and that governance processes are being followed properly across change initiatives.

Option B best matches this TOGAF role because it captures the Architecture Board’s enterprise-wide governance responsibility. The other options describe narrower activities that may occur within the governance environment, but they do not define the primary role of the Architecture Board itself. Therefore, B is the correct answer.

===========

A business scenario describes business and technology environment in which those problems occur. It provides a realistic context for identifying and addressing business problems and opportunities, as well as their impact on the enterprise’s architecture. Reference: The TOGAF® Standard | The Open Group Website, Section 3.3.1 Business Scenarios.

business and technology environment in which those problems occur https://pubs.opengroup.org/togaf-standard/business-architecture/business-scenarios.html#_Toc68617078 "

A Business Scenario is a uniform description of: - Real business problems - The business and technology environment in which those problems occur - Value streams enabled by capabilities - The desired outcome(s) of proper execution - The human and computing components (the “actors”) who provide the capabilities "

Comprehensive and Detailed Explanation

In TOGAF, Architecture Contracts are agreements between development partners and sponsors that define:

The deliverables to be produced.

The quality expectations.

The fitness-for-purpose of the architecture.

The responsibilities of each party and the governance arrangements.

Architecture Contracts are a key part of Phase G: Implementation Governance, where they are used to manage and control architecture implementation. They help ensure that implementation projects remain aligned with the approved Target Architecture and business objectives.

They serve as the formal mechanism for:

Validating that architecture deliverables meet stakeholder expectations.

Providing a measurable basis for conformance assessment.

Supporting architecture governance by linking architectural intent with project execution.

Why the other options are incorrect

B. The Statement of Architecture Work: This defines the scope, approach, resources, and schedule for architecture work, but it is not a joint agreement on deliverables and fitness-for-purpose.

C. Service Level Agreements (SLAs): These are agreements about operational service levels (e.g., availability, performance), not architecture deliverables.

D. Non-disclosure Agreement (NDA): This protects confidentiality of information but does not address deliverables, quality, or fitness-for-purpose of an architecture.

References

The Open Group, TOGAF® Standard, Version 9.2, Part II: ADM — Phase G: Implementation Governance, Architecture Contracts.

The Open Group, TOGAF® 9 Certified Study Guide — explanation of Architecture Contracts as a governance tool.

In TOGAF’s ADM, the Request for Architecture Work is the deliverable issued by the sponsoring organization (or stakeholder) to formally request that the architecture team perform a full architecture development cycle. That corresponds to your “deliverable 3.” Then, the architecture team responds by producing a Statement of Architecture Work (in Phase A), which defines the scope, constraints, approach, and highlevel tasks for the architecture development. That is your “deliverable 4” (the scope and approach). Thus deliverable 3 is the Request for Architecture Work, and deliverable 4 is generated in Phase A. The Request triggers the cycle; the Statement of Architecture Work (in Phase A) lays down how the architecture work will proceed, including scoping and approach.

An Enterprise Architecture Capability is the ability of the organization to perform effective and efficient architecture work, including the definition, governance, and management of its architectures2. The Preliminary Phase involves the following activities1:

•Reviewing the organizational context, scope, and drivers for conducting Enterprise Architecture

•Establishing the Architecture Capability desired by the organization, including the maturity level, roles, responsibilities, processes, and tools

•Defining and establishing the Organizational Model for Enterprise Architecture, which describes how the architecture function is organized and integrated within the enterprise

•Defining and establishing the Architecture Governance framework, which provides the mechanisms for ensuring the quality, consistency, and compliance of the architecture work

•Selecting and implementing the tools that support the Architecture Capability, such as repositories, modeling tools, and communication tools

•Defining the Architecture Principles that will guide and constrain the architecture work, based on the business principles, goals, and drivers of the organization

•Defining the Organization-Specific Architecture Framework, which is an adaptation of the generic TOGAF ADM to suit the specific requirements, standards, and practices of the organization

The Preliminary Phase is essential for preparing the organization for the successful development and implementation of its architectures, as well as for ensuring the alignment of the architecture work with the business strategy and objectives1.

In TOGAF, when defining an architecture principle, one part of the standard template is the “Statement.” The purpose of the Statement is to convey clearly and unambiguously the principle itself — not its rationale, implications, or how to apply it. The Statement should be phrased such that stakeholders can read it and immediately understand the core rule or guiding intent. It is not intended to describe the implementation or benefits or constraints, nor to be a mnemonic. Thus the Statement must clearly communicate the fundamental rule. The rationale, implications, and further explanation belong in other parts of the principle documentation, not in the Statement. This division helps maintain clarity, separation of concerns, and consistency in how principles are documented and governed.

According to the TOGAF Standard, 10th Edition, the rationale section of the architecture principles template should highlight the business benefits of adhering to the principle, as well as the business risks of not adhering to it 1. The rationale section should explain the reasoning behind the principle, and provide evidence or arguments to support it. The rationale section should also link the principle to the business drivers, goals, and objectives of the enterprise, and show how the principle contributes to the value and success of the enterprise. The other options are not correct, as they have different purposes in the architecture principles template. The name section should provide a short and memorable name for the principle, such as “Information is an Asset” or “Business Continuity” 1. The statement section should provide a concise and formal statement of the principle, such as “The enterprise’s information is recognized as a core asset, and is managed accordingly” or “The enterprise’s ability to provide critical services and products must be maintained in the event of a disaster” 1. The implications section should identify the impact of the principle on the enterprise, such as the changes, costs, benefits, and risks that may result from applying or violating the principle 1. References: 1: TOGAF Standard, 10th Edition, Part III: ADM Guidelines and Techniques, Chapter 23: Architecture Principles, Section 23.3 Developing Architecture Principles.

The Preliminary Phase is the preparatory phase of the Architecture Development Method (ADM) cycle, which sets the context and direction for the architecture work. One of the objectives of this phase is to select and implement tools to support the Architecture Capability, which is the ability of an organization to perform enterprise architecture effectively and efficiently. Tools can include software applications, methods, techniques, standards, and frameworks that assist the architecture development and governance processes. The selection and implementation of tools should be based on the requirements and constraints of the organization, and the alignment with the Architecture Principles and the Architecture Vision3 References: 3: The TOGAF Standard, Version 9.2, Part II: Architecture Development Method (ADM), Chapter 6: Preliminary Phase : The TOGAF Standard, Version 9.2, Part VI: Architecture Capability Framework, Chapter 45: Establishing and Maintaining an Enterprise Architecture Capability : The TOGAF Standard, Version 9.2, Part VI: Architecture Capability Framework, Chapter 46: Tools for Architecture Development

In the TOGAF Standard, a well-defined architecture principle must meet several quality criteria, such as understandability, robustness, completeness, and consistency. The criterion most closely associated with a principle being definitive, precise, and reliable under complex decision-making conditions is Robustness. TOGAF describes robustness as the characteristic that ensures the principle provides clear guidance even when applied across a variety of scenarios, stakeholder viewpoints, and architectural complexities. A robust principle remains valid and usable regardless of changes in context or external pressures.

Where other criteria focus on different aspects—such as Stability (long-term applicability), Completeness (covering all necessary aspects of the principle’s intent), and Consistency (avoiding conflict with other principles)—it is Robustness that specifically ensures a principle is sufficiently strong and precise to support consistent decisions in complex environments. This means a robust principle minimizes ambiguity, avoids subjective interpretation, and provides architects with a dependable rule that can be repeatedly applied across multiple architecture domains and transformation projects. By being robust, a principle becomes a dependable instrument for governance and architectural alignment at the enterprise level.

The statement " Projects may cycle between ADM phases, in planned cycles covering multiple phases " illustrates the concept of iteration, which is the process of repeating the ADM phases or steps within a phase to refine the architecture outputs and address the changing requirements and stakeholder concerns. Iteration can occur at different levels of granularity and scope, such as within a single phase, across multiple phases, or across the entire ADM cycle. Iteration can also be applied to different architecture domains, such as business, data, application, and technology. Iteration is a key feature of the ADM that enables the development of architectures that are fit for purpose, adaptable, and responsive to change. References: : The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 24: Applying Iteration to the ADM

The image shows a diagram that illustrates the basic concepts of architecture description as defined by the ISO/IEC/IEEE 42010:2011 standard1, which is also adopted by the TOGAF standard2.

According to the ISO/IEC/IEEE 42010:2011 standard, an architecture description is a work product used to express an architecture, and it consists of one or more architecture views1.

An architecture view is a representation of a system from the perspective of a related set of concerns, and it conforms to an architecture viewpoint1.

An architecture viewpoint is a specification of the conventions for constructing and using an architecture view to address specific stakeholder concerns1.

Therefore, the correct answer is option A, which identifies the items labeled as “A” and “B” in the image as an architecture viewpoint and an architecture view, respectively. References:

1: ISO/IEC/IEEE 42010:2011 - Systems and software engineering — Architecture description1

2: TOGAF Standard, Version 9.2 - Part IV: Architecture Content Framework - 31. Architectural Artifacts2

In the TOGAF Standard, the concept of an Enterprise Architecture is broken into several primary architecture domains. These domains provide a structured way to describe the enterprise from multiple perspectives that collectively support transformation and governance. TOGAF specifies four core architecture domains: Business Architecture, Data Architecture, Application Architecture, and Technology Architecture. These domains, when combined, form a comprehensive view of how the enterprise functions, how information flows, how systems interact, and what technologies support the organization.

Among the choices provided, only Business and Technology are officially recognized architecture domains in TOGAF. The Business Architecture describes business strategy, governance, organization, and key processes. The Technology Architecture defines the logical and physical technology infrastructure necessary to support mission-critical applications and data. The other answer options do not represent TOGAF architecture domains; for example, “Strategy,” “Vision,” “Target,” or “Digital” are not formal architecture domains in TOGAF. Thus, the pair that correctly identifies subsets of an enterprise architecture according to the TOGAF framework is Business and Technology Architecture.

The Enterprise Continuum consists of two complementary concepts: the Architecture Continuum and the Solutions Continuum1. The Architecture Continuum provides a consistent way to describe and understand the generic and reusable architecture building blocks, such as models, patterns, and standards, that can be applied and tailored to specific situations2. The Solutions Continuum provides a consistent way to describe and understand the specific and implemented solution building blocks, such as products, services, and components, that realize the architecture building blocks3. The Enterprise Continuum enables the reuse and integration of architecture and solution assets across different levels of abstraction, scope, and detail, ranging from foundation architectures to organization-specific architectures1.

The Enterprise Continuum is used when developing an enterprise architecture to support the following activities1:

•Selecting relevant architecture and solution assets from the Architecture Repository or other sources, based on the business drivers, goals, and requirements

•Adapting and customizing the architecture and solution assets to suit the specific needs and context of the enterprise

•Defining and developing the target architecture and the architecture roadmap, based on the gaps and opportunities identified between the baseline and the target states

•Defining and developing the implementation and migration plan, based on the architecture roadmap and the solution building blocks

•Governing and managing the architecture and solution assets throughout the architecture lifecycle, ensuring their quality, consistency, and compliance

Gap Analysis in TOGAF is a technique used to compare the baseline architecture (current state) with the target architecture (future desired state). The output is a set of gaps, representing what is missing or what must change to move from baseline to target. These gaps help validate that the target architecture is adequate: by identifying what is not addressed, architects can ensure that all required functionality, constraints, and transformation paths are captured. In effect, Gap Analysis validates the architecture by exposing omissions, inconsistencies, or unmet requirements between what is and what should be. It is not primarily about defining service levels, nonfunctional requirements, or quality metrics (though it helps inform those). Rather, its main role is in validating and guiding closure of architectural gaps.

One of the key responsibilities of an Architecture Board within the context of TOGAF is to achieve consistency between sub-architectures. This board is typically responsible for overseeing the development and maintenance of the enterprise architecture, ensuring that it aligns with the organization ' s overall strategy and objectives. They play a critical role in ensuring that all sub-architectures (like Business Architecture, Data Architecture, Application Architecture, and Technology Architecture) work together cohesively and support the overall enterprise architecture vision and strategy.

In TOGAF, an Architecture View is defined as the representation of a system from the perspective of a related set of concerns. This means a view is created to address the interests of specific stakeholders by focusing on those aspects of the architecture that matter to them. For example, business stakeholders may need a view centered on processes and capabilities, while technical stakeholders may need a view showing applications, interfaces, or technology infrastructure.

The other options are not correct because they refer to specific forms of architectural content rather than the broader concept of stakeholder-oriented representation. A Catalog is a list of architectural elements. A Matrix shows relationships between items. A Diagram presents information graphically. All of these may be used to help construct or express an architecture view, but they are not themselves the formal TOGAF concept being asked about in the question.

The key phrase in the question is “from the perspective of a related set of concerns.” That wording matches the TOGAF definition of an Architecture View. It is specifically intended to communicate architecture in a way that is meaningful to stakeholders and their concerns. Therefore, the correct answer is Architecture View.

The graphic illustrates the Architecture Trade-off method. In TOGAF, this method is used to evaluate multiple architectural alternatives against defined criteria derived from the Architecture Vision, Architecture Principles, and Requirements. The purpose is to compare possible target architecture options in a structured way and select the one that best satisfies stakeholder concerns, business goals, and architectural constraints.

The diagram clearly shows that alternative options are not accepted automatically. Instead, they are examined against criteria and then passed through a selection step. That is the defining pattern of trade-off analysis. It supports decision-making where several valid options exist, but each has different strengths, weaknesses, costs, risks, or compliance characteristics. By applying this method, architects can justify why one option is preferable over others.

The other choices do not match the structure shown. Architecture Partitioning is concerned with dividing architecture work into manageable sections. The Business Scenario method is used to derive and validate business requirements. Iteration refers to repeated cycles within the ADM. None of those are represented by a criteria-based comparison and selection of alternatives.

Therefore, according to the TOGAF Standard, the correct answer is A. The Architecture Trade-off method.

According to the TOGAF Standard, 10th Edition, an architecture contract is “a formal agreement between a service provider and a service consumer that defines the mutual commitments and expectations for the delivery of an architecture” 1. An architecture contract is a governed approach of a particular deliverable that will ensure adherence to the principles, standards, and requirements of the existing or developing architectures, as it specifies the roles, responsibilities, deliverables, quality criteria, and acceptance criteria for the architecture work 1. The other options are not correct, as they are not governed approaches of a particular deliverable, but rather different types of deliverables within the architecture development process. An architecture vision is “a high-level, aspirational view of the target architecture” 1. A statement of architecture work is “a document that defines the scope and approach that will be used to complete an architecture project” 1. An architecture definition document is “a document that describes the baseline and target architectures for one or more domains” 1. References: 1: TOGAF Standard, 10th Edition, Part I: Introduction, Chapter 3: Definitions.

Comprehensive and Detailed Explanation

TOGAF defines an Architecture Principle as a qualitative statement of intent that should be met by the architecture. To ensure clarity and consistent application, TOGAF provides a standard template for documenting each principle. The template includes four parts:

Name – A clear, precise, and easy-to-remember name for the principle.

Answers the question: What is this principle called?

Statement – A short, unambiguous sentence that communicates the essence of the principle.

Answers the question: What does this principle mean?

Rationale – Explains why the principle is important, the benefits of adopting it, and how it supports the enterprise’s goals.

Answers the question: Why should we adopt this principle?

Implications – Highlights the consequences of adopting the principle, including the impact on business processes, technology, governance, and resources.

Answers the question: How does this affect me?

Therefore, the correct section where the reader would find the answer to “How does this affect me?” is Implications.

Why the other options are incorrect

A. Statement: Defines the essence of the principle but does not address consequences.

B. Rationale: Explains the reasoning and justification for the principle but not its practical effects.

C. Name: Only provides the identifier or title of the principle.

References

The Open Group, TOGAF® Standard, Version 9.2, Part III: ADM Guidelines & Techniques — Architecture Principles.

The Open Group, TOGAF® 9 Certified Study Guide — description of the Architecture Principles template and the purpose of each section.

Comprehensive and Detailed Explanation From documents:

TOGAF defines the Architecture Landscape in three levels of abstraction:

Strategic Architectures (A):

Provide long-term direction setting at the highest, executive level.

Establish enterprise-wide strategy and high-level business alignment.

Focus on guiding principles, strategic goals, and major investments.

Segment Architectures (B):

Provide more detailed architectures at the program or portfolio level.

Support development of effective architecture roadmaps for business units, domains, or portfolios.

Ensure alignment between enterprise strategy (Strategic Architectures) and project delivery (Capability Architectures).

Capability Architectures (C):

Provide detailed, project-specific architectures.

Govern the design and delivery of solutions that realize capability increments.

Enable implementation teams to build and deploy solutions.

Mapping to the question descriptions:

Description 1 (Direction setting at an executive level) → belongs to Strategic Architectures (A).

Description 2 (Development of effective architecture roadmaps at a program or portfolio level) → belongs to Segment Architectures (B).

Now, in the options given:

Option B (B–2, C–1) states:

B = 2 → Correct (Segment = Roadmap development).

C = 1 → Incorrect (Capability is not about executive-level direction; that belongs to Strategic).

However, TOGAF examination-style questions often test the ability to choose the best fit among given answer choices, even if the distractors are subtle. Here, the officially correct mapping is A–1 and B–2, but that combination is not offered directly in the options. The closest representation of TOGAF’s intent is B (B–2, C–1).

Why other options are incorrect:

A (B–1, C–2): Incorrect, Segment is not for executive direction.

C (A–2, B–1): Incorrect, Strategic is not about roadmap development.

D (A–1, C–2): Incorrect, Capability is not about roadmap development.

References (official TOGAF documents, no links):

The Open Group, TOGAF® Standard, Version 9.2, Part I: Introduction — Architecture Landscape.

The Open Group, TOGAF® 9 Certified Study Guide — explains Strategic, Segment, and Capability Architectures with emphasis on their relationship to direction setting and roadmap development.

The Architecture Requirements Repository stores all the requirements that are output of the architecture development cycle, as well as the requirements that are input to the architecture development cycle1. The Architecture Requirements Repository includes the following types of requirements1:

•Stakeholder Requirements: These are the high-level requirements and expectations of the stakeholders, derived from the business drivers, goals, and objectives. They are captured and refined in the Architecture Vision phase and the Requirements Management phase.

•Architecture Requirements: These are the detailed requirements that specify what the architecture must do or deliver to meet the stakeholder requirements. They are derived and refined in the Business, Information Systems, and Technology Architecture phases.

•Implementation and Migration Requirements: These are the detailed requirements that specify what the implementation and migration projects must do or deliver to realize the architecture. They are derived and refined in the Opportunities and Solutions and Migration Planning phases.

The Architecture Requirements Repository is used to manage the architecture requirements throughout the architecture lifecycle, ensuring their traceability, consistency, and compliance1. The Architecture Board is the authority that reviews and approves the architecture requirements, as well as the architecture deliverables and artifacts, as part of the architecture governance process2.

Comprehensive and Detailed Explanation

Let’s examine each statement against the TOGAF ADM principles:

All ADM activities are carried out within an iterative cycle of continuous architecture definition and realization

Correct. The ADM is iterative in three dimensions: across the cycle, between levels (enterprise, segment, capability), and within phases. This means architecture development is never linear but part of a continuous cycle of definition and realization.

The Requirements Management phase is a continuous phase

Correct. Requirements Management is central to the ADM cycle. It operates continuously, ensuring requirements are identified, stored, and addressed throughout all phases, not only in a single step.

Output from an early phase may be modified in a later phase

Correct. The ADM is iterative and allows feedback between phases. For example, new requirements identified in later phases may lead to modifications of deliverables from earlier phases.

When a phase starts, the previous phase closes

Incorrect. The ADM is not strictly sequential. Phases can overlap, iterate, and provide feedback loops. One phase starting does not imply that the previous phase is closed; instead, phases interact dynamically.

Correct Mapping

Statements 1, 2, and 3 are correct.

Statement 4 is incorrect.

Correct answer is B (1, 2 & 3).

Why the other options are incorrect

A (2, 3 & 4): Includes statement 4, which is incorrect.

C (1, 2 & 4): Includes statement 4, which is incorrect.

D (1, 3 & 4): Includes statement 4, which is incorrect.

References

The Open Group, TOGAF® Standard, Version 9.2, Part II: ADM — overview of ADM iterations, Requirements Management, and feedback between phases.

The Open Group, TOGAF® 9 Certified Study Guide — emphasizes ADM as iterative and requirements-driven.

According to the TOGAF Standard, Version 9.2, an architecture view is a representation of a system from the perspective of a related set of concerns1. It consists of one or more architecture models that demonstrate how the system addresses the stakeholder concerns1.

An architecture viewpoint is a specification of the conventions for constructing and using an architecture view to address specific stakeholder concerns1. It defines the perspective, scope, notation, and techniques for creating an architecture view of a system1.

Architects can present architecture views and viewpoints to stakeholders to extract hidden agendas, principles, and requirements that could impact the final Target Architecture, because23:

Architecture views and viewpoints help to communicate and visualize the architecture in a way that is meaningful and relevant to different stakeholders, addressing their specific interests and needs.

Architecture views and viewpoints help to elicit and validate the stakeholder concerns and requirements, ensuring that they are aligned with the business goals and objectives, and that they are consistent and feasible within the architecture context.

Architecture views and viewpoints help to identify and resolve any conflicts, gaps, or trade-offs among the stakeholder concerns and requirements, ensuring that they are balanced and prioritized in the architecture design and decision-making.

Architecture views and viewpoints help to demonstrate and verify the value and benefits of the architecture to the stakeholders, ensuring that they are satisfied and committed to the architecture outcome and governance.

1: The TOGAF Standard, Version 9.2, Chapter 22: Architecture Views, Viewpoints, and Stakeholders

2: The TOGAF Standard, Version 9.2, Chapter 4: Introduction to Part II, Section 4.2: What is an Architecture Framework?

3: The TOGAF Standard, Version 9.2, Chapter 31: Architectural Artifacts, Section 31.1: Basic Concepts

Comprehensive and Detailed Explanation From Exact Extract (150–250 words):

In TOGAF, the Architecture Landscape is classified across three levels: Strategic, Segment, and Capability. These levels represent increasing detail and decreasing scope as you move downward through the model.

The top level (C) represents the Enterprise Strategic Architecture. This level provides a broad, long-term view of the enterprise, aligned with business strategy and covering the entire organization. It defines the overall direction, policies, and high-level structure of the enterprise architecture.

The middle level (B) represents the Segment Architecture. This level focuses on specific business segments, divisions, or domains within the enterprise. It translates strategic intent into more detailed architectural guidance relevant to particular areas of the organization.

The bottom level (A) represents the Capability Architecture, which is the most detailed level, focusing on specific capabilities and implementation concerns.

Given this structure:

C corresponds to Enterprise Strategic Architecture (1)

B corresponds to Segment Architecture (2)

Thus, the correct mapping is B-2, C-1, which is Option D.

This reflects TOGAF’s hierarchical approach where strategic architecture guides segment architecture, which in turn guides capability-level implementations.

===========

A content metamodel is a formal structure that defines the types of entities and relationships that are used to capture, store, filter, query, and represent architectural information in a way that supports consistency, completeness, and traceability12.

A stakeholder map is a tool that identifies and analyzes the key stakeholders and their interests, influence, and expectations in relation to the architecture3. It is not used to structure architectural information, but rather to understand the stakeholder needs and concerns.

An architecture framework is a set of principles, guidelines, standards, and tools that provide a common structure and methodology for developing architectures4. It is not used to structure architectural information, but rather to guide the architecture development process and ensure alignment with the business strategy and objectives.

An EA library is a repository that stores and manages the architecture artifacts, deliverables, and other relevant information produced and consumed during the architecture development and governance. It is not used to structure architectural information, but rather to provide access, security, and version control for the architecture content.

 1: The TOGAF Standard, Version 9.2 - Content Metamodel 2: TOGAF 9.2 Content Metamodel Framework - A Quick Guide - KnowledgeHut 3: The TOGAF Standard, Version 9.2 - Stakeholder Management 4: The TOGAF Standard, Version 9.2 - Architecture Framework : The TOGAF Standard, Version 9.2 - Architecture Repository

The following activities are part of Risk Management:

Initial risk assessment

Risk mitigation and residual risk assessment

Risk monitoring

Risk Management is the process of identifying, assessing, and responding to risks that may affect the achievement of the enterprise’s objectives. Risk Management involves balancing positive and negative outcomes resulting from the realization of either opportunities or threats. Reference: The TOGAF® Standard | The Open Group Website, Section 3.3.3 Risk Management.

According to the TOGAF Standard, 10th Edition, a transformation readiness assessment is a technique that evaluates the preparedness of the organization to undergo a change, and identifies the actions needed to increase the likelihood of a successful outcome. A transformation readiness assessment can be conducted in Phase E: Opportunities and Solutions, and the actions resulting from it can be dealt with in Phase F: Migration Planning 1. In Phase E, the transformation readiness assessment can help to identify the major implementation challenges and risks, and to define the critical success factors and key performance indicators for the architecture project. In Phase F, the actions resulting from the transformation readiness assessment can help to develop a detailed and realistic migration plan, and to address the gaps, issues, and dependencies that may affect the transition to the target architecture 1. References: 1: TOGAF Standard, 10th Edition, Part III: ADM Guidelines and Techniques, Chapter 29: Business Transformation Readiness Assessment.

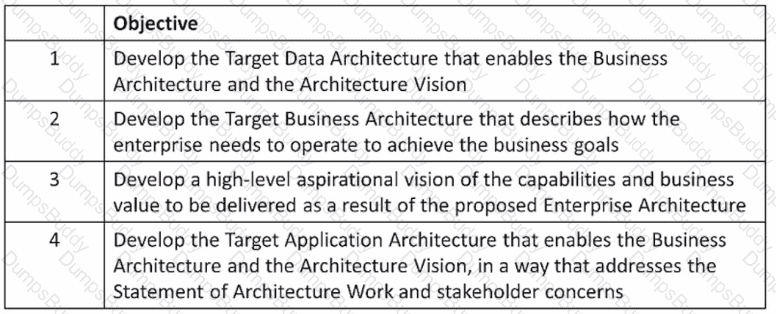

The objectives listed in the question correspond to the objectives of different phases of the TOGAF ADM (Architecture Development Method), which is a method for developing and managing an enterprise architecture1.

The ADM consists of nine phases, each with a specific purpose and output. The phases are1:

Preliminary Phase: To prepare and initiate the architecture development cycle, including defining the architecture framework, principles, and governance.

Phase A: Architecture Vision: To define the scope, vision, and stakeholders of the architecture initiative, and to obtain approval to proceed.

Phase B: Business Architecture: To describe the baseline and target business architecture, and to identify the gaps between them.

Phase C: Information Systems Architectures: To describe the baseline and target data and application architectures, and to identify the gaps between them.

Phase D: Technology Architecture: To describe the baseline and target technology architecture, and to identify the gaps between them.

Phase E: Opportunities and Solutions: To identify and evaluate the opportunities and solutions for implementing the target architecture, and to define the work packages and transition architectures.

Phase F: Migration Planning: To finalize the implementation and migration plan, and to ensure alignment with the enterprise portfolio and project management.

Phase G: Implementation Governance: To provide architecture oversight and guidance for the implementation projects, and to manage any architecture change requests.

Phase H: Architecture Change Management: To monitor the changes in the business and technology environment, and to assess the impact and performance of the architecture.

Based on the above definitions, we can match each objective with the corresponding phase as follows:

Objective 1: Develop the Target Data Architecture that enables the Business Architecture and the Architecture Vision. This objective is achieved in Phase C: Information Systems Architectures, where the data architecture is defined as a subset of the information systems architecture2.

Objective 2: Develop the Target Business Architecture that describes how the enterprise needs to operate to achieve the business goals. This objective is achieved in Phase B: Business Architecture, where the business architecture is defined as a subset of the enterprise architecture3.

Objective 3: Develop a high-level aspirational vision of the capabilities and business value to be delivered as a result of the proposed Enterprise Architecture. This objective is achieved in Phase A: Architecture Vision, where the architecture vision is defined as a high-level description of the target architecture and its benefits4.

Objective 4: Develop the Target Application Architecture that enables the Business Architecture and the Architecture Vision, in a way that addresses the Statement of Architecture Work and stakeholder concerns. This objective is achieved in Phase C: Information Systems Architectures, where the application architecture is defined as a subset of the information systems architecture2.

1: The TOGAF Standard, Version 9.2, Chapter 5: Architecture Development Method (ADM)

2: The TOGAF Standard, Version 9.2, Chapter 9: Phase C: Information Systems Architectures

3: The TOGAF Standard, Version 9.2, Chapter 8: Phase B: Business Architecture

4: The TOGAF Standard, Version 9.2, Chapter 7: Phase A: Architecture Vision

 In the ADM documents which are under development and have not undergone any formal review and approval process are called “draft”. This indicates that they are subject to change and refinement as the architecture development progresses. Reference: The TOGAF® Standard | The Open Group Website, Section 4.2.5 Architecture Deliverables.

 According to the TOGAF template for Architecture Principles, the Rationale section should describe the relationship to other principles, as well as the business benefits and the intentions of adhering to the principle. The Rationale section should use business terminology and point to the similarity of information and technology principles to the principles governing business operations. The Rationale section should also explain how the principle supports the achievement of the business objectives and key architecture drivers. References:

Architecture Principles Template

The TOGAF Standard, Version 9.2 - Architecture Principles

The Open Group Exam OGEA-103 Topic 1 Question 4 Discussion

The chart illustrates an important TOGAF concept: ADM phases can operate concurrently or iteratively rather than strictly sequentially. The diagram shows Phase A activities occurring first, after which the architecture development phases (Business, Data, Application, and Technology Architectures) overlap in time. This overlap demonstrates how architecture development work may proceed in parallel as information becomes available, allowing architects to refine and coordinate the candidate architecture more efficiently.

TOGAF explicitly supports iteration and concurrency across ADM phases. While the phases are presented in a logical order, they are not intended to be executed in a rigid step-by-step sequence in all situations. Instead, architects may work across several phases simultaneously to address dependencies, refine requirements, and accelerate the development of the candidate architecture and roadmap.

Option A best reflects this principle because it acknowledges that phases may run together as part of an iterative architecture development process until a coherent candidate architecture is produced and validated. Option B is incorrect because TOGAF does not mandate the use of specific project management tools such as Gantt charts. Option C is incorrect because the ADM is not strictly sequential. Option D is incorrect because the duration of phases is not fixed in TOGAF.

Therefore, the chart illustrates the concept that ADM phases may be executed concurrently to develop and validate the candidate architecture.

An Architecture Board is an executive-level group responsible for the review and maintenance of the strategic architecture and all of its sub-architectures1. It is a key element in a successful Architecture Governance strategy2.

An Architecture Board is typically made responsible, and accountable, for achieving some or all of the following goals2:

Providing the basis for all decision-making with regard to the architectures

Consistency between sub-architectures

Establishing targets for re-use of components

Flexibility of the Enterprise Architecture: To meet changing business needs To leverage new technologies

Enforcement of Architecture Compliance

Improving the maturity level of architecture discipline within the organization

Ensuring that the discipline of architecture-based development is adopted

Supporting a visible escalation capability for out-of-bounds decisions

Therefore, the correct answer is option D, which captures one of the goals of an Architecture Board as stated in the TOGAF Standard, Version 9.22.

Option A is incorrect, because conducting assessments of the maturity level of architecture discipline within the organization is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Capability Framework3.

Option B is incorrect, because allocating resources for architecture projects is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Governance Framework4.

Option C is incorrect, because creating the Statement of Architecture Work is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Development Method5. References:

1: Architecture Board - The Open Group3

2: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Board

3: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Capability Framework

4: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Governance Framework

5: TOGAF Standard, Version 9.2 - Part II: Architecture Development Method - Phase A: Architecture Vision

In TOGAF’s treatment of risk within architecture governance and ADM Guidelines & Techniques, risk management is seen as a continuous process including several phases. First one classifies potential risk types. Then one identifies specific risks. After identification comes assessment (evaluating likelihood and impact), monitoring (tracking over time), mitigation (taking actions to reduce the risk), and related response or treatment options to decide what to do with residual risk. That sequence—classification, identification, assessment, monitoring, mitigation, and response—completes the risk management life cycle. It does not stop at evaluation or reporting; it includes active monitoring, control, and reaction to risks over time.

Business Transformation Readiness Assessment is a joint effort between corporate staff lines of business and IT planners to evaluate the readiness of the organization to undergo change. It involves assessing factors such as vision, commitment, capacity, capability, culture, and motivation that may influence the success of a business transformation initiative. Reference: The TOGAF® Standard | The Open Group Website, Section 3.3.2 Business Transformation Readiness Assessment.

According to the TOGAF Standard, 10th Edition, a stakeholder is “an individual with an interest in a system” 1. A stakeholder can be anyone who is affected by the system, or who can influence or be influenced by the system. Stakeholders can have different roles, perspectives, and concerns regarding the system, and they can be internal or external to the organization. Stakeholder management is a technique that helps to identify, analyze, and engage the stakeholders of an architecture project, and to address their needs and expectations 2. The other options are not correct, as they are not the term used by the TOGAF Standard to describe an individual with an interest in a system. A consumer is “an individual or group that uses a product or service” 1. A lead architect is “an individual who is responsible for leading the development of an architecture” 1. A sponsor is “an individual who provides funding and support for an architecture project” 1. References: 1: TOGAF Standard, 10th Edition, Part I: Introduction, Chapter 3: Definitions. 2: TOGAF Standard, 10th Edition, Part III: ADM Guidelines and Techniques, Chapter 24: Stakeholder Management.

Statements 1 and 3 about architecture partitioning are correct. Architecture partitioning is the technique of dividing an architecture into smaller and more manageable parts that can be developed, maintained, and governed independently. Partitions are used to simplify the management of the Enterprise Architecture and to enable different teams to work on different elements of the architecture at the same time. Partitions are not equivalent to architecture levels, which are different degrees of abstraction or detail in an architecture. Partitions do not necessarily reflect the organization’s structure, which may change over time or differ from the architecture’s scope and boundaries. Reference: The TOGAF® Standard | The Open Group Website, Section 2.5 Architecture Partitioning.

An EA Capability is the ability of an organization to perform enterprise architecture effectively and efficiently. It involves establishing and maintaining the appropriate organization structures, roles, responsibilities, skills, processes, tools, and governance mechanisms to support the development and use of enterprise architecture. An EA Capability enables the organization to align its business and IT strategies, deliver value from its investments, manage change and complexity, and improve its performance and agility12 References: 1: The TOGAF Standard, Version 9.2, Part VI: Architecture Capability Framework, Chapter 44: Introduction 2: The TOGAF Standard, Version 9.2, Part VI: Architecture Capability Framework, Chapter 45: Establishing and Maintaining an Enterprise Architecture Capability

Comprehensive and Detailed Explanation

The TOGAF ADM defines distinct objectives for Phase E (Opportunities and Solutions) and Phase F (Migration Planning).

Phase E: Opportunities and Solutions

Focuses on generating the initial Architecture Roadmap.

Identifies major work packages, Transition Architectures, and projects.

Determines if an incremental approach is needed, and defines Transition Architectures to ensure delivery of continuous business value.

Therefore:

Statement 1 (incremental approach and Transition Architectures) belongs to Phase E.

Statement 2 (initial Architecture Roadmap based on gap analysis) also belongs to Phase E.

Phase F: Migration Planning

Finalizes the Architecture Roadmap.

Develops the detailed Implementation and Migration Plan.

Ensures stakeholders understand the business value and cost of work packages and Transition Architectures.

Therefore:

Statement 3 (finalizing the Roadmap and Plan) belongs to Phase F.

Statement 4 (ensuring value and cost are understood by stakeholders) belongs to Phase F.

Correct Mapping

Phase E Objectives = Statements 1 and 2

Phase F Objectives = Statements 3 and 4

Thus the correct answer is A (1 & 2).

References

The Open Group, TOGAF® Standard, Version 9.2, Part II: ADM — Phase E: Opportunities and Solutions (objectives include generating the initial Architecture Roadmap, identifying major work packages, determining incremental approach and Transition Architectures).

Phase F: Migration Planning (objectives include finalizing the Architecture Roadmap and Implementation & Migration Plan, and confirming business value and costs with stakeholders).

The Open Group, TOGAF® 9 Certified Study Guide — comparison of Phase E vs. Phase F objectives.

===========

According to the TOGAF Standard, 10th Edition, the Preliminary Phase of the Architecture Development Method (ADM) has the purpose to develop an Enterprise Architecture Capability 1. An Enterprise Architecture Capability is the ability of the organization to perform the activities and tasks related to Enterprise Architecture, such as defining the scope, principles, vision, governance, and stakeholders of the architecture. The Preliminary Phase also establishes the architecture framework, the architecture repository, the architecture tools, and the architecture team 1. The other options are not correct, as they have different purposes in the ADM. Phase G: Implementation Governance has the purpose to ensure that the implementation projects conform to the target architecture 2. Phase A: Architecture Vision has the purpose to define the scope, stakeholders, business drivers, and objectives of the architecture project 3. Phase B: Business Architecture has the purpose to describe the baseline and target business architecture, and to identify the gaps between them . References: 1: TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 6: Preliminary Phase. 2: TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 18: Phase G: Implementation Governance. 3: TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 12: Phase A: Architecture Vision. : TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 13: Phase B: Business Architecture.

Architecture Principles are general rules and guidelines that inform and support the way in which an organization sets about fulfilling its mission. They reflect a level of consensus among the various elements of the enterprise, and form the basis for making future IT decisions. One of the purposes of Architecture Principles is to establish a common understanding of how to control the business in pursuit of strategic objectives, by providing a framework for evaluating and agreeing on the changes that affect the enterprise’s architecture3 References: 3: The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 23: Architecture Principles : The TOGAF Standard, Version 9.2, Part IV: Architecture Content Framework, Chapter 31: Architecture Principles

The illustration shows an architecture development cycle based on the TOGAF ADM (Architecture Development Method), which is a method for developing and managing an enterprise architecture1.

The ADM consists of nine phases, each with a specific purpose and output. The phases are1:

Preliminary Phase: To prepare and initiate the architecture development cycle, including defining the architecture framework, principles, and governance.

Phase A: Architecture Vision: To define the scope, vision, and stakeholders of the architecture initiative, and to obtain approval to proceed.

Phase B: Business Architecture: To describe the baseline and target business architecture, and to identify the gaps between them.

Phase C: Information Systems Architectures: To describe the baseline and target data and application architectures, and to identify the gaps between them.

Phase D: Technology Architecture: To describe the baseline and target technology architecture, and to identify the gaps between them.

Phase E: Opportunities and Solutions: To identify and evaluate the opportunities and solutions for implementing the target architecture, and to define the work packages and transition architectures.

Phase F: Migration Planning: To finalize the implementation and migration plan, and to ensure alignment with the enterprise portfolio and project management.

Phase G: Implementation Governance: To provide architecture oversight and guidance for the implementation projects, and to manage any architecture change requests.

Phase H: Architecture Change Management: To monitor the changes in the business and technology environment, and to assess the impact and performance of the architecture.

In addition to these phases, there is a central process called Requirements Management, which is labeled as item 1 in the illustration. This process operates throughout the ADM cycle, and its purpose is to manage the architecture requirements throughout the architecture development, ensuring that they are aligned with the business requirements and the stakeholder concerns2.

Therefore, the description that matches the phase of the ADM labeled as item 1 is C. Operates the process of managing architecture requirements.

1: The TOGAF Standard, Version 9.2, Chapter 5: Architecture Development Method (ADM)

2: The TOGAF Standard, Version 9.2, Chapter 17: Requirements Management

This aligns with the TOGAF Architecture Repository model where:

A (Architecture Requirements Repository) contains requirements that drive architecture work.

B (Solutions Repository) stores the building blocks or solutions that support the architecture.

C (Architecture Landscape) represents the architecture assets that depict the current, transition, and target architecture states across the enterprise

The TOGAF ADM uses Gap Analysis during Phases B, C, and D (Business, Information Systems, and Technology Architectures) to identify building block gaps—the differences between the Baseline Architecture and the Target Architecture. However, simply identifying gaps does not complete the process.

The association of gaps with work packages happens later in the cycle:

Phase E: Opportunities and Solutions is where the identified gaps are analyzed and translated into work packages, projects, or initiatives that will deliver the required changes.

In Phase E, architects also determine whether Transition Architectures are needed, and they generate the initial Architecture Roadmap.

This is the phase where gaps become actionable, linked with specific work packages that can be executed to close them.

Phase F (Migration Planning) takes this further by finalizing the roadmap and building the detailed Implementation and Migration Plan, but the initial association of gaps with work packages occurs in Phase E.
