JN0-232 Security, Associate (JNCIA-SEC) Questions and Answers

Security policies can reference additional services and authentication behavior after traffic matches the policy criteria. SSL proxy is applied through a security policy by matching the traffic that should be decrypted and inspected, then referencing the SSL proxy profile as an application service. Firewall authentication is also policy-based; Juniper describes it as requiring users to authenticate to the SRX Series Firewall before access between zones and devices is permitted. Captive portal authentication is a web redirection mechanism and is not the direct security policy feature identified in this question. MAC bypass is not a standard SRX security policy service. Therefore, SSL proxy and firewall authentication are the two features applied through security policy processing.

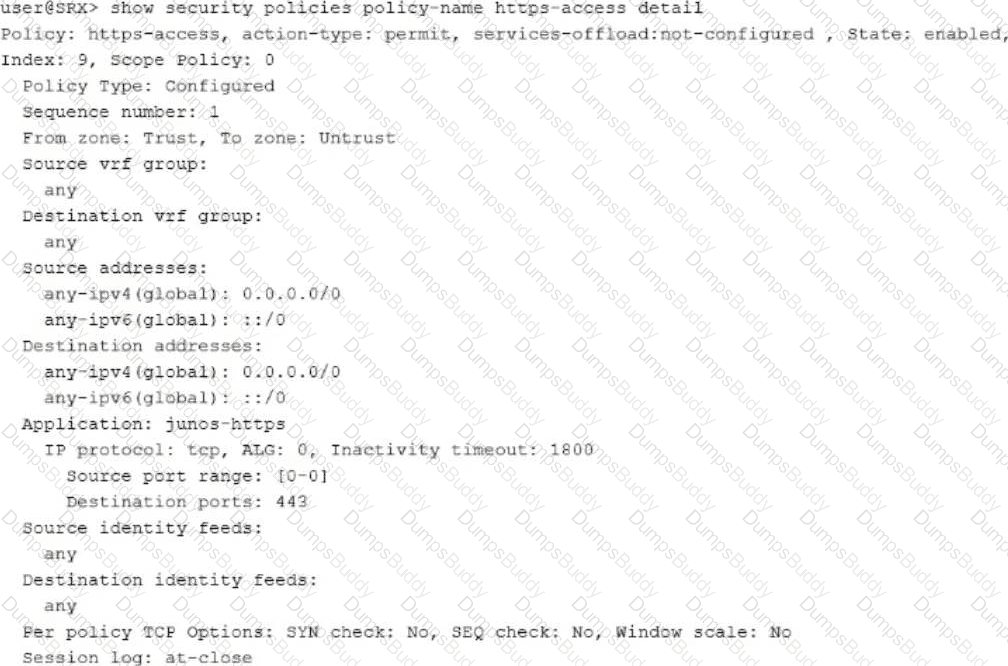

The exhibit shows From zone: Trust, To zone: Untrust, which identifies the policy as a zone-based security policy. It also shows the policy action as permit and the application as junos-https, with TCP destination port 443. Therefore, the policy permits HTTPS traffic. The displayed inactivity timeout is 1800 seconds, which is the normal value shown for predefined TCP applications such as HTTPS, so it does not prove a non-default timeout. The exhibit also shows sequence number 1, not sequence number 2, so it is not the second policy in the list. Junos security policies are configured in a from-zone to to-zone context and match traffic by criteria such as source address, destination address, and application before applying the configured action.

Juniper security address objects are defined in address books and are used by features such as security policies and NAT. A global address object is valid because Junos supports a global address book that is available across security zones without attaching it to a specific zone. A prefix address object is also valid because Juniper allows addresses to be specified in network prefix format, such as 203.0.113.0/24. Routing address object is not a standard Junos security address-book object type. MAC address object is not the normal address object used for SRX security policy address matching, which primarily uses IPv4, IPv6, DNS, wildcard, and address-range entries.

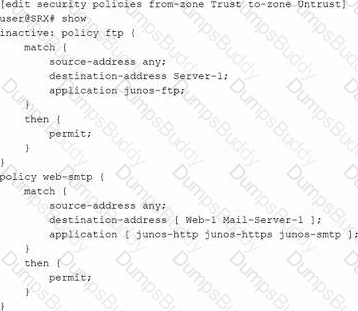

The exhibit shows that the FTP policy is marked inactive, so it remains in the configuration but does not take effect when the configuration is committed. Juniper documentation explains that inactive configuration elements are ignored and are not applied during commit. One valid fix is to activate the FTP policy and commit the configuration so that the policy becomes active again. Another valid fix is to use rollback 1 to return to the previously committed configuration, then commit that restored configuration. Simply moving the inactive FTP policy before another policy would not help because an inactive policy is still ignored. Changing the destination address to any is unnecessary because the primary problem shown is the inactive FTP policy.

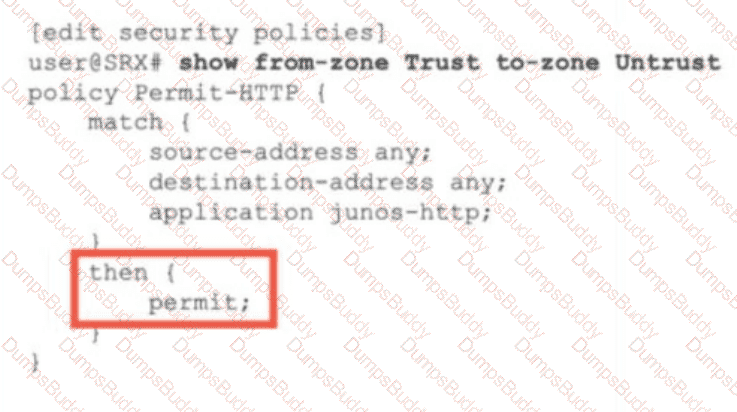

The highlighted portion in the exhibit is:

then {

permit;

}

In Junos OS security policy configuration, the then statement defines the policy action . The action tells the SRX Series Firewall what to do with traffic after it matches the policy conditions.

A security policy normally contains these major components:

Zone context: from-zone Trust to-zone Untrust

Policy name: policy Permit-HTTP

Match criteria: source address, destination address, and application

Policy action: then permit, then deny, or then reject

In the exhibit, the highlighted section is not the zone context, policy name, or match criteria. It is the action section that permits the matched HTTP traffic.

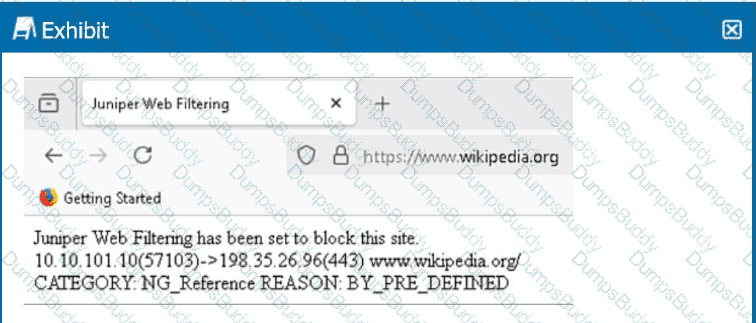

From the exhibit:

The user attempted to access https://www.wikipedia.org.

The block page indicates:

CATEGORY: NG_Reference

REASON: BY_PRE_DEFINED

The header states: “Juniper Web Filtering has been set to block this site.”

Analysis of options:

Option A: Correct. The log shows “REASON: BY_PRE_DEFINED,” which means the site was blocked because it matched a predefined category in the Web filtering database.

Option B: Correct. The category “NG_Reference” indicates that the NextGen (Enhanced/Cloud-based) Web Filtering type is being used.

Option C: Incorrect. The exhibit does not provide any information about SSL proxy configuration; it only shows that the HTTPS site was blocked.

Option D: Incorrect. The block page shown is the standard Juniper default block page, not a custom message.

Correct Statements: The URL matches a predefined Web filtering category, and the NextGen Web Filtering type is being used.

Security Director (Option B): A Junos Space application that provides a centralized interface for managing, monitoring, and maintaining multiple SRX firewalls.

Juniper Secure Analytics (Option A): Focuses on SIEM/log analysis, not centralized firewall management.

Identity Management Service (Option C): Provides user identity integration for policy enforcement, not a management UI.

Secure Connect (Option D): A VPN client solution, not a firewall management platform.

Correct UI: Security Director

Juniper SRX evaluates security policies in order, top to bottom . The first matching policy determines the action, and no further policies are evaluated. This behavior can lead to shadowed policies if later policies match the same conditions as earlier ones.

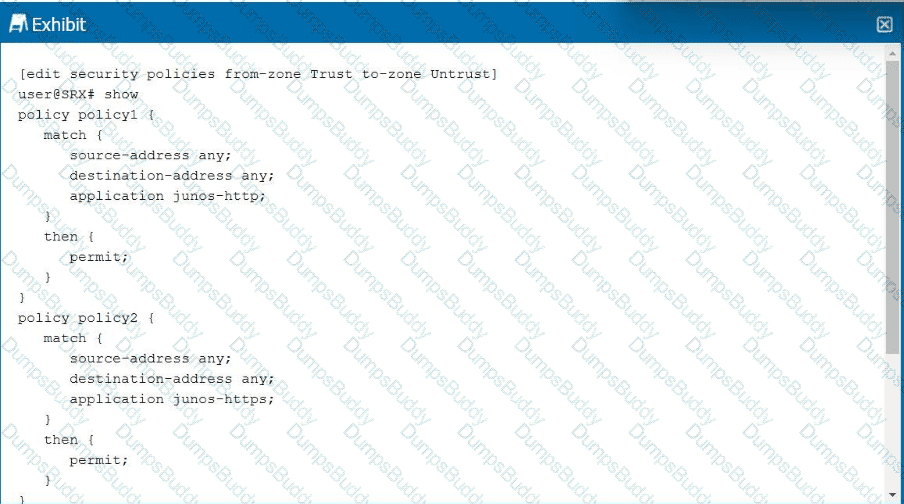

From the exhibit:

Policy1: Matches application junos-http and permits traffic.

Policy2: Matches application junos-https and permits traffic.

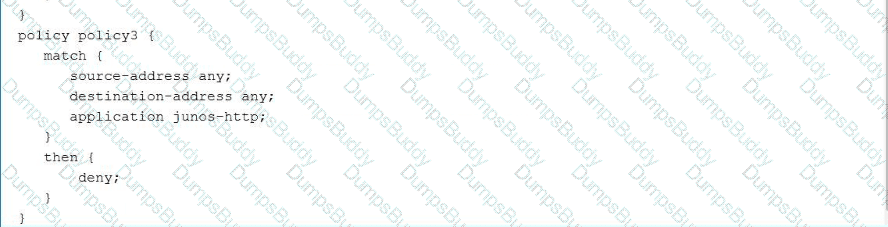

Policy3: Matches application junos-http again, but denies traffic.

Since policy1 already matches all HTTP traffic and permits it, traffic never reaches policy3 . This makes policy3 shadowed because it has the same match condition as policy1 but is evaluated later in the list.

Other options:

Policy1 is not shadowed because it is evaluated first.

Policy2 is independent (application = HTTPS) and therefore unaffected.

Only policy3 is shadowed by policy1.

Correct Statement: Policy3 will be shadowed because it matches the same application as policy1.

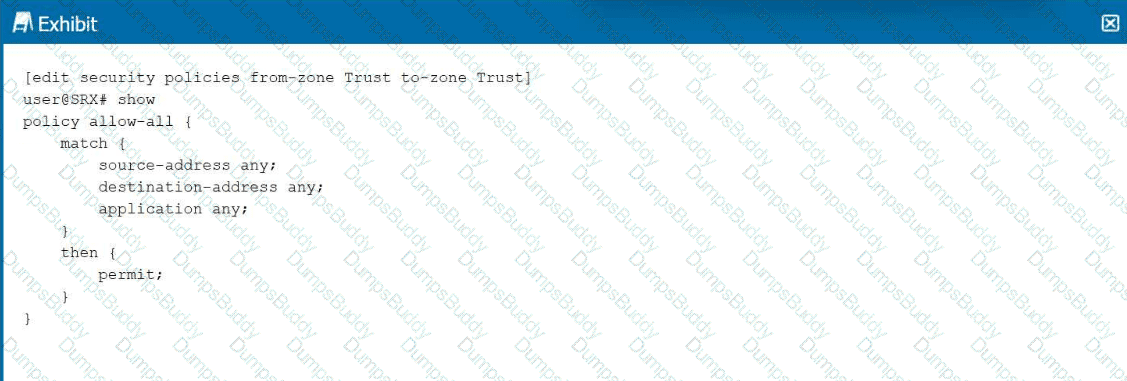

From the exhibit configuration:

[edit security policies from-zone Trust to-zone Trust]

policy allow-all {

match {

source-address any;

destination-address any;

application any;

}

then {

permit;

}

}

The from-zone and to-zone are both set to Trust → Trust .

This means the policy is governing traffic within the same zone .

Policies within the same zone are called intra-zone policies .

Analysis of options:

Global policy (A): Applied universally across zones, not zone-specific. Not the case here.

Inter-zone policy (B): Applies between two different zones (e.g., Trust → Untrust). Not the case here since both zones are Trust.

Intra-zone policy (C): Correct. Applies to traffic within the same zone (Trust → Trust).

Default policy (D): The implicit deny-all policy that applies when no policy matches. Not shown in this exhibit.

Correct Policy Type: Intra-zone policy

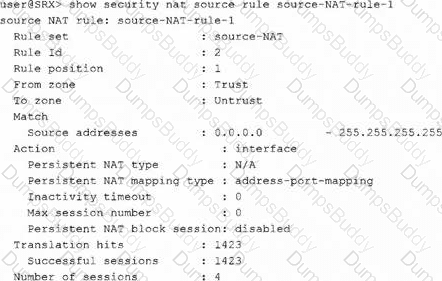

The exhibit shows the output of show security nat source rule source-NAT-rule-1. The rule belongs to the source NAT rule set and has rule position 1, so it is the first NAT rule in that rule set. The match section shows the source address range as 0.0.0.0 - 255.255.255.255, meaning any IPv4 source address matches. The rule also specifies traffic from the Trust zone to the Untrust zone. Therefore, all traffic entering through the Trust zone and leaving through the Untrust zone matches this source NAT rule. The output also shows translation hits and successful sessions, confirming that traffic has matched the rule. It is not limited to only traffic matching the default route. Juniper documents that NAT rule sets use source/destination zone or interface matching and can be verified with show security nat source rule.

Exception traffic refers to traffic that must be sent from the Packet Forwarding Engine (PFE) to the Routing Engine (RE) for processing, such as routing protocol updates, management traffic, and control-plane destined packets.

Option B: Correct. Exception traffic is rate-limited on the internal connection between the PFE and RE to protect the Routing Engine from denial-of-service attacks.

Option A: Incorrect. Exception traffic is not handled only on the PFE; it requires RE involvement.

Option C: Incorrect. Rejected traffic by security policies is simply dropped, not classified as exception traffic.

Option D: Incorrect. Malformed packets are dropped, not considered exception traffic.

Correct Statement: Exception traffic is rate-limited between the PFE and RE.

To enable Juniper NextGen Web Filtering, the SRX must have the required NGWF license and the web-filtering type must be configured for NGWF. Juniper documentation states that Enhanced Web Filtering and NGWF require separate licenses and that NGWF can use the wf_key_ng_juniper license key. Juniper also documents NGWF as a configurable web- filtering type, including ng-juniper, and notes that administrators can confirm missing license conditions using the web-filtering status command. A public IP address on the loopback interface is not a general NGWF requirement. SSL host inbound traffic on the untrust zone is also not required for enabling NGWF; SSL proxy or SNI behavior may affect HTTPS inspection, but it is not the base enablement step.

The Juniper SRX antispam feature checks messages in a specific order when both local lists and the SBL server are used.

The processing order is:

Local allowlist is checked first. If there is a match, the message is allowed, and no further antispam checking is performed.

Local blocklist is checked second. If there is a match, the configured spam action is applied.

Spam Block List (SBL) server is checked last. If the sender is not found in the local allowlist or blocklist, the SRX queries the SBL server.

Therefore, the correct processing order is:

allowlist → blocklist → Spam Block List (SBL) server

Traceoptions in the security flow hierarchy provide debugging for how packets are processed in the flow module.

The correct flag to capture detailed packet-level debugging is packet-dump (Option A) . This outputs packet-level trace messages showing flow decisions, NAT processing, and policy matches.

general (Option B): Provides basic flow trace information but not full packet inspection.

state (Option C): Tracks flow state transitions, less detailed than packet-dump.

basic-datapath (Option D): Provides high-level datapath debugging, not detailed flow troubleshooting.

Correct Flag: packet-dump

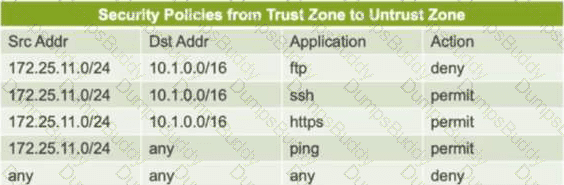

The policy table applies to traffic from the Trust zone to the Untrust zone. The source prefix 172.25.11.0/24 and destination prefix 10.1.0.0/16 are matched for FTP, SSH, HTTPS, and ping actions. FTP traffic from 172.25.11.11 to 10.1.0.10 matches the FTP deny policy, so option A is correct. SSH traffic from 172.25.11.10 to 10.1.0.10 matches the SSH permit policy, so option C is correct. Ping from 172.25.11.100 to 10.1.0.10 is permitted, not denied, because the ping policy permits it. Option D reverses the source and destination direction and does not match the displayed Trust-to-Untrust policy table. Security policies are matched using zone context, source address, destination address, and application.

When a packet enters an SRX interface, a route lookup is performed:

It determines the egress interface (Option B) by checking the destination IP against the routing table.

Once the egress interface is known, its associated egress security zone (Option D) is also determined.

The ingress interface (Option A) is already known when the packet arrives, so the route lookup does not determine it.

DNS name (Option C): DNS is unrelated to routing lookups.

Correct Results: egress interface, egress security zone

In Junos OS, traffic is classified into three main categories:

Transit traffic:

Defined as traffic that enters one interface and exits another interface .

It is handled entirely in the forwarding plane (Packet Forwarding Engine) .

Example: User data packets moving between trust and untrust zones.

Correct → Option A .

Exception traffic:

Traffic requiring processing by the Routing Engine (control plane) , such as routing updates or management traffic.

Matches Option C/D , but that is not transit traffic.

Control traffic:

Management or routing-related, handled by the control plane.

Rate-limiting (Option B):

This applies specifically to exception traffic to protect the Routing Engine, not to transit traffic.

Correct Statement: Transit traffic is traffic that is processed solely through the forwarding plane.

Content filtering on SRX devices inspects and controls specific file types transferred across certain application protocols:

SMTP (Option A): Supported. Content filtering can block specific file attachments in emails.

HTTP (Option D): Supported. Content filtering can block downloads of specific file types over web traffic.

SNMP (Option B): Not supported; SNMP is a management protocol, not a content delivery protocol.

TFTP (Option C): Not supported by content filtering.

Correct Protocols: SMTP and HTTP

Junos OS uses a modular software architecture. Instead of one monolithic process controlling all functions, Junos separates major functions into individual protected processes, such as routing, interface control, management, chassis control, and Packet Forwarding Engine communication. This separation improves operational stability because a failure in one process has little or no effect on other software processes. Juniper’s architecture documentation explains that Routing Engine software functions run as separate processes and that this modularity provides fault isolation. Therefore, Junos is built using independent software processes, and individual processes can be restarted with limited impact on the rest of the system. Options A and C are incorrect because they describe tightly coupled behavior, which is opposite to Junos modular design.

The management functional zone on SRX devices is a special predefined zone with unique characteristics:

It is automatically created (Option C) and cannot be deleted.

It is used specifically for management-related traffic (Option A), such as SSH, Telnet, web management (J-Web), SNMP, and other control-plane services.

It does not contain revenue (data) interfaces (Option B is incorrect). Interfaces must be explicitly configured into user-defined zones.

The management zone can be referenced in policies if inter-zone communication involving management traffic is needed (Option D is incorrect).

Correct Statements: A and C

On high-end SRX platforms, control-plane (Routing Engine–destined) traffic transits the loopback (lo0) and is best captured by applying a firewall filter on lo0 with the then sample action , together with traffic sampling under forwarding-options to write packets to a file.

sample sends matched control-plane packets to the sampling process, which can record them for analysis.

datapath-debug capture focuses on data-plane/SPC paths and is not the tool for generic control-plane packet capture.

tcpdump from shell is not the supported workflow on SRX; the operational command is monitor traffic, but for high-end control-plane capture, the recommended and scalable method is lo0 filter + sampling .

Port mirroring mirrors transit data-plane traffic, not RE-destined control-plane packets.

After confirming correct routing:

The next step is to verify security zone assignments (Option A) . If interfaces are not correctly assigned to zones, traffic will not be evaluated against proper inter-zone or intra-zone security policies, causing drops.

Option B: The routing protocol is irrelevant once the correct route lookup is confirmed.

Option C: NAT is checked later in the flow, not the immediate next step after routing.

Option D: ALG is only needed for specific applications (FTP, SIP), not general troubleshooting.

Correct Next Step: Verify that interfaces are assigned to the correct security zones.

The packet flow for new traffic on SRX is processed in a defined order:

Screens (Option B, Step 1): Packets are first checked by screens for anomalies such as floods, malformed packets, or protocol violations.

Route Lookup (Step 2): The destination IP is checked in the routing table to determine the egress interface.

Zone Determination (Step 3): Once the ingress and egress interfaces are known, their associated zones are identified.

Security Policies (Step 4): With both zones determined, the packet is evaluated against the configured security policies.

Other options list incorrect sequences, either moving routing later or placing policies before zone determination, which is not possible.

Correct Processing Order: screens → routes → zones → security policies

In Junos OS, NAT rules are evaluated in top-down order . When a new rule is added, it is placed at the bottom of the rule set by default.

To move a rule to the top of the rule set, the command is:

set security nat source rule-set < name > rule < rule-name > top

Option A (top): Correct. Moves the specified rule to the top of the list.

Option B (run): Used to execute operational commands, not rule reordering.

Option C (up): Not valid for reordering NAT rules.

Option D (insert): Not a supported NAT reordering command in Junos.

Correct Command: top

On SRX Series Firewalls, Junos OS automatically creates system-defined zones that have special functions:

Null zone (Option A): A predefined discard zone. By default, all interfaces belong to the null zone until assigned to a user-defined zone. Traffic destined to the null zone is dropped.

Junos-host zone (Option B): A predefined functional zone that allows security policies to control traffic directed to the SRX device itself (management traffic, such as SSH, HTTP, SNMP).

Management zone (Option C): There is a predefined management functional zone , but it is not called " management " as a system-defined security zone.

DMZ (Option D): A DMZ zone must be explicitly created by the administrator, it is not system-defined.

Correct Zones: null, junos-host

Global security policies extend the flexibility of policy enforcement across the SRX. They are not tied to specific source and destination zones:

From-zone and to-zone contexts are not required (Option A). Global policies apply across all zones unless restricted by match conditions.

Global security policies do not require specific zone contexts (Option B is incorrect).

Global policies are processed after zone-based policies , not before. This means that zone-based security policies take precedence (Option C is incorrect).

Administrators can configure both zone-based security policies and global security policies at the same time on the same device (Option D is correct).

This allows flexible designs where specific policies can be enforced by zone, while general policies can be applied globally without duplicating rules across multiple zones.

Interface-based source NAT uses the outgoing interface address as the translated source address and commonly relies on Port Address Translation to allow many internal hosts to share that single interface IP address. Juniper describes source NAT as translating private addresses to public routable addresses and specifically supports translating many addresses to a single address or smaller address block using port translation. Static NAT is a fixed one-to-one mapping and does not normally perform PAT. Source NAT with address shifting maps one address block to another and is not the interface overload method. Destination NAT without port forwarding changes the destination address, not the source address and port for outbound sharing.

Routing instances: Security zones are local to their routing instance. They cannot be shared between routing instances (Option B is correct). Each routing instance must define its own zones.

Intrazone and interzone traffic: Both types of traffic require policies in Junos OS. Intrazone traffic must have an explicit intra-zone policy to be controlled (Option C is correct).

Sharing zones: Option A is incorrect, as zones cannot span routing instances.

Multiple zones: SRX devices fully support multiple security zones (trust, untrust, DMZ, etc.). Option D is incorrect.

Correct Statements: B and C

Adding interfaces (Option A): An interface must be assigned to a security zone before it can pass traffic. By default, interfaces are in the null zone and cannot send or receive traffic.

Exception traffic (Option B): Security zones define host-inbound-traffic settings, which determine what types of management or control-plane traffic (SSH, ICMP, SNMP) are permitted.

Routing instances (Options C and D): Security zones are specific to a routing instance and cannot include interfaces from multiple instances. Therefore, interfaces in the same zone cannot belong to different routing instances.

Correct Statements: A and B

To enforce a catch-all blocking policy after other specific policies, the correct solution is a global security policy (Option A) .

Global policies can apply universally across zones, and an administrator can configure a final “deny all” rule to block any unmatched traffic.

ATP policy (Option B): Protects against advanced threats, not used for catch-all rule enforcement.

IDP policy (Option C): Focuses on intrusion detection and prevention signatures, not general traffic blocking.

Integrated user firewall policy (Option D): Applies policies based on user identity, but it does not provide a universal block across all services.

Correct Solution: Global security policy
