Mule-Dev-301 Salesforce Certified MuleSoft Developer II Questions and Answers

Reusable Mule extensions and modules should be consumed through Maven dependency management rather than through manual file copying. The consuming Mule application's pom.xml declares the module's Maven coordinates—groupId, artifactId, and version—and identifies the artifact using the mule-plugin classifier.

The classifier is significant because it tells Mule's Maven and extension mechanisms that the dependency represents a Mule plugin/module rather than an ordinary Java library. MuleSoft's documentation for custom modules shows precisely this dependency pattern and states that setting the classifier to mule-plugin enables the module to be installed and recognized by the consuming Mule project.

Using a normal JAR classifier does not establish the artifact as a Mule extension. Likewise, manually copying Mule XML or downloading binaries into src/main/resources bypasses Maven dependency resolution, version management, transitive dependency handling, and reproducible builds. Those practices also make centralized maintenance significantly harder.

A Center for Enablement publishing a shared component to Nexus is specifically aligned with the Maven-based reuse model: applications reference an immutable version of the reusable artifact through their POM.

Reference topics: Maven Dependencies; Custom Mule Modules; mule-plugin Classifier; Reusable Application Components.

Official documentation: https://docs.mulesoft.com/studio/add-custom-modules-in-studio-to

===============================================================

Resource filtering is designed primarily for textual resources in which Maven substitutes property expressions. Binary files such as PKCS#12 keystores and certificate files must not be passed through text filtering because filtering can corrupt their binary representation.

The Maven Resources Plugin provides the dedicated configuration element nonFilteredFileExtensions. Each additional extension is declared using a nested nonFilteredFileExtension. The plugin documentation specifically defines this parameter as the list of additional file extensions to which filtering must not be applied.

Option C correctly uses the documented structure:

< nonFilteredFileExtensions >

< nonFilteredFileExtension > p12 < /nonFilteredFileExtension >

< nonFilteredFileExtension > crt < /nonFilteredFileExtension >

< nonFilteredFileExtension > pem < /nonFilteredFileExtension >

< /nonFilteredFileExtensions >

This is important because the application's normal resource configuration can still use < filtering > true < /filtering > for textual files while Maven leaves the listed certificate/keystore formats untouched.

The alternative constructs visible in the other exhibits, such as excludeFileExtensions or excludeBinaryFiles, are not the Maven Resources Plugin parameter used for this purpose.

Reference topics: Maven Resources Plugin; resource filtering; binary resources; nonFilteredFileExtensions; Mule Maven builds.

Official documentation: https://maven.apache.org/plugins/maven-resources-plugin/resources-mojo.html

===============================================================

When any route within Scatter-Gather fails, Mule raises a MULE:COMPOSITE_ROUTING error after the routes complete. The information associated with each route is retained in the error message payload. This payload contains separate collections for failures and results, indexed according to the route positions.

Routes are zero-indexed for this structure: Route A corresponds to index 0, Route B to index 1, Route C to index 2, and Route D to index 3. Because Route C failed, its failure information is therefore available from the failures structure at index 2.

Critically, this data belongs to the Mule error's errorMessage.payload; it is not simply the current event payload. Consequently, payload.failures[2] and payload[2] address the wrong structure. Likewise, error.errorMessage.payload.results[2] refers to the successful-results collection; for a failed route, the relevant object is stored under failures.

MuleSoft's Scatter-Gather documentation demonstrates the same mechanism, accessing failed route information through expressions such as error.errorMessage.payload.failures['0'] and successful route output through the corresponding results collection.

Reference topics: Scatter-Gather Error Handling; MULE:COMPOSITE_ROUTING; Route Results and Failures; Compensation Logic.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.6/scatter-gather-concept

===============================================================

PGP uses asymmetric cryptography for establishing confidentiality between a sender and a recipient. When the Mule application sends encrypted information to the backend service, it encrypts the content using the recipient's public key. Only the corresponding private key, retained by the backend recipient, can subsequently be used to decrypt that content.

MuleSoft's Cryptography Module documentation explicitly identifies the two principal PGP scenarios: outgoing encryption uses another party's public key, while incoming decryption uses the receiver's own private key. In a Mule application, the backend's public key is normally imported into a PGP public keyring, and the Cryptography Module's PGP Encrypt operation references the appropriate key or fingerprint.

The sender does not need the backend's private key. In fact, distributing the recipient's private key would defeat the fundamental security model of public-key cryptography. Both keys would be relevant for certain combined operations such as encryption plus signing, but ordinary encryption for confidentiality requires the recipient's public key. HTTPS/TLS may additionally protect transport, but it is separate from PGP payload encryption.

Reference topics: Cryptography Module; PGP Encryption; Public and Private Keyrings; PGP Encrypt Operation.

Official documentation: https://docs.mulesoft.com/cryptography-module/latest/cryptography-module-pgp

===============================================================

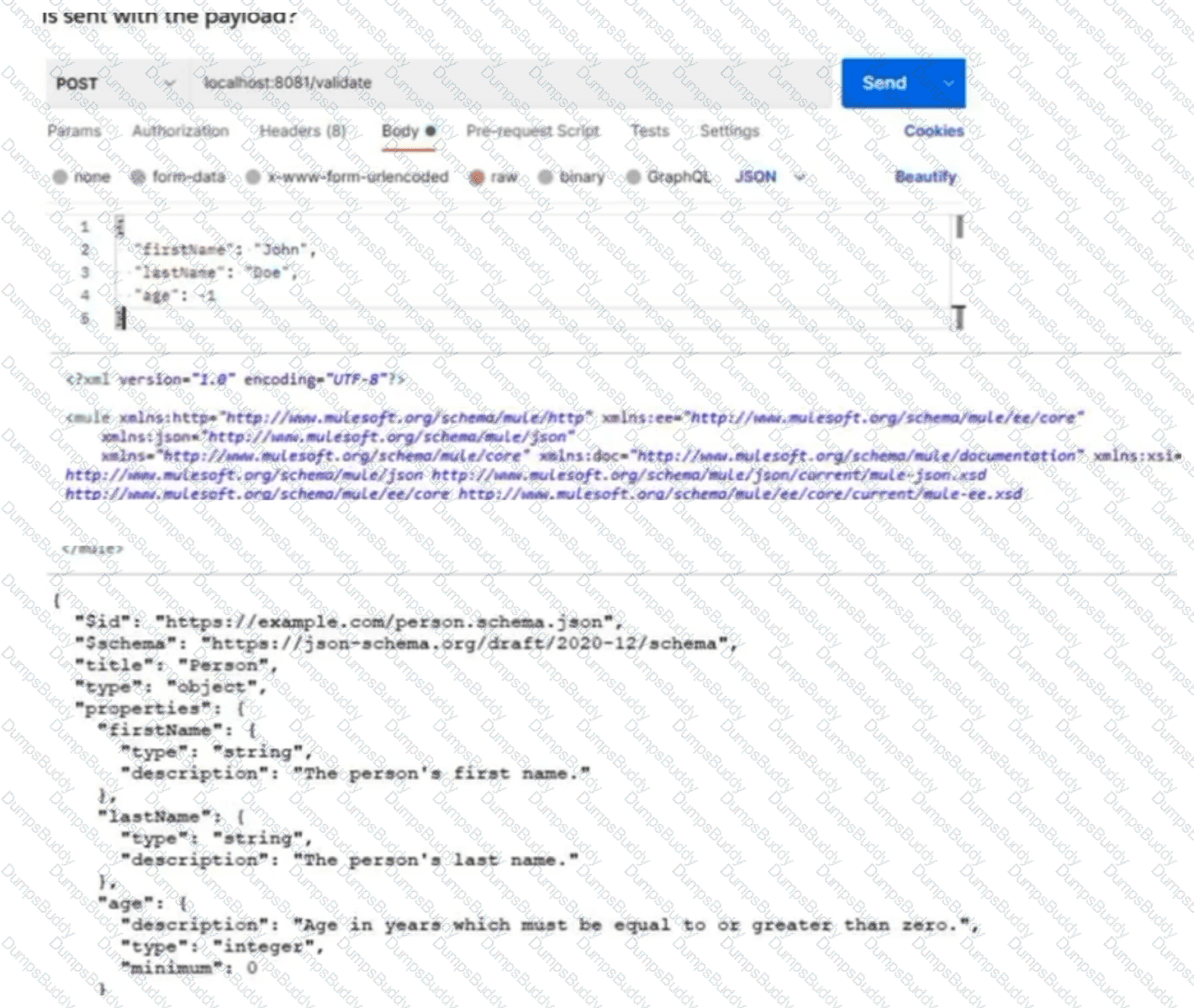

The flow passes the incoming HTTP request payload directly to the JSON Module's Validate schema operation. The referenced schema.json defines the age property as an integer with "minimum": 0. However, the request shown in the exhibit contains:

"age": -1

This violates the schema because -1 is below the permitted minimum. MuleSoft specifies that the JSON Module's Validate schema operation compares the input content with the supplied JSON Schema and, when the document does not conform, raises JSON:SCHEMA_NOT_HONOURED.

Consequently, normal flow execution stops at the validation operation unless an error handler explicitly consumes the exception. The Logger positioned after the validation operation is not executed in this flow because validation fails first.

The schema's description text—"Age in years which must be equal to or greater than zero."—is metadata describing the property; it does not automatically become a successful HTTP response. Similarly, the request payload is not returned through a successful normal path after the schema violation.

Therefore, because the supplied age value violates minimum: 0, Mule raises JSON:SCHEMA_NOT_HONOURED.

Reference topics: JSON Module; Validate Schema operation; JSON Schema constraints; minimum; JSON:SCHEMA_NOT_HONOURED.

Official documentation: https://docs.mulesoft.com/json-module/latest/json-schema-validation

===============================================================

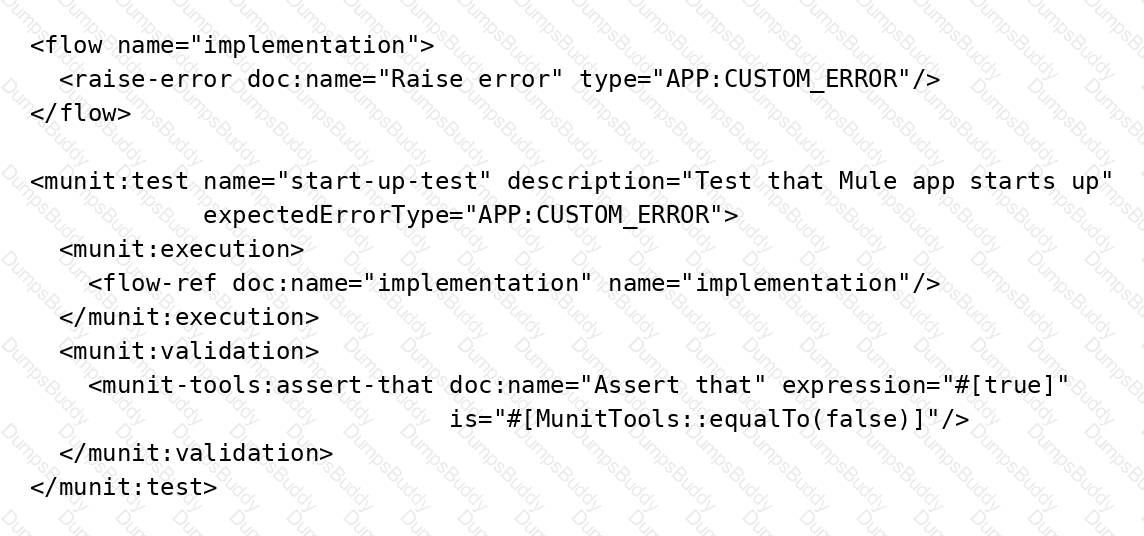

The significant attribute in the MUnit definition is expectedErrorType="APP:CUSTOM_ERROR". The referenced implementation flow deliberately invokes raise-error with exactly the same error type: APP:CUSTOM_ERROR.

MUnit supports expected-error testing specifically for negative scenarios. When expectedErrorType is configured, the test is considered successful when execution produces that expected Mule error. The raised error is therefore not treated as an unexpected test failure; it satisfies the test's declared expectation.

The apparently failing assertion—testing true against equalTo(false)—does not change the result in this scenario because normal execution does not reach the validation chain after the referenced flow raises the expected error. The expected error terminates the execution path being tested and satisfies the MUnit expectation.

If the implementation generated a different error type, option B would apply. If it generated no error when an error was expected, the test would also fail. Here, however, the flow explicitly raises the exact application-defined error specified by the test.

Reference topics: MUnit Test Structure; expectedErrorType; Error Testing; Raise Error Component.

Official documentation: https://docs.mulesoft.com/munit/3.6/munit-test-concept

===============================================================

Maven controls a Mule application's build and deployment through the project's pom.xml. A newly generated Mule project contains the normal project metadata and Mule Maven Plugin definition, but Maven-based deployment requires the appropriate deployment configuration to be added or completed in that POM.

MuleSoft's CloudHub deployment documentation explicitly states that the CloudHub deployment strategy must be configured in the project's pom.xml. The Mule Maven Plugin configuration contains deployment-specific settings such as the Mule runtime version, application name, environment, region, worker configuration, authentication information or references, and application properties.

settings.xml can store Maven-level repository or server credentials, but it is normally part of the user's Maven configuration rather than a required file inside the Mule application project. mule-artifact.json describes Mule artifact/runtime metadata and exported resources/packages; it is not where the Mule Maven deployment strategy is defined. config.yaml is likewise not the Maven build descriptor.

Therefore, before using Maven to deploy the application, the deployment configuration must be established in the project's pom.xml.

Reference topics: Mule Maven Plugin; pom.xml; Maven deployment lifecycle; CloudHub deployment configuration; CI/CD.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.4/deploy-to-cloudhub

===============================================================

Until Successful is intended for failures that can reasonably succeed when retried, such as temporary connectivity issues or transient downstream unavailability. Mule executes the processors in the scope repeatedly until processing succeeds or the configured retry count is exhausted. If an error continues to propagate from the scope, Mule performs another attempt and ultimately raises MULE:RETRY_EXHAUSTED after all retries fail.

An HTTP:UNAUTHORIZED response represents a permanent application/security condition for the current request. Repeating the identical request does not normally repair invalid credentials or insufficient authorization and simply increases latency and downstream traffic.

The HTTP Request should therefore be placed inside a Try scope. An On Error Continue handler specifically catches the permanent error and handles it inside that Try scope. Because the error is consumed rather than propagated, the Until Successful scope does not interpret the attempt as a retryable failure.

Using On Error Propagate would have the opposite effect: the error would escape the Try scope and cause Until Successful to retry. Continuing until MULE:RETRY_EXHAUSTED unnecessarily delays the response.

Reference topics: Until Successful Scope; Try Scope; On Error Continue; permanent versus transient errors; MULE:RETRY_EXHAUSTED.

Official documentation: https://docs.mulesoft.com/mule-runtime/latest/until-successful-scope

===============================================================

Object Store v2 is suitable for distributed key/value state that must be available across CloudHub executions and replicas, but it should not be used to hold the complete contents of files larger than its per-value limit. MuleSoft documents that an Object Store v2 value is limited to 10 MB, while the overall store does not have a fixed aggregate size limit.

The appropriate architecture is therefore to persist the binary file itself in storage designed for large objects—for example, a durable external object/blob storage service—and store only lightweight metadata in Object Store v2. That metadata can include the object's storage key, URI/location, status, or other lookup information. Subsequent flow executions can query Object Store v2 to determine whether the object exists and then retrieve the actual file from the external storage system.

An in-memory Object Store is inappropriate because application replicas do not provide a durable shared in-memory persistence model for this requirement. Storing the entire file directly in Object Store violates the 10 MB value constraint. Local file-based storage is also unsuitable as a cross-replica CloudHub persistence mechanism.

Reference topics: Object Store v2 limits; CloudHub replicas; distributed persistence; external object storage; key/location metadata.

Official documentation: https://docs.mulesoft.com/object-store/osv2-faq

===============================================================

A readiness endpoint answers a more specific question than whether the Mule process is merely running: is this application ready to service business traffic successfully? For a System API whose business functionality depends on MySQL, readiness requires both the API itself and its critical downstream dependency to be usable.

A dedicated readiness endpoint is preferable to reusing an existing business resource because monitoring must not generate business-side effects or depend on arbitrary resource semantics. The endpoint should perform lightweight checks that establish application readiness and verify reachability of required underlying systems such as the database.

Returning only the API's local status could produce a false-positive readiness result when the Mule application is running but MySQL is unreachable. Checking the server alone has the same weakness: infrastructure health does not establish business-service readiness. Modern Mule deployment environments likewise distinguish availability/readiness signals from simple process existence; readiness is intended to establish whether the deployed service is available for processing traffic.

Therefore, the most operationally meaningful design is a dedicated endpoint reporting the API's status together with connectivity to its essential underlying systems.

Reference topics: Readiness versus liveness; dependency health; System API monitoring; production operational endpoints.

Official documentation: https://docs.mulesoft.com/runtime-fabric/latest/deploy-mule-app-anypoint-controller

===============================================================

Standard TLS authenticates the server to the client through the server's public certificate. The client validates that certificate against its configured trusted certificate authorities. Mutual TLS extends this process by requiring the client to present its own certificate so that the server can authenticate the client's identity as well.

MuleSoft describes a TLS-enabled server as exposing its public certificate while retaining its private key, and states that TLS clients validate the server certificate against their trusted certificates. For two-way TLS, both keystore and truststore material are configured so that the server can additionally validate certificates presented by clients.

Accordingly, server identity authentication is part of the TLS handshake before completion of the mutual client-authentication exchange. This makes option C the valid statement in the context of the question.

mTLS does not inherently increase the symmetric encryption strength; cipher-suite strength is independent of whether one-way or two-way authentication is used. A hardware security module can be useful for protecting keys but is not mandatory for mTLS. Finally, mTLS authenticates certificate-bearing client identities, not necessarily individual application end users or their business authorization.

Reference topics: TLS; mutual TLS; two-way authentication; keystore; truststore; client certificate authentication.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.3/tls-configuration

===============================================================

VM Connector supports both intra-application and inter-application asynchronous communication. MuleSoft specifically documents that two different Mule applications can publish to and consume from the same VM queue when both applications are part of the same Mule domain and reference the shared VM configuration.

The fact that the applications are deployed to a two-node Mule cluster does not prevent use of VM Connector. In cluster mode, VM queues are cluster-wide resources. Mule's cluster synchronizes access, and messages placed on a VM queue can be processed by another node in the cluster. MuleSoft identifies this as a supported mechanism for distributing asynchronous work across clustered runtime instances.

Therefore, option B is incorrect: each node does not operate an entirely isolated VM queue namespace for a shared clustered configuration. Option D also contradicts VM Connector's documented inter-application use case.

The required architectural condition is that both applications use the same domain/shared VM configuration so they can reference the same queue. The publisher can then send asynchronously while the second API consumes from the shared VM queue.

Reference topics: VM Connector; Mule domains; inter-application communication; persistent/transient queues; Mule HA clustering.

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-publish-across-apps

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-reference

===============================================================

A TLS cipher suite defines the cryptographic algorithms that the communicating parties use to protect the connection. During TLS negotiation, the client advertises cipher suites that it supports and the server selects a mutually supported suite according to the protocol version and its security configuration.

In TLS 1.2 and earlier, a cipher-suite name can identify several cryptographic components, including key-exchange/authentication mechanisms, the symmetric encryption algorithm, and integrity protection. TLS 1.3 expresses cipher suites differently, but the negotiated suite still determines the authenticated-encryption algorithm used to protect application traffic. MuleSoft's TLS documentation exposes cipher-suite configuration directly, including suites based on AES-GCM and ChaCha20-Poly1305.

The TLS protocol version is negotiated as part of the broader handshake but is conceptually distinct from choosing a cipher suite. Likewise, a public-key format is not what the cipher-suite exchange fundamentally selects, and "a protocol" is too general.

Among the provided choices, an encryption algorithm is therefore the technically correct description of what the cipher-suite negotiation establishes for protecting the session.

Reference topics: TLS handshake; cipher suites; symmetric encryption; AES-GCM; mTLS cryptographic negotiation.

Official documentation: https://docs.mulesoft.com/anypoint-security/cipher-suites

===============================================================

Mule's Tracing Module provides dedicated operations for adding values to the logging context through Mapped Diagnostic Context (MDC). A logging variable can be established once for the Mule event—for example, orderId—and that contextual information becomes available to logging performed during the event's execution.

MuleSoft specifically describes MDC as a mechanism that enriches logging and improves traceability by providing contextual information. The Tracing Module's Set logging variable operation allows application-specific identifiers to be inserted into that context. The Log4j pattern can then include MDC, avoiding the need to manually add vars.orderId to every Logger component.

Option B incorrectly assumes an ordinary Mule flow variable automatically behaves as MDC simply because Log4j configuration is modified. Option C creates repetitive and error-prone logger expressions throughout the application, directly violating maintainability objectives. Building a custom XML SDK logger wrapper is also unnecessary because Mule already provides the required tracing capability.

Using an MDC logging variable therefore centralizes the order ID as diagnostic context and allows consistent correlation across application-generated logs for the same Mule event.

Reference topics: Tracing Module; Set Logging Variable; Mapped Diagnostic Context; structured and correlated application logging.

Official documentation: https://docs.mulesoft.com/tracing-module/latest/tracing-module-logging

===============================================================

A production health endpoint should verify the same network path and HTTP infrastructure that clients depend on. Reusing the API's existing HTTP Listener configuration and port ensures that the health check validates whether the application's actual inbound listener is operational. Mule HTTP Listener configurations define the host, port, protocol, TLS configuration, and potentially a common base path; multiple listener sources can use the same configuration while exposing different paths.

A separate listener and port could report healthy even when the primary API listener is unavailable or incorrectly configured, producing a misleading health signal. Sending health information outward to another system is telemetry rather than an endpoint-level availability test. Likewise, exercising a payment API with genuine customer payment data is inappropriate because monitoring should be non-destructive and should not create business transactions.

Therefore, a lightweight endpoint such as /health using the same listener configuration provides a representative indication that the application can receive traffic through its normal production interface without invoking payment-processing behavior.

Reference topics: Mule HTTP Listener configuration; production health checks; API availability monitoring; non-invasive operational endpoints.

Official documentation: https://docs.mulesoft.com/http-connector/latest/http-listener-ref

===============================================================
