RCWA RUCKUS Certified Wi-Fi Associate Exam Questions and Answers

To throttle download speeds for specific device types—such as ChromeOS devices—and assign them to a dedicated VLAN , the appropriate configuration is to create a Device Policy and apply it to the target WLAN .

According to the RUCKUS One Online Help – Device Policy Management , and RUCKUS AI documentation – Policy Control and Device Analytics , Device Policies can classify client devices based on operating system, MAC OUI, or fingerprinting data . Once identified, administrators can enforce rate limits, VLAN tagging, and access restrictions for that device type.

By applying this policy to the STUDENT SSID , all detected ChromeOS clients will have bandwidth limits applied and their traffic segmented into the configured VLAN for management and security isolation.

Other options—such as Layer 2 ACLs or Application Control Policies —manage packet-level permissions or app-level prioritization, not per-device bandwidth or VLAN segmentation. Creating a new WLAN is unnecessary since RUCKUS policy management allows dynamic device-based enforcement on a single SSID.

When onboarding access points (APs) to RUCKUS One , the system requires essential identifiers to register and associate the devices with the correct organization and physical site.

According to RUCKUS One Online Help – Device Onboarding and Registration , administrators must specify:

Device Serial Number (A): Unique hardware ID for authentication and cloud linkage.

Device Model (B): Ensures the correct firmware image and configuration profile are applied.

Venue to Assign to Devices (D): Determines the logical and geographical site placement for analytics and management grouping.

Device name and WLAN settings are optional and configured later after registration.

When enabling 802.1X authentication on a RUCKUS Access Port via an Ethernet Port Profile (used for ICX switches or AP wired interfaces), the available roles are:

(A) Supplicant: The device (AP or switch port) acts as the client that must authenticate to the upstream authenticator (e.g., a switch or NAC system).

(C) Port-based Authenticator: The device enforces 802.1X authentication for devices connected to it (e.g., a switch controlling a connected host).

According to RUCKUS One Online Help – 802.1X and Wired Authentication Configuration and RUCKUS Analytics 3.5 User Guide – Wired Client Authentication Monitoring , these two roles define whether the port initiates or enforces authentication.

“Host-based” and “MAC-based” refer to specific authentication methods , not roles , and “Authentication Server” (e.g., RADIUS) is an external entity, not a port role.

Virtual SmartZone High Scale (vSZ-H) is designed for very large enterprise and service-provider deployments and supports up to 10,000 managed APs per controller. Current RUCKUS SmartZone specifications also document scaling of up to 30,000 APs when vSZ-H is deployed as a supported cluster. In comparison, Virtual SmartZone Essentials is designed for smaller environments and supports substantially fewer APs per controller. Unleashed is a controller-less architecture intended for considerably smaller deployments, while ZoneDirector is a legacy controller family and does not provide vSZ-H ' s high-scale capacity. RUCKUS specifically positions vSZ-H as its virtual high-scale SmartZone solution for large distributed networks requiring centralized wired and wireless management. Therefore, among the supplied options, vSZ-H is the solution capable of managing 10,000 access points. RUCKUS Networks

================

RUCKUS Analytics is a cloud-based network intelligence platform integrated with RUCKUS One that provides service-level assurance (SLA) and end-user experience visibility across multiple sites and networks.

According to the RUCKUS Analytics 3.5 User Guide , it leverages AI-driven baselines and telemetry data from access points and switches to:

Detect anomalies

Measure Wi-Fi performance against SLAs

Generate detailed client experience reports

SmartZone Essentials handles local management, ZoneDirector is legacy controller software, and SmartMesh is a wireless backhaul technology—not a management analytics system.

The Noise Floor Level represents the background RF interference in dBm, which directly affects the Signal-to-Noise Ratio (SNR) and overall connection stability.

As stated in RUCKUS One Online Help – RF Diagnostics , an elevated noise floor (e.g., higher than -85 dBm) can indicate interference from devices such as wireless cameras or radar systems.

RUCKUS Analytics 3.5 User Guide – RF Metrics Dashboard highlights that tracking the noise floor is essential for differentiating between weak coverage and interference-based issues.

Retransmissions and retries are symptoms, while the noise floor identifies the root cause.

In SmartZone High-Scale (vSZ-H) environments, the Domain Hierarchy defines the organizational and administrative structure for managing distributed networks and multi-tenant operations.

According to RUCKUS One Online Help – SmartZone Domain and Role Management and SmartZone High-Scale Administration Guide , the following apply:

(A) Each Domain defines an administrative boundary that determines which network components (zones, WLANs, APs) specific administrators can access or modify.

(D) A Domain can contain sub-domains and AP Zones , allowing hierarchical management layers for large service provider or enterprise environments.

(F) Partner Domains (exclusive to vSZ-H) allow configuration inheritance from the System Domain , while providing the flexibility to customize local settings and policies for tenants or customers.

Options B , C , and E are incorrect because all domain types (not only Partner Domains) can contain AP Zones, and SmartZone supports multi-level hierarchies beyond just System and Zone levels.

Expanding a VLAN Pool beyond 32 VLANs in SmartZone requires access points that support the 802.11ac Wave 2 standard or higher .

According to RUCKUS One Online Help – VLAN Pooling and Dynamic VLAN Assignment , older AP platforms (prior to 802.11ac Wave 2) are limited to 32 VLANs due to hardware constraints in VLAN ID indexing and memory allocation. Wave 2 and newer models (including Wi-Fi 6 and 6E APs) support expanded VLAN pools up to 64 or more entries .

This capability enables more granular segmentation of large user groups, especially in high-density enterprise or education environments where dynamic VLAN assignment distributes clients evenly across multiple subnets.

User role and traffic profiles handle authentication and QoS mapping, not VLAN scalability. 802.11k and 802.11r improve roaming, not VLAN allocation.

Therefore, 802.11ac Wave 2 and above hardware is required to support VLAN pools beyond 32 entries.

Optimized Connectivity Experience (OCE) is the RUCKUS feature specifically designed to prevent stations with marginal connectivity from joining the WLAN. In SmartZone WLAN configuration, OCE includes an RSSI-based Association Rejection Threshold. When a client ' s received signal level falls below the configured threshold, its association can be rejected, helping prevent poor-quality connections that consume disproportionate airtime and produce an unsatisfactory user experience. Transient Client Management has a different purpose: it delays or discourages associations from devices that only briefly pass through the AP ' s coverage area. Airtime Decongestion reduces management-frame airtime consumption, while OFDM Only prevents legacy 802.11b operation on the 2.4 GHz radio. RUCKUS documentation explicitly states that OCE prevents devices with marginal connectivity from joining and rejects associations from clients with poor signal levels. Ruckus Wireless Documentation

================

The H Series and T Series both contain RUCKUS AP models with Power over Ethernet output capability. In the H Series, the H550 wall-mounted hospitality AP includes multiple Ethernet access ports and supports PoE output on one port, allowing devices such as IP phones, cameras, or other Ethernet equipment to receive power through the AP. In the outdoor T Series, the T750 includes a 1 GbE PoE output port and is explicitly designed to power another device, such as an IP camera or another AP. RUCKUS currently lists both the H550 and T750 in its wireless AP portfolio. Therefore, the correct family-level selections are H Series and T Series. The presence of PoE output is model-specific within these families and should not be interpreted as meaning every H-Series or T-Series AP provides that capability. RUCKUS Networks

================

SmartZone uses an Account Name@Domain username convention when an administrator logs in to a Partner Domain. The account name identifies the administrator account, while the portion following the @ symbol identifies the Partner Domain to which the account belongs. For example, RUCKUS documentation shows that if an administrator account named User belongs to the Partner Domain TestDomain, the login username is User@TestDomain. Applying the same rule here, an administrator account named Team01 Admin in the Team01 Partner domain must log in as Team01 Admin@Team01 Partner. Reversing the administrator and domain names, combining them without the domain delimiter, or adding a hyphen does not follow the required SmartZone Partner Domain authentication format. Therefore, option A is correct. rcw 3 Ruckus Wireless Documentation

================

Background Scanning in RUCKUS APs allows radios to periodically scan other channels to collect RF environment data while still serving clients. The scan interval determines how often the AP samples channel information for features like ChannelFly , Auto Cell Sizing , and rogue detection .

According to RUCKUS One Online Help – Background Scanning and RF Management , and RUCKUS Analytics 3.5 User Guide – RF Monitoring , increasing the Background Scanning interval to 90 seconds delays updates for processes that depend on real-time RF sampling, specifically:

Rogue AP Detection (B): Takes longer to discover unauthorized or neighboring APs.

Auto-Channel Selection (C): Updates channel quality metrics less frequently, slowing responsiveness to interference changes.

Auto Power Adjustment (E): Depends on scanning results to optimize transmit power for coverage balance, so adjustments occur less frequently.

Processes such as client count and throughput measurement rely on active client data, not background scanning, and spectrum analysis operates in a dedicated analysis mode outside of normal scanning intervals.

The Backup Management feature in SmartZone enables administrators to schedule automatic configuration backups at regular intervals. These backups can include cluster, zone, and AP configuration data.

As detailed in RUCKUS One Online Help – Backup and Restore Procedures , this feature supports manual and scheduled backups with options for secure off-box storage.

The RUCKUS Analytics 3.5 User Guide – Backup Compliance Monitoring notes that this ensures disaster recovery readiness and simplifies configuration rollback.

System Snapshot and Cluster Maintenance features track versioning and updates but are not used for configuration backup automation.

A General Port provides more selective VLAN forwarding than a Trunk Port. RUCKUS RCWA training material describes a General Port as supporting one untagged VLAN together with up to 20 tagged VLANs. This enables an administrator to explicitly define which VLAN traffic can traverse the AP Ethernet port instead of allowing all VLANs as a trunk would. SmartZone documentation similarly explains that General Ports use a user-defined VLAN member list and that the native, or untagged, VLAN must also be included in the configured membership. An Access Port, by contrast, normally carries only a single untagged VLAN, while a Trunk Port permits traffic for the broader VLAN set. Therefore, the description that correctly characterizes a General Port is option C. rcw 3 Ruckus Training

================

In SmartZone , WLAN Groups define which SSIDs (WLANs) are broadcast by specific APs or AP Groups. However, for an AP Group to actually broadcast the WLANs from a WLAN Group, that WLAN Group must be explicitly assigned to the AP Group’s radio interfaces (2.4 GHz, 5 GHz, or 6 GHz).

According to RUCKUS One Online Help – WLAN Group Configuration and SmartZone Administrator Guide , when an AP Group does not have a WLAN Group bound to its radios, the SSIDs in that group will not be broadcast—even if both exist within the same Zone.

Creating the WLAN Group at the Domain level or Zone level is valid, but broadcasting depends on association at the AP Group radio level.

An Ethernet Port Profile in SmartZone defines wired interface behavior and port settings for access points that have multiple Ethernet ports. These profiles are used to configure connectivity, security, and redundancy on wired links between APs and the upstream network.

According to the RUCKUS One Online Help – AP Ethernet Port Profiles and SmartZone 5.x Configuration Guide , the following parameters are supported:

Port Speed (A): Defines link negotiation—Auto, 10/100/1000 Mbps, or fixed rate.

Spanning Tree Mode (D): Controls loop prevention through STP configuration on AP Ethernet ports.

802.1X Authentication (E): Enables port-based authentication for secure wired access on AP Ethernet interfaces, commonly used in hospitality and MDU deployments.

Other listed options— LAG creation (handled via controller-side link aggregation configuration), number of clients (a WLAN-level setting), and Tunnel Profile selection (handled under WLAN or Zone configuration)—are not part of the Ethernet Port Profile feature.

Thus, the correct answers are A (Port speed) , D (Spanning Tree mode) , and E (802.1X Authentication) .

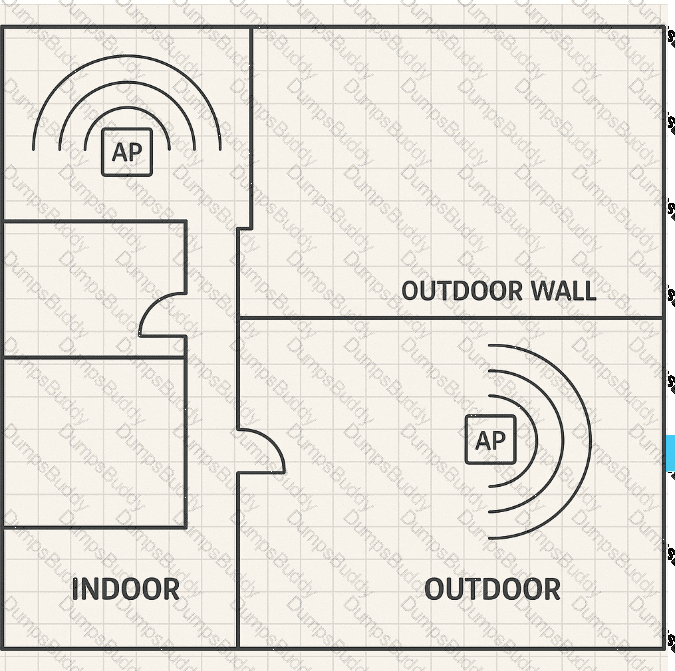

In this layout, the indoor APs are centrally mounted to provide even signal distribution in all directions, while outdoor APs are wall-mounted facing the exterior coverage zone.

According to RUCKUS One Online Help – Antenna Selection and Deployment and RUCKUS AI Documentation – RF Design Guidelines , the best configuration for complete coverage is:

Indoor space: Use Omni-Directional antennas , which radiate uniformly in 360° for even indoor coverage and minimal dead zones.

Outdoor space: Use Patch antennas , which are semi-directional with a 60°–90° beamwidth ideal for covering patios, courtyards, or building perimeters without wasting signal behind the AP.

Yagi antennas are highly directional and suited for long-distance point-to-point links, not area coverage. Semi-directional indoor antennas are unnecessary unless indoor partitioning or wall density requires focused energy.

This combination— Omni indoors and Patch outdoors —provides optimal performance for mixed indoor-outdoor designs and aligns with RUCKUS high-density deployment best practices .

For optimal voice and video performance , RUCKUS recommends maintaining a Signal-to-Noise Ratio (SNR) of 25 dB or higher to ensure a clear, low-latency wireless link.

According to RUCKUS One Online Help – Wi-Fi Quality and SNR Thresholds and RUCKUS AI Documentation – VoIP and Streaming Application Optimization , SNR values above 25 dB correspond to high modulation and coding schemes (MCS8–MCS11 in Wi-Fi 6), supporting stable throughput with minimal jitter or packet loss.

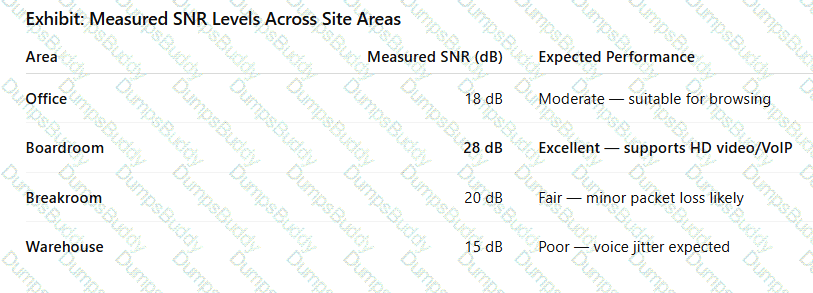

The exhibit shows that the Boardroom maintains an SNR of 28 dB , which exceeds the recommended 25 dB threshold, making it ideal for HD video conferencing and VoIP applications.

Other areas (Office, Breakroom, Warehouse) fall below optimal levels, which can lead to voice dropouts, jitter, and reduced data rates.

RUCKUS Analytics 3.5 User Guide – Client Experience Metrics further validates SNR as a key indicator of real-time application quality.

The Wi-Fi Alliance (WFA) is the global organization responsible for testing and certifying interoperability of wireless LAN products based on the IEEE 802.11 standards. While the IEEE develops and maintains the technical specifications (e.g., 802.11a/b/g/n/ac/ax), it does not perform certification or compliance testing. Instead, the Wi-Fi Alliance ensures that certified devices from different manufacturers operate together seamlessly under the “Wi-Fi CERTIFIED™” program.

According to RUCKUS One Online Help and the RUCKUS AI documentation , RUCKUS access points and controllers undergo Wi-Fi Alliance certification to ensure compatibility with a wide range of client devices, including those using WPA3, Wi-Fi 6 (802.11ax), and Wi-Fi 6E technologies. This certification is critical for enterprise environments where heterogeneous client ecosystems exist.

The IETF focuses on internet protocols (e.g., IP, TCP), and the ISO handles broader international standards, not wireless interoperability. Therefore, the Wi-Fi Alliance is the correct organization ensuring cross-vendor interoperability for Wi-Fi.

The IEEE 802.11k amendment enhances Wi-Fi client roaming by allowing an AP to share information about nearby access points with connected clients. This process, known as the Neighbor Report , provides a list of available APs that the client can use to make faster, more informed roaming decisions.

When a client device receives this neighbor list, it can scan fewer channels , reducing latency and improving the handoff experience—especially in enterprise networks managed by RUCKUS One , SmartZone , or RUCKUS Cloud . According to RUCKUS One Online Help and RUCKUS AI documentation , enabling 802.11k/v/r features together allows for fast and seamless roaming , as 802.11k supplies discovery data, 802.11v assists with steering decisions, and 802.11r enables fast re-authentication.

Option C is correct because 802.11k’s core function is to help clients identify the best potential APs to roam to. The other options describe unrelated functions: encryption caching relates to 802.11r, ignoring weak clients is an AP policy function, and forcing disconnections occurs during load balancing or steering—not through 802.11k.

RUCKUS indoor Access Points use status LEDs to communicate key operational states during deployment and runtime. The LEDs provide immediate visual feedback about the AP’s connectivity, power condition, and client activity.

According to the RUCKUS One Online Help – Access Point LED Indicators , and verified in the RUCKUS AI documentation , the LEDs typically display the following primary states:

Controller Connected (A): Confirms that the AP has successfully registered and established a control session with the RUCKUS controller or RUCKUS Cloud instance.

Insufficient PoE Power (C): Indicates that the AP is receiving inadequate power, such as being powered through 802.3af instead of 802.3at, which may disable high-power features or additional radios.

Clients Connected to a Radio (D): Lights up when one or more clients are associated with the AP’s wireless radios, signifying active WLAN operation.

Other listed options— USB dongle inserted , data plane tunnel connected , and routable IP assigned —are not standard LED indications across RUCKUS indoor AP models. They may represent system events but not physical LED states.

Partner Domains are associated with the high-scale SmartZone architecture and are supported by Virtual SmartZone High Scale, or vSZ-H. They provide hierarchical multi-tenant administration so that service providers or large organizations can separate customers, administrators, zones, WLANs, and resources within a single scalable management platform. Administrators belonging to Partner Domains can be assigned permissions and resources independently, while a system-level administrator retains overall control. RUCKUS SmartZone documentation specifically discusses Partner Domain configuration and migration functionality in the vSZ-H/SZ300 architecture. vSZ-Essentials is targeted at smaller deployments and does not provide the same Partner Domain multi-tenancy model. Unleashed provides controller-less AP management, while ZoneDirector is an older controller platform. Consequently, the correct answer is vSZ-High Scale. rcw 3 Ruckus Wireless Documentation

================

For Voice-over-Wi-Fi (VoWiFi) deployments, RUCKUS recommends maintaining airtime utilization under 50% and ensuring a minimum RSSI of –65 dBm at the edge of coverage areas to guarantee clear call quality and low latency.

According to RUCKUS One Online Help – WLAN Design for Real-Time Applications and RUCKUS AI Documentation – VoIP Quality Optimization , these thresholds ensure a Signal-to-Noise Ratio (SNR) above 25 dB, keeping jitter under 30 ms and packet loss below 1%.

RUCKUS SmartCast QoS automatically prioritizes voice packets (802.11e WMM Voice AC) to further protect call performance, but maintaining low channel congestion remains critical.

RUCKUS Analytics 3.5 User Guide – Airtime and Voice Traffic Metrics emphasizes monitoring airtime utilization through dashboards to verify compliance with design thresholds.

RUCKUS Edge and the SmartZone Data Plane are the two options designed to provide tunneled data-plane functionality. SmartZone supports centralized data forwarding by tunneling WLAN traffic from managed APs to a SmartZone Data Plane, where user traffic can be aggregated and forwarded centrally. RUCKUS Edge extends RUCKUS One services to an edge appliance and supports secure tunneled WLANs, traffic redirection, segmentation, and centralized service control. RUCKUS One itself is primarily the cloud management and orchestration platform; its standard AP data-plane model uses local breakout rather than sending all user traffic through the cloud. Network Director provides management functionality, while Cloudpath focuses on secure onboarding and identity-based network access rather than acting as the Wi-Fi user-traffic data plane. RUCKUS Networks

================

For the SmartZone 6.1.x/RCWA configuration context represented by this question, an R650 supports a maximum of 64 VLANs in a VLAN Pool . The R650 is an 802.11ax Wi-Fi 6 AP, and the SmartZone 6.1 Security Guide specifies that Wave 2 and 802.11ax APs support 64 dynamic VLAN entries, while older Wave 1 APs are limited to 32. Each WLAN can use one VLAN Pool. Therefore, the certification-era answer is B, 64. There is an important release distinction: RUCKUS subsequently expanded the dynamic-VLAN capability of supported Wi-Fi 6 APs, including the R650, to as many as 128 per VAP beginning with SmartZone 7.0. That later enhancement does not change the intended answer for this RCWA-era question. rcw 2 Commscope Docs

================

A RUCKUS Application Policy allows administrators to control network performance and user experience by classifying, prioritizing, and managing traffic based on the type of application detected on the network.

According to RUCKUS One Online Help – Application Control and Policy Management , and RUCKUS AI documentation , Application Policies can:

Apply rate limiting (A): Control the bandwidth allocated to specific applications or application groups (e.g., limit video streaming or social media traffic).

Apply Quality of Service (E): Mark or prioritize application traffic using DSCP or internal QoS levels to ensure latency-sensitive applications such as voice or conferencing receive higher priority.

RUCKUS leverages Deep Packet Inspection (DPI) for identifying over 2,500+ applications, enabling precise enforcement per SSID or per user.

Other options— URL filtering , VLAN assignment , and packet capture —are handled through separate mechanisms (Web filtering, Device Policy, and diagnostic tools, respectively), not via Application Policies.

Therefore, the correct answers are A (Rate limiting) and E (Quality of Service) .

OFDMA (Orthogonal Frequency Division Multiple Access) is one of the core features introduced in IEEE 802.11ax (Wi-Fi 6) . It divides a channel into smaller subcarriers called Resource Units (RUs) , allowing an AP to communicate with multiple clients simultaneously, both on uplink and downlink.

According to the RUCKUS One Online Help – Wi-Fi 6 Features Overview , OFDMA improves spectrum efficiency, reduces latency, and increases throughput in high-density environments. RUCKUS APs such as the R750 and R850 use OFDMA in coordination with RUCKUS AI’s client traffic analysis to allocate resources dynamically.

In contrast, MU-MIMO also supports multi-user communication but only in one direction (downlink for 802.11ac Wave 2, both for 11ax). QAM256 enhances modulation efficiency but doesn’t enable concurrent multi-client service.

When configuring an 802.1X-secured WLAN , RUCKUS systems such as SmartZone , RUCKUS One , or RUCKUS Cloud typically rely on an external RADIUS server for user authentication. However, in the event of a controller failure or connectivity loss to the RADIUS server , RUCKUS APs can continue to authenticate users locally if the local user database is enabled and configured.

The Local Authentication Database allows APs or controllers to store a limited set of credentials that can be used when external AAA services are unavailable. This ensures continued access and redundancy for critical WLANs without requiring external dependency. According to RUCKUS One Online Help – WLAN Configuration and AAA Settings , enabling the Local Authentication Database provides fallback authentication for 802.1X clients during system or connectivity failures.

In contrast, the proxy and non-proxy modes define how authentication requests are relayed to the RADIUS server, while Dynamic PSK (DPSK) is a separate authentication method that replaces 802.1X with per-user keys.

SmartZone ' s Client Connection troubleshooting workflow requires the administrator to identify the affected client and specify the APs that will participate in the connectivity trace. The client is identified using its MAC address, which allows SmartZone to filter frames specifically associated with that device. The administrator then selects one or more APs capable of hearing or communicating with the client. When the trace begins, these APs relay matching frames to the controller, enabling SmartZone to reconstruct the client ' s connection sequence and identify problems during discovery, authentication, association, key exchange, DHCP, or related stages. The client ' s hostname and operating system may appear as contextual information, and the WLAN becomes visible during analysis, but these are not the two required trace inputs. Therefore, B and C are correct. rcw 3 Ruckus Wireless Documentation

================

In this SmartZone 5.2 onboarding scenario:

San Mateo (200.7.10.202.121): These APs are running Unleashed firmware , which cannot directly join a SmartZone controller. According to the RUCKUS One Online Help – AP Firmware Migration , Unleashed APs must first be converted to Standalone (Solo) mode using CLI (set director ip < SZ_IP > or set scg ip) before they can connect. Thus, D (San Mateo devices can use ap-mode commands to onboard) is correct.

Toronto (102.0.0.0.5): This firmware version represents ZoneDirector (ZD) code. APs on ZD firmware communicate using LWAPP , and to migrate them, administrators must perform a firmware conversion process (using set scg ip) for SmartZone compatibility. Therefore, E (Toronto devices will use LWAPP to communicate to SmartZone) is correct.

Mexico City (5.2.0.0.1412): These APs already match the SmartZone firmware family (5.2.x), meaning they are currently or can immediately be managed by this SmartZone cluster. Therefore, F is correct.
