OMG-OCUP2-ADV300 OMG Certified UML Professional 2 (OCUP 2) - Advanced Level Questions and Answers

In UML Sequence Diagrams, a "neg" (negative) combined fragment is used to specify invalid or forbidden interactions. Therefore:

• A.Incorrect, because a "neg" fragment defines an invalid interaction, so following it by normal positive constructs does not affect its interpretation of invalidity.
• B.Incorrect, as nesting a "neg" fragment within another "neg" fragment does not inherently result in valid traces.
• C.Correct. Normal positive constructs followed by a "neg" fragment define some sequences of interactions as invalid, which is the intended use of the "neg" fragment.
• D.Incorrect, because an "assert" fragment is used to specify required interactions, and containing a "neg" fragment within it does not make the invalid traces valid.

References:

• UML Specification: Interactions section, particularly the explanation of combined fragments and their meanings.
• The negative combined fragment and its semantics are discussed in the UML 2.5 Documentation, under the Sequence Diagrams and Combined Fragments sections.

In UML 2.5, a NamedElement can have anameattribute, which is a string representing the element's name, and anameExpressionattribute, which is a ValueSpecification used to specify the element's name in a more dynamic way. The presentation of the name of a NamedElement in a tool that conforms to the OMG specification could either be the literal name (as specified in thenameattribute) or the evaluated expression from thenameExpressionproperty. Therefore, a tool may choose to present either the simple name or the evaluated expression or allow toggling between the two. The specification does not mandate a single fixed presentation, allowing for flexibility in how tools display the name. This conforms to the OMG's UML 2.5 specification, which describes the properties of NamedElement and their presentations within tools.

The compiled model resulting from the Action Language for Foundational UML (fUML) must have the equivalent effect as a model resulting from the mapping to fUML. In other words, the compiled model should behave in the same way as if it were directly executed using the fUML execution semantics

The Profile mechanism in UML provides the capability to adapt existing metamodel elements for specific purposes. Profiles allow modelers to extend the standard UML metamodel with additional semantics by defining stereotypes, tagged values, and constraints that are specific to a particular domain, platform, or methodology. This means that profiles tailor the existing UML metamodel elements to create domain-specific models without changing the underlying metamodel itself. This adaptation mechanism is described in the UML 2.x Superstructure and Infrastructure Specifications, which detail how profiles can be used to customize the UML for particular domains or purposes.

In UML, a Dependency is a relationship that signifies that one NamedElement, the client, depends on another NamedElement, the supplier, meaning that a change in the supplier could affect the client. If NamedElement A is the supplier and NamedElement B is the client in a Dependency relationship, and there is a Comment indicating that both participate in a transformation, the interpretation is that B (the client) depends on A (the supplier) for that transformation. The comment does not necessarily change the nature of the Dependency relationship; it simply adds additional information about the nature of their interaction. A transformation could mean that B transforms A's supplied element in some way, but in terms of UML Dependency relationships,it would still be interpreted as "A depends on B" or "B requires A for its transformation". This interpretation aligns with the UML 2.x Infrastructure and Superstructure specifications, which explain Dependencies and their meanings within the UML metamodel.

The semantics of MOF elements are typically provided in the specification as natural language descriptions1. This approach allows for a clear and understandable explanation of the elements and their intended use within the framework.

A stereotype in UML is a powerful extension mechanism that allows developers to tailor UML models for particular domains or platforms. Stereotypes can adapt UML model elements by adding constraints, changing notation, and adding attributes and operations. However, they cannot remove existing constraints from a model element12.

• Notation Change (A): Stereotypes can indeed change the notation of a model element to make it more expressive or domain-specific. For example, a stereotype could be used to visually distinguish between different kinds of classes in a class diagram1.
• Adding Constraints (B): Stereotypes can add new constraints to a model element to specify additional rules or requirements that are not defined by the standard UML1.
• Removing Constraints ©: This is not a capability of stereotypes. Constraints define rules that must be followed, and once they are part of a model element, they cannot be removed by a stereotype. Instead, they are an intrinsic part of the model’s definition1.
• Adding Attributes and Operations (D): Stereotypes can be used to add attributes and operations to a model element, which allows for the specification of additional properties or behaviors that are not part of the standard UML metamodel1.

In summary, while stereotypes are versatile and can extend the capabilities of UML model elements in various ways, they do not have the ability to remove constraints that are already applied to those elements. This is because constraints are consideredfundamental rules that govern the integrity of the model, and removing them would potentially violate the model’s correctness or completeness1.

A minimal reflexive metamodel is a metamodel that is expressed using itself, meaning it can be used to describe its own structure and semantics. This concept is akin to a self-describing system. In the domain of metamodeling, this allows for a consistent and coherent definition of the metamodel that is both the subject and the tool of its own description2. This reflexivity is a key property that enables the metamodel to be used in a variety of contexts, ensuring that it remains consistent with its own definitions.

Protocol State Machines in UML are used to specify the allowable protocol transitions that can be observed in the instances of a classifier. The interpretations that can be defined for protocol state machines are:

• A.Behavioral and protocol are not specific types of interpretations but rather describe aspects of state machines in general.
• B.Declarative and procedural describe styles or approaches to programming or specification, not specific to UML state machine interpretations.
• C.Declarative and executable is the correct answer. Declarative interpretations specify the allowed sequences of events in a state machine, while executable interpretations are concerned with the actual implementation that can be executed by a machine.
• D.Executable and non-executable are distinctions but not specifically pertaining to protocol state machine interpretations alone.

References:

• UML Specification: State Machines chapter, particularly sections on protocol state machines.
• Further details can be found in the UML 2.5 Documentation discussing the differences between different state machine interpretations.

A template signature in UML specifies a set of formal parameters that can be substituted by actual parameters when a template is instantiated. This template signature is part of a templateable element, which is the element that can be parameterized using the template mechanism in UML. The template signature defines the formal template parameters that will be replaced by actual values or types when a bound element is created from the template. This concept is detailed in the UML 2.x Superstructure Specification, particularly in the sections describing templates and how they are used to create reusable and customizable model elements.

A UML profile can define several different elements to extend the UML for a specific domain, platform, or purpose. Besides stereotypes, a profile can define DataTypes and Enumerations, which can be used within Stereotypes to type the tagged values. A profile can also define Classes, which can be used as base classes for stereotypes. However, a profile does not typically define instances of elements, such as Objects, nor does it define composite structures, such as Components. The intent of a profile is to adapt existing metamodel elements through the use of stereotypes, tag definitions, and constraints rather than to create instances or define system architectures. This definition and use of a profile are aligned with the guidelines in the UML 2.x Superstructure Specification, which outlines what elements a profile can define within the UML framework.

The UML (Unified Modeling Language) specification, which is a part of the MOF (Meta-Object Facility) framework, suggests that the choice between creating a MOF-based metamodel and a UML profile depends on the specific needs of the domain being modeled. A MOF-based metamodel might be more appropriate for domains that require defining a completely new set of modeling concepts, whereas a UML profile is suitable for domains where the extension ofexisting UML concepts is sufficient. Since the specification recognizes the variability in modeling requirements across different domains, it emphasizes the importance of understanding the domain to make an informed decision on the modeling approach. The UML specification, therefore, does not prescribe a one-size-fits-all solution but rather leaves the decision to the modeler, based on the domain-specific requirements.

In UML, the{subsets}keyword is used to indicate that one property is a subset of another property. In the provided diagram fragment, the association end-b {subsets part}indicates that the propertybon classAis a subset of the propertyparton classB. This means that the elements associated withAthroughbare contained within the larger set associated withBthroughpart. This kind of relationship is typically used in more complex class models where a part-whole hierarchy is represented, and it allows the model to show that certain associations are more specific subsets of a more general association. This usage is explained in the UML 2.x Superstructure Specification, where the semantics of association subsets are defined.

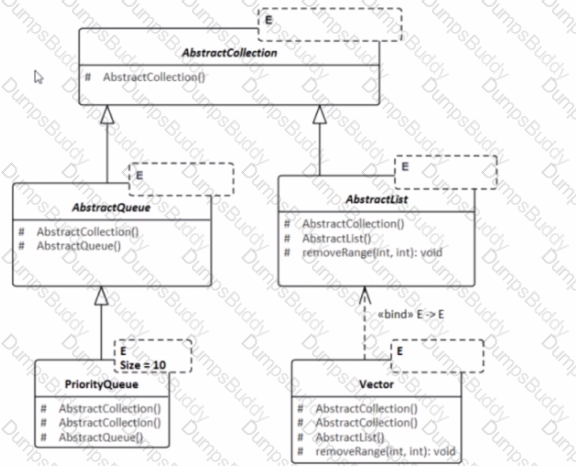

In UML, the «bind» relationship is used to specify that a class is a template instantiation of a template class, where actual parameters are bound to the formal parameters of the template class1. However, in the case of the relationship between a concrete class like Vector and an abstract class like AbstractList, the correct relationship should be Generalization, not «bind».

Generalization is a taxonomic relationship between a more general classifier and a more specific classifier. Each instance of the specific classifier is also an instance of the general classifier1. Thus, Vector being a concrete implementation of AbstractList, should inherit from AbstractList, which is correctly represented by a Generalization relationship in UML.

The other options can be evaluated as follows:

• Option A: The upper limit for the size of PhontyQueue is a design decision that should be based on the requirements and use cases of the application. It is not inherently incorrect in UML to have a specific upper limit.
• Option C: The Generalization relationship is correctly used between PriorityQueue and AbstractQueue as it represents inheritance in UML.
• Option D: While it is true that template parameters are typically defined at the top of the hierarchy, the statement is too absolute. In UML, template parameters can be added to specialized classes, but it depends on the specific design and requirements. Therefore, without additional context, this statement cannot be deemed universally valid.

In conclusion, the most applicable and valid review comment is option B, which correctly identifies the misuse of the «bind» relationship in the context of the class diagram provided.

In UML, the concept used to represent a model element such as a class or an activity is known as a Classifier. A Classifier in UML is a term that categorizes a group of model elements that have similar structural features, which include attributes and associations, and similar behavioral features, which include operations and methods1. The term applies not only to specific UML model elements but to all classifiers, encompassing a variety of elements such as classes, components, interfaces, and even activities1.

For instance, a class is a classifier because it describes a set of objects with similar properties (attributes), common behavior (operations), common relationships to other objects, and common semantics. An activity, which is a behavior, can also be considered a classifier because it describes a sequence of actions or flow of controland data1. Therefore, the correct answer is C. Classifier, as it is the overarching concept that includes both structural and behavioral elements within UML.

The Model-Driven Architecture (MDA) approach is a design methodology that covers the entire software development lifecycle, from requirements to technology implementation. It emphasizes the use of models as the primary artifacts in the development process, allowing for a more abstract and high-level approach to software design. MDA supports the transformation of models from platform-independent models (PIMs) to platform-specific models (PSMs) and ultimately to code, ensuring that the initial requirements are accurately reflected in the final technology implementation.

MDA is not limited to Meta Data Aspects (A) or Design and Architectural Models (B) alone, nor is it primarily about deriving models from Artificial Intelligence Systems (D). Instead, it provides a comprehensive framework that facilitates the creation of software systems by bridging the gap between business requirements and technology solutions.

References:

• An MDA Approach Based on UML and ODM Standards to Support Big Data Analytics1
• Improving Automatic UML2 Profile Generation for MDA Industrial Development2
• Applying 4+1 View Architecture with UML 2

The scope of fUML (Foundational UML) is to define execution semantics for a subset of the UML 2 metamodel that provides a shared foundation for higher-level UML modeling concepts. This includes the precise definition of the execution semantics of that subset, which is intended to be used by a wide range of system types, including physically distributed and concurrent systems without assumptions about global synchronization1.

For question number 50, the correct answer is C: Control tokens are offered on the outgoing Control Flows of the ExceptionHandler. According to the UML 2.5 specification, when an Exception Handler completes its execution, it does not halt the execution of the thread or retain control tokens internally; instead, it passes control tokens along the outgoing Control Flows. This behavior allows the activity to continue processing other behaviors or activities, based on the exception handling outcome.

References:

• UML 2.5 Specification: Provides a detailed description of the behavior of Exception Handlers within activity diagrams, including how control tokens are managed upon the completion of an exception handling sequence.

To orchestrate multiple actions within UML, a modeler should use StructuredActivityNodes:

• A.Extending Behavior and adding desired Actions is not specifically about coordinating multiple actions; it's about defining new behaviors.
• B.Correct. StructuredActivityNodes are a part of UML that provides a mechanism to group a set of actions together and manage the data flows between them, thus coordinating the actions.
• C.Using the standard Action and adding desired tag values does not inherently coordinate actions.
• D.Extending Action and specifying constraints to be relaxed or removed does not directly relate to coordinating other actions.

References:

• UML Specification: Activities section, which describes the use of StructuredActivityNodes.
• The use of StructuredActivityNodes for coordinating actions is elaborated in the UML 2.5 Documentation under Activity Diagrams.

In UML, the multiplicity of an association end specifies how many instances of the class at that end can participate in a single association. A lower multiplicity of one (1) at one end of an n-ary (where n > 2) association implies that there must be at least one link that combines the values of the other ends, but it doesn't require that a link exists for every possible combination. Therefore, it's possible for some combinations to exist as links, while others do not, which is indicated by the option that links combining the values of the other ends may exist or may not exist. This interpretation is consistent with the definition of multiplicity in associations as outlined in the UML 2.x Superstructure Specification.

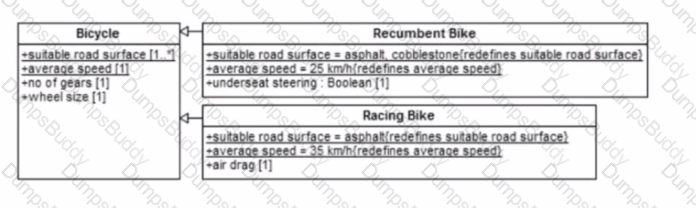

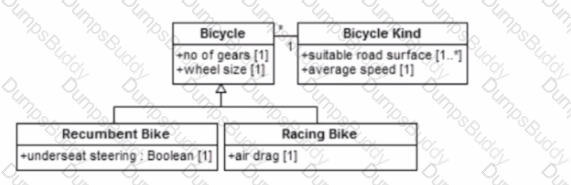

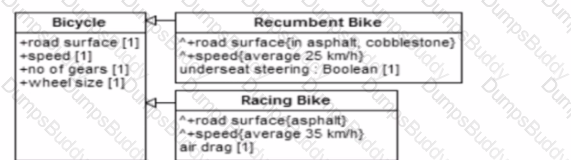

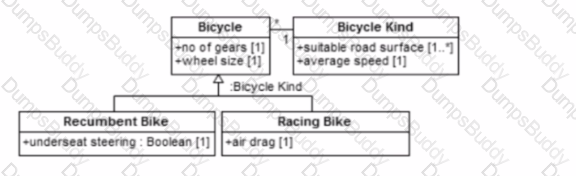

In Option C, the propertiessuitable road surfaceandaverage speedhave been redefined in the subclassesRecumbent BikeandRacing Bike. The use of the{redefines}keyword in UML signifies that the subclass will provide its own specific values for these properties, overriding the general ones provided by the superclassBicycle. This is the correct way to enforce that each specialization ofBicyclehas a unique set of values for these attributes, as redefinition allows for the customization of inherited properties on a per-subclass basis. The use of{redefines}is specified in the UML 2.x Superstructure Specification, which describes how properties inherited from a superclass can be customized by subclasses.

In UML, profiles are mechanisms to extend the UML for a specific domain or purpose. The UML specification allows for one profile to reuse or import elements from another profile. This enables modularity and encourages reusability of profile elements across different domains. Additionally, one profile may extend the stereotypes or metaclasses defined in another profile, which allows for the creation of layered profiles where each layer adds its own specificities. This is a common practice in software and systems modeling to cater to different aspects of a system within separate profiles, which are then integrated to form a comprehensive model. The capability to reuse and extend profiles is defined in the UML 2.x Superstructure Specification, which gives guidelines on how to define and use profiles within UML.

When extending a UML metaclass with a stereotype, it is critical to ensure that the metaclass and the stereotype are semantically related. This is because a stereotype is a way to extend the UML metamodel to create new kinds of model elements that can include additional semantics and constraints, but still adhere to the base behavior defined by the metaclass. The stereotype should be a meaningful specialization of the metaclass and not contradict its fundamental semantics. By keeping them semantically related, there is less need for additional constraints on the metamodel, and the resulting profile is more intuitive for users. This is consistent with the principles described in the UML 2 Specification, particularly in the sections on profiles and stereotypes.

To represent specific hardware environments in a deployment model, a modeler should create a UML profile that includes the necessary hardware stereotypes with applicable details. A profile allows the modeler to extend the standard UML metamodel to include domain-specific elements that can be applied to deployment models. These stereotypes can represent different types of hardware components and their attributes, which can then be used to model the physical aspects of the deployment environment. The creation and application of profiles are supported by the UML 2.x Superstructure Specification, which details how to tailor UML to particular domains or platforms using profiles.
