OMG-OCEB2-FUND100 OMG-Certified Expert in BPM 2 - Fundamental Questions and Answers

In BPMN, whenexactly oneof several alternative paths is chosen based on a condition (type of issue in the call), anExclusive Gateway (XOR)is used.

OptionCshows the task“Triage Customer Problem”followed by an exclusive gateway that routes the token intooneof three mutually exclusive paths:

Account Access Issue → Account Maintenance Group

Web Site Issue → Web Resolution Group

Add or Change Services → Banking Services Group

OptionDdepicts three parallel outgoing paths directly from the task, which would mean all three groups are engaged simultaneously, which doesnotmatch the scenario. Thus,Cis the correct representation.

The diagram shows:

ActivityA, then

Aparallel gatewaythat fans out to three branches (B, C, D), and

Aparallel gatewaythat joins all three beforeE.

This means:

After A, the process may carry outB,C, andDin parallel (or at least independently).

All active branches must complete before moving toE.

Scenario C fits this pattern:

A = enter primary recipients

B = optionally add cc-recipients

C = write the email text

D = optionally add attachments

E = send email

The optional activities (cc and attachments) can be done in any order while writing the text, but all work is complete before sending. The other scenarios are essentially linear or don’t naturally occur in parallel like this.

In process and performance analysis, aheat mapis a diagram where colors (often gradients from green to red) are used to show intensity, volume, risk, performance, or other metrics across processes, activities, or dimensions. So it is fundamentally agraphical color displayused to visualize data.

AnExpanded Sub-Process without Sequence Flows between its Tasksis interpreted as anAd-Hoc Sub-Process, provided it is marked as such (with the ad-hoc tilde marker). In BPMN / OMG terms, an ad-hoc sub-process:

Hasno predefined execution orderbetween its contained activities.

Allows activities to be performedin any order, possibly

multiple times,

not at all,

or in parallel.

Continues until somecompletion conditionis satisfied or the process decides to end that sub-process.

This is exactly what optionCdescribes.

OptionAandDimpose ordering or “exactly-once” semantics that BPMN doesnotdefine for an ad-hoc sub-process.

OptionBis incorrect because BPMN explicitly allows ad-hoc subprocesses where tasks are not connected by sequence flows.

Therefore,Cis the correct interpretation.

In aprocess-focused or process-centric organization, aformal governing body(often called aProcess Council,BPM Steering Committee, or similar) is responsible for overseeing enterprise processes. OMG-aligned BPM governance frameworks typically assign such a body the role to:

Providecross-enterprise oversightof major processes

Resolve conflictsbetween process owners and functional managers

Prioritize process improvement and transformation initiatives

Allocate resources(budget, people, tools) to the most critical process changes based on strategy and value

This is exactly reflected inOption C:

Prioritize initiatives and allocate resources

Why the other options don’t fit:

A. Firefight business problems– Governance bodies should not operate primarily as reactive “firefighters”; they work at astrategic and prioritization level, not as an escalation helpdesk.

B. Define the organization's business strategy– Strategy is defined by theexecutive leadership; the process governance body ensuresprocesses align with and execute that strategy, but typically does not define it.

D. Define the organization's senior executive structure– That is an organizational design / board-level matter, not a role of a process governance council.

Therefore, in a process-centric organization, the formal process-governing body shouldprioritize initiatives and allocate resources, makingCcorrect.

===============

In BMM,Influencersare factors—internal or external—that caninfluence an organization’s ability to achieve its Ends. They can be trends, events, conditions, or stakeholders.

The observation“Younger customers buying more Chilean wine”is a description of amarket trend/conditionin the environment.

That is exactly the role of anInfluencer: a situation or trend that may positively or negatively affect goals and strategies.

If the winery evaluates that trend (for example, calling it anOpportunity), that evaluation would be modeled as anAssessment. The raw trend itself is the Influencer.

Option A (Threat) is atypeof Assessment (negative evaluation of an Influencer).

Option C (Assessment) would be something like “The increased Chilean-wine preference among younger customers is an opportunity for our brand,” which adds judgment.

Option D (Course of Action) would be a response, such as “Launch a Chilean-style product line,” which is a Means, not the trend itself.

So the element“Younger customers buying more Chilean wine”is modeled as anInfluencerin BMM

In BPMN (as used in OMG-aligned certifications),Boundary Eventscan be interrupting or non-interrupting. The general rule is:

Many boundary events (Timer, Message, Signal, etc.)can be eitherinterrupting or non-interrupting.

Some types, however, existonly as interrupting boundary events:

Error Boundary Event– always interrupting the activity/subprocess it is attached to.

Cancel Boundary Event– always interrupting and only valid on a Transaction Sub-Process.

Compensation Boundary Event– used to trigger compensation behavior and treated as a special interrupt-style handler attached to the scope of the completed activity.

So, among boundary events,Error, Cancel, and Compensationare treated asalways interrupting variants, in contrast with others that can be non-interrupting.

Thus optionAcorrectly captures this differentiating property; the other options contradict the specification or reverse the visual notation (C) or incorrectly constrain outgoing flows from boundary events (D).

InBPMN, a rounded rectangle with adashed borderaround activities is aGroupartifact.

Key BPMN semantics for aGroup:

It ispurely documentary: used to visually group related activities (for example, labeling them “Process Payment” or “Deliver Product”).

Itdoes not affect execution semantics—sequence flow, data flow, and transaction behavior areexactly the same as if the group were not drawn.

Looking at the diagram:

The sequence is:Verify Credit → Process Payment → Deliver Product → Notify Customer, each connected by normal sequence flows.

The two dashed rectangles just visually cluster the first two and last two activities; there are no special events or gateways.

Now the options:

A. Activities that are in the dashed rectangle must exchange data.BPMN Groups say nothing about data exchange; this is incorrect.

B. The activities are executed as if the dashed rectangles do not exist.This matches the BPMN definition of a Group artifact and is correct.

C. Canceling "Notify Customer" will cancel the result of "Deliver Product".That would require atransaction subprocess with cancel behavior, not just a Group.

D. "Verify Credit" and "Process Payment" are executed in parallel. "Deliver Product" and "Notify Customer" are executed in parallel.Parallelism requires a parallel gateway or similar construct; here, a simple sequence flow shows they are executedsequentially.

Therefore, the correct statement is that thedashed rectangles have no execution effect: optionB.

In OMG modeling principles, all models areabstractions, but even with abstraction:

A modelmust be unambiguous.

Every diagram must havea single, clear meaning.

Stakeholders must interpret itthe same way.

This requirement is often stated as:

“A model must mean only one thing.”

Therefore,Option C is correct.

In the small BPMN fragment, elementBis anEnd Eventdrawn with athick (bold) border, which in BPMN indicates aTerminate End Event.

Terminate End Event semantics in OMG BPMN:

When a token arrives at a Terminate End Event, itimmediately ends the entire process instance (or the entire scope/subprocess), regardless of any other active tokens in parallel branches.

It therefore“interrupts” the process, stopping all ongoing activities for that instance.

Evaluating the options:

A. throws an error– That would be anError End Event(with a lightning-bolt icon), not a bold-bordered circle.

B. generates a token– Token generation is behavior ofStart Events, not End Events.

C. consumes a token– All End Events consume the arriving token; this is true but not distinctive to this specific symbol.

D. interrupts the process– This is the defining behavior of aTerminate End Event, so this is the correct answer.

According to theObject Management Group (OMG)and its references to business processes and enterprise modeling (especially in theBusiness Process Model and Notation (BPMN)andBusiness Motivation Model (BMM)standards), marketing is treated as astructured, goal-driven business processwithin the broader context of an organization’s strategy and performance management.

In the context of BPM and OMG documentation, marketing is modeled as arepeatable, structured processthat aligns with business objectives and delivers customer value. Here’s how each component of Option A aligns with OMG principles:

Situational Analysis: This corresponds to the"Assessment"phase in theBusiness Motivation Model (BMM), where organizations evaluate external and internal factors (e.g., customer needs, market trends, competitor analysis). BPMN can model this as a subprocess involving data collection and analysis tasks.

Strategy Formulation: In BMM, strategy is a core construct. Strategies guide the enterprise in achieving its goals, and in the context of marketing, this includes positioning, segmentation, and targeting decisions. BPMN supports this through modeling high-level strategic activities and decision-making gateways.

Marketing Mix Decisions: Also known as the 4Ps (Product, Price, Place, Promotion), these decisions aremodeled as business processesin BPMN, where each element (e.g., promotion strategy) can be broken into subprocesses (e.g., campaign planning, execution, measurement).

Implementation and Control: This reflects OMG’s emphasis ongovernance, monitoring, and continuous improvement—which is supported by BPM concepts such as Key Performance Indicators (KPIs), performance dashboards, and feedback loops.

In contrast:

Option Bis a generaltextbook definitionof marketing (as described by Philip Kotler) butlacks the process orientationemphasized in OMG BPM materials.

Option Cfocuses too narrowly on advertising and revenue generation—components of marketing but not thestructured end-to-end processapproach supported by BPM.

Option Dconfusesproduct developmentwith marketing and does not reflect the structured process defined in BPM modeling.

Therefore,Option A is the only one fully aligned with the OMG BPM approach, presenting marketing as a structured business process with analysis, strategic planning, operational decisions, execution, and control—all of which can be modeled and optimized using BPM standards like BPMN and BMM.

In BPMN, when anExpanded Sub-Processcontains activities (here:CandD)without any Sequence Flows between them, there isno defined execution orderimplied by their vertical or horizontal placement. Unless there are explicit sequence flows or gateway logic:

Neither “C then D” nor “D then C” is mandated.

They may be performed in any order, potentially overlapping, or by ad-hoc control external to the diagram.

Therefore the only correct statement is thattheir order is undefined in the diagram.

TheSarbanes–Oxley Act (SOX)of 2002 was enacted to restore public confidence in corporate financial reporting after major accounting scandals.

Itskey objectiveis:

To ensureexecutive accountabilityfor accurate financial reporting

CEOs and CFOs mustcertify the accuracyof financial statements

Internal controls must be documented, tested, and auditable

Thus, the correct answer isD.

In Six Sigma and statistical process control, which are often referenced within Object Management Group (OMG) Business Process Management practices for performance measurement and process capability analysis, variation in a process is categorized into two types:

Common cause variation (natural variation)

This is the inherent, stable variation built into the process.

It reflects the normal, expected fluctuations when the process is operating in a state of statistical control.

On a control chart, data points that reflect only common cause variationremain within the control limits (UCL and LCL)and do not exhibit specific non-random patterns.

Special cause variation (assignable variation)

This arises from specific, identifiable factors not normally part of the process (e.g., equipment failure, operator error, unusual input material).

On a control chart, it is typically indicated by pointsoutside the control limitsor by defined abnormal patterns (runs, trends, cycles) even if still inside the limits.

In the diagram shown:

The horizontal center line represents theprocess average.

The upper and lower horizontal lines representUCL (Upper Control Limit)andLCL (Lower Control Limit), typically set at ±3σ from the mean.

Zones A, B, and C mark bands of 1-sigma increments from the mean but are allwithinthe control limits.

From a standard Six Sigma / SPC standpoint, and consistent with how OMG-based BPM measurement and control concepts are applied:

All data points inside the UCL and LCLare considered to be a result ofcommon cause variation, provided they do not exhibit specific rule-violating patterns.

Data points outside the UCL or LCLare not common cause; they are indications ofspecial cause variationthat must be investigated and corrected.

In BPMNCollaboration diagrams, aPool represents a Participant(a business entity, organization, role, or system) taking part in the collaboration.

If a collaboration containstwo white-box pools(i.e., both show internal process detail), that means:

There aretwo separate participants,

Each has itsown process,

They may interact viaMessage Flows.

Thus, the correct interpretation is thateach pool corresponds to one participant, so answerCis correct.

In a Business Process Management System (BPMS), aworklist handler(or worklist manager) coordinates human tasks. It serves as the interface where:

Task assignments are offered

Users select/claim tasks

Work items are distributed based on rules

This aligns with OMG's description of human task management in BPMN and BPMS architectures.

OptionCaccurately represents that a worklist handleroffers work items to participants.

OptionArefers to monitoring/reporting.

OptionBrefers to organizational modeling, not worklist handling.

OptionDdescribes auser’s personal task list, but not the handler’s role.

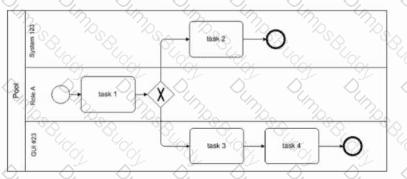

In the diagram, a singlePoolis partitioned intolaneslabeled:

“System 123”

“Role A”

“GUI 123”

In BPMN,lanes are flexible partitionsused to organize and categorize activities within a Pool. They may represent organizational units, roles, systems, applications, or any other logical grouping that helps clarify responsibilities.

Therefore:

A. “Lanes are only allowed outside pools” – incorrect; lanes existinsidepools.

B. “Lanes must always indicate organizational units” – too restrictive; they can also represent systems, roles, etc.

C. “Lanes must always indicate systems but not GUIs” – also false; BPMN does not impose that limitation.

D. Yes, lanes can be used as shown in the model.– This matches BPMN’s flexible lane semantics.

The narrative is:

Start of production day.

Produce scenes.

When production is complete,Review SoundandReview Picturestake placesimultaneously.

Afterbothreviews are done, the directorPlans Next Day.

End of production day.

In BPMN, this is modeled as:

A taskProduce Scenes

Followed by aparallel gateway (AND-split)to startReview SoundandReview Picturesin parallel

Aparallel gateway (AND-join)to synchronize both reviews

ThenPlan Next Day

Then an End Event.

OptionDshows exactly that: a parallel gateway afterProduce Scenes, two parallel review tasks, then a convergence andPlan Next Daybefore the End Event.

The other options either do not show explicit parallelism or do not correctly synchronize before planning the next day.

TheAs-Is processis used as a basis for To-Be modeling when thecurrent process exists and is still relevant, even if it needs modification—for example, whennew regulatory rules require adjustments. Regulatory changes mean the process structure stays largely valid, but must be updated to meet compliance requirements.

Options A and D are incorrect because if a process is new or undefined, no As-Is model exists.

Option B is incorrect becauseradically changed requirementstypically justify designing a fresh To-Be process without depending on the existing one.

TheBalanced Scorecard(Kaplan & Norton) has four recognized perspectives:

Financial

Customer

Internal Business Processes

Learning and Growth

Therefore, the only recognized perspective in the answer choices isB. financial.

In BPMM, thesponsoris responsible forsecuring and committing long-term resourcessuch as funding, staffing, and organizational support for a process improvement effort.

This aligns exactly with optionC.

According to BPMN:

Aprivate (internal) Business Processmodels theinternal workflow of a single organization or participant. Its Activities are tasks, subprocesses, etc., performedinsidethat participant. Messages to other parties are shown only as message flows on the boundary, not as separate activities.

AChoreographydiagram, in contrast, models theinteractions between independent participants.

EachChoreography Activityrepresents aset of message exchangesbetween two or more participants (e.g., “Place Order,” “Send Invoice”), not the internal steps inside any one organization.

Thus the essential difference is exactly what optionDstates:

Private process activities = internal work;

Choreography activities = inter-participant message interactions.

Options A, B, and C misrepresent the relationship; a Choreography is not a special private process, nor is it just “the set of messages” of one process. It is a separate diagram type with its own semantics in BPMN.

The BMM aligns directly with theZachman Framework.

Specifically:

TheOwner’s perspectivecorresponds to thebusiness view(row 2).

TheWhy columnof Zachman represents motivation:EndsandMeans.

The BMM’s purpose is to document:

Ends(Goals, Objectives)

Means(Strategies, Tactics)

The influence of external/internal factors

This exactly corresponds to theOwner’s view of the “Why” column.

Thus,Option B is correct.

Compliance—whether for SOX, ISO, GDPR, or internal governance—requires:

Documented, repeatable processes

Properly structured internal controls

Validation mechanisms (audits, test procedures, monitoring)

This is the foundational prerequisite for compliant operations.

Hiring experts (A) may help but isnota prerequisite.

Lobbying (B) is unrelated to compliance execution.

Reducing processes (C) does not lead to compliance.

Thus the correct prerequisite isD.
