NCP-CN Nutanix Certified Professional - Cloud Native (NCP-CN-6.10) Questions and Answers

For creating custom images for vSphere (and other supported platforms), Konvoy Image Builder (KIB) is the officially supported tool for NKP. It can create images with custom configurations, package versions, and pre-bundled artifacts.

Key Reference:

“Konvoy Image Builder (KIB) is the Nutanix-recommended tool for building NKP cluster node images for vSphere, AWS, Azure, and other environments.”

The exhibit shows the NKP UI with the "Create Cluster" option grayed out in a new workspace, indicating that a prerequisite for cluster creation is missing. The NKPA course explains that to create a new Kubernetes cluster in a workspace, an Infrastructure Provider must be configured for that workspace. An Infrastructure Provider defines the underlying infrastructure (e.g., Nutanix AHV, AWS, vSphere) where the cluster will be provisioned, and without it, the Create Cluster option remains disabled in the UI.

The NKP Ultimate license supports creating clusters across various infrastructures, but the workspace must be associated with an Infrastructure Provider to enable cluster creation. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “Before creating a cluster in a new workspace, ensure an Infrastructure Provider is configured for the workspace in the NKP UI; otherwise, the Create Cluster option will be grayed out.” The engineer should navigate to the Infrastructure Providers section in the NKP UI (typically under the Global or Administration view), create a provider (e.g., for Nutanix AHV, AWS, or vSphere), and associate it with the workspace. Once this is done, the Create Cluster option will become available.

Incorrect Options:

A. Create the cluster only using YAML and not the GUI: The issue is not with the GUI itself but with the missing Infrastructure Provider, which affects both GUI and CLI cluster creation. YAML alone does not resolve this.

B. Attach existing clusters instead of creating a new cluster: Attaching existing clusters is an alternative but does not address the requirement to create a new cluster.

D. Ensure NKP is upgraded to a minimum version of 2.12: The NKP Ultimate license implies a recent version, and the course does not indicate that version 2.12 is specifically required for this functionality. The issue is configuration-related, not version-related.

The NKPA course covers user authentication for NKP clusters as part of Day 2 operations, emphasizing integration with external identity providers (IdPs) to manage user access securely. NKP uses Dex, an OpenID Connect (OIDC) identity provider, to facilitate authentication by acting as a connector between the Kubernetes cluster and external IdPs, such as LDAP, SAML, or OAuth-based systems.

The course explains that to set up user authentication, a Platform Engineer must configure a Dex connector to the user base’s identity provider. Dex integrates with the Kubernetes API server to enable OIDC-based authentication, allowing users to log in using their IdP credentials. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “NKP supports user authentication through Dex, which provides OIDC integration with external identity providers, enabling single sign-on (SSO) for cluster access.” The process involves deploying Dex as a platform application, configuring the IdP connector (e.g., specifying client IDs, secrets, and endpoints), and updating the Kubernetes API server to use OIDC authentication.

Incorrect Options:

A. Enable Gatekeeper and create a connector to the user base’s identity provider: Gatekeeper is a Kubernetes policy engine used for enforcing admission control policies, not for authentication. The NKPA course does not associate Gatekeeper with user authentication.

B. Disable native NKP authentication, enable Traefik, and create a connector to the user base’s identity provider: Traefik is an ingress controller for managing external traffic, not authentication. Disabling native authentication is unnecessary, as NKP supports OIDC alongside native methods. The NKPA course does not mention Traefik in the context of authentication.

C. Create a MetalLB connector to the user base’s identity provider: MetalLB is a load balancer for bare-metal Kubernetes clusters, not an authentication component. This option is irrelevant, as per the NKPA course.

The NKPA course addresses resource contention in Kubernetes clusters, where one application (e.g., ApplicationB) consumes excessive resources, impacting others (e.g., ApplicationA). To mitigate this, the course recommends implementing Quotas and Limit Ranges.

Resource Quotas restrict the total amount of CPU, memory, and other resources a namespace can consume, ensuring fair resource allocation across teams.

Limit Ranges set minimum and maximum resource limits for individual pods and containers within a namespace, preventing any single application from monopolizing resources.

The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “To prevent resource contention in NKP clusters, apply Resource Quotas to limit namespace resource usage and Limit Ranges to enforce pod and container resource boundaries.” For example, the administrator can create a ResourceQuota to cap ApplicationB’s namespace resource usage and a LimitRange to restrict its pod resource requests/limits, ensuring ApplicationA has sufficient resources.

Incorrect Options:

B. Setting up Network Policies: Network Policies control network traffic, not resource usage.

C. Configuring RBAC: RBAC manages access permissions, not resource allocation.

D. Implementing Continuous Deployment (CD): CD automates deployments but does not address resource contention.

As per the NKPA 6.10 documentation under “Application Backup and Recovery with Velero,” Velero is the out-of-the-box backup and restore solution integrated with NKP. To schedule application backups at a specific frequency (in this case, every six hours, equivalent to four times daily), the recommended approach is to use the Velero CLI to create a backup schedule.

The procedure involves:

Using the Velero CLI to create a scheduled backup targeting the specific Kubernetes namespace (victory-finance) rather than the entire workspace.

Specifying the frequency as --schedule="0 */6 * * *" (every six hours).

Providing the cluster’s kubeconfig for authentication.

Exact extract from the documentation:

“Velero’s CLI can be used to create backup schedules for application-specific workloads. Use the namespace parameter to target the namespace where the applications are deployed, and set the cron-like schedule to the desired frequency.”

For deploying NKP clusters in AWS, setting the AWS_REGION environment variable is a key prerequisite to ensure that the AWS CLI and underlying deployment scripts know which region to target. This is essential for provisioning instances using the specified AMI.

Exact extract:

“Set the AWS_REGION environment variable to the appropriate region prior to deploying clusters to ensure proper interaction with the AWS API.”

The NKPA course details the deployment of an NKP Management cluster on AWS using the nkp install kommander command, which installs the Kommander component responsible for fleet management. For a testing environment with minimal resource usage, the engineer can optimize the installation process by adjusting parameters that control timeouts and initialization settings, reducing overhead and ensuring the deployment completes efficiently on smaller infrastructure.

The two relevant parameters are:

--wait-timeout (Option B): This parameter sets the maximum time the nkp install kommander command waits for the Kommander components to become ready. In a testing environment with minimal resources, components may take longer to start due to limited CPU and memory. Reducing the wait timeout (e.g., --wait-timeout=10m) ensures the command does not hang indefinitely, allowing the engineer to troubleshoot if needed. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “Use --wait-timeout with nkp install kommander to adjust the waiting period for component readiness, useful in low-resource environments.”

--init (Option D): This parameter initializes the Kommander installation with default settings optimized for minimal resource usage, suitable for a testing environment. It ensures that Kommander deploys with a lightweight configuration, reducing the resource footprint (e.g., fewer replicas, lower resource requests). The NKPA course notes: “The --init flag with nkp install kommander sets up a minimal configuration for testing purposes, minimizing resource usage on AWS.”

Incorrect Options:

A. --request-timeout: This parameter is not relevant to nkp install kommander. It is typically used for API request timeouts, not installation optimization.

C. --yaml: This parameter would specify a custom YAML configuration file, but the question asks for minimal resource usage, which is better achieved with --init for default lightweight settings.

The NKPA course details the process for upgrading an NKP-managed Kubernetes cluster, such as one running on AWS from version 1.28.1 to 1.29.9. Upgrading a Kubernetes cluster involves two distinct steps: upgrading the control plane nodes and upgrading the worker nodes, ensuring minimal disruption and maintaining compatibility. The NKP CLI provides specific commands to handle these upgrades separately for AWS clusters.

Upgrade Control Planes with nkp update controlplane aws --cluster-name=${CLUSTER_NAME} --ami AMI_ID --kubernetes-version=v1.29.9 (Option B):The control plane must be upgraded first to the target Kubernetes version (1.29.9). The nkp update controlplane aws command updates the control plane nodes, specifying the cluster name, the new Kubernetes version, and an updated AMI (Amazon Machine Image) that supports the target version. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “To upgrade an NKP cluster on AWS, first update the control plane using nkp update controlplane aws --cluster-name --ami <ami-id> --kubernetes-version to ensure the control plane runs the desired Kubernetes version.” The --ami flag is required to specify a compatible image for the upgraded control plane nodes.

Upgrade Workers with nkp upgrade nodepool aws ${NODEPOOL_NAME} --cluster-name=${CLUSTER_NAME} --kubernetes-version=v1.29.9 (Option C):After the control plane is upgraded, the worker nodes in each node pool must be upgraded to match the control plane version. The nkp upgrade nodepool aws command updates the specified node pool to the target Kubernetes version (1.29.9). The NKPA course notes: “Upgrade worker nodes using nkp upgrade nodepool aws --cluster-name --kubernetes-version , which performs a rolling update to ensure minimal downtime.” This command automatically handles the rolling update of worker nodes, replacing them with new nodes running the updated version. Note that the --ami flag is not required here, as NKP typically uses the same AMI as the control plane or retrieves a compatible one based on the version.

Incorrect Options:

A. nkp update nodepool aws: The correct command is nkp upgrade nodepool, not nkp update nodepool. The NKPA course uses upgrade for version changes to node pools.

D. nkp update cluster aws: This command is not the standard approach for upgrading Kubernetes versions in NKP. The course specifies separate commands for control plane and node pool upgrades to ensure a controlled process.

Comprehensive and Detailed Explanation:

The NKP Pro licensing tier includes Fleet Management, which enables centralized lifecycle management of multiple Kubernetes clusters. This feature is critical for managing larger environments, providing visibility and control over fleet-wide configurations and updates. Other features, like AI OPS and advanced observability, are typically associated with higher tiers (e.g., Ultimate).

The NKPA course specifies the supported operating systems for NKP clusters deployed using the Nutanix provisioning method (CAPX), which leverages Cluster API for Nutanix (CAPX) to provision clusters on Nutanix AHV. The supported OS platforms for CAPX are Rocky Linux and Ubuntu, as these distributions are tested and optimized for Nutanix infrastructure and Kubernetes requirements.

Rocky Linux is a CentOS replacement adopted by Nutanix after CentOS 8’s end-of-life in 2021, providing a stable, enterprise-grade OS. Ubuntu, particularly LTS versions like 20.04 or 22.04, is widely supported due to its compatibility with Kubernetes and Nutanix AHV. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “When deploying NKP with the Nutanix provisioning method (CAPX), the supported OS platforms are Rocky Linux and Ubuntu, ensuring compatibility with Nutanix AHV and Kubernetes.” These OS images are typically prepared using NKP Image Builder (NIB) to include necessary components like kubeadm and containerd.

Incorrect Options:

A. CentOS and Rocky Linux: CentOS 8 is no longer supported post-2021, and Nutanix has shifted to Rocky Linux.

C. Flatcar, Rocky Linux, and Ubuntu: Flatcar Container Linux is not a supported OS for CAPX in NKP deployments.

D. CentOS and Ubuntu: CentOS is not supported, as noted above.

The NKPA course explains that to access a Kubernetes cluster managed by NKP, such as iot-1 in the workspace iot-plant-3, a kubeconfig file is required to authenticate and interact with the cluster’s API server. If the kubeconfig file is missing, the engineer can generate it using the NKP CLI. The correct command is nkp get kubeconfig -c iot-1 -w iot-plant-3 > iot-1.conf (Option B).

This command retrieves the kubeconfig for the specified cluster (-c iot-1) in the specified workspace (-w iot-plant-3) and redirects the output to a file named iot-1.conf. The engineer can then use this kubeconfig file with kubectl (e.g., kubectl --kubeconfig=iot-1.conf get pods) to review the deployment. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “To generate a kubeconfig file for an NKP-managed cluster, use nkp get kubeconfig -c -w , which retrieves the necessary credentials for cluster access.”

Incorrect Options:

A. kubectl get kubeconfig: kubectl does not have a get kubeconfig subcommand, and it cannot generate kubeconfig files for NKP clusters.

C. kubectl get secret iot-1 -n kommander: While secrets in the kommander namespace may store credentials, this command does not format them as a kubeconfig file.

D. nkp get configmaps: This is not a valid command for retrieving kubeconfig files; ConfigMaps do not store kubeconfig data in this context.

The output indicates that an AppDeployment resource named grafana-logging was created in the kommander-default-workspace namespace, which corresponds to an NKP workspace. The NKPA course explains that NKP Platform Applications, such as Grafana Logging, are deployed using the nkp create appdeployment command. This command creates an AppDeployment resource that deploys the specified application (e.g., Grafana Logging) across all clusters in a workspace.

The command in Option A, nkp create appdeployment grafana-logging --app grafana-logging-6.57.4 --workspace default-workspace, matches the output:

grafana-logging is the name of the AppDeployment.

--app grafana-logging-6.57.4 specifies the application and version.

--workspace default-workspace targets the workspace, which corresponds to the namespace kommander-default-workspace in the output (the kommander- prefix is a standard NKP namespace convention).

The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “To deploy a platform application like Grafana Logging, use nkp create appdeployment <app-name> --app <app-id>- --workspace , which creates an AppDeployment resource in the workspace namespace.” This command aligns with the output provided.

Incorrect Options:

B. export WORKSPACE_NAMESPACE and nkp create package-bundle: There is no nkp create package-bundle command in NKP for deploying applications. The correct command is nkp create appdeployment.

C. kubectl get appdeployment: This retrieves the status of an AppDeployment, not creates it. The output indicates creation, not retrieval.

D. kubectl get helmreleases: This retrieves HelmRelease resources, not AppDeployments, and does not create the Grafana Logging deployment.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix Kubernetes Platform Administration (NKPA) Course:

The NKPA course outlines the process of adding GPU-enabled worker nodes to an existing NKP-managed Kubernetes cluster, such as the production cluster in this scenario. The first step in this process is to ensure that a GPU-compatible OS image is available for the new worker nodes, as GPU support requires specific drivers and configurations (e.g., NVIDIA drivers) that are not included in standard OS images.

The correct first step is to create a GPU-compatible OS image using the command:

text

CollapseWrap

Copy

nkp create image nutanix --gpu \

--gpu-name=${GPU_NAME} \

--cluster=${NUTANIX_CLUSTER_NAME} \

--endpoint=${NUTANIX_PC_ENDPOINT} \

--subnet=${NUTANIX_SUBNET} ubuntu-22.04

(Option D). This command uses the NKP CLI to create a machine image based on Ubuntu 22.04, tailored for Nutanix AHV infrastructure (nutanix) with GPU support enabled (--gpu). The --gpu-name flag specifies the GPU type (e.g., NVIDIA GPU model), and other parameters define the Nutanix cluster, Prism Central endpoint, and subnet for image creation. The resulting image includes the necessary NVIDIA drivers and dependencies, making it suitable for GPU-enabled worker nodes. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “Before adding GPU-enabled workers to an NKP cluster on Nutanix, the first step is to create a GPU-compatible OS image using nkp create image nutanix --gpu, ensuring the image includes the required GPU drivers for the target infrastructure.”

This image is then used in subsequent steps (like Option A) to create a node pool with GPU-enabled workers. Without this image, the node pool creation in Option A would fail due to the lack of a suitable --vm-image.

Incorrect Options:

A. Create a nodepool of workers with GPU: This step requires a pre-existing GPU-compatible OS image (specified via --vm-image). Since the question does not indicate that such an image already exists, creating the image (Option D) must happen first.

B. Add the GPU Operator to the new workers: The NVIDIA GPU Operator can be installed to manage GPU resources, but this step occurs after the GPU-enabled workers are added to the cluster, not as the first step.

C. Configure Multi-Instance GPU (MIG): MIG configuration is an advanced GPU setup step that occurs after the workers are added and the GPU Operator is installed, not as the first step.

When deploying NKP to AWS, the bootstrap process requires AWS credentials to interact with AWS APIs for provisioning resources like EC2 instances. The NKPA course specifies that the nkp CLI supports the --aws-profile flag to specify a custom AWS profile for authentication. This profile, defined in the AWS credentials file (~/.aws/credentials), contains the access key and secret key for the desired AWS account.

The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “To deploy NKP on AWS with custom credentials, use the --aws-profile= flag during the nkp create bootstrap command to reference a specific AWS profile.” This approach leverages the AWS CLI’s profile management, ensuring secure and flexible credential handling. For example, the command would be nkp create bootstrap --aws-profile=my-profile --kubeconfig bootstrap-cluster.conf.

Incorrect Options:

B. --cloud-credentials=<my-profile></my-profile>: This flag is not used by the nkp CLI. The NKPA course specifies --aws-profile for AWS.

C. --with-aws-bootstrap-credentials=true: This flag does not exist in the NKPA documentation for NKP bootstrap.

D. --aws-access-key=<aws access="" key=""> --aws-secret-key=<aws secret="" key=""></aws></aws>: While these flags may be used in some tools, the NKPA course recommends using --aws-profile to avoid hardcoding sensitive credentials.

The NKPA course explains that NKP supports auto-scaling for clusters using Cluster API (CAPI), which manages the lifecycle of Kubernetes nodes. When auto-scaling is enabled, NKP monitors cluster workloads and automatically adjusts the number of nodes based on demand. The behavior involves CAPI creating or deleting nodes as needed to scale the cluster up or down, ensuring optimal resource utilization.

The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “NKP auto-scaling uses Cluster API to dynamically create or delete nodes in response to workload demands, ensuring the cluster scales efficiently.” For example, if the workload increases, CAPI provisions additional worker nodes; if demand decreases, CAPI deletes nodes to reduce costs.

Incorrect Options:

A. CPU is hot-added or hot-removed: Hot-adding/removing CPU is not a Kubernetes auto-scaling behavior; scaling involves adding/removing nodes.

B. Memory is hot-added or hot-removed: Similar to CPU, memory scaling at the node level is not supported in this context.

C. Power-On Status/Mode of a node is changed: Auto-scaling does not involve changing node power states; it adds or removes nodes.

The NKPA 6.10 documentation outlines that in air-gapped environments where default pod network CIDR conflicts exist, the cluster manifest (created via the nkp create cluster command) should be updated to specify an alternate, non-conflicting pod CIDR block range before deployment.

As per the NKPA 6.10 documentation, the primary requirement for attaching external (self-managed) Kubernetes clusters to NKP is network connectivity. Specifically, the NKP management cluster must be able to communicate with the Kubernetes API server and relevant services of the target cluster. This allows NKP to collect metrics, perform health checks, and manage the attached cluster through Kommander and associated tools.

Exact extract:

“For attaching existing Kubernetes clusters, ensure the NKP management cluster can reach the Kubernetes API server of the target cluster and that the kubeconfig used has sufficient permissions.”

There is no requirement that the Kubernetes versions be exactly matched or within N-1, nor that an NKP admin account be directly established on the target clusters; the connectivity and valid kubeconfig file are the essential requirements.

When mirroring the NKP bundle to a private registry, the recommended method is to use the nkp bundle push or similar commands with the --to-registry option, specifying the target registry along with the credentials (--to-registry-username and --to-registry-password).

Key reference from documentation:

“Use the --to-registry flag along with --to-registry-username and --to-registry-password to push the NKP bundle to a private registry.”

A bastion host in a dark site environment serves as a secure entry point for managing the NKP deployment, providing access to the cluster infrastructure without direct Internet connectivity. The NKPA course outlines the prerequisites for preparing a Linux VM as a bastion host, focusing on secure access and time synchronization, which are critical for air-gapped Kubernetes deployments.

Get or create SSH Keys (Option B):The bastion host requires SSH keys to enable secure, passwordless access to the NKP cluster nodes and other infrastructure components (e.g., Nutanix AHV hosts). The NKPA course specifies that SSH keys must be generated or obtained and configured on the bastion host to facilitate secure communication during deployment and management tasks. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “For a bastion host in an NKP dark site deployment, ensure SSH keys are created or obtained to enable secure access to cluster nodes and infrastructure.” The engineer can generate SSH keys using ssh-keygen and distribute the public key to the target systems.

Enable NTP Service (Option D):Time synchronization is essential in Kubernetes clusters to ensure consistent logging, certificate management, and scheduling. In a dark site with no Internet access, the bastion host must be configured to synchronize time with an internal NTP (Network Time Protocol) server or act as an NTP server itself. The NKPA course emphasizes enabling the NTP service on the bastion host to maintain accurate time across the air-gapped environment. The NCP-CN 6.10 Study Guide notes: “Enable the NTP service on the bastion host to ensure time synchronization in a dark site NKP deployment, as Kubernetes requires accurate time for proper operation.” The engineer can enable NTP using commands like systemctl enable ntpd and configure it to use an internal time source.

Incorrect Options:

A. Install LDAP Server: LDAP is used for centralized authentication, but it is not a requirement for a bastion host in an NKP dark site deployment. The course focuses on SSH access instead.

C. Install Docker: While Docker is needed on Kubernetes nodes for container runtimes, the bastion host’s role is to provide secure access and management, not to run containers.

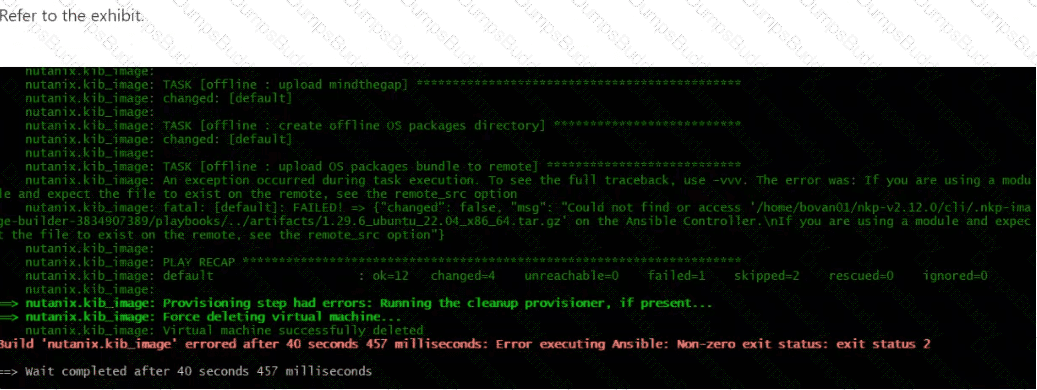

The error states:

lua

Copy

Could not find or access '/home/.../nkp-image-builder-.../playbooks/.../artifacts/1.29.6_ubuntu_22.04_x86_64.tar.gz'

This indicates that the OS package bundle (artifacts/1.29.6_ubuntu_22.04_x86_64.tar.gz) has not been created or is missing. Creating the OS package bundle is a prerequisite step in the NIB workflow.

Key Reference:

Nutanix Kubernetes Platform Administration (NKPA) 6.10 – “Creating OS Package Bundles for NIB”

NCP-CN 6.10 Study Guide – “NIB Preparation Prerequisites”

=======

In an air-gapped NKP environment with no Internet access, a bastion host is a critical component for secure management. The NKPA course defines the primary purpose of a bastion host as providing a secure point for creating and operating NKP clusters. The bastion host acts as a jump server, allowing administrators to securely access the isolated environment, manage cluster deployments, and perform operations like cluster creation, scaling, and upgrades without exposing the environment to external threats.

The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “In a dark site NKP deployment, a bastion host serves as a secure entry point for administrators to create, manage, and operate NKP clusters, ensuring isolation from external networks.” The bastion host is configured with SSH keys and tools like the NKP CLI to facilitate secure interactions with the cluster infrastructure.

Incorrect Options:

A. To store and manage sensitive data: The bastion host is not a storage system; its role is access and management, not data storage.

C. To serve as a load balancer: A bastion host does not perform load balancing; that role is handled by Kubernetes components like MetalLB or cloud-native load balancers.

D. To act as a firewall: While a bastion host enhances security, it is not a firewall. Firewalls are separate components in the network architecture.

The NKPA course recommends using a S3-compatible API for backup and restore operations in production NKP environments, as it integrates with Velero, NKP’s backup and restore tool. Velero supports S3-compatible storage (e.g., AWS S3, Nutanix Objects, or MinIO) as a backup storage location, allowing persistent data, including volumes and cluster resources, to be backed up and restored during disaster recovery scenarios. This approach ensures compatibility with cloud-native backup workflows and provides scalability and reliability for production use cases.

The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “For production backup and restore in NKP, use Velero with an S3-compatible API to store backups, ensuring persistent data availability during disaster recovery.” Nutanix Objects, which provides an S3-compatible API, is often used in Nutanix environments for this purpose, but any S3-compatible storage (e.g., an off-site S3 bucket) can be configured.

Incorrect Options:

A. Protection Domain: Protection Domains are a Nutanix AOS feature for VM-level replication, not for Kubernetes backup/restore.

B. Rook Ceph: Rook Ceph provides persistent storage for NKP clusters but is not a backup solution; it can be backed up using Velero with S3 storage.

C. External Storage Class: Storage Classes define how volumes are provisioned, not how they are backed up or restored.

The NKPA 6.10 documentation clarifies that the supported and recommended method to delete an entire node pool (including its worker nodes) in an NKP cluster is by using the nkp delete nodepool command. This command removes the specified node pool and all associated resources from the cluster in a controlled and supported manner.

Key reference from the documentation:

“Use nkp delete nodepool --cluster-name= to safely remove the node pool and its associated resources.”

Manual VM deletion via ACLI or NCLI is not recommended because it bypasses the Kubernetes and NKP resource lifecycle, potentially leaving orphaned resources or inconsistent cluster states.

As outlined in the NKPA 6.10 documentation, Goss is used to validate that an OS image meets the requirements to serve as an NKP node (such as the presence of required packages, kernel modules, and system settings). Goss is not used to modify or harden the image; rather, it validates conformance.

Key reference:

“During the image build process, Goss tests validate that the image meets the required standards for use as a Kubernetes node in NKP deployments.”

The NKPA course explains that NKP provides a role-based access control (RBAC) system to manage permissions within its platform, in addition to Kubernetes-native RBAC. For a development team needing limited permissions to perform specific tasks (deploying applications, scaling deployments, viewing logs and metrics) within a specific namespace, the appropriate access type in the NKP GUI is an NKP Role.

NKP Roles are predefined or custom roles within the NKP platform that map to Kubernetes RBAC permissions but are managed through the NKP UI for ease of use. They allow granular control over actions within a workspace or namespace, ensuring the team can perform their tasks (e.g., deploy, scale, get logs) without having access to other environments or cluster-wide resources. For example, an NKP Role like “Developer” or a custom role can be configured to grant edit permissions in the team’s namespace while restricting access elsewhere. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “In the NKP GUI, configure an NKP Role to grant limited permissions to a development team, allowing actions like deploying applications and viewing logs within their namespace while preventing unauthorized changes in other environments.”

Incorrect Options:

B. Cluster Role: A Kubernetes Cluster Role grants permissions across all namespaces, which is too broad for the team’s limited access requirement.

C. Cluster Admin: This grants full administrative access to the entire cluster, far exceeding the team’s needs and violating the principle of least privilege.

D. Kommander Role: Kommander is a management component in NKP, but “Kommander Role” is not a specific access type in the NKP GUI for this purpose.

The Kubernetes Image Builder (KIB) is used to create CAPI-compliant machine images for NKP cluster nodes, often leveraging tools like Packer to build AMIs for AWS. When the KIB process fails, troubleshooting requires detailed logs to identify the root cause. The NKPA course recommends increasing the verbosity of the KIB command to capture detailed output, including AWS CLI commands and their responses.

The correct troubleshooting step is to rerun the KIB command with the verbosity level set to debug. This is typically done using the --verbose or -v flag (e.g., -v debug) to enable debug-level logging, which includes all AWS CLI commands, their outputs, and errors, written to a log file for review. The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide states: “To troubleshoot KIB failures, rerun the command with debug verbosity (-v debug) to log all operations, including AWS CLI interactions, to an exported log file for detailed analysis.” This approach helps pinpoint issues like permission errors, misconfigurations, or failures in image bundle uploads.

Incorrect Options:

A. Rerun with pause parameter: KIB does not support a pause parameter for step-by-step review, as per the NKPA course.

C. Instruct Packer not to delete the cloned AMI: While preserving the AMI can help, the course prioritizes debug logging for initial troubleshooting. Packer’s --on-error=abort flag exists, but it’s less direct than debug logs.

D. Instruct Ansible not to delete the cloned AMI: KIB primarily uses Packer, not Ansible, for AMI creation, making this option incorrect.

The NKPA 6.10 documentation specifies that when attaching external clusters like AKS (Azure Kubernetes Service) to an NKP management cluster using Kommander, the default kubeconfig provided by AKS is typically not directly usable because it lacks the necessary service account details and permissions for NKP to properly manage the cluster. Therefore, the recommended and required approach is to create a separate service account in AKS with the necessary permissions and generate a kubeconfig file for this service account.

Key reference:

“When importing external clusters, such as AKS, the default kubeconfig might not contain the correct permissions for NKP Kommander. A custom kubeconfig for a service account with cluster-admin privileges should be created and used to attach the cluster to NKP.”

NKP uses Cluster API (CAPI) to provision and manage Kubernetes clusters across supported infrastructures, including Nutanix AHV, vSphere, AWS, and GCP. CAPI components, such as controllers and providers, are deployed to manage the lifecycle of clusters on these platforms. However, when NKP attaches to a managed Kubernetes service like Azure Kubernetes Service (AKS), CAPI components are not deployed because AKS is managed by Azure, and NKP only integrates with the cluster for fleet management, not provisioning.

The NKPA course explains: “For managed Kubernetes services like AKS, NKP attaches the cluster to its management plane without deploying CAPI components, as the underlying infrastructure is managed by the cloud provider.” The Nutanix Cloud Native (NCP-CN) 6.10 Study Guide reinforces this: “CAPI is used for NKP-managed clusters on Nutanix, vSphere, AWS, and GCP, but not for attached managed services like AKS.”

Incorrect Options:

A. vSphere: NKP deploys CAPI components (e.g., CAPV provider) to manage vSphere-based clusters.

B. GCP: NKP deploys CAPI components (e.g., CAPG provider) for GCP-based clusters.

C. Nutanix: NKP deploys CAPI components (e.g., CAPA provider for AHV) for Nutanix AHV clusters.

According to the NKPA 6.10 documentation, the critical system components for NKP nodes are:

kubelet

containerdThese components are deployed in the standard Linux path: /var/lib.

Exact extract from the documentation:

“The kubelet and containerd services require disk space in /var/lib on the host operating system. It’s essential to allocate sufficient storage in /var/lib to accommodate these core Kubernetes components.”
