NS0-194 NetApp Certified Support Engineer (NCSE) Questions and Answers

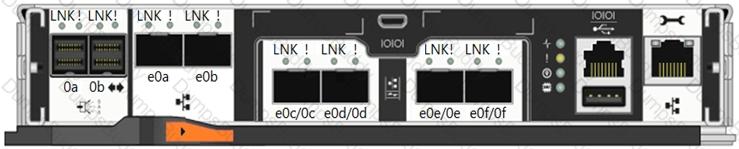

The e0c/0c port is the CNA port in the AFF A200 exhibit. A converged network adapter can operate in Ethernet mode, where it is labeled with an e-prefix, or in Fibre Channel target/initiator mode, where the corresponding identity may appear with a numeric port naming convention. On the AFF A200, the shared port labeling such as e0c/0c indicates a converged adapter identity. The option showing only e0a is a standard Ethernet-style port designation, and 0a is a Fibre Channel-style designation without the combined CNA label shown in the diagram. The visual clue is the dual-purpose label that combines Ethernet and FC naming in one port callout. For NCSE hardware questions, port nomenclature matters because replacement, cabling, protocol personality, and adapter configuration all depend on identifying the port type correctly. References/topics: AFF A200 onboard ports, CNA port labeling, Ethernet/FC personality, platform cabling, and controller port identification.

The supported NetApp HCI compute-node cabling methods are the 2-cable and 6-cable configurations. The 2-cable design is a simplified topology that reduces cabling while still supporting required network connectivity. The 6-cable configuration provides greater physical separation and bandwidth for management, storage, vMotion, and VM traffic depending on the validated design. A 1-cable configuration does not provide the required redundancy and traffic separation for supported HCI compute-node deployment. A 4-cable configuration is not one of the supported compute-node cabling methods in this exam context. NetApp HCI cabling must follow validated architecture because incorrect port use or switch design can prevent the NetApp Deployment Engine from validating the environment and can create performance or availability issues. The engineer should always compare the physical cabling with the deployment guide before running or rerunning the NetApp Deployment Engine. References/topics: NetApp HCI compute-node cabling, deployment prerequisites, 2-cable topology, 6-cable topology, and validated HCI network design.

FPolicy is the correct ONTAP feature because the requirement is to track file access activity for a particular folder from the storage layer. Vscan is an antivirus integration and is not designed to audit user access. A cron job would only collect logs after the fact and would not provide policy-driven, file-operation monitoring. Role-based access control controls administrator privileges, not end-user file access events inside a NAS namespace. FPolicy allows ONTAP to monitor file operations such as opens, creates, reads, writes, renames, and deletes, and it can send those events to an external FPolicy server or enforce a policy response. For a support engineer, the key decision point is whether the task is access control, virus scanning, or file activity notification. This scenario is explicitly about tracking access to files in a folder; therefore, FPolicy aligns directly with ONTAP NAS auditing and file notification architecture. References/topics: ONTAP NAS services, FPolicy policy scope, file-operation event monitoring, and security-side access tracing.

FabricPool is the ONTAP technology used to provide a cloud-based capacity tier from an AFF system. FabricPool combines a high-performance local tier, such as an AFF aggregate, with an object-storage cloud tier so that inactive data can be tiered according to policy. Flash Pool is a hybrid aggregate technology that uses SSDs as cache in FAS systems; it does not provide cloud object tiering. NetApp HCI is an infrastructure platform and not an ONTAP aggregate tiering feature. Flash Cache is controller-side caching and does not create a cloud capacity tier. The scenario explicitly says the customer has an AFF platform and wants object storage for cloud capacity. That is the defining use case for FabricPool. A support engineer should map the terms performance tier, capacity tier, cold data, and object storage directly to FabricPool. References/topics: ONTAP FabricPool, AFF aggregates, cloud capacity tier, object storage tiering, and inactive data movement.

If a Cloud Volumes ONTAP instance loses connectivity to Cloud Manager for four or more days, the instance is stopped. Cloud Volumes ONTAP depends on the management plane for licensing, control, and operational management. Temporary communication interruptions do not immediately remove the working environment from inventory or require manual re-adding, but extended loss of connectivity has enforcement consequences. Sending an AutoSupport message alone would not be the consequence described by the scenario. Removing the instance from Cloud Manager inventory would be a management-plane display action, not the operational enforcement behavior of the instance. For support engineers, this is a cloud-control dependency question: Cloud Volumes ONTAP is ONTAP software running in cloud infrastructure, but it is managed and licensed through NetApp cloud services. When connectivity is lost beyond the permitted window, the instance is stopped to prevent unsupported operation. References/topics: Cloud Volumes ONTAP management, Cloud Manager/BlueXP connectivity, licensing enforcement, and cloud data services operational requirements.

Different IPspaces are required when tenants must use separate network environments for data service and SnapMirror protection. An IPspace creates an independent network routing domain in ONTAP, allowing overlapping or isolated network configurations for different tenants. VLANs can segment traffic inside a network design, but they do not provide the same independent routing-domain separation that multi-tenancy requires in this scenario. A shared network infrastructure is not required when ONTAP is configured for tenant isolation. The idea that each node can communicate with only one tenant is incorrect because ONTAP nodes can host LIFs in multiple IPspaces, subject to proper design. The support engineer should choose IPspaces whenever the requirement is true tenant network separation, independent routing, or duplicate address support. That separation is especially important when tenants require independent routing tables, separate LIF placement, or overlapping address plans. References/topics: ONTAP IPspaces, multi-tenancy, SVM network isolation, SnapMirror tenant separation, and routing-domain design.

NDMP is the correct technology when a customer must create physical hard copies of transaction data for off-site regulatory storage. NDMP enables ONTAP data to be backed up directly to tape through a supported backup application, and tape is the typical medium for physical removable copies. SnapVault is disk-to-disk backup and retention; it is excellent for secondary ONTAP protection but does not inherently create physical hard copies. SVM DR replicates an SVM for disaster recovery and is not a physical-copy mechanism. FlexCache accelerates access to remote data and is not a regulatory backup technology. The phrase 'physical hard copies off site' is the key discriminator. A support engineer should map this to tape backup workflows, NDMP configuration, qualified tape devices, and backup software integration. For regulatory retention that requires removable media, NDMP is the NetApp-supported data transfer framework. References/topics: ONTAP NDMP, tape backup, off-site physical media retention, backup application integration, and regulatory data protection.

Kerberos configuration should be reviewed when CIFS access issues occur only when clients access a data LIF on a specific node. Kerberos authentication relies on proper service principal names, DNS records, time synchronization, and node/LIF identity behavior. If the same share path works through other nodes or LIF locations, the issue is less likely to be the share path itself. Export policies apply primarily to NFS access and are not the correct focus for CIFS share troubleshooting. General cluster health may be checked, but it does not directly explain a node-specific CIFS authentication failure. The support engineer should investigate Kerberos and CIFS server dependencies such as DNS aliases, SPNs, domain controller communication, and the data LIF's node context. The key clue is node specificity with CIFS, which commonly points to Kerberos name or authentication path problems. References/topics: ONTAP SMB Kerberos authentication, CIFS data LIF behavior, SPN/DNS validation, node-specific CIFS access troubleshooting, and Active Directory integration.

The NetApp HCI management node, or mNode, communicates with activeiq.solidfire.com and the Cloud Data Services portal. The mNode provides management services, telemetry collection, updates, and connectivity between the Element environment and NetApp cloud/support services. The vSphere plug-in is used by administrators to manage Element storage from VMware vCenter, but it is not the component responsible for cloud telemetry communication. Trident provides Kubernetes persistent storage orchestration and is unrelated to Active IQ connectivity for HCI. The Element Management Interface is a management UI/API surface, not the telemetry bridge described in the question. In support practice, mNode health, network access, DNS, certificates, and outbound connectivity are checked when HCI systems are not reporting correctly to Active IQ or cloud services. Without a healthy mNode path, cloud-based visibility and support automation can be incomplete even when the storage cluster itself is serving data. References/topics: NetApp HCI management node, Element telemetry, Active IQ SolidFire connectivity, Cloud Data Services portal, and HCI support architecture.

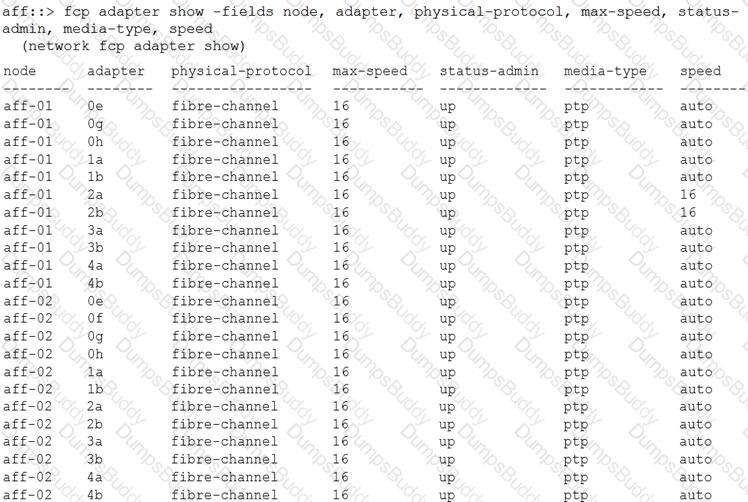

The problem is that there are no FC adapters with a max-speed of 32 Gbps. NVMe/FC support depends on platform, adapter, and speed capability. The exhibit shows FC adapters, but their max-speed is 16 Gbps, which does not satisfy the requirement being tested. The issue is not that the physical protocol is already set to NVMe; FC adapters are configured and then used for FC or FC-NVMe services according to supported capabilities. Media type is not NVMe, because NVMe is a storage protocol, not an optical media type. The wording 'cannot enable the protocol' requires checking whether installed adapters meet the hardware support requirements. A support engineer should verify adapter model, max speed, port mode, firmware, and ONTAP support matrix before attempting to configure NVMe. In this exhibit, the absence of 32 Gb-capable FC adapters is the blocking condition. References/topics: ONTAP NVMe/FC adapter requirements, FC adapter max-speed, protocol enablement, SAN hardware support, and port capability validation.

SnapMirror is the NetApp replication technology that performs block-level data replication between NetApp storage systems, including replication workflows involving Element software and Cloud Volumes ONTAP. SyncMirror is used for synchronous mirroring inside MetroCluster architectures and does not provide Element-to-CVO replication. Cloud Sync is a file/object data movement service and is not the block-based replication engine used for ONTAP data protection relationships. MetroCluster is a high-availability and disaster recovery architecture rather than a general replication tool from Element to Cloud Volumes ONTAP. In NetApp terminology, SnapMirror is the central data protection mechanism for creating replication relationships, maintaining source and destination consistency, and enabling disaster recovery or migration between NetApp platforms. The question emphasizes block-based replication, which directly eliminates Cloud Sync and points to SnapMirror. A support engineer should also confirm that both endpoints, licenses, and network reachability support the selected replication relationship before implementation. References/topics: SnapMirror replication, Cloud Volumes ONTAP data protection, Element software interoperability, and NetApp replication architecture.

In ONTAP 9.6, command-line activity is recorded in audit.log. The audit log captures administrative activity such as commands issued through the CLI and other management interfaces, which is essential for security review, accountability, and troubleshooting administrative changes. messages.log and ems.log are used for system and event messages, not specifically for recording administrator command history. command-history.log may sound plausible, but ONTAP 9.6 centralizes management audit activity in audit.log. mgwd.log records management gateway daemon behavior and can be useful for deeper support investigation, but it is not the primary file used to review CLI activity. A support engineer investigating who changed a configuration should know the difference between event logs, daemon logs, and audit logs. This distinction prevents wasted time during escalations because the correct log source depends on whether the issue is an administrator action, an EMS event, or daemon behavior. References/topics: ONTAP log architecture, audit.log, CLI activity auditing, administrative traceability, and management-plane troubleshooting.

The appropriate corrective action is to tune the SyncMirror resync speed by using the storage raid-options command. In a fabric MetroCluster, SyncMirror maintains mirrored plexes across sites. After a site event, plex resynchronization can generate substantial back-end I/O. If the resync is too slow or affects production behavior, ONTAP provides RAID option controls to tune mirror resync behavior. Adding disks might improve aggregate I/O capacity in some cases, but it does not directly control SyncMirror resync pacing. Destroying and recreating a plex is disruptive and unnecessary when the plex is already resyncing. A QoS policy limits client workload behavior and does not tune the underlying RAID mirror resynchronization engine. The support engineer must use the control point associated with the subsystem that is performing the work: SyncMirror resync is RAID/plex activity, not front-end workload throttling. References/topics: MetroCluster SyncMirror, plex resynchronization, storage raid-options, aggregate mirror maintenance, and MetroCluster performance troubleshooting.

VLANs are used in ONTAP environments to create logical network segmentation, normally by function, tenant, or protocol. Isolating management traffic from data traffic is a valid design reason because management interfaces should remain on a protected administrative network, separate from NAS or SAN client paths. Isolating iSCSI traffic from NAS traffic is also valid because iSCSI carries block storage traffic and is commonly placed on dedicated networks or VLANs for predictable latency, security, and failure-domain control. VLANs do not isolate UDP from TCP; those are transport protocols and are handled by IP stack behavior, firewalling, or application design rather than VLAN design. FC is not ordinary IP traffic, so isolating FC from other IP traffic is not a correct VLAN use case for ONTAP Ethernet networking. The support decision is to select segmentation examples that match ONTAP IP networking. References/topics: ONTAP VLANs, broadcast domains, management network isolation, iSCSI network separation, and NAS/SAN traffic design.
