4A0-D03 Nokia SR Linux EVPN and Data Center Interconnect Questions and Answers

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

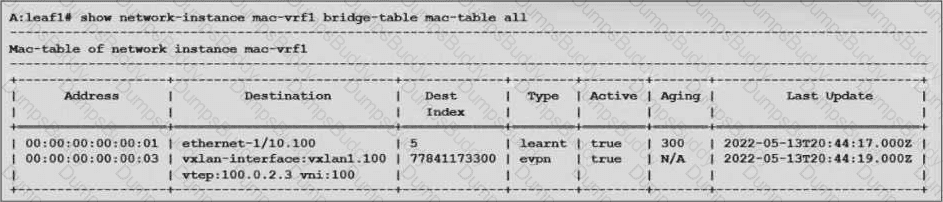

In an SR Linux Layer 2 EVPN MAC-VRF, locally attached MAC addresses are learned through the data plane on local access interfaces, while remote MAC addresses are learned from MP-BGP EVPN control-plane advertisements and installed with a VXLAN next-hop. The exhibit shows one local learned MAC on an Ethernet subinterface and another MAC learned through EVPN with a VXLAN interface and VNI 100. The remote VTEP or next-hop information identifies the remote endpoint, and the VNI maps the received VXLAN traffic to the correct MAC-VRF service. The false statement is C because saying that the MAC address associated with the vxlan-interface “will not age out” is too absolute. A remote EVPN MAC is not aged in the same way as a local data-plane-learned MAC, but it can still be removed when the corresponding EVPN route is withdrawn, invalidated, or no longer present in the control plane. The “N/A” style aging behavior does not mean permanent retention. Reference: SR Linux MAC-VRF verification, local MAC learning, EVPN-learned remote MACs, VXLAN VNI mapping.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

A decoupled gateway-based DCI model separates the data center border-leaf function from the WAN PE function. This separation is the key design point. The border leaf remains part of the data center EVPN/VXLAN environment, while the WAN PE participates in WAN VPN transport and policy enforcement. Because the roles are split across two devices, the handoff between the border leaf and WAN PE provides a clean administrative and operational boundary. That boundary is useful for security policy, QoS marking, traffic classification, and troubleshooting ownership. The WAN does not need direct reachability to every leaf and route reflector as in a gateway-less model. The WAN PE also does not peer directly with the data center route reflector in a decoupled model; route exchange occurs through the border-leaf/WAN-PE handoff. VXLAN tunnels between leaf routers across different data centers are characteristic of gateway-less extension, not decoupled gateway operation. Therefore, the statement about clear demarcation between the data center border leaf and WAN PE is the accurate description. Reference: decoupled gateway-based DCI, security/QoS demarcation, WAN PE separation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

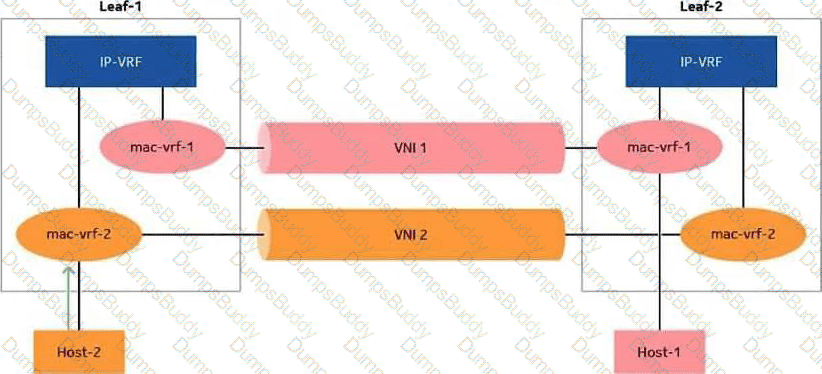

In asymmetric EVPN IRB, the ingress PE performs routing from the source subnet into the destination subnet, then forwards the packet across the VXLAN overlay using the destination MAC-VRF/VNI. The egress PE does not perform another IP-VRF lookup for that packet; it performs Layer 2 forwarding in the destination MAC-VRF. In this scenario, Host-2 sends traffic toward Host-1. After the ingress routing decision, the traffic arrives at Leaf-2 in the context of the destination MAC-VRF, mac-vrf-1. Leaf-2 then performs a MAC lookup in mac-vrf-1 and forwards the frame to Host-1. Option D is therefore correct. Option A reverses the forwarding direction and misidentifies the leaf action. Option B incorrectly sends mac-vrf-2 traffic toward the IP-VRF on Leaf-2, even though Leaf-2 is acting as the egress PE for Host-1. Option C is also incorrect because the egress forwarding action is based on the MAC table in the destination MAC-VRF, not an IP-VRF ARP lookup at that stage. Reference: asymmetric L3 EVPN IRB data-plane operation, ingress routing and egress MAC forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

An IRB interface is the logical connection point between a Layer 2 MAC-VRF and a Layer 3 IP-VRF. It provides the routed gateway function for hosts in the bridge domain while allowing traffic to move into the routed VRF for inter-subnet forwarding. The correct statement is that when an IRB sub-interface has multiple IP addresses, one can be designated as the primary. This is important because the primary address is used for normal gateway or subnet behavior when more than one address is present on the same routed interface context. Option A is inaccurate because the question is about an IRB sub-interface, not a generic subinterface selection between bridge or routed access modes. Option B is not the defining multi-homing model; EVPN multi-homing is implemented through Ethernet Segment association and MAC-VRF attachment behavior, not by adding multiple IRB subinterfaces for multi-homing. Option D is also wrong because the IRB is the shared logical link between the MAC-VRF and IP-VRF; the design does not require separate IRB subinterfaces on each side as independent constructs. Reference: SR Linux IRB configuration, MAC-VRF to IP-VRF interconnection, primary IP addressing.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In interface-less symmetric routing, the EVPN fabric exchanges host forwarding information using EVPN route type 2 MAC/IP advertisements. RT-2 carries the host MAC address and, when present, the associated host IP address, allowing remote PEs to build the forwarding state needed for distributed gateway operation. Unlike asymmetric routing, interface-less symmetric routing does not require every MAC-VRF to be instantiated on every PE. The design scales better because each leaf only needs the locally attached MAC-VRFs plus the shared IP-VRF/routed VXLAN construct for inter-subnet forwarding. Option B describes an asymmetric forwarding pattern more than a symmetric one; in symmetric routing, both ingress and egress PEs perform routed forwarding functions through the IP-VRF. Option C is also incorrect because anycast gateway is fundamental when multiple leaves provide the same default-gateway service for a subnet. Therefore, the true statement is that forwarding information is exchanged using EVPN route type 2 updates. Reference: interface-less symmetric routing, EVPN RT-2 host MAC/IP signaling, distributed IRB operation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

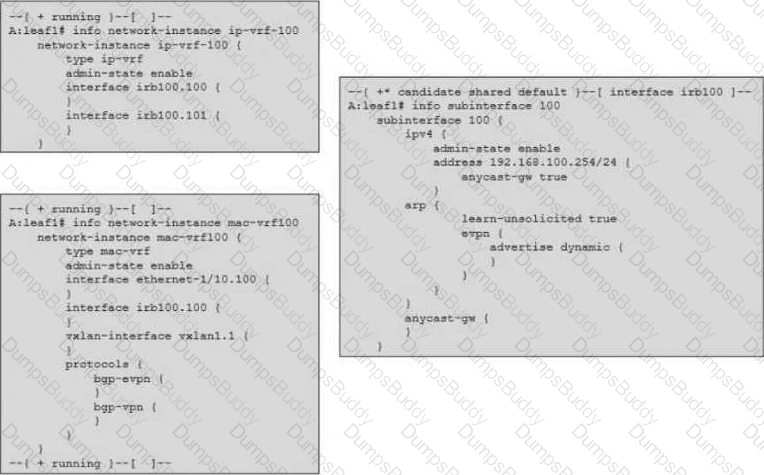

The exhibit describes an EVPN IRB environment where MAC-VRF100 and IP-VRF-100 exchange host reachability through local learning and EVPN advertisements. Leaf-1 can advertise EVPN route type 2 updates containing host MAC/IP information for MAC-VRF100. This is the normal mechanism used to distribute endpoint bindings learned from local hosts. If IP-VRF-100 is not configured for prefix advertisement, Leaf-1 will not generate EVPN route type 5 updates for that IP-VRF, so option A is consistent. The ARP cache in the IP-VRF is normally required for local subnet host resolution; remote host reachability can be learned through EVPN rather than requiring every remote ARP entry to be learned by local data-plane ARP. Option B is false because ARP/GARP snooping is not performed by the IRB interface in the manner stated. ARP/GARP learning for proxy ARP and MAC/IP advertisement is associated with the MAC-VRF bridge-domain behavior and the local access side, not with the IRB subinterface indiscriminately snooping all ARP/GARP messages as described. Reference: EVPN IRB operation, RT-2 host MAC/IP advertisement, RT-5 behavior, ARP/GARP learning scope.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

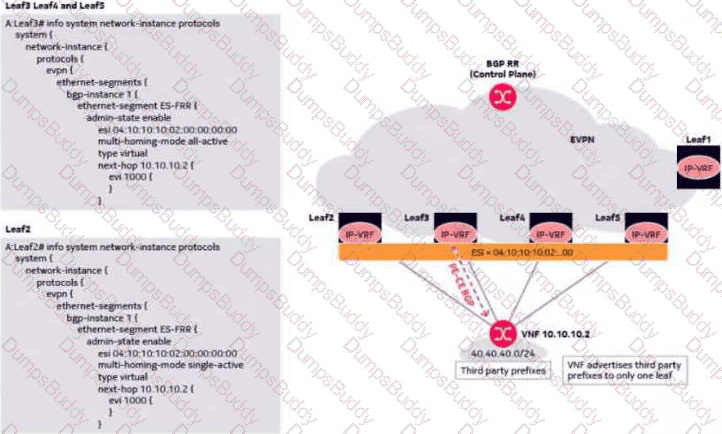

The scenario describes Layer 3 EVPN multi-homing with an IP-VRF service and an external CE VNF advertising the 40.40.40.0/24 prefix through BGP. A DF election can occur among the leaf routers participating in the Ethernet Segment, and the active/primary forwarding node is used for the relevant service behavior. The AD per EVI route can participate in identifying service-level reachability for the Ethernet Segment, and the prefix traffic follows the valid advertised path toward the CE VNF. Because Leaf3 has the BGP connection to the CE VNF, traffic for 40.40.40.0/24 is forwarded through Leaf3. Option B is false because it incorrectly states that all connected leaf routers will use single-active redundancy. The exhibit and answer context indicate a more specific forwarding/primary selection for the service, not a blanket statement that every connected leaf operates using single-active redundancy. In L3 multi-homing, redundancy behavior depends on the ES mode, prefix advertisement, next-hop association, and CE connectivity. The forwarding decision for the customer prefix is tied to the active/valid route advertisement, not to every leaf uniformly acting as single-active. Reference: L3 EVPN multi-homing, DF election, AD per EVI role, PE-CE BGP prefix forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

A route distinguisher is used in MP-BGP VPN and EVPN address families to make otherwise overlapping tenant routes unique in the BGP control plane. In EVPN, different tenants or EVPN instances may legitimately use the same MAC or IP values. The route distinguisher makes the NLRI globally unique by prepending a unique value to the tenant route. It is typically unique per PE and per EVI, and it is carried in EVPN route advertisements. However, the route distinguisher does not control route import, export, or service membership. That role belongs to the route target, which is a BGP extended community used by receiving PEs to decide which EVPN instance should import the route. Therefore, option D is not part of the correct description of a route distinguisher. Saying that the RD identifies the EVPN instance in the control plane confuses RD uniqueness with route-target membership. The RD makes routes unique; the route target associates those routes with the appropriate MAC-VRF or IP-VRF import policy. Reference: EVPN route distinguisher, overlapping tenant addresses, route target separation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In EVPN PE-CE routing, the PE exchanges ordinary IPv4 or IPv6 unicast routing information with the CE. When the PE learns CE prefixes, it imports them into the tenant IP-VRF and advertises them to other EVPN PEs as EVPN route type 5 IP Prefix routes. Conversely, when the PE receives EVPN routes from remote PEs, it can advertise corresponding IPv4/IPv6 BGP updates toward the CE, subject to policy. Import and export policies are essential because they control which customer routes are accepted, which EVPN-learned routes are advertised, and how attributes are modified. Option C is false because iBGP is not the preferred PE-CE model in this context. eBGP is typically preferred between PE and CE because it creates a clean administrative routing boundary between the provider/data-center edge and the customer or external router. Using eBGP also simplifies route policy, loop prevention, and operational separation. The CE does not need to participate in the EVPN overlay; it speaks standard BGP unicast with the PE, while the PE performs the EVPN RT-5 advertisement into the fabric. Reference: EVPN PE-CE BGP routing, eBGP preference, RT-5 prefix advertisement, import/export policy.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

MAC mobility is the EVPN mechanism used when a host MAC moves from one PE to another. The control plane uses a MAC Mobility extended community and sequence number behavior to determine the most recent valid location for the MAC. When a PE locally learns a MAC that was previously learned through EVPN, it advertises the MAC with an incremented sequence number, allowing remote PEs to prefer the newer location. Therefore, option B is wrong because the sequence number is not decremented. Option A is also wrong because the original PE does not advertise the locally learned MAC with a maximum sequence value as a normal mobility procedure. Option D is inaccurate because PEs do not need direct MAC table synchronization; they rely on EVPN control-plane advertisements and withdrawals. The true statement is option C: the originating PE generates a withdraw message after the same locally learned MAC ages out. This withdrawal removes stale reachability from remote PEs and prevents continued forwarding toward a PE that no longer has the host locally attached. Reference: EVPN MAC mobility, sequence-number handling, MAC route withdrawal after aging.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

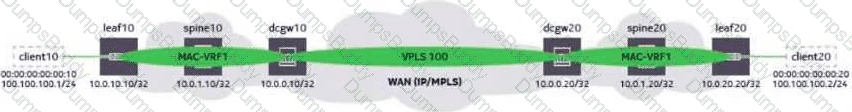

For Layer 2 data center interconnect using an integrated gateway, VPLS 100 on the Nokia 7750 SR represents the WAN-side Layer 2 VPN service. The VPLS requires an EVI because EVPN uses the EVI to identify the L2 service instance in the control plane. It also requires BGP EVPN signaling with the appropriate route targets so the local and remote service instances can import the correct EVPN routes. Because the service is transported across the WAN, the BGP/EVPN instance must be associated with the MPLS transport tunnels toward the remote gateway, dcgw20. A VXLAN instance with a VNI is not configured in the 7750 SR VPLS 100 for this integrated WAN gateway service. The VXLAN/VNI mapping is used inside the SR Linux data center fabric where MAC-VRF services are transported over VXLAN. On the WAN side, the VPLS service is carried using MPLS/EVPN mechanisms, not a VXLAN VNI configured directly under the VPLS. Reference: integrated gateway DCI, L2 EVPN/VPLS interworking, EVI and route-target operation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In many SR Linux data center fabrics, eBGP is used in the underlay because it gives simple hop-by-hop routing, fast convergence, and clean autonomous-system separation between leaf and spine nodes. The EVPN overlay, however, is a separate MP-BGP control plane used to distribute EVPN NLRI. The overlay route-reflector session does not have to reuse the leaf's underlay autonomous system number. In practice, an overlay BGP group may use a distinct local AS or configuration model separate from the underlay AS design. Therefore, option B is false. The route reflector's cluster ID is configured on the route reflector itself to prevent reflection loops and identify the RR cluster. Redundant route reflectors can be deployed for resiliency, and clients may receive duplicate paths or duplicate updates from multiple RRs; the BGP decision process and route reflection rules handle this. The key design distinction is that underlay eBGP provides IP reachability between loopbacks, while overlay MP-BGP EVPN carries tenant service reachability. Mixing these roles leads to incorrect AS planning. Reference: SR Linux EVPN MP-BGP route reflectors, eBGP underlay, overlay BGP sessions.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In active-standby, or single-active, Layer 2 EVPN multi-homing, only one PE is active for the Ethernet Segment and MAC-VRF at a time. Leaf1 and Leaf2 participate in DF election, and the elected DF becomes the active forwarding PE for that service attachment. Because this is not all-active multi-homing, the non-DF must not forward traffic to the host for the protected service. This prevents duplicate frames, incorrect MAC learning, and loops on the access side. The DF accepts traffic from the host and forwards BUM traffic received from remote PEs toward the host-facing segment. Option D is false because it claims that the non-DF can forward unicast traffic from remote PEs to the host. In single-active operation, remote peers must direct traffic to the active PE, and the standby PE remains ready to take over only after DF state changes. This is the operational distinction from all-active multi-homing, where more than one PE may be used for forwarding depending on the traffic type and aliasing behavior. Reference: single-active L2 EVPN multi-homing, DF role, non-DF forwarding suppression.

================
