NCP-EUC Nutanix Certified Professional - End User Computing (NCP-EUC) 6.10 Exam Questions and Answers

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Citrix on Nutanix Reference Architectures:

Simplicity of MCS: Machine Creation Services (MCS) is integrated directly into the Citrix Studio console and communicates natively with the Nutanix AHV APIs. It creates clones (Linked or Full) effortlessly without requiring extra infrastructure.

Comparison with PVS: PVS (Provisioning Services) (Option D) requires a separate PVS infrastructure (Provisioning Servers, SQL database, TFTP/DHCP configuration, Network Streaming Setup).

Conclusion: For a "Dedicated VDI" requirement, using MCS to provision full or fast clones requires significantly less administrative effort and infrastructure setup than implementing a PVS environment.

According to the Nutanix Security Guide, Cluster Lockdown is the specific security feature designed to restrict access to the cluster by disabling password-based authentication. When Cluster Lockdown is enabled, the cluster allows access only via SSH keys (RSA keys).

To meet the requirement of allowing access from "selected workstations" while "disallowing password access," the administrator must use Cluster Lockdown. By generating an SSH key pair and configuring the public key within the Cluster Lockdown settings (and removing the "Enable Remote Login with Password" option), the administrator ensures that only workstations possessing the corresponding private key can authenticate. This effectively restricts access to the specific workstations holding the keys and eliminates the risk associated with password-based logins. While IP restrictions (Option B/C) can limit the source addresses, they do not inherently disable password authentication, which is the primary requirement of the question.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Nutanix Validated Designs (NVD) for Citrix DaaS:

Control Plane: The requirement to "reduce brokering infrastructure footprint" dictates the use of Citrix DaaS (formerly Citrix Cloud), which offloads the Delivery Controllers and SQL databases to the Citrix cloud service, leaving only the lightweight Cloud Connectors on-premises.

Placement: In a large multisite architecture using the standard "Block and Pod" design, Nutanix recommends separating Management/Infrastructure functions from Workload functions.

Best Practice: Cloud Connectors are critical infrastructure components. They should be deployed on the AHV Infrastructure Clusters (Management Clusters) in each resource location, rather than the Workload clusters, to ensure they are protected from resource contention caused by user desktops and to maintain a clean separation of duties.

This is because having too many snapshots can cause serialization or deserialization errors when using the JSON serializer5

https://next.nutanix.com/product-updates/ahv-plug-in-for-citrix-director-1-1-4-0-released-39682

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to the Prism Central Guide on Storage Policy Management and Precedence Rules:

Precedence Rule: Nutanix documentation explicitly states: "If you assign a category associated with a non-default storage policy to an entity and also enable the Enable 'Default-Storage' policy toggle switch, the non-default storage policy gets precedence over the default storage policy."

Explanation: The "Default-Storage" toggle acts as a fallback or baseline policy assignment (specifically linking the VM to the Storage: $Default category). However, if the administrator specifically tags the VM with a user-defined category (like DesktopVM) that has its own specific storage policy, the system honors the specific (non-default) policy over the generic default one.

Result: The "expected" settings (if the administrator expected the Default policy to override the specific one because they toggled the switch) are not applied because the specific category policy takes priority.

administrator can take to resolve the issue of performance for several full clone virtual desktops within Cluster01 by migrating them to Cluster02.

a recovery plan is a set of steps that defines how to recover guest VMs from a disaster. A recovery plan can be used to migrate VMs between Nutanix clusters at the same or different availability zones1.

A snapshot is a point-in-time copy of a virtual machine that can be used as a template for creating new machines. A Citrix optimized Windows 10 image is a Windows 10 image that has been configured with best practices and optimizations for Citrix Virtual Apps and Desktops.

Using a snapshot of a Citrix optimized Windows 10 image can ensure that the persistent desktops have consistent performance, security, and user experience. It can also simplify the image management process by allowing you to update the snapshot with new patches or applications using Calm.

Calm is a tool that automates application lifecycle management across different environments. Calm can integrate with Citrix MCS to create, update, and delete virtual machines based on blueprints that define the configuration and dependencies of an application.

https://www.nutanix.com/support-services/training-certification/certifications/certification-details-nutanix-certified-professional-ncp-euc-v6

According to the "Citrix Virtual Apps and Desktops on Nutanix" best practices guide, the recommended storage container configuration depends on the provisioning method. For Citrix MCS (Machine Creation Services) Non-persistent workloads, the following settings are explicitly recommended in the Nutanix storage table:

Compression: Enabled (Inline compression is recommended for all workloads to improve capacity and performance).

Deduplication: Disabled (For non-persistent MCS, the write-heavy differencing disks are deleted upon reboot, making post-process capacity deduplication ineffective. While performance deduplication can help with reads, Nutanix Shadow Clones automatically handle caching of the base image on AHV, rendering deduplication largely redundant and an unnecessary overhead for this specific use case).

Erasure Coding: Disabled (Erasure coding is not suitable for the random write patterns and "hot" data associated with active VDI desktops; it is designed for cold, archive data).

Therefore, the correct configuration is Compression Enabled, Deduplication Disabled, and Erasure Coding Disabled.

Here are the 100% verified answers and detailed explanations based on the latest Nutanix End User Computing and Best Practices documentation.

Sysprep is a Microsoft tool that prepares a Windows installation for cloning, auditing, and customer delivery23. The Frame Sysprep Helper Tool is designed to simplify the Microsoft Sysprep process by parsing errors reported by sysprep and immediately repairing them when possible1. Therefore, the tool that the administrator can use to prepare the Sysprep of the sandbox with error parsing is A (Frame Sysprep Helper Tool).

Nutanix Prism Central includes Behavioral Learning and Efficiency reporting tools designed to identify inefficient resource usage.7

To verify if VMs are "using less than their configured memory" (wasted resources), the administrator should view the Over-provisioned VMs list within the Efficiency widget. Nutanix defines an "Over-provisioned VM" as one that is sized with more resources (CPU/Memory) than it actually consumes based on historical performance data.8 This list explicitly identifies these VMs, allowing the administrator to right-size them and reclaim cluster resources, whereas Task Manager (Option A) is manual/individual, and Capacity Runway (Option D) focuses on global cluster storage/resource exhaustion time rather than individual VM efficiency.

The charts provided display a scenario typical of a VDI Boot Storm or login storm, characterized by a massive spike in Read IOPS (top chart) while maintaining extremely low Read I/O Latency (bottom chart).

This behavior is best described by Data Locality (specifically leveraged through a mechanism often called Shadow Clones in VDI contexts).

The Scenario: During VDI logins, hundreds or thousands of VMs simultaneously read from the same base "Golden Image" or replica disk.

The Mechanism: Nutanix Data Locality ensures that VM data is served locally from the node where the VM is running. In the specific case of multi-reader VDI workloads, the Nutanix Distributed Storage Fabric detects that the same vDisk is being read by VMs across multiple nodes. It automatically caches this vDisk (Shadow Clone) on the local SSD/RAM of every node.

The Result: As shown in the graphs, the cluster delivers very high Read IOPS because every node is serving its own VMs from local cache, preventing network congestion. Consequently, the latency remains flat and near-zero, rather than spiking as it would in a traditional centralized storage architecture where all reads traverse the network to a single controller.

Nutanix Security Guide documentation on Data-at-Rest Encryption (DARE) specifies strict hardware compatibility rules. For Hardware Encryption, the cluster must exclusively use Self-Encrypting Drives (SEDs). The documentation states that you cannot mix SEDs and non-SEDs (standard drives) within the same cluster if you intend to use hardware-based encryption.

However, Software Encryption (AOS Software Encryption) is hardware-agnostic. It uses the CPU (leveraging AES-NI instructions) to encrypt data before writing it to the disk. Software encryption supports any drive type and is the only supported method for clusters containing a mix of SEDs and standard drives. Therefore, the administrator must use cluster-level software encryption.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Nutanix Storage Best Practices for Full Clone VDI:

Full Clone Characteristics: Full Clones are independent copies of the virtual machine, meaning they contain 100% duplicate data (OS, binaries, applications) across every VM in the pool.

Deduplication Benefit: Because the data is identical across all clones, enabling Deduplication (specifically Capacity Tier Deduplication) provides massive space savings by eliminating these redundant blocks. Nutanix documentation explicitly recommends Deduplication for "Full Clones" and "Persistent Desktops".

Compression Synergy: Compression (Inline) is recommended for all workloads. Combining Deduplication (to remove duplicate blocks) with Compression (to shrink the unique blocks) yields the "most efficient space savings" possible for this specific workload type.

Contrast: For Linked Clones (which already share a base disk), Deduplication is turned off (Answer C), but for Full Clones, Answer A is the standard best practice.

Nutanix Frame allows administrators to configure capacity settings for their virtual machines (VMs) that run virtual apps and desktops.

Capacity settings include:

Default capacity, which defines how many VMs are turned on when there is no user activity on the account. This setting helps reduce costs by turning off unused VMs.

Active capacity, which defines how many VMs are turned on when there is user activity on the account. This setting helps improve performance by ensuring enough VMs are available for user sessions.

Quick Publish, which defines how many VMs are updated with the latest changes when publishing a new version of an app or desktop. This setting helps speed up the publishing process by updating only a subset of VMs instead of all of them.

According to Nutanix Frame documentation1, Quick Publish value should be equal to or less than the active capacity value for each instance type.

If Quick Publish value is set higher than active capacity value, then Frame will ignore Quick Publish value and perform regular publishing instead.

https://docs.frame.nutanix.com/platform/admin/capacity/

In Nutanix Prism Central, the Capacity Runway scenario provides details on the available capacity for the next 12 months based on the current usage pattern. This feature can help the administrator to plan and prepare the budget for the next fiscal year. The administrator can use this information to decide whether more resources need to be added to the Nutanix cluster or if the existing resources are sufficient.

https://www.nutanix.com/products/prism/prism-central

Prism Central planning tools can help you estimate the capacity runway of your cluster by considering the storage, CPU, and memory capacity. However, you need to have at least 21 days of data from a cluster to calculate the baseline runway estimates4.

https://next.nutanix.com/community-blog-154/new-x-play-actions-in-prism-central-2021-7-40005

The Prism Central Playbook Action is a tool that allows you to automate tasks based on triggers, such as events, alerts, or webhooks. You can define a series of actions (called a playbook) that perform operations on your infrastructure, such as adding or reducing resources on a VM2.

To use the Playbook Action for VMs, you need to meet some prerequisites, such as:

The Prism Central version must be 2020.11 or later.

The AOS version must be 5.15 LTSR or later.

The hypervisor must be AHV or ESXi.

The VMs must have Nutanix Guest Tools (NGT) installed and enabled3.

One of the possible reasons why the Playbook Action is no longer being triggered is that the virtual desktop CPU Usage alerts were not cleared. According to the Prism Central guide3, “If an alert has been triggered once and has not been cleared yet, then it will not trigger any action again until it has been cleared”. Therefore, if the CPU Usage alert remains active for a virtual desktop, it will prevent the Playbook Action from adding more vCPUs to it.

According to Nutanix "Omnissa Horizon on Nutanix Best Practices" (formerly VMware Horizon), Windows system services that create excessive background I/O must be optimized for VDI environments. Specifically, the Windows Search (Indexing) Service is a common cause of high CPU and disk I/O. In a non-persistent environment, if the indexing service is active, it continuously attempts to crawl the file system and update the index database during the user session. This generates a large number of small, random writes (IOPS) which land in the Flash Tier (Hot Tier/Oplog).

The behavior described—usage ramping up during business hours (as users create data/emails) and coming down during off-hours—aligns with the Curator process. Curator scans the cluster periodically (typically every 6 hours or during low load) to perform Tiering (moving cold data from SSD to HDD) and cleanup. If indexing is enabled, the "hot" index data fills the SSD tier during the day; Curator then destages this data or consolidates it during the scan. To resolve the performance impact and unnecessary flash consumption, the administrator must disable the Windows Search service or configure it correctly in the Golden Image.

Nutanix leverages the Security Configuration Management Automation (SCMA) framework to ensure that services are constantly inspected for variance to the security policy. This framework checks multiple security entities for both Nutanix storage and AHV, automatically reporting log inconsistencies and reverting them to the baseline where applicable.

To prevent these continuous inspections from negatively affecting the cluster's operation, the Nutanix Security Guide specifies that STIG (Security Technical Implementation Guide) scans have the lowest system priority within the virtual storage controller. This design ensures that security checks do not interfere with platform performance or user workloads, regardless of whether the schedule is set to run hourly, daily, weekly, or monthly.

According to the certification details1, one of the objectives is to “Configure and manage security features such as role-based access control (RBAC), SSL certificates, encryption at rest, and data protection.”

This answer seems to align with the security team’s feedback and the objective of managing security features using Nutanix technologies.

Nutanix AHV Plug-In for Citrix Director provides more information on Citrix generated desktops running on Nutanix AHV. Some of the metrics that are available in customized reports are:

VM CPU Usage

VM Memory Usage

VM Disk IOPS

VM Disk Bandwidth

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Nutanix storage best practices for Virtual Desktop Infrastructure (VDI), the optimal configuration for Linked Clones is Compression Only.

Linked Clones and Data Efficiency: In a Linked Clone environment, the Virtual Machines (VMs) already share a common base image (replica disk) at the hypervisor level. Because the identical operating system data is already shared via the cloning technology, the Nutanix Distributed Storage Fabric (DSF) manages this duplicate data efficiently without needing the Deduplication feature enabled on the container.

Redundancy of Deduplication: Nutanix technical documentation explicitly states that for Linked Clones or Nutanix VAAI clones, deduplication provides no additional benefit because the data is already single-instanced. Enabling deduplication in this scenario would introduce unnecessary metadata overhead without delivering significant capacity savings.

Role of Compression: Inline Compression is recommended for almost all workloads, including VDI. It effectively reduces the size of the unique data written to the delta disks (user data, temp files, and logs) associated with non-persistent desktops, maximizing storage efficiency without the performance cost of deduplication.

Shadow Clones: For the read-heavy workload of 2000 desktops accessing the same base image, Nutanix utilizes Shadow Clones (enabled by default) to cache the "hot" replica disk locally on every node, ensuring high performance during boot storms, rendering the need for "performance tier deduplication" redundant for linked clones.

Summary of Best Practice:

Full Clones / Persistent Desktops: Compression + Deduplication.

Linked Clones / Non-Persistent Desktops: Compression Only.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix and Citrix DaaS documents:

According to Citrix Cloud and Nutanix DR best practices:

High Availability Requirement: Citrix strongly recommends and practically enforces a requirement of at least two (2) Cloud Connectors per Resource Location (RL).

Reasoning: Cloud Connectors are "evergreen" components that update automatically from the cloud. During an update, a connector may reboot. If only one connector exists (Option A), the Resource Location would go offline, severing connectivity for the DR site.

Production vs. DR: A Disaster Recovery (DR) site is treated as a production Resource Location because it must be ready to accept user connections instantly during a failover. Therefore, the minimum N+1 redundancy rule applies, requiring 2 connectors.

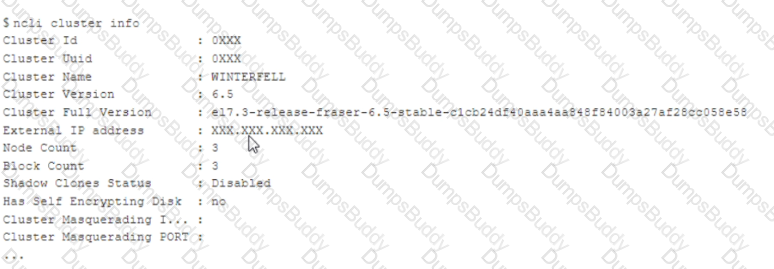

Shadow Clones are a feature of the AOS storage that enables distributed caching of virtual disks (vDisks) that are read by multiple VMs on different nodes. This can improve performance and reduce network traffic in scenarios such as VDI deployments.

Therefore, if Shadow Clones were disabled, it could cause delays in the deployments of VD’ desktops, as they would have to read the vDisk from a remote node instead of a local cache.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

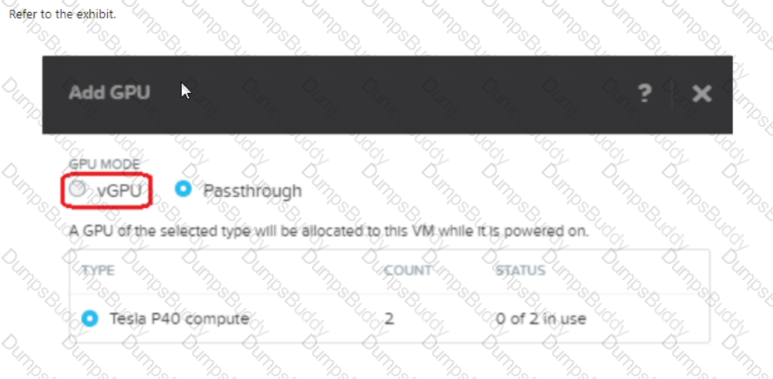

According to Nutanix AHV Administration Guide regarding GPU Pass-Through:

Hardware Binding: GPU Pass-Through (DirectPath I/O) binds a virtual machine to a specific physical PCIe device on the host. Unlike vGPU (which abstracts the hardware), passthrough creates a 1:1 dependency.

HA Behavior: Nutanix AHV supports High Availability (HA) for GPU-enabled VMs in the sense that if a host fails, the system attempts to restart the VM on another host (Cold Migration). Option C ("Not HA-capable") is incorrect because the system attempts the restart; it does not simply abandon the VM by design.

Failure Cause: The restart fails (the "behavior" described) because the destination host must have the exact same GPU hardware resource available (free and matching the profile/addressing). If the other nodes in the cluster do not have a free GPU of the same type, or if they are already fully utilized, the VM cannot power on, resulting in the "Insufficient GPU resources" error.

For persistent desktop workloads (full clones) where data efficiency is critical, Nutanix recommends leveraging Inline Compression as the primary reduction technology. To further optimize storage capacity without the heavy memory overhead associated with Deduplication, the recommended complementary technology is Erasure Coding (specifically Inline Erasure Coding in newer AOS versions or EC-X post-process).

Erasure Coding increases the effective usable capacity of the cluster by stripping data parity across nodes (similar to RAID 5/6 logic) rather than relying on the default Replication Factor 2 (RAID 1 logic) for cold or write-cold data. Since persistent desktops often contain large amounts of static data after the initial OS and application installation, Erasure Coding significantly reduces the storage footprint. While Capacity Deduplication (Option D) is available, it is generally reserved for specific use cases (like full clone setups with high data commonality) due to its high RAM requirement for fingerprint metadata, making Erasure Coding the more universally applicable "other" technology for general persistent VDI.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Nutanix VDI Troubleshooting and Performance Tuning best practices:

Symptom Analysis: "Sluggish mouse and keyboard response" is a classic symptom of high CPU contention or high Latency on the host or VM. Since the environment was previously stable ("No additional virtual desktops added") and the change was "dramatic," it points to a new process consuming resources unexpectedly.

The "Agent" Factor: In non-persistent VDI environments, a common cause for sudden performance degradation affecting an "entire department" is an Antivirus or Security Agent running a scheduled scan or a signature update simultaneously across all clones. This creates a "storm" of IOPS and CPU usage (often called an AV storm), starving the user sessions of the resources needed for basic input processing (mouse/keyboard).

Why not others?

Unoptimized master image (B): This would cause poor performance from day one, not a "dramatic change" after 60 days of stability.

Legacy drivers (C): Drivers do not degrade suddenly; they would cause issues from the time of installation.

Over-provisioning (D): This usually results in gradual degradation as user concurrency increases, not a sudden cliff-edge drop in performance if user counts haven't changed.

The error message "Could not create SSL/TLS secure channel" when attempting to connect Citrix Studio to a Nutanix AHV cluster indicates a protocol mismatch between the Citrix Delivery Controller and the Nutanix Prism interface.

Nutanix AOS enforces strict TLS 1.2 security standards. To communicate effectively with the Nutanix cluster, the Citrix Delivery Controllers must have the correct version of the Nutanix AHV Plugin for Citrix installed. This plugin manages the hosting connection and ensures that the communication utilizes the required TLS 1.2 protocols and cipher suites. If the plugin is missing, outdated, or corrupted, the secure channel cannot be established, resulting in this specific error. Installing or upgrading to the latest supported plugin resolves the communication failure.

https://docs.citrix.com/en-us/citrix-workspace/integrate.html

The Prism Citrix Cloud integration feature allows you to configure the Citrix Cloud settings in Prism Central and connect your Nutanix cluster as a resource location in Citrix Cloud4. This enables you to use Citrix Virtual Apps and Desktops service to deliver applications and desktops to your end users.

To use this feature, you need to meet some prerequisites, such as:

The Prism Central version must be 2020.11 or later.

The AOS version must be 5.15 LTSR or later.

The hypervisor must be AHV or ESXi.

You must have a valid Citrix Cloud account with access to Citrix Virtual Apps and Desktops service4.

One of the steps for configuring the Prism Citrix Cloud integration is to establish the connection to Citrix Cloud. To do this, you need to provide three pieces of information:

Customer ID: This is a unique identifier for your Citrix Cloud account that can be found in your profile settings2.

Client ID: This is a unique identifier for an API client that can access your Citrix Cloud account. You can create an API client in your identity and access management settings2.

Secret Key: This is a secret string that authenticates the API client. You can generate a secret key when you create an API client2.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

Based on the provided exhibit and Nutanix Prism Central administration guides:

Interface Identification: The screenshot displays the Prism Central web console, indicated by the "Infrastructure" dropdown menu in the top navigation bar (Prism Element uses a different layout). The user is currently in the Images dashboard (Infrastructure > Compute > Images).

Updating Image Metadata: To rename an image (or modify its description/type) in Prism Central, the standard workflow is to select the target image (as shown with "Windows-11" selected) and use the Actions menu.

The "Update" Action: Within the Actions dropdown menu, the correct option to modify existing settings is Update. Clicking Actions -> Update opens the "Update Image" dialog box, where the Name field is editable.

Incorrect Options:

A & D (CLI): These are incorrect because image renaming is fully supported in the UI; the CLI (acli or ncli) is available but not mandatory ("must" is the error).

C (Clone): Cloning an image creates a duplicate copy. While this could result in a new image with a new name, it is an inefficient workaround rather than the direct solution for simply renaming an existing image.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Citrix App Layering on Nutanix reference architectures:

Minimizing Storage: Citrix App Layering allows an administrator to capture applications in separate virtual disks ("App Layers") that are stored once and then dynamically merged with a base OS layer to create layered images.2 This avoids the storage bloat of installing every application into a single "Gold Image" or creating dozens of unique images for every department.

ELM Role: The Enterprise Layer Manager (ELM) is the virtual appliance required to manage this layering environment.3 It orchestrates the creation of layers and the publishing of images.

Targeting User Groups: By using Elastic Layering (a feature of App Layering), specific app layers can be delivered to users based on their Active Directory group membership at login, fulfilling the requirement to deploy "different applications to different user groups" without installing them permanently in the base image.

non-persistent VDI machines are deleted when they are rebooted, logged off, or shut down. Therefore, Windows Update policy should be configured to prevent automatic updates that may trigger a restart on these machines1.

https://techcommunity.microsoft.com/t5/microsoft-defender-for-endpoint/onboarding-and-servicing-non-persistent-vdi-machines-with/ba-p/1360721

In Nutanix AHV networking, the default bond mode for a virtual switch is Active-Backup. In this mode, all traffic flows through a single active physical uplink, while other uplinks remain in standby mode to be used only in the event of a failure. This explains the observation that "only one of the physical NICs... is carrying VM traffic."

To utilize multiple physical uplinks simultaneously and balance the traffic, the administrator must change the bond mode to an Active-Active configuration. In AHV, this is achieved by configuring the bond mode to Balance-SLB (Source Load Balancing) or Balance-TCP (LACP). These modes distribute VM traffic across all available physical interfaces in the bond, thereby balancing the load.

In virtualization performance troubleshooting, CPU Ready % is a critical metric that indicates the percentage of time a virtual machine was ready to execute a thread but had to wait for the hypervisor to schedule it on a physical CPU core.

According to standard Nutanix and AHV performance guidelines, a CPU Ready value above 5% per vCPU is considered a leading indicator of CPU contention (oversubscription) and performance degradation. While the overall host CPU Usage appears low (18%), the high CPU Ready (6.5%) suggests that specific VMs are fighting for scheduling slots, causing the latency ("tasks taking longer") reported by the users. The other metrics (IOPS, Storage Usage) are well within normal operating parameters.

one of the possible causes of slower logon and application load times for VMware Horizon-based virtual desktop users is Failed to create Native clone errors. This error occurs when there is a problem with cloning virtual machines using Nutanix Native Clones technology. To troubleshoot this issue, you can check the following:

The Nutanix cluster has enough free space to create clones

The Nutanix cluster has enough CPU and memory resources to handle cloning operations

The Nutanix cluster is running a compatible version of AOS and AHV with VMware Horizon

The VMware Horizon environment is configured correctly to use Nutanix Native Clones

The VMware Horizon agent is installed and updated on the master image

https://www.nutanix.com/support-services/training-certification/certifications/certification-details-nutanix-certified-professional-ncp-euc-v6

https://kb.vmware.com/s/article/1008360

Nutanix offers a solution that delivers virtual apps and desktops in one click. Nutanix supports both persistent and non-persistent VDI deployments, as well as RDSH-based VMs and AppStacks.

Storage containers are logical units that group vDisks and apply storage policies such as replication factor, encryption, compression, deduplication and erasure coding3. Nutanix recommends using compression and deduplication to reduce storage usage and avoid duplicate data4.

To achieve logical traffic separation while minimizing physical ports (using the same physical uplinks for multiple traffic types), Nutanix AHV networking best practices recommend the use of 802.1Q VLAN tagging.

The standard validated design is to:

Place the CVM and AHV Host management/storage interfaces on the Native VLAN (untagged) or a specific management VLAN.

Place User VM (Guest) traffic on Tagged VLANs.

This configuration allows storage replication traffic (CVM) and user traffic (VMs) to share the same physical cables (minimizing port usage) while remaining logically isolated at the switch level. Options like separate virtual switches (Option B) often require dedicated physical uplinks, which violates the requirement to minimize ports.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Nutanix LCM and NVIDIA vGPU operational best practices:

Live Migration Requirement: To keep a VM "online" during a host upgrade, the VM must be live-migrated (vMotioned) off the host entering maintenance mode.

vGPU Constraint: A VM configured with a vGPU profile cannot be live-migrated to a host that does not have a compatible physical GPU resource available.4 The destination host must have a GPU capable of hosting the specific vGPU profile.

The Solution: Since only one host currently has a GPU, there is no valid destination for the VM to migrate to. The administrator must install a GPU in a second host to create a valid migration target. This allows the VM to vMotion to the second host, keeping it online while the first host is upgraded.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to the Nutanix AHV Administration Guide and Cluster Expansion prerequisites for environments with non-default virtual switches:

Manual Bridge Configuration: When a cluster has multiple virtual switches (e.g., vs1, vs2) configured, these correspond to specific OVS bridges (e.g., br1, br2) on the AHV hosts. Before adding new nodes to such a cluster, the administrator must manually configure these additional bridges on the new nodes to match the existing cluster configuration.

Consistency Requirement: The documentation states that virtual bridges used for a virtual switch (VS) on all nodes must have the same specification (name, MTU, uplink bond type). If vs1 is mapped to br1 on existing nodes, it must be mapped to br1 on the new nodes before they are added to the cluster.

Expansion Failure/Warning: Failure to configure these bridges prior to expansion can result in the new nodes being unable to join the configured networks properly or the expansion process failing checks related to network uniformity.

This is because this option will enable the administrator to add a Nutanix cluster as a new connection by installing and registering the plugin on the Delivery Controllers that manage the connection type menu.

https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2079-Citrix-Virtual-Apps-and-Desktops:BP-2079-Citrix-Virtual-Apps-and-Desktops

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to the Nutanix Life Cycle Manager (LCM) guide and NVIDIA GRID Host Driver for AHV Installation Guide:

Centralized Efficiency: The most efficient method to upgrade Nutanix clusters, including those with specialized hardware like NVIDIA GPUs, is through Prism Central (PC). Prism Central acts as the unified control plane, allowing administrators to upload the LCM bundles (including NVIDIA drivers) once and apply them across registered clusters.

LCM Workflow: The administrator should log in to Prism Central, navigate to the LCM (Life Cycle Manager) page, and use the Direct Upload feature to upload the NVIDIA GRID driver tar.gz bundle. LCM then automatically handles the inventory, pre-checks, host maintenance mode, and driver installation across the nodes in the cluster.

Why not "install_host_package" (Option D)? While the install_host_package command (CLI) is a valid method for manual installation, it is considered a legacy or fallback procedure ("manual method"). It requires logging into each CVM, running commands, and manually managing host restarts, which is far less efficient than the automated orchestration provided by LCM in Prism Central.

Why not Prism Element (Option B)? While you can perform LCM updates via Prism Element (PE) for a single cluster, Prism Central is the preferred interface for "efficient" management of the environment, especially if it scales or involves multiple clusters, and is the standard direction for all Nutanix management tasks.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Nutanix EUC Troubleshooting Guides:

Tool Capabilities: RDAnalyzer (Remote Display Analyzer) is the specific tool recommended to view real-time statistics regarding the Display Protocol (Blast/ICA/PCoIP), Frames Per Second (FPS), Bandwidth, Network Latency, and GPU Utilization in a single overlay window.

Why not GPUView? NVIDIA GPUView (Option D) is a deep-dive performance trace tool used for analyzing complex rendering pipelines and driver lag (DPCs/ISRs). It does not provide a live dashboard of "Network Latency" or "Bandwidth" for the display protocol, nor is it used for quick "real-time" monitoring by administrators in the same way RDAnalyzer is.

Note on Exam Key: While some older exam dumps might incorrectly flag D, RDAnalyzer is the only tool in the list that provides the protocol-specific network metrics (bandwidth/latency) requested in the scenario.

The performance issue is caused by Host CPU overcommitment, specifically regarding CPU scheduling (Ready Time) rather than total utilization.

While the Host CPU utilization is below 80% (meaning the processor has idle cycles), the configuration of 8 vCPUs per VM combined with a high 9:1 vCPU-to-pCPU ratio creates a bottleneck known as "Co-stop" or high "CPU Ready" time. The hypervisor scheduler must wait until 8 physical cores are available simultaneously to execute a single clock cycle for one VM. In a dense VDI environment, finding 8 free cores at the exact same moment is difficult, causing the VMs to pause (freeze) while waiting for the scheduler, even if the overall CPU usage of the host appears moderate. Reducing the vCPU count per VM would likely resolve the performance issues.

For Virtual Machine operations involving vGPUs (NVIDIA GRID) on Nutanix AHV, it is a strict requirement that all GPU nodes must run the same version of the host driver.

To support VM mobility, live migration, and High Availability (HA) within the cluster, the source and destination hosts must have compatible GPU profiles and identical driver versions. If drivers are mismatched between nodes, the GPU state cannot be successfully transferred or re-initialized, preventing migration and potentially causing VM power-on failures. While a cluster can contain a subset of nodes with GPUs (heterogeneous cluster), the nodes that do have GPUs must be uniform in their driver configuration.

ersistent virtual machines are those that retain all the user’s personal settings, files, and customizations after each session12. Non-persistent virtual machines are those that reset to a predefined state after each session and do not save any user data12. MCS (Machine Creation Services) is a Citrix feature that allows administrators to create and manage multiple virtual machines from a single master image3. Remote Desktop Services (RDS) is a Microsoft feature that allows users to access applications or desktops hosted on a remote server4. Citrix Virtual Apps is a Citrix feature that allows users to access applications hosted on a remote server or cloud5

According to standard VDI image preparation best practices (including those for testing with tools like LoginVSI), the foundational step before any benchmarking can occur is to Install and patch the Operating System.

A benchmark is invalid if it is run on an incomplete or vulnerable OS. The standard workflow is:

Install OS and standard runtimes.

Patch fully (to represent a realistic production state).

Optimize (OSOT).

Option A represents the critical mandatory "Action" required to build the base image for the test.

The performance statistics indicate that the SSD Cache tier is 85% full, which is the primary bottleneck. In a Nutanix cluster, the SSD tier serves as the high-performance "Hot Tier" (Extent Store and Oplog) for active data. When the SSD tier utilization exceeds recommended thresholds (typically above 75-80%), the system must aggressively destage data to the slower HDD Capacity tier to free up space for incoming writes.

This destaging process and the lack of available SSD space for the active working set (WS) force read and write operations to be served from the slower Capacity tier (HDD), resulting in significantly higher latency and "sluggish" desktop performance. The vCPU ratio (4:1) and Host CPU (< 40%) are well within healthy limits, ruling out CPU contention.

One of them is Nutanix Frame, which is a cloud-based service that delivers virtual apps and desktops from any cloud provider or on-premises datacenter.

Nutanix Frame simplifies VDI deployment by providing automated cloud resource orchestration, user session brokering, and environment administration.

Another solution is Nutanix Citrix Cloud, which is a hybrid cloud solution that integrates Nutanix HCI with Citrix Virtual Apps and Desktops service.

Nutanix Citrix Cloud enables VDI deployment by providing centralized management and delivery of virtual apps and desktops through Citrix Cloud Services.

According to Nutanix best practices2, one of the steps needed for deploying VDI with Nutanix Citrix Cloud is to configure the PE Citrix Connection.

This step involves creating a connection between the Nutanix Prism Element (PE) cluster and the Citrix Cloud account, which allows Nutanix to register as a resource location for Citrix Cloud Services.

This connection also enables Nutanix to provide performance metrics, alerts, and actions for the virtual apps and desktops running on Nutanix HCI.

Comprehensive and Detailed Explanation From Exact Extract of Nutanix End User Computing documents:

According to Citrix Virtual Apps and Desktops architecture documentation utilized in Nutanix EUC designs:

VDA Functionality: The Virtual Delivery Agent (VDA) is the essential software component that must be installed on every machine (virtual or physical) that delivers applications or desktops.

FMA Role: The VDA registers with the Delivery Controller (Broker) and manages the FMA (FlexCast Management Architecture) connection between the machine and the user device. It establishes and manages the HDX connection, allowing the Citrix Workspace app (on the client side) to connect directly to the desktop session.

Distinction:

Citrix Workspace app is installed on the client device (endpoint), not the virtual desktop.

VirtIO drivers are lower-level drivers for disk/network I/O virtualization on AHV, not FMA connection brokers.

NGT provides Nutanix-specific fabric features (SSR, FLR), not Citrix session connectivity.

Nutanix Frame has several session settings that can affect the user experience and resource utilization. One of these settings is Max session duration, which defines how long a user can stay connected to a Frame session before it is automatically terminated1. If this setting is too low, users might experience random disconnections and lose their applications and files. Therefore, the configuration setting that must be modified in order to resolve this issue is A (Max session duration).

vCenter can execute approximately 640 concurrent operations before incoming requests are queued, and can support up to 2,000 concurrent sessions1. VMware Horizon 8 can support up to 120,000 active sessions in a Cloud Pod Architecture pod federation23. Therefore, if the environment has 10,000 virtual desktops, one vCenter instance might not be enough to handle all the operations and sessions efficiently. The recommended number of vCenter instances in this configuration is B (2).
