MuleSoft-Platform-Architect-I Salesforce Certified MuleSoft Platform Architect (Mule-Arch-201) Questions and Answers

Explanation

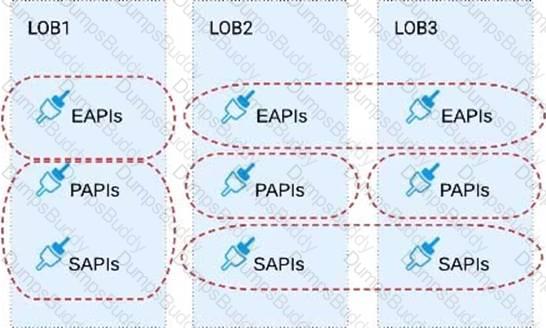

Correct Answer: When development is already organized into several independent initiatives or groups

*****************************************

>> It would require lot of process effort in an organization to have a single C4E team coordinating with multiple already organized development teams which are into several independent initiatives. A single C4E works well with different teams having at least a common initiative. So, in this scenario, federated C4E works well instead of centralized C4E.

Explanation

Correct Answer: Anypoint Runtime Fabric

*****************************************

>> When a customer is already having an Azure environment, It is not at all an ideal approach to go with hybrid model having some Mule Runtimes hosted on Azure and some on MuleSoft. This is unnecessary and useless.

>> CloudHub is a Mulesoft-hosted Runtime plane and is on AWS. We cannot customize to point CloudHub to customer's Azure environment.

>> Anypoint Platform for Pivotal Cloud Foundry is specifically for infrastructure provided by Pivotal Cloud Foundry

>> Anypoint Runtime Fabric is right answer as it is a container service that automates the deployment and orchestration of Mule applications and API gateways. Runtime Fabric runs within a customer-managed infrastructure on AWS, Azure, virtual machines (VMs), and bare-metal servers.

-Some of the capabilities of Anypoint Runtime Fabric include:

-Isolation between applications by running a separate Mule runtime per application.

-Ability to run multiple versions of Mule runtime on the same set of resources.

-Scaling applications across multiple replicas.

-Automated application fail-over.

-Application management with Anypoint Runtime Manager.

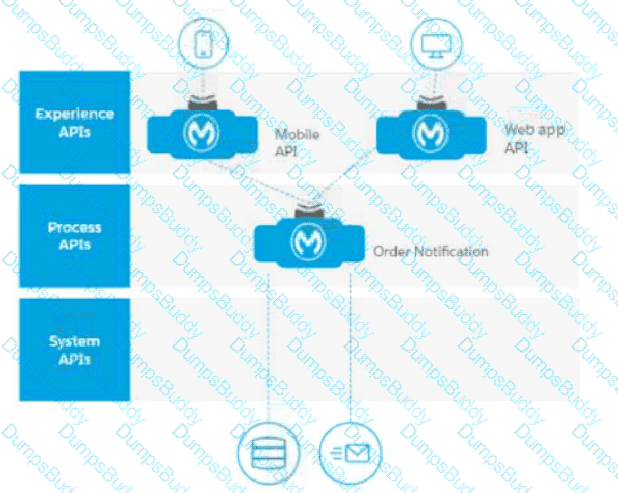

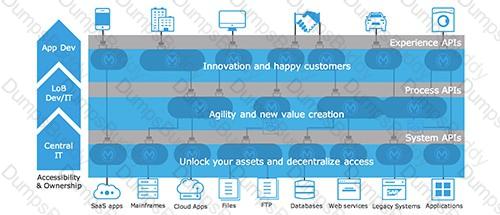

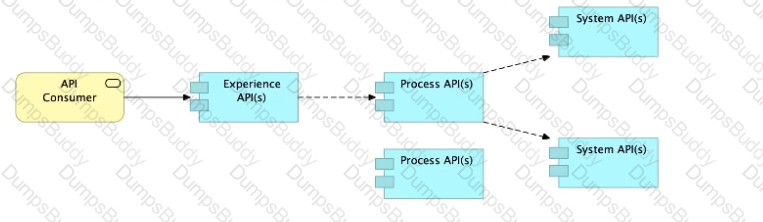

In the API-led connectivity approach, each layer (System, Process, and Experience) has a distinct purpose:

System APIs: These APIs connect directly to backend systems to expose and unlock data in a standardized way.

Process APIs: These are responsible for orchestrating and processing data across different systems, combining information where needed.

Experience APIs: These are designed for specific user interfaces or applications, often transforming data formats to fit the needs of each consumer application.

Why Option A is Correct:

Process APIs are designed to combine data from multiple systems, which aligns with the function of aggregating policy information from both the life and general insurance systems. This aggregation logic would ideally reside in the Process layer, separating data retrieval from data orchestration.

Moving this functionality to the Process layer enables reusability and modularity, as other Experience APIs or services could also leverage the combined policy data if needed.

Explanation of Incorrect Options:

Option B (Presenting the SOAP-based response) would be managed by the Experience layer, as this layer adapts data formats for specific interfaces.

Option C (Authenticating and maintaining backend connections) would typically be handled within the System layer, where backend integration and security handling occurs.

Option D (Querying data) is the function of System APIs, which access the backend systems directly and expose the raw data without additional processing.

ReferencesFor further details on API-led architecture and the roles of each layer, refer to MuleSoft’s documentation on API-led connectivity and API layers​​.

Explanation

Correct Answer: Invoke the system API deployed to the primary environment; add timeout and retry logic to the process API to avoid intermittent failures; if it still fails, invoke the system API deployed to the DR environment

*****************************************

There is one important consideration to be noted in the question which is - System API in DR environment provides only 20% of the rate limiting offered by the primary environment. So, comparitively, very less calls will be allowed into the DR environment API opposed to its primary environment. With this in mind, lets analyse what is the right and best fault-tolerant invocation strategy.

1. Invoking both the system APIs in parallel is definitely NOT a feasible approach because of the 20% limitation we have on DR environment. Calling in parallel every time would easily and quickly exhaust the rate limits on DR environment and may not give chance to genuine intermittent error scenarios to let in during the time of need.

2. Another option given is suggesting to add timeout and retry logic to process API while invoking primary environment's system API. This is good so far. However, when all retries failed, the option is suggesting to invoke the copy of process API on DR environment which is not right or recommended. Only system API is the one to be considered for fallback and not the whole process API. Process APIs usually have lot of heavy orchestration calling many other APIs which we do not want to repeat again by calling DR's process API. So this option is NOT right.

3. One more option given is suggesting to add the retry (no timeout) logic to process API to directly retry on DR environment's system API instead of retrying the primary environment system API first. This is not at all a proper fallback. A proper fallback should occur only after all retries are performed and exhausted on Primary environment first. But here, the option is suggesting to directly retry fallback API on first failure itself without trying main API. So, this option is NOT right too.

This leaves us one option which is right and best fit.

- Invoke the system API deployed to the primary environment

- Add Timeout and Retry logic on it in process API

- If it fails even after all retries, then invoke the system API deployed to the DR environment.

*****************************************

>> Application Network is a disposable architecture.

>> Which means, it can be altered without disturbing entire architecture and its components.

>> It bends as per requirements or design changes but does not break

Explanation

Correct Answer: By default, the Anypoint CLI and Mule Maven plugin are NOT included in the Mule runtime, so are NOT available to be used by deployed Mule applications

*****************************************

>> We CANNOT apply API policies to the Anypoint Platform APIs like we can do on our custom written API instances. So, option suggesting this is FALSE.

>> Anypoint Platform APIs can be used for automating interactions with both CloudHub and customer-hosted Mule runtimes. Not JUST the CloudHub. So, option opposing this is FALSE.

>> Mule Maven plugin is NOT mandatory for deployment to customer-hosted Mule runtimes. It just helps your CI/CD to have smoother automation. But not a compulsory requirement to deploy. So, option opposing this is FALSE.

>> We DO NOT have any such special roles and permissions on the platform to separately control access for some users to have Anypoint CLI and others to have Anypoint Platform APIs. With proper general roles/permissions (API Owner, Cloudhub Admin etc..), one can use any of the options (Anypoint CLI or Platform APIs). So, option suggesting this is FALSE.

Only TRUE statement given in the choices is that - Anypoint CLI and Mule Maven plugin are NOT included in the Mule runtime, so are NOT available to be used by deployed Mule applications.

Maven is part of Studio or you can use other Maven installation for development.

CLI is convenience only. It is one of many ways how to install app to the runtime.

These are definitely NOT part of anything except your process of deployment or automation.

Explanation

Correct Answer: Implement different system APIs named createCustomer, amendCustomer, retrieveCustomer and suspendCustomer as they are modular and has seperation of concerns

*****************************************

>> It is quite normal to have a single API and different Verb + Resource combinations. However, this fits well for an Experience API or a Process API but not a best architecture style for System APIs. So, option with just one customerManagement API is not the best choice here.

>> The option with APIs in createCustomerInCRMZ format is next close choice w.r.t modularization and less maintenance but the naming of APIs is directly coupled with the legacy system. A better foreseen approach would be to name your APIs by abstracting the backend system names as it allows seamless replacement/migration of any backend system anytime. So, this is not the correct choice too.

>> createCustomer, amendCustomer, retrieveCustomer and suspendCustomer is the right approach and is the best fit compared to other options as they are both modular and same time got the names decoupled from backend system and it has covered all requirements a System API needs.

Understanding API Functional Monitoring:

API Functional Monitoring is a feature within MuleSoft's Anypoint Platform that enables users to monitor the health and performance of APIs and endpoints by running functional tests at scheduled intervals.

It checks whether APIs are functioning as expected by running test calls and then evaluating if the response meets the desired conditions. This is particularly useful for testing endpoint availability, checking for specific data in responses, and measuring API performance over time.

Component Features:

Scheduled Intervals: Functional monitoring allows configuring tests to run at regular intervals, such as every minute, hour, or day, depending on the monitoring requirements.

Reports on Test Pass/Fail Status: After each test run, API Functional Monitoring reports whether the API passed or failed the test conditions.

Performance Statistics: It displays metrics like average response time, success rate, and error rates, giving insights into API health and performance.

Evaluating the Options:

Option A (API Analytics): API Analytics provides insights on API usage and metrics but does not involve scheduled tests for pass/fail status or endpoint health checks.

Option B (Anypoint Monitoring Dashboards): These dashboards display API metrics but do not actively test API endpoints or provide pass/fail reporting on a scheduled basis.

Option C (Correct Answer): API Functional Monitoring fits the description, as it is designed to monitor API and endpoint health with scheduled test runs and display statistics about performance.

Option D (Anypoint Runtime Manager Alerts): Runtime Manager alerts notify users of issues with application status but do not actively test endpoints at scheduled intervals.

Conclusion:

Option C (API Functional Monitoring) is the correct answer because it provides the necessary tools to test API functionality, monitor endpoint health, and display performance statistics in real-time.

Refer to MuleSoft documentation on API Functional Monitoring for further guidance on setting up and configuring these tests in Anypoint Platform.

Monitoring On-Premise Mule Applications:

For Mule applications deployed on an on-premises cluster, monitoring detailed performance metrics requires communication with the MuleSoft-hosted control plane. The control plane, when used with on-premises runtimes, relies on Anypoint Monitoring and requires a Monitoring Agent to gather and send detailed performance metrics.

Setting Up Monitoring:

To enable detailed metrics, the Monitoring Agent must be installed on each node in the cluster where Mule applications are deployed. This agent collects data on memory usage, CPU load, response times, and other metrics, and sends it to the control plane for aggregation and visualization.

Evaluating the Options:

Option A: Updating settings in the control plane alone does not enable detailed monitoring; the agent must be installed on each node to capture detailed metrics.

Option B (Correct Answer): Installing the Monitoring Agent on each node ensures that each runtime node in the cluster can send its metrics to the control plane, enabling detailed monitoring.

Option C: Installing the agent on a separate server would not be effective, as each node in the cluster needs to independently report its metrics to ensure full visibility.

Option D: The on-prem runtime does not automatically send detailed metrics to the control plane without the Monitoring Agent installed.

Conclusion:

Option B is the correct answer, as installing the Monitoring Agent on each node is essential for detailed performance monitoring of on-prem applications in a cluster.

Refer to MuleSoft’s documentation on configuring Anypoint Monitoring for on-premises deployments and using the Monitoring Agent.

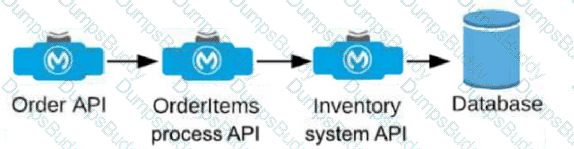

Understanding the API Flow and Timeout Requirement:

The Order API initiates a call to the OrderItems process API, which in turn calls the Inventory system API to fetch details from the inventory database.

The requirement specifies that the Order API should not wait more than two seconds for a response from the OrderItems process API, even if there are delays further down the chain (between Inventory system API and the database).

Choosing the Appropriate Timeout Location:

Setting the timeout at the OrderItems process API level ensures that if the Inventory system API takes longer than two seconds to respond, the OrderItems process API will terminate the request and send a timeout response back to the Order API. This prevents the Order API from waiting indefinitely due to the unreliable connection to the database.

If the timeout were set in the Inventory system API or database, it would not help the Order API directly, as the OrderItems process API would still be waiting for a response.

Detailed Analysis of Each Option:

Option A (Correct Answer): Setting the timeout in the OrderItems process API allows it to control how long it waits for a response from the Inventory system API. If the Inventory system API does not respond within two seconds, the OrderItems process API can terminate the call and return a timeout response to the Order API, meeting the requirement.

Option B: Setting the timeout in the Order API would not limit the wait time at the OrderItems process API level, meaning the OrderItems process API could still wait indefinitely for the Inventory system API, leading to a longer delay.

Option C: Setting the timeout in the Inventory system API only affects the connection to the database and does not influence how long the OrderItems process API waits for the Inventory system API's response.

Option D: Setting a timeout in the database is not feasible in this context since database timeouts are typically configured for database operations and would not directly control the API response times in the overall API chain.

Conclusion:

Option A is the best choice, as it ensures that the OrderItems process API does not hold the Order API longer than the required two seconds, even if the downstream connection to the database hangs. This configuration aligns with MuleSoft best practices for setting timeouts in API orchestration to manage dependencies and prevent delays across a chain of API calls.

For additional information on timeout settings, refer to MuleSoft documentation on handling timeouts and API orchestration best practices.

Explanation

Correct Answer: When a new required field is added to the method called by the API client

*****************************************

>> Generally, the logic on API clients need to be updated when the API contract breaks.

>> When a new method or a child method is added to an API , the API client does not break as it can still continue to use its existing method. So these two options are out.

>> We are left for two more where "datatype of the response if changed" and "a new required field is added".

>> Changing the datatype of the response does break the API contract. However, the question is insisting on the "invocation" logic and not about the response handling logic. The API client can still invoke the API successfully and receive the response but the response will have a different datatype for some field.

>> Adding a new required field will break the API's invocation contract. When adding a new required field, the API contract breaks the RAML or API spec agreement that the API client/API consumer and API provider has between them. So this requires the API client invocation logic to also be updated.

Explanation

Correct Answer: Build several Bounded Context Data Models that align with coherent parts of the business processes and the definitions of associated business entities.

*****************************************

>> The options w.r.t building API data models using XML schema/ Agile API-centric practices are irrelevant to the scenario given in the question. So these two are INVALID.

>> Building EDM (Enterprise Data Model) is not feasible or right fit for this scenario as the teams and LOBs work in silo and they all have different initiatives, budget etc.. Building EDM needs intensive coordination among all the team which evidently seems not possible in this scenario.

So, the right fit for this scenario is to build several Bounded Context Data Models that align with coherent parts of the business processes and the definitions of associated business entities.

Explanation

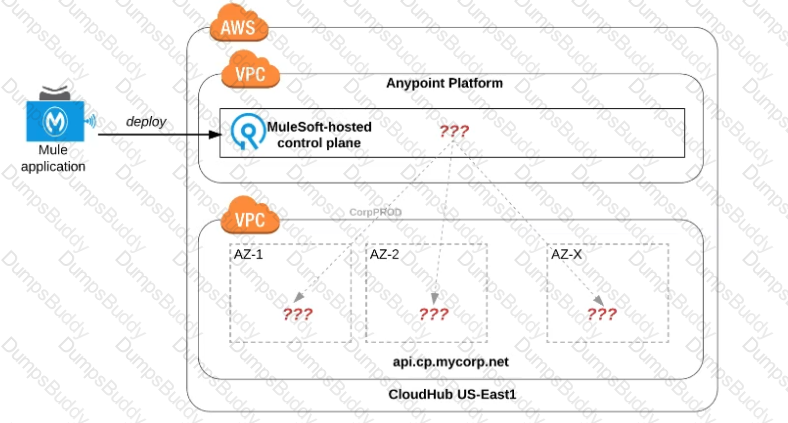

Correct Answer: Traffic between Mule applications deployed to an Anypoint VPC and on-premises systems can stay within a private network

*****************************************

>> The private IP address range of an Anypoint VPC is NOT automatically chosen by CloudHub. It is chosen by us at the time of creating VPC using thr CIDR blocks.

CIDR Block: The size of the Anypoint VPC in Classless Inter-Domain Routing (CIDR) notation.

For example, if you set it to 10.111.0.0/24, the Anypoint VPC is granted 256 IP addresses from 10.111.0.0 to 10.111.0.255.

Ideally, the CIDR Blocks you choose for the Anypoint VPC come from a private IP space, and should not overlap with any other Anypoint VPC’s CIDR Blocks, or any CIDR Blocks in use in your corporate network.

that each CloudHub environment requires a separate Anypoint VPC. Once an Anypoint VPC is created, we can choose a same VPC by multiple environments. However, it is generally a best and recommended practice to always have seperate Anypoint VPCs for Non-Prod and Prod environments.

>> We use Anypoint VPN to link the underlying AWS VPC to an on-premises (non AWS) private network. NOT VPC Peering.

CloudHub Object Store v2 is a managed key-value store provided by MuleSoft to support various use cases where temporary data storage is required. Here’s why Option D is correct:

Key Length Support: Object Store v2 allows storage of keys with a length of up to 300 characters, making it suitable for applications needing flexible and descriptive keys.

Limitations on Size:

Object Store v2 is not intended for large payload storage and has a recommended size limit below 10 MB for each value. Payloads exceeding 15 MB may cause performance issues and are better suited to a file storage system or database.

Option B is incorrect because storing payloads above 15 MB exceeds Object Store’s optimal usage specifications.

Key-Value Limits: Object Store v2 is designed for moderate, transient storage needs, and does not support unlimited storage. Thus, Option A is incorrect.

Backward Compatibility: Object Store v2 does not support Mule 4 applications running Object Store v1. Option C is incorrect as Object Store v1 and v2 are distinct.

ReferencesFor more on CloudHub Object Store v2, refer to MuleSoft documentation on Object Store limitations and configuration​.

Explanation

Correct Answer: From the Mule runtime irrespective of the deployment model

*****************************************

>> Monitoring and Alerting metrics are always originated from Mule Runtimes irrespective of the deployment model.

>> It may seems that some metrics (Runtime Manager) are originated from Mule Runtime and some are (API Invocations/ API Analytics) from API Manager. However, this is realistically NOT TRUE. The reason is, API manager is just a management tool for API instances but all policies upon applying on APIs eventually gets executed on Mule Runtimes only (Either Embedded or API Proxy).

>> Similarly all API Implementations also run on Mule Runtimes.

So, most of the day required for monitoring and alerts are originated fron Mule Runtimes only irrespective of whether the deployment model is MuleSoft-hosted or Customer-hosted or Hybrid.

Explanation

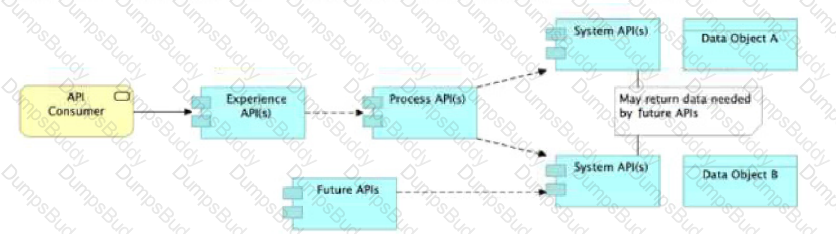

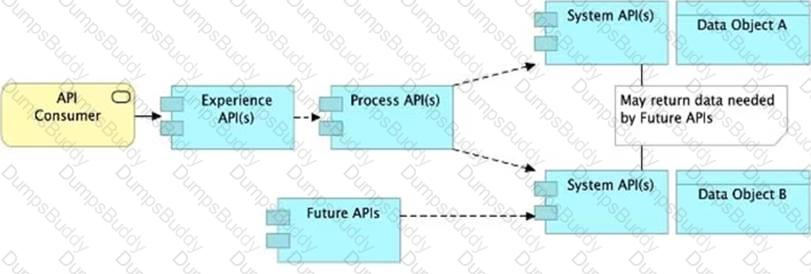

Correct Answer: Allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs.

*****************************************

>> All customizations for the end-user application should be handled in "Experience API" only. Not in Process API

>> We should use tiered approach but NOT always by creating exactly one API for each of the 3 layers. Experience APIs might be one but Process APIs and System APIs are often more than one. System APIs for sure will be more than one all the time as they are the smallest modular APIs built in front of end systems.

>> Process APIs can call System APIs as well as other Process APIs. There is no such anti-design pattern in API-Led connectivity saying Process APIs should not call other Process APIs.

So, the right answer in the given set of options that makes sense as per API-Led connectivity principles is to allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs. This way, some future Process APIs can make use of that data from System APIs and we need NOT touch the System layer APIs again and again.

Explanation

Correct Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.

*****************************************

Below TWO are characteristics of Integration Tests but NOT unit tests:

>> They test the validity of input and output of source and target systems.

>> They must be triggered by an external client tool or event source.

It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.

MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.

https://dzone.com/articles/munit-framework

When setting up a custom domain for MuleSoft applications hosted on CloudHub 1.0 using a Dedicated Load Balancer (DLB), follow these steps:

Set Up the TLS Certificate: Configure the DLB (acme-dib-prod) with a TLS certificate that covers the custom domain api.acmecorp.com. This certificate will allow HTTPS traffic to be securely directed through the DLB to your Mule applications.

DNS Configuration with CNAME:

Create a CNAME record that points api.acmecorp.com to the DLB hostname acme-dib-prod.lb.anypointdns.net.

The CNAME record enables the custom domain to resolve to the DLB provided by MuleSoft's Anypoint Platform. This CNAME mapping directs all traffic to the correct DLB for processing and load distribution.

Why Option B is Correct:

A CNAME record provides the necessary aliasing to acme-dib-prod.lb.anypointdns.net, which is the endpoint managed by Anypoint Platform for your DLB.

Option B also correctly identifies the need to configure the DLB with a TLS certificate specifically for api.acmecorp.com rather than for the DLB's internal hostname.

Explanation of Incorrect Options:

Options that suggest configuring the DLB with a TLS certificate for the DLB’s internal hostname or using an A record are not suitable in this scenario. MuleSoft CloudHub 1.0 DLBs work with CNAME records to provide flexible and scalable domain management, and a direct IP (A record) is not supported for these load balancers.

ReferencesFor more information on configuring custom domains and DLBs on CloudHub 1.0, refer to the MuleSoft documentation on DLB setup and DNS configuration​​.

Explanation

Correct Answer: The FQDNs are determined by the application name chosen, IRRESPECTIVE of the region

*****************************************

>> When deploying applications to Shared Worker Cloud, the FQDN are always determined by application name chosen.

>> It does NOT matter what region the app is being deployed to.

>> Although it is fact and true that the generated FQDN will have the region included in it (Ex: exp-salesorder-api.au-s1.cloudhub.io), it does NOT mean that the same name can be used when deploying to another CloudHub region.

>> Application name should be universally unique irrespective of Region and Organization and solely determines the FQDN for Shared Load Balancers.

Explanation

Correct Answer: The test runs immediately after the Mule application has been compiled and packaged

*****************************************

>> Integration tests are the last layer of tests we need to add to be fully covered.

>> These tests actually run against Mule running with your full configuration in place and are tested from external source as they work in PROD.

>> These tests exercise the application as a whole with actual transports enabled. So, external systems are affected when these tests run.

So, these tests do NOT run immediately after the Mule application has been compiled and packaged.

FYI... Unit Tests are the one that run immediately after the Mule application has been compiled and packaged.

Understanding Nonfunctional Requirements (NFRs):

The NFRs in this context are related to security measures implemented for the Web API, such as rate limiting, LDAP-based authentication, JSON threat protection, and IP allowlist policies.

Evaluating the Options:

Option A (Correct Answer): The IP allowlist policy restricts access to known subnets, ensuring that API invocations come from a defined range of IPs.

Option B (Correct Answer): Basic Authentication with LDAP enforces a username/password validation, satisfying an NFR for identity verification.

Option C: Masking sensitive data is not part of the listed NFRs, as none of the mentioned policies address data masking.

Option D: XML threat protection is not mentioned, so this option is incorrect.

Option E: While rate-limiting implies performance control, it does not directly enforce a specific performance expectation.

Conclusion:

Options A and B are correct as they directly address the implemented security measures related to IP range restrictions and username/password authentication.

Refer to MuleSoft's documentation on API security policies for details on LDAP, rate limiting, and allowlist policies.

Explanation

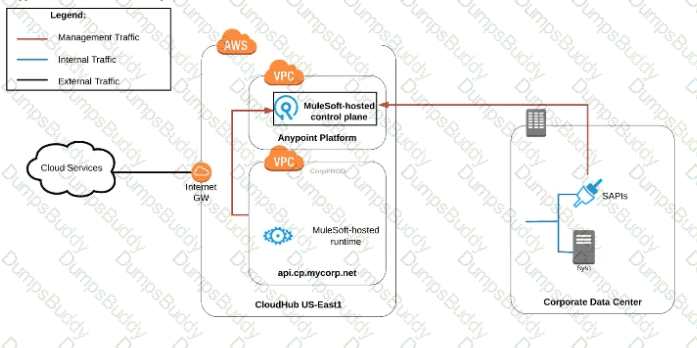

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Explanation

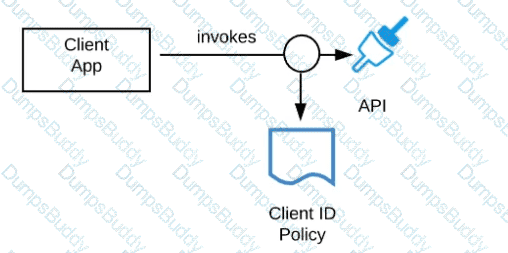

Correct Answer: The client ID and secret obtained from Anypoint Exchange for the API instance in the STAGING environment

*****************************************

>> We CANNOT use the client ID and secret of Anypoint Platform account or any individual environments for accessing the APIs

>> As the type of policy that is enforced on the API in question is "Client ID Enforcment Policy", OAuth token based access won't work.

Right way to access the API is to use the client ID and secret obtained from Anypoint Exchange for the API instance in a particular environment we want to work on.

Explanation

Correct Answer: JSON threat protection

*****************************************

Fact: Technically, there are no restrictions on what policy can be applied in what layer. Any policy can be applied on any layer API. However, context should also be considered properly before blindly applying the policies on APIs.

That is why, this question asked for a policy that would LEAST likely be applied to a Process API.

From the given options:

>> All policies except "JSON threat protection" can be applied without hesitation to the APIs in Process tier.

>> JSON threat protection policy ideally fits for experience APIs to prevent suspicious JSON payload coming from external API clients. This covers more of a security aspect by trying to avoid possibly malicious and harmful JSON payloads from external clients calling experience APIs.

As external API clients are NEVER allowed to call Process APIs directly and also these kind of malicious and harmful JSON payloads are always stopped at experience API layer only using this policy, it is LEAST LIKELY that this same policy is again applied on Process Layer API.

Explanation

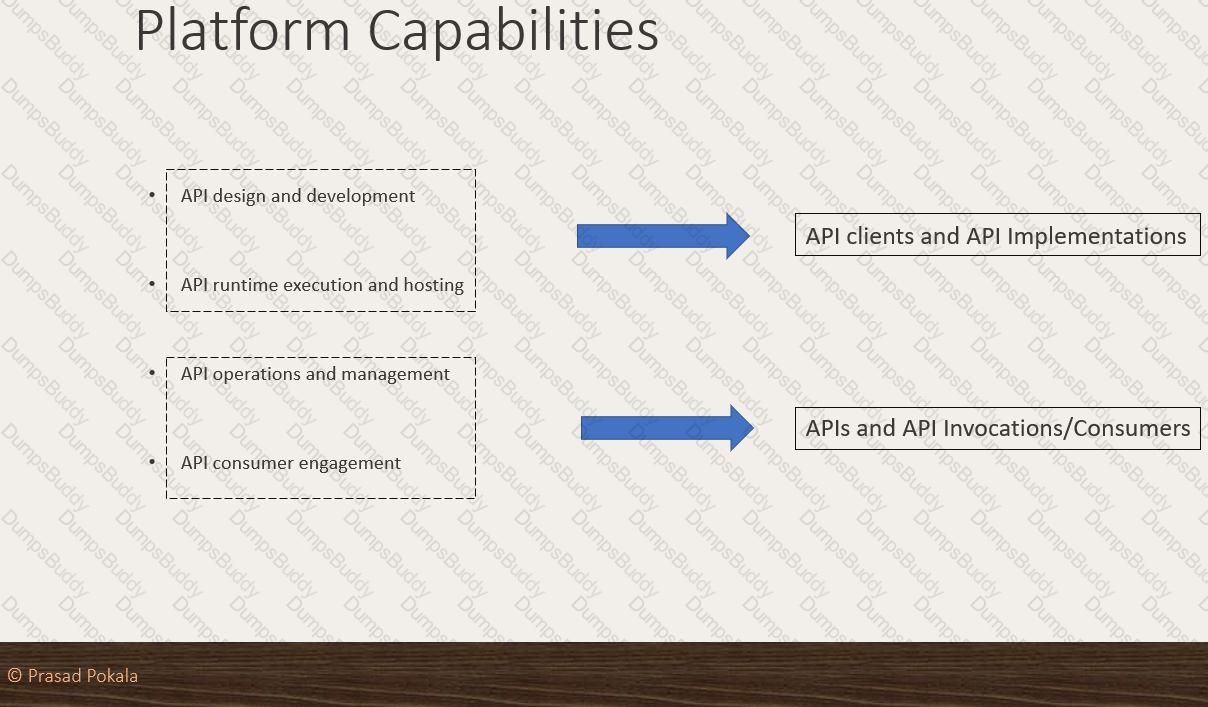

Correct Answer: API Design and Development, API Runtime Execution and Hosting, API Operations and Management, API Consumer Engagement

*****************************************

>> API Design and Development - Anypoint Studio, Anypoint Design Center, Anypoint Connectors

>> API Runtime Execution and Hosting - Mule Runtimes, CloudHub, Runtime Services

>> API Operations and Management - Anypoint API Manager, Anypoint Exchange

>> API Consumer Management - API Contracts, Public Portals, Anypoint Exchange, API Notebooks

Explanation

Correct Answer: Implement required changes to the Process API implementation so that, whenever possible, the Process API’s RAML definition remains unchanged.

*****************************************

Key requirement in the question is:

>> Approach that minimizes the impact of this change on API clients

Based on above:

>> Updating the RAML definition would possibly impact the API clients if the changes require any thing mandatory from client side. So, one should try to avoid doing that until really necessary.

>> Implementing the changes as a completely different API and then redirectly the clients with 3xx status code is really upsetting design and heavily impacts the API clients.

>> Organisations and IT cannot simply postpone the changes required until all API consumers acknowledge they are ready to migrate to a new Process API or API version. This is unrealistic and not possible.

The best way to handle the changes always is to implement required changes to the API implementations so that, whenever possible, the API’s RAML definition remains unchanged.

Default Alert Capabilities in Anypoint Platform:

Anypoint Platform provides out-of-the-box alerting capabilities for monitoring API invocation conditions, including setting thresholds for the number of invocations.

Alerts can be configured for conditions such as high or low traffic (invocations exceeding or falling below a defined threshold).

Evaluating the Options:

Option A: Anypoint Platform does not provide direct alerting based on DNS records.

Option B: Anypoint Platform does not provide default alerts based on whether invocations use TLS/SSL; this would require custom configuration.

Option C: Geolocation-based alerting is not natively supported in Anypoint Platform.

Option D (Correct Answer): Alerts based on API invocation thresholds (e.g., invocations falling below a set threshold) are supported and can be configured as part of the default Anypoint alerting functionality.

Conclusion:

Option D is correct, as Anypoint Platform allows configuring alerts based on the number of API invocations falling below or exceeding a threshold.

Refer to MuleSoft's documentation on Anypoint Monitoring and alert configurations for more details.

Explanation

Correct Answer: Unit tests (Whitebox)

*****************************************

Explanation

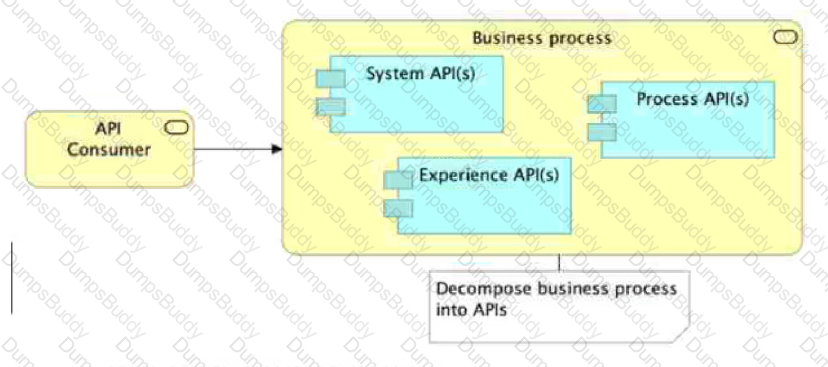

Correct Answer: A higher number of discoverable API-related assets in the application network.

*****************************************

>> We do NOT get faster response times in fine-grained approach when compared to coarse-grained approach.

>> In fact, we get faster response times from a network having coarse-grained APIs compared to a network having fine-grained APIs model. The reasons are below.

Fine-grained approach:

1. will have more APIs compared to coarse-grained

2. So, more orchestration needs to be done to achieve a functionality in business process.

3. Which means, lots of API calls to be made. So, more connections will needs to be established. So, obviously more hops, more network i/o, more number of integration points compared to coarse-grained approach where fewer APIs with bulk functionality embedded in them.

4. That is why, because of all these extra hops and added latencies, fine-grained approach will have bit more response times compared to coarse-grained.

5. Not only added latencies and connections, there will be more resources used up in fine-grained approach due to more number of APIs.

That's why, fine-grained APIs are good in a way to expose more number of resuable assets in your network and make them discoverable. However, needs more maintenance, taking care of integration points, connections, resources with a little compromise w.r.t network hops and response times.

In this scenario, the best approach to satisfy the API-led connectivity principles and support future scalability is:

Experience APIs:

Create separate Experience APIs for the web application and the mobile application. This allows each application to have an optimized interface, supporting different needs and potential differences in request/response structures or security configurations.

Process API:

A single Process API can be used to orchestrate the workflow, including retrieving the email template from a database and preparing the email content. By centralizing this logic in the Process layer, we can ensure it is reusable and easily adaptable for different notification channels in the future.

System API:

A System API specifically designed for sending emails (using the Anypoint Connector for Email) abstracts the email-sending functionality from the business logic. This approach ensures that the email-sending function is reusable and scalable, and it can easily be extended or modified if other notification channels (like SMS or push notifications) are added later.

Why Option A is Correct:

This structure aligns with API-led connectivity principles by separating concerns across Experience, Process, and System layers. It provides flexibility for future notification channels and isolates each layer’s responsibility, making it easier to maintain and scale.

Explanation of Incorrect Options:

Option B lacks a separate System API for sending emails, which goes against the principle of isolating back-end functionality in System APIs.

Option C similarly lacks a dedicated System API, reducing flexibility and reusability.

Option D suggests creating multiple Process APIs for database retrieval, which adds unnecessary complexity and does not adhere to the single-orchestration principle typically followed in API-led design.

ReferencesFor further guidance on API-led connectivity and the responsibilities of each API layer, refer to MuleSoft’s documentation on API-led architecture and design best practices​​.

Processing Requirements and Storage Mechanism:

The Reservation Mule application will be deployed to multiple CloudHub workers/replicas, meaning that each worker must share state information to handle records exactly once. This requires a shared storage mechanism where state can be stored and accessed by multiple instances to avoid duplicate processing of the same records.

A Persistent Object Store in Anypoint Platform can be used to store records in a way that is accessible across multiple workers, providing a reliable mechanism for "exactly once" processing.

Evaluating the Options:

Option A (Correct Answer): A Persistent Object Store is designed to retain data across different application instances and can be shared by all workers on CloudHub. It helps achieve idempotency by ensuring that a record is processed exactly once.

Option B: Runtime Fabric Object Store is used for applications deployed in Anypoint Runtime Fabric, not CloudHub. This option would not be compatible with the CloudHub deployment.

Option C: A Non-persistent Object Store does not retain data across application restarts or different instances, making it unsuitable for the requirement of synchronized storage for exactly-once processing.

Option D: An In-memory Mule Object Store is local to each worker and is not shared across instances, so it does not meet the requirement for a shared storage mechanism accessible to all CloudHub workers.

Conclusion:

Option A is the correct answer, as a Persistent Object Store allows data sharing across multiple CloudHub workers, enabling them to synchronize and achieve "exactly once" processing of passenger records with minimal development effort.

Refer to MuleSoft’s documentation on Object Store configurations and usage for best practices on handling state across distributed instances.

Explanation

Correct Answer: The CloudHub shared load balancer

*****************************************

The scenario in this question can be split as below:

>> There are 3 CloudHub workers (So, there are already good number of workers to handle high volume of requests)

>> The workers are not using static IP addresses (So, one CANNOT use customer load-balancing solutions without static IPs)

>> Looking for most cost-effective component to load balance the client requests among the workers.

Based on the above details given in the scenario:

>> Runtime autoscaling is NOT at all cost-effective as it incurs extra cost. Most over, there are already 3 workers running which is a good number.

>> We cannot go for a customer-hosted load balancer as it is also NOT most cost-effective (needs custom load balancer to maintain and licensing) and same time the Mule App is not having Static IP Addresses which limits from going with custom load balancing.

>> An API Proxy is irrelevant there as it has no role to play w.r.t handling high volumes or load balancing.

So, the only right option to go with and fits the purpose of scenario being most cost-effective is - using a CloudHub Shared Load Balancer.

Understanding the Requirements:

The business needs to transfer daily data changes from the Salesforce Account and Case objects to AWS DynamoDB in a single JSON format.

Only a subset of attributes (5 from Account and 8 from Case) is required, so it is not necessary to include all 219 attributes of the Account object.

Design Approach:

A System API (SAPI) should be created for each Salesforce object (Account and Case), exposing only the required fields (5 attributes for Account and 8 for Case).

A Process API (PAPI) can be used to aggregate and transform the data from these SAPIs, combining the 13 selected attributes from Account and Case into a single JSON structure for DynamoDB.

Evaluating the Options:

Option A: Mimicking all attributes in the SAPI is inefficient and unnecessary, as only 13 attributes are required.

Option B: Replicating all attributes in DynamoDB is excessive and would result in higher storage and processing costs, which is unnecessary given the requirement for only a subset of attributes.

Option C: Implementing an Enterprise Data Model could be useful in broader data management but is not required here, as the focus is on a lightweight integration.

Option D (Correct Answer): Creating separate entities in SAPI for Account and Case with only the required attributes and using the PAPI to aggregate them into a single JSON is the most efficient and meets the requirements effectively.

Conclusion:

Option D is the best choice as it provides a lightweight, efficient design that meets the requirements by transferring only the necessary attributes and minimizing resource use.

Refer to MuleSoft's best practices for API-led connectivity and data modeling to structure SAPIs and PAPIs efficiently.

For a European company with requirements such as zero-downtime redeployment, deployment to multiple runtime versions, secure and fast performance, and the use of Anypoint MQ without additional network configuration, CloudHub is the best choice for the following reasons:

Zero-Downtime Redeployment: CloudHub supports zero-downtime deployment, which allows seamless redeployment of applications without impacting availability.

Support for Multiple Runtime Versions: CloudHub allows deploying applications across different Mule runtime versions, giving flexibility to test and migrate applications as needed.

Integrated Anypoint MQ: Anypoint MQ, which is fully integrated with CloudHub, provides reliable messaging across applications. Choosing CloudHub removes the need for additional network configurations, as Anypoint MQ can be directly accessed in this hosted environment.

Security and Performance: CloudHub offers secure networking, automatic scaling, and optimized performance without requiring a complex setup. This is managed by MuleSoft’s infrastructure, meeting the speed and security requirements with minimal overhead.

Explanation of Incorrect Options:

Option A and D (Runtime Fabric on VMs or Self-Managed Kubernetes): While Runtime Fabric offers flexibility, it requires more complex network and infrastructure configurations, which is not ideal if the company seeks simplicity.

Option B (Customer-hosted): This would require additional network and security configuration, which does not align with the requirement of minimizing setup complexity.

ReferencesFor more information on CloudHub’s capabilities regarding zero-downtime deployments and integration with Anypoint MQ, refer to MuleSoft documentation on CloudHub​​.

MuleSoft offers various tools to automate the deployment of Mule applications, which can streamline deployment and management processes. Here’s how each tool supports automated deployment:

Runtime Manager:

Anypoint Runtime Manager is MuleSoft’s web-based interface that allows users to deploy, manage, and monitor applications directly. It provides deployment automation through its user-friendly interface.

Anypoint Platform CLI:

The Anypoint CLI enables scripting of deployment and management tasks, making it possible to automate deployments via command-line scripts. This tool is ideal for CI/CD pipelines as it integrates with automated processes.

Platform APIs:

MuleSoft’s Platform APIs allow programmatic access to deployment functions, enabling integration with external automation tools and CI/CD systems. These APIs facilitate deployment through RESTful calls, which can be automated for continuous delivery.

Explanation of Incorrect Options:

Option D (Anypoint Studio) is primarily for development and does not support deployment automation.

Option E (Maven Plugin) can be used for building and deploying Mule applications but isn’t classified as a platform tool for deployment.

Option F (API Community Manager) is unrelated to deployment and instead focuses on managing API communities.

ReferencesFor detailed steps on automating deployments with these tools, refer to MuleSoft documentation on Runtime Manager, CLI, and Platform APIs​.

Explanation

Correct Answer: Apply a basic authentication - LDAP policy; the internal Active Directory will be configured as the LDAP source for authenticating users.

*****************************************

>> IP Whitelisting does NOT fit for this purpose. Moreover, the users workstations may not necessarily have static IPs in the network.

>> OAuth 2.0 enforcement requires a client provider which isn't in the organizations system components.

>> It is not an effective approach to let every user create separate client credentials and configure those for their usage.

The effective way it to apply a basic authentication - LDAP policy and the internal Active Directory will be configured as the LDAP source for authenticating users.

Explanation

Correct Answer: API Consumer requests access to API >> API Client implementes logic to call an API >> API routes the request to >> API Implementation

*****************************************

>> API consumer does not implement any logic to invoke APIs. It is just a role. So, the option stating "API Consumer implementes logic to call an API" is INVALID.

>> API Implementation does not route any requests. It is a final piece of logic where functionality of target systems is exposed. So, the requests should be routed to the API implementation by some other entity. So, the options stating "API Implementation routes the request to >> API" is INVALID

>> The statements in one of the options are correct but sequence is wrong. The sequence is given as "API Client implementes logic to call an API >> API Consumer requests access to API >> API routes the request to >> API Implementation". Here, the statements in the options are VALID but sequence is WRONG.

>> Right option and sequence is the one where API consumer first requests access to API on Anypoint Exchange and obtains client credentials. API client then writes logic to call an API by using the access client credentials requested by API consumer and the requests will be routed to API implementation via the API which is managed by API Manager.

Explanation

Correct Answer: Data on past API invocations to help identify anomalies and usage patterns across various APIs

*****************************************

API Invocation metrics provided by Anypoint Platform:

>> Does NOT provide any Return Of Investment (ROI) related information. So the option suggesting it is OUT.

>> Does NOT provide any information w.r.t how APIs are reused, whether there is effective usage of APIs or not etc...

>> Does NOT prodive any prediction information as such to help us proactively identify any future policy violations.

So, the kind of data/information we can get from such metrics is on past API invocations to help identify anomalies and usage patterns across various APIs.

Explanation

Correct Answer: Bundle properties files for each environment into the Mule API implementation's deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIs

*****************************************

>> Anypoint Exchange is for asset discovery and documentation. It has got no provision to modify the properties of Mule API implementations at all.

>> API Manager is for managing API instances, their contracts, policies and SLAs. It has also got no provision to modify the properties of API implementations.

>> API policies are to address Non-functional requirements of APIs and has again got no provision to modify the properties of API implementations.

So, the right way and recommended way to do this as part of development practice is to bundle properties files for each environment into the Mule API implementation and just point and refer to respective file per environment.

Scenario Overview:

The API resides in Anypoint Virtual Private Cloud (VPC) on CloudHub 1.0, where it requires connectivity to both an AWS-hosted database server and an on-premises web server.

Both servers are isolated from the public internet: the database server is within the customer’s AWS VPC, and the web server is within the customer's on-premises corporate data center.

Connectivity Requirements:

To connect to the AWS database server from the API in Anypoint VPC, VPC peering is ideal. This would allow a private network connection between the MuleSoft Anypoint VPC and the customer’s AWS VPC, enabling secure, direct access to the database.

To connect to the on-premises web server, a VPN tunnel is suitable. This would establish a secure, encrypted connection from the Anypoint VPC to the customer’s corporate data center, allowing secure data flow between the API and the on-premises web server.

Analysis of Options:

Option A (Correct Answer): Setting up VPC peering with AWS VPC enables private network connectivity with the database server, while a VPN tunnel to the on-premises data center allows secure access to the web server. This combination meets the requirements for secure, controlled access to both resources.

Option B: VPC peering alone would not suffice because it does not support a connection from the Anypoint VPC directly to an on-premises network. A VPN is necessary for on-premises access.

Option C: Setting up a transit gateway would provide connectivity within AWS but would not enable direct connectivity from CloudHub to the on-premises network.

Option D: VPC peering with the on-premises network is not possible because VPC peering is typically used to connect two VPCs, not a VPC with an on-premises network.

Conclusion:

Option A is the correct choice, as it provides a complete solution by using VPC peering for AWS VPC connectivity and a VPN tunnel for secure on-premises connectivity. This setup aligns with Anypoint Platform best practices for connecting Anypoint VPCs to both AWS-hosted and on-premises systems, ensuring secure, controlled access to both the database and web server.

For more detailed reference, MuleSoft documentation on Anypoint VPC peering and VPN connectivity provides additional context on best practices for setting up these connections within a hybrid network infrastructure.

An Anypoint Virtual Private Cloud (VPC) provides a secure and private networking environment for MuleSoft applications, using specific architectural elements:

CIDR Blocks:

Anypoint VPCs utilize CIDR blocks to define IP ranges, allowing organizations to control and segment the VPC’s IP address space.

Port 6091 for HTTP Requests:

By default, HTTP requests can be made to workers on port 6091 from the public internet, providing an accessible entry point unless additional restrictions are applied.

Explanation of Correct Answers (B, E):

CIDR blocks enable IP range management for VPCs, and port 6091 is the default public entry port, which is part of Anypoint VPC’s default settings.

Explanation of Incorrect Options:

Option A (Ports 8081 and 8082) is incorrect; these are not default public ports for Anypoint VPC.

Option C (responsible for load balancing) is incorrect as load balancing requires a separate Dedicated Load Balancer (DLB).

Option D (round-robin load balancing) applies to DLBs, not directly to VPCs.

ReferencesFor more on VPC setup and networking, refer to MuleSoft documentation on VPC configurations and default port settings​.
