MuleSoft-Integration-Architect-I Salesforce Certified MuleSoft Platform Integration Architect (Mule-Arch-202 ) Questions and Answers

Explanation

Correct answer is Only MuleSoft provided certificates can be used for server side certificate

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* You would need to use dedicated load balancer which can enable you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

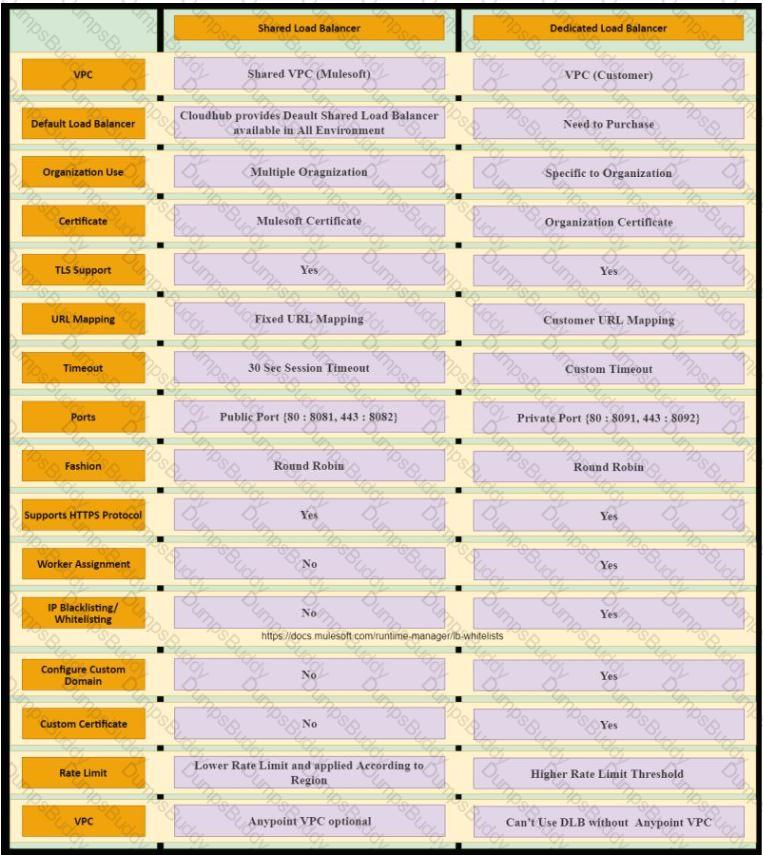

Additional Info on SLB Vs DLB:

Table Description automatically generated

Explanation

Explanation

* It's mentioned that the API is governed by a Client ID Enforcement policy in all environments.

* Client ID Enforcement policy allows only authorized applications to access the deployed API implementation.

* Each authorized application is configured with credentials: client_id and client_secret.

* At runtime, authorized applications provide the credentials with each request to the API implementation.

MuleSoft Reference: https://docs.mulesoft.com/api-manager/2.x/polic y-mule3-client-id-based-policies

Object Store v2 (OSv2) in MuleSoft allows multiple applications within the same Anypoint Virtual Private Cloud (VPC) to share data. To achieve this, the OSv2 connector must be configured in each application to access the common persistent object store instance. This configuration enables the applications to read from and write to the same object store, facilitating data sharing. Object Store v2 is designed to be persistent and reliable, making it suitable for scenarios where data needs to be retained and shared across multiple applications.

References:

• MuleSoft Documentation on Object Store v2

In Anypoint Exchange, policies are the asset type that represents configuration modules extending the functionality of an API and enforcing capabilities such as security. Policies can be applied to APIs to control access, apply throttling, manage security, and other aspects that modify or extend the behavior of APIs.

Rulesets, REST APIs, and connectors serve different purposes within the Anypoint Platform. Rulesets are used for validation or routing decisions. REST APIs define the endpoints and methods for API interactions, and connectors enable connectivity to various systems and services. Only policies are specifically designed to enforce additional capabilities on APIs.

References

• MuleSoft Anypoint Platform Documentation on API Policies
• Anypoint Exchange Overview

In a typical MuleSoft integration project, the role primarily responsible for building API implementations is the API Developer. The API Developer focuses on writing the code that implements the logic, data transformations, and business processes defined in the API specifications. They use tools like Anypoint Studio to develop and test Mule applications, ensuring that the APIs function as required and integrate seamlessly with other systems and services.

While the API Designer is responsible for defining the API specifications and the Integration Architect for designing the overall integration solution, the API Developer translates these designs into working software. The Operations team typically manages the deployment, monitoring, and maintenance of the APIs in production environments.

References

• MuleSoft Documentation on Roles and Responsibilities
• Anypoint Platform Development Best Practices

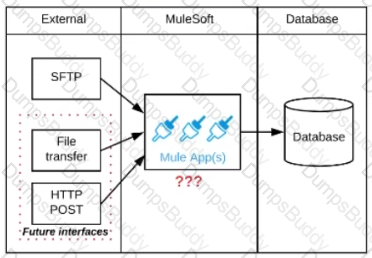

Explanation

* Scatter-Gather is used for parallel processing, to improve performance. In this scenario, input files are coming from different vendors so mostly at different times. Goal here is to minimize the impact of future change. So scatter Gather is not the correct choice.

* If we use 1 API to receive all files from different Vendors, any new vendor addition will need changes to that 1 API to accommodate new requirements. So Option A and C are also ruled out.

* Correct answer is Create an API that receives the file and invokes a Process API with the data contained in the file, then have the Process API process the data using a MuleSoft Batch Job and other System APIs as needed. Answer to this question lies in the API led connectivity approach.

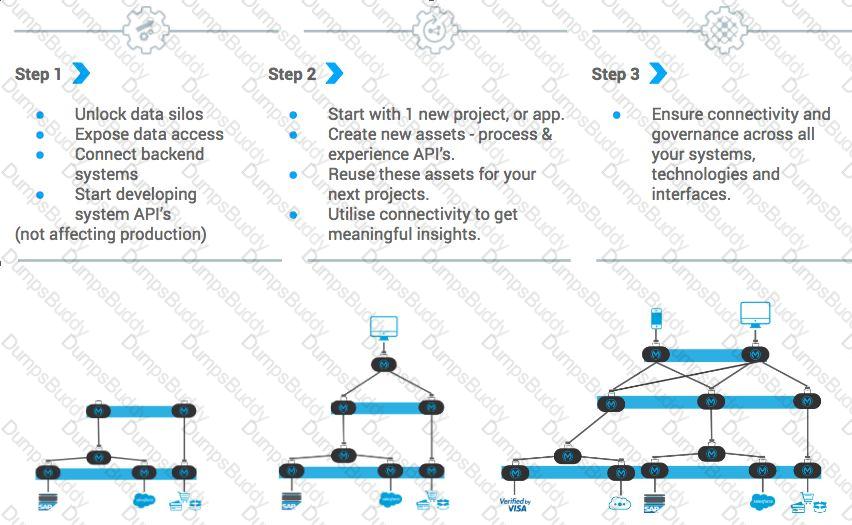

* API-led connectivity is a methodical way to connect data to applications through a series of reusable and purposeful modern APIs that are each developed to play a specific role – unlock data from systems, compose data into processes, or deliver an experience. System API : System API tier, which provides consistent, managed, and secure access to backend systems. Process APIs : Process APIs take core assets and combines them with some business logic to create a higher level of value. Experience APIs : These are designed specifically for consumption by a specific end-user app or device.

So in case of any future plans , organization can only add experience API on addition of new Vendors, which reuse the already existing process API. It will keep impact minimal.

Diagram Description automatically generated

Explanation

Correct answer is Anypoint Runtime Manager

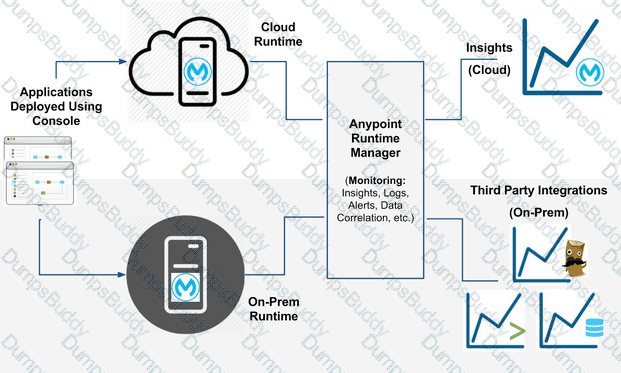

MuleSoft Anypoint Runtime Manager (ARM) provides connectivity to Mule Runtime engines deployed across your organization to provide centralized management, monitoring and analytics reporting. However, most enterprise customers find it necessary for these on-premises runtimes to integrate with their existing non MuleSoft analytics / monitoring systems such as Splunk and ELK to support a single pane of glass view across the infrastructure.

* You can configure the Runtime Manager agent to export data to external analytics tools.

Using either the Runtime Manager cloud console or Anypoint Platform Private Cloud Edition, you can:

--> Send Mule event notifications, including flow executions and exceptions, to Splunk or ELK.

--> Send API Analytics to Splunk or ELK. Sending data to third-party tools is not supported for applications deployed on CloudHub.

You can use the CloudHub custom log appender to integrate with your logging system. Reference: https://docs.mulesoft.com/runtime-manager/ https://docs.mulesoft.com/release-notes/runtime-manager-agent/runtime-manager-agent-release-notes

Diagram Description automatically generated

Additional Info:

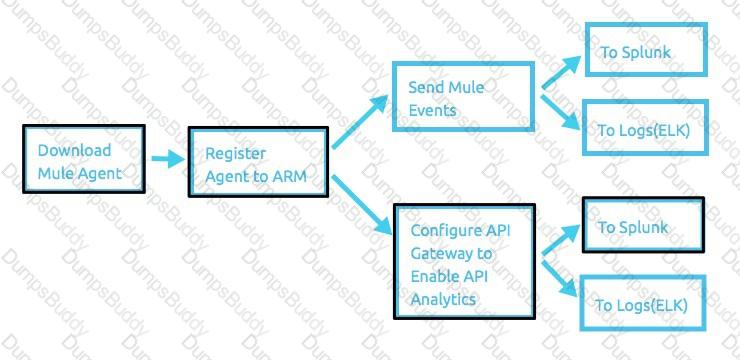

It can be achieved in 3 steps:

1) register an agent to a runtime manager,

2) configure a gateway to enable API analytics to be sent to non MuleSoft analytics platform (Splunk for ex.) – as highlighted in the following diagram and

3) setup dashboards.

Diagram Description automatically generated

Explanation

Correct answer is: Add a Mulesoft hosted Anypoint VPC configured and with VPC Peering to the AWS VPC * Connecting to your Anypoint VPC extends your corporate network and allows CloudHub workers to access resources behind your corporate firewall.

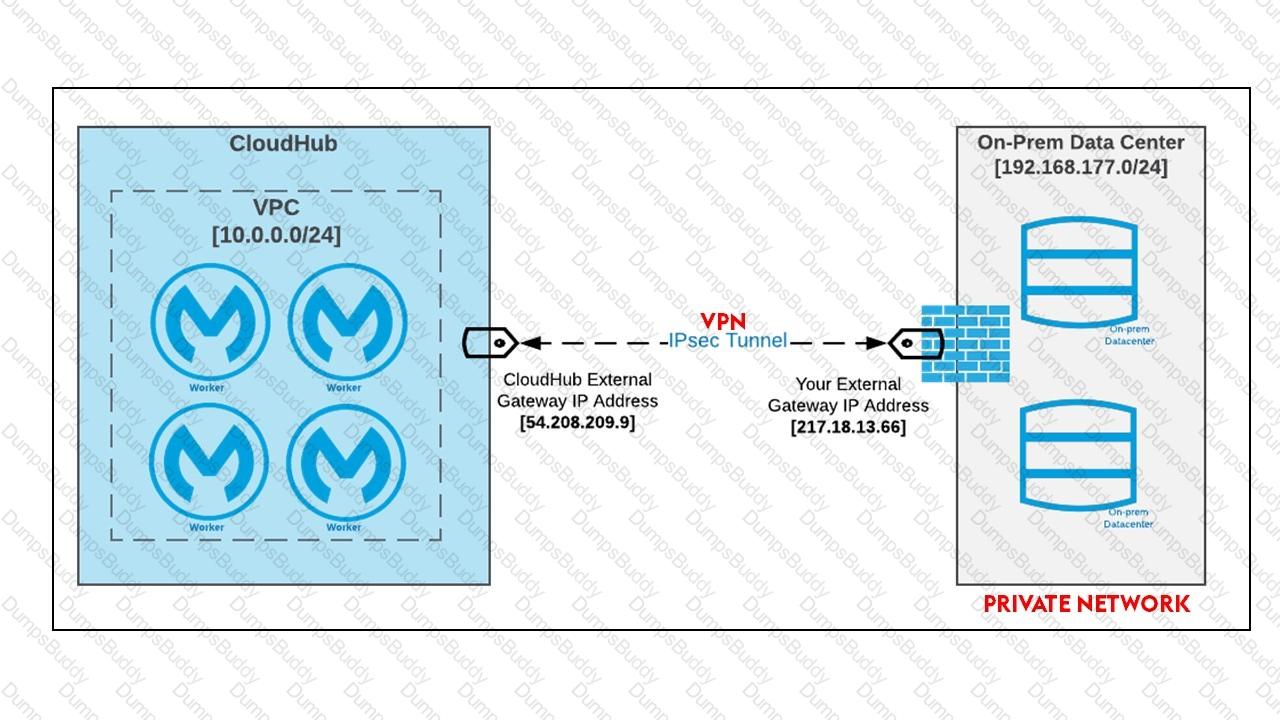

* You can connect on-premises data centers through a secured VPN tunnel, or a private AWS VPC through VPC peering, or by using AWS Direct Connect.

MuleSoft Doc Reference : https://docs.mulesoft.com/runtime-manager/virtual-private-cloud

In a clustered Mule runtime environment, when using a JMS listener to consume messages from a queue destination, it is essential to ensure that messages are appropriately received by all nodes in the cluster. The configuration must support high availability and scalability. Here's why option B is correct:

• primaryNodeOnly="false": Setting this parameter to "false" ensures that the JMS listener is active on all nodes in the cluster, not just the primary node. This setting allows multiple instances of the JMS listener to run concurrently across different nodes, enabling them to consume messages from the JMS queue.
• Shared Subscription: Using a shared subscription means that all nodes will share the consumption of messages from the queue. This approach prevents duplicate message processing, as each message is delivered to only one listener instance within the cluster. This configuration ensures that message processing is balanced across the nodes, improving throughput and reliability.

To configure the JMS listener in Mule, the XML configuration might look something like this:

xml

This setup ensures that all nodes in the cluster are involved in message processing, leveraging the high availability and load balancing capabilities of the cluster.

References

• MuleSoft Documentation on JMS Listener
• MuleSoft Clustering Guide

Explanation

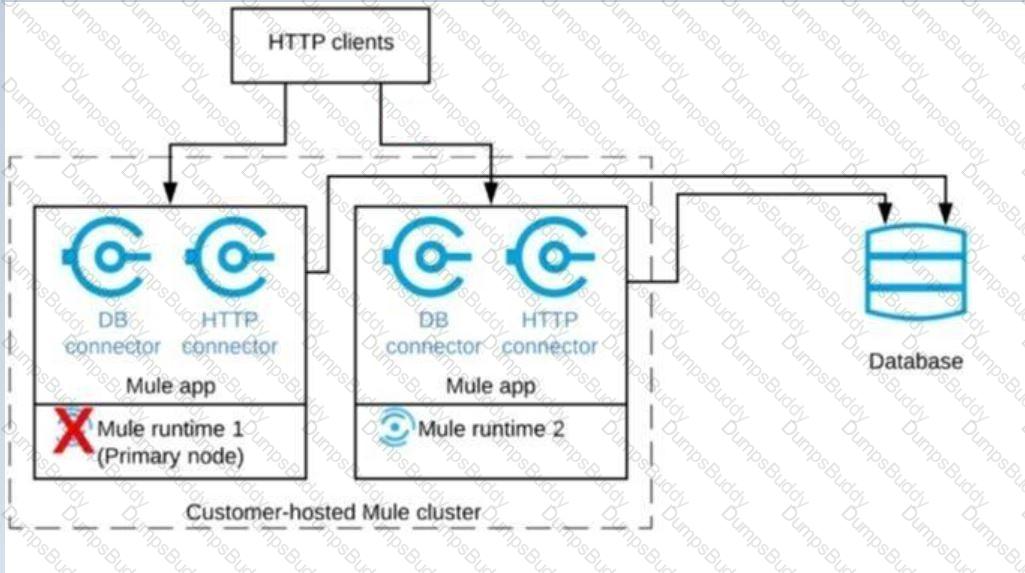

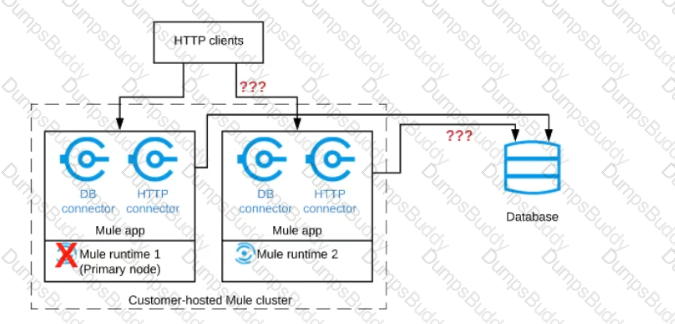

Correct answer is Database polling continues Only HTTP requests sent to the remaining node continue to be accepted. Explanation : Architecture descripted in the question could be described as follows.When node 1 is down , DB polling will still continue via node 2 . Also requests which are coming directly to node 2 will also be accepted and processed in BAU fashion. Only thing that wont work is when requests are sent to Node 1 HTTP connector. The flaw with this architecture is HTTP clients are sending HTTP requests directly to individual cluster nodes. By default, clustering Mule runtime engines ensures high system availability. If a Mule runtime engine node becomes unavailable due to failure or planned downtime, another node in the cluster can assume the workload and continue to process existing events and messages

Diagram Description automatically generated

Explanation

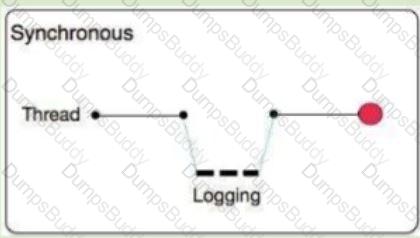

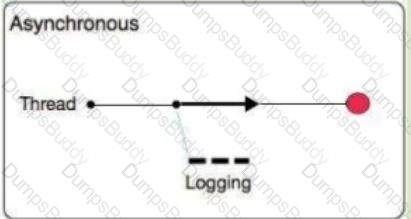

Correct approach is to use Mixed configuration of asynchronous or synchronous loggers shoud be used to log exceptions via synchronous way Asynchronous logging poses a performance-reliability trade-off. You may lose some messages if Mule crashes before the logging buffers flush to the disk. In this case, consider that you can have a mixed configuration of asynchronous or synchronous loggers in your app. Best practice is to use asynchronous logging over synchronous with a minimum logging level of WARN for a production application. In some cases, enable INFO logging level when you need to confirm events such as successful policy installation or to perform troubleshooting. Configure your logging strategy by editing your application’s src/main/resources/log4j2.xml file

Explanation

As the question says that data needs to be sent across multiple sftp serves , we cannot use non-repeatable streams. The non-repeatable strategy disables repeatable streams, which enables you to read an input stream only once.

You cant use in memory storage because with 0.2 vcore you will get only 1 GB of heap memory. Hence application will error out for file more than 1 GB.

Hence the correct option is file base repeatable stream

When an API client makes an HTTP request to an API gateway with an Accept header containing the value "application/json", the valid HTTP response payload should be in JSON format. The correct JSON format for indicating a healthy status is {"status": "healthy"}. This format uses a JSON object with a key-value pair where the key is "status" and the value is "healthy".

Other options provided are not valid JSON responses:

• healthy is XML format.
• status('healthy') and status: healthy are not valid JSON syntax.

References

• HTTP Content Negotiation and Accept Headers
• JSON Formatting and Syntax Rules

Explanation

* Roles are business group specific. Configure identity management in the Anypoint Platform master organization. As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * Roles and permissions can be set up at business group and organization level also. But Identity Management setup is only done at Organization level * Business groups are self-contained resource groups that contain Anypoint Platform resources such as applications and APIs. Business groups provide a way to separate and control access to Anypoint Platform resources because users have access only to the busine

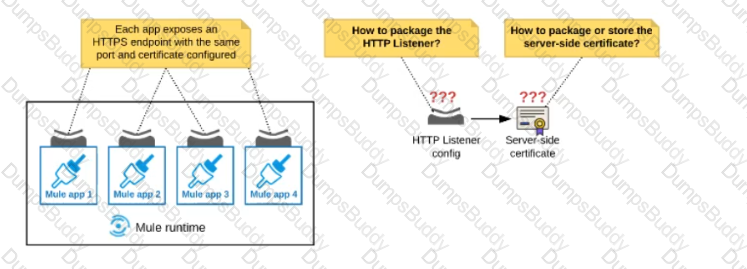

Explanation

* Mule Domain Project is ONLY available for customer-hosted Mule runtimes, but not for Anypoint Runtime Fabric

* Mule domain project is available for Hybrid and Private Cloud (PCE). Rest all provide application isolation and can't support domain project.

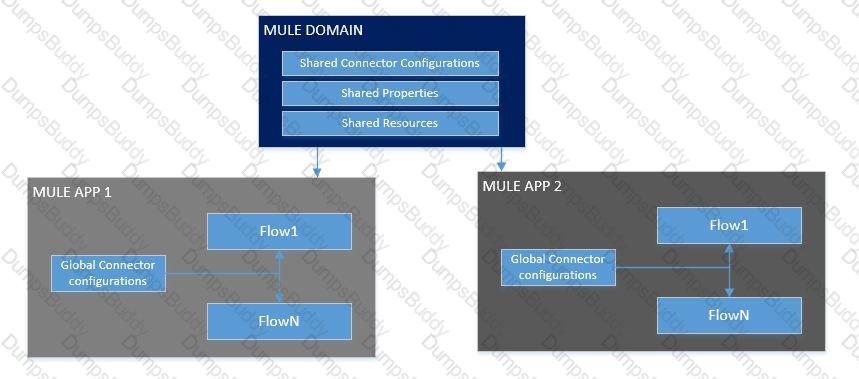

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

To ensure the high availability and reliability of critical APIs, it is essential to monitor their liveliness and readiness. Anypoint Monitoring provides comprehensive monitoring capabilities for Mule applications. Here’s how it can be implemented:

• Application Monitoring: Enable monitoring for each individual Mule application. This allows for real-time visibility into the performance and health of each API.
• Custom Dashboards: Create custom dashboards in Anypoint Monitoring to track key metrics such as response time, error rates, and throughput.
• Alerts and Notifications: Configure alerts based on specific failure conditions or performance thresholds. These alerts can notify the Ops team immediately when an outage or performance degradation is detected.
• Proactive Management: With detailed insights and proactive alerts, the Ops team can quickly respond to issues, ensuring that the APIs remain available and meet the defined SLAs.

References:

• Anypoint Monitoring
• Configuring Alerts

Explanation

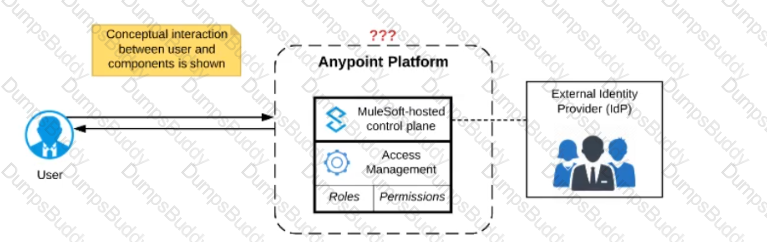

As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO).

Configure identity management using one of the following single sign-on standards:

1) OpenID Connect: End user identity verification by an authorization server including SSO

2) SAML 2.0: Web-based authorization including cross-domain SSO

For handling large datasets in a Mule application, streaming is an effective strategy. Streaming allows the application to process large amounts of data in chunks, reducing memory usage and improving performance. Using a file storage repeatable strategy for reading records from the database ensures that the data is read in manageable chunks and stored temporarily in files, which can be re-read if necessary, enhancing reliability.

The batch aggregator with streaming to write to an FTPS server ensures that data is written in chunks, aligning with the processing capabilities of the application running in CloudHub with 0.2 vCore and 8 GB storage. This configuration optimizes performance by balancing the load and managing the dataset size effectively, ensuring that the high rate of records can be processed and written to the FTPS server without overwhelming the system.

References:

• MuleSoft Documentation on Streaming
• MuleSoft Documentation on Batch Processing

A Center for Enablement (C4E) provides significant benefits to an enterprise and its lines of business by accelerating self-service capabilities. A C4E is a cross-functional team that promotes the use of best practices, reusable assets, and consistent methodologies across the organization. By enabling lines of business to access and use shared resources, tools, and knowledge independently, a C4E empowers these units to deliver projects faster and more efficiently. This self-service model reduces reliance on central IT for every initiative, fosters innovation, and enhances the overall agility of the organization.

References

• MuleSoft Center for Enablement (C4E) Overview
• Best Practices for Implementing a C4E on Anypoint Platform

A Center for Enablement (C4E) provides significant benefits by accelerating self-service capabilities for lines of business. Here’s how:

• Self-Service Enablement: C4E empowers lines of business to access, use, and create integrations and APIs independently, without relying heavily on central IT teams.
• Guidelines and Standards: The C4E establishes best practices, standards, and reusable frameworks, ensuring that lines of business can develop solutions efficiently and consistently.
• Faster Time-to-Market: By enabling self-service, lines of business can rapidly develop and deploy solutions to meet their specific needs, resulting in faster time-to-market for new initiatives.
• Reduced Bottlenecks: Self-service reduces dependency on central IT, alleviating potential bottlenecks and allowing IT to focus on governance, security, and strategic projects.

The C4E model thus accelerates innovation and responsiveness within the enterprise.

References:

• Center for Enablement (C4E)
• Benefits of a C4E

Explanation

Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application"

Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user’s request, and not with the server.

Such cases usually arise when a user’s access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public’s view.

In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user — either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are

400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated". That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently The URL of the requested resource has been changed permanently. The new URL is given in the response. ----------------------------------------------------------------------------------------------------------------------------------------------- In Lay man's term the scenario would be: API CLIENT —> MuleSoft API - HTTP request “Hey, API.. process this” —> External API API CLIENT <– MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <– (4XX) External API

The Kubernetes controller is implementing horizontal scalability by adding another pod replica in response to increased application load. Horizontal scaling involves adding more instances of a service or application to handle the increased load, as opposed to vertical scaling, which would involve adding more resources (CPU, RAM) to a single instance. Horizontal scaling is a key feature of cloud-native applications and is supported by Kubernetes to ensure high availability and performance.

References:

• Kubernetes Horizontal Pod Autoscaling
• Understanding Horizontal vs. Vertical Scaling

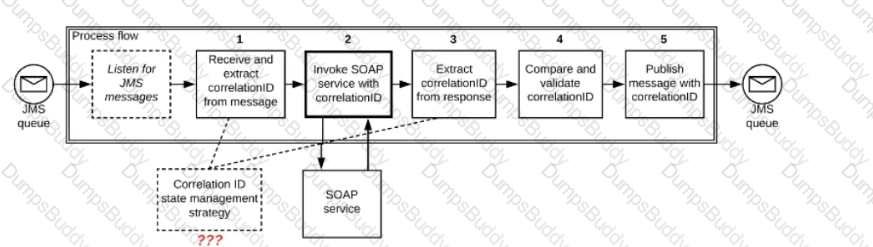

Explanation

* If we store Correlation id value in step 1 as Mule event variables/attributes, the values will be cleared after server restart and we want system to be fault tolerant.

* The Correlation ID value in Step 1 should be stored in a persistent object store.

* We don't need to store Correlation ID value in Step 3 to persistent object store. We can store it but as we also need to make application performant. We can avoid this step of accessing persistent object store.

*  Accessing persistent object stores slow down the performance as persistent object stores are by default stored in shared file systems.

*  As the SOAP service is idempotent in nature. In case of any failures , using this Correlation ID saved in first step we can make call to SOAP service and validate the Correlation ID.

Top of Form

Additional Information:

* Competing Consumers are multiple consumers that are all created to receive messages from a single Point-to-Point Channel. When the channel delivers a message, any of the consumers could potentially receive it. The messaging system's implementation determines which consumer actually receives the message, but in effect the consumers compete with each other to be the receiver. Once a consumer receives a message, it can delegate to the rest of its application to help process the message.

Diagram Description automatically generated

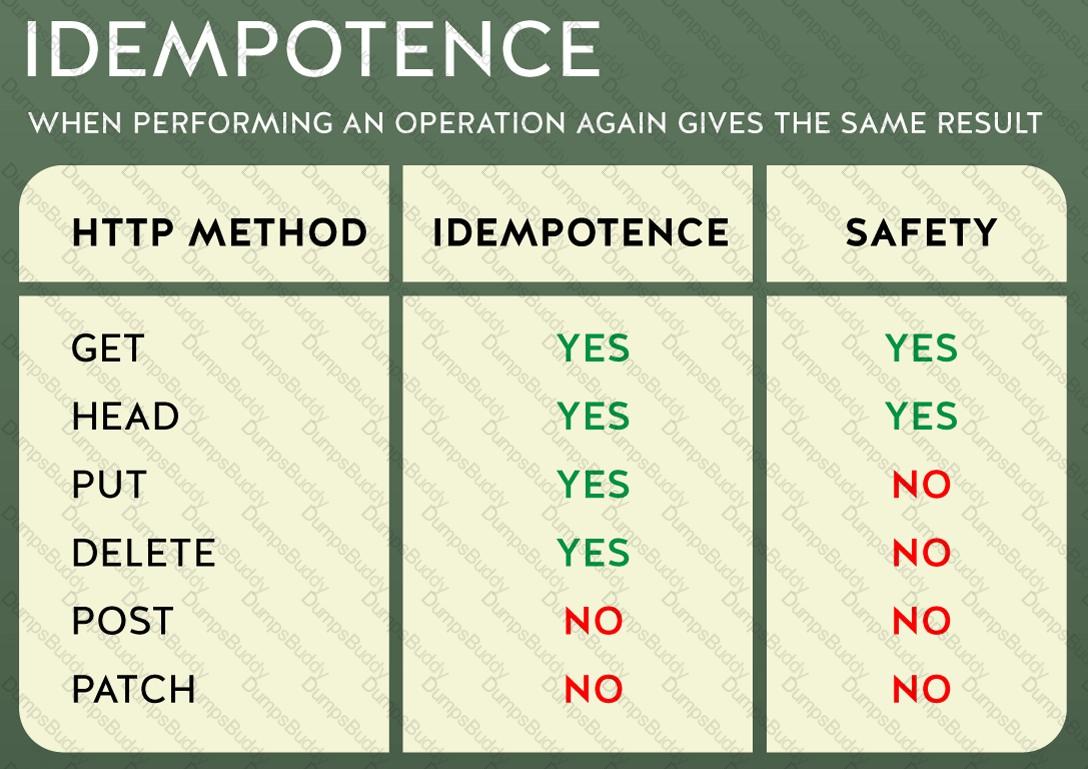

* In case you are unaware about term idempotent re is more info:

Idempotent operations means their result will always same no matter how many times these operations are invoked.

Table Description automatically generated

Bottom of Form

According to the MuleSoft Catalyst framework, an Integration Architect plays a crucial role in defining and achieving business outcomes. One of their key responsibilities is to agree upon Key Performance Indicators (KPIs) and help develop an overall success plan. This involves working with stakeholders to identify measurable goals and ensure that the integration initiatives align with the organization’s strategic objectives.

KPIs are critical for tracking progress, measuring success, and making data-driven decisions. By agreeing on KPIs and developing a success plan, the Integration Architect ensures that the organization can objectively measure the impact of its integration efforts and adjust strategies as needed to achieve desired business outcomes.

References:

• MuleSoft Catalyst Knowledge Hub

To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.

Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.

References

• MuleSoft Documentation on MUnit
• Best Practices for Automated Testing with MUnit

• Dealer D1 - AUTO Acknowledgment:
• Dealer D2 - Manual Acknowledgment:
• Ensuring Message Delivery:

References:

• MuleSoft Documentation on JMS Acknowledgment
• Best practices for Reliable Messaging

Explanation

* Anypoint Runtime Fabric is a container service that automates the deployment and orchestration of your Mule applications and gateways.

* Runtime Fabric runs on customer-managed infrastructure on AWS, Azure, virtual machines (VMs) or bare-metal servers.

* As none of the Mule applications use Mule domain projects. applications are not required to be rewritten. Also when applications are deployed on RTF, by default ingress is allowed only on 8081.

* Hence port conflicts are not required to be managed by DevOps team

To ensure that data is encrypted both in-transit and at-rest, and to validate incoming requests to the Payment Processing API, the following approach is recommended:

• TLS Inbound Policy: Apply a Transport Layer Security (TLS) - Inbound policy in API Manager. This policy ensures that the data is encrypted during transmission and can be decrypted by the API Manager before it reaches the Mule application.
• Decryption: With the TLS policy applied, the message payload is decrypted when it is received by the API Manager.
• JSON Validation: After decryption, the Mule application can use the JSON Validation module to validate the structure and content of the JSON data. This ensures that the payload conforms to the specified format and contains valid data.

This approach ensures that data is securely transmitted and properly validated upon receipt.

References:

• Transport Layer Security (TLS) Policies
• JSON Validation Module

Explanation

* Setting a transaction timeout for the Bitronix transaction manager

● Set the transaction timeout either

– In wrapper.conf

– In CloudHub in the Properties tab of the Mule application deployment

● The default is 60 secs. It is defined as

mule.bitronix.transactiontimeout = 120

* This property defines the timeout for each transaction created for this manager.

If the transaction has not terminated before the timeout expires it will be automatically rolled back.

---------------------------------------------------------------------------------------------------------------------

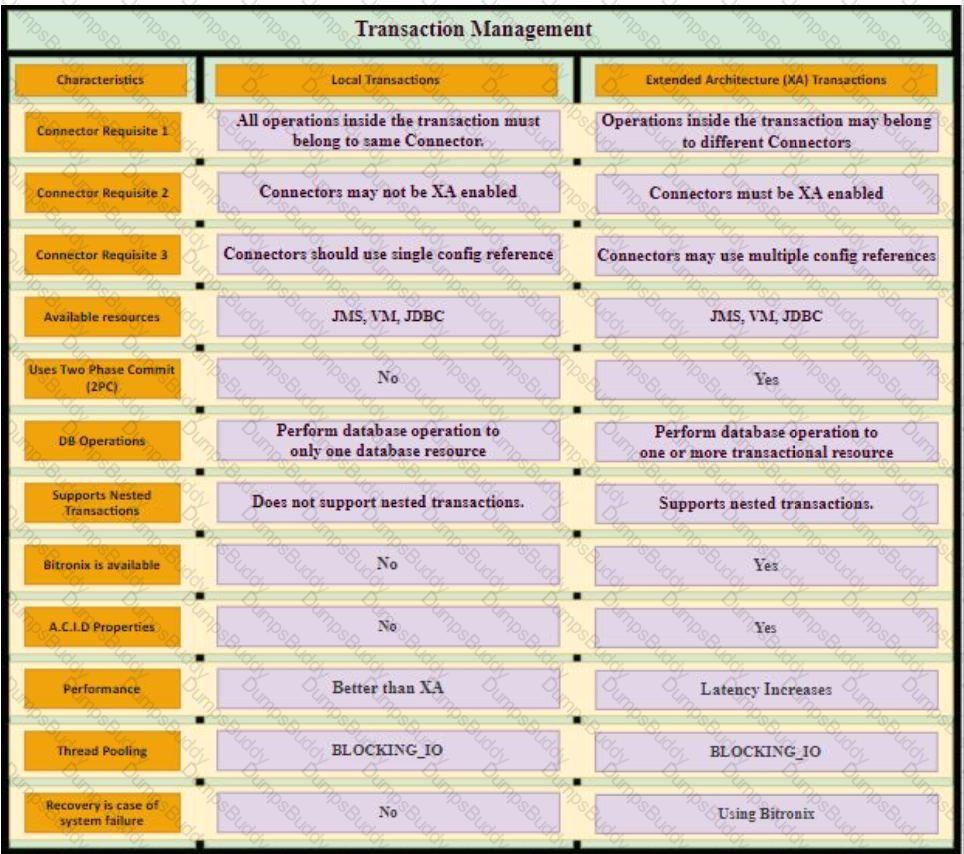

Additional Info around Transaction Management:

Bitronix is available as the XA transaction manager for Mule applications

● To use Bitronix, declare it as a global configuration element in the Mule application

● Each Mule runtime can have only one instance of a Bitronix transaction manager, which is shared by all Mule applications

● For customer-hosted deployments, define the XA transaction manager in a Mule domain

– Then share this global element among all Mule applications in the Mule runtime

Graphical user interface, table Description automatically generated with medium confidence

When using a non-persistent object store in MuleSoft, the state data is stored in memory rather than on disk. This means that if a server crashes, all data stored in the non-persistent object store will be lost because it does not survive a server restart or crash. Non-persistent object stores are typically used for temporary data that does not need to be retained across application restarts. Therefore, in an environment where an API is maintaining its state using a non-persistent object store, a server crash will result in the loss of that state data.

References:

• MuleSoft Documentation on Object Store

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

References:

• MuleSoft's API-led Connectivity Approach
• Service-Oriented Architecture (SOA) Principles

MUnit is the testing framework component of Anypoint Platform that provides test automation capabilities for customers to use in their CI/CD pipelines. MUnit allows developers to write, run, and automate unit and integration tests for Mule applications. It supports creating repeatable tests for various scenarios, ensuring that the application functions correctly and adheres to specified requirements. MUnit integrates seamlessly with Anypoint Studio, enabling efficient test creation and execution as part of the development lifecycle.

References:

• MUnit Overview
• Testing with MUnit

The File Transfer Protocol (FTP) uses the Transmission Control Protocol (TCP) for reliable communication. TCP is one of the core protocols of the Internet Protocol Suite and provides reliable, ordered, and error-checked delivery of a stream of data between applications running on hosts communicating via an IP network. FTP relies on TCP to ensure that all data packets are delivered accurately and in the correct sequence, which is essential for the reliable transfer of files between a client and server.

References

• IETF RFC 959 - File Transfer Protocol (FTP)
• TCP/IP Protocol Suite Documentation

Explanation

Key to this question lies in the fact that Process API are not meant to be accessed directly by clients. Lets analyze options one by one. Client ID enforcement : This is applied at process API level generally to ensure that identity of API clients is always known and available for API-based analytics Rate Limiting : This policy is applied on Process Level API to secure API's against degradation of service that can happen in case load received is more than it can handle Custom circuit breaker : This is also quite useful feature on process level API's as it saves the API client the wasted time and effort of invoking a failing API. JSON threat protection : This policy is not required at Process API and rather implemented as Experience API's. This policy is used to safeguard application from malicious attacks by injecting malicious code in JSON object. As ideally Process API's are never called from external world , this policy is never used on Process API's Hence correct answer is JSON threat protection MuleSoft Documentation Reference : https://docs.mulesoft.com/api-manager/2.x/policy-mule3-json-threat

Data confidentiality involves protecting information from unauthorized access and disclosure. Encrypting a file containing personally identifiable information (PII) is a prime example of ensuring data confidentiality. Encryption transforms the data into a format that is unreadable without the appropriate decryption key, thereby safeguarding sensitive information such as PII from being accessed by unauthorized parties. This measure is essential for compliance with data protection regulations and maintaining the privacy and security of personal data.

References

• MuleSoft Security Best Practices
• Data Protection and Encryption Standards Documentation

Explanation

As the stakeholders are semitechnical users , preferred option is Create Anypoint Exchange entries with pages elaborating the integration design, including API notebooks (where applicable) to help the stakeholders understand and interact with the Mule applications and APIs at various levels of technical depth

Explanation

* HTTP/1.1 keeps all requests and responses in plain text format.

* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos

* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x

Explanation

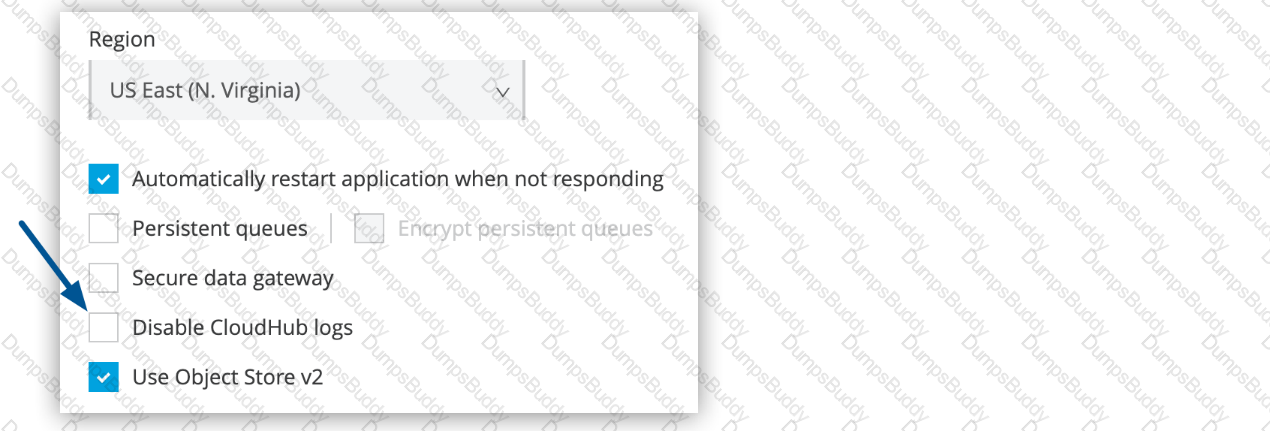

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

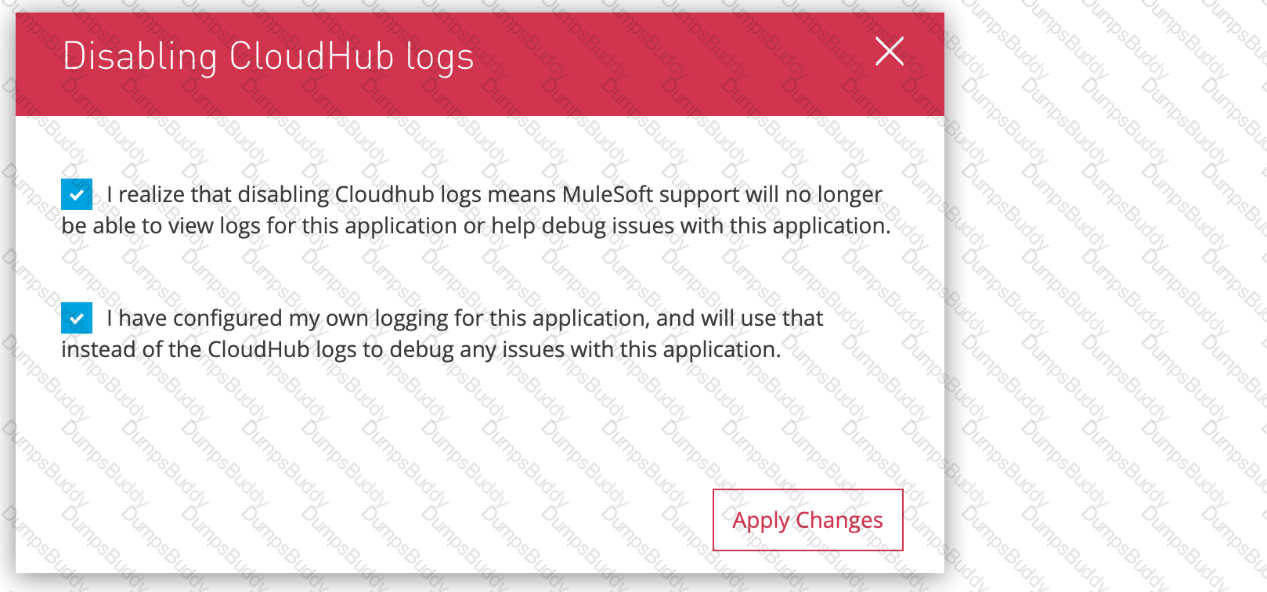

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender

To minimize the risk of exposing sensitive data such as credit card information while still allowing it to be converted back to its original value when necessary, tokenization is the most effective approach. Tokenization replaces sensitive data with a non-sensitive equivalent, called a token, which has no exploitable value. This method ensures that the original sensitive data is stored securely and only accessible through a secure tokenization system.

In this scenario, applying a tokenization policy at the API Gateway ensures that sensitive information is replaced with tokens before the data leaves the trusted boundary. This minimizes the risk of matching sensitive data to the original. When the original data is needed, the tokenization system can detokenize the token back to its original value securely.

References:

• MuleSoft Documentation on Tokenization

Explanation

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

Below are the typical characteristics of unit testing.

-- Unit tests do not require deployment into any special environment, such as a staging environment

-- Unit tests san be run from within an embedded Mule runtime

-- Unit tests can/should be implemented using MUnit

-- For read-only interactions to any dependencies (such as other APIs): allowed to invoke production endpoints

-- For write interactions: developers must implement mocks using MUnit

-- Require knowledge of the implementation details of the API implementation under test

Explanation

Correct answer is Consistency as XA transactions are implemented to achieve this. XA transactions are added in the implementation to achieve goal of ACID properties. In the context of transaction processing, the acronym ACID refers to the four key properties of a transaction: atomicity, consistency, isolation, and durability. Atomicity : All changes to data are performed as if they are a single operation. That is, all the changes are performed, or none of them are. For example, in an application that transfers funds from one account to another, the atomicity property ensures that, if a debit is made successfully from one account, the corresponding credit is made to the other account. Consistency : Data is in a consistent state when a transaction starts and when it ends.For example, in an application that transfers funds from one account to another, the consistency property ensures that the total value of funds in both the accounts is the same at the start and end of each transaction. Isolation : The intermediate state of a transaction is invisible to other transactions. As a result, transactions that run concurrently appear to be serialized. For example, in an application that transfers funds from one account to another, the isolation property ensures that another transaction sees the transferred funds in one account or the other, but not in both, nor in neither. Durability : After a transaction successfully completes, changes to data persist and are not undone, even in the event of a system failure. For example, in an application that transfers funds from one account to another, the durability property ensures that the changes made to each account will not be reversed. MuleSoft reference: https://docs.mulesoft.com/mule-runtime/4.3/xa-transactions

• JMS (Java Message Service): JMS is a robust messaging standard that supports reliable and asynchronous communication. It allows message producers and consumers to exchange messages via a common message broker.
• Transactions with Automatic Acknowledgements: Utilizing JMS transactions ensures that messages are processed reliably. The automatic acknowledgement mode means that once the consumer receives the message, it acknowledges the broker automatically, ensuring that no messages are lost.
• Performance and Reliability: JMS transactions offer both high performance and reliability. By enabling transactions, each message processing step can be committed or rolled back, ensuring data integrity.
• Cross-Cluster Messaging: For a stock trading company dealing with millions of trades, using JMS transactions allows for consistent and reliable message delivery across different clusters in their network. This approach is more suitable compared to non-transactional or VM queues due to the scale and reliability requirements.
• Event-Driven APIs: The APIs can leverage the transactional nature of JMS to ensure that messages exchanged between different services are reliable and can recover gracefully from failures.

References:

• MuleSoft Documentation on JMS Connector: MuleSoft JMS Connector
• JMS 2.0 Specification: Oracle JMS 2.0

Explanation

Mule 4 is built to:

•Minimize the need for custom code.

•Avoid the need for you to know or understand Java.

However, some advanced uses cases require integration with custom Java code, such as:

•Reuse of a library, such as a tax calculation library.

•Reuse of a canonical object model that is standard in the organization.

•Execution of custom logic using Java.

Mule ref doc : https://docs.mulesoft.com/java-module/1.2/

Explanation

By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. In CloudHub, you can disable the CloudHub provided Mule application log4j2 file. This allows integrating Mule application logs with custom or third-party log management systems

To meet the reliability requirements for Mule applications deployed to a Runtime Fabric (RTF) cluster, where data needs to be shared across application replicas and persist through restarts, the best approach is to use Anypoint Object Store v2. This service is designed to provide persistent storage that can be shared among different application instances and across restarts. Steps include:

• Configure Object Store v2: Set up Anypoint Object Store v2 in the Mule application to handle data storage needs.
• Persistent Data Handling: Ensure that the configuration allows data to be shared and persist, meeting the requirements for reliability and consistency.

This solution leverages MuleSoft's cloud-based storage service optimized for these use cases, ensuring data integrity and availability.

References

• MuleSoft Documentation on Object Store v2
• Configuring Persistent Data Storage in MuleSoft

According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

• NIST Definition of Cloud Computing
• Hybrid Cloud Overview and Benefits

Explanation

CloudHub supports updating your applications at runtime so end users of your HTTP APIs experience zero downtime. While your application update is deploying, CloudHub keeps the old version of your application running. Your domain points to the old version of your application until the newly uploaded version is fully started. This allows you to keep servicing requests from your old application while the new version of your application is starting.

Explanation

Types of logging:

A) Synchronous: The execution of thread that is processing messages is interrupted to wait for the log message to be fully handled before it can continue.

● The execution of the thread that is processing your message is interrupted to wait for the log message to be fully output before it can continue

● Performance degrades because of synchronous logging

● Used when the log is used as an audit trail or when logging ERROR/CRITICAL messages

● If the logger fails to write to disk, the exception would raise on the same thread that's currently processing the Mule event. If logging is critical for you, then you can rollback the transaction.

Chart, diagram Description automatically generated

Chart, diagram, box and whisker chart Description automatically generated

B) Asynchronous:

● The logging operation occurs in a separate thread, so the actual processing of your message won’t be delayed to wait for the logging to complete

● Substantial improvement in throughput and latency of message processing

● Mule runtime engine (Mule) 4 uses Log4j 2 asynchronous logging by default

● The disadvantage of asynchronous logging is error handling.

● If the logger fails to write to disk, the thread doing the processing won't be aware of any issues writing to the disk, so you won't be able to rollback anything. Because the actual writing of the log gets differed, there's a chance that log messages might never make it to disk and get lost, if Mule were to crash before the buffers are flushed.

------------------------------------------------------------------------------------------------------------------

So Correct answer is: Asynchronous logging can improve Mule event processing throughput while also reducing the processing time for each Mule event

The described approach of gathering all requirements upfront and proceeding through sequential, non-repeating phases is characteristic of the Waterfall methodology. Waterfall is a linear project management approach where each phase must be completed before the next one begins, and there is typically no going back to a previous phase once it is completed. This methodology is well-suited for projects with well-defined requirements and deliverables, but it can be inflexible if changes or new requirements arise during the project.

References:

• Waterfall Model
• Waterfall vs. Agile: Which is the Right Development Methodology for Your Project?

Anypoint Platform offers universal API management and Integration-Platform-as-a-Service (iPaaS) capabilities in a unified platform, meaning that it provides a single control plane to manage both full-lifecycle API management and integration. This allows organizations to easily manage their APIs and integrations, as well as deploy APIs and integrations quickly and efficiently. According to the MuleSoft Certified Integration Architect - Level 1 Course Book, “Anypoint Platform provides a unified platform for managing, deploying, and monitoring both API and integration solutions, allowing organizations to quickly and easily build and manage their APIs and integrations.”

Explanation

* By default, Anypoint Platform performs its own user management

– For user management, one external IdP can be integrated with the Anypoint Platform organization (note: not at business group level)

– Permissions and access control are still enforced inside Anypoint Platform and CANNOT be controlled via the external Identity Provider * As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * You can map users in a federated organization’s group to a role which also gives the flexibility of controlling the business group within Anypoint Platform to which the user belongs to. Also user can nbe removed from external identity management system when they no longer work for the organization. So they wont be able to authenticate using SSO to login to Anypoint Platform. * Using external identity we can no change permissions of a particular role in Mulesoft Anypoint platform.

* So Correct answer is Assigning Anypoint Platform permissions to a role

Explanation

We need to note few things about the scenario which will help us in reaching the correct solution.

Point 1 : The APIs are all publicly available and are associated with several mobile applications and web applications. This means Apply an IP blacklist policy is not viable option. as blacklisting IPs is limited to partial web traffic. It can't be useful for traffic from mobile application

Point 2 : The organization does NOT want to use any authentication or compliance policies for these APIs. This means we can not apply HTTPS mutual authentication scheme.

Header injection or removal will not help the purpose.

By its nature, JSON is vulnerable to JavaScript injection. When you parse the JSON object, the malicious code inflicts its damages. An inordinate increase in the size and depth of the JSON payload can indicate injection. Applying the JSON threat protection policy can limit the size of your JSON payload and thwart recursive additions to the JSON hierarchy.

Hence correct answer is Apply a JSON threat protection policy to all APIs to detect potential threat vectors

Explanation

An SLA for the upstream API CANNOT be provided.

When a Mule application using VM queues is deployed to a customer-hosted cluster or multiple CloudHub v1.0 workers/replicas, messages are consumed in a non-deterministic way. This means that any of the nodes in the cluster or any of the workers can consume the messages from the VM queues, but there is no guaranteed order or specific pattern (such as round-robin or sequential processing).

This non-deterministic message consumption helps in distributing the load and handling messages more efficiently across multiple nodes or workers, improving the scalability and reliability of the application.

References

• MuleSoft Documentation on VM Queues and Clustering
• Best Practices for Deploying Mule Applications in Clusters

The advantage of using OAuth 2.0 client credentials and access tokens over only API keys for API authentication is that if the access token is compromised, the client credentials do not have to be reissued.

OAuth 2.0 is a secure protocol for authenticating clients and authorizing them to access protected resources. It works by having the client authenticate with the authorization server and receive an access token, which is then used to authenticate requests to the API. If the access token is compromised, it can be revoked and replaced without needing to reissue the client credentials.

References: MuleSoft Certified Integration Architect - Level 1 Official Text Book and Resources:

• Chapter 7: Security
• Section 7.2: OAuth 2.0

According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

• NIST Definition of Cloud Computing
• Hybrid Cloud Overview and Benefits

• Timeout Attribute:
• Transaction Management:
• Implications of Timeout:

References:

• MuleSoft Documentation on JMS Connector
• Understanding XA Transactions

Explanation

Correct answer is IBM: CICS CRM: SOAP

* Within Anypoint Exchange, MuleSoft offers the IBM CICS connector. Anypoint Connector for IBM CICS Transaction Gateway (IBM CTG Connector) provides integration with back-end CICS apps using the CICS Transaction Gateway.

* Anypoint Connector for Salesforce Marketing Cloud (Marketing Cloud Connector) enables you to connect to the Marketing Cloud API web services (now known as the Marketing Cloud API), which is also known as the Salesforce Marketing Cloud. This connector exposes convenient operations via SOAP for exploiting the capabilities of Salesforce Marketing Cloud.

Explanation

* Any change in the application will require a restart except when the issue outside the app. For below situations , you would need to redeploy the code after doing necessary changes

-- One of the stored procedures being called by the Mule application has been renamed. In this case, in the Mule application you will have to do changes to accommodate the new stored procedure name.

-- Required redesign of Mule applications to follow microservice architecture principles. As code is changed, deployment is must

-- If the credentials changed and you need to update the connector or the properties.

-- The credentials for accessing the database have been updated and the previous credentials are no longer valid. In this situation you need to restart or redeploy depending on how credentials are configured in Mule application.

* So Correct answer is The database server was unavailable for four hours due to a major outage but is now fully operational again as this is the only external issue to application.

Explanation

In this scenario, both A & C will work, but A is better as it does not require repackage to the domain project at all.

Correct answer is Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime’s classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION.

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

Use a certificate defined in already deployed Mule domain Configure the certificate in the domain so that the API proxy HTTPS Listener references it, and then deploy the secure API proxy to the target Runtime Fabric, or on-premises target. (CloudHub is not supported with this approach because it does not support Mule domains.)

Anypoint Runtime Fabric is the appropriate choice for deploying Mule applications in an isolated Mule runtime within Docker containers on an Azure Kubernetes Service (AKS) infrastructure. This solution provides a containerized and orchestrated environment managed from the MuleSoft-hosted control plane. It enhances the availability, scalability, and robustness of Mule applications by allowing fine-grained control over deployments and providing built-in support for high availability and fault tolerance.

References:

• Anypoint Runtime Fabric Overview
• Deploying Mule Applications to Kubernetes

Explanation

* The Object Store V2 API enables API access to Anypoint Platform Object Store v2.

* You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app. However, Object Store v2 is not designed for app-to-app communication. To share data between two Mule4 apps, use a queue in Anypoint MQ.

* The Object Store v2 APIs enable you to use REST to perform the following:

- Retrieve a list of object stores and keys associated with an application.

- Store and retrieve key-value pairs in an object store.

- Delete key-value pairs from an object store.

- Retrieve Object Store usage statistics for your organization.

- Object Store provides these APIs:

Object Store API

Object Store Stats API

• Requirement Analysis: The organization needs to send email alerts to the internal operations team whenever a policy applied to an API instance is deleted in the CloudHub runtime plane.
• Solution: The most effective approach is to implement a new Mule application that uses the Audit Log REST API to detect when a policy is deleted and then sends an email using the SMTP connector.
• Implementation Steps:

GET /accounts/api/v2/organizations/{orgId}/audit-logs

• uk.co.certification.simulator.questionpool.PList@1dcc7ef0

Policy deletion detected: #[payload]

• uk.co.certification.simulator.questionpool.PList@1b8e7690
• Advantages:

References

• MuleSoft Documentation on Audit Log REST API
• MuleSoft Documentation on SMTP Connector
• MuleSoft Documentation on MuleSoft Scheduler Component

To track the entire lifecycle of each request across different microservices, the DevOps team should consider adopting tracing. Distributed tracing allows teams to follow a request as it travels through the various microservices, providing visibility into how long each part of the request lifecycle takes and where any bottlenecks or failures occur. Tools like Zipkin, Jaeger, and AWS X-Ray are commonly used for this purpose. Tracing complements metrics and logging by providing detailed insights into the interactions and dependencies between services.

References:

• Distributed Tracing in Microservices
• What is Distributed Tracing?

Explanation

* Organization should continue to use SCM system of their choice, in addition to keeping source code for these asset types in Anypoint Exchange, thereby enabling parallel development, branching.

* Reason is that Anypoint exchange is not full fledged version repositories like GitHub.

* But at same time it is tightly coupled with Mule assets

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

• Create a Mule domain project.
• Add the Database connector and its configuration to the domain project.
• Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

• MuleSoft Documentation on Domain Projects
• Best Practices for Reusable Configuration in MuleSoft

To convey the necessary non-functional requirement (NFR) related to protecting backend services from a high rate of requests according to SLAs, the following steps should be taken:

• Create a Shared RAML Fragment: Develop a RAML fragment that defines the NFR, including the SLAs for different subscription levels ("Gold", "Silver", "Platinum"). This fragment should include the details on rate limiting and throttling based on the new parameter added to the Accounts object.
• Update API Specifications: Integrate the shared RAML fragment into each API specification. This ensures that the NFR is consistently applied across all relevant APIs.
• Publish to Exchange: Publish the updated API specifications and the shared RAML fragment to Anypoint Exchange. This makes the NFR visible and accessible to all stakeholders and developers, ensuring compliance and implementation consistency.

This approach ensures that the NFR is clearly communicated and applied uniformly across all API implementations.

References

• MuleSoft Documentation on RAML and API Specifications
• Best Practices for API Design and Documentation

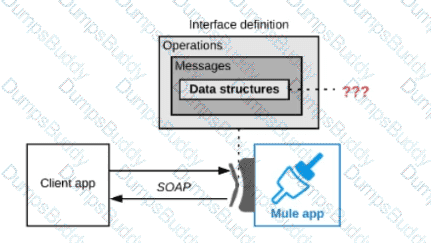

SOAP API specifications are provided as WSDL. Design center doesn't provide the functionality to create WSDL file. Hence WSDL needs to be created using XML editor

Correct answer is Create WSDL specification using text editor SOAP services are specified using WSDL. A client program connecting to a web service can read the WSDL to determine what functions are available on the server. We can not create WSDL specification in Design Center. We need to use external text editor to create WSDL.

Explanation

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece: https://dzone.com/articles/deploying-mulesoft-application-on-1-worker-vs-mult

To support the company's goals of unlocking key systems and data, quickly deploying scalable APIs, and connecting to on-premises systems, while also preparing for future migrations, the best runtime deployment option is using Runtime Fabric on self-managed Kubernetes. Here's why:

• Scalability: Kubernetes is designed to scale applications easily and efficiently. By deploying Mule runtimes on a self-managed Kubernetes cluster, the company can dynamically scale its APIs based on demand, ensuring performance and reliability.
• Flexibility: Running on self-managed Kubernetes allows the company to have control over the infrastructure. They can customize the environment to meet their specific needs, integrate with existing on-premises systems, and support their microservices architecture running in Docker containers.
• Future-Proofing: Kubernetes supports hybrid and multi-cloud deployments, making it easier to migrate workloads between different environments as needed. This aligns with the company's goal of being able to migrate their systems as part of their strategic approach.
• Efficiency: By leveraging Kubernetes, the company can automate deployment, scaling, and management of containerized applications, reducing the burden on IT and DevOps teams.

References:

• MuleSoft Documentation on Runtime Fabric: https://docs.mulesoft.com/runtime-fabric/1.9/
• Kubernetes Documentation: https://kubernetes.io/docs/home/

Explanation

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

Explanation

Context of the question is about managing and governing mule applications deployed on Anypoint platform.

Anypoint API Manager (API Manager) is a component of Anypoint Platform that enables you to manage, govern, and secure APIs. It leverages the runtime capabilities of API Gateway and Anypoint Service Mesh, both of which enforce policies, collect and track analytics data, manage proxies, provide encryption and authentication, and manage applications.

Mule Ref Doc : https://docs.mulesoft.com/api-manager/2.x/getting-started-proxy
