JN0-106 Junos - Associate (JNCIA-Junos) Junos OS 21.2 Questions and Answers

In Junos OS configuration management, the rename and replace pattern commands serve distinct roles for modifying the candidate configuration. The rename command is used when an administrator needs to change the identifier of a specific, single configuration object—such as changing an interface name or a policy-term name—while keeping the underlying properties of that object intact. In contrast, the replace pattern command is a powerful utility designed for bulk modifications across the configuration hierarchy. It utilizes string matching or regular expressions to find every occurrence of a specific text string and substitute it with another.

This is particularly useful in scenarios involving mass updates, such as migrating an entire subnet across multiple interface descriptions, firewall filters, and routing policy terms simultaneously. While rename acts locally on a specific path, replace pattern can be applied globally from the root of the configuration or constrained to a specific sub-hierarchy. As a Senior Architect, it is critical to understand that replace pattern does not just change names; it can modify any part of the statement text, making it an essential tool for efficient large-scale configuration refactoring without the need for manual, line-by-line edits. Reference: Configuration Basics, Modifying Configuration, Command Line Editing.

The Routing Engine (RE) in a Junos device serves as the centralized intelligence and management hub, primarily responsible for the control and management planes of the system. In this capacity, the RE is tasked with processing routing updates, such as OSPF Link State Advertisements (LSAs) or BGP Update messages. These updates are vital for the RE to maintain the Routing Information Base (RIB), calculate the shortest paths, and subsequently populate the Forwarding Information Base (FIB) which is then pushed to the Packet Forwarding Engine (PFE).

Furthermore, the Routing Engine handles all local management traffic. This category encompasses administrative access through the Command Line Interface (CLI) via SSH or Telnet, SNMP queries from network management systems, and system logging processes. Because the RE runs the Junos OS kernel, it must directly interpret and respond to these management-level requests to ensure the device remains configurable and observable. Conversely, transit traffic—the data passing through the device from one ingress port to an egress port—is offloaded to the PFE to be handled at wire speed. While the PFE manages the heavy lifting of data forwarding and Class of Service (CoS) application, the RE remains focused on high-level protocol maintenance and system administration, ensuring that control plane stability is maintained even under heavy traffic loads. Reference: Junos OS Fundamentals, Control Plane Functions, Routing Engine Traffic.

==========

In Junos OS, standard firewall filters operate as a primary security and traffic management tool within the forwarding plane. These filters are fundamentally stateless, meaning they evaluate each packet individually and in isolation without maintaining a session table or tracking the state of network connections. This stateless nature allows the Packet Forwarding Engine (PFE) to process filters at hardware speeds, ensuring minimal latency for transit traffic. This distinguishes them from the stateful security policies found on Junos security devices like the SRX Series, which track the entire lifecycle of a flow.

Furthermore, firewall filters are designed to inspect and match header information up to Layer 4 of the OSI model. This capability allows administrators to define terms based on parameters such as source and destination IP addresses (Layer 3) as well as TCP or UDP port numbers and protocol types (Layer 4). While they provide granular control over packet flow, they do not natively inspect Layer 7 application payloads, which is typically reserved for advanced services like Intrusion Detection and Prevention (IDP). By combining stateless execution with Layer 4 matching, Junos firewall filters provide an efficient method for implementing transit protection, rate limiting through policing, and protecting the local Routing Engine through loopback interface filtering. Reference: Routing Policy and Firewall Filters, Firewall Filter Framework.

==========

When a network architect needs to completely sanitize a Junos device for redeployment or decommissioning, the request system zeroize command is the most thorough tool available. Unlike simply loading the factory default configuration, which only resets the configuration database, the zeroize command performs a deep wipe of the system.

Specifically, this command removes all user-created data, including all configuration files (active and rollback), log files, license keys, and any locally stored files in the /var/tmp or /home directories. It essentially restores the device to its " pristine " out-of-box state. Once the command is initiated, the device reboots and goes through a sanitization process. This is a critical security measure to ensure that sensitive information—such as encrypted passwords, proprietary routing policies, or SNMP community strings—does not leave the organization when hardware is transferred.

In contrast, the request system storage cleanup command is a maintenance utility used to delete temporary files and old log entries to free up disk space, but it does not affect the running configuration or user accounts. Therefore, for a total system reset that includes configuration deletion, zeroize is the mandatory operational command.

Class of Service (CoS) is a fundamental suite of features in Junos OS designed to manage traffic patterns during periods of network congestion. Rather than treating all packets equally, CoS allows the Packet Forwarding Engine (PFE) to differentiate between various types of traffic—such as latency-sensitive Voice over IP (VoIP), critical routing protocol updates, and standard " best-effort " internet traffic—and prioritize them accordingly. When egress interface buffers become saturated, the CoS mechanism uses defined schedulers and queues to ensure that high-priority packets are transmitted first, while less critical traffic may be delayed or dropped.

It is important to distinguish CoS from security or addressing functions. CoS does not provide encryption services (which is the role of IPsec or MACsec), nor does it manage IP address allocation or VLAN segmentation. Instead, it focuses entirely on the intelligent allocation of bandwidth and buffer resources. By implementing CoS, network architects can guarantee a specific level of performance for mission-critical applications, effectively minimizing jitter and packet loss for the most important data streams. This deterministic behavior is vital for modern converged networks where multiple traffic types compete for limited hardware resources across the switch fabric or WAN links. Reference: Junos OS Fundamentals, Class of Service (CoS) Overview.

==========

The relationship between the routing table (Routing Information Base or RIB) and the forwarding table (Forwarding Information Base or FIB) is the cornerstone of the Junos OS architectural separation between the control and data planes. The routing table resides in the control plane on the Routing Engine (RE). Its primary role is to aggregate all reachability information from every configured protocol and select the best route for each destination prefix based on criteria like preference and metrics.

Once the Routing Engine has identified the single " active " best path for a destination, it distills this complex routing data into a simplified, streamlined version called the forwarding table . The forwarding table contains only the essential information needed to move a packet: the destination prefix, the egress interface, and the Layer 2 next-hop MAC address. The RE then " pushes " this forwarding table to the Packet Forwarding Engine (PFE) in the data plane. By having the PFE use a table built from the routing table , Junos ensures that transit traffic can be processed at wire speed without the overhead of complex routing logic. This one-way flow—from the comprehensive RIB on the RE to the optimized FIB on the PFE—allows the device to maintain high performance even while routing protocols are recalculating or the management plane is under heavy load.

The architecture of a Junos device is bifurcated into two primary functional planes: the Control Plane, managed by the Routing Engine (RE), and the Data Plane, managed by the Packet Forwarding Engine (PFE). The Routing Engine serves as the " brain " of the device. One of its primary responsibilities is the processing of management traffic, which includes handling CLI sessions (SSH, Telnet), SNMP requests, and system logging. Because the RE runs the Junos OS kernel, it provides the environment for all administrative tasks and system management utilities.

Additionally, the Routing Engine is responsible for the intelligence of the network, which involves running routing protocols (such as OSPF, BGP, or IS-IS) and maintaining the master routing tables. It populates the Routing Information Base (RIB) with all learned paths and then calculates the best paths to build the Forwarding Information Base (FIB). This FIB is then pushed to the PFE for hardware-level packet switching. It is a common misconception that the RE handles transit traffic; however, the RE only handles " exception traffic " or traffic destined for the device itself. This separation ensures that the control plane remains stable and responsive even during periods of heavy transit load on the forwarding plane. Reference: Junos OS Fundamentals, Architectural Overview, Control Plane vs. Forwarding Plane.

Determining the appropriate subnet mask for a specific host requirement is a core task in designing Junos-based network infrastructures. The number of usable hosts in an IPv4 subnet is calculated using the formula $2^n - 2$, where $n$ represents the number of host bits remaining after the network prefix. In this scenario, the requirement is to support 50 hosts within a single broadcast domain.

Evaluating the options:

A /29 mask provides 3 host bits ($2^3 - 2 = 6$ hosts), which is insufficient.

A /28 mask provides 4 host bits ($2^4 - 2 = 14$ hosts), which is insufficient.

A /27 mask provides 5 host bits ($2^5 - 2 = 30$ hosts), which still fails to meet the 50-host threshold.

A /26 mask provides 6 host bits. Applying the formula: $2^6 - 2 = 64 - 2 = 62$ usable host addresses.

Since a /26 mask provides 62 usable addresses, it is the smallest standard subnet mask that fully satisfies the requirement of 50 hosts. Using a /26 mask allows for the 50 required hosts while providing a small buffer for future growth (12 additional addresses) without wasting the excessive address space associated with a /25 or /24 mask. This efficient allocation of address space is a best practice for maintaining scalable and organized routing tables on Juniper devices.

In Junos OS, the rescue configuration is a specifically designated file that stores a known-working configuration, intended to be used for emergency recovery when the device becomes unreachable or unstable due to recent changes. This configuration is not created automatically; an administrator must proactively save a stable state using the operational mode command request system configuration rescue save. This differs from the standard rollback archive, which automatically stores up to 50 previous configurations but can eventually rotate out the specific " last known good " state needed for recovery.

When a device loses network connectivity, console access becomes the only viable management path. To restore the rescue configuration, the administrator must enter configuration mode using the configure command. Once inside the candidate configuration buffer, the rollback rescue command is issued. This command directs the Junos OS to locate the designated rescue file and load its contents over the current candidate configuration. Upon receiving the " load complete " confirmation, the administrator must execute a commit to promote the candidate configuration to the active, running state. Sequence C correctly follows this logic. Sequence A is technically incorrect for standard rescue restoration as load override typically targets specific file paths or URLs, whereas rollback rescue is the built-in mechanism for this function. Sequences B and D are destructive or counter-productive, either deleting the rescue file or overwriting it with the current, non-functional configuration state. Reference: Operational Monitoring and Maintenance, Configuration Recovery, Rescue Configuration.

==========

The architecture of Junos OS is designed with a strict functional separation between the control plane and the data plane. The Routing Engine (RE) maintains the master Routing Information Base (RIB), which acts as a comprehensive database storing all potential paths learned from various routing protocols, static configurations, and direct connections. However, to achieve wire-speed performance, the device does not consult the RIB for every packet. Instead, the RE identifies the " active " or best routes for each destination based on route preference and metrics.

Once these active routes are selected, the RE distills them into a streamlined Forwarding Information Base (FIB), commonly referred to as the forwarding table, and pushes this table to the Packet Forwarding Engine (PFE). The main function of the forwarding table is to provide a high-speed, local lookup mechanism that allows the PFE to forward transit traffic across the switch fabric with minimal latency. This table contains only the specific exit interface and Layer 2 next-hop information required for packet delivery. By isolating the PFE from the overhead of complex routing protocol state machines and all inactive redundant paths, Junos OS ensures that forwarding performance remains consistent even during control plane re-convergence. Reference: Junos OS Fundamentals, Control Plane and Forwarding Plane functions.

==========

The exhibit illustrates the configuration of a firewall filter named mgmt_fill and its subsequent application to an interface. The first true statement is that the filter is applied to a physical interface . The configuration shows the filter attached to me0 , which in Junos nomenclature represents the Management Ethernet port—a dedicated physical port for out-of-band management traffic. This is separate from logical or virtual interfaces, as me0 provides the physical link for administrative access.

The second true statement is that the filter evaluates SSH packets egressing from the management interface . In the provided snippet, term t1 specifically matches the destination-port ssh , and the filter is applied to the interface unit. When a filter is applied to an interface, it can monitor traffic entering or leaving the device. Furthermore, the filter utilizes a count action (count c1), which is a non-terminating action used to provide telemetry on specific traffic types passing through that physical port. There is no mention of a syslog or log action in the configuration, meaning that while packets are counted, they are not being written to the system log files. This configuration is a standard method for hardening the management plane and tracking administrative session activity on the Routing Engine. Reference: Routing Policy and Firewall Filters, Firewall Filter Actions, Management Interfaces.

==========

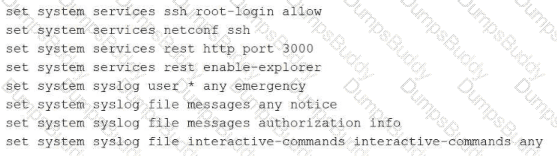

The exhibit illustrates a Junos configuration rendered as a sequence of flat, executable lines that each begin with the set keyword. This is commonly referred to as the " set format. " By default, Junos OS displays the configuration in a hierarchical, brace-delimited format (often called " staza " or " curly brace " format). While the default format is excellent for visualizing the structural relationship between different configuration objects, the set format is often preferred for documentation, scripting, or copying specific configuration snippets between different devices.

To produce the output seen in the exhibit, an administrator must append the pipe filter | display set to the show configuration command. This filter instructs the CLI parser to flatten the hierarchical structure and prepend the necessary context to every individual leaf statement. These lines are highly functional because they can be pasted directly into the CLI of another device while in configuration mode to recreate the exact settings. In contrast, display inheritance is used to reveal hidden settings applied via configuration groups, and display detail provides additional technical metadata about the objects. Neither of those options would transform the output into the discrete set command lines shown in the exhibit. Understanding how to toggle between these display formats is a fundamental skill for any architect managing Junos infrastructures through the Command Line Interface.

When you need to visualize the hop-by-hop journey of a packet across a multi-vendor or Junos-based network, traceroute is the definitive operational tool. Unlike ping , which merely confirms end-to-end reachability by eliciting an Echo Reply, traceroute provides a clinical breakdown of every Layer 3 device (router or switch) in the path.

The mechanics of this tool are quite clever: it sends out a sequence of packets (usually UDP or ICMP) with an increasing Time-to-Live (TTL) value, starting at 1. When the first router receives the packet, it decrements the TTL to 0, discards the packet, and sends an ICMP " Time Exceeded " message back to the source. This informs your Junos device of the first hop ' s identity. This process repeats, incrementing the TTL each time, until the packet reaches the final destination. This path discovery is vital for identifying where traffic might be diverted by a misconfigured routing policy or where latency is being introduced in the network fabric. While monitor interface traffic gives you real-time throughput on a local port and SNMP provides historical telemetry to a management station, neither can map the external topological path like traceroute. In the Junos CLI, you can even specify the source address or bypass the routing table to test specific egress paths.

In the Junos OS environment, distinguishing between static diagnostic data and real-time telemetry is crucial for effective troubleshooting. While commands like show interfaces provide a cumulative snapshot of counters since the last reboot or counter clear, they do not easily reveal instantaneous spikes or fluctuating utilization patterns. To address the requirement for " live, real-time traffic updates, " the monitor interface command is the correct operational tool.

When an architect executes monitor interface ge-0/0/5, the CLI launches an interactive, ncurses-based screen that refreshes every second. This display provides immediate visibility into input and output bits-per-second (bps), packets-per-second (pps), and error increments. Unlike static commands, this real-time stream allows a technician to observe micro-bursts or sustained high-utilization periods as they occur, which is essential for diagnosing " intermittent slowness " caused by congestion. In contrast, show chassis hardware focuses on physical inventory, and show interfaces terse only provides administrative and operational status. Even the extensive version of the show command only offers a point-in-time calculation of averages. Therefore, monitor interface is the primary mechanism for interactive performance auditing of individual ports on the Packet Forwarding Engine.

Root password recovery in Junos OS is a critical administrative procedure designed to regain access to the management plane when the root credentials are lost. This process is fundamentally tied to the physical security of the device, as it requires two specific conditions that cannot be met over a standard network connection. First, the administrator must have direct console access to the device. Because the recovery process involves interrupting the Junos boot sequence before the operating system kernel and its associated security services (such as SSH) are fully initialized, it must be performed through the serial management port.

Second, a system reboot is mandatory. The recovery mechanism is triggered by interrupting the boot loader (typically the " Loader " or " U-Boot " stage) by pressing the Space bar or a specific key sequence during power-on. This allows the administrator to enter " single-user mode " or boot into a " recovery " state. Once in this restricted environment, the device mounts its internal storage in a way that permits the modification of the root authentication parameters without requiring the existing password. This workflow intentionally bypasses the standard authentication database to restore management control while preserving the rest of the device configuration. This procedure underscores the importance of securing physical access to the chassis, as anyone with console access and the ability to cycle power can eventually gain root-level authority over the system.

Comprehensive and Detailed 150 to 250 words of Explanation From: In a routed environment like the one shown in the exhibit, traffic forwarding involves a constant interaction between Layer 3 (Network) and Layer 2 (Data Link) addressing. When User A generates a packet destined for User B, the source and destination IP addresses remain static throughout the entire journey across the network (assuming no Network Address Translation is performed). However, the Layer 2 Ethernet headers must be rewritten at every hop because MAC addresses have only local significance on a physical segment.

As Router R1 receives the packet from User A, it performs a lookup in its Forwarding Information Base (FIB) and identifies that the path to User B requires forwarding the packet to Router R2. R1 decapsulates the incoming frame, stripping away the original Ethernet header that contained User A ' s source MAC and R1 ' s own destination MAC. To forward the packet to the next hop, R1 creates a new Ethernet header. The source MAC address becomes the MAC address of R1’s egress interface, and the destination MAC address is replaced with the MAC address of Router R2 . R1 cannot use User B ' s MAC address at this point because User B is not on a directly connected segment. This hop-by-hop MAC address replacement is essential for the Packet Forwarding Engine to successfully deliver the frame to the next Layer 3 device in the path. Reference: Networking Fundamentals, Packet Forwarding, Layer 2 and Layer 3 Addressing.

In Junos OS, the naming convention for physical interfaces is highly structured, providing immediate information regarding the media type, hardware location, and port number. The prefix of an interface name is a two-letter or three-letter code that identifies the speed and physical transmission characteristics of the interface. For 10-Gigabit Ethernet (GbE) interfaces, the correct prefix is xe. This prefix is a standard identifier across Junos platforms, regardless of whether the interface is fixed or modular.

Understanding these prefixes is essential for navigating the Junos configuration hierarchy and performing operational monitoring. For comparison, other common prefixes include fe for Fast Ethernet (10/100 Mbps), ge for Gigabit Ethernet (1 Gbps), and et for higher-speed interfaces such as 40-GbE or 100-GbE. When an administrator views the output of commands like show interfaces terse, identifying the xe prefix allows for the quick verification of high-bandwidth links within the network fabric. This standardized nomenclature ensures consistency across different hardware families, such as the EX, MX, and QFX series, facilitating easier management and troubleshooting for network architects. This concludes the provided set of questions from the Junos Associate (JNCIA-Junos) curriculum. Reference: Junos OS Fundamentals, Interface Naming Conventions.

In Junos OS, there is a distinct difference between show commands and monitor commands. While show commands provide a static snapshot of the current state of the device or its interfaces at the moment the command is executed, monitor commands provide dynamic, real-time updates. To view live traffic statistics across all physical and logical interfaces, the correct command is monitor interface traffic.

When this command is executed, the CLI enters an interactive text-based interface (TUI) that displays a list of interfaces along with their input and output rates in bits per second (bps) and packets per second (pps). The display refreshes automatically (usually every few seconds), allowing an administrator to observe traffic spikes or drops as they occur without manually re-running a command. This is an invaluable tool for troubleshooting congestion or verifying that traffic is flowing as expected after a configuration change. Commands like show interfaces extensive provide significantly more detail—including error counters and physical layer parameters—but they are not real-time and require manual execution to update the statistics. The monitor interface traffic command simplifies the view to focus specifically on throughput metrics across the entire device. Reference: Operational Monitoring and Maintenance, Interface Monitoring, Real-time Statistics.

Simple Network Management Protocol version 3 (SNMPv3) represents a significant security evolution over its predecessors, SNMPv1 and SNMPv2c. While earlier versions relied on " community strings " sent in plain-text—which are easily intercepted and provide minimal security—SNMPv3 introduces a comprehensive security framework known as the User-based Security Model (USM). The primary benefit of SNMPv3 is that it protects against tampering and eavesdropping. It achieves this through two main mechanisms: message integrity (authentication), which ensures that a packet has not been altered in transit, and data confidentiality (privacy), which encrypts the payload of the SNMP packets using advanced algorithms like AES or DES.

Furthermore, SNMPv3 provides for secure communication by utilizing encrypted credentials rather than cleartext strings. Administrators define specific users and assign them security levels: noAuthNoPriv, authNoPriv, or authPriv. In the most secure mode (authPriv), the system requires both a password for authentication (validated via MD5 or SHA hashes) and a separate password for encryption. This architecture ensures that management traffic—including sensitive device telemetry and configuration data—remains confidential and authenticated as it traverses the network. While SNMPv3 is inherently more complex to configure than SNMPv2c due to these additional security parameters, it is the required standard for any production Junos environment where management plane integrity is a priority.

In Junos OS, routing information is meticulously organized into separate databases known as routing tables, each identified by a specific name corresponding to an address family and its intended operational purpose. The master routing table for IPv4 unicast information is inet.0 . For the IPv6 address family, Junos OS utilizes inet6.0 as the default master routing table for all unicast reachability information. This table stores all IPv6 prefixes learned from directly connected interfaces, static configurations, and dynamic routing protocols such as OSPFv3, IS-IS, or BGP.

It is a core architectural principle in Junos to isolate these families to ensure management clarity and prevent address space collisions. While the system utilizes other specialized tables for specific functions—such as inet.3 for MPLS path information or inet.1 for multicast forwarding caches— inet6.0 remains the primary repository for IPv6-based forwarding decisions. When a Junos device receives an IPv6 packet, the Packet Forwarding Engine (PFE) performs a lookup against the entries derived from this table to determine the appropriate egress interface and next-hop address. Understanding this default table structure is essential for network architects when troubleshooting dual-stack environments or configuring protocol-specific import and export policies.

In Junos OS, firewall filters are constructed using terms that specify match criteria (the from statement) and actions to be taken (the then statement). When a packet enters an interface where this filter is applied, the Packet Forwarding Engine (PFE) evaluates it against the defined terms. In this exhibit, the term limit-icmp targets packets sourced from the 172.25.11.0/24 network that specifically use the ICMP protocol.

When a packet meets both criteria, the actions defined in the then block are triggered:

count count-icmp; : This is a non-terminating action . It instructs the system to increment a specific software counter named count-icmp. This allows administrators to monitor exactly how many packets are hitting this specific term using the show firewall command.

discard; : This is a terminating action . It immediately stops any further evaluation of the packet and drops it. A key characteristic of the discard action in Junos is that it is a " silent " drop; the router simply deletes the packet from its buffer without notifying the sender.

Option D is incorrect because returning an ICMP destination unreachable message is the specific behavior of the reject action, not the discard action. Option C is incorrect because discard explicitly prevents the packet from being forwarded. Understanding the distinction between silent discards and active rejections is essential for architects when designing security policies that balance stealth with network transparency.

In the Junos OS architecture, maintaining a reliable recovery point is a critical post-installation task. While the system automatically archives previous configurations as " rollback " files every time a commit is performed, these files are transient and can eventually be rotated out of the default 50-file history as new changes are made. To ensure a permanent and reliable recovery state, a Senior Architect should manually create a rescue configuration .

The rescue configuration is a specifically designated file used to restore a device to a known-working state if it becomes unreachable or the configuration becomes corrupted. Unlike standard rollbacks, the rescue configuration is only created or updated when an administrator explicitly issues the operational mode command request system configuration rescue save. This ensures that even if several subsequent commits flush the desired initial state from the standard rollback archive, the " safe harbor " configuration remains intact on the storage media. This state can then be re-activated via the rollback rescue command in configuration mode followed by a commit. Setting a rescue configuration after the initial setup is a foundational best practice for disaster recovery and operational stability, providing a " last resort " configuration that is immune to the automated rotation of the commit history.

In the IPv4 addressing scheme used within Junos OS, the /24 prefix length (representing a subnet mask of 255.255.255.0) allocates 24 bits for the network portion and 8 bits for the host portion of the 32-bit address. To determine the total number of addresses in this block, the formula $2^n$ is applied, where $n$ is the number of host bits. With 8 bits available ($2^8$), there are a total of 256 possible IP addresses.

However, the architecture of standard IP networking requires the reservation of two specific addresses within any subnet, making them unavailable for assignment to individual host interfaces. The first address (192.168.1.0) is the network address, which identifies the subnet itself. The last address (192.168.1.255) is the directed broadcast address, used to send traffic to all hosts on the segment simultaneously. Consequently, the maximum number of addresses that can be assigned to actual hosts—such as router interfaces, servers, or workstations—is calculated as $2^n - 2$. In this specific scenario, $256 - 2 = 254$. This calculation is a fundamental requirement for network architects when defining address pools and ensuring the Packet Forwarding Engine (PFE) is correctly configured with valid host-layer identifiers.

Junos OS utilizes a Role-Based Access Control (RBAC) model through the use of login classes, which define the specific permissions and restrictions for different user levels. To simplify administration, Juniper provides several predefined classes that cater to common organizational roles. The requirement here is for an account that can perform basic network diagnostics (operational mode) but lacks the authority to modify the system state (configuration mode).

The operator class is specifically engineered for this purpose. It grants permissions such as clear, network, reset, trace, and view. These permissions allow the user to execute monitoring commands like show, use diagnostic tools like ping and traceroute, and clear statistics. Crucially, the operator class does not include the configure or commit permissions, preventing the user from entering configuration mode or making any permanent changes to the device.

Comparing this to other options: the read-only class is more restrictive, generally allowing only the viewing of configuration and some state data, but often restricting active diagnostic tools like ping. The super-user class provides unrestricted access, while maintenance is not a standard predefined class for general operational roles. Assigning the operator class ensures that junior staff or automated monitoring systems have the visibility they need to troubleshoot connectivity without risking the integrity of the device configuration.

In the Junos OS, the Command Line Interface (CLI) uses distinct prompt symbols to provide the administrator with immediate contextual awareness of their current operating environment. When the prompt ends with a hash symbol (#) , it indicates that the user is in configuration mode .

This mode is the " engine room " of the device, where you modify the candidate configuration. Here, you can add, delete, or modify statements across the various hierarchies like [edit system], [edit interfaces] , or [edit protocols]. It is important to remember that changes made while the # prompt is visible are not active until a commit command is successfully executed.

Contrast this with the operational mode , which is indicated by a greater-than symbol ( > ) . Operational mode is used for monitoring, troubleshooting, and viewing the system status (e.g., show commands). Moving between these modes is a fundamental part of the Junos workflow: you enter configuration mode by typing configure and return to operational mode by typing exit or quit. If you see a percent sign (%), you ' ve wandered into the FreeBSD shell mode , which is a lower-level Unix environment typically reserved for advanced system maintenance. Recognizing that # means you have the power to change the system ' s " brain " is a key safety check for any network architect.

The Junos OS CLI is engineered with an extensive, self-contained help subsystem designed to provide immediate technical guidance without requiring constant reference to external manuals. The help command is a versatile tool that operates through several key sub-commands: topic, reference, and log. While help topic provides conceptual overviews and help reference displays specific configuration syntax and hierarchical requirements, the help log command is specifically tailored for system maintenance and troubleshooting.

The primary purpose of help log is to provide a detailed explanation for specific system log error messages generated by the device. When a Junos daemon or process writes an entry to the syslog, it includes a unique message identifier or " tag. " By executing help log < message-tag > , an architect can retrieve a clinical breakdown of why the message was generated, the severity of the event, and often the recommended action to resolve the underlying issue. This capability is vital for rapid interpretation of complex system events in real-time. It ensures that administrators have authoritative, context-aware information directly at the terminal, effectively bridging the gap between raw diagnostic output and actionable technical intelligence within the Junos environment. Reference: User Interfaces, CLI Help Facilities, help log.

==========
