DP-700 Implementing Data Engineering Solutions Using Microsoft Fabric Questions and Answers

C:\Users\Waqas Shahid\Desktop\Mudassir\Untitled.jpg

The correct answer is C because the requirement is specifically to identify records based on when they were ingested into the Fabric monitoring data store , rather than when a monitored job started or ended.

In KQL, ingestion_time() returns the approximate UTC datetime at which the current record was ingested and became available for querying. The datetime_diff() function uses the syntax datetime_diff(period, datetime1, datetime2) and effectively calculates the difference between datetime1 and datetime2. Therefore:

datetime_diff( ' second ' , now(), ingestion_time())

calculates how many seconds have elapsed between the record ' s ingestion time and the current time. Filtering for values < = 540 returns records ingested within approximately the previous nine minutes. Microsoft explicitly uses this same expression in Fabric workspace-monitoring examples for retrieving recent records. ( Microsoft Learn )

Options A and B evaluate job execution timestamps rather than ingestion recency. Option D reverses the datetime operands, which normally produces a negative elapsed-time value and therefore does not correctly represent " seconds ago. "

Study Guide reference: Monitor and optimize an analytics solution → monitor Fabric workloads, workspace monitoring, KQL querying, and operational log analysis. ( Microsoft Learn )

===============

To copy data from an on-premises Microsoft SQL Server database (Database1) to a warehouse (Warehouse1) in Microsoft Fabric, the best option is to use a data pipeline. A data pipeline in Fabric allows for the orchestration of data movement, from source to destination, using connectors, transformations, and scheduled workflows. Since the data is being transferred from an on-premises database and requires the use of a data gateway, a data pipeline provides the appropriate framework to facilitate this data movement efficiently and reliably.

Problem Overview:

Table1 has 2,000 small Parquet files (1 MB each).

Query performance suffers when the table contains numerous small files because the query engine must process each file individually, leading to significant overhead.

Solution:

To improve performance, file compaction is necessary to reduce the number of small files and create larger, optimized files.

Commands and Their Roles:

OPTIMIZE Command:

- Compacts small Parquet files into larger files to improve query performance.

- It supports optional features like V-Order, which organizes data for efficient scanning.

VACUUM Command:

- Removes old, unreferenced data files and metadata from the Delta table.

- Running VACUUM after OPTIMIZE ensures unnecessary files are cleaned up, reducing storage overhead and improving performance.

When using the Copy data activity in a data pipeline to move data from Snowflake to a Fabric warehouse, the process often involves intermediate staging to handle data efficiently, especially for large datasets or cross-cloud data transfers.

Staging involves temporarily storing data in an intermediate location (e.g., Blob storage or Azure Data Lake) before loading it into the target destination.

For cross-cloud data transfers (e.g., from Snowflake to Fabric), enabling staging ensures data is processed and stored temporarily in an efficient format for transfer.

Staging is especially useful when dealing with large datasets, ensuring the process is optimized and avoids memory limitations.

In this case, the key issue causing performance degradation likely stems from the use of MD5 hash surrogate keys. MD5 hashes are 128-bit values, which can be inefficient for large datasets like the 500 million rows in your fact table. Using a more efficient data type for surrogate keys (such as integer or bigint) would reduce the storage and processing overhead, leading to better query performance. This approach will improve performance while minimizing operational costs because it reduces the complexity of querying and indexing, as smaller data types are generally faster and more efficient to process.

To ensure that Notebook2 can attach to the same Apache Spark session as Notebook1, you need to enable high concurrency for notebooks. High concurrency allows multiple notebooks to share a Spark session, enabling them to run within the same Spark context and thus share resources like cached data, session state, and compute capabilities. This is particularly useful when you need notebooks to run in sequence or together while leveraging shared resources.

C:\Users\Waqas Shahid\Desktop\Mudassir\Untitled.jpg

To ensure that the usage of the data in the Amazon S3 bucket meets the technical requirements, we must address two key points:

Minimize egress costs associated with cross-cloud data access: Using a shortcut ensures that Fabric does not replicate the data from the S3 bucket into the lakehouse but rather provides direct access to the data in its original location. This minimizes cross-cloud data transfer and avoids additional egress costs.

Prevent saving a copy of the raw data in the lakehouses: Disabling caching ensures that the raw data is not copied or persisted in the Fabric workspace. The data is accessed on-demand directly from the Amazon S3 bucket.

Data Analysts ' Access Requirements must only have read access to the Delta tables in the gold layer and not have access to the bronze and silver layers.

The gold layer data is typically queried via SQL Endpoints. Granting the Read all SQL Endpoint data permission allows data analysts to query the data using familiar SQL-based tools while restricting access to the underlying files.

The technical requirements specify that:

Medallion layers must be fully populated sequentially (bronze → silver → gold). Each layer must be populated before the next.

If any step fails, the process must notify the data engineers.

Data imports should run simultaneously when possible.

Why Use a Data Pipeline That Calls Other Data Pipelines?

A data pipeline provides a modular and reusable approach to orchestrating the sequential population of medallion layers.

By calling other pipelines, each pipeline can focus on populating a specific layer (bronze, silver, or gold), simplifying development and maintenance.

A parent pipeline can handle:

- Sequential execution of child pipelines.

- Error handling to send email notifications upon failures.

- Parallel execution of tasks where possible (e.g., simultaneous imports into the bronze layer).

A screenshot of a computer Description automatically generated

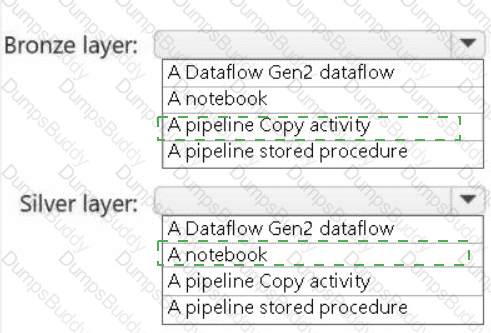

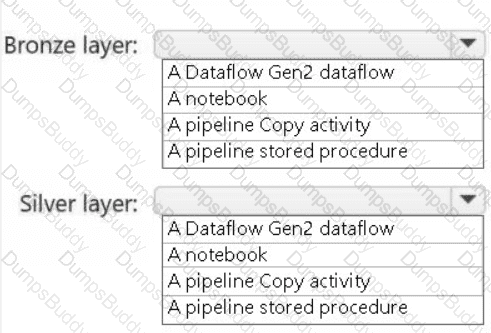

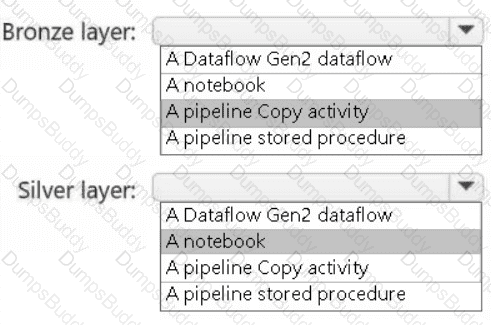

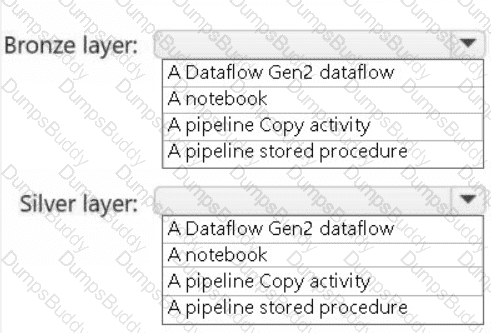

Bronze Layer: A pipeline Copy activity

The bronze layer is used to store raw, unprocessed data. The requirements specify that no transformations should be applied before landing the data in this layer. Using a pipeline Copy activity ensures minimal development effort, built-in connectors, and the ability to ingest the data directly into the Delta format in the bronze layer.

Silver Layer: A notebook

The silver layer involves extensive data cleansing (deduplication, handling missing values, and standardizing capitalization). A notebook provides the flexibility to implement complex transformations and is well-suited for this task.

A screenshot of a computer Description automatically generated

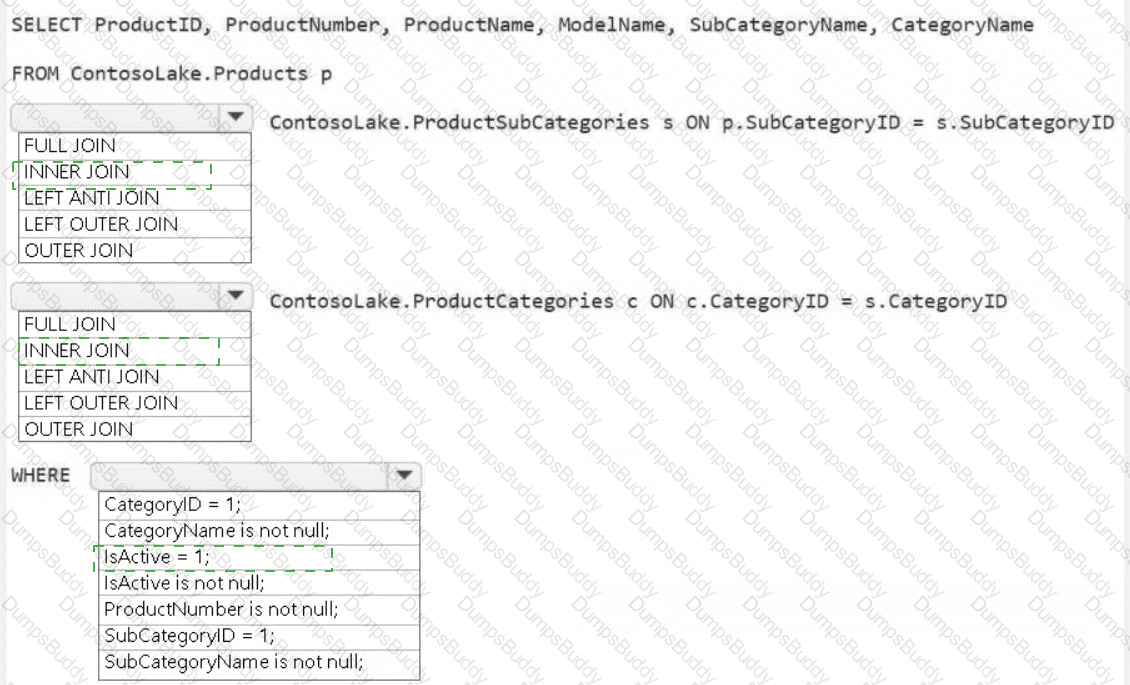

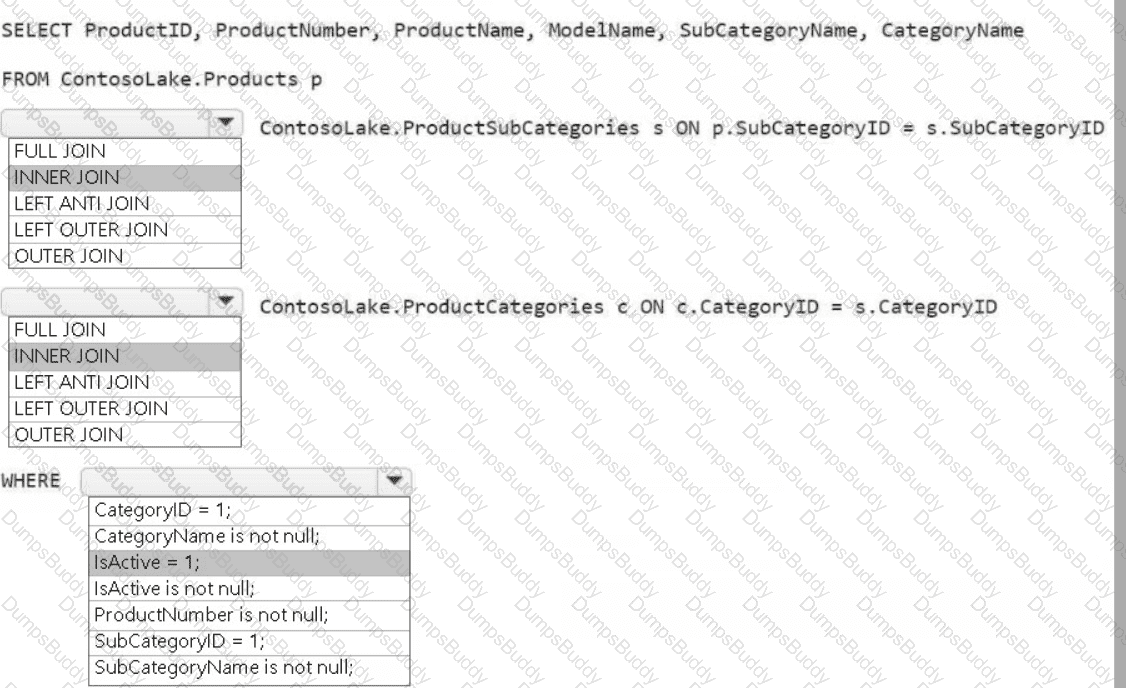

Join between Products and ProductSubCategories:

Use an INNER JOIN.

The goal is to include only products that are assigned to a subcategory. An INNER JOIN ensures that only matching records (i.e., products with a valid subcategory) are included.

Join between ProductSubCategories and ProductCategories:

Use an INNER JOIN.

Similar to the above logic, we want to include only subcategories assigned to a valid product category. An INNER JOIN ensures this condition is met.

WHERE Clause

Condition: IsActive = 1

Only active products (where IsActive equals 1) should be included in the gold layer. This filters out inactive products.

MAR1 has seven entities, each accessible via a different API endpoint. A ForEach activity is required to iterate over these endpoints to fetch data from each one. It enables dynamic execution of API calls for each entity.

The Copy data activity is the primary mechanism to extract data from REST APIs and load it into the bronze layer in Delta format. It supports native connectors for REST APIs and Delta, minimizing development effort.

The requirement specifies that Litware plans to make the book reviews available in the lakehouse without making a copy of the data. In this case, creating a shortcut in Fabric is the most appropriate solution. A shortcut is a reference to the external data, and it allows Litware to access the book reviews stored in Amazon S3 without duplicating the data into the lakehouse.

The sales data issue can be resolved by configuring incremental refresh for the dataflow. Incremental refresh allows for only the new or changed data to be processed, minimizing the amount of data transferred and improving performance.

The solution specifies that data older than one month never changes, so setting the refresh period to 1 Month is appropriate. This ensures that only the most recent month of data will be refreshed, reducing unnecessary data transfers.
