300-830 Implementing Cisco Collaboration Cloud Customer ExperienceCLCCEv1.0 Questions and Answers

To verify which contact sessions were recorded, the manager needs a contact-session report, not a team or site inventory report. Cisco's Analyzer stock reports include CSR reports that are based on Customer Session Record data. The CSR Report - Yesterday is a stock historical report suitable for reviewing completed customer sessions and whether those sessions include recording-related indicators. Team Contact Details and Site Contact Details can be useful for operational breakdowns by team or site, but the question asks which contact sessions were recorded, which aligns with the customer session record. A Usage Report is generally used for consumption or system usage and is not the direct stock report for contact session recording verification. The exam wording points to the standard Analyzer repository/reporting structure: CSR summarizes the end-to-end customer interaction and is the right source when validating recorded contact sessions. Reference: Cisco Help, Webex Contact Center Analyzer User Guide; Webex Contact Center Analyzer Stock Reports.

The call reaches the initial greeting and accepts an IVR option, so the Local Gateway and inbound call delivery are working at least through the first media and signaling stage. The failure occurs after the caller makes a menu selection, which points at the flow branch or the next activity after that menu, not at the trunk itself. Cisco's Flow Designer documentation explains that flows define what happens at each stage of a call, including prompts, menu handling, queueing, transfers, and disconnect behavior. If a branch after the selected option has an invalid Queue Contact configuration, an invalid transfer destination, an unhandled error, or an incorrect terminal node, the customer may hear the greeting and then be disconnected. Analyzer can confirm call records after the fact, but the fastest root-cause path is to inspect the flow configuration and the branch selected by the caller. Queue or channel association issues would usually prevent reaching the intended IVR stage. Reference: Cisco Help, Build and manage flows with Flow Designer; Understand Routing and Queueing in Webex Contact Center.

Real-time transcripts require the media stream to start before the conversation is sent to the queue or agent. Cisco's AI Assistant real-time transcription feature depends on capturing and streaming the call audio so the platform can produce transcript data for the agent and downstream AI features. If the Media Stream node is placed after the Agent Answered event, the transcript starts too late and misses the early customer interaction and queue/agent transition context. A Condition node can be useful for branching but does not enable transcription by itself. Configuring a Scripted AI Agent is unrelated to enabling AI Assistant real-time transcripts for a live-agent call. The correct flow action is to add the Media Stream node before the call reaches the queue or agent so the media is available for transcription at the right point in the call lifecycle. Reference: Cisco Help, Cisco AI Assistant for Webex Contact Center: Administrator's guide to configuring Real-Time Assist; AI Assistant reports in Analyzer.

Cisco's Recording Control activity gives caller consent precedence over tenant, queue, and recording schedule settings. In the documented precedence order, if user consent is set to Yes in the flow, the call is recorded regardless of the recording configuration at those other levels. If the user does not consent, the call is not recorded, also regardless of those other settings. If the Recording Control activity is not configured in the flow, the system falls back to the normal recording hierarchy: if any applicable tenant, queue, or schedule configuration is Yes, the call is recorded; if all are No, it is not. That is why option B is true and option C is false. Option D is also true because removing the flow activity returns control to queue-level or other configured recording policy. Option E is false because explicit Yes consent in the flow takes precedence over a recording schedule set to No. Reference: Cisco Help, Understand Routing and Queueing in Webex Contact Center; Build and manage flows with Flow Designer.

The Debug Console exhibit shows an SMTP failure for an outbound email transaction. In Webex Connect email asset configuration, the service provider settings must match the SMTP connection requirements, including the server address, port, authentication method, and security method. The failure pattern represented in this question points to connection-level SMTP mistakes: an incorrect SMTP server port and an incorrect SMTP security method. Those two errors commonly prevent the platform from establishing or negotiating the SMTP session at all. An incorrect username would usually produce an authentication failure after the connection is made, and an incorrect server address would present a DNS or host connection error rather than the specific pairing shown. The asset not being registered to Webex Engage affects channel registration and conversation use cases, but the exhibit specifically identifies SMTP failure in the email channel. Therefore the port and security method are the two configuration mistakes. Reference: Webex Connect Help, Email - WXCC; Webex Connect Help, Debug Console.

Queue ranking is the feature designed for this exact business rule. Cisco's Webex Contact Center team configuration documentation allows administrators to rank queues for a team by media type, with lower numerical rank having higher priority. Cisco's routing documentation explains that ranked queues take precedence over queues without the same priority and that queue ranking can be used across media types. In the scenario, Sales must always be handled before Accounting, even when an Accounting call has waited longer. This is not a normal first-in-first-out queue rule; it is a cross-queue prioritization requirement. Configuring capacity-based queues would change the queue operating model but would not impose Sales-before-Accounting precedence. Asking agents to ignore Accounting calls is not a system configuration and would produce inconsistent reporting and service levels. A Sales-only skill profile would prevent Accounting handling rather than defer it until Sales is empty. Queue ranking is the controlled team-based mechanism that satisfies the requirement. Reference: Cisco Help, Manage teams in Webex Contact Center; Understand Routing and Queueing in Webex Contact Center.

Webex Contact Center APIs use OAuth 2.0 for authentication and authorization. Cisco's developer documentation for Webex and Webex Contact Center describes integrations as the mechanism used to request permission and obtain access tokens for API calls, using the OAuth 2.0 authorization framework rather than static API keys or basic HTTP authentication. OAuth 2.0 gives the platform scoped access control, token issuance, and administrative consent behavior appropriate for enterprise automation. Mutual TLS may be used in specific transport-security or trunking contexts, but it is not the authorization specification for normal Webex Contact Center REST APIs. Basic HTTP authentication would require sharing credentials directly with the client and does not match the Webex developer model. API key authentication is also not the supported authorization pattern for these Contact Center APIs. The typo in the original option has been corrected to OAuth 2.0. Reference: Webex Developer, Integrations and Authorization; Webex Contact Center API documentation.

See mapping below

After 180 seconds, agents from other sites must be able to take the call: Create agent-based teams; Add a Call Distribution Group that uses the remaining agents' team after the specified delay.

Only agents with a language ranking of > = 5 can take the call: Create a skill profile and set Type to Proficiency in the Skill Definition settings; Define skill requirements for the Queue activity where the caller's spoken language is > = 5.

The completed mapping follows Cisco's two different routing constructs. For the 180-second requirement, the call first targets the local or primary agents and then expands after a delay. Cisco documents Call Distribution Groups as the method used by non-skill queues to define levels of teams that become eligible after configured intervals. That is why an agent-based team plus a delayed call distribution group is the right match; a capacity-based team is used for unmanaged destinations and does not represent normal agent routing. The language-ranking requirement is different. It must be handled through skills and proficiency. Cisco documents skill definitions, skill profiles, and queue skill requirements as the pieces used to limit routing to agents with matching skill values. Therefore the skill definition must use Proficiency and the Queue activity must define the language requirement of at least 5. A Best Available Agent queue alone is insufficient unless the skill requirement is actually applied. Reference: Cisco Help, Understand Routing and Queueing in Webex Contact Center; Create queues and configure routing patterns.

WhatsApp and SMS are premium digital channels in the Webex Contact Center licensing model. Cisco's Webex Contact Center data sheet distinguishes Standard Agent and Premium Agent capabilities. Standard Agent includes core contact center functions and agent-assisted chat and email, while Premium Agent adds broader digital communication channels such as SMS, social channels, multichannel analytics, and supervisor monitoring capabilities. The scenario says the agent can receive Chat and Voice, so the agent is already provisioned for basic voice and chat handling. The missing capabilities are specifically WhatsApp and SMS, which are part of the higher digital-channel entitlement. An enhanced license is not the relevant license category in the Cisco Webex Contact Center agent-type model. The desktop layout can affect UI presentation, but it would not by itself entitle the agent to receive those channel types. The missing configuration is therefore the Premium license. Reference: Cisco Webex Contact Center Data Sheet; Cisco Help, Set up digital channels in Webex Contact Center.

Outdial calling in Webex Contact Center needs both a tenant or system caller-ID source and a desktop permission path that lets the agent place outbound calls. Cisco's Control Hub voice settings document the Default Outdial ANI field, which determines the default caller ID used for outdial behavior when a dial number is not otherwise mapped. Cisco's desktop profile documentation then controls whether an agent can actually use outdial from Agent Desktop. When Outdial is enabled on the desktop profile, the administrator selects the outdial entry point and, where applicable, the Outdial ANI list. Adding an agent to an outbound team is campaign-related and not a prerequisite for ordinary outdial. ANI in Flow Designer can influence call presentation in flows, but it is not the required administrative setup for agent outdial. A wrap-up reason for an outdial queue is useful for classification after a contact, not the base telephony enablement. Reference: Cisco Help, Set up voice settings for Webex Contact Center; Manage desktop profiles.

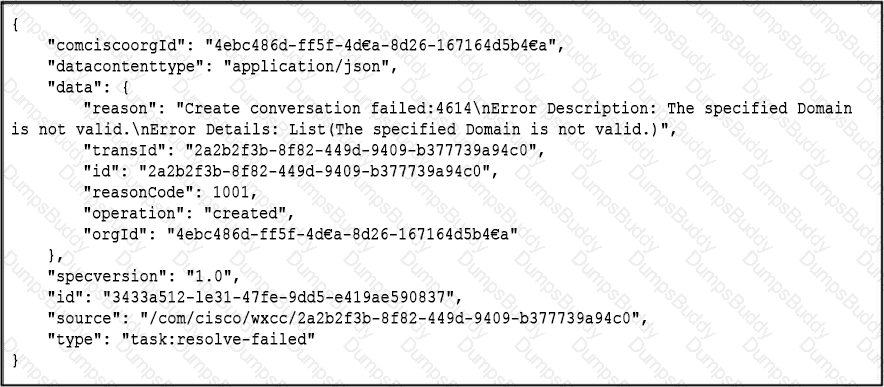

The failure occurs after the standard Live Chat workflow template is deployed and the widget can be started, so the website widget itself is not the main issue. The Resolve node response in the exhibit points to a missing or invalid Live Chat domain value used by the workflow. Cisco's Webex Connect live chat and create conversation documentation identifies Livechat Website Domain as a value stored under custom variables and used when resolving or creating live chat conversations. The standard template depends on that workflow custom variable being populated with the valid domain where the Live Chat widget is embedded. Changing media type and media channel on the Resolve node would not fix a missing domain variable in the deployed template. The option using chat Domain is close but not the named workflow custom variable indicated by the template. Setting the Workflow Custom Variable LiveChat Domain to a valid value resolves the failure. Reference: Webex Connect Help, Livechat; Create conversation - WxEngage standalone; Resolve Conversation - WXCC.

The Webex App inside Agent Desktop is controlled through the desktop layout JSON, not merely by installing the Webex App separately. Cisco documentation for supervisor and desktop features points administrators to the webexConfigured setting in the Webex Contact Center desktop layout. The layout also uses the AgentX Webex component identifier to render the embedded Webex application area. That is why the two required parameter combinations are the desktopChatApp object with webexConfigured set to true and the component value agentx-webex. The value webex-app is not the documented component name for this layout object. A generic webexAppEnabled Boolean or webexApp enabled object may look plausible, but it is not the required JSON pattern in the Cisco desktop layout schema. The result is practical: if either the correct component or the webexConfigured flag is absent, the embedded Webex App will not display in Agent Desktop for agent-to-agent, supervisor, or SME collaboration. Reference: Cisco Help, Create custom desktop layout; Supervise your agents and teams.

Inbound Webex Contact Center voice routing needs an entry path and an agent distribution target. The DNIS or support number must be associated with the entry point and flow so that an incoming PSTN call reaches the proper Flow Designer logic. Inside that flow, the contact must be queued to a queue that has eligible teams or agents. Cisco's queue documentation describes queues as holding areas where contacts wait until they are distributed, and it explains that non-skill queues use team assignments or agent assignments while skill queues use skill matching. The wording in the option set refers to DNIS entries in Flow Designer; operationally, DNIS is tied to the entry point/channel and flow selection, and the flow then uses a Queue Contact activity. Script Editor is a legacy/on-premises contact center construct, not the modern Webex Contact Center Flow Designer model. A softphone registration alone does not route calls, and a skills-only queue is not mandatory unless the design requires skills. Reference: Cisco Help, Set up voice channels for Webex Contact Center; Understand Routing and Queueing in Webex Contact Center.

Cisco documents two Local Gateway trunking models for Webex Calling: registration-based trunks and certificate-based trunks. A registration-based trunk has the local gateway maintain SIP registration toward Webex Calling, and the signaling relationship is established through that registration. Cisco's trunk and dial plan documentation describes this model as an implicit connection based on the gateway's registration. A certificate-based trunk uses mutual TLS and certificate trust to authenticate signaling without SIP registration in the same way. These are the formal trunking choices used when integrating on-premises voice infrastructure with Webex Calling and, by extension, supporting Webex Contact Center telephony designs that use Local Gateway. DNS-based trunks are not a Cisco trunking model name in this context. PSTN trunks and enterprise trunks are generic or design descriptions, not the two Local Gateway models. For 300-830, the key is recognizing the official Webex Calling trunk model terminology. Reference: Cisco Help, Configure Local Gateway on Cisco IOS XE for Webex Calling; Configure trunks, route groups, and dial plans for Webex Calling.

The requirement is to detect customer dissatisfaction before it escalates. Cisco's AI Assistant reporting and quality features include automatic CSAT scoring, which estimates customer satisfaction from interaction signals and gives the contact center a proactive way to identify poor experiences without waiting for a manual survey response. Topic analytics identifies common contact drivers and trending issues, which is valuable for operational improvement but does not directly score whether a specific customer is dissatisfied. AI-generated summaries reduce after-call work and improve handoff context, but they do not by themselves predict dissatisfaction. Real-time transcripts provide the text foundation for analysis and assistance, but the feature that turns interaction data into a customer-satisfaction signal is automatic CSAT scoring. For a customer-experience program focused on early dissatisfaction detection and proactive resolution, automatic CSAT provides the required risk signal. Reference: Cisco Help, AI Assistant reports in Analyzer; Cisco AI Assistant for Webex Contact Center documentation.
