HPE0-S59 HPE Compute Solutions Questions and Answers

When you configure a vVol datastore using the HPE Storage Integration Pack for VMware vCenter, the storage object to check in SSMC (HPE StoreServ Management Console) is the Storage Container. The Storage Container is a logical storage entity that houses virtual volumes (vVols) and represents the vVol datastore in the storage system. Verifying the Storage Container ensures that the vVol datastore is properly configured and managed.

One of the key benefits of using HPE Composer 2 is its enhanced scalability. A pair of HPE Composer 2 modules can manage up to 42 frames, which is double the capacity managed by the previous generation HPE Composer (which manages up to 21 frames). This increased capacity allows for more efficient and large-scale management of HPE Synergy environments.

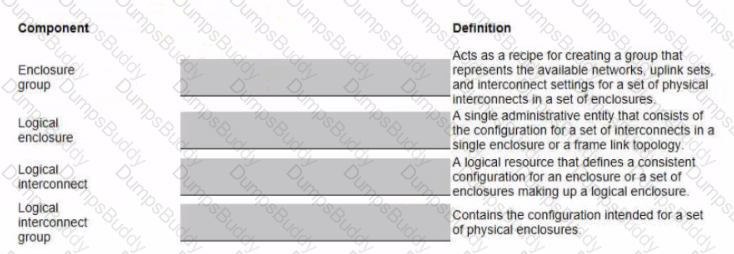

In an HPE Synergy environment, a logical enclosure represents a management domain that groups multiple Synergy frames and their associated compute, storage, and fabric resources. Given the setup with 3 HPE Synergy 12000 Frames and the specified components, the customer must create at least two logical enclosures to effectively manage all compute nodes and resources across multiple frames. This ensures proper resource allocation, management, and redundancy.

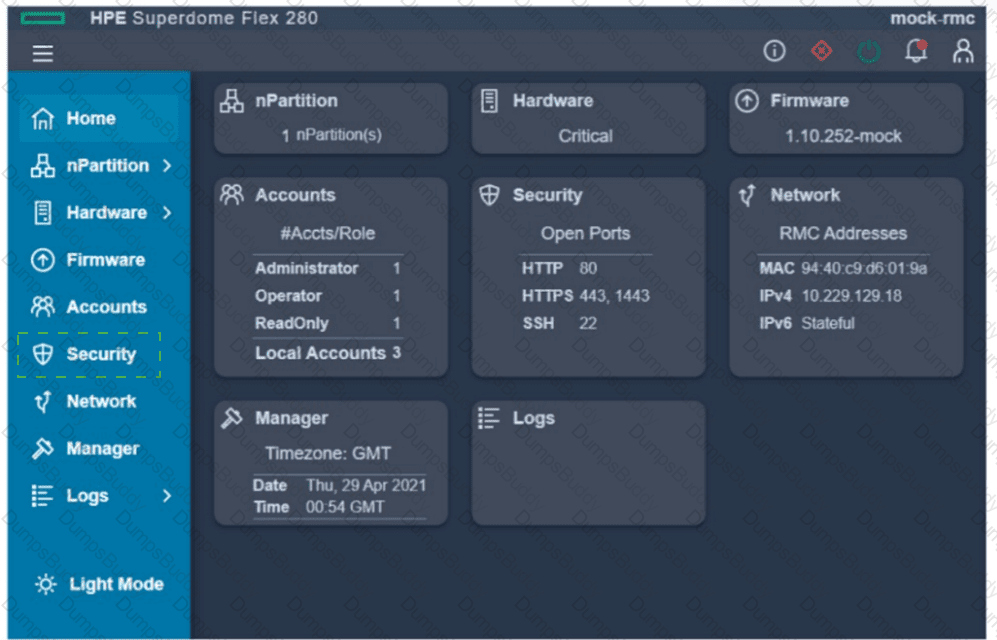

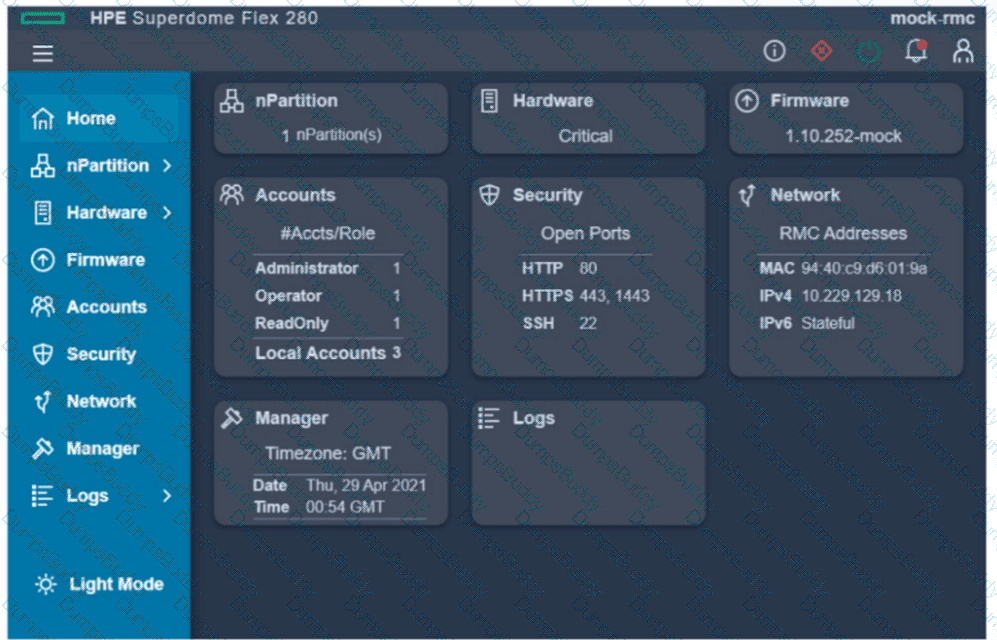

To check the network protocol status and SSL certificate in the HPE Superdome Flex 280 management interface, you should click on the " Security " section on the left-hand menu. This section typically provides access to details about protocols like HTTPS, SSL certificates, and port configurations.

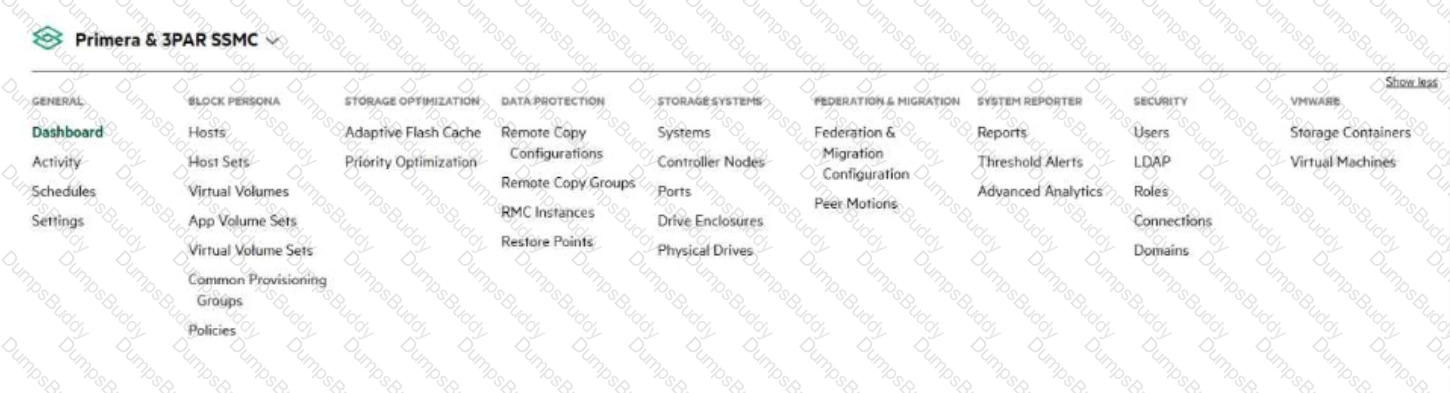

To verify whether a virtual storage operation is properly created on HPE Primera or 3PAR using the HPE Storage Integration Pack for VMware vCenter, you would click on the " Virtualization " option in the SSMC (StoreServ Management Console) main menu. This option allows you to manage and monitor storage operations related to virtual environments, including VMware integration.

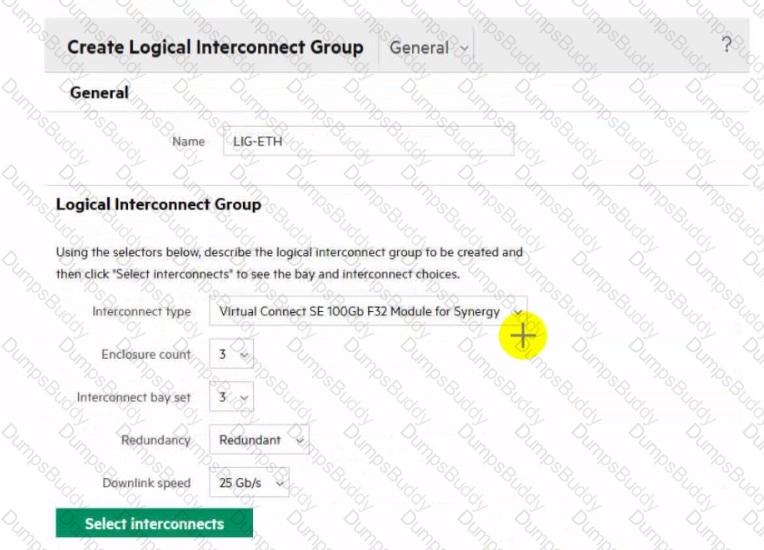

The exhibit shows the creation of a Logical Interconnect Group (LIG) using HPE Virtual Connect SE 100Gb F32 Modules . Here is the breakdown of why Option C is correct and why the others are not:

Master Module Placement (Option C): In a redundant HPE Synergy configuration, the two " Master " (or Primary) interconnect modules must be installed in the same frame (referred to as the Master Frame). These modules are placed in the redundant bays of the chosen bay set (e.g., Bay 3 and Bay 6). The other frames in the logical enclosure (Enclosure count: 3) will house Interconnect Link Modules (ILMs) , which act as satellite modules to extend the fabric from the masters. This architecture ensures a single management point and a unified control plane for the entire multi-frame fabric.

Bay Set Mapping (Option A): The exhibit explicitly shows the Interconnect bay set is set to 3 . In the HPE Synergy 12000 Frame, bay sets map to specific bays:

Bay Set 1: Bays 1 and 4

Bay Set 2: Bays 2 and 5

Bay Set 3: Bays 3 and 6 Since the LIG is configured for bay set 3, the master modules will be in bays 3 and 6 , making Option A incorrect.

Frame Scalability (Option B): The HPE Virtual Connect SE 100Gb F32 Module supports a master/satellite architecture that can scale up to five (5) frames in a single fabric (1 Master Frame + 4 Satellite Frames). The exhibit shows an enclosure count of 3 , which is well within the supported limit and not the maximum for a 25 Gb/s downlink configuration.

Compute Node Form Factor (Option D): Both half-height (e.g., Synergy 480) and full-height (e.g., Synergy 660) compute modules can use interconnect bay set 3. Half-height modules have three mezzanine slots, where slot 3 connects to bay set 3. Full-height modules have six mezzanine slots, where slot 3 and slot 6 can connect to these fabrics. There is no requirement that nodes must be half-height to utilize this fabric.

HPE System Update Manager (SUM) is the recommended method for updating firmware on HPE Superdome Flex systems, especially when HPE Persistent Memory firmware needs to be updated. HPE SUM ensures that all firmware components are updated correctly and consistently, reducing the risk of compatibility issues.

This scenario tests your knowledge of HPE Synergy Master/Satellite architecture and Management Ring requirements. Based on the requirements provided, the design has two primary issues that must be addressed:

Management Redundancy (HPE Composer 2):

The requirement states that all frames must formulate a single management entity. In a Synergy environment, this is achieved by linking the Frame Link Modules (FLM) of the three frames together to form a management ring.

Within a single management ring (one Logical Enclosure), only two (2) HPE Synergy Composer 2 modules are required to provide a highly available, redundant management cluster.

The architect ' s proposal included 6 Composers (2 per frame). This is incorrect for a single management entity design; therefore, 4 Composers are unnecessary and should be removed (Option C).

Fibre Channel Connectivity Licensing:

The HPE Virtual Connect SE 100Gb F32 Module is a converged interconnect. While it physically supports Fibre Channel (FC) and FCoE, the Fibre Channel uplink functionality is not enabled by default.

According to HPE QuickSpecs, a specific FC Upgrade License must be purchased and applied via HPE OneView to enable the use of the QSFP28 ports as native Fibre Channel uplinks to a SAN. Without these licenses, the customer cannot meet the requirement for connectivity to an FC array (Option A).

Analysis of other options:

Option B is incorrect: In a 3-frame setup, you only need one pair of " Master " modules (the F32s). The other frames are correctly equipped with Interconnect Link Modules (ILMs) which act as satellites to extend the Master ' s fabric.

Option D is incorrect: Virtual Connect technology is explicitly designed to provide MAC and WWN virtualization (often called " Server-Side Networking " ), allowing identities to be assigned to server profiles rather than being hardcoded to hardware.

Option E is incorrect: A 3-frame Synergy setup provides a total of 36 half-height slots (12 per frame). Since the HPE Synergy 480 Gen10 Plus is a half-height module, the physical infrastructure can support up to 36 modules, easily meeting the " at least 30 " requirement. There is no architectural limitation in this specific F32/ILM combination that restricts it to only 18 modules.

The HPE Superdome Flex system supports configurations of up to 32 sockets and 48TB of memory, making it suitable for extremely large-scale and demanding workloads. In contrast, the HPE Superdome Flex 280 has a lower maximum configuration limit, making it more suited for smaller-scale deployments compared to the full Superdome Flex.

The VMware vSphere Standard license does not include support for advanced features like Distributed Resource Scheduler (DRS) and Distributed Switches. These features are available only with the vSphere Enterprise Plus license. Therefore, to meet the customer ' s requirement of using Distributed Switches and a DRS cluster, the proposal should include vSphere Enterprise Plus licenses instead of Standard licenses.

In HPE Synergy, a management ring can indeed contain mixed frame link module (FLM) configurations. This means you can have a mix of 2-port and 4-port FLM modules within the same management ring without needing to replace the existing 2-port modules. This flexibility allows for gradual upgrades and scalability within the management ring.

The core value proposition of HPE SimpliVity is its high-efficiency data architecture. Regardless of the specific model or hardware generation, deduplication and compression are fundamental features of the platform:

Always-On Data Efficiency: All HPE SimpliVity models utilize always-on, inline deduplication and compression . This process occurs as data is first ingested into the system, before it is written to the physical storage. This reduces I/O overhead, accelerates application performance, and significantly reduces the storage footprint (guaranteeing a 90% capacity savings in many configurations).

Hardware vs. Software Optimization: Older SimpliVity models used a dedicated hardware accelerator card (FPGA) to handle these tasks. Newer " software-optimized " models (like the 380 Gen11 or 325 Gen11 ) perform these functions using the server ' s CPU and specialized software algorithms, but the feature itself remains standard and mandatory across the entire portfolio.

Data Protection: These data efficiencies also underpin the " HyperProtected " pillar, allowing for near-instant local backups and restores of large virtual machines because only unique data blocks need to be processed.

Why other options are incorrect:

Option A: While HPE has moved toward " per node " terminology, licensing for HPE SimpliVity software has traditionally been (and in many regions remains) tied to the number of physical sockets in the server. Recent changes to " Term Licenses " (post-July 2025) often package the software per node, but historically and in standard documentation, the socket count is a primary factor in cost.

Option C: While HPE offers excellent AMD-based models (like the SimpliVity 325 ), many flagship models (like the SimpliVity 380 Gen11 ) are based on Intel Xeon Scalable processors.

Option D: While HPE recently introduced HPE VM Essentials (based on Morpheus) as an alternative management layer, the core hypervisor support for SimpliVity is still primarily focused on VMware vSphere . It does not currently offer a " flexible " or " open " choice of any hypervisor (such as native Nutanix AHV or Proxmox) in the standard enterprise deployment model.

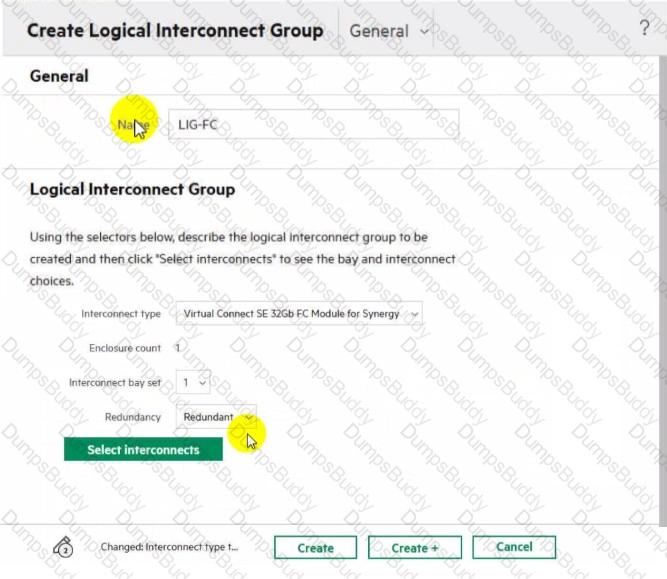

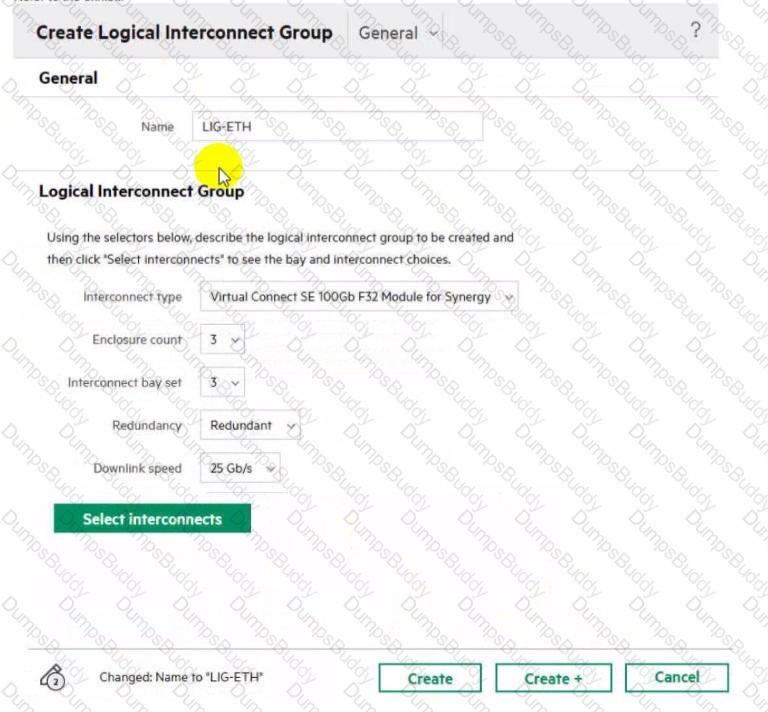

Click the drop-down menu next to " Interconnect bay set " .

To define the location of the master modules within the logical interconnect group, you need to select the appropriate interconnect bay set. The drop-down menu next to " Interconnect bay set " allows you to specify which bays the interconnect modules will be placed in, thereby determining the location of the master modules.

To configure a RoCE (RDMA over Converged Ethernet) network for HPE J2000 Flash Enclosure support, you need interconnects that support high-bandwidth, low-latency Ethernet connections. The HPE Virtual Connect SE 40Gb F8 Module and the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy are suitable choices, as they provide the necessary capabilities for RoCE and lossless networking.

HPE Superdome Flex allows for the expansion of powered-on nPars (nPartitions), but this capability is subject to certain conditions. One of these conditions is that the nPar does not use HPE Persistent Memory. Expanding an nPar with Persistent Memory typically requires a shutdown to reconfigure the memory settings safely.

HPE Synergy allows scaling of logical enclosures up to 5 frames. Given the current setup of three frames fully populated with HPE Synergy 480 Gen10 Plus modules and other specified components, the customer can add another frame to the existing logical enclosure. This flexibility in scaling ensures that the logical enclosure can be expanded without the need to create a new logical enclosure, provided that the necessary interconnect modules are in place.

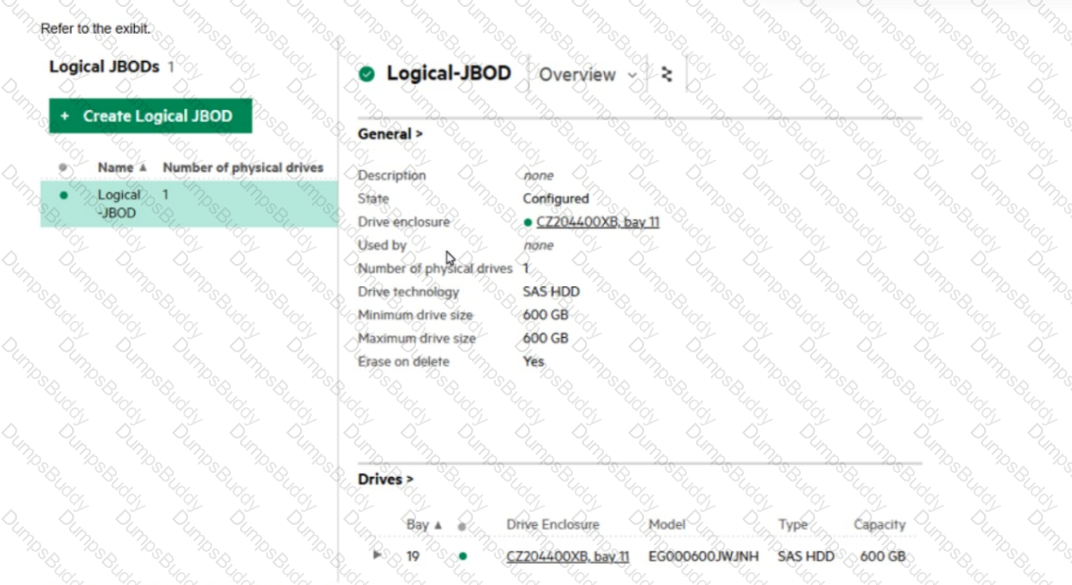

In HPE Synergy, logical JBODs (Just a Bunch of Disks) can be configured to be accessible by compute nodes across different frames. This flexibility allows for the logical JBOD to be pre sented to compute nodes that are not in the same frame as the storage module, facilitating better resource utilization and workload management.

New HPE SimpliVity deployments offer customers the flexibility to choose between different hypervisors, such as VMware vSphere and Microsoft Hyper-V. This flexibility allows customers to select the hypervisor that best fits their existing infrastructure and operational preferences.

The HPE OneView Update Readiness Checker (URC) is a specialized utility designed to ensure a smooth transition during the appliance update process. Its primary and specific function is as follows:

Pre-Update Health Validation: The tool is designed to evaluate the internal health of the HPE OneView appliance (whether it is a VM or a Synergy Composer) for a set of known conditions that could potentially cause an update to fail. This includes checking database integrity, filesystem space, and internal service states.

Appliance-Centric Analysis: According to official HPE documentation, the checker evaluates conditions only on the appliance itself and not the managed environment (such as individual compute node firmware or interconnect modules). This makes it a " safety net " for the management layer specifically.

Deployment: It runs on a client system (Windows or Linux) outside the appliance and connects via the API to perform these health checks. It is recommended to run this tool immediately before any major or minor appliance update.

Why other options are incorrect:

Option A: Compatibility between Synergy Service Packs (SSPs) and OneView versions is typically checked via the HPE Synergy Software Releases documentation or the Synergy Management Combination matrix, not the URC utility.

Option C: Firmware compliance of compute nodes is handled by the HPE OneView Firmware Compliance reports and Server Profiles within the main OneView UI, not by the external Update Readiness Checker.

Option D: While milestone releases are critical for the update path, the URC checks for health and readiness rather than just identifying the current version number or milestone status, which is easily visible on the " About " page of the appliance.

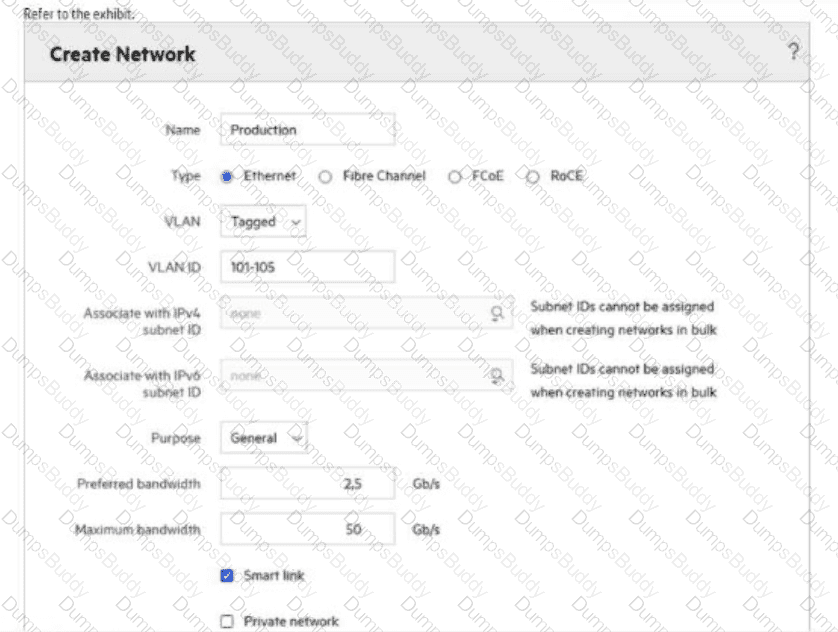

In the context of HPE OneView and Virtual Connect , a Private Network is a specific security configuration designed to restrict Layer 2 communication between server blades (downlinks) that are connected to the same internal network.

Traffic Isolation: When a network is marked as " Private, " communication between server ports assigned to that network is prohibited. This means that Server A cannot talk to Server B, even if they are in the same frame and on the same VLAN.

Uplink Only Communication: Traffic originating from a server port on a Private Network can only travel to the uplink ports . This ensures that all traffic must exit the Virtual Connect environment to a top-of-rack (ToR) switch or a firewall before it can potentially be routed back to another server.

Use Case - Security and Multi-Tenancy: This feature is primarily used to enhance network security . It prevents " lateral movement " between servers in a shared environment. For example, in a multi-tenant service provider environment, you may want to ensure that one customer ' s virtual machines or bare-metal servers cannot intercept or interfere with another customer ' s traffic, even if they accidentally end up on the same network segment.

Comparison to PVLANs: This is functionally equivalent to the concept of Private VLANs (PVLANs) in traditional networking, specifically the " Isolated " port type where the ports cannot communicate with each other but can communicate with the " Promiscuous " port (the uplink).

Why other options are incorrect:

Option A: Port speed (100 Gb/s) is determined by the hardware capabilities of the Interconnect Modules (such as the F32) and the transceivers used, not by the " Private " attribute of a logical network.

Option C: While a heartbeat network for a cluster requires low latency, it actually requires the nodes to talk to each other. Enabling a " Private Network " would break a heartbeat network because it prevents the nodes from communicating directly.

Option D: A dedicated network for a single node is achieved by creating a unique VLAN/Network and assigning it only to one Server Profile. The " Private " setting is specifically about how multiple nodes on the same network interact with each other.

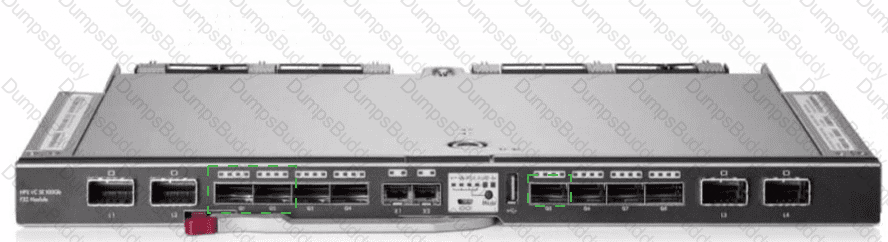

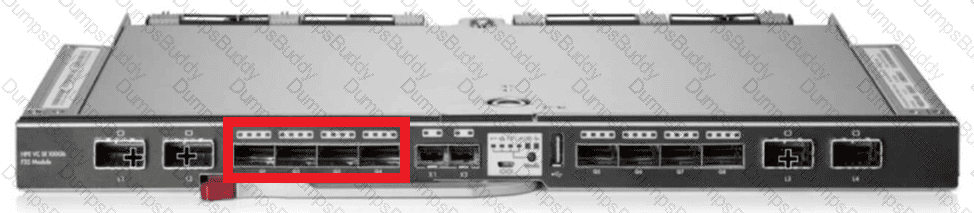

The QSFP+ ports (Q1 and Q2) on the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy can be used to connect satellite modules. These ports are designed to handle high-speed connectivity required for linking additional frames and expanding the Synergy infrastructure.

HPE Synergy management rings have a maximum capacity for the number of frames they can manage. With 18 frames already managed in 6 logical enclosures, adding 5 more frames would exceed this capacity. Therefore, the customer needs to create a new management ring for the new logical enclosure to ensure proper management and operation.

To deploy HPE Superdome Flex and configure two nPars, each based on two chassis, you must include the HPE Superdome Flex Grid licenses. These licenses enable connectivity between the chassis, allowing the creation of nPars (nPartitions) that span multiple chassis. This is essential for the system ' s proper configuration and operation in a multi-chassis nPar setup.

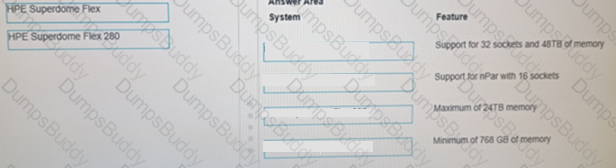

Here are the correct matches for each HPE Superdome Flex system with its respective feature:

HPE Superdome Flex

Support for 32 sockets and 48TB of memory

Support for nPar with 16 sockets

HPE Superdome Flex 280

Maximum of 24TB memory

Minimum of 768 GB of memory

HPE Superdome Flex:

Support for 32 sockets and 48TB of memory: The HPE Superdome Flex system is designed for extremely large-scale workloads and can support configurations with up to 32 CPU sockets and 48TB of memory.

Support for nPar with 16 sockets: This system supports nPartitions (nPars) with configurations that can include up to 16 CPU sockets, providing flexible partitioning and resource allocation.

HPE Superdome Flex 280:

Maximum of 24TB memory: The HPE Superdome Flex 280 supports a maximum memory capacity of 24TB, suitable for large but not as massive workloads compared to the full Superdome Flex.

Minimum of 768 GB of memory: The minimum memory configuration for the HPE Superdome Flex 280 is 768 GB, ensuring a base level of performance and capacity for smaller deployments.

OpsRamp (now an HPE company) is a cloud-based IT Operations Management (ITOM) platform that utilizes Artificial Intelligence for IT Operations (AIOps) to simplify the management of complex, hybrid environments.

Solving the Staffing Challenge: For customers with small IT teams, the primary bottleneck is often " alert fatigue " —a constant flood of low-level notifications and help desk tickets that mask critical issues. OpsRamp addresses this by automating the " first response " layers of IT operations.

Alert Noise Reduction: OpsRamp ' s AIOps engine uses machine learning to deduplicate and suppress redundant alerts. For example, if a network switch goes down, it might trigger 100 alerts from connected servers. OpsRamp identifies the commonality and presents the admin with a single " Inferred Incident " rather than 100 separate tickets.

Root Cause Analysis (RCA): By analyzing topology maps and event sequences, OpsRamp can automatically pinpoint the probable root cause of a service disruption. This significantly reduces the " Mean Time to Repair " (MTTR) because staff members do not have to spend hours manually correlating logs to find where the failure started.

Automation and Remediation: Beyond just detection, OpsRamp provides Runbook Automation , allowing a small staff to create policy-driven workflows that automatically fix common issues (like restarting a service or clearing a full disk) without human intervention.

Why other options are incorrect:

Option A: This describes the core functionality of HPE OneView or the provisioning aspects of HPE GreenLake , which focuses on the " Day 0/Day 1 " deployment of resources.

Option B: This refers to the My Insights and Software Dashboard features found in the HPE Support Center (often part of an HPE Tech Care contract).

Option D: While OpsRamp can integrate with ITSM tools to create tickets, the automated generation of HPE support cases specifically for hardware failures is a primary feature of HPE InfoSight and HPE Support Center (Auto-case) .

The HPE Superdome Flex family represents HPE ' s premier scale-up compute portfolio, but there are significant architectural differences between the original Superdome Flex and the Superdome Flex 280:

Management Processor (The Key Difference): The Superdome Flex 280 was engineered to bring the management experience closer to the standard HPE ProLiant line. It utilizes the HPE iLO 5 (Integrated Lights-Out) ASIC for each 2-socket or 4-socket building block. This allows administrators to use the same tools (like iLO RESTful API and HPE OneView) they use for standard servers. The original, larger Superdome Flex (up to 32 sockets) relies on a Rack Management Controller (RMC) or an electronic RMC (eRMC) based on the Superdome Integrity heritage.

Scalability (Correction of Option A): The Superdome Flex 280 scales from 2 to 8 sockets (using 3rd Gen Intel Xeon Scalable processors). It does not reach 16 sockets; the 16 to 32-socket range is reserved for the original Superdome Flex.

Partitioning (nPars): Both systems support nPars (hard partitions). While the original Superdome Flex requires an RMC for complex multi-chassis partitioning, the 280 handles its partitioning and fabric management through the integrated iLO 5 logic and the embedded firmware.

Persistent Memory: Both systems support HPE Persistent Memory (Intel Optane). It can be configured in either App Direct Mode or Memory Mode . There is no requirement that the system must be in memory mode only.
