Downloadable User Roles (DUR) are a key component of Aruba ' s Dynamic Segmentation. Instead of manually defining roles on every switch, the switch downloads the role definition (VLAN, ACLs, QoS) dynamically from Aruba ClearPass via HTTPS .

The HTTPS Connection: When a user authenticates, ClearPass sends a RADIUS attribute containing the role name. The switch then initiates an HTTPS connection to the ClearPass server to fetch the full details of that role.

Certificate Trust: Because this download happens over HTTPS, the AOS-CX switch acts as an HTTPS Client . For the connection to be established, the switch must trust the SSL/TLS certificate presented by ClearPass.

Validation Requirement: If the switch does not have the correct CA Certificate installed, or if the HTTPS client certificate configuration is missing or incorrect, the TLS handshake will fail. The switch will be unable to download the role, and the user will typically be placed in a " denyall " or " initial " role. Therefore, verifying the HTTPS/TLS certificate configuration on the switch is a primary troubleshooting step for DUR.

Why other options are incorrect:

Option B: DUR does not use the REST API of the switch; it uses a standard HTTPS GET request to ClearPass.

Option C: SNMP is for monitoring and is not involved in the real-time delivery of user roles.

Option D: While the user-role name must match, the reason a DUR fails to load is almost always the transport mechanism (RADIUS or HTTPS), not the role name configuration itself.

This scenario highlights the " Source of Truth " logic within Aruba Central UI Groups .

UI Group Constraints: When a group is managed via the UI (User Interface) mode , Central acts as the absolute master of the configuration. If you add a switch that already has a local configuration (non-factory default) into a group that already has an established configuration, Central perceives a Configuration Conflict .

The Safety Mechanism: To prevent Central from accidentally wiping out a production switch ' s settings the moment it connects, Central will not automatically synchronize (push) the group configuration to a device that is not in a Factory Default state.

The Resolution: For the switch to synchronize with an existing UI group, you must either:

Erase the startup-configuration on the switch and reboot it (Factory Default), allowing it to " pull " the group config cleanly.

Manually resolve the conflict by moving the device into the group and then selecting the option to overwrite the local configuration with the group configuration.

Evaluating Other Options:

Option A: This is false. Central fully supports VSX monitoring and configuration (specifically via Template groups or the VSX orchestration UI).

Option B: If the switch is " added to a group, " it has already passed the initial onboarding/authorization phase.

Option C: If it " cannot establish a connection, " the switch would show as Offline , not as a synchronization failure within a group.

When a recent routing change causes an outage affecting all users, the recommended immediate action is to restore the last-known working configuration to quickly return the network to a stable state. This is critical to minimize downtime and impact.

Asking customers to send logs or explaining the issue takes time and delays remediation.

Collecting show tech and opening TAC cases can be done after restoring service.

Hence, the quickest way to mitigate the impact is to restore the last known good configuration.

Comprehensive Detailed Explanation:

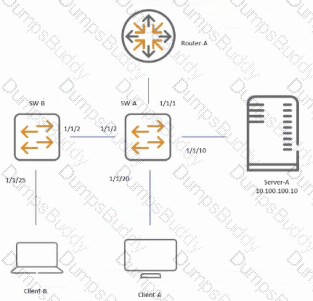

When troubleshooting intermittent connectivity issues with known source and destination IPs, the Follow the path methodology is most suitable. This involves tracing the packet flow from source to destination step-by-step, checking each device or segment for failures.

Spot the difference compares configurations, which is less targeted here.

Divide and conquer isolates sections but follow the path is more direct for connectivity.

Top-down/bottom-up is more general troubleshooting.

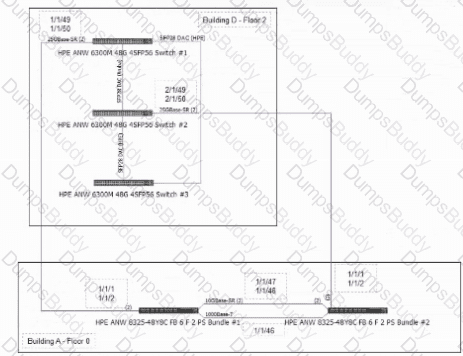

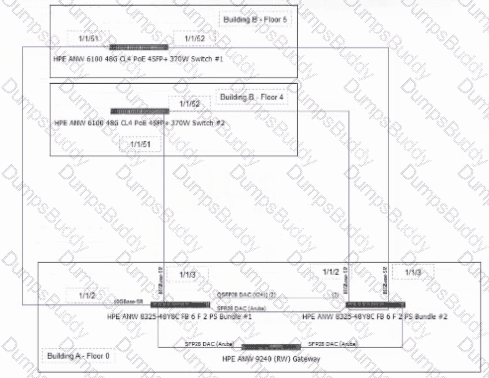

In the exhibit, the CX8325 switch ports 1/1/47 and 1/1/48 are connected in a VSX setup. According to Aruba VSX best practices, ports on the CX8325 switch that serve as ISL or VSX interconnects should use SFP28 optics for 25Gbps links. If SFP56 optics are used, it would be incorrect because CX8325 ports are designed to support SFP28 modules for these speeds.

CX6300 ports use SFP56 or QSFP28 depending on model and link speed.

CX8300 series ports designed for QSFP28 for higher speeds.

Hence, the best practice is to use SFP28 on CX8325 for the interconnect links.

Quality of Service (QoS) on AOS-CX switches relies on hardware queues to manage congestion. Different traffic types require different handling logic.

Strict Priority (SP) Queuing: In an SP model, the switch services the highest-numbered queue (usually Queue 7 for Voice) until it is completely empty before it even considers sending a single packet from a lower-priority queue. This ensures that latency-sensitive traffic like Voice (VoIP) is never delayed by data bursts, providing the " highest priority " forwarding required by the prompt.

Weighted Fair Queuing (WFQ/DWRR): These methods (like Deficit Weighted Round Robin) assign a percentage of the bandwidth to each queue. While this prevents " queue starvation " for data traffic, it doesn ' t guarantee that voice will always go first; it just guarantees voice gets its " fair share. "

FIFO: This is the default " no-QoS " behavior where the first packet to arrive is the first to leave, regardless of its importance.

Virtual Output Queuing (VOQ): This is an internal architectural design of the switch fabric (often found in the 8000 series) used to prevent Head-of-Line (HOL) blocking across the switch backplane. It is not a configurable end-user queuing strategy for traffic prioritization.

In the AOS-CX architecture, a Local User Role (LUR) is a logical container that defines the network privileges and connectivity settings for a client once they have been successfully authenticated. Unlike " Downloadable User Roles " (DUR), which are stored on ClearPass, LURs are defined directly in the switch configuration.

VLAN Assignment (Option A): One of the primary functions of a user role is to dynamically assign a client to a specific VLAN. This allows the physical port to remain " colorless " —the port ' s VLAN membership is determined by the identity of the user rather than a static configuration on the interface.

ACL (Access Control List) (Option E): To enforce " Least Privilege " security, LURs allow you to attach an IPv4 or IPv6 ACL directly to the role. This ensures that even if two users are in the same VLAN, their traffic can be filtered differently based on the role they were assigned (e.g., a " Contractor " role might have an ACL blocking access to internal servers, while an " Employee " role does not).

Why other options are incorrect:

Option B: The ClearPass server is part of the global AAA (RADIUS) configuration. It is the destination for authentication requests, not a parameter defined within a specific user role.

Option C: While many CLI commands allow for a description, it is a metadata field for administrative clarity and is not considered a functional " parameter " of network enforcement in the context of the ACP-S exam.

Option D: Authentication methods (like 802.1X or MAC-auth) are the triggers that result in a role being applied. They are configured at the interface or global level, not inside the role itself.

In an end-to-end Quality of Service (QoS) design, the goal is to maintain the priority of traffic as it transitions from the wireless medium (WMM) to the wired infrastructure (Ethernet).

WMM to DSCP Mapping: Aruba APs map Wireless MultiMedia (WMM) Access Categories (like Voice or Video) to specific DSCP (Differentiated Services Code Point) values in the IP header before forwarding the frames onto the wired network.

The Concept of " Trust " : By default, many switches operate in a " trusted " or " untrusted " mode. If a port is untrusted, the switch will strip or ignore any DSCP markings on incoming packets and remark them to 0 (Best Effort). To prevent this, the AOS-CX switch must be configured to trust the incoming DSCP markings.

Applying Trust via Interface (Option B): On the physical ports where APs are connected, you must apply the command qos trust dscp. This ensures that as the AP sends traffic into the switch, the switch honors the DSCP values assigned by the AP.

Applying Trust via User-Role (Option A): In modern Aruba " Colorless Port " architectures, switches often use User-Based Tunneling (UBT) or local roles assigned via ClearPass. If the AP itself is assigned a " User-Role " upon connection, that role can include a QoS policy that specifies DSCP trust. This is the preferred method for dynamic environments because the security and QoS policies follow the device regardless of which physical port it uses.

Why other options are incorrect:

Option C: LLDP-MED is used to negotiate parameters (like Voice VLAN), but it doesn ' t provide the granular " trust " mechanism required for WMM-to-DSCP mapping.

Option D: Colorless ports are a deployment method for roles, but " Colorless ports " is not a configuration command that handles QoS prioritization itself.

Option E: AOS-CX does not typically utilize a " global " trust command; trust is applied at the ingress point (interface or role) to maintain security and control.

In the world of IP Multicast, the address range is strictly categorized by the IANA. Understanding these boundaries is a core requirement for the ACP-S switching exam.

Link-Local Multicast (224.0.0.0/24): The address used in the scenario, 224.0.0.100 , falls within the " Local Network Control Block " (224.0.0.0 to 224.0.0.255). These addresses are reserved for protocol traffic that is intended to stay within a single broadcast domain (Layer 2). Examples include OSPF (224.0.0.5) and RIPv2 (224.0.0.9).

The Routing Restriction: By design and industry standard, Layer 3 switches and routers do not forward traffic addressed to the 224.0.0.0/24 range. This is a hard-coded behavior to prevent control plane protocols from leaking into other parts of the network. Even if you enable PIM (Protocol Independent Multicast) and IGMP on all SVIs, the switch will drop these packets at the Layer 3 boundary.

The Solution: To route multicast traffic between VLAN 100 and VLANs 200/300, the application must use a group address from the administratively scoped or globally scoped ranges (e.g., 239.0.0.0/8 or 224.0.1.0 and above).

Why Option D is insufficient: While enabling IGMP and PIM on the SVIs is a necessary step for routable multicast, it will not overcome the fundamental architectural block placed on the 224.0.0.0/24 link-local range.

AOS-CX is a modern, database-driven operating system, but it is built with extensive backward compatibility to ensure it fits into established enterprise ecosystems.

CLI (Command Line Interface) (Option A): This is the most traditional form of switch management. AOS-CX provides a robust CLI accessible via Console, Telnet, or SSH. While the syntax is " industry-standard " (similar to Cisco or older ArubaOS-Switch), it remains a " legacy " pillar that almost all existing management systems (like Rancid, SolarWinds, or custom scripts) use for configuration and state collection.

SNMP (Simple Network Management Protocol) (Option E): SNMP is the universal " legacy " language for network monitoring. AOS-CX supports SNMP v1, v2c, and v3. Legacy Management Systems (NMS) rely on SNMP MIBs (Management Information Bases) to pull statistics about port utilization, temperature, and errors.

Modern vs. Legacy:

REST API (Option B): This is a modern, programmable interface where every command in the switch can be executed via a JSON-based web call. Legacy systems typically do not support this.

NAE (Option C): The Network Analytics Engine is unique to AOS-CX and uses Python scripts for local monitoring. This is a " Next-Gen " feature.

HTTPS (Option D): While web interfaces have been around a while, the modern AOS-CX Web UI is a sophisticated tool built on top of the REST API, and it is generally considered a primary management method for the " Modern " era rather than a " Legacy Management System " integration point like SNMP.

AOS-CX switches include a robust Configuration Checkpoint system that allows administrators to save snapshots of the configuration state. These checkpoints are stored in the switch ' s internal flash memory.

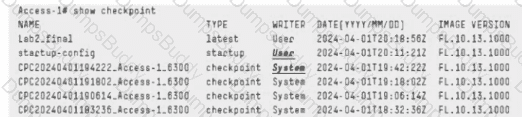

Understanding the Exhibit: The output shows several checkpoints.

Lab2_final: A user-created checkpoint.

startup-config: The current configuration that will be loaded on reboot.

CPC2024...: Automatic " System " checkpoints created by the switch during various configuration events or at scheduled intervals.

The " Diff " Operation: To investigate a missing configuration (like the missing device profile) without impacting the operational state of the switch, you use the checkpoint diff command. This command compares two configuration files and displays the specific lines that are present in one but missing in the other (marked with + and -).

Analyzing the Requirement: The user wants to validate the removal without changing the current config.

Option B (Correct): Executing checkpoint diff startup-config CPC20240401183236_Access-1_6300 (or another older checkpoint) will show exactly what was removed. This is a read-only comparison.

Why other options are incorrect:

Option A: show checkpoint only lists the metadata (name, date, version); it does not provide a content comparison.

Option C: This command would overwrite an existing checkpoint or create a new one, but it does not provide an analytical comparison of the differences.

Option D: checkpoint rollback is a destructive operation; it immediately applies the older configuration to the running state, which violates the requirement to not change the current configuration.

The output indicates the use of an aspath-list within a route-map, which is used to filter or match accepted AS paths in BGP. The aspath-list defines which AS paths are accepted, controlling route advertisement or acceptance.

The route-map is applied to neighbor configurations to filter routes based on AS paths.

Prefix-lists filter IP prefixes, not AS paths.

Neighbor remote-as export is not a valid command.

Therefore, the aspath-list is correctly used to define accepted AS paths.

In an AOS-CX VSX environment, LACP is the standard for forming Multi-Chassis Link Aggregation Groups (MC-LAGs). However, LACP has a " chicken and egg " problem during certain boot processes.

The LACP Dilemma: LACP requires a software driver or " actor " on the client device to exchange BPDUs with the switch. During a Preboot Execution Environment (PXE) Boot , a server or workstation does not yet have its OS or LACP drivers loaded. Consequently, the switch receives no LACP packets, and by default, it keeps the LAG ports in a " blocked " or " waiting " state to prevent loops.

LACP Fallback Function: The lacp fallback command allows the VSX members to temporarily treat the LAG ports as non-bonded individual interfaces if no LACP partner is detected. This allows the device to communicate over a single physical link during the PXE process to download its OS image.

The Transition: Once the OS is loaded and the LACP driver starts sending BPDUs, the switch automatically transitions the ports back into a fully functional, bonded LAG.

Why other options are incorrect:

Option A: LACP mode (Active vs. Passive) is handled by the lacp mode command, not fallback.

Option D: While fallback results in a single interface operating, the intent and design requirement is to facilitate the pre-OS boot process, not simply to limit the partner to one interface.

If the ISL between two VSX core switches is down and logs indicate that Core-2 has disabled its VSX LAG interfaces, it means Core-2 has disabled its VSX LAG interfaces, likely as a protective or failover mechanism.

Keepalive packets being dropped (Option B) may cause issues but logs specifically state interface disablement.

Both switches forwarding traffic (Option C) is unlikely if ISL is down.

Downstream switches inability to forward traffic (Option D) is a consequence, not the cause.

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100 .

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1 . If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.

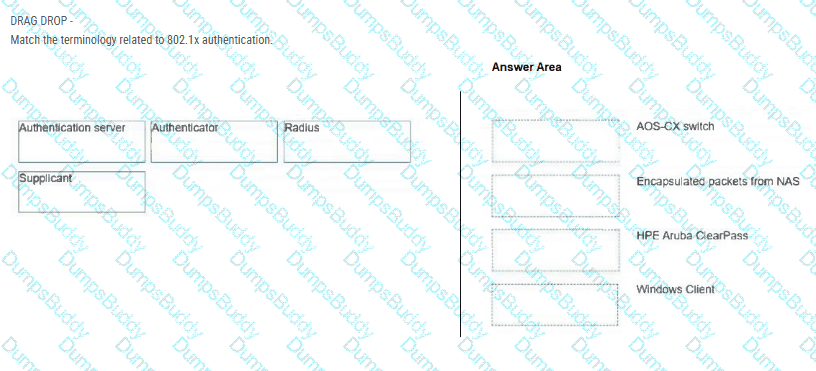

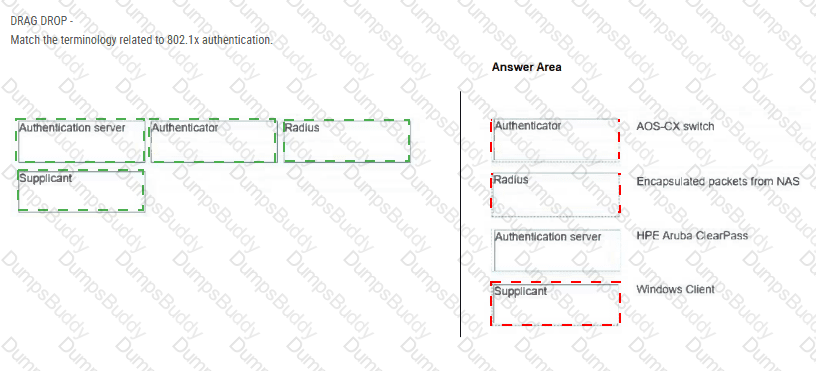

Authenticator: AOS-CX switch

Radius: Encapsulated packets from NAS

Authentication server: HPE Aruba ClearPass

Supplicant: Windows Clien

To master the HPE Aruba Networking Certified Professional - Switching exam, you must clearly distinguish between the roles defined in the IEEE 802.1X standard. These roles dictate how identity-based security is enforced at the edge of the network.

Supplicant (Windows Client): The supplicant is the client device (laptop, phone, or IoT device) that is requesting access to the network. It runs software (a " supplicant " ) that can respond to EAPOL (EAP over LAN) requests from the switch. In a typical office environment, the Windows 10/11 native 802.1X client acts as this role.

Authenticator (AOS-CX switch): The authenticator is the intermediary device, typically an access layer switch. Its job is to control the physical or logical port. It remains in an " Unauthorized " state (blocking all traffic except EAPOL) until it receives a success message from the authentication server. It translates EAPOL packets from the client into RADIUS packets for the server.

Authentication Server (HPE Aruba ClearPass): This is the " brain " of the operation. The server validates the credentials (certificates, usernames/passwords) provided by the supplicant. In the Aruba ecosystem, ClearPass Policy Manager (CPPM) is the primary authentication server. It checks its internal database or an external one (like Active Directory) and sends an " Access-Accept " or " Access-Reject " back to the switch.

Radius (Encapsulated packets from NAS): RADIUS (Remote Authentication Dial-In User Service) is the networking protocol that provides the transport for these exchanges. The switch, acting as a NAS (Network Access Server) , takes the EAP payload from the client and encapsulates it into RADIUS packets to send them across the IP network to ClearPass.

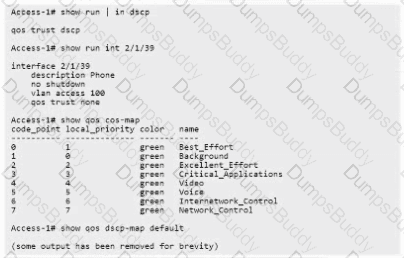

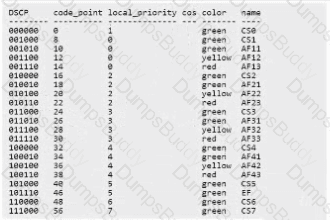

For an interface connected to an untrusted device regarding DSCP markings, the recommended configurations are:

Apply a classifier-based policy to assign a Local Priority value (Option B). This overrides or marks traffic based on predefined criteria.

Configure qos trust none (Option E) to disable trusting DSCP or CoS markings from the device, preventing manipulation of QoS.

Trusting CoS (Option A) is incorrect because the device is untrusted.

DSCP maps and Weighted Fair Queuing (Options C and D) are additional QoS features but do not specifically address untrusted markings.

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

For a 1 Gbps link between two Aruba CX switches, the appropriate SFP port type is an SFP (Small Form-factor Pluggable). SFP+ and SFP28 are used for higher speeds such as 10 Gbps and 25 Gbps, respectively. QSFP+ is for even higher speeds (40 Gbps).

SFP supports 1 Gbps (1000BASE-X)

SFP+ supports 10 Gbps

SFP28 supports 25 Gbps and above

QSFP+ supports 40 Gbps and above

Therefore, the correct port type for a 1 Gbps link is SFP.

In AOS-CX QoS architecture, the switch uses a scheduler to determine which hardware queues receive service. A common best practice is to use a Hybrid Queuing Model .

Strict Priority (SP) and Starvation: By default, if a queue is set to Strict Priority (usually Queue 7 for voice), the switch will service that queue exclusively as long as it has data. If the high-priority traffic is sustained (due to a burst or a misconfiguration/attack), the lower-priority queues (Queues 0–5) will never be serviced. This is known as starvation .

The Role of Shaping: To prevent an SP queue from monopolizing the entire link bandwidth, you can apply a shaper to that specific high-priority queue. A shaper sets a maximum bandwidth limit (in kbps or as a percentage) that the queue is allowed to consume.

Mechanism: By shaping Queue 7, even if it has a constant stream of traffic, it will be " throttled " once it hits the shaper limit. This forced " quiet time " allows the scheduler to move down and service the lower-priority queues using DWRR (Deficit Weighted Round Robin) logic, ensuring that data traffic (like web or email) is not completely dropped.

Evaluating Other Options:

Option A: You can only apply one queuing profile per interface in AOS-CX.

Option B: Replacing SP with DWRR entirely would solve starvation, but it would remove the low-latency guarantee required for Voice traffic.

Option D: " Weight " applies only to DWRR/WFQ queues. SP queues do not have a weight because they are always " first in line " by definition.

In HPE Aruba CX VSX, the hardware replacement of a single switch is non-disruptive for Layer 2 configurations because the system MAC address in the ServiceOS can be changed to the original system MAC address. This ensures consistent MAC address usage, avoiding disruptions in Layer 2 forwarding and preventing MAC flapping in the network.

Options involving VSX-sync or reserved system MAC ranges do not specifically address hardware replacement scenarios as effectively.

Changing the ServiceOS system MAC to match the original maintains Layer 2 stability during switch replacement.

Backing up the switch configuration to a remote Linux SFTP server requires using the copy command with the correct protocol (SFTP in this case), username, server IP, filename, and optionally the VRF to route management traffic.

Option A uses SCP and vrf default but the question mentions SFTP server, so SFTP protocol should be used.

Option B is a server-side command (not the switch).

Option C correctly uses copy startup-config sftp://user@192.168.1.100/switch_config.cfg vrf mgmt which backs up the startup-config via SFTP using the management VRF.

Option D is also a server-side command.

Using vrf mgmt is required because the management IP is in a separate VRF on CX switches.

To protect a network from Layer 2 man-in-the-middle attacks, AOS-CX switches utilize two closely related security features: DHCP Snooping and Dynamic ARP Protection .

DHCP Snooping: This feature acts as a firewall between untrusted hosts and trusted DHCP servers. When enabled, the switch categorizes ports as either trusted (connected to a legitimate DHCP server or another switch) or untrusted (connected to end-user devices). If a " malicious " DHCP server on an untrusted port attempts to send a DHCP OFFER or ACK message, the switch drops the packet.

The Snooping Binding Table: As a byproduct of monitoring legitimate DHCP exchanges, the switch builds a DHCP Snooping Binding Table . This table is a " source of truth " that maps a client ' s MAC address to its assigned IP address and the specific physical port it is connected to.

Dynamic ARP Protection: ARP poisoning (or spoofing) occurs when an attacker sends fake ARP messages to link their MAC address with the IP address of a legitimate server or gateway. When ARP protection is enabled, the switch intercepts all ARP packets on untrusted ports and validates them against the DHCP Snooping Binding Table . If the MAC-to-IP mapping in the ARP packet does not match the entry in the table, the packet is discarded.

Integration: These two features must work together. Without the binding table created by DHCP Snooping, ARP Protection has no data to validate against. This combination ensures that only the device that legitimately received an IP via DHCP can claim that IP in ARP responses.

In complex network designs involving different administrative domains (like a Campus and a Data Center), it is often desirable to prevent Spanning Tree Protocol (STP) from merging the two environments into a single, massive logical tree.

The Goal of Isolation: " Isolated spanning tree topology " means that the Campus and the Data Center should each have their own independent Root Bridge and calculate their own loop-free paths without being influenced by one another.

BPDU Filter (The Solution): When you apply BPDU Filter to an interface, the switch stops sending BPDUs out of that port and, more importantly, ignores any incoming BPDUs. Because the Campus switch no longer " sees " the BPDUs coming from the Data Center core, it will stop recognizing the DC as the Root Bridge and will instead elect a local Root Bridge (or remain as the Root itself). This effectively breaks the STP connection between the two domains while still allowing Layer 2 data traffic to flow.

Evaluating Other Options:

Option A (Root Guard): This is used to prevent a specific port from becoming a Root Port. If a superior BPDU is received, the port is placed into a " root-inconsistent " state (blocked). While this protects the local Root role, it does not " isolate " the topology; the switches still participate in the same overall STP domain.

Option C (BPDU Guard): This is intended for edge ports (connected to PCs/Printers). If it receives a BPDU, it shuts down the port entirely (rxtx-disable). Applying this to a core-to-core link would cause a total loss of connectivity as soon as the DC core sends a BPDU.

Option D (Admin Edge): This simply tells the switch to skip the Listening/Learning states and go straight to Forwarding. It does not provide topology isolation.

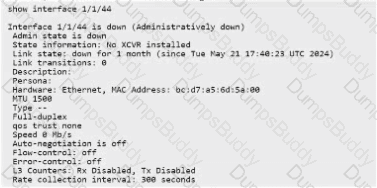

The error message " Invalid input: interface " typically appears if the switch is managed by HPE Aruba Central, which restricts CLI interface configuration to prevent configuration drift. When managed externally, certain commands are disabled or locked.

Password recovery mode or authorization enabled would not cause this error.

Manager context is not a concept in Aruba CX CLI.

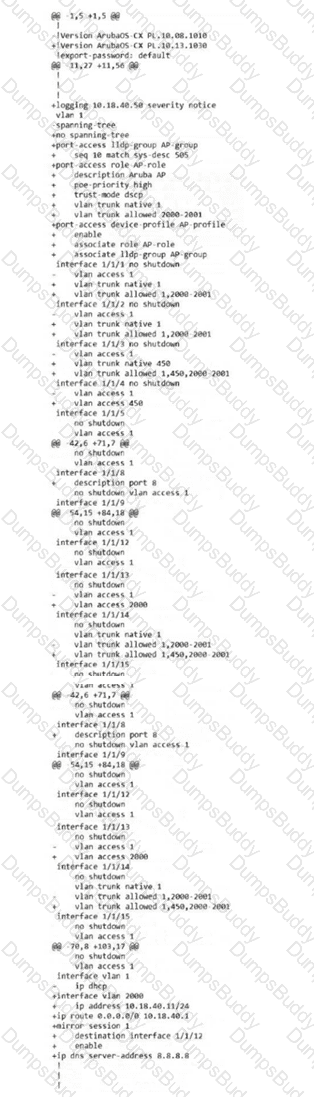

The output shown in the exhibit is a unified diff (indicated by the + and - signs and the @@ headers), which is the standard format AOS-CX uses to display differences between two configuration states.

AOS-CX Checkpoints: ArubaOS-CX switches use " checkpoints " to save snapshots of the configuration. These can be created manually by a user or automatically by the system (e.g., when a configuration change is pushed from Central or NetEdit).

The checkpoint diff Command: The command checkpoint diff < NAME1 > < NAME2 > is used to perform a line-by-line comparison. One of these names can be the running-config .

Lines with a -: These are present in the first configuration (the older checkpoint) but missing in the second (the newer config).

Lines with a +: These are present in the second configuration but were not in the first.

Analyzing the Exhibit: The output shows a comparison between a switch running version 10.08.1010 (the - line) and version 10.13.1030 (the + line), along with several configuration changes like adding an lldp-group, a port-access role, and IP addressing on vlan 2000.

Differentiating Command Syntax: * In the AOS-CX CLI, checkpoint diff is an " action " command used specifically for this analytical comparison.

While many diagnostic commands start with show, the diff utility is executed directly as checkpoint diff.

Terms like " saved-config revisions " are not standard AOS-CX terminology; the system uses " checkpoints " exclusively for this purpose.

When line card LEDs do not light up, and the cards are newly installed, the best troubleshooting methodology is Divide and conquer by swapping the line cards. This method isolates the problem by testing hardware in different slots or known working units.

Spot the difference involves comparing configurations, which does not directly isolate hardware failure.

Follow the path is more suited for connectivity issues.

Replace configuration relates to software or config problems.

Hardware issues are best isolated by physically swapping components.

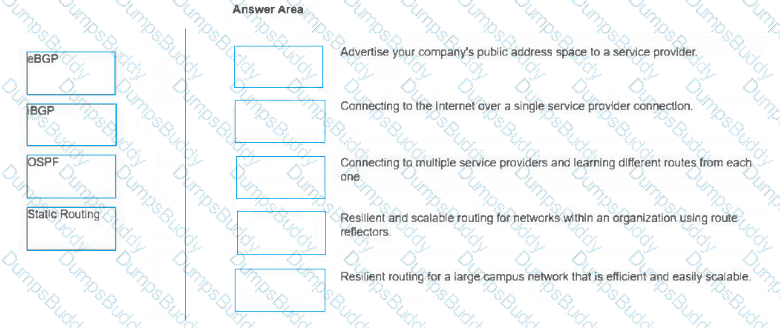

Answer Area:

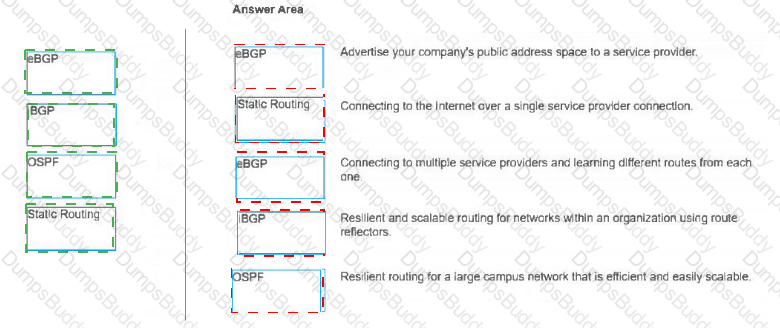

Advertise your company ' s public address space to a service provider: eBGP

Connecting to the Internet over a single service provider connection: Static Routing

Connecting to multiple service providers and learning different routes from each one: eBGP

Resilient and scalable routing for networks within an organization using route reflectors: iBGP

Resilient routing for a large campus network that is efficient and easily scalable: OSPF

In AOS-CX design, selecting the right routing protocol is based on the boundary of the administrative control and the required scale.

Advertise public address space to a service provider (eBGP): External BGP (eBGP) is the industry-standard protocol used to exchange routing information between different Autonomous Systems (AS). To let the world know how to reach your public IP block, you must " speak " eBGP with your ISP.

Single service provider connection (Static Routing): When a network has only one exit point (a " stub " connection) to the Internet, dynamic protocols are unnecessary. A simple default static route (0.0.0.0/0) pointing to the ISP gateway is the most efficient and least resource-intensive method.

Multiple service providers / Multi-homing (eBGP): When you have two or more ISPs, your switch needs to make a decision on which path is better based on attributes like AS-Path length or MED. eBGP is required here to receive and process these external path attributes.

Internal organization routing with route reflectors (iBGP): Internal BGP (iBGP) is used to carry BGP prefixes within an AS. Because iBGP requires a " Full Mesh " by default (every router connected to every other router), it does not scale well. Route Reflectors are the architectural solution used to allow a central switch to reflect routes to others, ensuring scalability within the organization.

Large campus network (OSPF): Open Shortest Path First (OSPF) is a Link-State Interior Gateway Protocol (IGP). It is the preferred choice for Aruba campus environments because of its fast convergence, hierarchical design (Areas), and ability to handle large numbers of internal subnets efficiently.

Colorless Ports is a foundational concept in Aruba’s Dynamic Segmentation strategy. It refers to a switch configuration where all access ports are configured identically, and the network identity of the port changes dynamically based on the device that plugs into it.

Role of 802.1X: To achieve a colorless port, the switch must first identify the device or user. 802.1X (Port-based Network Access Control) is the industry-standard method for providing this identification. When a device connects, the switch challenges it for credentials. Based on the response, the RADIUS server tells the switch which " User Role " to apply, which then sets the VLAN, QoS, and ACLs.

Complementary Methods: While 802.1X is the primary answer here, colorless ports also frequently utilize MAC Authentication for devices that do not support 802.1X (like printers).

Evaluating Other Options:

Option A: 802.1Q is the standard for VLAN tagging. While colorless ports use VLANs, 802.1Q is a static trunking/tagging protocol and does not provide the " dynamic " intelligence required for a colorless environment.

Option C: 802.11X is a common " trick " option on exams. 802.11 is the standard for Wireless (Wi-Fi), and there is no specific " 802.11X " protocol used for wired switch port security.

Option D: 802.1AD refers to " QinQ " or double-tagging, used primarily in service provider environments to tunnel customer VLANs. It has no relevance to the colorless port security model.

The issue is VMware vMotion traffic on VLAN 3903 failing, while other VLANs work normally. vMotion traffic requires support for larger frame sizes (jumbo frames) because vMotion packets are large and benefit from increased MTU to improve performance and reduce fragmentation.

Configuring jumbo frames on VLAN 3903 ensures that frames on this VLAN can use an MTU larger than the default 1500 bytes.

Configuring jumbo on the interface alone may not be sufficient if the VLAN itself is not set to support jumbo frames.

Setting MTU on VLAN or interface might not work unless jumbo frames are enabled.

The Network Analytics Engine (NAE) is a powerful built-in framework in AOS-CX for monitoring and troubleshooting. It uses Python-based agents to track system health and network events.

Direct UI Integration: The AOS-CX Web Interface (Web UI) includes a dedicated Analytics dashboard. Within this dashboard, there is a functional integration designed to simplify the acquisition of new monitoring scripts.

Aruba Solutions Exchange (ASE): The ASE is the official repository for Aruba-validated scripts, configuration templates, and NAE agents. When an administrator clicks the " Download " or " Discover " button within the NAE section of the switch ' s Web UI, the switch attempts to connect directly to the Aruba Solutions Exchange API . This allows the user to browse, select, and install verified NAE scripts without manually downloading files from a PC and then uploading them to the switch.

Evaluating Other Options:

Option A: The Support Portal is used for firmware and documentation, but it is not a script repository integrated into the switch UI.

Option C: Airheads is a community forum where scripts are discussed and shared manually, but it lacks the API integration for direct UI downloads.

Option D: While there is an official Aruba GitHub for NAE scripts, the built-in discovery mechanism specifically points to the ASE portal for a seamless, authenticated experience.

To determine which sites would benefit most from upgrading from 6200 to more powerful 6300 switches in Aruba Central, the best report to run is the Switch Capacity Planning report. It analyzes resource utilization and capacity to identify bottlenecks and potential upgrade candidates.

Infra Inventory lists devices but not capacity usage.

Resource Utilization gives raw usage but not in planning context.

Network report focuses on topology and status.

Hence, Switch Capacity Planning is the most relevant report for upgrade planning.

In VSX architecture, the Inter-Switch Link (ISL) is implemented as a Link Aggregation Group (LAG). To ensure proper forwarding and VLAN consistency, the ISL LAG must allow all configured VLANs. This allows VSX synchronization and data forwarding across all VLANs that span the two switches.

ISL traffic is not specifically tagged with EF QoS markings by default.

ISL traffic is not encapsulated in GRE tunnels.

The ISL LAG does not automatically include all VLANs; VLANs must be allowed on the LAG explicitly.

Hence, the LAG must be configured to allow all VLANs.

When a VSX primary switch is powered off, it loses connectivity with management systems such as HPE Aruba Central. This causes the management system to trigger a " Switch Disconnected " alert because the switch is no longer reachable.

" Switch Reboot " alerts would indicate a restart, not power off.

" Switch Stack Conductor Change " refers to stack leadership changes, not VSX primary down.

" Switch STP Root Change " relates to Spanning Tree Protocol root bridge changes.

Hence, powering off the VSX primary causes a " Switch Disconnected " alert.

To resolve vMotion connectivity issues on an Aruba AOS-CX 8320 , we must ensure the network infrastructure supports Jumbo Frames end-to-end.

MTU and vMotion Requirements: VMware vMotion is highly sensitive to the Maximum Transmission Unit (MTU). For optimal performance and reliability, a 9000-byte MTU is standard. If any switch port in the path is left at the default 1500-byte MTU , vMotion operations will typically time out or fail, even if standard small-packet traffic (like a basic ping) works.

AOS-CX Configuration Syntax: In the AOS-CX operating system, Jumbo frame support is enabled by modifying the MTU at the interface level.

The standard command is mtu 9198.

The value 9198 is used because it accounts for the 9000-byte payload plus L2 headers and tagging overhead.

Unlike the older AOS-S (ProCurve) software, AOS-CX does not use the jumbo command; it uses the mtu command under the physical interface context.

Analyzing the Exhibits:

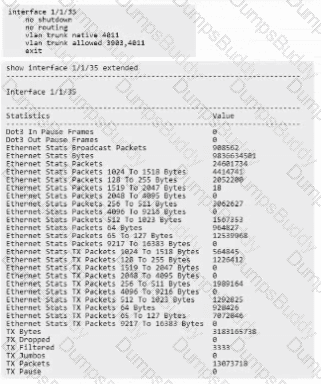

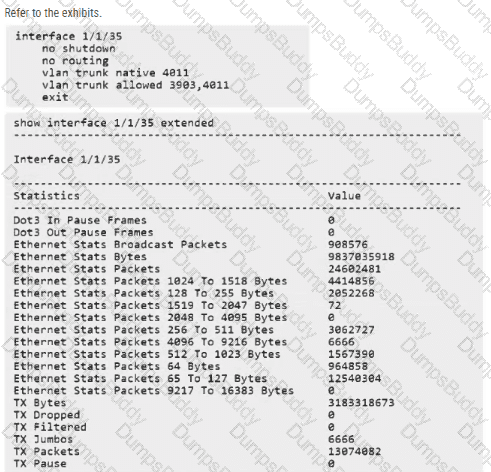

The Configuration: The exhibit for interface 1/1/35 shows a standard trunk configuration but no MTU command . This confirms the port is operating at the default 1500-byte limit.

The Statistics: The show interface extended output shows TX Jumbos: 6666. This indicates that jumbo packets have been sent, but in a troubleshooting context, this may represent previous stats or the switch counting oversized frames before dropping them or failing to receive them from the server.

Why Option B is the Correct Fix: Even if " large " pings (e.g., 2000 bytes) work due to fragmentation or " baby giant " tolerances, the specific high-throughput requirements of vMotion necessitate that the physical transport layer (interface 1/1/35) be explicitly configured to handle the full 9000-byte frame size using the mtu 9198 command.

Addressing the SVI (Option A): While an SVI (interface vlan 3903) also has an MTU, the physical port is the primary gatekeeper for Layer 2 traffic. If the physical port is set to 1500, no jumbo frame will ever reach the SVI or be switched to another port on that VLAN.

Dynamic Segmentation (DS) requires certain capabilities on the switches to support user role assignment and traffic segmentation based on identity. The CX 6100 series switches do not support Dynamic Segmentation due to hardware and feature limitations. Therefore, they must be replaced with CX 6300 models, which support DS features natively.

Options involving GRE tunnels or VXLAN tunnels relate to traffic forwarding but do not enable DS on unsupported hardware.

Applying licenses does not upgrade hardware capabilities for DS.

In the context of the HPE Aruba Networking troubleshooting framework, selecting a methodology depends heavily on the trigger event.

The Trigger: A physical change occurred (relocating an AP). In networking, physical changes are synonymous with Layer 1 (Physical Layer) of the OSI model.

Bottom-Up Approach: The " Bottom-up " methodology starts at the Physical Layer and works upward through the Data Link, Network, and Transport layers. Since a technician recently touched the cabling and moved the hardware, starting with the physical layer is the most efficient path. You would first verify the cable integrity, PoE power delivery from the switch, and the physical environment (RF interference in the new location).

Top-Down Approach: Alternatively, starting at the application layer (the video call software) is also a valid " starting point " when the user reports an application-specific failure. Together, the Top-down/Bottom-up model provides a structured way to isolate whether the issue is the physical move or a software configuration that coincided with it.

Why others are less suitable here:

Option B (Divide and conquer): This usually starts at Layer 3 (IP connectivity) to see if you can ping. While useful, it might skip the most likely culprit in a physical relocation: a bad cable or poor signal.

Option C: This is a remediation step, not a diagnostic methodology.

Option D (Follow the path): This is better for complex routing issues where packets are getting lost across multiple hops; it is overkill for a local boardroom connectivity issue.
