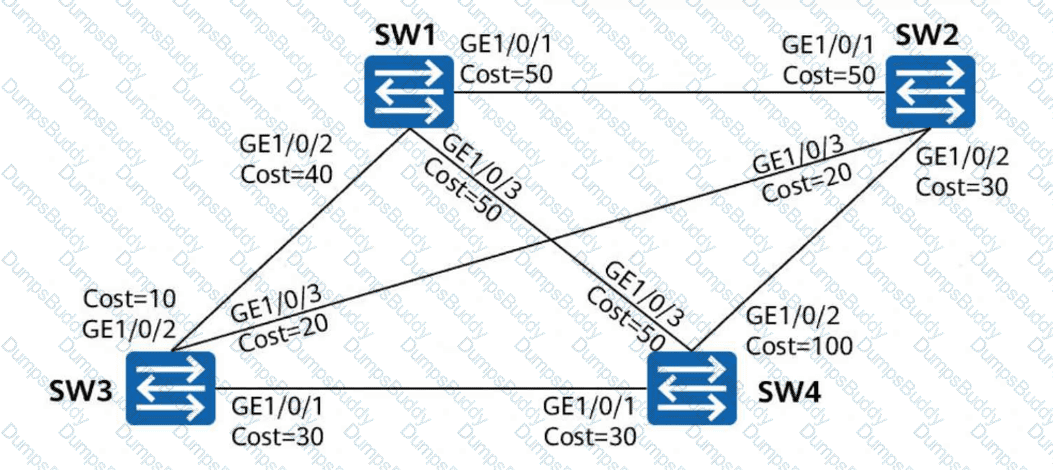

The root path cost (RPC) of a switch is the total path cost from that switch to the root bridge along the selected spanning-tree path. Since SW1 is given as the root bridge, its RPC is 0. Each link in the topology has a path cost of 20 . To determine SW4’s RPC, you identify the shortest active STP path from SW4 to SW1.

Based on the topology used in the question, SW4 reaches SW1 through a path containing two links . Therefore, the total root path cost is 20 + 20 = 40 , which makes option B correct. This is a standard STP calculation. HCIA-Datacom uses RPC as one of the main comparison parameters in root-port election on non-root switches. A lower RPC means a better path toward the root bridge. If multiple candidate ports have the same RPC, the switch then compares the sender’s bridge ID and port ID. This question checks whether the learner understands that RPC is cumulative across the spanning-tree forwarding path and is not simply the cost of a single directly connected link unless the switch is directly attached to the root bridge.

This statement is true . On a Huawei WAC, the number of APs that can go online is controlled by the available license resources . If a Fit AP fails to come online and the command display ap online-fail-record shows Insufficient license resources , it means the controller does not currently have enough licensed capacity to allow additional APs to register successfully.

In this case, the administrator must expand the license capacity or adjust existing license allocation so that the AP can be admitted. This is a common WLAN deployment issue, especially when new APs are added without first verifying the current AP license limit on the WAC. HCIA-Datacom troubleshooting methodology emphasizes interpreting controller diagnostics and fault records accurately. An AP can fail to go online for many reasons, including CAPWAP reachability problems, version mismatch, authentication issues, or licensing limitations. When the failure reason explicitly indicates insufficient license resources, the troubleshooting direction is clear: the controller’s AP license capacity must be checked and, if necessary, increased. This question tests the ability to map a specific WAC alarm record to the correct operational response.

OSPF divides a large routing domain into areas so that link-state information can be contained and the processing burden on individual routers can be reduced. Within a given OSPF area, routers exchange LSAs and synchronize the area ' s link-state database. After the network has converged and the participating routers have full adjacency where required, routers in the same area maintain a consistent view of that area ' s topology. Each router then runs the SPF algorithm independently against that common LSDB, using itself as the root, so the calculated shortest-path tree can differ in perspective even though the underlying area topology database is the same. Area boundaries also limit which detailed LSAs need to be maintained by routers outside the area, which is one reason hierarchical OSPF scales better than a single very large area. The statement should be understood under normal, converged OSPF operation; simply sharing an area number without connectivity would not create synchronization. In the intended HCIA Datacom context, R1 and R2 participating in the same area maintain the same area LSDB. Therefore the answer is TRUE, option A.

On a Huawei WAC, the VAP profile is the profile that brings together the service attributes required to instantiate a wireless service on an AP radio. The service VLAN is configured in this VAP profile using the service-vlan command. The VAP profile can also reference an SSID profile and a security profile and can define the data forwarding mode, allowing the wireless service to map associated STA traffic into the correct wired VLAN. The SSID profile primarily defines the WLAN name and related SSID behavior. The security profile defines authentication and encryption policies such as WPA/WPA2/WPA3 parameters. The regulatory domain profile controls radio regulatory settings such as country-specific channel and transmit-power constraints. None of those profiles is the location in which the service VLAN itself is defined. Huawei configuration examples explicitly show the administrator entering the VAP profile view and then applying service-vlan vlan-id or a VLAN pool. Therefore, the correct choice is C, VAP profile.

The acronym in the source file is mistyped as PCF. The correct intelligent lossless Ethernet technology is PFC, which stands for Priority-based Flow Control. PFC extends Ethernet flow control by applying pause behavior to selected traffic priorities rather than stopping all traffic on an interface. When a downstream device detects that a lossless priority queue is approaching congestion, it can send a priority-specific pause indication to the upstream sender. The upstream device temporarily stops transmitting traffic for that priority, preventing the downstream buffer from overflowing and thereby supporting zero-packet-loss behavior for the protected traffic class. This capability is important in intelligent computing and data center fabrics carrying storage or high-performance computing workloads that are sensitive to packet loss. Huawei describes PFC as a foundational technology for intelligent lossless networks, often used together with congestion-management mechanisms such as ECN and related optimization features. Therefore, the blank must be filled with PFC in uppercase. The original answer PCF should be corrected to PFC.

This question tests the difference between Layer 3 addressing and Layer 2 encapsulation during routing. The IP packet originated by PC1 keeps PC1 ' s IP address as its source IP and PC2 ' s IP address as its destination IP as it traverses the routers. Ethernet MAC addresses, however, are rewritten at every routed hop. When R1 forwards the packet across the link toward R2, R1 builds a new Ethernet frame on its outgoing interface. According to the exhibit, R1 ' s outgoing interface on the R1-R2 link uses MAC_C, so MAC_C is the source MAC address. The next-hop device on that link is R2, whose receiving interface uses MAC_D, so MAC_D is the destination MAC address. MAC_A belongs to PC1 and was relevant only on the first local Ethernet segment. MAC_F belongs to PC2 and is used on the final Ethernet segment from R2 to PC2, not on the R1-R2 link. Therefore the correct statements are B and D. The uploaded key B, C is incorrect.

Comprehensive and Detailed 150 to 200 words of Explanation From Datacom knowledge:

The false statement is B . From the AAA configuration output, the value of Remote-admin-user block time is clearly shown as 5 Min(s) , which means the account lockout duration is 5 minutes , not 30 minutes.

Option A is true because Remote-admin-user block retry-time : 3 indicates that after 3 consecutive authentication failures , the account will be blocked. Option C is also true because the displayed Domain Name Delimiter is @ , which is the separator used in usernames such as user@huawei.com. Option D is true as well because the output shows Local-user : total: 512 used: 2 , meaning that the device supports a maximum of 512 local users , and currently 2 local users have been created.

This question checks the ability to correctly read AAA configuration output on Huawei devices. In HCIA-Datacom knowledge, it is important to distinguish between retry interval , retry count , and block time , because these values represent different security control parameters and are often confused during troubleshooting or configuration review.

The topology contains three Layer 3 interconnection VLANs: VLAN 12 between Core1 and ACC1, VLAN 13 between Core1 and ACC2, and VLAN 23 between ACC1 and ACC2. OSPF is enabled across the campus, while STP still controls Layer 2 forwarding on the VLAN links. If ACC2 GE1/0/3 is an alternate port, STP blocks service forwarding on the ACC1-ACC2 path. As a result, OSPF Hello packets cannot be exchanged across that blocked Layer 2 path and ACC1 and ACC2 cannot establish an OSPF neighbor relationship on VLAN 23, so C is true. Core1 still has routes for all three interconnection networks: VLAN 12 and VLAN 13 are directly connected, and information for VLAN 23 can be learned through OSPF from the access devices, making B true. Statement A is incorrect because ACC1 already has VLANIF 23 as a directly connected network rather than needing to learn that same connected segment through OSPF. Statement D is also false: STP can still be relevant on Layer 2 VLAN links even in a campus using Layer 3 routing.

This statement is false . On Huawei devices, the domain to which a user belongs is usually determined by the domain part carried in the user name, for example user@huawei.com. However, if the specified domain is not configured on the NAS device, authentication does not necessarily fail immediately . In many cases, the device can use a default domain for authentication processing, depending on the AAA configuration.

Huawei AAA supports both an administrator user default domain and a normal user default domain . If a user name does not match a configured domain, or the domain carried in the user name is unavailable, the device may fall back to the default domain and continue authentication according to the configured policy. Therefore, the statement is incorrect because it treats authentication failure as unavoidable in every such case. HCIA-Datacom emphasizes domain-based AAA processing because it allows different groups of users to use different authentication, authorization, and accounting methods. At the same time, learners must understand the function of default domains, which provide flexibility in real deployments and prevent unnecessary authentication failures in some login scenarios.

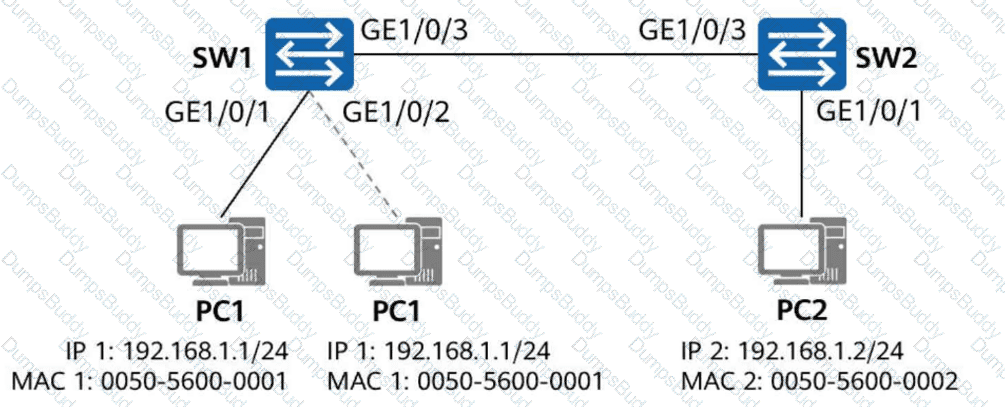

An Ethernet switch learns MAC address entries dynamically by examining the source MAC address of incoming frames. When SW1 first receives frames from PC1 on GE1/0/1, it creates a MAC address table entry mapping PC1’s MAC address to that port. If PC1 later sends frames that arrive on GE1/0/2, SW1 updates the learned entry to reflect the new incoming interface. Therefore, option B is correct: SW1 saves the mapping between PC1’s MAC address and GE1/0/2 and removes or overwrites the old mapping associated with GE1/0/1.

Option A is incorrect because a single dynamic MAC address is not normally maintained on two different ports within the same VLAN at the same time; that would cause forwarding ambiguity. Option C is incorrect because a normal move of one MAC address does not require clearing the entire MAC table. Option D is also incorrect because switches update MAC learning dynamically upon receiving new source traffic and do not have to wait for the previous entry to age out. HCIA-Datacom uses this principle to explain MAC address learning, migration, and troubleshooting of loops or host movement in switched Ethernet networks.

STelnet is Huawei ' s secure terminal service based on SSH and uses a client/server model. The device being remotely managed operates as the STelnet server, and the administrator ' s terminal acts as the client. A user who must modify device configuration also requires an adequate command privilege level; a level intended only for monitoring is insufficient. The false statement is A because the SSH/STelnet listening port cannot be set to literally any port number. Huawei VRP permits the default SSH server port 22 and, on common platforms and releases, configurable high-numbered ports within the documented allowed range. Port 1026 is a valid example of a non-default server port, but the wording " any port " is technically incorrect because reserved or disallowed values cannot be selected. Changing the listening port can reduce exposure to routine scans, but it does not remove the requirement for SSH authentication and access controls. Therefore the source answer A is valid when the complete wording of the option is considered.

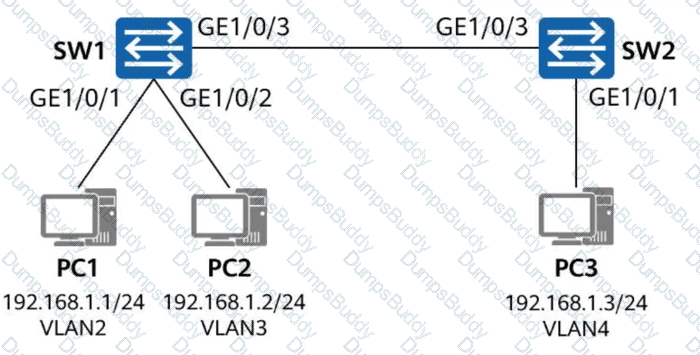

The exhibit shows GE1/0/2 as an access port in VLAN 3 on both switches, so PC2 and PC4 belong to the same Layer 2 broadcast domain. The inter-switch GE1/0/3 link is a trunk that permits VLANs 2 and 3, allowing VLAN 3 frames to pass between SW1 and SW2. Therefore, PC2 and PC4 can communicate at Layer 2, making statement B true. GE1/0/1 remains an access interface in the default VLAN 1 because no other default VLAN is configured. VLAN 1 is not permitted across the shown trunk, so PC1 cannot communicate with PC3 across the switches. PC1 and PC2 are also in different VLANs locally, and PC2 and PC3 are in different VLANs. Devices in different VLANs cannot exchange Layer 2 traffic directly; a Layer 3 gateway is required for inter-VLAN communication. Accordingly, statements A, C, and D are the false statements, which makes A, C, and D the correct selections.

The command output in the exhibit shows that both AP radios are enabled, so a disabled radio is not supported by the evidence. The 5 GHz radio has relatively low channel utilization, while the 2.4 GHz radio reports channel utilization of approximately 90 percent. Such a high utilization value indicates that the air interface is heavily occupied by transmissions or interference. Huawei WLAN troubleshooting guidance identifies a busy air interface and a heavily loaded AP as possible causes of STA association failures because management and authentication frames may be delayed or lost when contention is severe. The displayed radio information alone does not prove that the affected STAs are in a blacklist or absent from a whitelist; those conditions require separate STA or VAP access-control information. Therefore, option A is the only choice directly supported by the command output. The correct troubleshooting interpretation is that excessive channel utilization on the radio can make the air interface busy and prevent some STAs from completing association successfully. The verified answer is A.

The configuration first defines a named time range, working-time, covering 08:00 through 18:00 on working days. It then creates a named basic ACL and applies a deny rule for source network 192.168.1.0/24 using wildcard mask 0.0.0.255, with the rule tied to that time range. A packet from any address in 192.168.1.0 through 192.168.1.255 satisfies the source-address portion of the rule. The time-range condition means the rule is active only during the defined working-time period on the device. Outside that period, this particular rule is not considered a match. A basic ACL is appropriate here because the match depends on source IPv4 address and time, both of which are supported basic-ACL conditions. Whether traffic is ultimately permitted or denied also depends on where the ACL is applied and on any other ACL rules, but the question asks only whether the specified source addresses match this rule during the stated working hours. They do. Therefore, the statement is TRUE and option A is correct.

The uploaded key includes all four options, but option B is not a valid requirement for normal source NAT and should be removed. Source NAT translates the private source address of outbound traffic into a public address before the packet enters the public network. The public-side router therefore needs reachability to the translated public address for return traffic, not a route to the original private intranet address. By contrast, A can prevent access if NAT is not applied on the proper outbound interface or direction. C can also prevent translation when the configured address pool has no usable address available, depending on the NAT mode and session requirements. D is valid because traffic whose source address does not match the NAT policy or referenced ACL will not be translated; private-source packets then normally cannot traverse the Internet as intended. Routing on the enterprise egress device must of course also be correct, but the specific absence described in B is not inherently a failure when source NAT is working. The verified selections are A, C, and D.

In IPv6, link-local addresses use the prefix FE80::/10 . These addresses are automatically generated or configured for communication on the local link only and are not routed across Layer 3 boundaries. Therefore, among the given options, FE80::FA63:DBFF:FE9E:10 is the correct link-local address, making option C correct.

Options A and B belong to the Unique Local Address (ULA) space, which uses the prefix FC00::/7 . These addresses are intended for private internal IPv6 networks, somewhat similar in purpose to private IPv4 address ranges, but they are not link-local addresses. Option D , which starts with 2001::, is a global unicast address , used for routable communication across IPv6 networks. HCIA-Datacom teaches that link-local addresses are essential in IPv6 because they are used for functions such as neighbor discovery, router discovery, and routing protocol communication on the local segment. Even when a device has global unicast addresses, the link-local address still plays an important role in normal IPv6 operation and protocol adjacency establishment.

The false statements are A and D . Option A is considered false in HCIA-Datacom wording because intelligent computing data center networks aim to build a lossless Ethernet fabric through coordinated technologies such as high-bandwidth interfaces, deep buffers, PFC, ECN, congestion control, and optimized forwarding. The exam-oriented knowledge point treats these technologies as solutions for a zero packet loss network design goal rather than stating that a truly lossless network cannot be achieved.

Option D is also false because RDMA is used to reduce end-to-end communication latency and CPU overhead between servers, especially for east-west traffic in AI and high-performance computing clusters. It is not specifically described as reducing latency between GPU servers and physical switches . That wording is inaccurate. Option B is true because PFC and ECN are standard lossless Ethernet technologies applied in intelligent computing networks. Option C is also true because AI training and distributed computing generate massive data synchronization traffic, requiring very high single-port bandwidth such as 200GE or 400GE . HCIA-Datacom highlights bandwidth, low latency, and lossless transport as the core requirements of intelligent computing data center networks.

This statement is false . In campus network VLAN planning, VLAN IDs do not have to be allocated strictly consecutively without any gaps. In fact, leaving some reserved VLAN IDs is often a practical and recommended design approach. VLAN planning should focus on clarity, scalability, maintainability, and service separation , rather than on forcing all VLAN IDs to be contiguous.

For example, an administrator may reserve certain VLAN ranges for user access, voice services, management, wireless services, guest access, future expansion, or specific departments. Such structured planning makes later network expansion easier and reduces the risk of service conflicts or disruptive renumbering. HCIA-Datacom emphasizes that good campus network planning should consider current requirements and future growth. Consecutive allocation may look tidy at first, but it can actually reduce flexibility and make later additions more difficult. Therefore, the idea that VLAN IDs must be assigned consecutively without redundancy to avoid omissions is not a correct design principle. Reasonable reservation and categorized allocation are often more beneficial in real enterprise campus networks.

Modern cloud data centers require horizontal scalability, high east-west bandwidth, virtualization support, and flexible tenant network extension. A spine-leaf physical topology provides predictable low-hop connectivity between leaf switches by connecting each leaf to the spine layer. VXLAN provides an overlay that can create large numbers of logical Layer 2 segments over the Layer 3 underlay and is well suited to virtualized and multi-tenant cloud environments. The combination of Spine-Leaf and VXLAN is therefore a standard architecture for cloud-based general-purpose data center networks. M-LAG with Eth-Trunk can provide device and link redundancy but does not by itself provide the scalable overlay architecture expected for a cloud fabric. PFC and ECN are lossless-network and congestion-management technologies rather than a complete general-purpose data center architecture. STP with VRRP represents more traditional Layer 2 redundancy and gateway protection and does not offer the same cloud-fabric scalability. Consequently, the architecture described in the question is Spine-Leaf + VXLAN, making option B correct.

All four statements are correct. The code uses the Paramiko library to automate SSH login to a network device. import paramiko and import time load the Python modules required for SSH communication and delay control, so option C is correct. The statement ssh = paramiko.SSHClient() creates an SSH client object, and ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy()) allows the client to accept an unknown host key automatically in this example scenario.

The command ssh.connect( ' 192.168.1.254 ' , username= ' python ' , password= ' Huawei@123 ' ) establishes an SSH connection to the target device, so option B is correct. Then channel = ssh.invoke_shell() opens an interactive shell channel , which is commonly used to send CLI commands and receive output just as an administrator would in a terminal session, making option D correct. The command channel.send( ' screen-length 0 temporary\n ' ) disables page-by-page output for the current session, which is useful in network automation. Finally, ssh.close() closes the SSH session and releases the connection, so option A is correct. HCIA-Datacom automation knowledge often uses Paramiko examples to demonstrate basic Python-based device O & M.

STP and link aggregation are not mutually exclusive technologies. They solve different problems and can coexist on the same switch. Link aggregation combines multiple physical Ethernet links into a logical Eth-Trunk, increasing available bandwidth and providing member-link redundancy. STP or a related spanning-tree protocol prevents Layer 2 loops by calculating a loop-free active topology and can treat an Eth-Trunk as a logical interface. In a well-designed campus network, several physical links between two switches may first be aggregated into one Eth-Trunk, while STP operates over that logical link together with other Layer 2 paths. Conversely, if separate redundant links are not aggregated, STP may block one or more paths to prevent a loop. Choosing link aggregation can use parallel member links more efficiently than allowing STP to block individual links, but enabling one function does not prohibit use of the other elsewhere on the device. Therefore, the assertion that only STP or link aggregation can be configured on a device at one time is incorrect. The verified answer is FALSE, option B.

Huawei ' s Wi-Fi 7 documentation describes several technologies introduced or enhanced relative to Wi-Fi 6 to increase throughput, spectrum efficiency, and reduce latency. 4096-QAM raises modulation density from the 1024-QAM maximum associated with Wi-Fi 6, allowing more bits to be carried per modulation symbol under suitable radio conditions. Multi-RU allows one user to be assigned multiple resource units, improving spectrum scheduling flexibility compared with the Wi-Fi 6 restriction of a user operating within its assigned RU. Multi-link operation allows a station to establish and use links across multiple bands or radios as a coordinated connection. Wi-Fi 7 also enhances MU-MIMO capabilities, increasing the ability to serve multiple users and exploit additional spatial resources. Huawei product documentation commonly lists 4096-QAM, multi-RU, MLO/multi-link, and enhanced MU-MIMO among Wi-Fi 7 improvements built on Wi-Fi 6. Therefore, each technology listed in the question contributes to Wi-Fi 7 performance improvement, and the verified selection is A, B, C, and D.

Huawei network devices use file extensions to distinguish software images, patches, configuration files, and other packages. A patch package uses the .pat extension, so test.pat is the only option that represents a Huawei patch file. A .cc file is normally associated with a VRP system software package rather than a patch. Configuration data is stored in supported configuration formats and is not identified by the .pat extension. An administrator can transfer the patch file to the device by FTP, SFTP, or another supported file-transfer method and then activate or load it according to the platform ' s patch procedure. The purpose of a patch is to correct defects or vulnerabilities without necessarily replacing the complete system software package. Because the question asks specifically for the file that can be uploaded as a patch to remediate a security vulnerability, the filename ending in .pat is the technically correct selection. The source answer B is therefore consistent with Huawei Datacom file-management conventions.

An IPv6 solicited-node multicast address is automatically derived from the lower 24 bits of a unicast or anycast IPv6 address. The fixed solicited-node prefix is FF02::1:FF00:0/104. The interface address in the question is 2001:db8:12::1. Its final 24 bits are 000001 in hexadecimal representation. Combining those 24 bits with the solicited-node multicast prefix produces FF02::1:FF00:1. This multicast address is used by IPv6 Neighbor Discovery for functions such as address resolution and Duplicate Address Detection, reducing the need to disturb every host on the local link in the way an IPv4 ARP broadcast does. FF02::1 is the all-nodes link-local multicast address and FF02::2 is the all-routers link-local multicast address, so neither represents the solicited-node group for this interface. Option A contains unrelated lower-order bits and does not correspond to the source address. Therefore the derived solicited-node multicast address is FF02::1:FF00:1, making option C correct.

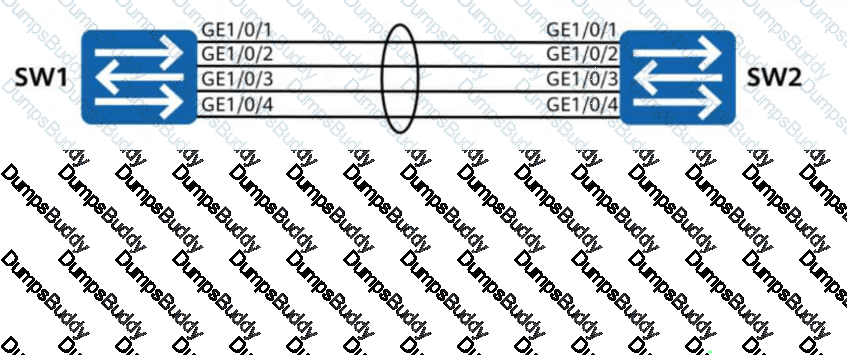

In an Eth-Trunk working in manual mode , multiple physical member links are bundled into one logical interface to provide higher bandwidth and link redundancy. If one of four 1 Gbit/s member links fails, the Eth-Trunk does not go down as long as at least one valid member link remains active. Therefore, statement A is correct. Since one link has failed and three member links remain available, the total available bandwidth becomes 3 Gbit/s , so statement B is also correct.

Statement C is incorrect because the traffic originally hashed to the failed link is not permanently stopped. Instead, after the link failure is detected, traffic is redistributed across the remaining active member links according to the trunk load-balancing mechanism. Statement D is also incorrect because Eth-Trunk provides link-level redundancy. Existing upper-layer sessions such as TCP are not necessarily interrupted and re-established simply because one member link fails. HCIA-Datacom emphasizes that Eth-Trunk improves reliability and bandwidth utilization by allowing traffic to continue across surviving links when a single member fails. This is one of the main advantages of link aggregation in campus and data center switching networks.

The nat server configuration creates a static mapping so that an internal Telnet server at private address 192.168.1.1 can be reached from the public network using global address 100.0.23.2 on the Telnet TCP port. The purpose of NAT Server is to expose an internal service through a reachable public address and translate incoming packets to the inside host. A public user therefore initiates the connection to the configured global address, for example telnet 100.0.23.2, assuming routing and security policies allow the session. The user does not normally issue telnet 192.168.1.1 from the public network because that is the private inside address and is not the destination on which the public-side NAT mapping is matched. After the packet reaches R1 addressed to 100.0.23.2, R1 translates the destination to 192.168.1.1 and forwards it internally. Thus the configuration can make the private server reachable, but the command stated in the question uses the wrong destination address. The statement is FALSE, option B.

This statement is true . From the routing table, the entry 10.0.12.0/24 Direct ... NextHop 10.0.12.1 Interface Vlanif2 indicates that the network 10.0.12.0/24 is directly connected through Vlanif2 , and the local interface address associated with that directly connected network is 10.0.12.1 .

This conclusion is further supported by the host route 10.0.12.1/32 Direct ... 127.0.0.1 Vlanif2, which represents the local IP address of the interface itself. On Huawei devices, when an IP address is configured on an interface, the routing table commonly generates a direct route to the connected network, a host route to the interface IP itself, and sometimes a host route to the broadcast address where applicable in IPv4. Therefore, from the displayed entries, it can indeed be inferred that VLANIF 2 has the IP address 10.0.12.1/24 . HCIA-Datacom uses these routing-table characteristics to help learners identify connected interfaces, local addresses, and route origins during troubleshooting and route analysis on routers and Layer 3 switches.
