In BGP/MPLS IP VPN, when OSPF is used as the PE-CE routing protocol, Domain IDs are used to determine whether the OSPF routes imported into the VPN instance belong to the same OSPF domain.

How Domain ID Works in OSPF and MPLS VPN:

Same Domain ID (OSPF Intra-domain routes)

If the PE router ' s Domain ID matches the OSPF Domain ID, routes are treated as intra-area routes.

The routes retain OSPF attributes when redistributed into the VPN.

Different Domain ID (OSPF Inter-domain routes)

If the Domain ID does not match, routes are treated as external routes (Type 3 or Type 5 LSAs).

The PE router redistributes these routes as OSPF external routes.

Example Huawei Configuration for Domain ID in OSPF VPN:

ospf 1 vpn-instance VPN1

domain-id 1.1.1.1

This ensures consistent OSPF route types when exchanging routes between PE and CE.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – OSPF Domain ID in PE-CE Routing

HCIE-Datacom Study Material – OSPF & MPLS VPN Route Redistribution

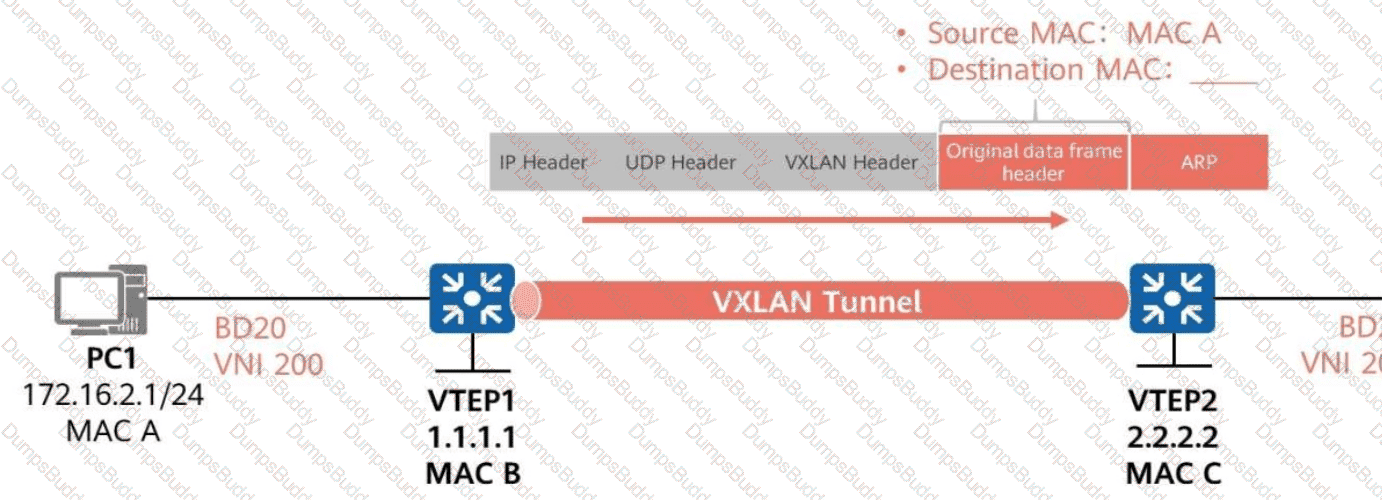

Understanding BGP EVPN Route Types for VXLAN

???? BGP EVPN (Ethernet VPN) is used for VXLAN control-plane learning.

✅ EVPN Type 2 Route (MAC/IP Advertisement)

Carries: MAC + Host IP

Used for: L2 forwarding, Host Mobility

✅ EVPN Type 5 Route (IP Prefix Advertisement)

Carries: Network segment (Subnet) + Prefix

Used for: VXLAN L3 routing

???? What Do the Given Route Entries Show?

0:172.16.2.0/24

0:172.16.13.0/24

0:192.168.122.0/30

???? These are IPv4 Subnets, NOT individual MACs.

???? Since they carry IP Prefixes, they belong to EVPN Type 5.

Analysis of the Answer Choices:

✅ A. These routes are Type 5 routes and carry network segment or mask information.

Correct: The displayed routes carry network prefixes, which belong to EVPN Type 5.

❌ B. These routes are Type 2 routes and carry host IP addresses.

Incorrect: Type 2 routes carry MAC + Host IP, NOT full subnets.

❌ C. These routes carry the L2VNI.

Incorrect: L2VNI is for Layer 2 VXLAN bridging, but these are IP Prefix Routes (L3 routing).

✅ D. These routes carry the L3VNI.

Correct: Type 5 routes are used for VXLAN L3 routing, which means they belong to L3VNI.

Real-World Application:

VXLAN L3 Gateways: Type 5 routes enable distributed routing between VXLAN segments.

Data Center Networks: Used to interconnect virtual machines (VMs) across different subnets.

✅ Reference: Huawei HCIE-Datacom Guide – BGP EVPN & VXLAN L3 Routing

Understanding IPsec SA (Security Association) Establishment

???? IPsec (IP Security) provides encrypted communication over IP networks.

???? Security Associations (SAs) define encryption, authentication, and key parameters for IPsec tunnels.

Two IPsec SA Modes:

1️⃣ Manual Mode:

All parameters (keys, encryption methods, authentication settings) must be manually configured.

Keys do not change automatically, making it less secure.

2️⃣ IKE (Internet Key Exchange) Auto-Negotiation Mode:

Uses IKE Phase 1 and Phase 2 to automatically negotiate, generate, and exchange keys.

Keys are periodically refreshed, increasing security.

Uses Diffie-Hellman (DH) key exchange for secure key generation.

Why is Answer D Incorrect?

❌ D. SAs established in both manual and IKE auto-negotiation modes can be dynamically updated.

Incorrect: In manual mode, the IPsec SA is static and does not support dynamic updates.

Correct behavior: Only IKE auto-negotiation mode supports dynamic re-keying and SA updates.

✅ Reference: Huawei HCIE-Datacom Guide – IPsec SA Modes and IKE Negotiation

Network migration typically includes the following phases:

Preparation Phase:

Network survey

Migration plan design

Backup

Pre-configuration

Middle Phase (Migration Execution):

On-site monitoring

Migration implementation

Service test (to verify the migration effect)

Post-Migration Phase:

Optimization

Documentation

Final acceptance

Hence, Migration preparation is part of the initial phase, not the middle phase.

Correct answer: A. Migration preparation

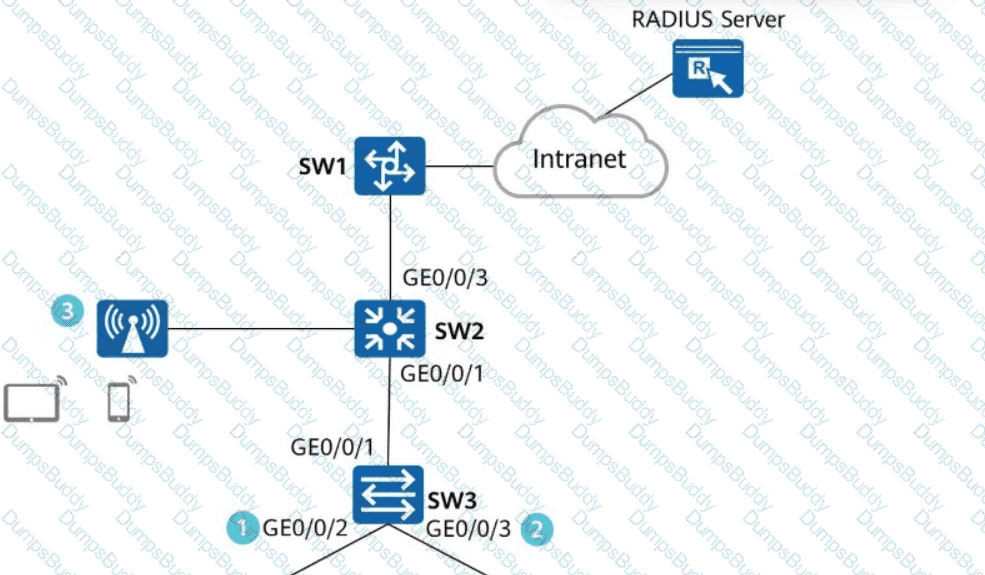

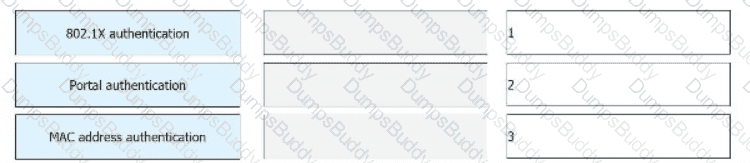

Understanding User Authentication Points in a Network

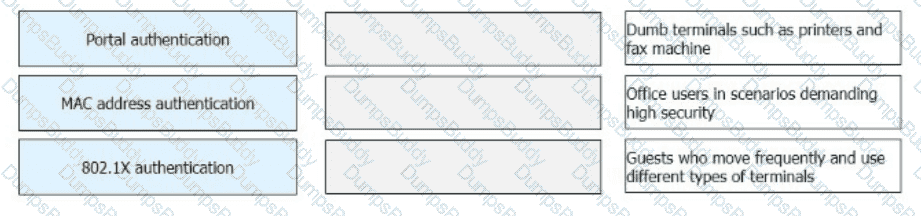

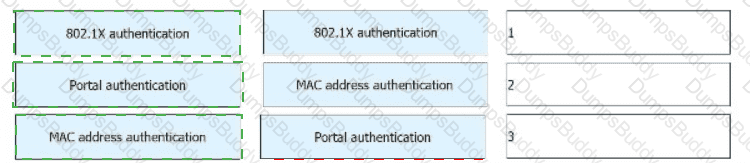

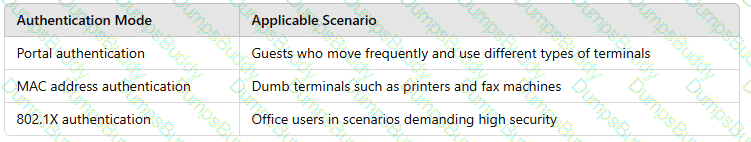

Authentication points can be deployed at different network layers based on security and scalability needs:

✅ Access Layer Authentication:

Ensures high security & granular control (user-level authentication).

Preferred in high-security enterprise networks.

✅ Aggregation or Core Layer Authentication:

Reduces authentication overhead but provides less granular control.

Suitable for large-scale networks where authentication load needs to be balanced.

Analysis of the Answer Choices:

✅ A. Deploying user authentication points at the access layer achieves granular permission management and high network security.

Correct: Provides fine-grained control per user and prevents unauthorized access.

✅ B. Moving user authentication points from the access layer to the aggregation or core layer greatly reduces the number of user authentication points, thereby effectively mitigating the pressure on the AAA server.

Correct: Fewer authentication points mean less load on the AAA server.

✅ C. Deploying user authentication points at the access layer has both advantages and disadvantages when compared to doing so at the aggregation or core layer. Policy association can be applied if user authentication points are deployed at the access layer.

Correct: Policy-based authentication is best applied at the access layer for granular control.

❌ D. When user authentication points are moved from the access layer to the aggregation layer, MAC address authentication for users may fail.

Incorrect: MAC authentication works at both layers, but policy adjustments may be needed.

✅ Reference: Huawei HCIE-Datacom Guide – User Authentication Strategies in Enterprise Networks

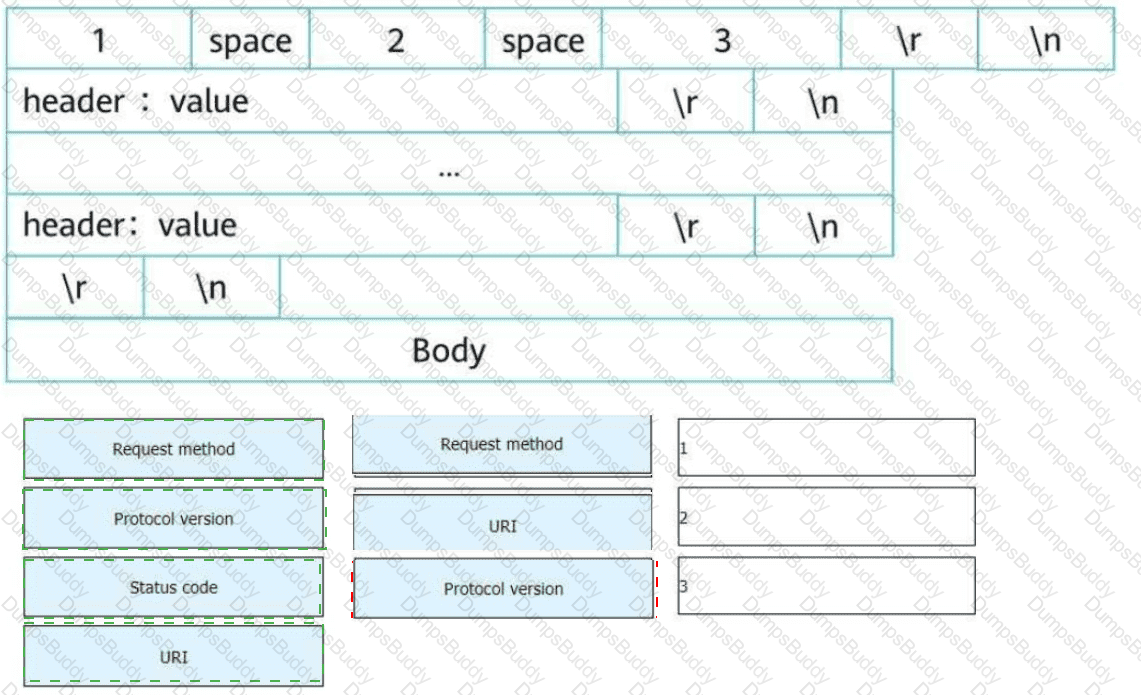

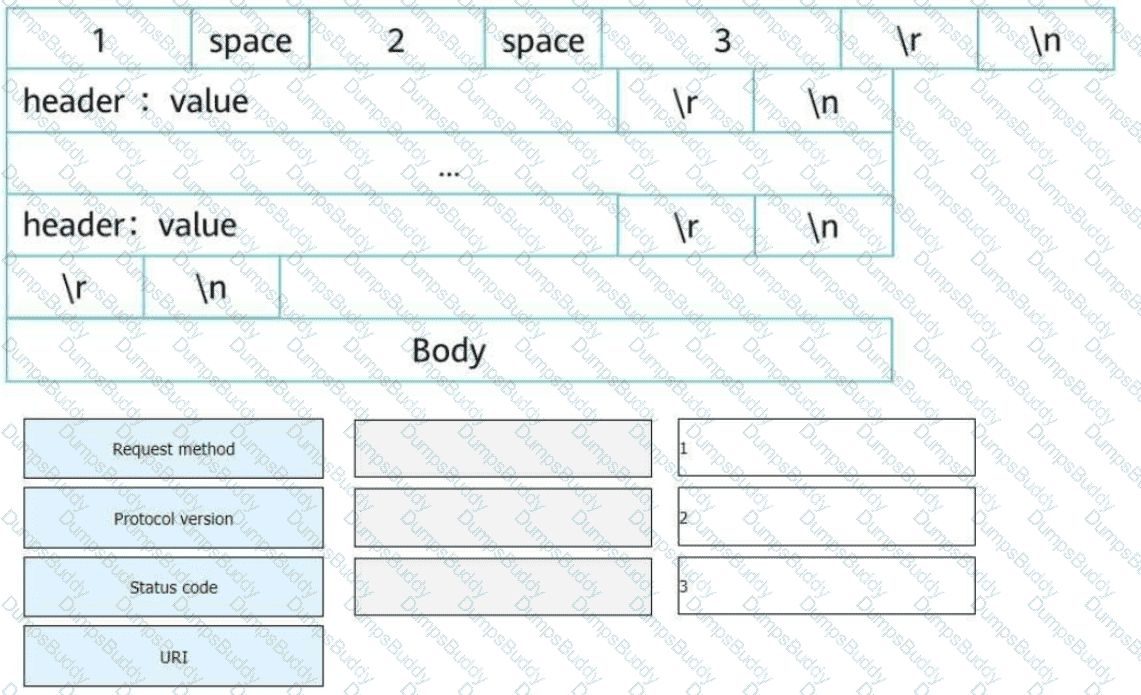

Correct Order for HTTP Request Line:

1. Request Method (e.g., GET, POST)

2. URI (Uniform Resource Identifier) (e.g., /index.html)

3. Protocol Version (e.g., HTTP/1.1)

Request Method

URI

Protocol Version

Comprehensive and Detailed Explanation:

Structure of an HTTP Request Message

An HTTP request message consists of:

1️⃣ Request Line → Specifies the request method, the target resource (URI), and the HTTP version.

2️⃣ Headers → Provides additional request details (e.g., Host, User-Agent).

3️⃣ Body (optional) → Used in methods like POST for sending data.

Format of an HTTP Request Line:

GET /index.html HTTP/1.1

GET → Request method

/index.html → URI (resource being requested)

HTTP/1.1 → Protocol version

Why Other Fields Are Incorrect?

❌ Status Code → This belongs to an HTTP response, not a request.

❌ Mixing Headers into the Request Line → Headers should be placed separately after the request line.

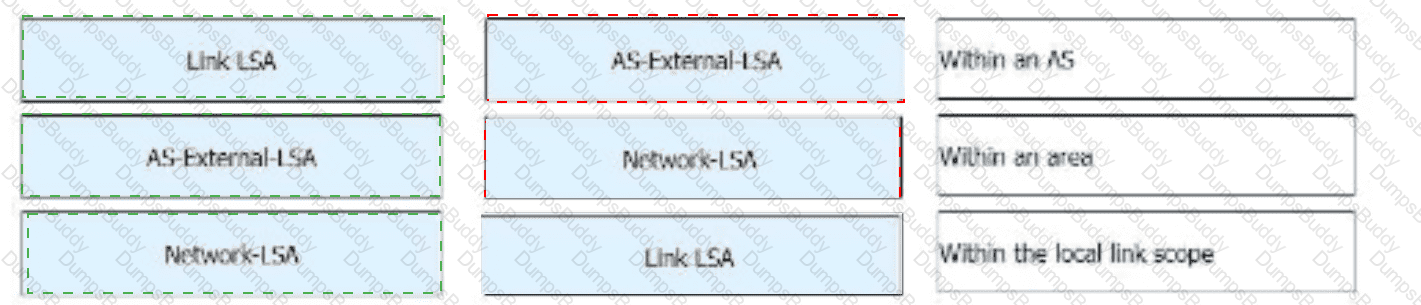

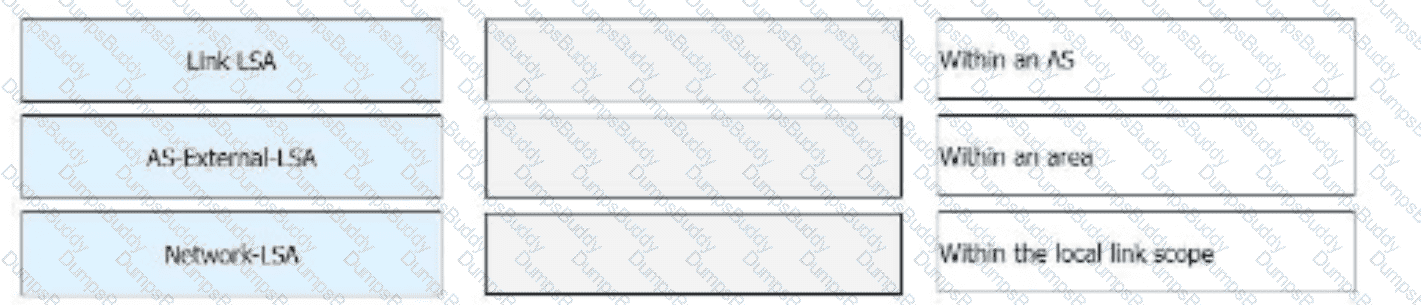

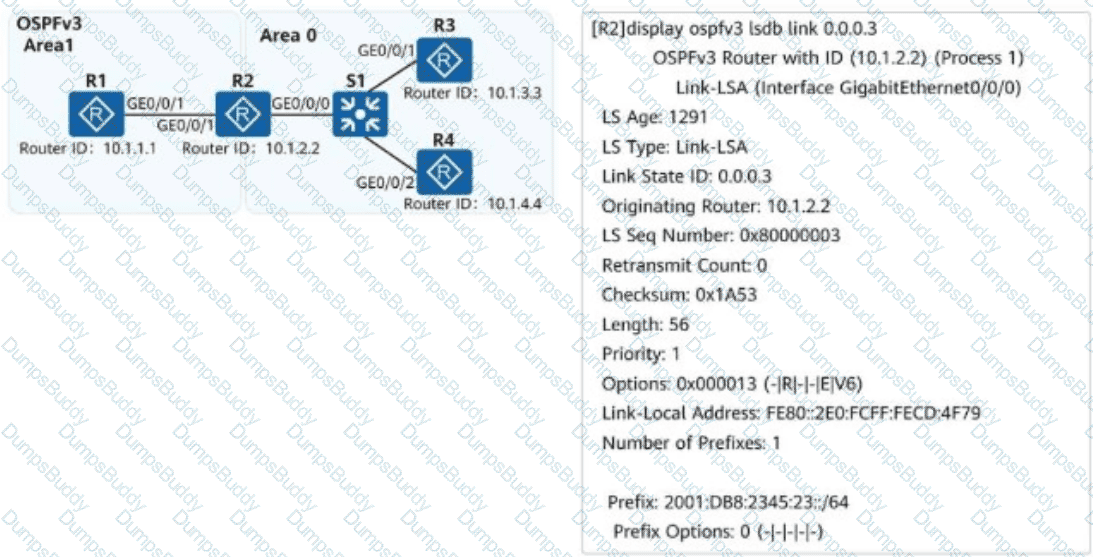

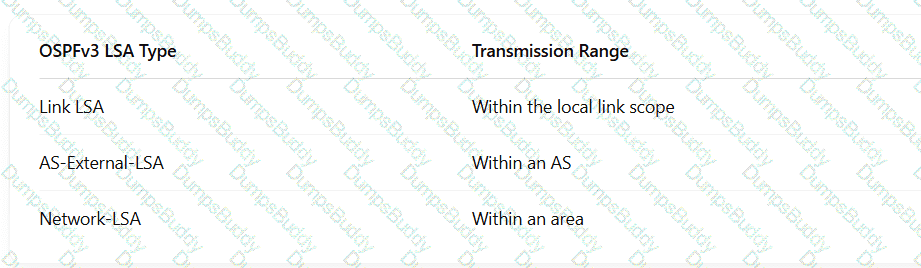

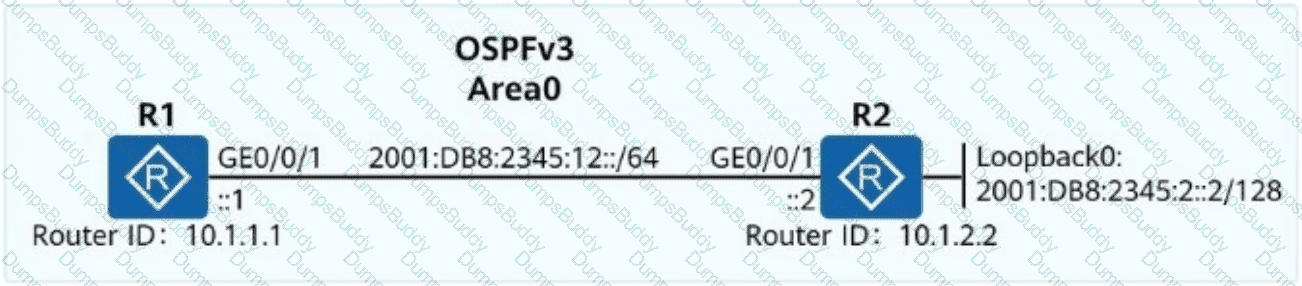

Link-LSA (Type 8) in OSPFv3 performs the following:

Advertises the router’s link-local address to neighbors.

Advertises the router’s interface ID on the link.

Carries IPv6 prefixes associated with the interface (since Router LSA no longer does this in OSPFv3).

The Options field in Link-LSA contains capabilities of the originating router, not the options from Network-LSA.

So, Option D is incorrect — the Link-LSA does not advertise options from the Network-LSA.

Correct answer: D

Comprehensive and Detailed In-Depth Explanation:

By default, OSPF does not automatically associate a domain ID with a process ID. The concept of " domain ID " is primarily used when redistributing routes between OSPF and BGP, particularly in MPLS VPN scenarios. The domain ID in OSPF helps maintain loop prevention and correct route advertisement between different OSPF domains. You can manually configure the domain ID using the domain-id command within the OSPF process view, but it is not inherently set to the process ID.

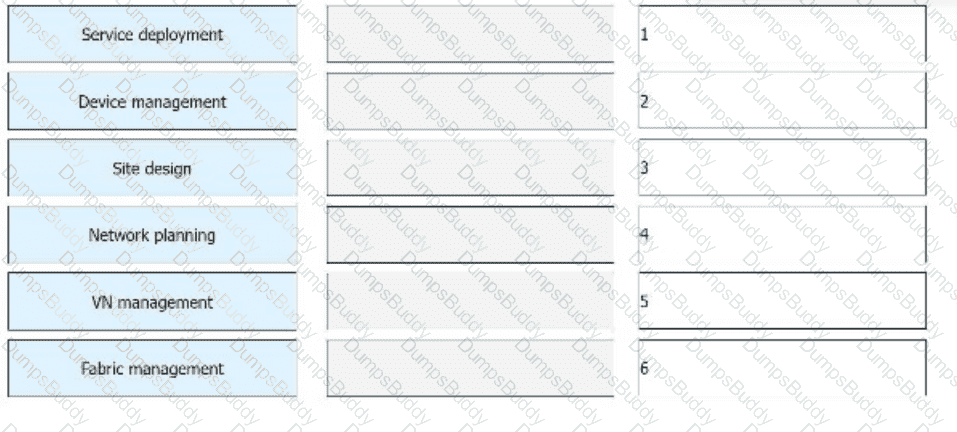

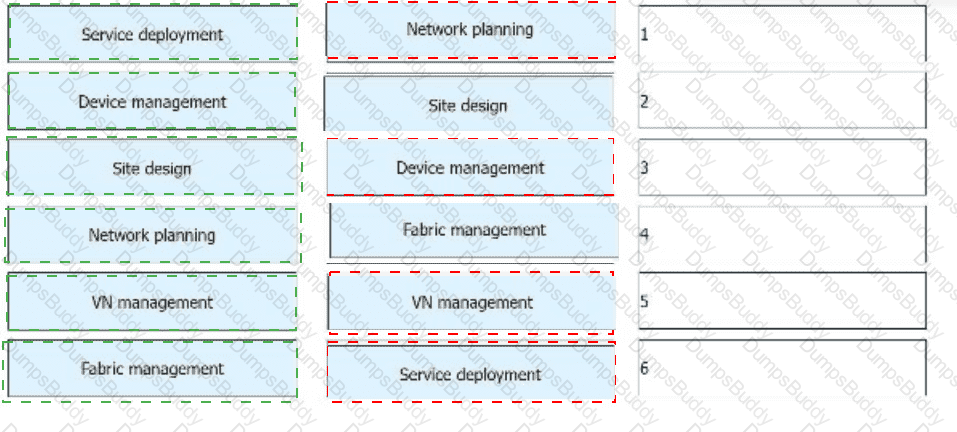

Correct Order of Steps:

1️⃣ Network planning

2️⃣ Site design

3️⃣ Device management

4️⃣ Fabric management

5️⃣ VN (Virtual Network) management

6️⃣ Service deployment

Understanding the iMaster NCE-Campus Deployment Process

???? iMaster NCE-Campus is Huawei’s AI-driven network automation and management platform for campus networks.

???? The deployment follows a structured sequence to ensure a fully operational network.

Detailed Explanation of Each Step:

✅ 1️⃣ Network Planning (First Step)

Defines the overall network architecture, topology, and business requirements.

Determines WAN, LAN, and WLAN coverage for the campus.

Ensures IP addressing, VLANs, and security policies are planned.

✅ 2️⃣ Site Design (Second Step)

Creates site layouts and determines device placement (switches, APs, routers).

Defines power, cabling, and uplink requirements for optimal connectivity.

✅ 3️⃣ Device Management (Third Step)

Onboards network devices (e.g., switches, APs, firewalls) into iMaster NCE-Campus.

Configures initial settings such as IP addresses, interfaces, and SNMP settings.

Ensures devices are registered and reachable in the management platform.

✅ 4️⃣ Fabric Management (Fourth Step)

Establishes VXLAN-based network fabric for automated Layer 2/3 connectivity.

Configures EVPN/VXLAN overlays, VTEPs, and underlay routing.

✅ 5️⃣ VN (Virtual Network) Management (Fifth Step)

Defines virtual networks (VNs) for different departments, tenants, or services.

Configures QoS, ACLs, and network segmentation policies.

✅ 6️⃣ Service Deployment (Final Step)

Activates network services like DHCP, security policies, and application access.

Ensures that end-user connectivity and application traffic policies are in place.

Why Is This the Correct Order?

✅ Each step builds upon the previous one, ensuring a smooth and structured deployment process.

✅ Service deployment comes last because it finalizes user access and application connectivity.

Real-World Application:

Enterprise Campus Networks: Deploys secure, scalable campus connectivity with AI-based automation.

University Campuses & Smart Cities: Uses SDN-driven network segmentation and automation to simplify operations.

✅ Reference: Huawei HCIE-Datacom Guide – iMaster NCE-Campus Deployment & Automation

Comprehensive and Detailed Explanation:

VGMP (Virtual Group Management Protocol) is used in Huawei firewalls for hot standby and high availability.

When is VGMP Activated?✔ When hot standby is enabled, firewalls must synchronize their states to maintain failover capability. ✅✔ VGMP sends packets periodically to check if the standby firewall is operational.

Why Other Options Are Incorrect?❌ Priority increase (B): Does not trigger VGMP packets directly.❌ Link detection timeout (C): Affects failover but does not initiate VGMP packets.❌ Hot standby being disabled (A): Disables VGMP, preventing packets from being sent.

Thus, the correct answer is D.

???? Reference: Huawei HCIE Datacom – Firewall Hot Standby and VGMP

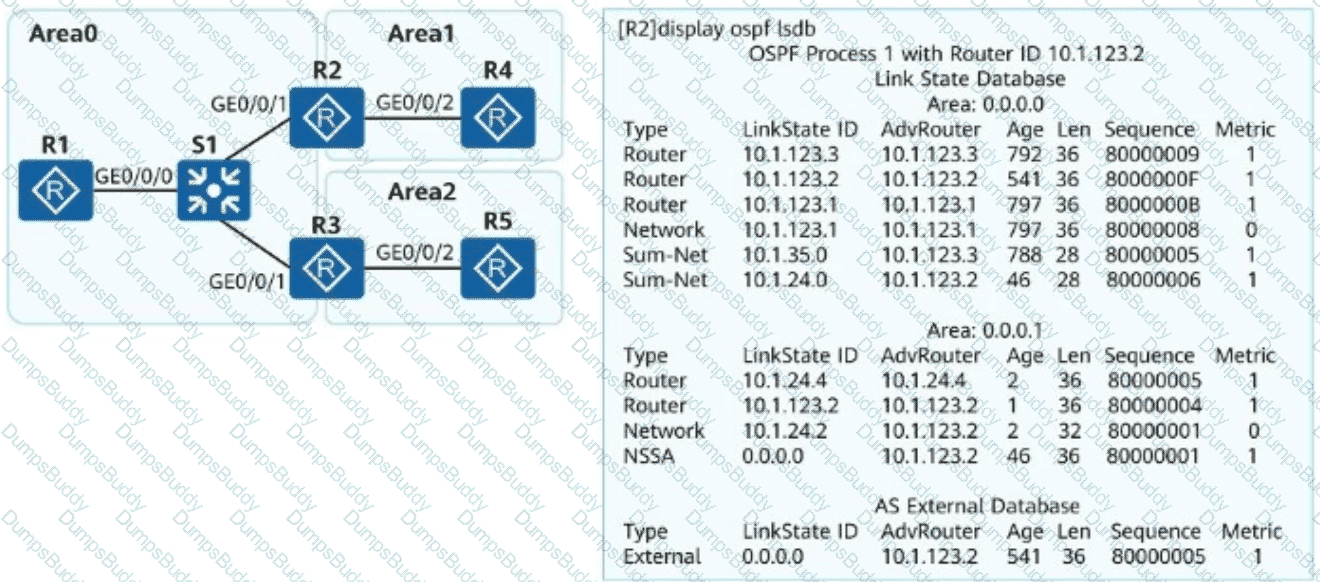

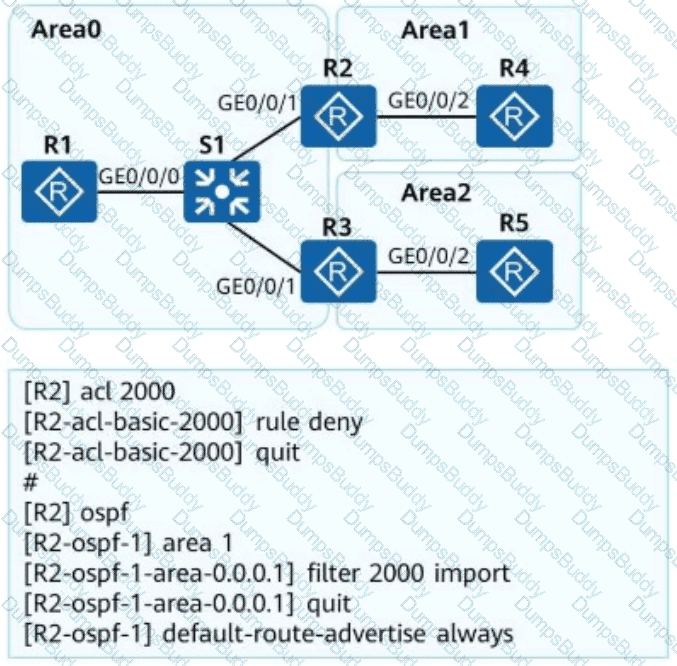

???? Analyze the Configuration:

[R2] acl 2000

[R2-acl-basic-2000] rule deny

[R2] ospf

[R2-ospf-1] area 1

[R2-ospf-1-area-0.0.0.1] filter 2000 import

[R2-ospf-1-area-0.0.0.1] quit

[R2-ospf-1] default-route-advertise always

???? Understanding Key Concepts:

Type 3 LSAs (Inter-Area Routes):

Generated by ABRs to advertise summary routes between areas.

Filtering Type 3 LSAs is possible using import filters (like in Area 1).

Type 5 LSAs (External Routes):

Flooded only within the same AS but do not enter stub or NSSA areas.

✅ Breakdown of the Options:

A. Type 5 LSAs are flooded in Area 1 → ❌ Incorrect

If Area 1 is a stub or NSSA, then Type 5 LSAs are not allowed.

Although the diagram does not explicitly say Area 1 is a stub/NSSA, real deployments often use stub areas at the edge (like Area 1).

More importantly, the filter is applied to Area 1, and there is no redistribution of external routes into Area 1 in the config.

Therefore, Type 5 LSAs would not be flooded there.

B. Type 3 LSAs are not flooded in Area 1 → ✅ Correct

The command filter 2000 import with ACL rule deny means Type 3 LSAs are filtered from Area 0 into Area 1.

C. Type 3 LSAs are not flooded in Area 2 → ✅ Correct

There is no filter applied to Area 2, so this could be false, but since the question asks for the incorrect statement, this is not the answer.

D. Type 5 LSAs are flooded in Area 2 → ✅ Correct

Area 2 is not shown to be stub or NSSA, and there’s no filter or restriction configured.

Hence, Type 5 LSAs are allowed and flooded in Area 2.

✅ Correct Answer: A. Type 5 LSAs are flooded in Area 1.

Understanding SSH Authentication and Key Exchange

???? What Happens When an SSH Client Connects to a Server?

1️⃣ Key Exchange Phase (KEX)

Even if only password authentication is used, SSH still performs key exchange.

The server and client negotiate encryption keys using algorithms like Diffie-Hellman (DH).

2️⃣ User Authentication Phase

After encryption keys are exchanged, the user authenticates using a username and password.

Why is the Answer FALSE?

❌ Even with password authentication, SSH still performs key exchange to establish an encrypted session.

✅ The SSH session is always encrypted using cryptographic keys generated during KEX.

Real-World Application:

Secure Remote Access: Protects login credentials from MITM (Man-in-the-Middle) attacks.

Cloud & Datacenter Networks: Ensures secure SSH connections across remote infrastructure.

✅ Reference: Huawei HCIE-Datacom Guide – SSH Key Exchange and Authentication

In IPsec, a symmetric encryption algorithm (e.g., AES) is used for encrypting data due to its speed. To securely exchange the symmetric key between peers, asymmetric encryption algorithms (like RSA) are used.

This method ensures:

High performance (due to fast symmetric encryption)

Secure key exchange (asymmetric protection)

Exact Extract - Huawei HCIE-Datacom Guide – IPsec Encryption:

“IPsec uses symmetric algorithms to encrypt data for performance and asymmetric algorithms to securely exchange symmetric keys during IKE negotiation.”

Comprehensive and Detailed Explanation:

iMaster NCE-CampusInsight is Huawei ' s intelligent network analysis platform that:

✔ Collects real-time telemetry data using SNMP, NetStream, and Telemetry.

✔ Analyzes traffic patterns to detect network anomalies.

✔ Uses AI-driven analytics to optimize network performance.

Thus, the statement is TRUE.

???? Reference: Huawei HCIE Datacom – iMaster NCE-CampusInsight Features

When selecting core devices for a WAN in enterprise networks, considerations typically include:

Service volume: Ensures the core device can handle expected traffic.

Physical location: Important for latency, redundancy, and network design.

Node quantity: Affects topology, scalability, and routing complexity.

Device naming conventions, however, are purely administrative and do not affect the functional selection of core devices.

Correct answer: A. Device naming conventions

Understanding VXLAN and ARP Suppression in BGP EVPN

VXLAN (Virtual Extensible LAN) is used to extend Layer 2 networks over Layer 3 infrastructure.

VXLAN uses VTEPs (VXLAN Tunnel Endpoints) to encapsulate and forward Layer 2 traffic.

BGP EVPN (Ethernet VPN) is used for MAC/IP address learning and distribution across VXLAN networks.

How ARP Request Forwarding Works in This Scenario?

1️⃣ ARP Broadcast Suppression Enabled (VXLAN Optimized Forwarding)

Since ARP broadcast suppression is enabled on VTEP1, the ARP request is not flooded.

Instead, VTEP1 checks its EVPN learned database to find PC2’s MAC address (MAC C).

2️⃣ VTEP1 Encapsulates the ARP Request

VTEP1 encapsulates the ARP request in a VXLAN packet and sends it to VTEP2.

The original ARP frame inside the VXLAN tunnel still has:

Source MAC: MAC A (PC1 ' s MAC)

Destination MAC: MAC C (PC2 ' s MAC, learned via EVPN)

3️⃣ VXLAN Outer Headers

The outer VXLAN header uses:

Source IP: 1.1.1.1 (VTEP1)

Destination IP: 2.2.2.2 (VTEP2)

VNI (VXLAN Network Identifier): 200 (BD 20)

4️⃣ VTEP2 Receives and Forwards the ARP Request

VTEP2 decapsulates the VXLAN packet and forwards the original ARP request to PC2 (MAC C).

This ensures that only the intended receiver (PC2) gets the ARP request, preventing unnecessary broadcast flooding.

Why the Answer is MAC C?

✅ B. MAC C is Correct

The destination MAC of the inner data frame is PC2’s MAC (MAC C).

This is because VTEP1 forwards the ARP request directly to VTEP2, which then forwards it to PC2.

Why Other Answers Are Incorrect?

❌ A. MAC B (Incorrect)

MAC B is VTEP1’s MAC address, which is used in the outer VXLAN header, not in the inner Ethernet frame.

❌ C. MAC A (Incorrect)

MAC A is the source MAC of the ARP request (PC1), not the destination.

❌ D. MAC D (Incorrect)

MAC D is not mentioned in the topology, so it is irrelevant.

???? Reference: Huawei HCIE Datacom – VXLAN BGP EVPN and ARP Suppression

The default port for iMaster NCE-Campus northbound RESTful APIs is 18006. This port is used by external platforms and applications to interact with iMaster NCE via its open API interface.

Exact Extract - Huawei iMaster NCE-Campus API Integration Guide:

“Northbound interfaces of iMaster NCE-Campus are accessible via port 18006 by default. This allows external systems to use open APIs for automation and integration.”

The basic constructs in YANG data modeling include:

Leaf node – A single data element with a specific type (e.g., integer, string).

List node – A repeating set of elements, each structured the same.

Incorrect options:

A. Set node – ❌ Not a valid YANG construct.

D. Tree node – ❌ Not an individual data model element. The entire model forms a tree structure, but there is no “tree node” in YANG syntax.

Exact Extract – Huawei YANG Modeling Fundamentals:

“YANG defines elements such as leaf, list, container, choice, and leaf-list. ' Set ' and ' tree ' are not YANG node types.”

✔ Egress devices in Huawei CloudCampus static IPsec VPN include:

Access Points (APs)

Routers

Firewalls ✅

✔ Why Firewalls?

Firewalls support IPsec VPN termination for secure WAN interconnection.

Firewalls provide advanced security filtering and encryption for IPsec traffic.

???? Reference: Huawei HCIE Datacom – IPsec VPN in CloudCampus

In BGP, community attributes help control the advertisement scope of BGP routes. Here’s what each option means:

No_Export: This well-known community attribute prevents BGP routes from being advertised to external BGP (EBGP) peers. Routes with this attribute can still be advertised to internal BGP (IBGP) peers within the same AS. This ensures that the route remains within the originating AS.

No_Advertise: This attribute means that the route should not be advertised to any BGP peer, whether internal or external.

Internet: Indicates that the route can be advertised to all BGP peers, both internal and external, with no restrictions.

No_Export_Subconfed: Similar to No_Export, but it also restricts advertisement to peers within a BGP confederation. It ' s more specific and not generally used just to keep routes inside one AS.

Therefore, the correct answer is B. No_Export, as it is the attribute that ensures BGP routes remain within the AS by not being sent to EBGP peers.

OSPFv3 (used for IPv6) uses IPv6 multicast addresses for communication between routers:

FF02::5 — All OSPF routers.

FF02::6 — All OSPF Designated Routers (DRs) and Backup Designated Routers (BDRs).

FF08::x — These are used for organization-local scope, which is not applicable to standard OSPFv3 operation.

Therefore:

C. All OSPF routers use FF02::5 — Correct

D. The DR uses FF02::6 — Correct

A and B (FF08::x) — Incorrect. These addresses are not used by OSPFv3 in this context.

Correct answers: C and D

Huawei’s NQA (Network Quality Analysis) provides tools to test and monitor network performance such as latency, jitter, and packet loss. The supported test types include:

ICMP — For reachability and round-trip time testing.

UDP, TCP, HTTP, FTP, etc.

DNS, VoIP, DHCP (limited to simulation, not monitoring protocol status itself)

Protocols like SNMP and OSPF are not directly monitored by NQA, as these are management or control plane protocols, not data-path or performance-measurable protocols.

Correct answer: C. ICMP

Comprehensive and Detailed Explanation:

The Huawei Registration Query Center allows devices to register and go online automatically in a cloud-managed environment.

✔ Supported Devices:

Switches ✅

Access Routers (AR) ✅

Access Points (APs) ✅

Firewalls ✅

✔ How It Works:

Devices obtain their registration information via DHCP Option 148 or pre-configured credentials.

The devices then connect to the registration query center to retrieve configuration and authentication details.

Once authenticated, they go online and become manageable via iMaster NCE-Campus.

???? Reference: Huawei HCIE Datacom – CloudCampus Device Registration

BGP EVPN Route Types in VXLAN:

BGP EVPN Type 2 Route (MAC/IP Advertisement Route)

Used for host reachability advertisement.

Carries MAC and IP address information of endpoints.

Does not carry an IP Prefix field (Type 5 routes handle prefixes).

Correct Explanation of Answer Choices:✅ IP Address (B) is included – Used for host mobility and reachability.✅ L3VNI (C) is included – Used for Layer 3 VXLAN routing.✅ L2VNI (D) is included – Used for Layer 2 VXLAN bridging.❌ IP Prefix (A) is not included in Type 2 routes – It is part of EVPN Type 5 routes for prefix advertisement.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VXLAN BGP EVPN Configuration Guide – Type 2 vs. Type 5 Routes

HCIE-Datacom Training Material – VXLAN Overlay Networks and BGP EVPN

Comprehensive and Detailed In-Depth Explanation:

In the inter-AS MPLS VPN Option B solution:

Option B establishes a multi-hop eBGP connection between the ASBRs (ASBR-PE1 and ASBR-PE2) to exchange VPNv4 routes.

In this setup, the ASBRs exchange labeled VPNv4 routes via MP-BGP (Multiprotocol BGP).

The command:

[ASBR-PE1-bgp-af-vpnv4] undo peer 10.0.34.4 enable

is used to disable VPNv4 route exchange between the ASBR-PE1 and ASBR-PE2.

If this command is executed, ASBR-PE1 will not transmit VPNv4 routes to ASBR-PE2, breaking the inter-AS VPN connectivity.

Therefore, the statement is FALSE because ASBR-PE1 and ASBR-PE2 must exchange VPNv4 routes to maintain connectivity between the VPN sites across different ASes.

WRED (Weighted Random Early Detection) helps prevent congestion by randomly discarding packets before buffers are full.

Drop Probability Behavior:

Below lower threshold = 0% drop (packets pass normally).

Between lower & upper threshold = Progressively increasing drop probability.

Above upper threshold = 100% drop (probability = 1).

✅ Reference: Huawei HCIE-Datacom Guide - WRED Mechanism

Congestion Avoidance in Networking

Congestion avoidance mechanisms prevent packet loss and delay by managing queues before congestion occurs.

Common Congestion Avoidance Techniques:

Weighted Random Early Detection (WRED) – Randomly drops low-priority packets before congestion builds up.

Explicit Congestion Notification (ECN) – Marks packets instead of dropping them to signal congestion.

Queue Management – Techniques like priority queuing (PQ) and weighted fair queuing (WFQ) help prevent congestion.

Reference from Huawei HCIE-Datacom Documentation:

Huawei QoS Configuration Guide – Congestion Avoidance Technologies

HCIE-Datacom Study Material – Traffic Management and Queue Optimization

Virtual Networks in Huawei CloudCampus Solution:

Virtual networks (VNs) are segmented based on services (e.g., IoT, Guest Wi-Fi, Enterprise Wi-Fi).

Each VN has its own routing and forwarding instance (VRF).

Isolation Between Virtual Networks:

By default, different virtual networks are isolated.

If inter-VN communication is required, it must be manually configured using policy-based routing (PBR), inter-VRF routing, or firewall policies.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Solution Guide – Virtual Networks and Segmentation

HCIE-Datacom Training Material – Policy-Based Inter-VN Communication

Huawei’s OPS (Open Programmability System) enables programmable interactions with devices through Python-based templates. In Huawei ' s OPS Python environment:

The class OPSConnection is used to manage device interactions.

It includes methods like:

get()

post(self, uri, req_data) → used to create resources

put(), delete(), etc.

This aligns with RESTful API semantics, and the post() method in the context given is used correctly.

Correct answer: A. TRUE

In Huawei ' s SRv6 instruction naming system, each letter keyword represents a specific forwarding behavior:

X (Cross): Forwards packets via specified Layer 3 interfaces → ✅

M (MAC): Searches Layer 2 forwarding table for broadcast/multicast, not unicast → ❌

V (VPN): Searches the VPN routing table (VRF) for forwarding → ✅

T (Table): Searches a specific routing table (e.g., user-defined) → ✅

Correct answers: A, C, D

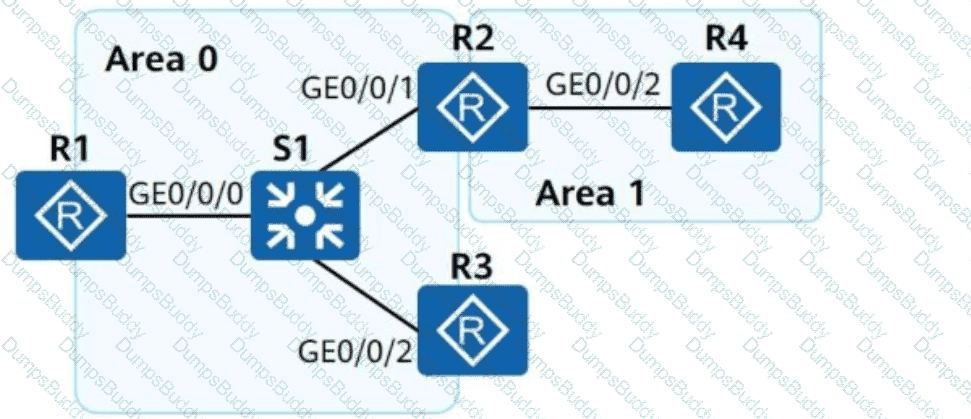

Let ' s dissect each option based on OSPFv3 LSA behavior from Huawei HCIE Datacom documentation.

✅ Option A: Correct

OSPFv3 uses Router LSAs (Type 1) to describe the local interfaces, links, and neighbors.

R1, as part of Area 0, will generate Router-LSAs and receive Router-LSAs from neighbors in the same area (R2 and R3 via switch S1).

Huawei Datacom Reference:

" Each OSPFv3 router originates a Type 1 Router LSA for each area it belongs to. "

(Source: HCIE-Datacom Study Guide v3.0 - OSPFv3 Fundamentals)

❌ Option B: Incorrect (Correct Answer)

Link-LSAs (Type 8) are not sent between routers. They are only generated for each link on which the router has at least one neighbor. These LSAs are only flooded on the local link.

R1 cannot receive two Link-LSAs from R2 about both links. It can only receive the Link-LSA that R2 generates for the shared link with R1. The other link (e.g., to R4 in Area 1) is irrelevant to R1.

Huawei Datacom Reference:

" A Link LSA is generated by a router for each attached link and is sent only to the routers on the same link. "

(Source: HCIE-Datacom Study Guide v3.0 - OSPFv3 LSA Types)

✅ Option C: Correct

On broadcast links, DRs generate Type 2 Network LSAs.

If R3 is the DR on the shared segment (with R1), R1 will have the Network-LSA from R3 in its LSDB.

Huawei Datacom Reference:

" The DR on a broadcast network generates a Type 2 Network LSA to describe all routers on that link. "

(Source: HCIE-Datacom Study Guide v3.0 - OSPFv3 LSDB Construction)

✅ Option D: Correct

R2 connects Area 0 and Area 1, hence it ' s an ABR.

ABRs generate Type 3 Inter-Area-Prefix LSAs to advertise IPv6 prefixes from one area to another.

R2 advertises Area 1 prefixes to Area 0 routers (R1 and R3).

Huawei Datacom Reference:

" Inter-Area-Prefix LSAs (Type 3) are generated by ABRs to advertise IPv6 prefixes from one area into another. "

(Source: HCIE-Datacom Study Guide v3.0 - ABR Functionality in OSPFv3)

Correct Matching of Authentication Methods:

1️ 802.1X authentication → PC (GE0/0/2 on SW3)

2️ MAC address authentication → IP Phone (GE0/0/3 on SW3)

3️⃣ Portal authentication → Wireless Clients (Connected via SW2/AP)

Understanding Network Admission Control (NAC) Authentication Methods

???? Network Admission Control (NAC) enforces security policies before allowing devices onto the network.

???? Different types of devices require different authentication methods based on capabilities and security requirements.

Analysis of Each Authentication Type:

✅ 1️⃣ 802.1X Authentication (Used for PC on GE0/0/2 of SW3)

Best for devices that support user authentication (e.g., PCs, Laptops).

Requires supplicant software (e.g., Windows or macOS built-in 802.1X client).

Provides strong security using EAP (Extensible Authentication Protocol) over RADIUS.

✅ 2️⃣ MAC Address Authentication (Used for IP Phone on GE0/0/3 of SW3)

Best for devices that do not support username/password authentication (e.g., IP Phones, IoT devices).

Uses MAC addresses as identity credentials.

Suitable for VoIP networks, industrial IoT, and surveillance cameras.

✅ 3️⃣ Portal Authentication (Used for Wireless Clients on SW2/AP)

Best for guests or mobile users accessing Wi-Fi networks.

Redirects users to a web-based login page before granting access.

Used in public hotspots, campus Wi-Fi, and enterprise guest networks.

Why These Assignments Are Correct?

1️⃣ 802.1X for PC:

PCs support 802.1X authentication via supplicants (EAP-MD5, PEAP, etc.).

Ensures high security by verifying user credentials.

2️⃣ MAC Address Authentication for IP Phone:

IP Phones lack a username/password interface, so authentication is done via MAC addresses.

Simplifies authentication while maintaining security.

3️⃣ Portal Authentication for Wireless Clients:

Wireless users do not use 802.1X authentication directly; instead, they are redirected to a web login page.

Common in enterprise guest Wi-Fi and public hotspots.

Real-World Application:

Enterprise NAC Deployment: Ensures only authorized users and devices access the corporate network.

Campus & Hotel Wi-Fi Security: Uses Portal Authentication for guests, 802.1X for employees, and MAC-based for VoIP.

✅ Reference: Huawei HCIE-Datacom Guide – NAC Authentication Methods & Best Practices

The Time-To-Live (TTL) field in MPLS is essential for preventing infinite loops and enhancing security.

MPLS TTL Field Functionality:

It prevents packets from circulating indefinitely in the MPLS network.

It allows traceroute (tracert) to identify MPLS hops when TTL propagation is enabled.

Explanation of Correct Answers:✅ B. The processing of IP TTL copy hides the LSR in an MPLS domain, improving security.

If TTL propagation is disabled, MPLS routers do not decrease TTL, hiding internal LSRs from traceroute, enhancing security.

✅ C. MPLS provides two TTL processing modes:

Default Mode: The MPLS TTL copies the IP TTL value when an IP packet enters the MPLS network.

Uniform Mode: The ingress LER sets the MPLS TTL to 255, so it does not decrement.

✅ D. MPLS encapsulation in frame mode supports the TTL field, while cell mode does not.

Frame Mode (Ethernet, PPP, etc.) supports TTL.

Cell Mode (ATM/MPLS) does not support TTL.

Incorrect Answer Explanation:❌ A. If TTL copy is disabled, users can use the tracert function to view MPLS hops.

Wrong! If TTL propagation is disabled, tracert cannot see LSRs inside the MPLS core network.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS Technology Guide – TTL Field & Loop Prevention

HCIE-Datacom MPLS VPN Configuration Guide – Traceroute in MPLS Networks

Segment Routing over IPv6 (SRv6) defines several headend behaviors for how SRH (Segment Routing Headers) are added:

B. H.Insert — Inserts an SRH into an existing IPv6 packet.

C. H.Encaps — Encapsulates the original packet in a new IPv6 packet with an SRH.

D. H.Insert.Red — Performs insert behavior and reduces the payload for optimization.

A. H.Encaps.Red is not a defined SRv6 behavior — it’s an invalid option.

Exact Extract - Huawei SRv6 White Paper:

“H.Insert, H.Insert.Red, and H.Encaps are valid behaviors for injecting SRH. H.Encaps.Red is not defined in the SRv6 headend behavior set.”

Intra-Area-Prefix-LSA (Type 9) is used in OSPFv3 to carry IPv6 prefix information for a router or network and is flooded within the area.

Link-LSA (Type 8) is only sent on the local link and is not flooded throughout the area.

Inter-Area-Prefix-LSA (Type 3) and Inter-Area-Router-LSA (Type 4) are also flooded within an area but originate from ABRs, typically for cross-area route advertisement.

That said, Intra-Area-Prefix-LSA is specifically flooded within an area, matching the context of the question directly.

Exact Extract - Huawei HCIE-Datacom OSPFv3 Module:

“Intra-Area-Prefix-LSAs are flooded within the area and advertise the IPv6 prefixes associated with router and network LSAs.”

BGP routing policies allow administrators to:

Control incoming and outgoing routes.

Filter routes based on prefix, AS-PATH, communities, MED, next hop, etc.

Apply route maps, prefix lists, or filter policies during:

Route advertisement

Route reception

Route import/export into local RIB or VPN instance

This is a fundamental capability of BGP and is widely used in production environments for traffic engineering, route filtering, and policy-based routing.

Correct answer: A. TRUE

Comprehensive and Detailed In-Depth Explanation:

1. Understanding VXLAN Asymmetric IRB Forwarding:

In VXLAN (Virtual Extensible LAN) networks, there are two types of IRB forwarding: Symmetric IRB and Asymmetric IRB.

In Asymmetric IRB, routing occurs only at the ingress VTEP (Virtual Tunnel Endpoint).

The ingress VTEP (VTEP1) encapsulates the original data frame and sends it to the egress VTEP (VTEP2) over the VXLAN tunnel.

The destination MAC address of the original Ethernet frame is the MAC address of the Layer 3 gateway (VBDIF) at the egress VTEP.

2. Analyzing the Topology:

PC1 (172.16.2.1/24) with MAC A is sending traffic to PC2 (172.16.1.2/24) with MAC D.

Both PCs are in different subnets, so inter-subnet routing is required.

VTEP1 (1.1.1.1) on SW1 is the ingress VTEP.

VTEP2 (2.2.2.2) on SW2 is the egress VTEP.

The VXLAN Network Identifier (VNI) for the traffic is 100.

SW1 has two VBDIF interfaces:

VBDIF10 (MAC B) - Interface for BD10 (172.16.2.254).

VBDIF20 (MAC C) - Interface for BD20 (172.16.1.254).

3. Packet Flow in Asymmetric IRB:

Step 1: PC1 sends a packet destined for PC2. The packet is routed at the ingress VTEP (SW1) using the VBDIF interface (VBDIF10 with MAC B).

Step 2: The ingress VTEP (SW1) encapsulates the packet in a VXLAN header (VNI 100) and sends it to VTEP2.

Step 3: The original data frame inside the VXLAN packet must have a destination MAC address that matches the gateway MAC address (VBDIF20 - MAC C) at the egress VTEP (SW2).

Step 4: On reaching VTEP2, the encapsulation is removed, and the original frame with destination MAC C is forwarded.

Step 5: VTEP2 performs Layer 3 routing to forward the packet to PC2.

4. Why MAC C is Correct:

In asymmetric IRB forwarding, the routing decision at the ingress VTEP ensures that the destination MAC in the original frame is set to the VBDIF (gateway) MAC of the egress VTEP.

Since the egress VTEP (SW2) has VBDIF20 (MAC C) for the destination subnet (172.16.1.0/24), the destination MAC address of the original frame is MAC C.

Comprehensive and Detailed In-Depth Explanation:

The regular expression 100.$ can be broken down as follows:

100: Matches the exact sequence of digits " 100 " .

. (dot): Represents any single character.

$: Indicates the end of the line.

Therefore, the pattern 100.$ matches any four-character sequence that starts with " 100 " and ends with any single character.

1000 (A): Matches because it has four digits, starting with " 100 " and ending with " 0 " .

1001 (B): Matches because it has four digits, starting with " 100 " and ending with " 1 " .

10000 (C): Does not match because it has five digits.

100 (D): Does not match because it only has three digits.

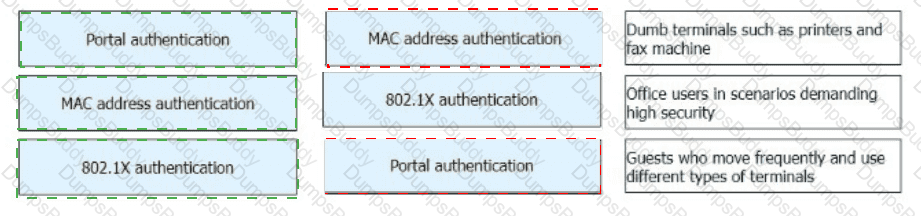

Portal Authentication vs. MAC Authentication

✅ Portal Authentication

Used in high-mobility environments (e.g., shopping malls, hotels, and public Wi-Fi hotspots).

Users authenticate via a web portal before gaining network access.

Supports multiple device types (smartphones, laptops, tablets, etc.).

✅ MAC Address Authentication

Used for dumb devices that cannot perform interactive authentication (e.g., printers, IP phones, cameras).

The network authenticates devices based on their MAC addresses automatically.

Often used in enterprise LANs to ensure unattended devices get network access securely.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Authentication Guide – Portal and MAC Authentication

HCIE-Datacom Training Material – Access Control Mechanisms

Understanding L3VPNv4 Over SRv6 BE

???? What is L3VPNv4?

L3VPNv4 (Layer 3 VPN over IPv4) allows MPLS-based VPN services over an SRv6 backbone.

Uses MP-BGP (Multiprotocol BGP) to distribute VPN routes.

???? Why is an RR (Route Reflector) Needed?

An RR simplifies BGP route exchange between multiple PEs (Provider Edge routers).

Without proper configuration, RRs may filter VPNv4 routes, preventing PEs from learning routes correctly.

Why is the Command peer retain-route-target all Needed?

✅ Ensures that the RR retains all VPNv4 routes.

✅ Prevents the RR from filtering route targets (RTs), allowing full VPN reachability.

✅ Without this command, the RR might not reflect all VPNv4 routes, causing connectivity issues.

Real-World Application:

Enterprise MPLS VPNs: Ensures correct BGP route reflection in an SRv6-based L3VPN.

Carrier Networks: Helps service providers maintain full BGP VPN route distribution.

✅ Reference: Huawei HCIE-Datacom Guide – BGP Route Reflectors in L3VPN over SRv6

Comprehensive and Detailed In-Depth Explanation:

In SR-MPLS, if prefix SIDs conflict, the following principles are applied:

Prefix with a smaller value (numerically lower SID) wins.

If the prefix length is the same, the lower SID value is selected.

In this case:

Both 1.1.1.1/32 2 (A) and 1.1.1.1/32 1 (B) have the same prefix length.

Since SID 1 is numerically smaller than SID 2, B (1.1.1.1/32 1) is selected.

The other routes (C and D) have different prefixes and do not directly conflict.

Understanding EVPN (Ethernet VPN) and ARP Request Handling

???? What is EVPN?

EVPN (Ethernet VPN) is a BGP-based control plane for VXLAN that improves Layer 2 & Layer 3 network scalability.

Eliminates flood-and-learn behavior using BGP MAC/IP advertisement routes.

???? Why is an ARP Request Sent?

When CE1 (192.168.1.1/24) wants to communicate with CE2 (192.168.1.2/24), it sends an ARP request to discover the MAC address of CE2.

???? How Does EVPN Process the ARP Request?

1️⃣ PE1 receives the ARP request from CE1.

2️⃣ PE1 sends a MAC/IP advertisement route (Type 2 EVPN route) to inform PE2 and PE3 of CE1’s MAC address.

3️⃣ PE1 forwards the ARP request as BUM (Broadcast, Unknown unicast, and Multicast) traffic to PE2 and PE3.

4️⃣ PE3 (Designated Forwarder - DF) forwards the packet to CE2.

5️⃣ PE2 (Non-DF) does NOT forward the packet to avoid loops.

Analysis of the Answer Choices:

✅ A. When forwarding the packet to PE3, PE1 needs to add the BUM traffic label allocated by PE3 to the packet.

Correct:

BUM (Broadcast, Unknown Unicast, Multicast) traffic in EVPN is encapsulated with a special label assigned by the receiving PE.

PE1 adds the BUM traffic label for PE3 before sending the ARP request.

✅ B. PE1 sends a MAC/IP advertisement route carrying the MAC address of CE1.

Correct:

EVPN Type 2 MAC/IP advertisement routes are sent to inform other PEs of CE1’s MAC/IP binding.

❌ C. PE2 forwards the packet to CE1.

Incorrect:

PE2 is the Non-Designated Forwarder (Non-DF) and does NOT forward BUM traffic to avoid loops.

✅ D. PE3 forwards the packet to CE1.

Correct:

PE3 is the Designated Forwarder (DF) for this segment, meaning it forwards the ARP request to CE2.

Final Answer: A, B, D

✅ Reference: Huawei HCIE-Datacom Guide – EVPN BGP MAC/IP Advertisement and BUM Traffic Handling

Real-World Application:

Data Center Interconnect (DCI): EVPN prevents excessive ARP flooding across VXLAN networks.

Enterprise Campus Networks: Uses EVPN VXLAN to scale Layer 2 connectivity across multiple locations.

Understanding the Network Scenario:

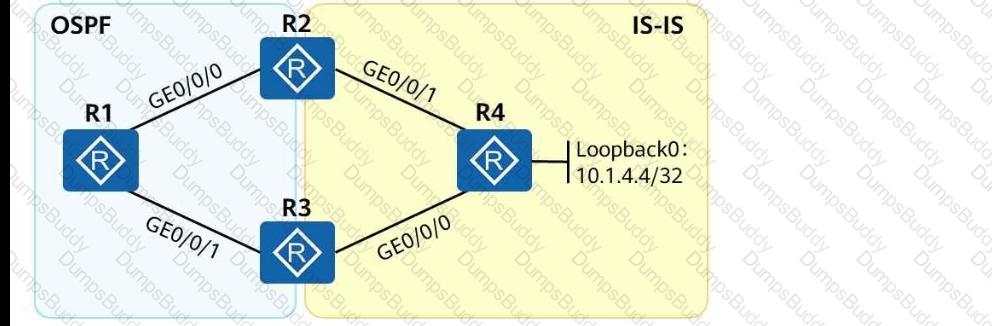

R2 is the boundary router between OSPF and IS-IS.

OSPF and IS-IS do not automatically redistribute routes between each other.

R4 ' s loopback (10.1.4.4/32) exists in the IS-IS domain.

To allow R1 (OSPF) to reach R4’s loopback, R2 must redistribute IS-IS routes into OSPF.

Why Option C Is Correct (✅)

✔ default-route-advertise in OSPF on R2:

This advertises a default route into the OSPF domain, allowing OSPF routers (R1, R3) to forward unknown traffic to R2.

Since IS-IS routes are not automatically injected into OSPF, this ensures R1 can reach R4.

✔ IS-IS Already Has Routes to OSPF

IS-IS routers (R3, R4) already learn routes from OSPF via R2 (assuming route redistribution is properly configured).

No need to run default-route-advertise in IS-IS.

Why Other Options Are Incorrect (❌)

❌ A. Run default-route-advertise in both OSPF and IS-IS views on R2

Unnecessary in IS-IS. The IS-IS domain already learns OSPF routes from R2 via redistribution.

Only OSPF needs a default route to forward unknown traffic to R2.

❌ B. No configuration is required

Incorrect, because OSPF does not automatically learn IS-IS routes.

A default route or redistribution is needed for R1 to reach R4.

❌ D. Run default-route-advertise only in the IS-IS view on R2

Incorrect, because IS-IS already has routing information from OSPF.

The issue is with OSPF not learning IS-IS routes, so the command needs to be in OSPF view.

???? Reference: Huawei HCIE Datacom – OSPF and IS-IS Route Redistribution and Interoperability

In SRv6 (Segment Routing over IPv6), flavors are extensions to standard SRv6 instructions that define how the Segment Routing Header (SRH) is handled at specific points:

PSP (Penultimate Segment Pop): Instructs the penultimate node to remove the SRH before reaching the last node → ✅

USD (Ultimate Segment Decapsulation): Instructs the final segment to remove the SRH and IPv6 header, exposing the payload → ✅

PSD (Penultimate Segment Decapsulation): Instructs the penultimate node to remove the SRH and deliver the payload → ✅

USP (Ultimate Segment Pop) is not a standard flavor in Huawei SRv6 implementations → ❌

Correct answers: A, B, D

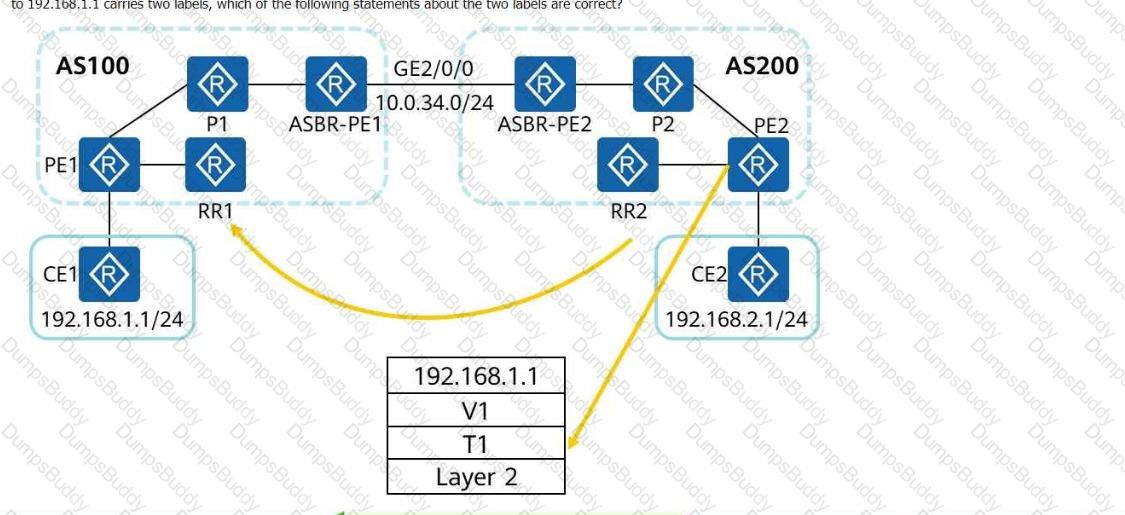

In MPLS VPN, packets are forwarded using two labels:

Outer label (Transport Label) – Used by the MPLS backbone for forwarding.

Inner label (VPN Label) – Used by the egress PE to identify the correct VPN instance.

Explanation of Correct Options:

✅ A. The egress PE sends the data packet to the correct VPN based on the inner label.

The inner label is assigned by the egress PE and determines the final destination VPN instance.

✅ B. The penultimate hop removes the outer label before forwarding the data packet to a peer egress PE.

Penultimate Hop Popping (PHP) occurs when the second-to-last router (P router) removes the outer MPLS label before forwarding to the egress PE.

This reduces the processing overhead on the egress PE.

✅ D. The penultimate-hop device receives a packet with an outer label.

The outer label is used to forward the packet across the MPLS backbone.

Before reaching the egress PE, the penultimate router still has the outer label and processes it.

Incorrect Option:

❌ C. The IP data packet received by the egress LSR is without labels.

This is incorrect because the inner label (VPN label) is still present when the packet reaches the egress PE.

Only the outer label is removed by PHP, not the inner VPN label.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – Label Processing

HCIE-Datacom MPLS Traffic Engineering and PHP Mechanism

Huawei iMaster NCE-Campus MPLS VPN Implementation Guide

Comprehensive and Detailed Explanation:

Inter-AS MPLS L3VPN Option B requires ASBRs to exchange VPNv4 routes using eBGP with label information.

Analysis of Inter-AS VPN Solutions:

Option B uses eBGP to exchange labeled VPNv4 routes between ASBRs but does not require MPLS between ASBRs.

Option A does not exchange VPNv4 routes over ASBRs (uses IP routing instead).

Option C uses MP-BGP and requires full MPLS between ASBRs.

Since Option B requires ASBRs to exchange VPNv4 routes, the correct answer is B.

???? Reference: Huawei HCIE Datacom – MPLS Inter-AS VPNs

Huawei iMaster NCE-Campus Wi-Fi Location-Based Services (LBS) use HTTP/HTTPS to send location data (such as AP association, signal strength, timestamp, etc.) to an external LBS platform.

The standard format for such data exchange is JSON (JavaScript Object Notation).

JSON is lightweight, readable, and widely supported by modern web APIs and platforms.

Other options:

XML: Used in legacy systems, heavier format.

HTML: Used for page rendering, not data transfer.

YAML: Used mainly in configurations, not standard for HTTP APIs.

Correct answer: C. JSON

From the output:

Tunnel destination IP address: Clearly shown as destination 10.0.1.1 → ✅

Tunnel interface MTU: Shown as The Maximum Transmit Unit is 1500 → ✅

Tunnel interface IP: Shown as Internet Address is 20.1.1.2/24 → ✅

Tunnel source: Tunnel source 10.0.3.3 (LoopBack0) → Not 10.0.1.1 → ❌

Therefore:

A — Correct

B — Correct

C — Correct

D — Incorrect (confuses destination as source)

Correct answers: A, B, C

Route Target (RT) is a BGP extended community attribute used in MPLS Layer 3 VPNs (L3VPNs) to control the import and export of VPN routes between different VPN instances (VRFs).

Explanation of Correct Answers:

✅ A. Each VPN instance is associated with one or more pairs of VPN Target attributes, used to control VPN routing information advertisement and reception between sites.

Each VRF (VPN Routing and Forwarding instance) has an associated RT that determines which routes are imported and exported between VPNs.

RTs enable inter-VPN communication while maintaining separation between VPN customers.

✅ B. Export Target and Import Target are independent of each other and support multiple values to implement flexible VPN routing information advertisement and reception control.

The Export RT specifies which routes should be advertised.

The Import RT specifies which routes should be accepted into a VRF.

These can be configured independently to control traffic flow between VPNs.

✅ C. RTs are classified into two types: Export Target and Import Target.

Export Target: Defines which VPN routes are advertised.

Import Target: Defines which VPN routes are accepted.

A VPN instance can have multiple RTs to allow flexibility.

✅ D. The RT value is advertised to neighbors through the BGP extended community attribute in Update messages.

RTs are carried in BGP UPDATE messages as part of the BGP extended community attribute, enabling VPN route exchange between PEs.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – Route Target (RT) Concepts

HCIE-Datacom Study Material – BGP Route Advertisement in MPLS VPNs

SRv6 Policies can be:

Statically configured via CLI on routers.

Dynamically generated and delivered from a controller such as Huawei iMaster NCE for centralized path computation.

This dual approach allows flexibility in deployments.

Exact Extract – Huawei SRv6 Deployment Guide:

“SRv6 Policies can be locally configured or dynamically delivered via PCEP from the controller, enabling both static and SDN-based implementations.”

X = 0

Y = 0

Z = 1

Understanding MPLS Label Headers

???? What is MPLS (Multiprotocol Label Switching)?

MPLS is a high-performance forwarding technology that replaces IP lookups with label switching.

Packets are forwarded based on labels instead of destination IP addresses.

MPLS labels are stacked when passing through multiple hops.

???? MPLS Label Stack Structure

Each MPLS label has four fields:

Label – 20-bit identifier used for forwarding.

EXP (Experimental Bits / Traffic Class) – 3-bit field used for QoS (Quality of Service).

S (Bottom of Stack) – 1-bit flag that indicates whether this is the last (bottom) label in the stack.

TTL (Time-To-Live) – 8-bit field to prevent loops.

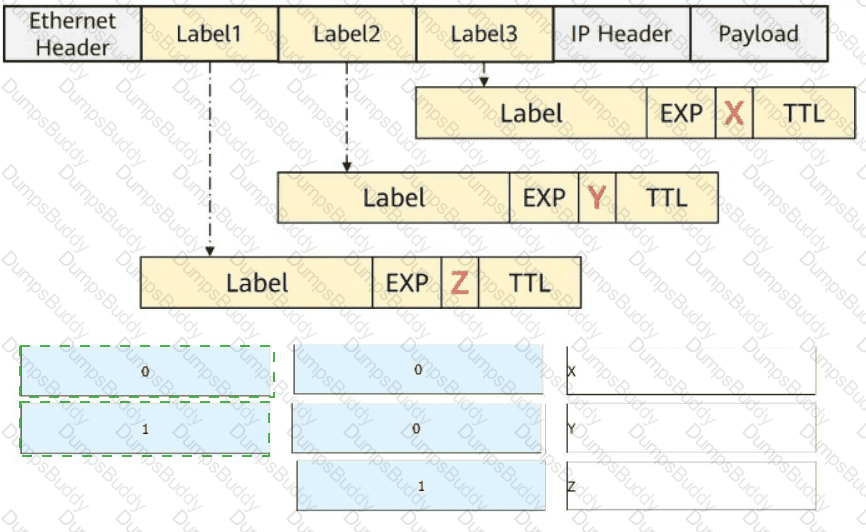

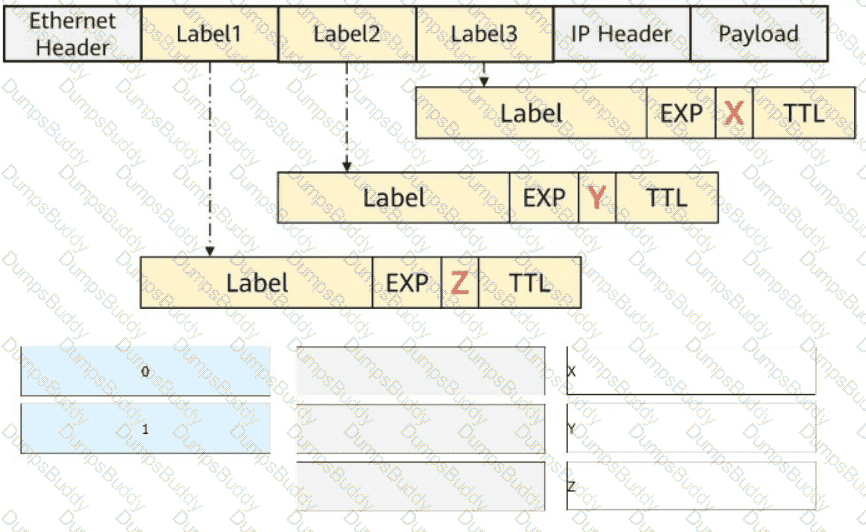

Understanding the EXP Fields (X, Y, Z) in the Figure

The image shows a packet with three MPLS labels.

Each label has an EXP field (X, Y, Z) representing the QoS bits.

By default, MPLS EXP bits are copied from the top label to lower labels unless modified by QoS policies.

If no QoS policy modifies the EXP bits, they remain the default value of 0.

The bottom label in the stack (Label 3) often has an EXP value of 1 to indicate specific QoS policies.

Why Are the Answers X = 0, Y = 0, Z = 1?

✅ X = 0 (Default EXP for Label 1, the top label in the stack).

✅ Y = 0 (EXP for Label 2, unchanged from the default value).

✅ Z = 1 (EXP for Label 3, indicating a QoS setting applied to the bottom label).

Real-World Application:

MPLS QoS (Quality of Service): EXP values determine packet priority in Service Provider networks.

Traffic Engineering (TE): MPLS labels guide packets through optimized paths, ensuring low-latency services.

Enterprise WAN Optimization: MPLS traffic is prioritized for critical applications like VoIP, Video Conferencing, and Cloud Services.

✅ Reference: Huawei HCIE-Datacom Guide – MPLS Label Stack and QoS EXP Field Processing

Understanding EVPN (Ethernet VPN) Label Allocation and ARP Handling

???? What Happens in This Scenario?

1️⃣ CE1 (192.168.1.1) sends an ARP request to discover the MAC address of CE2 (192.168.1.2).

2️⃣ PE1 receives the ARP request and needs to forward it over the EVPN fabric.

3️⃣ To send the broadcast ARP request across the EVPN network, PE1 forwards the packet to PE4 using BUM (Broadcast, Unknown unicast, and Multicast) forwarding.

4️⃣ PE4, as the Designated Forwarder (DF), forwards the ARP request to CE2.

Role of Labels in EVPN VXLAN/MPLS Networks

???? EVPN uses BGP to distribute MAC/IP reachability information using different route types.

✅ EVPN Type 2 Route (MAC/IP Advertisement Route):

Used for MAC-to-IP address mapping announcements.

Ensures remote VTEPs (PE routers) learn MAC-to-IP bindings dynamically.

✅ EVPN Type 3 Route (Inclusive Multicast Route):

Used for BUM traffic (Broadcast, Unknown Unicast, Multicast).

Assigns a multicast label (e.g., 201) to be used for forwarding broadcast packets like ARP requests.

???? In this case:

The label 201 is used for BUM traffic forwarding.

BUM traffic is handled using an EVPN Type 3 route.

Why is the Answer 3?

✅ EVPN Type 3 routes carry labels for BUM traffic, which includes ARP requests.

✅ Label 201 is used for multicast distribution, which is managed by Type 3 routes.

Real-World Application:

VXLAN Data Centers: Uses EVPN Type 3 routes to control BUM traffic efficiently.

Campus Networks: Prevents unnecessary flooding of ARP requests across VXLAN domains.

✅ Reference: Huawei HCIE-Datacom Guide – EVPN BGP Route Types and Multicast Labeling

To configure an SR-MPLS TE tunnel based on OSPF, all four options are mandatory:

A. Configure the LSR ID – LSR ID is required as the unique identifier of the router in MPLS and TE.

B. Enable segment routing in the OSPF process view – Needed to advertise segment information (SID).

C. Enable the opaque capability – Opaque LSAs are used to carry SR and TE information in OSPF.

D. Enable MPLS TE in the OSPF process view – Ensures that TE-related attributes (e.g., bandwidth) are advertised in OSPF LSAs.

Exact Extract - Huawei HCIE-Datacom SR-MPLS TE Configuration Guide:

“To support SR-MPLS TE over OSPF, it is necessary to configure the LSR ID, enable SR and MPLS TE capabilities in OSPF, and activate the OSPF opaque capability for carrying TE and SR attributes.”

Understanding Huawei’s Free Mobility Solution

Huawei’s Free Mobility solution is designed to ensure that users can seamlessly access the network regardless of their physical location while maintaining consistent policies.

???? Key Components in Free Mobility Solution:

1️⃣ iMaster NCE-Campus (Answer A - Core Role)

Manages network policies & user access.

Implements centralized policy control & orchestration.

2️⃣ Policy Enforcement Device (Answer B - Core Role)

Ensures that user policies (such as QoS, security, VLANs) are applied dynamically.

Typically a switch or gateway enforcing access control.

3️⃣ Policy Control Device (Answer D - Core Role)

Stores and dynamically assigns policies based on user role & device type.

Works closely with iMaster NCE-Campus.

???? Why is C (Authentication Device) NOT a Core Role?

❌ Authentication devices (such as a RADIUS or AAA server) are not a core component of Huawei’s Free Mobility solution.

They are part of the broader network security framework but not mandatory for Free Mobility.

Real-World Application:

Used in enterprise & campus networks where employees, guests, and IoT devices need seamless access while maintaining security policies.

✅ Reference: Huawei HCIE-Datacom Guide – Free Mobility Architecture & Policy Management

Ethernet Segment Identifier (ESI) is a 10-byte identifier used in EVPN (Ethernet VPN) to uniquely identify an Ethernet segment across a network, particularly in multi-homing scenarios. It ensures loop prevention and redundancy.

Exact Extract - HCIE-Datacom EVPN Section:

“The ESI is a 10-byte identifier and must be unique across the entire EVPN network. It plays a key role in identifying Ethernet segments in multi-homed environments.”

Understanding VXLAN (Virtual eXtensible LAN) Technology

VXLAN is a Layer 2 over Layer 3 encapsulation protocol designed to extend Layer 2 domains across routed networks using MAC-in-UDP encapsulation.

???? Key VXLAN Components:

VTEP (VXLAN Tunnel Endpoints): These encapsulate and decapsulate VXLAN packets.

Underlay Network: The routed IP network that forwards VXLAN packets (does not require VXLAN awareness).

Overlay Network: The logical Layer 2 segments tunneled over VXLAN.

Analysis of the Answer Choices:

✅ A. VXLAN uses MAC-in-UDP encapsulation to encapsulate Ethernet packets into UDP packets and thereby extend Layer 2 networks.

Correct: VXLAN uses MAC-in-UDP encapsulation, meaning that the original Ethernet frame is placed inside a UDP packet, allowing Layer 2 networks to extend over IP-based networks.

❌ B. When VXLAN is deployed, in addition to devices at both ends of a VXLAN tunnel, intermediate forwarding devices are also required to support VXLAN. Otherwise, VXLAN packets cannot be forwarded.

Incorrect: VXLAN packets are forwarded as regular UDP traffic in the underlay network.

Intermediate routers or switches DO NOT need to support VXLAN, as they only forward UDP packets based on the outer IP headers.

Only VTEP devices must support VXLAN because they handle encapsulation/decapsulation.

✅ C. VXLAN packets are forwarded through routes on the underlay network, and the MAC address of the terminal in the inner data frame is not considered during underlay forwarding.

Correct: The underlay network routes VXLAN packets using outer IP headers (VTEP IP addresses), not the inner MAC address.

✅ D. VXLAN can be deployed on campus networks to implement Layer 2 and Layer 3 communication.

Correct: VXLAN is commonly used in campus networks to provide both Layer 2 bridging and Layer 3 routing across different locations.

Real-World Application:

Data Center Networks: VXLAN is widely used for multi-tenant network segmentation in cloud environments.

Enterprise Campus Networks: Enables seamless Layer 2 and Layer 3 connectivity across different buildings or locations.

✅ Reference: Huawei HCIE-Datacom Guide – VXLAN Deployment and Forwarding Principles

Challenges of Static VXLAN Tunnel Configuration

A static VXLAN tunnel requires manual VTEP-to-VTEP configuration, making it complex to maintain.

✅ A. Heavy configuration workload in a distributed gateway scenario

Static VXLAN requires manual configuration of VTEP mappings, making it difficult to scale and adjust when adding new VTEPs.

✅ B. Remote MAC addresses are learned through data flooding

Unlike BGP EVPN-based VXLAN, which advertises MAC/IP bindings through BGP, static VXLAN relies on flooding for MAC learning, causing excessive traffic.

✅ D. N(N-1)/2 tunnels are required for full mesh connectivity

If N devices need to communicate, each must be manually configured with N(N-1)/2 VXLAN tunnels, leading to high administrative overhead.

Incorrect Statement Explanation:

❌ C. Static VXLAN tunnels use protocols on the control plane, consuming device resources.

Wrong! Static VXLAN does not use a control plane protocol like BGP EVPN.

Instead, it relies entirely on static mappings, reducing control plane usage.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VXLAN Configuration Guide – Static vs. Dynamic VXLAN Tunnel Establishment

HCIE-Datacom Training Material – Manual Configuration Challenges in Static VXLAN

Understanding SR-MPLS TE (Segment Routing MPLS Traffic Engineering)

???? What is SR-MPLS TE?

Segment Routing (SR) replaces traditional MPLS LDP/RSVP-TE signaling.

Uses SR-TE policies to define network paths without requiring per-flow state on intermediate routers.

???? How is the SR-MPLS TE Path Calculated?

✅ By the SDN Controller (Centralized Path Computation)

The controller (e.g., Huawei iMaster NCE) calculates the optimal SR path based on:

Bandwidth requirements

Latency constraints

Traffic policies

The controller then delivers the SR policy to the ingress router.

✅ By the Ingress Router (Distributed Path Computation)

The ingress router computes the SR path dynamically based on local constraints.

This method is useful when no centralized controller is available.

Why is the Answer TRUE?

✅ Both centralized (controller-based) and distributed (ingress router-based) path computation are supported in SR-MPLS TE.

Real-World Application:

5G and Cloud WANs: Centralized path optimization reduces congestion dynamically.

Enterprise Networks: Local path computation ensures fast rerouting in case of failures.

✅ Reference: Huawei HCIE-Datacom Guide – SR-MPLS TE and Path Computation Methods

Comprehensive and Detailed In-Depth Explanation:

The Strict Priority (SP) scheduling algorithm always gives preference to high-priority queues.

A: Correct. SP scheduling may lead to queue starvation because low-priority queues might never get serviced if high-priority traffic is constant.

B: Correct. SP always schedules the highest-priority queue first.

C: Correct. Among multiple low-priority queues, if SP is combined with FIFO (First In, First Out), packets that arrive first are forwarded first.

D: Incorrect. The SP algorithm does not guarantee minimum bandwidth for lower-priority queues. It prioritizes high-priority queues regardless of bandwidth configuration, which can lead to starvation of lower-priority traffic. To ensure minimum bandwidth, a Weighted Fair Queuing (WFQ) or CBWFQ (Class-Based Weighted Fair Queuing) algorithm would be more suitable.

In Huawei’s CloudCampus Solution, when static IPsec VPN is used for WAN interconnection, the following devices are capable of acting as egress gateways for encrypted tunnels:

Access Point (AP)

Router

Switch

This is based on Huawei’s CloudCampus architecture, where all three device types can support VPN tunnel termination depending on the deployment size and use case.

Huawei Datacom Reference:

" In static IPsec VPN networking scenarios, egress devices can be APs, Routers, or Switches depending on the deployment model. This allows flexibility for small, medium, and large-scale branches. "

(Source: HCIE-Datacom V1.0 Training Guide – WAN Interconnection and VPN Chapter)

Comprehensive and Detailed In-Depth Explanation:

In the Label Distribution Protocol (LDP) session establishment process, the Initialization message is sent by the initiator to propose parameters for the session. If the responder finds that the proposed parameters are not acceptable, it responds with an Error Notification Message. This message indicates that the session could not be established due to incompatible or incorrect parameters.

The Error Notification Message typically includes details about why the session could not be established, such as parameter mismatch or unsupported features. If the parameters are acceptable, the responder would instead reply with a Keepalive Message to maintain the session.

Understanding screen-length Command in Huawei Devices

???? What Does screen-length Do?

Controls how much output is displayed at a time on the Huawei CLI.

By default, command output is paginated (split-screen display).

screen-length 0 temporary disables the split-screen display, allowing continuous output without pauses.

Analysis of Each Option:

❌ A. Performing automatic word wrap → Incorrect

This command does not wrap long text lines, it controls screen pagination.

❌ B. Performing split-screen display → Incorrect

This command disables split-screen display, not enables it.

✅ C. Canceling split-screen display → Correct

This allows continuous command output without " Press Enter to continue " interruptions.

❌ D. Canceling automatic word wrap → Incorrect

Word wrap behavior is not controlled by screen-length.

Real-World Application:

Automated Network Monitoring: Used in Python scripts for uninterrupted CLI output collection.

Log Analysis: Helps in extracting large command outputs for troubleshooting.

✅ Reference: Huawei HCIE-Datacom Guide – CLI Configuration and Automation with Paramiko

Comprehensive and Detailed Explanation:

✔ iMaster NCE-WAN is the centralized SD-WAN controller that:

Manages SD-WAN network devices (CPEs, routers).

Optimizes traffic steering using AI-driven policies.

Enables automation, security, and analytics.

Thus, the statement is TRUE.

???? Reference: Huawei HCIE Datacom – SD-WAN Architecture

Comprehensive and Detailed In-Depth Explanation:

In the CloudCampus public cloud scenario, when devices are deployed through the Huawei registration query center, there is no need to configure DHCP Option 148 on the campus network’s DHCP server.

The registration query center automatically provides the controller IP address to the devices during the registration process.

DHCP Option 148 is typically used to provide the iMaster NCE-Campus address in on-premises or private cloud scenarios.

In the public cloud scenario, the devices obtain this information directly from the Huawei cloud platform, making Option 148 unnecessary.

OSPFv3 Configuration Principles:

OSPFv3, the OSPF version supporting IPv6, differs from OSPFv2 in several aspects:

Interface-based Configuration:

OSPFv3 is configured on interfaces directly, unlike OSPFv2 which uses the network command.

Router ID:

The Router ID is still a 32-bit number, typically represented as an IPv4 address.

It must be explicitly specified since OSPFv3 requires a Router ID for operation, even though it supports IPv6.

Analysis:

A. [R1-GigabitEthernet0/0/1] ospfv3 1 area 0:

Correct. This command enables OSPFv3 process 1 on the GE0/0/1 interface in Area 0.

B. [R1-ospfv3-1] router-id 10.1.1.1:

Correct. This correctly sets the Router ID for OSPFv3 process 1.

C. [R1-ospfv3-1-area-0.0.0.0] network 2001:DB8:2345:12::1 ::

Incorrect. OSPFv3 does not use the network command as in OSPFv2. Instead, OSPFv3 is directly configured on interfaces.

D. [R1] router id 10.1.1.1:

Incorrect. The Router ID should be set within the OSPFv3 process view, not the global configuration view.

Therefore, the correct answers are A and B.

Understanding Inter-AS MPLS VPN Option C (Solution 2)

In MPLS L3VPN Inter-AS Option C, the Route Reflectors (RRs) are used for VPN route distribution but do not participate in data forwarding. The traffic forwarding path is based on MPLS labels assigned at different routers.

Each data packet carries two MPLS labels:

Transport Label (T1) – Used for forwarding within the backbone.

VPN Label (V1) – Used for VPN route identification.

Breaking Down the Labels:

✔ VPN Label (V1) – Allocated by PE1 (Answer: C ✅)

V1 (Inner Label) is the VPN label assigned by the egress PE router (PE1).

This label ensures that when the packet reaches PE1, it knows how to forward the traffic to CE1 (192.168.1.1).

✔ Transport Label (T1) – Allocated by P2 (Answer: B ✅)

T1 (Outer Label) is the transport label assigned by P2 to forward the packet across the AS core.

This label ensures the packet reaches the next-hop router (ASBR-PE1 in AS100).

Why Are the Other Options Incorrect?

❌ A. " T1 is allocated by RR2 " (Incorrect)

RR2 is used only for route reflection; it does not participate in label allocation or forwarding.

❌ D. " V1 is allocated by P2 " (Incorrect)

P2 is an intermediate router and does not allocate VPN labels.

VPN labels are always assigned by the egress PE router (PE1 in AS100).

???? Reference: Huawei HCIE Datacom – MPLS L3VPN Inter-AS Option C

Comprehensive and Detailed In-Depth Explanation:

1. Portal Authentication:

Scenario: Guests who move frequently and use different types of terminals.

Explanation:

Portal authentication (also known as Web authentication) is commonly used in environments like Wi-Fi hotspots, hotels, and public areas.

Users are redirected to a login page where they enter credentials.

This method is flexible for guests and visitors who may frequently change locations or devices.

Use Case: Wi-Fi access for guests in a corporate environment.

2. MAC Address Authentication:

Scenario: Dumb terminals such as printers and fax machines.

Explanation:

MAC address authentication is useful for devices that do not support interactive authentication methods (like printers or IP phones).

It authenticates devices based on their MAC address without user intervention.

This method is suitable for static, non-user devices that are typically part of the local network.

Use Case: Ensuring that only authorized printers or IP phones connect to the network.

3. 802.1X Authentication:

Scenario: Office users in scenarios demanding high security.

Explanation:

802.1X is a port-based network access control protocol that authenticates users before allowing network access.

Typically used in wired or wireless LAN environments where high security is required.

It uses EAP (Extensible Authentication Protocol) methods and integrates with RADIUS servers.

Use Case: Corporate LAN environments with stringent security policies.

NETCONF defines datastores to manage device configurations:

running: Active configuration in use

candidate: Staging area for changes before applying

startup: Configuration loaded on reboot

NETCONF operations:

< commit > : Applies changes from candidate → running → ✅

< delete-config > : Deletes a specified datastore (e.g., startup) → ✅

< validate > : Validates syntax/logic in the candidate datastore → ✅

Statement D is incorrect: < commit > never submits config from startup to running — that’s handled automatically at boot time, not through NETCONF commands.

Correct answer: D

Comprehensive and Detailed In-Depth Explanation:

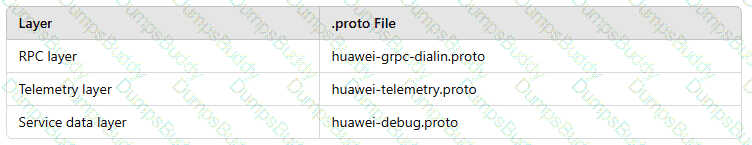

The telemetry protocol stack is structured as follows:

Communication layer (A): Manages data transmission between the telemetry client (device) and the server.

Transport layer (B): Uses protocols such as gRPC, HTTP/2, or TCP to transmit telemetry data.

Data encoding layer (C): Encodes data using formats like JSON, Protobuf, or XML.

The Data analysis layer (D) is not part of the telemetry protocol stack itself.

Data analysis typically occurs after the data has been collected and received on the server or collector.

Telemetry focuses on data collection, encoding, transport, and transmission, not on analysis.

Therefore, the correct answer is D.

Comprehensive and Detailed In-Depth Explanation:

The iMaster NCE-IP controller uses Telemetry to collect real-time device running status information efficiently and with low latency.

Telemetry (A): Enables continuous data streaming to the controller, including network performance and link state information.

Telnet (B): Used for manual device management and not suitable for automated data collection.

BGP-LS (C): Used for distributing link-state information, but not for real-time performance data collection.

IS-IS (D): An IGP protocol, not used for collecting device status.

Comprehensive and Detailed In-Depth Explanation:

When configuring a virtualized campus network on iMaster NCE-Campus, the platform supports automatic delivery of routing policies when connecting to external networks, including the Internet.

This feature ensures that traffic destined for external networks is automatically directed to the appropriate egress points.

The NCE-Campus automatically creates and delivers the default route or specific routes, depending on the network topology and configuration.

This simplifies network management by eliminating the need for manual route configuration on each device.

Therefore, the statement is TRUE.

To analyze this question, let ' s break down the key concepts and the given LSDB (Link State Database) information from the figure:

Understanding the LSDB Output:

The output shows the OSPF LSDB on R2 with Router ID 10.1.123.2.

Area 0.0.0.0 (Area 0) is displayed along with several Link State Advertisements (LSAs) including Router LSAs, Network LSAs, and Summary LSAs.

Area 0.0.0.1 (Area 1) also displays Router LSAs and a Type 7 LSA (NSSA LSA) with Link-State ID 0.0.0.0.

An External LSA (Type 5) with Link-State ID 0.0.0.0 and AdvRouter 10.1.123.2 is also present.

Analysis of Each Option:

Option A: Area 1 is an NSSA.

Correct.

The presence of a Type 7 LSA (NSSA LSA) in the database indicates that Area 1 is configured as an NSSA (Not-So-Stubby Area).

NSSA allows the injection of Type 7 LSAs for external routes while blocking Type 5 LSAs from entering the area.

Option B: R2 translates Type 7 default route into Type 5 default route.

Correct.

In an NSSA, if an ABR (like R2) has the NSSA ASBR capability, it will convert Type 7 LSAs to Type 5 LSAs before injecting them into the backbone area (Area 0).

In the LSDB, we see both a Type 7 LSA (NSSA) and a corresponding Type 5 External LSA, confirming that R2 performs this translation.

Option C: R2 advertises the default route in the OSPF process.

Incorrect.

There is no indication that R2 itself is originating the default route.

The Type 7 LSA in Area 1 and the Type 5 LSA in Area 0 only indicate translation from another source, not R2 advertising it directly.

Option D: Area 1 does not have Type 3 LSAs. The possible cause is that R2 filters Type 3 LSAs in the outbound direction of Area 1.

Incorrect.

In an NSSA area, Type 3 LSAs (Inter-Area Prefix LSAs) are typically not generated for external routes.

The absence of Type 3 LSAs in Area 1 is due to the nature of NSSA itself rather than any filtering configured on R2.

Huawei telemetry supports multiple transport protocols such as gRPC, HTTP2, and Kafka. When using gRPC, it is typically paired with TLS for secure encrypted transmission. TLS ensures that telemetry data is not intercepted or modified during transport.

Exact Extract – Huawei HCIE-Datacom Guide – Telemetry Security Section:

“When using gRPC for telemetry data push, TLS must be configured to encrypt the transport channel between devices and collectors.”

IGP Metric Design in Enterprise WANs

In an enterprise bearer WAN, routing metrics determine path selection. The aggregation layer connects multiple access-layer devices to the core network, so it should have a lower metric to:

✅ Ensure traffic is forwarded through higher-capacity aggregation links instead of lower-bandwidth access links.

✅ Optimize traffic flow, reduce congestion, and improve network efficiency.

✅ Enhance reliability by preferring more stable aggregation links.

IGP Routing Protocols Considerations:

OSPF: Lower cost values indicate preferred paths.

IS-IS: Lower link metrics result in preferred forwarding paths.

Reference from Huawei HCIE-Datacom Documentation:

Huawei IGP Design Guide – Enterprise WAN Routing Optimization

HCIE-Datacom Training Material – Metric Calculation and Path Selection in OSPF/IS-IS

PQ (Priority Queuing) ensures low-latency services like voice and video are prioritized.

WFQ (Weighted Fair Queuing) fairly allocates remaining bandwidth to services like FTP.

Option B provides a balanced approach: guarantees for voice/video via PQ, and fairness for FTP via WFQ.

Exact Extract - Huawei HCIE-Datacom QoS Module:

“Voice and video traffic should be handled by PQ to minimize delay and jitter. Non-critical services such as FTP should be placed in WFQ queues to ensure bandwidth fairness.”

Understanding HTTP Security Risks

???? What is HTTP?

HTTP (Hypertext Transfer Protocol) is a protocol used for communication between web clients (browsers) and servers.

It is unencrypted, making it vulnerable to security threats.

Potential Risks in HTTP Communication:

✅ A. Eavesdropping (Data Interception)

Correct: HTTP traffic is unencrypted, meaning attackers can capture data using tools like Wireshark or MITM (Man-in-the-Middle) attacks.

Example: Hackers intercept login credentials over public Wi-Fi.

✅ B. Pretending (Impersonation / Spoofing)

Correct: Without encryption or authentication, attackers can spoof legitimate websites.

Example: A phishing website mimics a banking login page to steal user credentials.

✅ C. Tampering (Data Manipulation)

Correct: Attackers can modify HTTP data in transit, changing the content sent to users.

Example: Injecting malicious scripts into a webpage (e.g., Cross-Site Scripting - XSS).

❌ D. Lost (Low Probability of Data Loss)

Incorrect: HTTP runs over TCP, which ensures reliable data transmission.

Packet loss is not a major security risk but rather a network performance issue.

How to Mitigate HTTP Risks?

Use HTTPS (HTTP Secure) → Encrypts data using TLS (Transport Layer Security).

Enable HSTS (HTTP Strict Transport Security) → Forces HTTPS connections.

Implement Web Application Firewalls (WAFs) → Protects against attacks like SQL Injection & XSS.

✅ Reference: Huawei HCIE-Datacom Guide – Network Security Risks in HTTP Communication

Understanding L3VPN over SRv6 BE Networks

???? What is L3VPN over SRv6?

Layer 3 VPN (L3VPN) allows multiple private routing domains to operate over a shared service provider backbone.

SRv6 (Segment Routing over IPv6) replaces traditional MPLS labels with IPv6 Segment Identifiers (SIDs).

Best Effort (BE) mode means that no explicit Traffic Engineering (TE) constraints are applied.

How Routing Works in This Scenario

Key Components in the Network:

PE1 & PE2 (Provider Edge routers): Connect customer networks (CE1 & CE2).

P Router (Core Router): Provides transit between PE routers over SRv6.

SRv6 SID FC00:2::1:79: Used for VPN routing at PE2 (End.DT4 function).

Step-by-Step Route Learning Process:

1️⃣ PE1 advertises the 192.168.1.0/24 VPN route to PE2 using iBGP VPNv4.

2️⃣ PE2 receives the route with next-hop 2001:DB8:1::1 (PE1).

3️⃣ PE2 installs the route with the SRv6 Prefix-SID FC00:2::1:79 (End.DT4).

4️⃣ The route is imported into the VRF using the import-route command.

Analysis of Each Answer Choice

✅ A. An IBGP peer relationship is established between PE2 and PE1, and PE2 learns the route to 192.168.1.0/24 over an IBGP peer relationship.

Correct: The routing table output confirms that PE2 receives the route via iBGP from PE1.

✅ B. The instruction type corresponding to FC00:2::1:79 is End.DT4.

Correct:

End.DT4 is an SRv6 function that represents a Layer 3 VPN endpoint (VRF routing).

PE2 uses End.DT4 to process VPN traffic for 192.168.1.0/24.

✅ C. PE2 imports the route 192.168.1.0/24 through the import-route command.

Correct:

The import-route command allows BGP-learned routes to be added to the local routing table (VRF).

❌ D. The router ID of the BGP process on the P router is 1.0.0.6. (Incorrect Statement)

Incorrect:

The P router is a transit router and does NOT run BGP for VPNv4 routes.

The router ID of PE2 is 1.0.0.11, and the route originator is 1.0.0.2 (likely PE1).

P routers in an SRv6 BE network do NOT need BGP router IDs.

Final Answer: D (The router ID of the BGP process on the P is 1.0.0.6.)

✅ Reference: Huawei HCIE-Datacom Guide – SRv6 L3VPN Routing and End.DT4 Function

Real-World Application:

Service Provider Networks: Uses SRv6 to replace MPLS in large-scale VPN deployments.

5G Transport Networks: Implements SRv6 L3VPN for high-speed, low-latency services.

Before performing a network cutover (migration or upgrade), it is essential to collect baseline data to ensure that services operate normally before and after the change.

Importance of Pre-Cutover Information Collection:

Identifies Network Baseline – Helps compare pre-cutover and post-cutover performance.

Detects Hidden Issues – Ensures that no existing network issues interfere with the cutover process.

Prevents Service Interruptions – Ensures all dependent services are accounted for.

Provides Rollback Plan – If issues arise, administrators can restore previous configurations.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Network Change Management Guide – Pre-Cutover & Post-Cutover Best Practices

HCIE-Datacom Training Material – Service Assurance & Risk Analysis

SSH Public Key Authentication

In public key authentication mode, the SSH client must generate a key pair (public and private keys) before connecting to an SSH server.

✅ C. ssh-keygen -t dsa (Correct Answer)

DSA (Digital Signature Algorithm) key generation for SSH authentication.

Generates a private key (id_dsa) and a public key (id_dsa.pub).

Comprehensive and Detailed Explanation:

✔ All four egress modes are supported in Huawei CloudCampus Virtualized Fabric to provide flexibility in connecting external networks.

✔ Modes Explained:

✅ Layer 3 Shared Egress → Multiple VNs share a single Layer 3 gateway for external communication.

✅ Layer 2 Shared Egress → Multiple VNs share the same Layer 2 link to the external network.

✅ Layer 3 Exclusive Egress → Each VN has its own separate Layer 3 gateway to external networks.

✅ Layer 2 Exclusive Egress → Each VN has its own dedicated Layer 2 link for external connectivity.

???? Reference: Huawei HCIE Datacom – CloudCampus Fabric Egress Modes

OSPFv3 (for IPv6) introduces significant changes compared to OSPFv2 (for IPv4).

While both versions share similar routing mechanisms, there are key LSA format and functional differences beyond just address changes.

Major Differences Between OSPFv2 and OSPFv3:

Address Independence (LSA Format Changes)

OSPFv3 LSAs do not contain IP addresses directly; they rely on Link-LSA and Intra-Area Prefix LSA to advertise addresses.

In OSPFv2, IP addresses were included in LSA headers.

New LSA Types in OSPFv3

LSA Type 8 (Link-LSA): Advertises a router’s IPv6 address to neighbors.

LSA Type 9 (Intra-Area Prefix LSA): Replaces the address information in Router-LSAs and Network-LSAs.

Support for Multiple Address Families (AF)

OSPFv3 can support both IPv4 and IPv6 in newer implementations (RFC 5838).

Authentication Mechanism Removed

OSPFv3 relies on IPsec for authentication, whereas OSPFv2 had built-in authentication mechanisms.

Incorrect Statement Explanation:

❌ The statement " LSA formats and functions remain unchanged " is false because:

LSA structures were modified in OSPFv3.

New LSA types were introduced to handle IPv6 addresses separately.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPFv3 Configuration Guide – LSA Differences from OSPFv2

HCIE-Datacom Study Material – OSPFv3 Evolution & IPv6 Implementation

Comprehensive and Detailed In-Depth Explanation:

In Huawei Open Programmability System (OPS), the URL structure is used to specify managed objects in a standardized way.

The URL path /ifm/interfaces/interface is used in NETCONF/YANG-based APIs to represent interface-related data on a device.

This path allows users to query, configure, or manage network interfaces through programmatic means.

The IFM (Interface Management) model is commonly used for managing network interfaces, and this URL path correctly follows the convention.

Therefore, the statement is TRUE.

Comprehensive and Detailed In-Depth Explanation:

BGP4+ (BGP for IPv6) uses the MP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information) attribute to advertise IPv6 routes. This attribute is part of BGP ' s multiprotocol extensions (RFC 2858), allowing BGP to support multiple address families, including IPv6.

MP_REACH_NLRI: Advertises reachable IPv6 prefixes along with next-hop information.

MP_UNREACH_NLRI: Used to withdraw previously advertised IPv6 routes.

Since IPv6 addresses are significantly different from IPv4 addresses in structure and length (128 bits), the traditional BGP update message format (which supports only IPv4) is insufficient. The MP_REACH_NLRI attribute solves this by carrying IPv6-specific information.

Comprehensive and Detailed In-Depth Explanation:

1. GRE Tunnel Configuration Details:

GRE (Generic Routing Encapsulation) is used to encapsulate packets for transmission between two endpoints.

The tunnel is created between R1 and R2:

R1 Tunnel IP: 10.1.1.1

R2 Tunnel IP: 10.3.1.1

Source IP of Tunnel: 10.0.12.1 (R1)

Destination IP of Tunnel: 10.0.12.2 (R2)

The command used: ping -a 10.1.1.1 10.3.1.1

Source IP (Inner IP): 10.1.1.1

Destination IP (Inner IP): 10.3.1.1

2. GRE Encapsulation Process:

When the ping command is executed from R1 to R2 through the GRE tunnel:

The original ICMP packet will have:

Source IP: 10.1.1.1

Destination IP: 10.3.1.1

This ICMP packet (inner packet) will be encapsulated using GRE.

GRE Encapsulation:

Outer IP Header:

Source IP: 10.0.12.1 (R1 GE0/0/1 interface)

Destination IP: 10.0.12.2 (R2 GE0/0/1 interface)

Inner IP Header:

Source IP: 10.1.1.1 (Tunnel0/0/0 on R1)

Destination IP: 10.3.1.1 (Tunnel0/0/0 on R2)

The outer IP header is used for tunnel routing between the physical interfaces (GE0/0/1).

The inner IP header represents the logical tunnel IPs used for communication between R1 and R2.

3. Correct Answer Analysis:

Option A:

Correct.

The outer IP header addresses are 10.0.12.1 and 10.0.12.2, representing the physical interfaces (GE0/0/1) used to establish the tunnel.

Option C:

Correct.

The inner IP header addresses are 10.1.1.1 and 10.3.1.1, representing the logical tunnel interfaces used for communication.

4. Why Other Options Are Incorrect:

Option B:

Incorrect.

The destination IP in the outer header should be the peer physical IP (10.0.12.2), not the tunnel IP (10.3.1.1).

Option D:

Incorrect.

The inner IP destination is the tunnel IP (10.3.1.1), not the physical IP (10.0.12.2).

Comprehensive and Detailed In-Depth Explanation:

After Portal authentication on a wireless network, the following parameters can be used for authorization:

free-rule (A): Allows traffic even before authentication.

UCL (B): User Control List, specifying user permissions.

ACL (D): Access Control List, defining permitted or denied traffic.

The IP address (C), however, is not used as an authorization parameter directly. Instead, IP addresses are typically assigned after successful authentication, and the control policies are applied based on user profiles or access lists.

Comprehensive and Detailed Explanation:

OSPFv2 (for IPv4) and OSPFv3 (for IPv6) LSAs differ in function and naming conventions.

Key Differences in OSPFv3 LSAs:

OSPFv3 does not use ASBR-Summary-LSA. Instead, it introduces new Inter-Area Prefix LSAs (Type 3) and Inter-Area Router LSAs (Type 4).

OSPFv2 ASBR-Summary-LSA (Type 4) is replaced in OSPFv3 by Inter-Area Router LSA (Type 4).

OSPFv3 LSA Types:

✔ Router-LSA (Type 1) – Describes router interfaces and links.

✔ Network-LSA (Type 2) – Describes broadcast network links.

✔ Inter-Area Prefix LSA (Type 3) – Replaces Summary LSAs for routes.

✔ Inter-Area Router LSA (Type 4) – Replaces ASBR Summary LSAs.

✔ AS-External LSA (Type 5) – Describes external routes (same as OSPFv2).

Since ASBR-Summary-LSA (Type 4) does not exist in OSPFv3, the correct answer is A.

???? Reference: Huawei HCIE Datacom – OSPFv3 LSA Types

The MPLS header consists of:

Label (20 bits) – Label value used for forwarding.

EXP (3 bits) – QoS field (Class of Service).

S bit (1 bit) – Bottom-of-Stack indicator.

TTL (8 bits) – Time-to-Live, similar to the TTL field in the IP header.

Function of TTL in MPLS:

It is used to prevent infinite loops.

Every LSR decrements the TTL by 1.

When TTL reaches 0, the packet is discarded.

This mirrors the behavior of IP TTL and ensures loop prevention in MPLS networks.

Correct answer: D. This field is used to prevent packet forwarding loops, similar to the TTL field in an IP header.

Comprehensive and Detailed In-Depth Explanation:

In MPLS (Multi-Protocol Label Switching), the label retention mode determines how an LSR (Label Switching Router) handles labels received from its neighbors:

Liberal Mode:

An LSR retains all labels distributed by its neighbors, not just the labels from the next-hop LSR.

This approach ensures faster convergence because the LSR does not need to request new labels if the next hop changes.

It does not save memory or label space, as it stores more labels than strictly necessary.

Conservative Mode:

An LSR only retains labels from its next-hop neighbors, saving memory and label space.

Statements C and D are correct because they accurately describe liberal mode.

Statements A and B are incorrect because they describe conservative mode.

In firewall hot standby (HRP - Hot Standby Routing Protocol) mode, certain data can be synchronized between the active and standby firewalls to ensure uninterrupted service.

The following data is backed up:

✅ Server mapping table: Contains information about NAT mappings and other session mappings.

✅ AAA user table (excluding the default user admin): Ensures that authenticated users do not need to re-authenticate in case of failover.

✅ Session table: Ensures that existing connections remain active when switching to the standby firewall.

❌ Dynamic MAC address table is NOT backed up because it is dynamically learned and not relevant to firewall session synchronization.

✅ Reference: Huawei HCIE-Datacom Guide - Firewall HRP Synchronization

GRE (Generic Routing Encapsulation) has the following benefits:

B. VPN Construction — GRE is often used to build site-to-site VPNs.

C. ARP Encapsulation — GRE supports Layer 2 protocol encapsulation such as ARP.

D. Multicast Support — GRE tunnels can encapsulate multicast packets, unlike traditional IPsec.

A. Enlarging the hop limit is incorrect — GRE does not inherently change TTL or hop behavior; routing protocols still use standard IP processing.

Exact Extract - Huawei HCIE-Datacom Tunneling Chapter:

“GRE can encapsulate multicast and broadcast packets and supports L2 protocols like ARP. It is often used for VPN construction over the internet.”

SRv6 Instruction Naming Conventions

SRv6 (Segment Routing over IPv6) uses segment identifiers (SIDs) with specific functions, indicated by instruction keywords:

✅ A. T: Searches a specified routing table to forward packets.

T (Table Lookup) → Performs a lookup in a specified routing table and forwards packets accordingly.

❌ B. M: Searches a Layer 2 forwarding table for unicast forwarding.

Incorrect! SRv6 does not use M for Layer 2 unicast forwarding.

✅ C. V: Searches a VPN instance routing table to forward packets.

V (VPN Routing Table Lookup) → Performs a lookup in a VPN instance (VRF) table for forwarding.

✅ D. X: Forwards packets through one or a group of specified Layer 3 interfaces.

X (Cross-connect forwarding) → Forwards packets via a specified Layer 3 interface or group of interfaces.

Reference from Huawei HCIE-Datacom Documentation:

Huawei SRv6 Configuration Guide – SRv6 SID Naming and Instruction Set

HCIE-Datacom Study Material – Segment Routing over IPv6 (SRv6) Functionality

Comprehensive and Detailed Explanation:

✔ Analyzing the Python Code:

✅ (A) Correct → print(r.json()) prints the response JSON, showing the token ID.

✅ (B) Correct → The token request URL is correctly specified.

✅ (D) Correct → json={ " userName " : nbi_name, " password " : nbi_pwd} confirms the request body is in JSON format.

❌ (C) Incorrect:

The request uses POST, not GET (requests.post() is explicitly called).

???? Reference: Huawei HCIE Datacom – RESTful API Authentication in iMaster NCE
