Detailed Explanation:When a command entered on Huawei’s Versatile Routing Platform (VRP) is incomplete, VRP generates an error message indicating that the command is incomplete at a specific position (designated by ' A ' ). This message helps administrators identify where additional parameters are needed to complete the command syntax. Other error messages indicate issues such as excess parameters or ambiguous commands. (Reference: HCIA-Datacom Lab Guide, VRP Command Syntax)

In PPP (Point-to-Point Protocol) authentication, if the authentication fails, the authenticator sends an Authenticate-Reject message.

Option A (Incorrect - Authenticate-Ack): Sent when authentication is successful.

Option B (Incorrect - Authenticate-Reply): Not a valid PPP authentication message.

Option C (Correct - Authenticate-Reject): Sent when authentication fails, and the connection is rejected.

Option D (Incorrect - Authenticate-Nak): Used for PPP negotiation, not authentication failure.

Thus, the correct answer is C.

Error Analysis:The error message indicates that the command entered is not recognized by the device. This typically occurs when the syntax is incorrect or the first keyword of the command is unrecognized. The system identifies the problem location ( ' A ' position), which points to the initial part of the command.

Analysis of Options:

Option A: " The entered parameter is not specified " refers to cases where a valid command is incomplete due to missing parameters, not an unrecognized command. This is unrelated to the error displayed.

Option B: " The entered command is incomplete " applies when additional parameters are needed to complete the command. However, the system explicitly states " unrecognized command, " ruling this out.

Option C: " The parameter type is incorrect " refers to an error where a parameter is of the wrong type (e.g., string instead of integer). This is not related to keyword recognition.

Option D: " No keyword is found " directly aligns with the error message, as the system cannot recognize the first keyword of the command, making it the correct answer​​.

Step 1: Understanding MAC Address Table Lookup

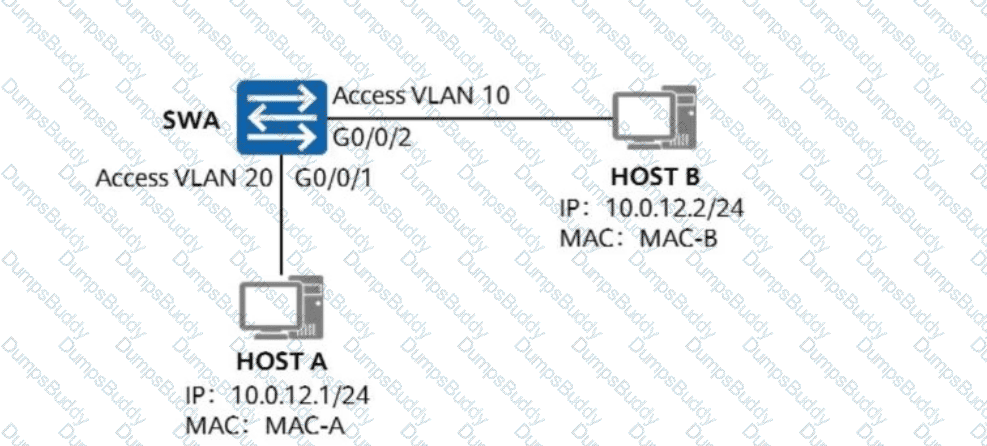

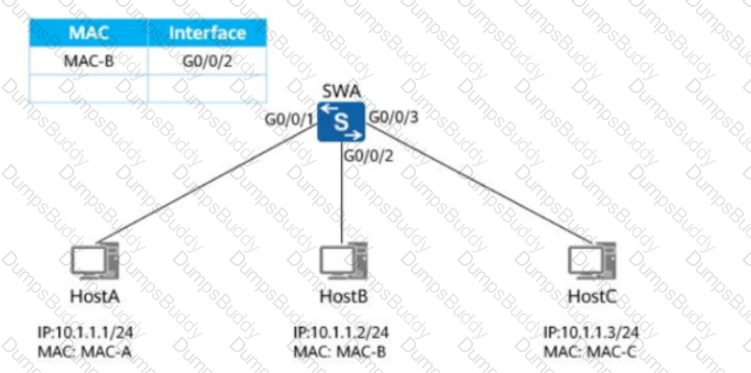

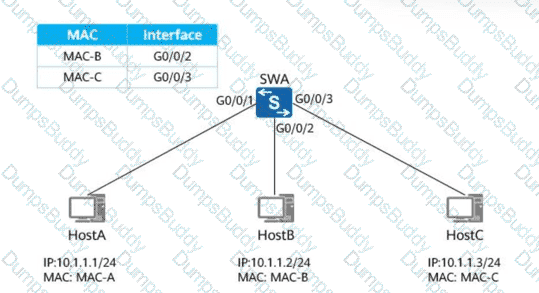

When Host A sends a frame with MAC-B as the destination, SWA checks its MAC address table to determine the correct port to forward the frame.

According to the MAC table, MAC-B is associated with interface G0/0/2.

Step 2: Forwarding Behavior

Since SWA knows the destination MAC address and its associated interface, it will forward the frame only through G0/0/2.

Step 3: Analyzing the Answer Choices

Option A (Correct - Forwards only through G0/0/2): ✅

SWA correctly forwards the frame to G0/0/2, where HostB is connected.

Option B (Incorrect - Forwards through G0/0/3): ❌

MAC-B is not associated with G0/0/3, so the switch will not forward the frame there.

Option C (Incorrect - Floods the frame): ❌

Flooding occurs only when the MAC address is unknown, but in this case, MAC-B is known.

Option D (Incorrect - Discards the frame): ❌

The switch only discards frames if there’s a security violation or filtering rule, which is not mentioned here.

CAPWAP (Control and Provisioning of Wireless Access Points) is a protocol that enables centralized control of Fit APs by an AC (Access Controller).

Option A (Incorrect): CAPWAP tunnels only control traffic, while data traffic can be sent via direct forwarding or tunneled forwarding.

Option B (Incorrect): A Fit AP can discover an AC via multiple methods, including broadcast, static configuration, or DHCP Option 43.

Option C (Correct): APs encapsulate user data into CAPWAP packets and send them to the AC for further processing.

Option D (Incorrect): CAPWAP is based on UDP, not TCP, for better efficiency and lower latency.

Thus, the correct answer is C.

OSPF Packet Types:

LSA (Link State Advertisement): Contains topology information that routers use to build their LSDB.

LSU (Link State Update): Used to transmit multiple LSAs.

LSR (Link State Request): Requests specific LSAs from a neighbor router.

LSACK (Link State Acknowledgment): Confirms receipt of LSU packets​​.

Correct Packet for Acknowledgment:The LSACK packet is specifically designed to acknowledge LSU packets. Without acknowledgment, the LSU might be retransmitted unnecessarily.

Correct Answer:The OSPF packet used for acknowledgment is D (LSACK).

Detailed Explanation:If the username does not contain the delimiter " @ " followed by a domain name, the user is automatically assigned to the default domain. In this case, since the username " huawei " does not specify a domain, the user belongs to the default domain​​.

Comprehensive and Detailed In-Depth Explanation:

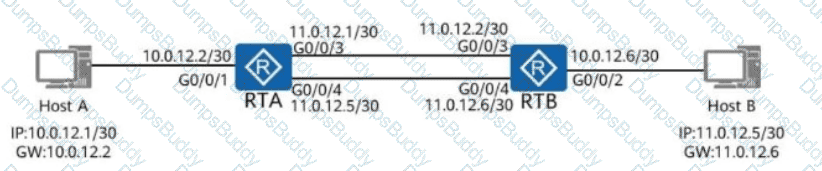

Host A (10.0.12.1/30) needs to send traffic to Host B (11.0.12.5/30) via Router A G0/0/3.

Host B (11.0.12.5/30) needs to send traffic to Host A (10.0.12.1/30) via Router B G0/0/4.

The correct static routes should specify the next-hop correctly to ensure the desired path is used.

Option D correctly ensures traffic flow through the required interfaces (G0/0/3 and G0/0/4).

An ARP (Address Resolution Protocol) packet includes several fields essential for mapping IP addresses to MAC addresses. The fields include:

Source Protocol Address: Identifies the IP address of the requesting device.

Source Hardware Address: Contains the MAC address of the source.

Hardware Type: Indicates the hardware type, typically Ethernet.

Operation Code: Specifies the operation (request or reply). These fields collectively allow devices to resolve IP addresses to physical MAC addresses, enabling direct communication within the local network​.

Wireless networks commonly use Access Controllers (ACs) and Access Points (APs) to manage user connectivity.

Option A (Incorrect): Fat APs operate independently and do not require an AC to function. Instead, Fit APs require ACs to manage them centrally.

Option B (Correct): An AC (Access Controller) is usually deployed at the aggregation layer of a network. It provides centralized control over Fit APs, ensuring high-speed, secure, and reliable WLAN services. This is the standard design in enterprise WLAN architectures.

Option C (Incorrect): Fit APs do not handle authentication and forwarding on their own. Instead, they rely on an AC for these functions.

Option D (Incorrect): Many wireless devices (including APs and ACs) have wired interfaces for uplink connectivity to switches or other network devices.

Thus, the correct answer is B. An AC is usually deployed at the aggregation layer of a network to provide high-speed, secure, and reliable WLAN services.

Switch (A): A network switch is a fundamental device used to connect devices in a local area network (LAN) and forward packets based on MAC addresses.

Firewall (B): A firewall is used to filter and protect the network from unauthorized access and threats.

Router (D): A router is essential for forwarding packets between different networks and managing routing.

Agile Controller (C): This is a network automation and management tool rather than a fundamental networking device. Since it is not typically deployed as a core network device, option C is the correct answer.

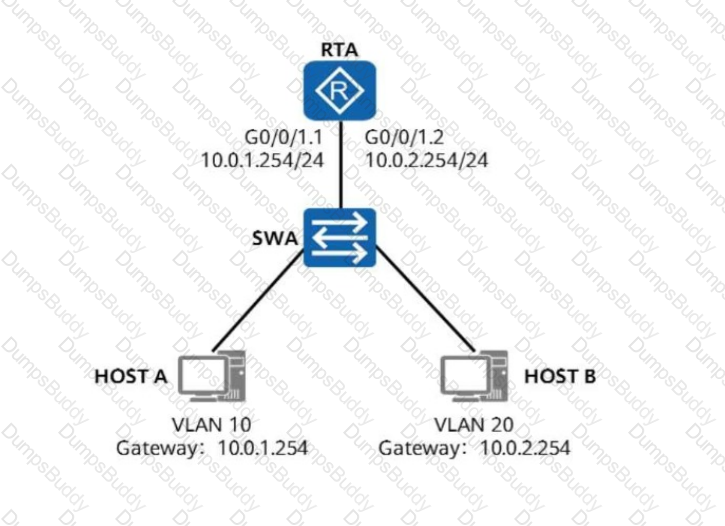

Understanding the Network Diagram

Host A is in VLAN 10 with a gateway of 10.0.1.254.

Host B is in VLAN 20 with a gateway of 10.0.2.254.

The router (RTA) has two sub-interfaces:

G0/0/1.1 (10.0.1.254/24) for VLAN 10

G0/0/1.2 (10.0.2.254/24) for VLAN 20

The switch (SWA) is using VLAN trunking to forward packets to the router, requiring 802.1Q encapsulation.

One-Armed Routing (Router-on-a-Stick) is being used, meaning a single physical interface (G0/0/1) handles multiple VLANs using sub-interfaces.

Analyzing the Answer Choices

Option A (dot1q termination vid 20) → Incorrect

This command would be configured on G0/0/1.2, not G0/0/1.1.

Option B (dot1q termination vid 30) → Incorrect

VLAN 30 is not part of this topology.

Option C (dot1q termination vid 10) → Correct

Since G0/0/1.1 corresponds to VLAN 10, the correct command is dot1q termination vid 10.

Option D (dot1q termination vid 1) → Incorrect

VLAN 1 is usually the default VLAN, which is not relevant here.

Thus, the correct answer is C (dot1q termination vid 10).

The Forward Delay timer in STP helps prevent temporary loops by setting a delay for ports transitioning through Listening and Learning states before reaching the Forwarding state. This wait period ensures that all switches have updated topology information, reducing the risk of broadcast storms or loops​.

Detailed Explanation:To accommodate 26 hosts, the subnet needs at least 30 addresses (including network and broadcast addresses). A subnet mask of 255.255.255.192 provides 64 addresses (2^6 - 2 = 62 usable addresses), which is more than enough to support 26 hosts while also leaving space for additional hosts if needed.

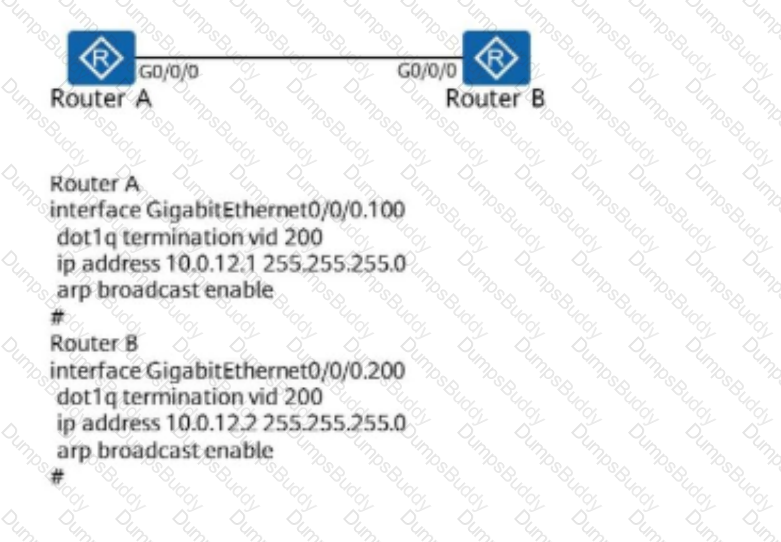

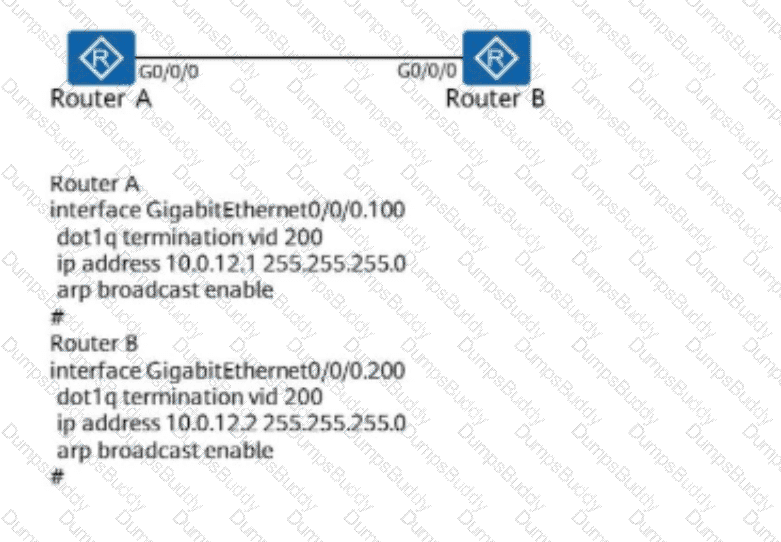

Comprehensive Explanation: The command dot1q termination vid 100 in the configuration specifies that the sub-interface is configured to receive tagged data frames for VLAN 100. VLAN tagging ensures that frames are properly identified and routed through the correct VLAN, and the sub-interface is associated with a specific VLAN ID to handle the tagged traffic.

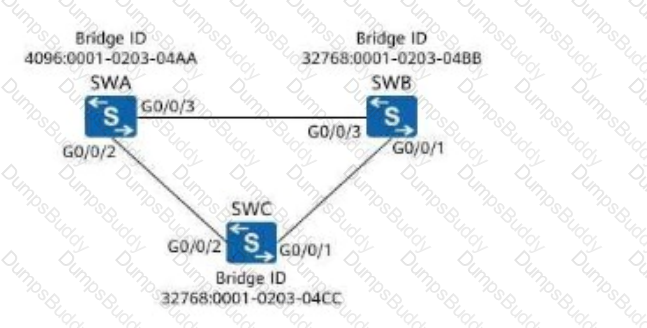

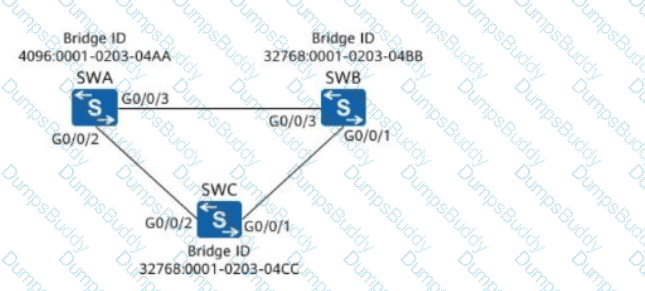

In Spanning Tree Protocol (STP), Topology Change (TC) BPDUs are used to notify switches about network topology changes.

The Root Bridge generates BPDUs with TC bits set, which are forwarded through the network.

Non-root switches forward these BPDUs through their Designated Ports.

Option A (Incorrect - Root Port): The Root Port receives BPDUs from the Root Bridge but does not forward them.

Option B (Correct - Designated Port): Designated ports are responsible for forwarding BPDUs down the tree towards other switches.

Option C (Incorrect - Backup Port): Backup ports are blocking and do not forward BPDUs.

Option D (Incorrect - Alternate Port): Alternate ports are in a blocking state and do not forward BPDUs.

Thus, the correct answer is B.

In the ACL (Access Control List) configuration:

Rule 5: Permits traffic from 192.168.1.1.

Rule 10: Denies traffic from 192.168.1.1.

Since ACLs are processed in sequential order, the first matching rule is applied.

Option A (Incorrect): The first rule (permit) is matched before the deny rule.

Option B (Incorrect): 192.168.1.254 is not listed in the ACL, so it does not match any rule.

Option C (Correct): 192.168.1.1 matches the first permit rule (Rule 5), so it is allowed.

Option D (Incorrect): 192.168.1.254 is not mentioned in the ACL rules, so it does not match the permit rule.

Thus, the correct answer is C.

Detailed Explanation:The 802.11ax standard, also known as Wi-Fi 6, supports theoretical speeds over 5 Gbit/s and is designed for high-efficiency wireless networking in dense environments. (Reference: HCIA-WLAN Training Material, IEEE 802.11 Standards)

Detailed Explanation:The command forward-mode direct-forward is used to configure the AC to enable direct forwarding, meaning that the AP will forward user data packets directly to the network without tunneling them through the AC, improving efficiency by reducing the load on the AC​.

Static vs. Dynamic Routing:

Static routing: Routes manually configured by the network engineer. These do not adapt dynamically to network changes​​.

Direct routing: Routes automatically learned when a router is directly connected to a network. This is not a dynamic routing protocol​.

Dynamic Routing Protocols:

OSPF (Open Shortest Path First): A dynamic Interior Gateway Protocol (IGP) that calculates the best route based on link state information​.

BGP (Border Gateway Protocol): A dynamic Exterior Gateway Protocol (EGP) used for routing between autonomous systems​​.

Correct Answers:The dynamic routing protocols are C (OSPF) and D (BGP).

Comprehensive and Detailed Explanation:

STP (Spanning Tree Protocol) Port States:

Blocking → Listens for BPDUs but does NOT forward traffic.

Listening → Starts sending BPDUs but still does NOT forward traffic.

Learning → Learns MAC addresses but still does NOT forward traffic.

Forwarding → Learns MAC addresses and forwards traffic.

Explanation of options:✅ A is correct → Forwarding ports can send BPDUs.✅ B is correct → Forwarding ports can receive BPDUs.❌ C is incorrect → Forwarding ports do learn MAC addresses.✅ D is correct → Forwarding ports can forward frames.

✅ Reference: HCIA-Datacom Switching Guide – STP Port States

Comprehensive Explanation: SNMP (Simple Network Management Protocol) consists of several key components:

Management Information Base (MIB): A database containing the network management data.

Managed object: The individual objects (such as interfaces or devices) that SNMP manages.

Agent process: The software running on the managed device that reports data to the NMS.

NMS (Network Management System): The centralized system that collects data from managed devices using SNMP.

All these components work together to monitor, configure, and manage network devices.

Detailed Explanation:To manage a router in a remote branch office, Telnet is a suitable option as it allows remote access over a network. Unlike a console connection, which requires physical access, Telnet enables remote management as long as the administrator has network connectivity to the router. FTP is used for file transfer, and DHCP is used for dynamic IP address allocation, not for management​​.

The default route preference on Huawei VRP places Direct routes at the highest priority, followed by Static routes, then RIP, and finally OSPF. Direct routes are most trusted as they represent directly connected networks, while OSPF, being a dynamic protocol with more administrative distance, is prioritized lower by default​.

The VRP platform does not support configuration through FTP. Configuration methods typically include using a console port, Telnet, or SSH, allowing for direct access to the device configuration. FTP is generally used for file transfer, not direct configuration, and therefore is not a supported method for configuring a router​.

Detailed Explanation:With a /30 subnet mask, the valid IP range is 192.168.1.0 - 192.168.1.3:

192.168.1.3 is the broadcast address, so it can be a destination.

192.168.1.1 and 192.168.1.2 are host addresses.

255.255.255.255 is the limited broadcast address, which any device can use to reach all hosts on the local network.

(Reference: HCIA-Datacom Training Material, IP Addressing and Subnetting)

If host A already has host B’s MAC address in its ARP cache, it can send packets directly to host B without needing to perform an ARP request. This cached information allows immediate packet delivery, assuming no network changes have occurred that would invalidate the ARP entry​.

Detailed Explanation:With SNMP (Simple Network Management Protocol), a Network Management System (NMS) can both monitor device status and configure settings on managed devices using SNMP Set commands. (Reference: HCIA-Datacom Training Material, SNMP Protocol Functions)

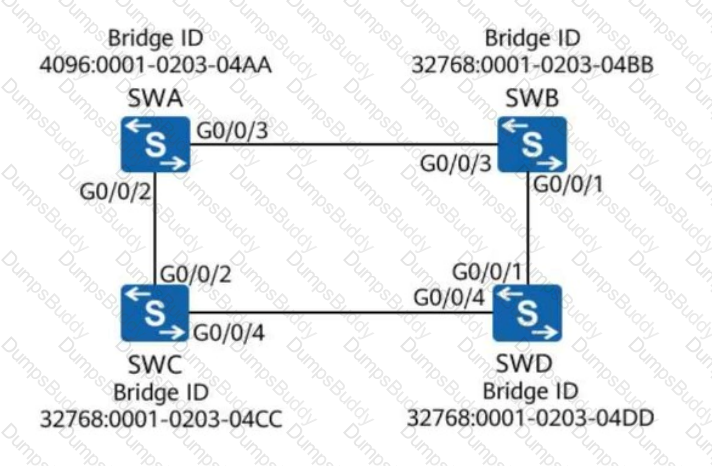

Comprehensive Explanation: In Spanning Tree Protocol (STP), the Message Age in the BPDU (Bridge Protocol Data Unit) sent by the root bridge is set to 0. As BPDUs are forwarded by non-root switches, the Message Age is incremented. This timer is used to ensure that outdated information is not propagated indefinitely through the network. If the Message Age reaches a configured maximum value, the BPDU is discarded, and the network topology is recalculated.

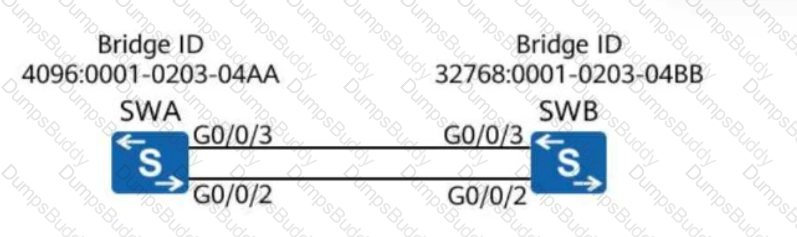

Comprehensive Explanation: In RSTP (Rapid Spanning Tree Protocol), G0/0/3 of SWB is an Alternate Port because it provides a redundant path to the root bridge, while G0/0/3 of SWA is a Designated Port, forwarding traffic away from the root bridge. Similarly, G0/0/2 of SWA is also a Designated Port because it forwards traffic to other segments of the network. Alternate Ports are used to provide backup paths, while Designated Ports are the forwarding ports on a given segment.

OSPF does not use TCP or UDP because it has its own reliable transmission mechanisms.

OSPF packets are encapsulated directly in IP packets using protocol number 89.

TCP (A) is used for connection-oriented communication, but OSPF does not rely on it.

UDP (C) is used for connectionless communication, but OSPF does not use it.

HTTP (B) is an application-layer protocol and irrelevant here.

Thus, the correct answer is D (IP).

Comprehensive and Detailed In-Depth Explanation:

802.11n (Wi-Fi 4) supports both 2.4 GHz & 5 GHz.

802.11ax (Wi-Fi 6) also supports both 2.4 GHz & 5 GHz.

Incorrect Options:

802.11ac → Only supports 5 GHz.

802.11g → Only supports 2.4 GHz.

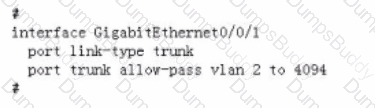

Comprehensive Explanation: The interface configuration shows that VLANs 2, 3, and 100 are tagged, meaning frames belonging to these VLANs are transmitted with VLAN tags. VLANs 4 and 6 are untagged, meaning frames for these VLANs are transmitted without tags. The command port hybrid tagged vlan 2 to 3 100 specifies that data frames for VLANs 2, 3, and 100 are transmitted with tags, while port hybrid untagged vlan 4 6 configures the interface to transmit untagged frames for VLANs 4 and 6.

Comprehensive Explanation: The " -i " parameter in the Ping command on Huawei VRP (Versatile Routing Platform) is used to specify the source IP address for sending an Echo Request (ping) packet. This is useful in cases where the router has multiple interfaces and you want to control which interface is used to initiate the ping. By defining the source IP address, the ping request can be sent from a specific interface on the router, enabling network administrators to test connectivity from that interface.

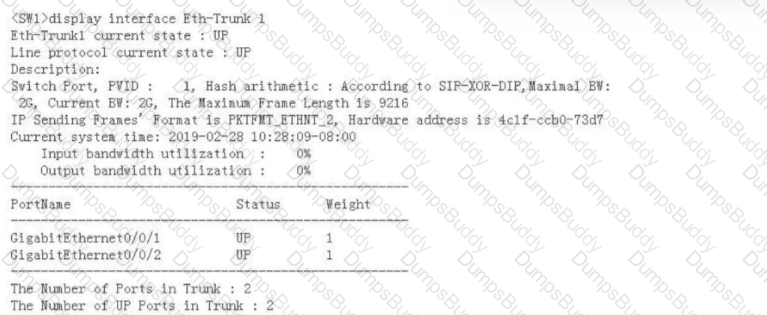

The default Link Aggregation Control Protocol (LACP) system priority on Huawei switches is 32768. This priority helps determine which device takes the active role in link aggregation when multiple switches are involved. A lower value indicates a higher priority for managing the aggregated link​.

Detailed Explanation:The TCP protocol ensures reliable data transmission by using a three-way handshake to establish a connection and a four-way handshake to terminate it. This handshake process helps ensure that both parties are synchronized and agree on communication parameters before data transmission begins. Additionally, mechanisms such as sequence numbers and acknowledgments ensure that data is received correctly and in order .

SNMP Port Numbers:

161: Used for SNMP managers to send requests to agents.

162: Used by SNMP agents to send trap or alarm messages to the Network Management System (NMS).

163 and 164: Not commonly used in SNMP operations.

Detailed Explanation:In LACP (Link Aggregation Control Protocol), the Actor is elected based on device priority, interface priority, and MAC address. These parameters ensure consistency and determine the active links within the aggregated trunk. The interface number alone is not a determining factor. (Reference: HCIA-Datacom Training Material, Link Aggregation Control Protocol (LACP))

To help Fit APs locate an AC (Access Controller), the DHCP server must provide the AC IP address using DHCP Option 43.

Option 55 (Incorrect): Used to request a list of DHCP options.

Option 82 (Incorrect): Used for Relay Agent Information, not AC discovery.

Option 10 (Incorrect): Not relevant for APs or CAPWAP.

Option 43 (Correct): This option delivers the AC IP address to Fit APs so they can establish a CAPWAP tunnel.

Thus, the correct answer is D.

Detailed Explanation:In a tree topology, nodes are arranged hierarchically with root nodes at the top and leaf nodes at the base. This structure is often used in larger networks because it supports scalability and easy addition of nodes. However, if a higher-level node (e.g., root or intermediate node) fails, all dependent nodes in its subtree lose connectivity. Therefore, faults at higher layers have a more significant impact than faults at the leaves. (Reference: HCIA-Datacom Training Material, Network Topology Types)

Detailed Explanation:Using DHCP provides several advantages:

It helps prevent IP address conflicts because the DHCP server dynamically assigns IP addresses, ensuring each device gets a unique one.

IP addresses can be reused by setting lease times, allowing the DHCP server to recycle addresses from devices that no longer need them.

Centralized configuration management is also possible. If network configuration details such as the DNS server change, the administrator can update these settings on the DHCP server, and all DHCP clients will automatically receive the new information​​.

Switches generally operate at the data link layer (Layer 2) and are used to manage communication within a local area network (LAN) by directing traffic among devices. They are not usually deployed as egress devices, which are typically routers. Switches facilitate internal LAN communication, while egress devices handle traffic leaving the network​.

In Huawei ' s Versatile Routing Platform (VRP), pressing Ctrl+Z is a shortcut that takes the user from any configuration view directly back to the user view. This command is useful for quickly navigating out of multiple levels of configuration back to the main user prompt. This feature is part of the VRP interface management commands for efficient system navigation​.

Switch Forwarding Behavior:

If the destination MAC is not found in the MAC address table, the switch floods the frame.

Broadcasting Within VLANs:

VLAN tagging ensures the frame remains within its designated VLAN.

The frame is not sent to all interfaces but only within the VLAN.

Why Other Options Are Incorrect:

A: Does not consider VLAN segmentation.

C: Switches do not discard unknown unicast frames unless configured to do so.

D: Includes access interfaces only, but flooding happens on all VLAN interfaces.

Conclusion:

The switch floods the frame within the VLAN, making the correct answer B.

Comprehensive Explanation: An ACL (Access Control List) is used to define rules for permitting or denying packets based on criteria such as IP addresses, protocols, or ports. However, the ACL only takes effect when it is applied to a service module, such as an interface or a firewall rule. This ensures that traffic is filtered according to the ACL rules as it passes through the device. Without being applied, the ACL rules are inactive and do not influence traffic.

Comprehensive and Detailed Explanation:

The TTL field is 8 bits long, allowing values from 0 to 255 (A is correct).

The TTL prevents routing loops by discarding packets with TTL=0 (B is correct).

Each Layer 3 device (router) that forwards the packet decrements TTL by 1 (C is correct).

If TTL reaches zero, the router drops the packet and sends an ICMP Time Exceeded message.

✅ Reference: HCIA-Datacom Network Principles Guide – IP Packet Structure

Detailed Explanation:

An edge port in RSTP (Rapid Spanning Tree Protocol) is designed to immediately transition to the forwarding state without participating in the spanning tree calculation. This allows for quicker convergence and is suitable for ports connected to end devices (not to other switches).

Huawei AR G3 series routers support all SNMP versions (v1, v2c, and v3) by default.

SNMPv3 provides enhanced security features compared to SNMPv1 and SNMPv2c.

Thus, the correct answer is A (TRUE).

Router Functionality:Routers operate at the Network Layer (Layer 3) of the OSI model. They use IP addresses to forward packets between different networks and determine the best path for data transmission based on routing tables​​.

Analysis of Options:

Option A: " Network layer " is correct, as routers are Layer 3 devices.

Option B: " Transport layer " handles end-to-end communication and reliability (e.g., TCP/UDP), not routing.

Option C: " Data link layer " is for local node-to-node data transfer (e.g., MAC addresses), handled by switches.

Option D: " Application layer " is for user-facing software interactions (e.g., HTTP, FTP).

Correct Answer:Routers work at the A (Network layer).

VLAN Assignment Overview:VLAN (Virtual Local Area Network) assignment is a critical step in campus network planning. It involves logically segmenting a network to improve manageability, security, and performance. Huawei recommends various approaches based on specific needs.

Analysis of Options:

Option A: " VLAN assignment by service type " This method groups devices based on the type of service they require (e.g., voice, video, data). It helps in isolating traffic for different service types, improving QoS and security. This is a common practice in network planning​​.

Option B: " VLAN assignment by logical area " Logical area-based assignment groups devices based on their logical function in the network (e.g., core, access, distribution). It ensures proper segmentation and alignment with network topology​.

Option C: " VLAN assignment by geographic area " Assigning VLANs based on geographic areas (e.g., floors in a building, departments) helps localize traffic within a region, reducing unnecessary cross-network traffic​​.

Option D: " VLAN assignment by personnel structure " While this option suggests assigning VLANs based on organizational structure (e.g., employees, managers), it is not a typical practice in VLAN assignment. It lacks scalability and alignment with network topology, making it an inefficient approach​.

Correct Answers:The valid VLAN assignment methods in campus network planning are:

A. By service type

B. By logical area

C. By geographic area

Detailed Explanation:In RSTP, there are three port states: Discarding, Learning, and Forwarding. These states replace the five traditional STP states by combining them to optimize network convergence​​.

Comprehensive Explanation: Static NAT (Network Address Translation) can implement both one-to-one and many-to-one mappings. In a one-to-one mapping, each private IP address is mapped to a unique public IP address. However, in some cases, static NAT can be configured to map multiple private addresses to a single public address, particularly for services that do not require incoming connections. This flexibility allows for more efficient use of limited public IP address space.

Comprehensive and Detailed Explanation:

On Huawei VRP-based devices, the configuration file (vrpcfg.zip) is not immediately deleted when using the delete command.

Instead, it is moved to the recycle bin, ensuring accidental deletions can be recovered.

To permanently delete the file, the user must clear the recycle bin using the reset recycle-bin command.

✅ Reference: HCIA-Datacom Configuration Guide – File Management on VRP

Comprehensive and Detailed Explanation:

In PPP (Point-to-Point Protocol) connections, a static route can be configured using:

Next-hop IP address

Outbound interface

Since PPP links are point-to-point, the router can directly forward packets without needing an explicit next-hop address.

Example configurations:

ip route-static 10.1.1.0 24 Serial0/0/0

ip route-static 10.1.1.0 24 192.168.1.2

✅ Reference: HCIA-Datacom Routing Guide – Static Route Configuration on PPP

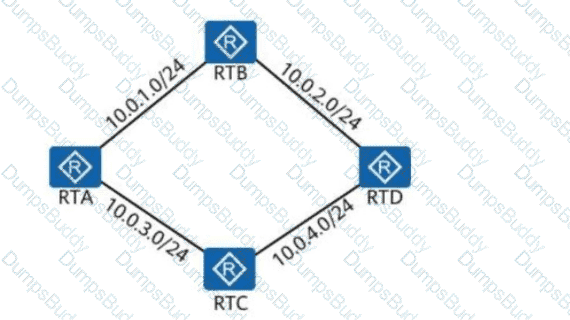

In OSPF networks, a DR (Designated Router) is elected for each broadcast domain, such as each Ethernet segment. Given the topology where there are multiple Ethernet segments, a DR will be elected in each segment, resulting in three DRs based on the configuration and network design​.

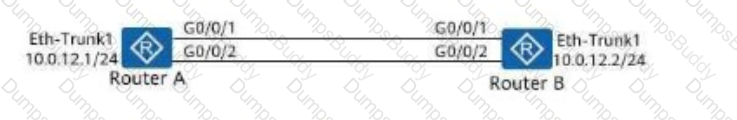

Comprehensive Explanation: To remove the Eth-Trunk interface, you can simply use the undo interface Eth-Trunk 1 command. This command deletes the entire Eth-Trunk interface from the switch configuration. The other commands involve additional steps to unbind physical interfaces from the Eth-Trunk, but these steps are unnecessary if you are deleting the Eth-Trunk interface entirely.

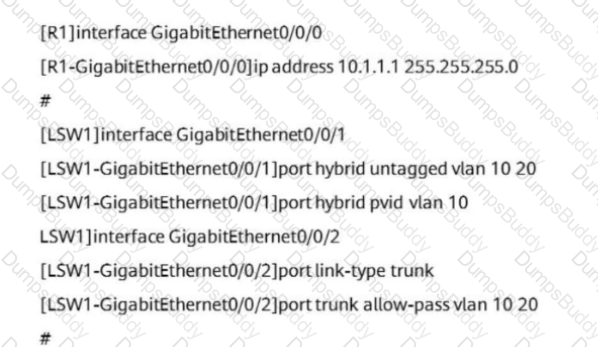

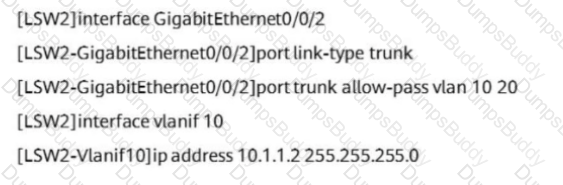

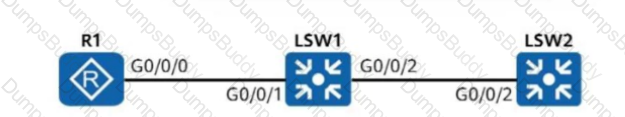

Given correct configuration, hosts within the same subnet should be able to communicate, so the host at 10.0.12.1 can ping the host at 10.0.12.2. This scenario assumes correct interconnectivity and absence of firewall or ACL rules that would block the communication​.

Comprehensive Explanation: In OSPF, an Area Border Router (ABR) is a router that has interfaces in more than one OSPF area, facilitating communication between different areas. If a router has interfaces in only one OSPF area, it is not an ABR. Based on the network structure, it is incorrect to assume that all routers except RTA are ABRs. A router can only be considered an ABR if it has interfaces connecting to multiple OSPF areas. If a router only connects within one area, it is not an ABR.

IPv6 Address Types:

Unicast: Identifies a single interface.

Anycast: Identifies a set of interfaces, delivering to the nearest one.

Multicast: Delivers to multiple interfaces.

Broadcast: Does not exist in IPv6; replaced by multicast addressing​​.

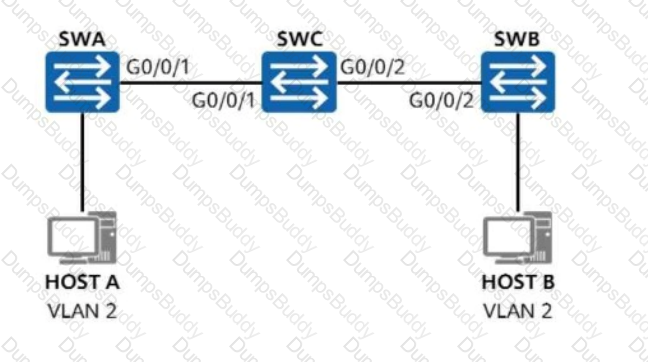

To ensure communication between Host A and Host B, we need to analyze the network topology, VLAN configuration, and the role of SWC as an intermediate switch. Let’s break it down step by step, based on VLAN and trunking principles as outlined in HCIA Datacom documentation:

Understanding the Current Network Configuration:

Host A and Host B: Both are connected to SWA and SWB, respectively, via access ports assigned to VLAN 2. Access ports carry untagged traffic for a single VLAN (in this case, VLAN 2), so Host A and Host B are part of VLAN 2.

SWA and SWB Trunk Interfaces: G0/0/1 on SWA and G0/0/2 on SWB are configured as trunk interfaces allowing all VLANs. Trunk ports carry tagged traffic for multiple VLANs (including VLAN 2 in this case) and are used to interconnect switches, enabling VLAN traffic to pass between them. Since these trunk ports allow all VLANs, VLAN 2 traffic can traverse between SWA and SWB.

SWC: SWC is the intermediate switch connecting SWA and SWB via its G0/0/1 (connected to SWA’s G0/0/1) and G0/0/2 (connected to SWB’s G0/0/2). However, the diagram and question do not specify SWC’s current VLAN or port configurations. By default, if no VLAN or trunk configuration exists on SWC, VLAN 2 traffic cannot pass through SWC, preventing communication between Host A and Host B.

Requirements for Communication Between Host A and Host B:

For Host A and Host B (both in VLAN 2) to communicate across the network, VLAN 2 traffic must be able to traverse SWC. This requires:

VLAN 2 to be created on SWC so that the switch recognizes and processes traffic for that VLAN.

The interfaces on SWC (G0/0/1 and G0/0/2) connecting to SWA and SWB must be configured as trunk ports to carry tagged VLAN 2 traffic, matching the trunk configuration on SWA’s G0/0/1 and SWB’s G0/0/2.

Trunk ports are necessary because they can carry traffic for multiple VLANs (tagged) and are typically used between switches to maintain VLAN consistency across the network.

Evaluating Each Option:

A. Create VLAN 2 on SWC.

Creating VLAN 2 on SWC is necessary, but it alone is insufficient. Without configuring the ports (G0/0/1 and G0/0/2) as trunk interfaces allowing VLAN 2, the VLAN traffic cannot pass through SWC. This option is incomplete and incorrect.

B. Configure G0/0/1 on SWC as a trunk interface that allows packets from VLAN 2 to pass through.

Configuring G0/0/1 as a trunk interface allowing VLAN 2 is part of the solution, but it only addresses the connection to SWA. G0/0/2 (connected to SWB) also needs to be configured as a trunk interface allowing VLAN 2 for bidirectional communication between Host A and Host B. This option is incomplete and incorrect.

C. Create VLAN 2 on SWC, and configure G0/0/1 and G0/0/2 as trunk interfaces that allow packets from VLAN 2 to pass through.

This option addresses all requirements:

Creating VLAN 2 on SWC ensures the switch recognizes VLAN 2 traffic.

Configuring both G0/0/1 and G0/0/2 as trunk interfaces allowing VLAN 2 ensures that tagged VLAN 2 traffic can pass between SWA and SWB through SWC, enabling communication between Host A and Host B.

This is the complete and correct solution, aligning with VLAN and trunking principles in HCIA Datacom.

D. On SWC, configure G0/0/1 as a trunk interface that allows packets from VLAN 2 to pass through, configure G0/0/2 as an access interface, and set the PVID to 2.

Configuring G0/0/1 as a trunk interface allowing VLAN 2 is correct for the connection to SWA. However, configuring G0/0/2 as an access interface with PVID 2 (Port VLAN ID) is incorrect for this scenario:

Access ports carry untagged traffic for a single VLAN and are typically used for end devices, not for interconnecting switches. Since SWB’s G0/0/2 is a trunk interface allowing all VLANs, G0/0/2 on SWC must also be a trunk interface to match and carry VLAN 2 traffic.

Using an access port on G0/0/2 would prevent VLAN 2 traffic from passing correctly, as it would expect untagged traffic only for VLAN 2, which conflicts with SWB’s trunk configuration.

This option is incorrect because it mixes access and trunk port types inappropriately for inter-switch links.

Conclusion:

To ensure communication between Host A and Host B (both in VLAN 2), SWC must:

Create VLAN 2.

Configure G0/0/1 and G0/0/2 as trunk interfaces allowing VLAN 2 traffic.

Option C fulfills these requirements, making it the correct answer.

Answer: C

References from HCIA Datacom Documents:

HCIA Datacom V3.0, Chapter 4: VLAN Technologies – Access and Trunk Port Configurations

HCIA Datacom V3.0, Chapter 4: VLAN Trunking and Inter-VLAN Routing – Configuring Trunk Ports for VLAN Traffic

Huawei VLAN Configuration Guide (HCIA Datacom Certification Material) – VLAN Creation and Port Link Types

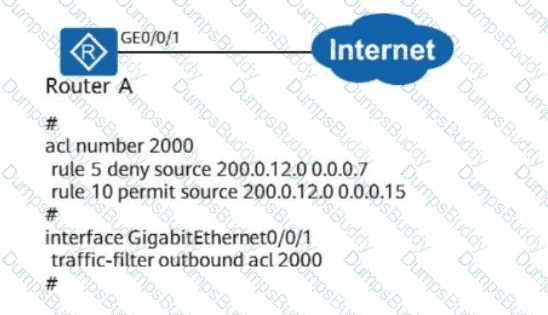

To determine which statement is incorrect, we need to analyze the ACL configuration on Router A and understand how it filters outbound traffic to the Internet. Let ' s break down the configuration step by step, referencing HCIA Datacom principles for ACL processing and traffic filtering.

1. Understanding the ACL Configuration

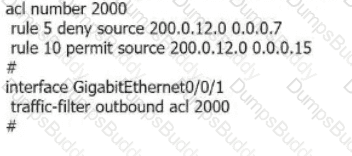

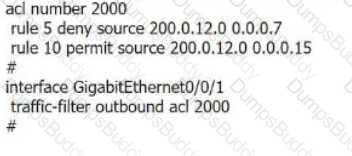

The configuration on Router A is as follows:

text

WrapCopy

acl number 2000

rule 5 deny source 200.0.12.0 0.0.0.7

rule 10 permit source 200.0.12.0 0.0.0.15

#

interface GigabitEthernet0/0/1

traffic-filter outbound acl 2000

#

ACL Number 2000: This is a basic ACL used to filter traffic based on source IP addresses.

Rule 5: deny source 200.0.12.0 0.0.0.7

The wildcard mask 0.0.0.7 translates to a subnet mask of /29 (255.255.255.248).

The IP range for 200.0.12.0 0.0.0.7 is calculated as:

Network address: 200.0.12.0

Broadcast address: 200.0.12.7

Usable host addresses: 200.0.12.1 to 200.0.12.6 (6 usable addresses in a /29 subnet).

Therefore, this rule denies traffic from any source IP in the range 200.0.12.1–200.0.12.6.

Rule 10: permit source 200.0.12.0 0.0.0.15

The wildcard mask 0.0.0.15 translates to a subnet mask of /28 (255.255.255.240).

The IP range for 200.0.12.0 0.0.0.15 is:

Network address: 200.0.12.0

Broadcast address: 200.0.12.15

Usable host addresses: 200.0.12.1 to 200.0.12.14 (14 usable addresses in a /28 subnet).

Therefore, this rule permits traffic from any source IP in the range 200.0.12.1–200.0.12.14.

Interface Configuration: The ACL 2000 is applied outbound on interface GigabitEthernet0/0/1, meaning it filters traffic leaving Router A toward the Internet.

2. ACL Processing Logic (HCIA Datacom Reference)

According to HCIA Datacom documentation (e.g., Huawei ACL fundamentals), ACLs are processed in sequential order, and the first matching rule determines the action (permit or deny). If no rule matches, the implicit deny rule at the end of the ACL blocks the traffic. In this case:

Rule 5 denies traffic from 200.0.12.1–200.0.12.6.

Rule 10 permits traffic from 200.0.12.1–200.0.12.14.

Since Rule 5 is processed before Rule 10, any IP in the overlap (i.e., 200.0.12.1–200.0.12.6) will be denied by Rule 5, even though Rule 10 would permit it.

IPs outside 200.0.12.1–200.0.12.6 but within 200.0.12.1–200.0.12.14 are permitted by Rule 10.

Any IP not matching Rule 5 or Rule 10 is implicitly denied (but no such IPs are listed in the options).

3. Evaluating Each Option

Now, let’s check each host IP address against the ACL rules to determine if they can access the Internet:

A. The host with the source IP address 200.0.12.6 cannot access the Internet.

200.0.12.6 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

B. The host with the source IP address 200.0.12.8 cannot access the Internet.

200.0.12.8 does not fall within the range 200.0.12.1–200.0.12.6 (denied by Rule 5).

It does fall within the range 200.0.12.1–200.0.12.14 (permitted by Rule 10).

Therefore, 200.0.12.8 is permitted to access the Internet, making this statement incorrect.

C. The host with the source IP address 200.0.12.2 cannot access the Internet.

200.0.12.2 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

D. The host with the source IP address 200.0.12.4 cannot access the Internet.

200.0.12.4 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

4. Conclusion

The only incorrect statement is B, as the host with the source IP address 200.0.12.8 can access the Internet because it is permitted by Rule 10 and not denied by Rule 5.

5. HCIA Datacom References

This analysis aligns with the HCIA Datacom curriculum, specifically:

ACL Fundamentals: Huawei’s documentation on basic ACLs (e.g., ACL 2000–2999 for IPv4) and their rule processing order (first match wins).

Traffic Filtering: Outbound ACL application on interfaces, as described in Huawei router configuration guides.

Wildcard Mask Calculation: Standard IP addressing and subnetting principles for determining IP ranges (e.g., /29 and /28 subnets).

These principles are detailed in the HCIA Datacom V1.0 training materials, particularly in the sections on ACL configuration, IP addressing, and interface-based traffic control.

Detailed Explanation:The default preference of static routes on Huawei routers is 0. This means that if a static route is present, it will always take precedence over routes with higher preferences, such as dynamically learned routes, unless a lower preference is manually assigned​​.

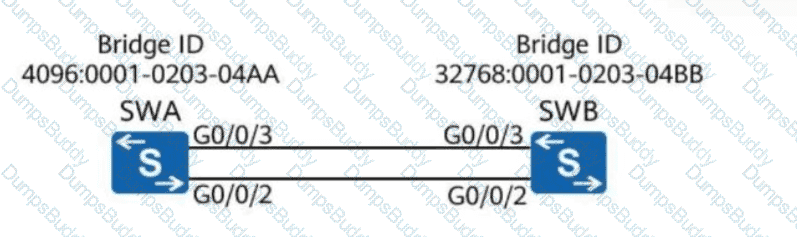

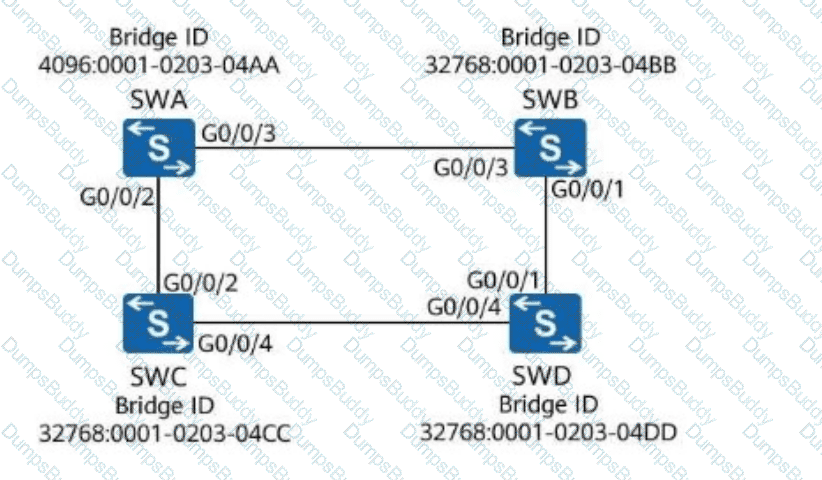

Detailed Explanation:In a Spanning Tree Protocol (STP) environment, the root bridge is selected based on the bridge ID. Here, SWA has the lowest bridge ID (4096:0001-0203-04AA), making it the root bridge. For each network segment, STP elects one designated port to forward traffic, and all other ports in that segment will be blocked to prevent loops.

Following the STP rules:

SWA is the root bridge, so all of its ports (G0/0/2 and G0/0/3) will be designated ports.

Each non-root switch (SWB and SWC) selects one root port, which is the port with the lowest path cost to the root bridge (SWA).

SWB ' s G0/0/3 will have a higher path cost when compared with G0/0/1 (if assuming equal link costs), thus making G0/0/1 the root port on SWB.

SWB will then block its G0/0/3 port to prevent a loop, as SWA ' s G0/0/3 is already the designated port for that link.

Hence, G0/0/3 of SWB will be in the blocking state to maintain a loop-free topology

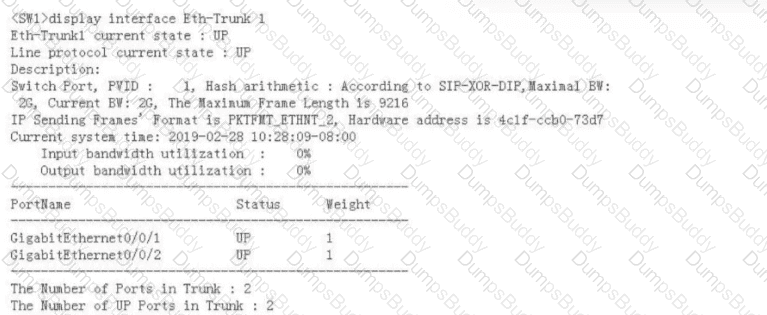

Detailed Explanation:In manual load balancing mode, all active interfaces forward traffic, distributing it evenly across links without LACP. This allows for static load balancing. Option B is incorrect because LACP (Link Aggregation Control Protocol) is not involved in manual mode. (Reference: HCIA-Datacom Training Material, Link Aggregation and Manual Load Balancing)

Comprehensive and Detailed Explanation:

A default route is used when no specific route matches a destination IP.

The correct syntax for a default static route is:

ip route-static 0.0.0.0 0.0.0.0 < next-hop IP >

✅ Correct Option:

A. [Huawei] ip route-static 0.0.0.0 0.0.0.0 192.168.1.1

This correctly sets 192.168.1.1 as the next-hop for all unknown destinations.

❌ Incorrect Options:

B. 0.0.0.0 0.0.0.0 0.0.0.0 → Invalid because 0.0.0.0 cannot be a next-hop.

C. 0.0.0.0 255.255.255.255 192.168.1.1 → Invalid because the mask must be 0.0.0.0 for a default route.

D. [Huawei-Serial0] ip route-static 0.0.0.0 0.0.0.0 0.0.0.0 → Invalid interface syntax.

✅ Reference: HCIA-Datacom Routing Guide – Default Route Configuration

Detailed Explanation:The Priority Code Point (PCP) field in an 802.1Q VLAN tag is 3 bits long, which gives it a value range of 0 to 7. This field is used to indicate the priority of the frame, with higher values indicating higher priority​​.

Comprehensive and Detailed Explanation:

In OSPF, routers on a broadcast network elect a DR and BDR to reduce overhead.

The multicast address 224.0.0.6 is used exclusively by the DR and BDR to receive LSU packets.

Other routers send LSU packets to 224.0.0.6, and the DR forwards them to 224.0.0.5 (all OSPF routers).

✅ Reference: HCIA-Datacom Routing Guide – OSPF DR/BDR Operations

In RSTP, both alternate and backup ports do not forward user traffic, but they can still receive and process BPDUs (Bridge Protocol Data Units). This allows the network to quickly reconfigure if the active path fails, as these ports are already participating in spanning tree calculations​.

Comprehensive Explanation: In Software-Defined Networking (SDN), the control plane (which makes decisions about where to send traffic) is separated from the forwarding plane (which actually moves packets to their destinations). This separation allows for centralized control and management of the network, enabling programmability and greater flexibility. SDN controllers manage the control plane, while individual switches or routers handle the forwarding of data.

Detailed Explanation:APs can be added to an AC using multiple methods. You can add them when they are online, offline, or allow the AC to automatically discover them. Additionally, unauthorized APs can be manually confirmed for security​.

Detailed Explanation:Small campus networks are characterized by simple architecture, limited user counts, and straightforward network requirements. Wide coverage is typically associated with larger campus or enterprise networks. (Reference: HCIA-Datacom Training Material, Campus Network Characteristics)

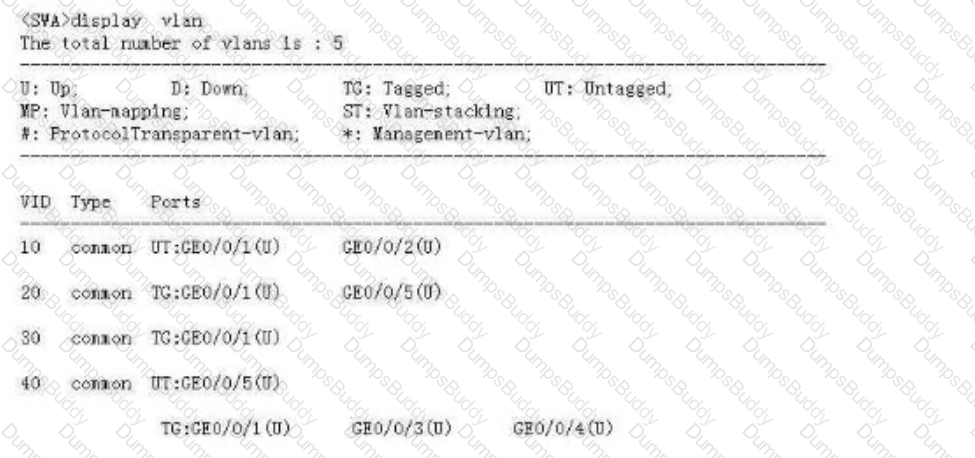

B (Correct): GE0/0/1 is untagged for VLAN 10, meaning it does not add VLAN tags to VLAN 10 frames.

C (Correct): GE0/0/1 is also untagged for VLAN 20, so it does not add VLAN tags to VLAN 20 frames.

D (Correct): The output shows four VLANs (10, 20, 30, 40), which were manually created.

A (Incorrect): GE0/0/2 is not explicitly mentioned, so VLAN tagging behavior cannot be confirmed.

Thus, the correct answers are B, C, and D.

Statement A (Correct): DR and BDR must form an adjacency relationship to maintain routing information exchange.

Statement B (Incorrect): The router with the higher priority is elected as DR, not the lower one.

Statement C (Incorrect): DR is elected by routers within a broadcast/multi-access network, not necessarily all routers in the same network segment.

Statement D (Correct): If two routers have the same priority, the one with the higher Router ID becomes the DR.

Comprehensive and Detailed Explanation:

Spanning Tree Protocol (STP) prevents switching loops in networks with redundant links by:

Blocking certain links while still maintaining redundancy.

Preventing broadcast storms and MAC table instability.

Reactivating backup links if the primary link fails.

✅ Reference: HCIA-Datacom Switching Guide – STP Loop Prevention

An IPv4 packet consists of a header and a payload:

Total Length=Header Length+Payload Length\text{Total Length} = \text{Header Length} + \text{Payload Length}Total Length=Header Length+Payload Length

Given:

IPv4 header length = 20B

Total packet length = 1500B

Payload=1500B−20B=1480B\text{Payload} = 1500B - 20B = 1480BPayload=1500B−20B=1480B

Option A (Incorrect): 1520B is incorrect because it exceeds the total packet length.

Option B (Incorrect): 20B is just the header, not the payload.

Option C (Incorrect): 1500B includes the header, not just the payload.

Option D (Correct): 1480B is the correct payload size.

Thus, the correct answer is D (1480B).

Comprehensive Explanation: On a network consisting of multiple broadcast domains (like Ethernet links), OSPF will elect one DR (Designated Router) and one BDR (Backup Designated Router) per broadcast segment. In this topology, two Ethernet segments are formed, so two DRs will be elected​

In IPv6, addresses with the FE80::/10 prefix are Link-Local Addresses.

Option A (Incorrect - Global unicast address): These have prefixes such as 2000::/3.

Option B (Incorrect - Multicast address): Multicast addresses start with FF00::/8.

Option C (Correct - Link-local address): FE80::/10 is reserved for Link-Local addresses, used for communication within a local link.

Option D (Incorrect - Anycast address): Anycast addresses are assigned to multiple interfaces but are not identified by a specific prefix.

Thus, the correct answer is C.

Configuration Analysis:

The router has two DHCP pools (pool1 and pool2).

Interface Gi/0/0 is assigned the IP address 10.10.10.1/24 and is configured to use global DHCP.

Reasoning:

The IP address 10.10.10.1 indicates that the interface belongs to the 10.10.10.0/24 network segment.

DHCP assigns IP addresses based on the network of the interface. Therefore, the host will receive an IP address from pool1 (10.10.10.0/24).

Comprehensive Explanation: The quit command is used to return from the system view to the user view in Huawei ' s VRP (Versatile Routing Platform). This command allows users to exit the current configuration mode and revert to the default user view. For example, when you are in the system view and you want to return to the user view, typing quit takes you back to the initial prompt without saving the current configuration​​.

Disabling STP on a network with redundant paths between switches leads to a Layer 2 loop, which can cause broadcast storms and network congestion. STP is essential for preventing such loops by blocking redundant paths until needed for redundancy, ensuring network stability​.

Static IP addressing for servers in campus network planning is crucial for maintaining stable network access to server resources. Static IPs ensure that critical devices like servers have fixed addresses, allowing for predictable network access and reducing potential IP conflicts, which enhances network reliability. This practice is endorsed in Huawei ' s guidelines for effective campus network design and is considered a best practice for managing servers on a network​.

The PVID (Port VLAN ID) specifies the default VLAN for untagged frames.

The command port trunk pvid vlan 10 means that VLAN 10 is the default VLAN.

When untagged frames arrive, they are assigned to VLAN 10.

When the switch forwards frames from VLAN 10, it removes the VLAN tag.

VLANs 20, 30, and 40 remain tagged.

Thus, the correct answer is D (VLAN 10).

Comprehensive and Detailed In-Depth Explanation:

In OSPF (Open Shortest Path First), the stable states of OSPF neighbor relationships are:

Full State: This is the highest state where routers have fully exchanged link-state information and formed an adjacency.

2-Way State: This indicates that two OSPF routers recognize each other as neighbors, but they may not necessarily exchange full routing information (especially if they are not designated routers).

Incorrect Options:

Down (B): This is an unstable state indicating no OSPF communication.

Attempt (C): This is only used in NBMA (Non-Broadcast Multi-Access) networks when a neighbor is manually configured but has not responded yet.

Understanding Timers:

Forward Delay Timer: Default value is 15 seconds, not 20 seconds.

Max Age Timer: Default value is 20 seconds.

Hello Timer: The default interval is 2 seconds for BPDU transmission.

Switch Role:

The output indicates that the switch is not the root bridge, confirming option D is correct.

Conclusion:

Statement A is incorrect as the Forward Delay timer is not 20 seconds.

Detailed Explanation:

The subnet 200.200.200.200/30 allows two usable IP addresses, 200.200.200.201 and 200.200.200.202. These two addresses can communicate with each other directly, without the need for routing .

The configuration provided is for a trunk port, which can carry multiple VLANs.

The command port trunk allow-pass vlan 10 20 30 40 allows tagged traffic from VLANs 10, 20, 30, and 40.

The command port trunk pvid vlan 10 sets the PVID (Port VLAN ID) to VLAN 10.

Any untagged frames received on this port will be assigned to VLAN 10, as per the PVID setting.

Option A (Correct): Since the PVID is VLAN 10, untagged frames are assigned to VLAN 10.

Options B, C, and D (Incorrect): VLANs 20, 30, and 40 are allowed, but untagged frames are not assigned to them.

Thus, the correct answer is A.

In Huawei devices, advanced ACLs use a number range from 3000 to 3999. These ACLs allow more granular control over traffic by permitting conditions based on source and destination IP addresses, protocol types, and ports, making them suitable for complex filtering requirements​.

The wildcard mask 0.0.254.255 means:

The first and third octets are checked exactly.

The second and fourth octets can vary.

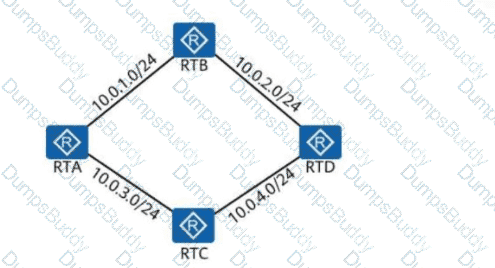

This results in a match for IPs in the range 10.0.2.0 - 10.0.2.255.

Only option D (10.0.2.1) falls within this range.

Thus, the correct answer is D (10.0.2.1).

Routing preference (administrative distance) is the first criterion used when multiple paths exist.

If multiple routes have the same preference, the router then compares the cost (metric) to choose the best path.

Lower cost values indicate better paths and are preferred by the router.

If multiple paths have the same cost, the router may perform load balancing (depending on the routing protocol).

Thus, the correct answer is A (TRUE).

Trunk Interface Basics:

Trunk interfaces are used to carry traffic for multiple VLANs between switches.

Tagged frames include VLAN identifiers, while untagged frames belong to the native VLAN.

Untagged Frames:

Frames from the native VLAN are sent untagged on the trunk interface.

Conclusion:

Trunk interfaces support both tagged and untagged frames, so the statement is TRUE.

Router A would have three TCP connections in this scenario:

One for the Telnet session from host A to router A.

One for the FTP control connection to router B.

One for the FTP data connection to transfer the configuration file. These TCP connections facilitate the remote login and file transfer across the network​.
