NSE7_SOC_AR-7.6 Fortinet NSE 7 - Security Operations 7.6 Architect Questions and Answers

Exact Extract: “Custom API Endpoint: Specify an arbitrary endpoint used to externally start a playbook. Uses a REST API POST action from another system. Supports token-based, basic, and no authentication.”

The correct answers are A and D. A Custom API Endpoint trigger allows an external system to start a FortiSOAR playbook through a defined arbitrary endpoint. It supports token-based authentication, basic authentication, or no authentication, depending on how you configure the trigger. C is wrong because the guide specifies REST API POST, not GET and PUT. B is not supported by the described trigger behavior; the endpoint is configured as a trigger for a playbook, not as a broadcast mechanism to trigger multiple playbooks simultaneously.

Technical Deep Dive: This trigger is useful when an external system cannot use a native FortiSOAR connector but can make an HTTP API call. Common use cases include webhook-style ingestion, third-party alert forwarding, and external workflow integration. Secure it properly; “no authentication” is possible but usually unacceptable in production unless protected by network controls.

The Pyramid of Pain (David Bianco) is a core concept taught in FortiSIEM 7.3 and FortiSOAR 7.6 curriculum to help SOC analysts prioritize threat intelligence and detection logic. The model ranks indicators based on the " pain " or effort they cause an adversary to change:

IP Addresses (Easy): These are classified as " Easy " to change. An attacker can simply rotate through a proxy service, use a different VPS, or utilize a new compromised host to continue their campaign. While more valuable than a file hash, they provide relatively low-long term value to the defender because they are so ephemeral.

TTPs (Tough/Hard): This is the apex of the pyramid. TTPs (Tactics, Techniques, and Procedures) represent the fundamental way an adversary operates. If a defender successfully detects and blocks a Tactic (e.g., a specific way an attacker performs privilege escalation), the adversary is forced to reinvent their entire operational process, which is time-consuming and difficult.

Why other options are incorrect:

Artifacts (C): According to the pyramid, Network/Host Artifacts are classified as " Annoying " , not " Easy " . While an attacker can change them, it requires modifying their code or script behavior, which causes more friction than simply switching an IP address.

Tools (D): Tools are classified as " Challenging " . While alternatives exist, an adversary usually invests significant time mastering a specific toolset; losing the ability to use that tool effectively disrupts their efficiency significantly.

In FortiAnalyzer 7.6 and related SOC versions, incidents serve as centralized containers for tracking and analyzing security events. There are two primary automated and manual methods to initiate an incident:

Using a custom event handler (A): In FortiAnalyzer, event handlers are used to generate events from raw logs. 1 A critical feature in recent versions is the Automatically Create Incident setting within a custom event handler. 2 When enabled, the system automatically elevates a triggered event into a new incident record, allowing analysts to bypass the manual review of every individual event before an incident is raised. 3

By running a playbook (D): Playbooks provide a powerful way to automate the incident lifecycle. 4 A playbook can be configured with an Event Trigger , meaning it executes as soon as an event matches specific criteria. One of the core actions available within these playbooks is the Create Incident action, which can automatically populate incident details, severity, and category based on the triggering event ' s data. 5 This ensures high-fidelity events are consistently captured for investigation.

Why other options are incorrect:

Using a connector action (B): While connectors allow FortiAnalyzer to communicate with external systems (like ITSM or Security Fabric devices), the act of " creating an incident " inside FortiAnalyzer is a function of the internal event engine or playbook automation, not a standalone connector action used for external integration.

Manually, on the Event Monitor page (C): While you can view, filter, and acknowledge events on the Event Monitor page, the process of manually raising an incident typically occurs from the Incidents module or by right-clicking an event to " Raise Incident " in the Log View or FortiView, rather than being a core function defined as occurring " on the Event Monitor page " in the same architectural sense as handlers and playbooks.

Exact Extract: “You can investigate the war room by executing connector actions directly on the war room record. In the example shown on this slide, a Get Domain Reputation action was directly run with the VirusTotal connector on this record. You can select only relevant checkboxes or select Key to select all outputs.”

The correct answer is A. When running a connector action directly from the war room, FortiSOAR lets you choose which returned output keys to save. That is the correct way to limit what gets attached to the war room. B is wrong because a workspace filter affects display/collaboration, not what connector output is saved. C is incomplete; the Investigate tab is where you run the investigation, but the specific control is selecting output keys. D is wrong because playbook logging level does not control war room evidence attachment size.

Technical Deep Dive: War rooms are designed for focused collaboration during major incident response. Dumping full connector output into the record creates noise and slows review. Select only analyst-useful keys such as reputation score, category, detections, registrar, resolved IPs, or last analysis summary. This preserves evidence quality without flooding the team.

In the context of the Fortinet Security Fabric, FortiAnalyzer performs Indicator of Compromise (IOC) detection by correlating various security logs against a threat intelligence database. 3 The IOC engine specifically analyzes the following logs of each end user to identify potentially compromised hosts:

Web Filter Logs (A): The engine parses web filtering logs to identify access attempts to blacklisted URLs, malicious domains, or IPs associated with known malware distribution sites. 4 If a match is found in the threat database, the host is flagged as compromised.

DNS Filter Logs (C): DNS requests are a primary indicator of a compromise. The engine monitors these logs for queries directed at known Command and Control (C2) servers or domains generated by Domain Generation Algorithms (DGA). 5

IPS Logs (E): Intrusion Prevention System (IPS) logs provide critical data on signature matches for known attacks. In newer Security Operations (SOC) curricula, IPS logs are used alongside Web and DNS logs to provide a high-fidelity assessment of whether a host is currently infected and attempting to communicate with an external threat actor.

Why other options are incorrect:

Email Filter Logs (B): While important for detecting phishing attempts (Initial Access), email logs are generally used for content filtering and antispam rather than being a primary source for the IOC engine ' s behavioral " calling home " detection in the FortiAnalyzer Compromised Hosts view.

Application Filter Logs (D): Application control logs provide visibility into software usage but are less commonly used by the core IOC engine for identifying blacklisted network destinations compared to Web and DNS filtering.

Understanding the Playbook and its Components:

The exhibit shows the status of a playbook named " DOS attack " and its associated tasks.

The playbook is designed to execute a series of tasks upon detecting a DoS attack event.

Analysis of Playbook Tasks:

Attach_Data_To_Incident: Task ID placeholder_8fab0102, status is " upstream_failed, " meaning it did not execute properly due to a previous task ' s failure.

Get Events: Task ID placeholder_fa2a573c, status is " success. "

Create SMTP Enumeration incident: Task ID placeholder_3db75c0a, status is " failed. "

Reviewing Raw Logs:

The error log shows a ValueError: invalid literal for int() with base 10: ' 10.200.200.100 ' .

This error indicates that the task attempted to convert a string (the IP address ' 10.200.200.100 ' ) to an integer, which is not possible.

Identifying the Source of the Error:

The error occurs in the file " incident_operator.py, " specifically in the execute method.

This suggests that the task " Create SMTP Enumeration incident " is the one causing the issue because it failed to process the data type correctly.

Conclusion:

The failure of the playbook is due to the " Create SMTP Enumeration incident " task receiving a string value (an IP address) when it expects an integer value. This mismatch in data types leads to the error.

Exact Extract: “Campaigns are an extra layer of abstraction used when multiple incidents are tied to a single threat actor. Seemingly unrelated incidents may all be part of the same campaign against an organization.”

Exact Extract: “It can be difficult to determine if incidents are related and roll them into a campaign. Typically, the link between related incidents is based on uniquely identifiable information that ties a single, known threat actor to multiple incidents.”

The correct answer is D . In FortiSOAR, a campaign is the proper object for grouping multiple incidents that appear to be connected to the same threat actor. This lets the SOC track the broader adversary activity without collapsing separate incidents into one record. A tag may help with searching, but it is weak compared with a campaign record because it does not provide the same structured tracking layer. Merging incidents is also wrong because it combines records rather than preserving multiple related incidents under a higher-level campaign. Marking one incident as a parent and closing child incidents is operationally dangerous and does not represent the campaign concept.

Technical Deep Dive: Campaign tracking is useful when separate incidents share threat actor indicators, malware family, infrastructure, TTPs, phishing themes, command-and-control patterns, or MITRE ATT & CK mappings. In a mature FortiSOAR workflow, analysts link related incidents, alerts, indicators, malware samples, tasks, and reports to the campaign record. This gives threat intelligence and incident response teams a single place to track scope, timeline, attribution confidence, containment progress, and lessons learned. FortiGate NP/CP offloading is irrelevant here because this is FortiSOAR case-management and threat-intelligence correlation, not firewall packet processing.

Understanding FortiAnalyzer Roles :

FortiAnalyzer can operate in two primary modes: collector mode and analyzer mode.

Collector Mode : Gathers logs from various devices and forwards them to another FortiAnalyzer operating in analyzer mode for detailed analysis.

Analyzer Mode : Provides detailed log analysis, reporting, and incident management.

Steps to Configure FortiAnalyzer as a Collector Device :

A. Enable Log Compression :

While enabling log compression can help save storage space, it is not a mandatory step specifically required for configuring FortiAnalyzer in collector mode.

Not selected as it is optional and not directly related to the collector configuration process.

B. Configure Log Forwarding to a FortiAnalyzer in Analyzer Mode :

Essential for ensuring that logs collected by the collector FortiAnalyzer are sent to the analyzer FortiAnalyzer for detailed processing.

Selected as it is a critical step in configuring a FortiAnalyzer as a collector device.

Step 1 : Access the FortiAnalyzer interface and navigate to log forwarding settings.

Step 2 : Configure log forwarding by specifying the IP address and necessary credentials of the FortiAnalyzer in analyzer mode.

The built-in Jinja editor in FortiSOAR 7.6 is a powerful utility designed to help playbook developers write and test complex data manipulation logic without having to execute the entire playbook. Its primary capabilities include:

Renders output (A): The editor provides a " Preview " or " Evaluation " pane. By combining a Jinja expression with a sample JSON input (manually entered or loaded), the editor dynamically calculates and displays the resulting output. This allows for immediate verification of data transformation logic.

Checks validity (B): The editor includes built-in linting and syntax validation. It alerts the developer to errors such as unclosed brackets, incorrect filter usage, or invalid syntax, ensuring that only valid Jinja code is saved into the playbook step.

Loads environment JSON (D): One of the most significant features for troubleshooting is the ability to load the environment JSON from a recent execution. This populates the editor ' s variable context (vars) with the actual data from a specific playbook run, allowing the developer to test expressions against real-world data that recently passed through the system.

Why other options are incorrect:

Creates new records in bulk (C): While Jinja expressions are used to format the data that goes into a record, the actual creation of records is handled by the " Create Record " step or specific Connectors , not by the Jinja editor utility itself.

Defines conditions to trigger a playbook step (E): Jinja is the language used to write conditions within a " Decision " step or " Step Utilities, " but the Jinja Editor is a tool for evaluating and testing those expressions. The definition of the condition logic and the triggering behavior is a function of the Playbook Engine and Step configuration, not the editor ' s standalone capabilities.

Step 1: FortiSIEM event log

Step 2: FortiSIEM incident

Step 3: FortiSOAR alert

Step 4: FortiSOAR incident

Exact Extract: “FortiSIEM: Event: An event refers to a single log or data point collected from a monitored device. It’s the most basic unit of information received by FortiSIEM, such as a firewall log or a system alert.” The guide also states: “Incident: An incident in FortiSIEM is created when a correlation rule is triggered.”

Exact Extract: “This slide explains how to map fields between FortiSIEM incidents and FortiSOAR alerts during the ingestion process. Use the wizard to define how FortiSIEM data populates FortiSOAR alert fields.”

Exact Extract: “FortiSOAR ingests FortiSIEM incidents as alerts… If the alert is not a valid threat, then the analyst can close it as a false positive. Otherwise, the analyst can open an incident.”

The correct sequence is FortiSIEM event log → FortiSIEM incident → FortiSOAR alert → FortiSOAR incident . FortiSIEM first receives raw event logs from monitored devices. If those events match a correlation rule, FortiSIEM creates a FortiSIEM incident . The FortiSOAR default data ingestion wizard then ingests FortiSIEM incidents into FortiSOAR as alerts , not as FortiSOAR incidents directly. After triage and validation, the analyst or playbook can escalate the alert into a FortiSOAR incident .

Technical Deep Dive: FortiSIEM and FortiSOAR use different object models. FortiSIEM “incident” means a correlation result from event analytics. FortiSOAR “alert” is the first SOAR-side record created from that SIEM incident. FortiSOAR “incident” is a higher-level case-management container used after validation. This separation is intentional: not every SIEM incident deserves full incident-response handling. FortiGate NP/CP offloading is irrelevant because this workflow is log ingestion and case orchestration, not firewall packet acceleration.

The FortiSIEM rules engine evaluates subpatterns to detect complex attack behaviors. When a rule uses an aggregate condition like COUNT (Matched Events) , the engine calculates this value based on specific architectural parameters:

Group By attributes (A): The engine maintains a separate counter for each unique combination of " Group By " attributes defined in the subpattern. For example, if you group by " Source IP, " the engine tracks the count of events for each unique IP address independently.

Time window (C): The count is relative to a specific time duration (e.g., 5 minutes). The engine only counts events that fall within this sliding or fixed window. Once an event falls outside this window, it is no longer included in the aggregate count.

Search filter (D): Only events that satisfy the specific " Search Filter " criteria (e.g., Event Type = " Failed Login " ) are considered " Matched Events. " The filter defines the scope of the data that the rules engine processes before applying the count.

Why other options are incorrect:

Data source (B): While the data source determines where the logs come from, the rules engine itself uses the parsed attributes (defined in the search filter) rather than the raw data source to determine the count. Multiple data sources might contribute to the same filter and count.

Incident action (E): Incident actions (such as sending an email or triggering a SOAR playbook) are the result of a rule firing. They do not influence the internal logic or calculation of the event count during the evaluation phase.

Exact Extract: “If there are conflicts with any unique constraints (in other words, a new record is evaluated as being a duplicate record), you can configure the Create Record step to do one of the following: Stop the create process… Do not create a new record (keep the existing intact)… Update existing record… Selectively update some fields of the existing record.”

Exact Extract: “Do not create a new record (keep the existing intact): The playbook does not make any changes to the existing record, and the subsequent steps of the playbook work on the existing record if they refer to this step result. The duplicate record does not cause the playbook to fail.”

The correct answers are B and D . Duplicate handling only works if the module has uniqueness conditions, such as unique username, email address, employee ID, or another reliable identity field. Without uniqueness conditions, FortiSOAR cannot determine whether an incoming user record is a duplicate. Then, in the Create Record step, you select Do not create new record (keep existing intact) so the existing user record is not overwritten and the playbook does not fail when a duplicate is encountered.

A is wrong because it stops the playbook on duplicates. C is wrong because parallel execution affects processing behavior and speed, not duplicate protection or overwrite behavior.

Technical Deep Dive: The right design is: configure uniqueness at the module level, then choose duplicate behavior at the Create Record step. For user ingestion, use stable identifiers. Do not use mutable display names as uniqueness keys. In bulk or loop-based creation, this prevents duplicate records while allowing clean records to continue. This is FortiSOAR database and workflow logic; FortiGate NP/CP offloading is irrelevant.

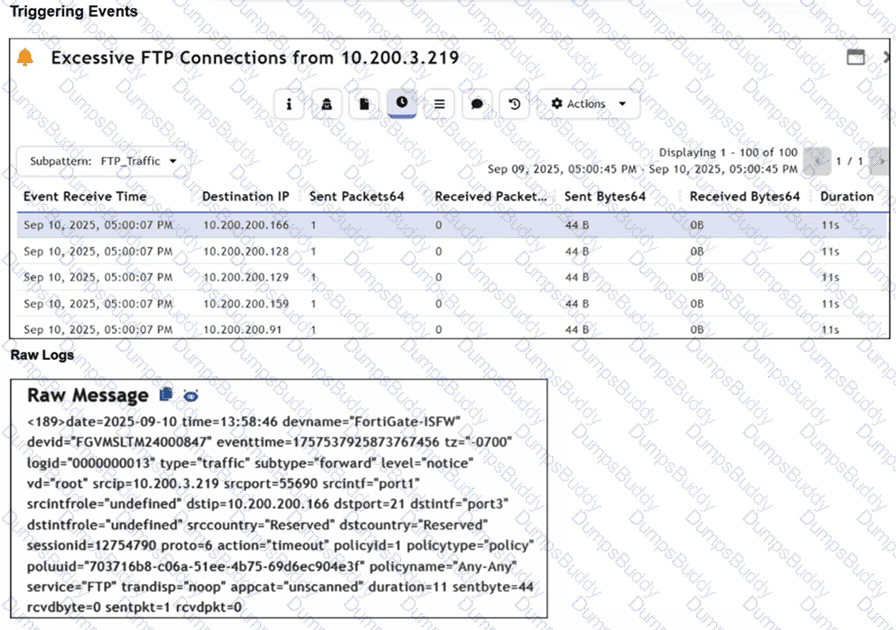

Based on the analysis of the Triggering Events and the Raw Message provided in the FortiSIEM 7.3 interface:

Active Reconnaissance (A): The " Triggering Events " table shows a single source IP ( 10.200.3.219 ) attempting to connect to multiple different destination IP addresses ( 10.200.200.166, .128, .129, .159, .91 ) on the same service (FTP/Port 21). Each attempt consists of exactly 1 Sent Packet and 0 Received Packets . This pattern of " one-to-many " sequential connection attempts is the signature of a horizontal port scan, which is a primary technique in Active Reconnaissance .

Destination hosts are not responding (C): The Raw Log shows the action as " timeout " and specifically lists " sentpkt=1 rcvdpkt=0 " . In FortiGate log logic (which FortiSIEM parses), a " timeout " with zero received packets indicates that the firewall allowed the packet out (Action was not ' deny ' ), but no SYN-ACK or response was received from the target host within the session timeout period. This confirms the destination hosts are either offline, non-existent, or silently dropping the traffic.

Why other options are incorrect:

FortiGate is not routing (B): If the FortiGate were not routing the packets, the logs would typically not show a successful session initialization ending in a " timeout, " or they would show a routing error/deny. The fact that 44 bytes were sent indicates the FortiGate processed and attempted to forward the traffic.

FortiGate is blocking return flows (D): If the return flow were being blocked by a security policy on the FortiGate, the action would typically be logged as " deny " for the return traffic, and the session state would reflect a policy violation rather than a generic session " timeout " .

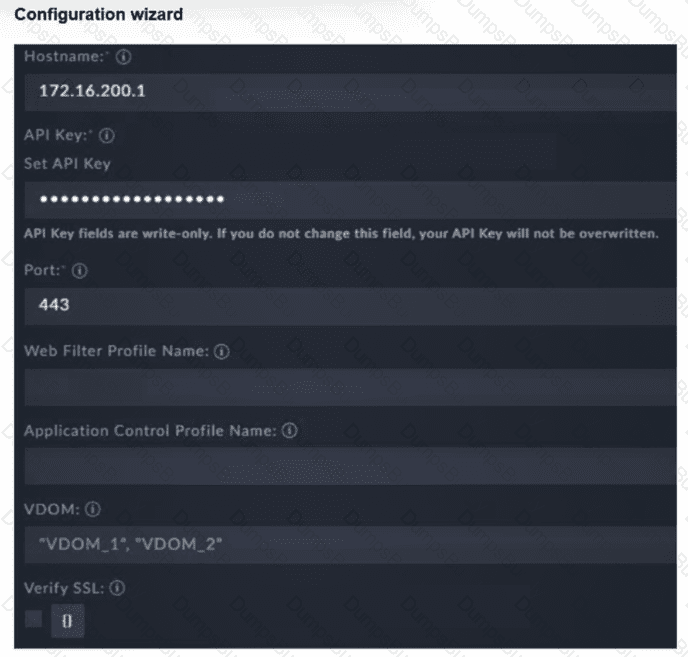

To establish a successful integration between FortiSOAR 7.6 and a FortiGate firewall via the FortiGate connector, specific administrative and network requirements must be met on the FortiGate side:

API Administrator and Key (D): FortiSOAR does not use standard UI login credentials. Instead, it requires a REST API Administrator account to be created on the FortiGate. This account must be assigned an administrative profile with the necessary permissions (e.g., Read/Write for Firewall policies or Address objects). Upon creation, the FortiGate generates a unique API Key , which must be entered into the " API Key " field of the FortiSOAR configuration wizard as shown in the exhibit.

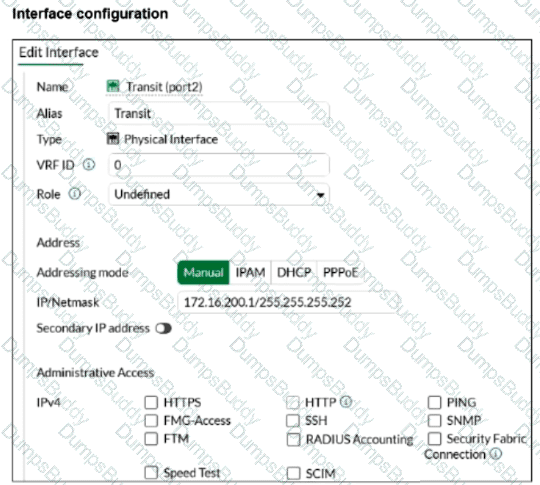

HTTPS Management Access (C): The connector communicates with the FortiGate using REST API calls over HTTPS (port 443 by default). Therefore, the physical or logical interface on the FortiGate that corresponds to the " Hostname " IP (172.16.200.1) must have HTTPS enabled under " Administrative Access " in its network settings. If HTTPS is disabled, the connection will time out or be refused.

Why other options are incorrect:

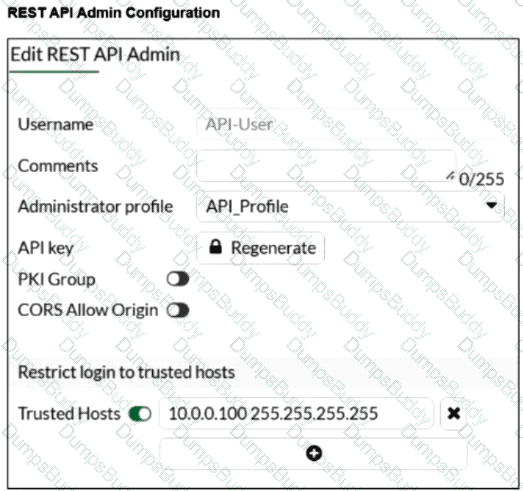

Trusted hosts (A): While it is a best practice to restrict API access to specific IPs (like the FortiSOAR IP), the integration can technically function without " Trusted hosts " enabled if the network allows the traffic. However, the absence of an API key or HTTPS access will definitively cause a failure regardless of trusted host settings.

VDOM name (B): In the exhibit, the VDOM field contains multiple values ( " VDOM_1 " , " VDOM_2 " ). If VDOMs are disabled on the FortiGate, this field should generally be left blank or set to the default " root. " Setting it specifically to " VDOM_1 " when VDOMs are disabled is not a universal requirement for connectivity; the primary handshake depends on the API key and HTTPS connectivity.

Based on the official documentation for FortiSIEM 7.3 (which utilizes the MITRE ATT & CK mapping for incident correlation) and FortiSOAR 7.6 (which uses these tactics for incident classification and playbook triggering):

Reconnaissance (Tactic TA0043): This tactic consists of techniques that involve adversaries actively or passively gathering information that can be used to support targeting. In this scenario, the attacker identifies " employee names, roles, and email patterns from public press releases. " This is categorized under Gather Victim Org Information (T1591) and Search Open Technical Databases (T1596) . Since this activity happens prior to the compromise and involves gathering intelligence, it is strictly Reconnaissance.

Initial Access (Tactic TA0001): This tactic covers techniques that use various entry vectors to gain an initial foothold within a network. The act of sending " tailored emails... to recipients to review an attached agenda using a link " is the definition of Phishing: Spearphishing Link (T1566.002) . This is the specific delivery mechanism used to gain the initial entry.

Why other options are incorrect:

Discovery (B): This tactic involves techniques an adversary uses to gain knowledge about the internal network after they have already gained access. Since the attacker is looking at public press releases, they are operating outside the perimeter.

Defense Evasion (D): This tactic consists of techniques that adversaries use to avoid detection throughout their compromise. While using an external link might bypass some basic reputation filters, the primary goal described in the report is the act of establishing contact and access, which is the core of the Initial Access tactic.

Exact Extract: “FortiSOAR incident handling phases are closely aligned with NIST incident handling phases… The Post-Incident Activity phase is renamed Aftermath. Functionally, they are identical.”

Exact Extract: “Use the Update Record step to update a record in a module within FortiSOAR. Use the Find Record step to find a record in a module within FortiSOAR.”

Exact Extract: “Use the Manual Task step to pause the playbook’s execution until you mark the task as skipped or completed.”

The correct answers are C, D, and E . The workflow must start when an existing incident is changed to the Aftermath phase, so the correct trigger is an On Update trigger with a condition that matches the incident phase. After the trigger fires, the incident already exists as the current playbook record, so a Find Record step is unnecessary. To set the incident status to Resolved and assign the purple team specialist as the incident lead, use an Update Record step. To create and assign the follow-up work item, use a Manual Task step assigned to the same specialist.

Option B is wrong because a Condition/Decision step evaluates logic; it does not assign records or create work. Option A is wrong because the playbook is already triggered by the updated incident record, so searching for matching incidents adds unnecessary complexity.

Technical Deep Dive: The clean playbook structure is: On Update trigger → Update Record → Manual Task. The trigger condition should check the incident phase field for Aftermath. The Update Record step should modify the current incident, setting fields such as Status = Resolved and Incident Lead = purple team specialist. The Manual Task step then creates analyst-visible work, such as “Write incident report,” assigned to that same user. This is FortiSOAR workflow automation; FortiGate NP/CP hardware offloading is irrelevant because there is no traffic-forwarding path involved.

Exact Extract: “Rule subpatterns consist of a filter, aggregate, and group by condition. In the Filters section, you must specify the criteria for determining which event attributes and values the rule monitors… Next, in the Aggregate section, you must define the number of event matches required for the rule to trigger. Finally, in the Group By section, you must define which event attributes will be used to group the events before the group constraints are applied.”

Exact Extract: “FortiSIEM always sets the Aggregate condition to COUNT(Matched Events) > = 1.”

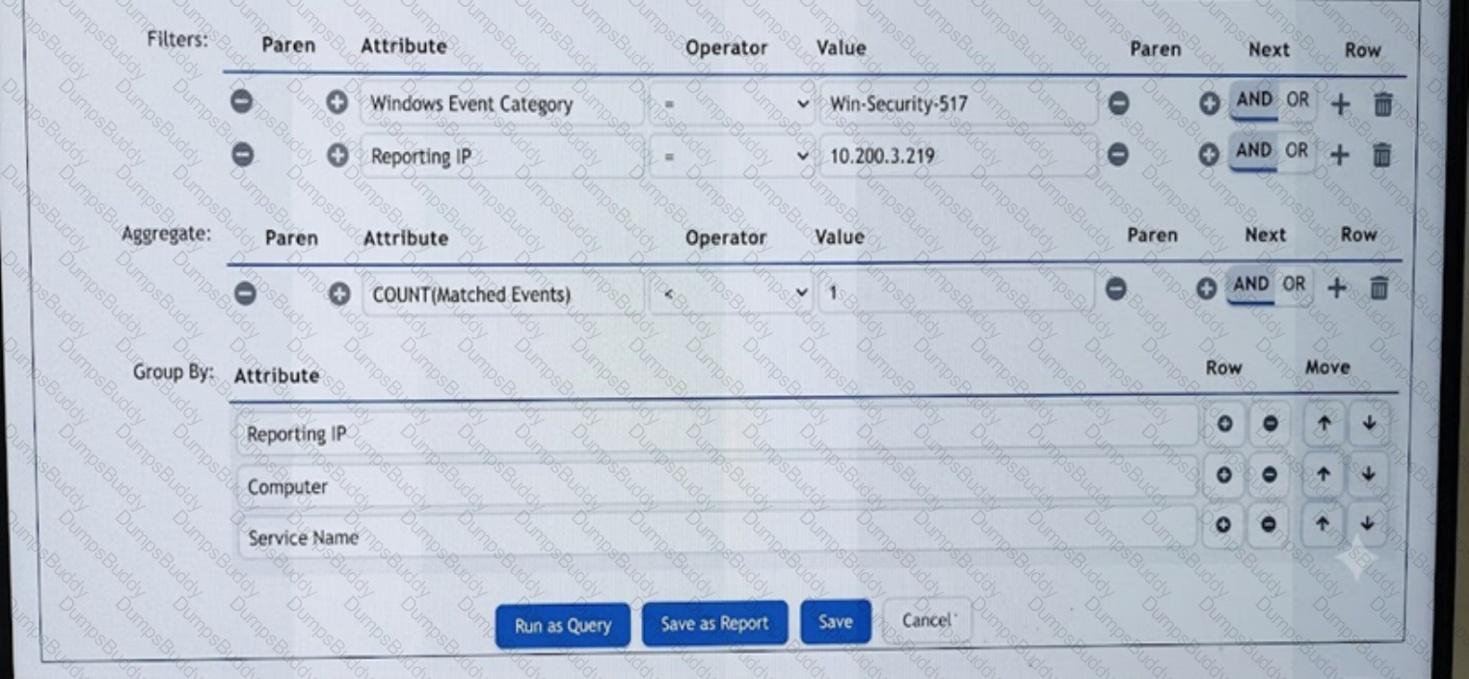

The two mistakes are B and D . In the exhibit, the aggregate condition is configured as COUNT(Matched Events) < 1 , which is logically wrong for an incident rule that should trigger when a matching event occurs. It should be COUNT(Matched Events) > = 1 or another positive threshold, depending on the detection objective. The second problem is that the filter uses Windows Event Category = Win-Security-517 instead of defining the mandatory Event Type condition. FortiSIEM rules should match the normalized event type, such as Event Type = Win-Security-517 , because Event Type identifies the parsed event FortiSIEM is correlating. The Group By fields—Reporting IP, Computer, and Service Name—do not conflict; they define how matching events are grouped. The time window is normally configured at the rule condition level, not necessarily inside this subpattern edit view, so A is not the best answer.

Technical Deep Dive: FortiSIEM correlation logic works in three layers: the Filter selects candidate events, the Aggregate decides whether enough matching events exist, and Group By controls per-entity correlation. Here, using < 1 means the rule is effectively looking for zero matching events, which is not how a Windows service-event detection should be triggered. Also, Windows Event Category is not the normalized FortiSIEM event identity; Event Type is the key normalized field used for rule accuracy. This is SIEM correlation logic only; FortiGate NP/CP offloading is irrelevant because no packet-forwarding or ASIC inspection path is involved.

Exact Extract: “Use the Wait step to specify the time that the playbook should wait after a specific step before continuing with the remaining steps in the playbook. Alternatively, specify the conditions that must be met before the playbook continues. For example, investigation playbooks should wait for enrichment to finish before continuing with the subsequent steps.”

The correct answers are A and B . A Wait step can resume after a defined duration, so option A is valid. It can also resume when a condition is met, such as the indicator record being updated after the reputation lookup or enrichment process completes, so option B is also valid. Option C is not a Wait-step function; retrying failed actions at intervals belongs to step execution/error-handling behavior, not the Wait step’s purpose. Option D is also wrong because executing another playbook is handled by a separate reference/playbook execution step, not by the Wait step while it is paused. The guide separately identifies “Reference a Playbook” as the step used to execute another playbook.

Technical Deep Dive: In FortiSOAR playbooks, Wait is a control-flow gate. Use time-based waiting when an external system has predictable processing latency, for example waiting 60 seconds after submitting an IOC to a sandbox or reputation service. Use condition-based waiting when the downstream update is asynchronous, for example waiting until an indicator’s reputation, enrichment status, or related field changes. This prevents the playbook from reading incomplete enrichment data. This is SOAR workflow orchestration; FortiGate NP/CP hardware offloading is irrelevant because no traffic forwarding, session acceleration, or content processor inspection is involved.

Exact Extract: “To configure the FortiSIEM connector on FortiSOAR, you must define the following parameters: Server URL… Username… Password… Organization: Specify the name of the organization that you will access on the FortiSIEM server. For an enterprise deployment model with no tenants, super is the organization.”

Exact Extract: “The minimum privileges required are Read and Update access on Incidents and access to Run Advanced Search Query.”

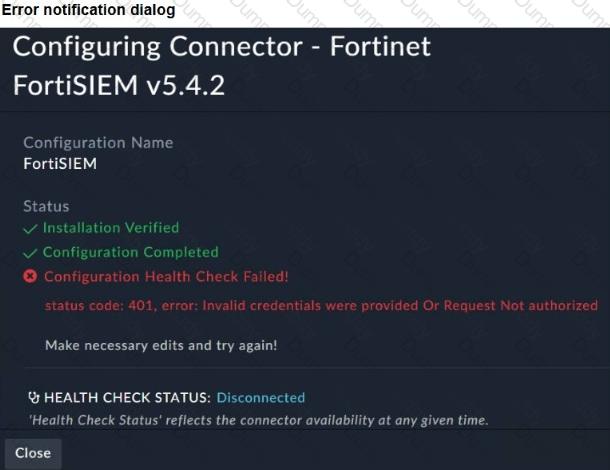

The correct answers are C and D . The error dialog shows status code: 401 with Invalid credentials were provided Or Request Not authorized . A 401 response means FortiSOAR reached FortiSIEM, but FortiSIEM rejected authentication or authorization. In the configuration exhibit, the Organization value is set to FortiSIEM . For a non-tenant enterprise deployment, the guide states that the organization should be super , so an incorrect organization can cause authorization failure. The other valid cause is incorrect FortiSIEM credentials, because username and password are mandatory connector configuration parameters.

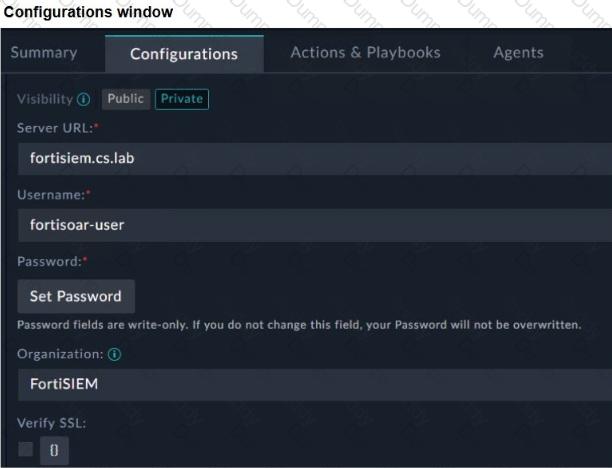

A is wrong because Visibility controls whether the connector configuration is public or private inside FortiSOAR; it does not cause FortiSIEM API authentication failure. B is wrong because a reachability problem would normally produce a connection, DNS, timeout, or SSL error—not a FortiSIEM-generated 401 authorization response.

Technical Deep Dive: FortiSOAR connector health checks validate both transport and API authentication. Since installation and configuration completed but health check failed with 401, the network path and connector installation are not the primary issue. Fix the FortiSIEM username/password, confirm the account exists in FortiSIEM, confirm it has required permissions, and set the correct organization—typically super for an enterprise deployment without tenants. This is API authentication and authorization behavior; FortiGate NP/CP hardware offload is irrelevant because no firewall data-plane traffic processing is being analyzed.

Understanding the Problem :

One FortiGate device is generating a significantly higher volume of logs compared to other devices, causing the ADOM to exceed its storage quota.

This can lead to performance issues and difficulties in managing logs effectively within FortiAnalyzer.

Possible Solutions :

The goal is to manage the volume of logs and ensure that the ADOM does not exceed its quota, while still maintaining effective log analysis and monitoring.

Solution A: Increase the Storage Space Quota for the First FortiGate Device :

While increasing the storage space quota might provide a temporary relief, it does not address the root cause of the issue, which is the excessive log volume.

This solution might not be sustainable in the long term as log volume could continue to grow.

Not selected as it does not provide a long-term, efficient solution.

Solution B: Create a Separate ADOM for the First FortiGate Device and Configure a Different Set of Storage Policies :

Creating a separate ADOM allows for tailored storage policies and management specifically for the high-log-volume device.

This can help in distributing the storage load and applying more stringent or customized retention and storage policies.

Selected as it effectively manages the storage and organization of logs.

Solution C: Reconfigure the First FortiGate Device to Reduce the Number of Logs it Forwards to FortiAnalyzer :

By adjusting the logging settings on the FortiGate device, you can reduce the volume of logs forwarded to FortiAnalyzer.

This can include disabling unnecessary logging, reducing the logging level, or filtering out less critical logs.

Selected as it directly addresses the issue of excessive log volume.

Solution D: Configure Data Selectors to Filter the Data Sent by the First FortiGate Device :

Data selectors can be used to filter the logs sent to FortiAnalyzer, ensuring only relevant logs are forwarded.

This can help in reducing the volume of logs but might require detailed configuration and regular updates to ensure critical logs are not missed.

Not selected as it might not be as effective as reconfiguring logging settings directly on the FortiGate device.

Implementation Steps :

For Solution B :

Step 1 : Access FortiAnalyzer and navigate to the ADOM management section.

Step 2 : Create a new ADOM for the high-log-volume FortiGate device.

Step 3 : Register the FortiGate device to this new ADOM.

Step 4 : Configure specific storage policies for the new ADOM to manage log retention and storage.

For Solution C :

Step 1 : Access the FortiGate device’s configuration interface.

Step 2 : Navigate to the logging settings.

Step 3 : Adjust the logging level and disable unnecessary logs.

Step 4 : Save the configuration and monitor the log volume sent to FortiAnalyzer.

Exact Extract: “FortiSOAR assumes the Preparation phase is outside its incident handling scope because it is considered a pre-SOAR responsibility.”

Exact Extract: “In FortiSOAR, the Detection and Analysis phases are expanded into Detection, Identification, and Confirmation… In the Identification phase, analysts can evaluate the alerts tied to the incident, understand the context, and enrich indicators. In the Confirmation phase, an analyst can confirm whether the incident is a true positive or a false positive.”

The correct answers are B and D . NIST 800-61 Revision 2 uses broader incident handling phases, including Preparation , Detection and Analysis , Containment , Eradication , Recovery , and Post-Incident Activity . FortiSOAR modifies that model by treating Preparation as outside SOAR scope and splitting NIST’s Detection and Analysis into more operationally useful FortiSOAR phases: Detection , Identification , and Confirmation . Therefore, Identification and Confirmation are FortiSOAR-specific phase names that are not standalone NIST phases.

A is wrong because Preparation is a NIST phase, but FortiSOAR excludes it from its incident handling workflow. C is not the best answer because Detection is part of NIST’s combined Detection and Analysis phase and is also present in FortiSOAR.

Technical Deep Dive: FortiSOAR’s split is practical. Detection is when the alert or incident enters FortiSOAR. Identification is where analysts enrich, contextualize, and scope the issue. Confirmation is the decision point where the incident is validated as true positive or false positive. This granularity improves playbook design because different automation belongs in each phase. FortiGate NP/CP offloading has no relevance here because this is incident lifecycle modeling, not traffic processing.

Understanding the Playbook Configuration:

The playbook named " Update Asset and Identity Database " is designed to update the FortiAnalyzer Asset and Identity database with endpoint and user information.

The exhibit shows the playbook with three main components: ON_SCHEDULE STARTER, GET_ENDPOINTS, and UPDATE_ASSET_AND_IDENTITY.

Analyzing the Components:

ON_SCHEDULE STARTER: This component indicates that the playbook is triggered on a schedule, not on-demand.

GET_ENDPOINTS: This action retrieves information about endpoints, suggesting it interacts with an endpoint management system.

UPDATE_ASSET_AND_IDENTITY: This action updates the FortiAnalyzer Asset and Identity database with the retrieved information.

Evaluating the Options:

Option A: The actions shown in the playbook are standard local actions that can be executed by the FortiAnalyzer, indicating the use of a local connector.

Option B: There is no indication that the playbook uses a FortiMail connector, as the tasks involve endpoint and identity management, not email.

Option C: The playbook is using an " ON_SCHEDULE " trigger, which contradicts the description of an on-demand trigger.

Option D: The action " GET_ENDPOINTS " suggests integration with an endpoint management system, likely FortiClient EMS, which manages endpoints and retrieves information from them.

Conclusion:

The playbook is configured to use a local connector for its actions.

It interacts with FortiClient EMS to get endpoint information and update the FortiAnalyzer Asset and Identity database.

Understanding the MITRE ATT & CK Matrix:

The MITRE ATT & CK framework is a knowledge base of adversary tactics and techniques based on real-world observations.

Each tactic in the matrix represents the " why " of an attack technique, while each technique represents " how " an adversary achieves a tactic.

Analyzing the Provided Exhibit:

The exhibit shows part of the MITRE ATT & CK Enterprise matrix as displayed on FortiAnalyzer.

The focus is on technique T1071 (Application Layer Protocol), which has subtechniques labeled T1071.001, T1071.002, T1071.003, and T1071.004.

Each subtechnique specifies a different type of application layer protocol used for Command and Control (C2):

T1071.001 Web Protocols

T1071.002 File Transfer Protocols

T1071.003 Mail Protocols

T1071.004 DNS

Identifying Key Points:

Subtechniques under T1071: There are four subtechniques listed under the primary technique T1071, confirming that statement B is true.

Event Handlers for T1071: FortiAnalyzer includes event handlers for monitoring various tactics and techniques. The presence of event handlers for tactic T1071 suggests active monitoring and alerting for these specific subtechniques, confirming that statement C is true.

Misconceptions Clarified:

Statement A (four techniques under tactic T1071) is incorrect because T1071 is a single technique with four subtechniques.

Statement D (15 events associated with the tactic) is misleading. The number 15 refers to the techniques under the Application Layer Protocol, not directly related to the number of events.

Conclusion:

The accurate interpretation of the exhibit confirms that there are four subtechniques under technique T1071 and that there are event handlers covering tactic T1071.

Exact Extract: “You must enable HTTPS on the FortiGate interface that the FortiGate connector on FortiSOAR is pointing to. If trusted hosts are enabled on the API administrator used by FortiSOAR, you must add the FortiSOAR IP address to the list.”

Exact Extract: “When assigning an administrator profile to the API user, you must assign the required permissions to perform the actions you want completed on the connector. Consult the connector documentation for more information.”

The correct answers are A and B . In the exhibit, the FortiGate interface Transit (port2) has no administrative access enabled. Because the FortiSOAR FortiGate connector communicates with FortiGate by API over HTTPS, HTTPS must be enabled on the FortiGate interface that FortiSOAR targets. Also, the REST API admin has Trusted Hosts enabled, but the trusted host shown is 10.0.0.100 , while the FortiSOAR IP is 10.200.200.160 . FortiGate will reject API access from FortiSOAR unless 10.200.200.160/32 is allowed as a trusted host. Option C can matter for specific actions, but it is not the shown connection failure. Option D is nonsense; FortiGate interface roles do not include “Custom API Endpoint.”

Technical Deep Dive: The FortiSOAR connector calls the FortiGate REST API over HTTPS, so FortiGate must accept HTTPS management traffic on the target interface and must allow the API user source IP. CLI equivalent:

config system interface

edit " port2 "

set allowaccess https

next

end

config system api-user

edit " API-User "

set accprofile " API_Profile "

config trusthost

edit 1

set ipv4-trusthost 10.200.200.160 255.255.255.255

next

end

next

end

NP/CP hardware offloading is irrelevant here. This is management-plane HTTPS/API access, not data-plane traffic acceleration.
