The correct answers are A and B .

The study guide says:

“If NAT-T is enabled, and there is a FortiGate located in the middle that is running NAT, the sniffer command must use a different filter. In this case, IKE traffic uses UDP port 500, but switches to UDP port 4500 during the tunnel negotiation. Additionally, ESP traffic is encapsulated inside the UDP 4500 channel.”

It also says:

“In some networks, UDP is blocked by firewalls or ISPs. In those cases, you can configure your VPN tunnel to use IKE over TCP in the phase 1 configuration. The default IKE TCP port is 443…”

And the study guide gives the correct capture examples:

No NAT: host < remote-gw > and udp port 500

With NAT and NAT-T: host < remote-gw > and (udp port 500 or udp port 4500)

So:

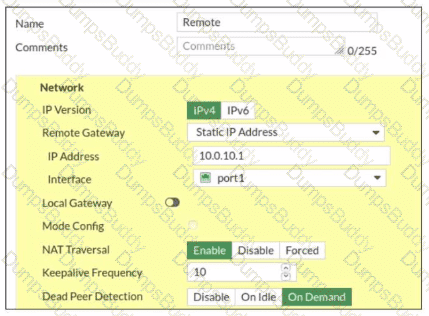

B is correct because with NAT Traversal enabled , the tunnel may no longer be using only UDP 500 . It can move to UDP 4500 , so the current filter may miss the traffic.

A is correct because the filter may need to be expanded to include UDP 4500 for NAT-T, or TCP 443 when IKE over TCP is used.

Why the other options are wrong:

C is wrong because restricting the filter to the remote peer IP can make the capture more precise, but it is not required for the sniffer to display output. The problem here is the port/protocol choice , not the lack of a host filter. The study guide examples use host filtering as an aid, not as a requirement.

D is wrong because diagnose debug enable is used to enable real-time debug output for applications, but it does not suppress or invalidate sniffer output . Sniffer capture is a separate command path. Fortinet documentation separately documents diagnose sniffer packet ... for packet capture and diagnose debug enable for debug features.

So the verified answers are: A, B .

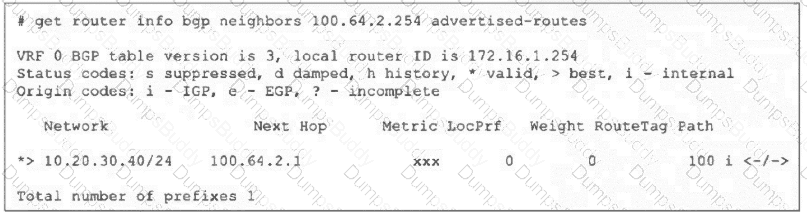

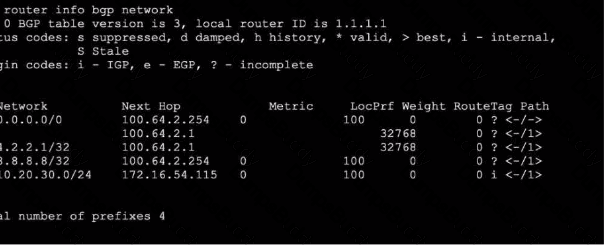

For Option A:In Fortinet BGP (and standard BGP), when a prefix is displayed with an " i " (lowercase i) in the Path column, it represents an internal prefix that originated from the local router, typically configured via the BGP " network " command. In the exhibit, the prefix 10.20.30.0/24 is listed with a Path value of i, indicating it was injected into BGP by the local router using the network statement, not via redistribution from another routing protocol. The same logic applies to i as documented: " Origin code ' i ' means the route was injected via the network command. "

For Option D:The get router info bgp network output is a summary table displaying both local and received BGP routes. It lists all known routes to the BGP process, whether received from peers or originated locally. The exhibit shows all BGP prefixes known to the local router, matching the official admin guide’s description of this command’s output.

Explanation for B and C:

The phrase “legacy route advertisement” is not formalized in BGP documentation or Fortinet’s admin guide; the output uses standard BGP mechanics.

If a route was redistributed into BGP from another routing protocol, the Path field would display a " ? " (question mark) for incomplete (redistributed) origin. Here the /24 route has " i " so it is NOT a redistribution.

The administrator is running a packet sniffer with the filter ' udp port 500 or udp port 4500 or esp ' . The result is " no output, " even though the VPN is attempting to establish (failing).

A. The VPN is configured to use IKE over TCP:

Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).

However, if IKEv2 over TCP (RFC 8229) or Fortinet ' s proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).

The sniffer filter explicitly looks for udp or esp (IP Protocol 50).

If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.

Why other options are incorrect:

B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.

C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. " No output " implies the local device isn ' t even generating packets matching that filter.

D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.

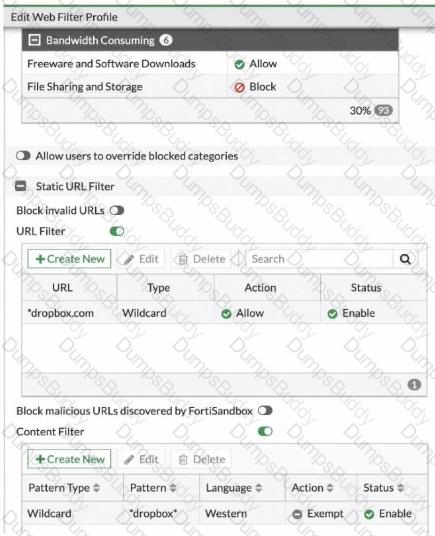

https://community.fortinet.com/t5/FortiGate/Technical-Tip-FortiGate-Static-URL-filter-actions-explained/ta-p/206632

The correct answers are A and B .

For UDP , the study guide states this directly: “For UDP, the session state can have only two values: 00 when traffic is only one way, and 01 when traffic is two ways. For ICMP, the protocol state is always 00.”

That makes B correct and D incorrect.

For TCP , the study guide explains that the protocol state is a two-digit number, where the first digit is the server-side state and the second digit is the client-side state . It also states that the first digit is 0 when the session is not subject to any inspection , and the TCP state table shows that value 1 = ESTABLISHED

So, for a normal non-proxied/non-inspected TCP session, proto_state=01 means the TCP session is in the ESTABLISHED state. An established TCP session means the three-way handshake has completed, which requires traffic in both directions. That is why A is correct.

The study guide also says: “proto_state=11 means that the TCP three-way handshake for both server-side and client-side is completed (ESTABLISHED).”

This confirms that TCP state value 1 represents an established state.

Why C is not selected: the study guide defines value 5 as TIME_WAIT and says: “When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds… This is the state value 5.”

So proto_state=05 represents a closing/closed TCP session in TIME_WAIT , not the normal bidirectional state the question is testing.

Therefore, the verified answers are A and B .

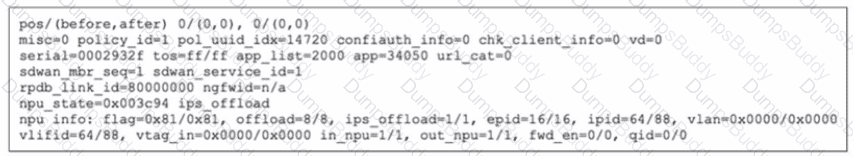

In the provided session table output, the following details justify the answers:

Policy ID Match: The line policy_id=1 directly confirms that this session was matched by Firewall Policy ID 1. According to Fortinet’s session table documentation, the policy_id field always references the policy that allowed this session, so this is a clear indicator.

Session Offloading: The presence of the strings npu_state, ips_offload, and notably the NPU info section such as offload=8/8, ips_offload=1/1 shows that this session has been offloaded to the Network Processor Unit (NPU). Fortinet technical documentation states that " offload " values greater than zero in both directions (and an NPU info section) affirm that NPU hardware processing (fast path) is handling this traffic, thus the session is not being handled in software only.

Other options:

VLAN Tagging (vlan=0x0000/0x0000): This means no VLAN tag is assigned to this session.

NP7: The actual NPU model handling the session isn’t exposed in this snippet–the offload parameters shown are generic and not specific to NP7 hardware, so it cannot be concluded from the session data.

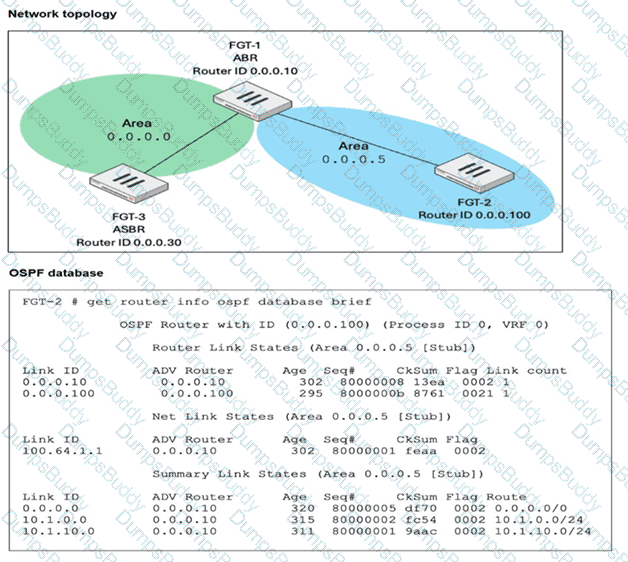

The get router info ospf database brief output on FGT-2 clearly indicates that Area 0.0.0.5 is configured as a [Stub] area.

In OSPF, a Stub Area is specifically designed to reduce the size of the Link State Database (LSDB) on internal routers. The primary behavior of a Stub area is that it does not accept Type 5 (AS External) LSAs .

FGT-3 is the ASBR (Autonomous System Border Router) and is importing static routes, which are generated as Type 5 LSAs in the OSPF domain.

FGT-1 acts as the ABR (Area Border Router). Because Area 0.0.0.5 is a Stub area, FGT-1 blocks these Type 5 LSAs from entering Area 0.0.0.5.

Consequently, FGT-2 will not receive the specific external routes advertised by FGT-3. Instead, the ABR (FGT-1) injects a default route (0.0.0.0/0) into the Stub area to allow connectivity to the external world, which is visible in the database output.

While the question text mentions FGT-3 not receiving routes, the definitive configuration shown in the exhibit is the Stub area setting, which directly corresponds to the blocking of Type 5 LSA propagation (Option A).

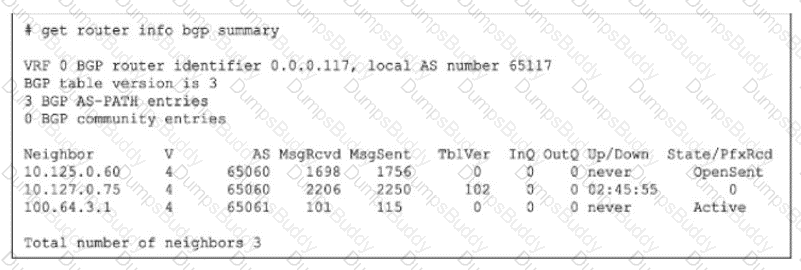

To identify the reason for the lack of prefixes, we must interpret the State/PfxRcd and Up/Down columns in the get router info bgp summary exhibit.

Analyze Neighbor Status:

Neighbor 10.125.0.60: State is OpenSent. This session is not established. It is stuck in the negotiation phase.

Neighbor 100.64.3.1: State is Active. This session is not established. The router is actively trying to initiate a TCP connection.

Neighbor 10.127.0.75:

Up/Down: 02:45:55. This indicates the BGP session has been Up (Established) for almost 3 hours.

State/PfxRcd: 0. This number represents the count of prefixes received. The session is fully established, but the neighbor has sent zero routes.

Determine the Cause:

Since the session with 10.127.0.75 is established, connectivity and handshakes (Options A, B, C) are not the issue for this neighbor.

The fact that it is Up but sending 0 prefixes strongly implies that the neighbor is configured to filter out its routes before sending them to the local FortiGate.

Option D correctly identifies this as a RIB-OUT (Routing Information Base - Outbound) configuration issue on the neighbor (Router 10.127.0.75), which prevents it from advertising its routes.

The correct answers are C and D .

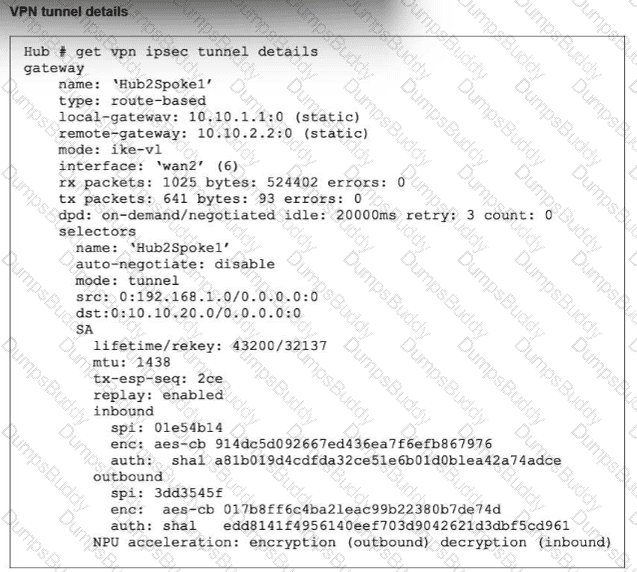

The study guide’s get vpn ipsec tunnel details example shows:

replay: enabled

inbound and outbound sections with separate SPIs

NPU acceleration: encryption(outbound) decryption(inbound) and it labels these as “Phase 2 SAs for each direction” and “Hardware acceleration”

This directly proves D. Anti-replay is enabled , because the output explicitly says replay: enabled

For the NPU status, the study guide explains the exact npu_flag meanings:

npu_flag=00 = both IPsec SAs loaded to the kernel

npu_flag=01 = outbound IPsec SA copied to NPU

npu_flag=02 = inbound IPsec SA copied to NPU

npu_flag=03 = both outbound and inbound IPsec SAs copied to NPU

Because the exhibit shows hardware acceleration in both directions — encryption(outbound) and decryption(inbound) — the matching npu_flag is 03 , not 02. That makes C correct and A incorrect.

Why B is wrong:

The same study guide output labels the tunnel as having Phase 2 SAs for each direction , so different inbound and outbound SPIs are normal for the two SAs. Also, the FortiOS administration guide explains that auto-negotiate controls whether phase 2 SA negotiation is initiated automatically, not whether inbound and outbound SPIs are different: “By default the phase 2 security association (SA) is not negotiated until a peer attempts to send data… Auto-negotiate initiates the phase 2 SA negotiation automatically…”

So the verified answers are: C, D .

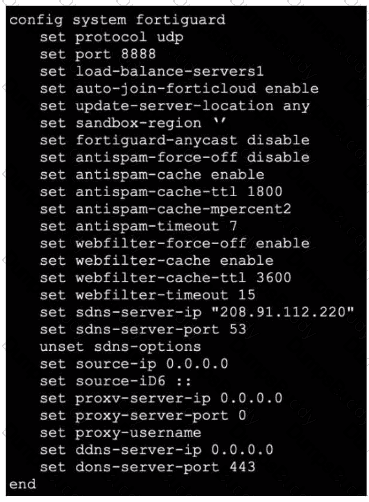

The exhibit shows a FortiGate configuration under config system fortiguard related to web filtering and FortiGuard options. There is a line:

set webfilter-force-off enable

According to official Fortinet documentation, the " webfilter-force-off " option, when enabled, causes the FortiGate to bypass web filtering for all traffic—even if a web filter profile is applied to a policy. This override is typically used for troubleshooting or performance reasons and is documented as an explicit bypass feature.

If an administrator wants to enforce web filtering inspection, this setting must be disabled. The correct way to restore web filtering functionality is to run:

set webfilter-force-off disable

Once done, traffic passing through policies with web filter profiles will be inspected and filtered as per configuration. Other settings such as timeout or cache TTL do not bypass web filtering; they only affect operational nuances.

Parallel Path Processing (PPP) in FortiOS refers to the system’s ability to evaluate and select among multiple processing paths—often involving dedicated network processors, content processors, or CPU-based workflows—to optimally process packets. The official documentation highlights that the PPP engine dynamically selects which hardware or software path to use for each session based on session characteristics, policy configuration, and traffic type. This dynamic selection results in optimal throughput and resource utilization.

The document specifies that PPP assesses several processing paths in parallel, using decision logic to determine whether a session should be offloaded to specialist hardware (like NP6, CP9, etc.) or stay in the CPU path, ensuring that each packet is handled by the most efficient available method under current load and policy. Hardware and software configurations both influence this outcome, but it is the PPP engine ' s decision-making that defines the optimal path per session.

The Enterprise Firewall 7.6 Administrator Study Guide states: “You can also use the network command to configure FortiGate BGP to advertise prefixes.” Therefore, FortiGate_C must originate the required prefix by adding 100.64.2.0/24 under config router bgp → config network.

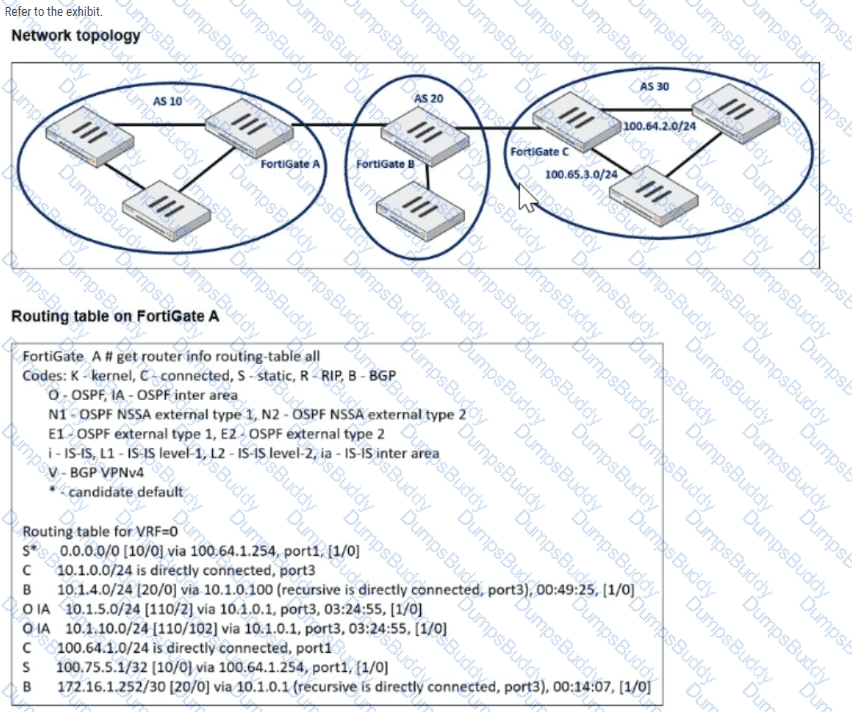

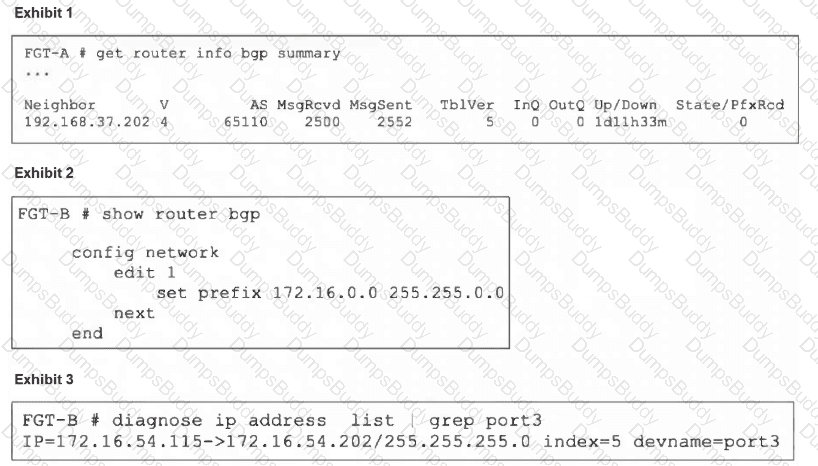

By default, the configured prefix must exactly match an active route in FortiGate_C’s routing table. The topology indicates that 100.64.2.0/24 is directly connected to FortiGate_C, so the network-import check succeeds and FortiGate_C advertises that specific prefix to FortiGate_B. FortiGate_B can then advertise the learned BGP route to FortiGate_A through the existing eBGP adjacency.

Connected-route redistribution on FortiGate_C would be too broad because it would redistribute all eligible connected routes, including the other connected subnet 100.65.3.0/24. A route-map-in on FortiGate_A can filter routes that FortiGate_A receives, but it cannot originate a route that FortiGate_C has not advertised. FortiGate_B does not need to redistribute BGP into BGP; normal BGP route propagation handles the advertisement between autonomous systems.

Example configuration on FortiGate_C:

config router bgp

config network

edit 1

set prefix 100.64.2.0 255.255.255.0

next

end

end

The correct answer is D .

The study guide shows the ipsmonitor test usage exactly:

1: Display IPS engine information

2: Toggle IPS engine enable/disable status

5: Toggle bypass status

99: Restart all IPS engines and monitor

So diagnose test application ipsmonitor 5 is used to toggle bypass status , which corresponds to enabling IPS bypass mode .

Why the other options are wrong:

A is wrong because disabling the IPS engine is option 2 , not 5.

B is wrong because the study guide does not define option 5 as IPS session information.

C is wrong because restarting all IPS engines and monitors is option 99 , not 5.

So the verified answer is: D .

According to the official Fortinet administration guide for FortiOS 7.6.4 under the section " Configuring a RADIUS server, " the supported RADIUS authentication methods you can configure via the CLI with config user radius are:

pap

chap

mschap

mschapv2

auto

The relevant CLI syntax is set auth-type {auto | ms_chap_v2 | ms_chap | chap | pap}​. You can confirm this directly in the configuration table and from real CLI sessions.

EAP (Extensible Authentication Protocol) is NOT an authentication option you can directly set under config user radius. EAP methods (such as EAP-TLS, EAP-PEAP, EAP-TTLS) are negotiated between the RADIUS client and server but are not configurable as an explicit auth-type option in FortiOS. EAP authentication is typically used automatically by features like 802.1X, not through the user radius object authentication-type setting, and always requires proper backend workings between supplicant and RADIUS server

The correct answers are C and D .

For D , the session output shows proto=6, which means TCP, and proto_state=01. The study guide explains that for TCP sessions, “the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy). … The second digit is the client-side state.” It also shows that value 1 = ESTABLISHED

So proto_state=01 means:

first digit 0 = no inspection

second digit 1 = ESTABLISHED

That confirms the TCP session has been successfully established.

For C , the study guide section “Session for an Authenticated User” states: “Any session for traffic coming from an authenticated user contains the authed flag. Additionally, the username is added to the session information.”

In the exhibit, the session contains user=User1 and an authentication state flag (authd), which indicates the session is associated with an authenticated user.

Why the other options are wrong:

A is wrong because the session did match a firewall policy . The study guide says the session output includes “The ID of the matching policy” In the exhibit, the session shows policy_id=1 , so a firewall policy was matched.

B is wrong because the study guide explains the gwy field as:

first value = gateway to destination

second value = gateway to source The exhibit shows gwy=10.1.0.254/10.1.10.1, so:

gateway to destination = 10.1.0.254

gateway to source = 10.1.10.1

So the verified answers are: C, D .

To capture encrypted IPsec phase 2 (ESP) traffic between two FortiGate devices, the correct protocol filter to use is ip proto 50. According to the Fortinet official sniffing and debugging documentation, ESP (Encapsulating Security Payload) is used for encrypted phase 2 payload transfer and always uses IP protocol number 50. Running the command diagnose sniffer packet any ' ip proto 50 '  captures only ESP packets, which represent the encrypted traffic—whether originating or transiting the device.

If there is no NAT device between FortiGates, ESP is not encapsulated in UDP (thus not on UDP port 4500; if NAT-T were required, packets would be UDP-encapsulated, but the scenario explicitly says NAT is not in use). UDP port 500 is for IKE control (negotiation) traffic, and AH (Authentication Header, ip proto 51) is not used for encryption in standard IPsec phase 2 with ESP.

This matches the official CLI reference from Fortinet for VPN and traffic analysis.

**

The SD-WAN 7.6 Enterprise Administrator Study Guide states: “For branches and hubs, it creates BGP, IPsec, and CLI templates to accommodate all required configuration changes.”

Accordingly, the overlay orchestrator generates the following templates for each spoke:

The IPsec tunnel template configures the spoke as an IPsec dial-up client and applies the tunnel parameters appropriate to the selected topology, authentication method, routing design, and ADVPN settings.

The BGP template configures the spoke’s BGP routing, including the autonomous system, neighbor relationships, and either BGP-per-overlay or BGP-on-loopback behavior selected in the wizard.

The CLI template supplies additional configuration that cannot be represented entirely by the dedicated IPsec and BGP templates.

The guide separately explains that, for branch devices, FortiManager adds the required members and zones to the defined SD-WAN template. It does not generate a separate rules template for the spoke. Static routes are also not delivered through a dedicated static-route template; routing for the overlay is configured using the generated BGP template. Therefore, options A and E are incorrect.

The partial output from diagnose hardware sysinfo memory provides details on system RAM allocation. According to Fortinet ' s technical documentation for memory troubleshooting and Linux memory management (which FortiOS is based on):

MemFree is the portion of physical memory not currently allocated to any running process or kernel function. Thus, 708880 kB is available and can be immediately used by user-space programs or system operations.

Inactive refers to pages in the memory cache that were previously in use for I/O or file system buffering but are now not actively referenced. These pages are retained in memory for quick access if needed again, but can be reclaimed for other memory operations if demand increases. The value 98908 kB here represents currently unused cache pages (inactive pages), ready for repurposing or deletion if the system requires more RAM.

Cached represents the total amount of system memory allocated to cache, which includes both active and inactive cache pages. It does not, by itself, represent I/O cache exclusively, nor does " inactive " mean memory “will never be used” as the kernel can re-purpose inactive pages on demand.

To establish a functional Security Fabric, specific network and configuration prerequisites must be met to ensure nodes can communicate, authorize, and share telemetry data:

A. You must ensure that TCP port 8013 is not blocked along the way:

TCP port 8013 is the dedicated port for FortiTelemetry (Fabric) communication. If firewalls (intermediate or local) block this port, the Fabric connection between the root and downstream FortiGates will fail.

D. You must authorize the downstream FortiGate on the root FortiGate:

Security Fabric relies on a trust relationship. When a downstream device attempts to join, it appears in the Root FortiGate ' s dashboard. The administrator must manually authorize this device (unless pre-authorized via serial number) to allow it to join the Fabric topology.

E. You must enable FortiTelemetry on the receiving interface of the upstream FortiGate:

The interface on the Root (upstream) FortiGate that faces the downstream devices must have the " Security Fabric Connection " (formerly CAPWAP/FortiTelemetry) administrative access setting enabled. Without this, the interface will not listen for or accept Fabric connection requests.

Why other options are incorrect:

B: Neighbor Discovery uses standard multicast/broadcast or static settings; changing the port is not a standard requirement.

C: FortiGates can participate in the Security Fabric in either NAT or Transparent mode; Transparent mode is not a mandatory requirement for the Fabric itself.

The correct answer is A .

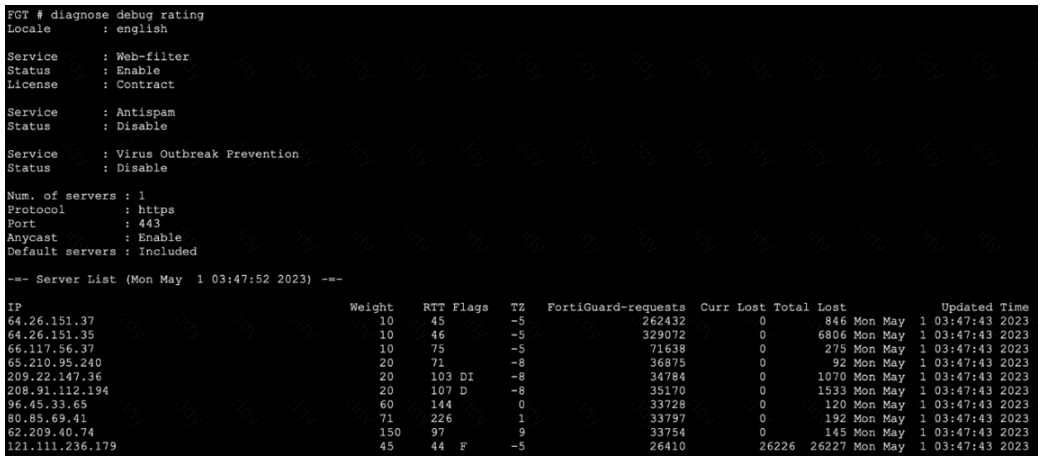

The study guide explicitly explains the diagnose debug rating table and says that for each server IP, the output shows “The round trip delay”

That means the RTT value represents the time it takes for FortiGate to send a request and receive the reply from that FortiGuard server.

The FortiOS administration guide also confirms this by stating:

“Each server is probed for Round Trip Time (RTT) every two minutes.”

Why the other options are wrong:

B is wrong because packet loss is shown separately by Curr Lost and Total Lost , while RTT is the round-trip delay

C is wrong because license-validation behavior is indicated by flags such as I = Initial , not by the RTT value itself

D is wrong because the documents do not say RTT starts at a fixed value of 10; it is measured dynamically as round-trip delay

So the verified answer is: A .

The Internet Key Exchange version 2 (IKEv2) protocol simplifies the negotiation process compared to IKEv1. It is defined by a specific sequence of message exchanges to establish a secure IPsec tunnel.

The correct chronological order of the IKEv2 exchanges is:

IKE_SA_INIT (Initial Exchange):

This is the first exchange. It negotiates the security parameters for the IKE Security Association (IKE SA), sends nonces, and performs the Diffie-Hellman key exchange. At the end of this exchange, the communication is encrypted, but the peers are not yet authenticated.

IKE_AUTH (Authentication Exchange):

This is the second exchange. It authenticates the previous messages, exchanges identities and certificates (if used), and establishes the first Child SA (the actual IPsec Security Association used for data traffic).

CREATE_CHILD_SA (Subsequent Exchanges):

This exchange occurs after the IKE SA and the initial Child SA are established. It is used to create additional Child SAs (for different traffic selectors) or to perform re-keying for the IKE SA or existing Child SAs.

Why other options are incorrect:

A & B: Incorrect because CREATE_CHILD_SA cannot happen before the SA is initialized (IKE_SA_INIT) and authenticated (IKE_AUTH).

D: Incorrect because IKE_AUTH cannot occur before IKE_SA_INIT.

Therefore, the protocol flow is IKE_SA_INIT $\rightarrow$ IKE_AUTH $\rightarrow$ CREATE_CHILD_SA.

The correct answers are C and D .

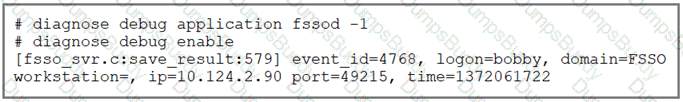

The key clue is the command itself:

diagnose debug application fssod -1

The study guide explicitly states: “There is a specific FortiGate daemon that handles the polling mode. It is the fssod daemon. To enable agentless polling mode real-time debug use the command: diagnose debug application fssod -1.”

That directly proves D. FSSO is using agentless polling mode to detect logon events .

The study guide also states: “In agentless polling mode, FortiGate frequently polls all workstations (as a standalone collector agent does) to check which users are still logged in. You can sniffer this traffic on port 445.”

That directly proves C. FortiGate is frequently polling the workstation in case the user has logged out .

Why the other options are wrong:

A is wrong because the “cannot verify if the user is still logged in” / Not Verified condition is described for the collector agent workstation status, not as a conclusion from this FortiGate fssod debug line. The study guide says: “A user goes to not verified status when they log out, or when there is a problem in the polling done by the collector agent to the workstation.”

B is wrong because DC Agent mode is part of agent-based FSSO , where DC agents send events to a collector agent. This output is from the fssod daemon, which the study guide ties to agentless polling mode , not DC Agent mode.

E is wrong because TCP port 8000 is used for communication between the collector agent and FortiGate , while in agentless polling mode FortiGate polls workstations and that traffic can be sniffed on TCP port 445 .

So the verified answers are: C, D .

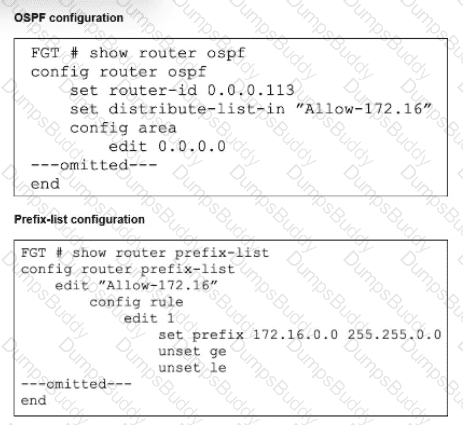

The issue is caused by the strict matching logic of the configured Prefix List.

Current State: The rule is edit 1 with set prefix 172.16.0.0 255.255.0.0 and both ge (greater than or equal) and le (less than or equal) are unset.

Behavior: When ge and le are unset, FortiOS requires an exact match of the subnet mask. The current rule only matches the exact network 172.16.0.0/16. It denies 172.16.52.0/24 because the mask (/24) does not match the rule ' s mask (/16).

To fix this and inject 172.16.52.0/24, you must modify the list to match the /24 mask:

A. Add another entry to the prefix list to specifically allow the 172.16.52.0/24 network:

Creating a new rule (e.g., edit 2) with set prefix 172.16.52.0 255.255.255.0 will provide an exact match for the incoming route, allowing it to pass the distribute-list.

B. Change the ge value to 17:

By configuring set ge 17 on the existing rule (conceptually 172.16.0.0/16 ge 17), you change the logic from " exact match " to " range match " .

This configuration tells the router to match any prefix starting with 172.16.x.x that has a subnet mask length of 17 or greater.

Since the incoming route is a /24, and 24 is greater than 17, the route will match the prefix list and be accepted.

Why other options are incorrect:

C: The option text appears to read " Change the ... value to 16 " . If this refers to le 16, it would enforce the mask to be exactly /16 or less, which still excludes /24.

D: Changing the default behavior to implicit allow defeats the purpose of a filter (security control) and is not a standard configuration step for fixing a single missing route.

The session output reveals a session with proto=1 (ICMP) and the origin and reply directions show address and NAT translations. Specifically, the hook=post dir=org act=snat shows that source NAT is performed for outgoing packets, where the source 10.1.10.10:40602 is translated to 10.200.5.1:8 (likely ICMP id 8, not a TCP/UDP port). The reply direction, hook=pre dir=reply act=dnat, indicates destination NAT for incoming packets: packets incoming for 10.200.5.1:60430 are destination-NATed to 10.1.10.10:40602. The gateway (gwy) is listed as 10.200.1.254/10.1.0.1, which for outgoing traffic means that return traffic is directed to the gateway (10.200.1.254), per the NAT policy. This is confirmed by the FortiOS Session Table Guide, which explains that the returned ICMP reply will be routed out to this NAT gateway. The session statistics and logical flow (SNAT out, matching DNAT in) reinforce that reply traffic to the initiator traverses via 10.200.1.254.

The correct answers are B and C . The session table output clearly shows policy_id=1 , which means the traffic matched firewall Policy ID 1 . That directly validates option B . The output also shows NPU-related offload indicators, including npu_state=... ips_offload and npu info: ... offload=8/8, ips_offload=1/1 . These fields indicate that the session has been offloaded to hardware, so option C is correct. The study guide explains that FortiGate can offload sessions to network processors after session establishment, allowing subsequent packets to bypass normal CPU/kernel processing for improved performance. It also states that offloaded sessions are handled by the network processor rather than the CPU path.

Option A is too specific and is not proven by the exhibit. The output shows NPU offload, but it does not explicitly identify the hardware as NP7. Do not assume NP7 unless the platform or output confirms it. Option D is wrong because the VLAN-related fields show vlan=0x0000/0x0000 and vtag_in=0x0000/0x0000, which means the traffic is not VLAN-tagged.

To display debug output on FortiGate devices, you must always run both the application-specific debug command and the global debug enable command. The command diagnose debug application ike -1 sets up the detail level for the IKE daemon debug, but it does not display any debug output on its own. As described in the FortiOS CLI debugging manuals, the command diagnose debug enable activates debug output on the console, making all previously set debugs visible. This is especially important for VPN troubleshooting—without the enable command, no output appears even if there is VPN traffic.

The correct diagnostic sequence is:

diagnose debug application ike -1

diagnose debug enable

This procedure is found in every FortiOS CLI debug tutorial and troubleshooting workflow.

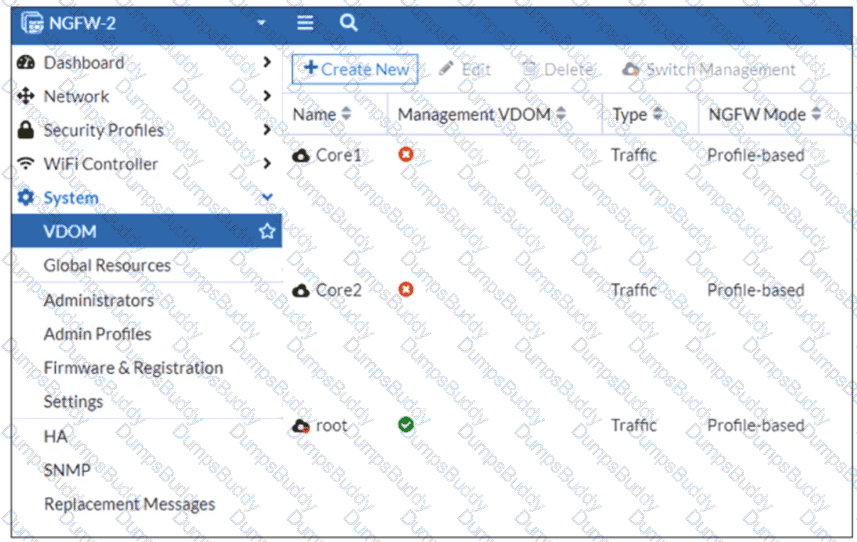

The exhibit identifies the root VDOM as the management VDOM, indicated by the green check mark. The Enterprise Firewall 7.6 Administrator Study Guide explains that the management VDOM handles FortiGuard database downloads, license validation, and FortiGuard rating connectivity on behalf of the entire FortiGate system. It states that FortiGuard updates obtained through the management VDOM “will affect all VDOMs.”

Consequently, the root VDOM must reach either a public Fortinet Distribution Network server or a FortiManager configured as a FortiGuard Distribution Server in an isolated environment. The guide specifically identifies connectivity to “a FortiManager serving as a FortiGuard Distribution Server (FDS) in a closed network” as the alternative to public FortiGuard access. Loss of both paths prevents Core1 and Core2 from using current FortiGuard web-filtering information. Therefore, options A and B are correct.

Core1 and Core2 do not need to become management VDOMs; FortiGate uses one designated management VDOM for these system-level services. A VDOM link is used to route user traffic between VDOMs and is not required for distributing FortiGuard services, eliminating option D.

The correct answer is D .

The study guide explains that IKEv2 has two initial exchanges:

IKE_SA_INIT

IKE_AUTH

and then later exchanges such as:

CREATE_CHILD_SA

It also states the roles of those exchanges:

IKE_SA_INIT negotiates the security settings for IKE traffic

IKE_AUTH performs mutual authentication and sets up the piggyback child SA

CREATE_CHILD_SA creates a new child SA or rekeys an existing child SA

Most importantly, the study guide explicitly says:

“By IKEv2 design, no Diffie-Hellman public key is exchanged during an IKE_AUTH exchange. Consequently, any phase 2 Diffie-Hellman group configuration mismatch between FortiGate and the peer is experienced only during the first rekey (CREATE_CHILD_SA exchange) of the child SA created during IKE_AUTH.”

This proves the key idea behind the question: an IKEv2 tunnel can come up successfully first, then fail later during a CREATE_CHILD_SA rekey/renegotiation event because of a phase 2 mismatch. Among the provided options, the matching later-stage cause is mismatched quick-mode selectors during CREATE_CHILD_SA .

Why the other options are wrong:

A is wrong because if the proposal mismatch were in the initial negotiation path, the tunnel would fail during establishment, not after it was already up. The study guide places initial tunnel establishment in IKE_SA_INIT and IKE_AUTH

B is wrong because a mismatch in IKE_SA_INIT affects the initial establishment stage, not a tunnel that was already brought up successfully

C is wrong because a pre-shared key mismatch is part of authentication during IKE_AUTH , so the tunnel would not come up successfully in the first place

The SD-WAN 7.6 Enterprise Administrator Study Guide identifies the recommended BGP-on-loopback IPsec settings. For branches, it specifies:

“Static tunnel type (remote end IP address is known).”

“net-device enable.”

Enabling net-device on the spoke creates a kernel interface for the tunnel. This assists with tunnel monitoring and management and is required to support ADVPN shortcut tunnels. Dynamic BGP establishes on-demand BGP peerings between spokes after an ADVPN shortcut is created; therefore, the spoke must support those dynamic shortcut interfaces. This makes option C correct.

The spoke should also configure localid. The FortiOS 7.6 Administrator Study Guide explains: “Local ID: if the peer accepts a specific peer ID, type that same peer ID in this field.” The local ID supplies the spoke’s IKE identity to the dial-up hub, allowing the hub to identify and authenticate the connecting spoke correctly. Therefore, option D is correct.

Option A reverses the recommended roles. The hub must use a dynamic tunnel type because it operates as the dial-up server and does not require every spoke’s changing public gateway address in advance.

Option B is also incorrect. The guide states: “There is no need to configure any tunnel IP address, so the IKE Mode Config is not used.” BGP on loopback uses the loopback address and exchange-interface-ip instead of IKE mode configuration.

The administrator cannot see traffic in the sniffer because it is being offloaded to the NPU (NP6). To view the traffic, offloading must be disabled so packets pass through the CPU.

B. config firewall policy ... set auto-asic-offload disable: This is the recommended method to troubleshoot specific traffic. By disabling ASIC offloading in the relevant firewall policies (Policies 5 and 17 in the exhibit), traffic is forced to the CPU and becomes visible to the sniffer.

C. diagnose npu np6 fastpath disable 1: This command temporarily disables the fastpath processing on the specific NP6 processor (ID 1) handling the ports. This forces all traffic handled by that NPU to the CPU, allowing the sniffer to capture it.

Incorrect Options: Option A uses invalid syntax (port-list disable is not a valid command). Option D (config system npu) is not the standard method for granular troubleshooting.

To determine the path the traffic will take, we must look at the FortiGate Route Lookup Precedence (Packet Processing Flow) and the specific configurations shown in the exhibit

Analyze the Routing Precedence:

In FortiOS, when a packet arrives (and is not part of an existing session), the FortiGate performs route lookups in a specific order:

Policy Routes: Configured under config router policy (or diagnose firewall proute list). These are checked first. If a packet matches the criteria (Source, Destination, Protocol, Incoming Interface), the Policy Route is used immediately, bypassing the standard routing table.

FIB (Forwarding Information Base): If no Policy Route matches, the device looks at the standard routing table (Static, Connected, Dynamic).

Analyze the Exhibit:

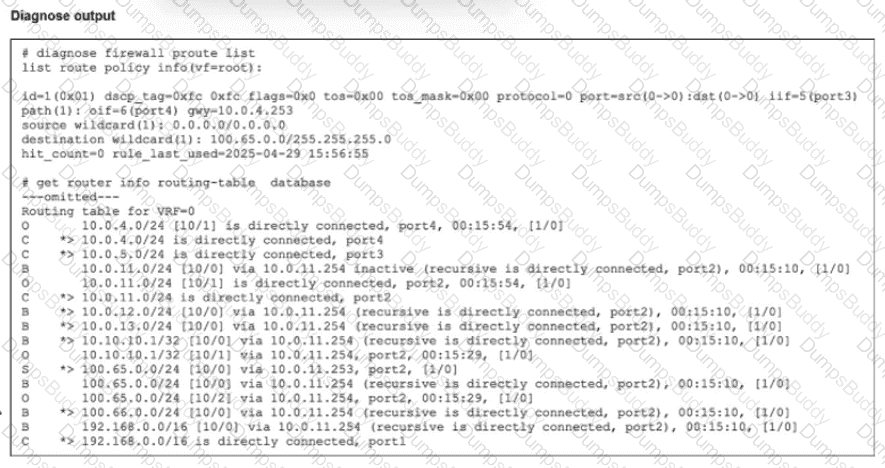

Policy Route Section: The output of diagnose firewall proute list shows an active policy route (id=1).

Destination: 100.65.0.0/255.255.255.0 (Matches the network in the question).

Action: It directs traffic to gateway 10.0.4.253 via oif=6(port4).

Routing Table Section: The output of get router info routing-table database shows multiple routes for 100.65.0.0/24 (Static, OSPF, BGP) all with distance 10. The Static route (S) is currently selected (* > ) in the FIB.

Conclusion:

Because Policy Routes take precedence over the standard routing table (FIB), the FortiGate will forward the traffic using the instructions in Policy Route ID 1. It will not use the Static, BGP, or OSPF routes visible in the routing table for any traffic that matches the policy route ' s criteria (ingress port 3).
