NSE7_PBC-7.2 Fortinet NSE 7 Public Cloud Security 7.2 (FCSS) Questions and Answers

The exhibit shows the results of a FortiCNP registry scan, which is part of the FortiCNP container protection. FortiCNP’s Container Protection provides deep visibility into the security posture of container registries and images1. The registry scan utilizes Common Vulnerabilities and Exposures (CVE) index regularly updated by NVD to detect underlying vulnerabilities, security flaws, and provides security best practices2. The registry scan is performed at the registry level, and it can scan all images in a repository if the Tag section is left blank when adding a repository2. The CAP section stands for Container Assurance Policy, which defines the minimum number of images to be scanned per repository3. Therefore, the correct statements are A and C. References: Container Image Scan | FortiCNP 22.3.a, FortiCNP, Cloud Native Application Protection Platform | FortiCNP

When adding the Amazon Web Services (AWS) account to the FortiCNP, you must follow these three mandatory configuration steps:

Add AWS accounts through FortiCNP. This is the first step to enable cloud protection for your AWS account. You can add one or multiple accounts automatically or manually. You need to provide the AWS account ID and a name for the account. You also need to select the optional permissions to be granted to FortiCNP as needed1.

Accept FortiCNP to create CloudTrail for the account. This is required for FortiCNP to collect and analyze the AWS API calls and events. You can choose to let FortiCNP create a CloudTrail for the account or use an existing one. You also need to specify the aggregation region for the CloudTrail1.

Launch the CloudFormation template. This is required for FortiCNP to create a stack and a role in your AWS account. The stack contains the resources that FortiCNP needs to access and monitor your AWS account. The role allows FortiCNP to assume it and perform actions on your behalf. You need to enter a custom or default role name and a unique UUID that is designated for your company on FortiCNP1.

References: Add AWS Account Automatically

https://docs.fortinet.com/document/forticnp/22.4.a/online-help/246021/add-aws-account-automatically

A is incorrect because the FortiGate public IP is not the next-hop for all the traffic. The FortiGate public IP is only used for incoming traffic from the internet. The Azure load balancer distributes the incoming traffic to the active FortiGate VM based on a health probe123. The FortiGate public IP is not used for outgoing traffic or internal traffic.

B is correct because an internal load balancer listener is the next-hop for outgoing traffic. The internal load balancer listener is configured with a floating IP address that is assigned to the active FortiGate VM. The internal load balancer listener also has a health probe to monitor the status of the FortiGate VMs123. The internal load balancer listener forwards the outgoing traffic to the internet through the public load balancer.

C is incorrect because you do not need to add a route to the Microsoft VIP used for the health check. The Microsoft VIP is an internal IP address that is used by the Azure load balancer to send health probes to the FortiGate VMs123. The Microsoft VIP is not reachable from outside the Azure network and does not require any routing configuration on the FortiGate VMs.

D is correct because a dedicated management interface can be used for load balancing. In this deployment, port4 is used as a dedicated management interface that connects to the management network3. The dedicated management interface can be used to access the FortiGate VMs for configuration and monitoring purposes. The dedicated management interface can also be used to synchronize the configuration and session information between the primary and secondary devices in an HA cluster2.

For administrators seeking to gain insights into user activities and data within major SaaS applications across multicloud environments, deploying FortiCASB (Cloud Access Security Broker) is the most effective solution (Option C).

Role of FortiCASB: FortiCASB is specifically designed to provide security visibility, compliance, data security, and threat protection for cloud-based services. It acts as a mediator between users and cloud service providers, offering deep visibility into the operations and data handled by SaaS applications.

Capabilities of FortiCASB: This product enables administrators to monitor and control the access and usage of SaaS applications. It helps in assessing security configurations, tracking user activities, and evaluating data movement across the cloud services. By doing so, it assists organizations in enforcing security policies, detecting anomalous behaviors, and ensuring compliance with regulatory standards.

Integration and Functionality: FortiCASB integrates seamlessly with major SaaS platforms, providing a centralized management interface that allows for comprehensive analysis and real-time protection measures. This integration ensures that organizations can maintain control over their data across various cloud services, enhancing the overall security posture in a multicloud environment.

References: Fortinet’s official documentation on FortiCASB details its functionalities and integration capabilities with SaaS applications, highlighting its role in providing enhanced security measures for cloud-based services.

To keep track of sensitive data files located in AWS S3 buckets and protect them from malware, the administrator should use:

C. FortiCNP DLP policies.

Data Loss Prevention (DLP): DLP policies are designed to detect and prevent unauthorized access or sharing of sensitive data. In the context of AWS S3, DLP policies can be used to scan for sensitive information stored in S3 objects and enforce protective measures to prevent data exfiltration or compromise.

FortiCNP Integration: FortiCNP is Fortinet’s cloud-native protection platform that offers security and compliance solutions across cloud environments. By applying DLP policies within FortiCNP, the administrator can ensure sensitive data within S3 is monitored and protected consistently.

References: Fortinet's FortiCNP documentation provides information on implementing DLP policies within cloud environments, highlighting the capabilities for protecting sensitive data within cloud storage services like AWS S3.

A. The peer GRE address is the FortiGate external interface IP address. This is the IP address of the FortiGate interface that is connected to the transit gateway attachment subnet1. This IP address is used to establish the GRE tunnel between the FortiGate and the transit gateway2. B. The Transit Gateway GRE address is auto-generated. This is the IP address of the transit gateway that is used to establish the GRE tunnel with the FortiGate2. This IP address is automatically assigned by AWS from the Transit Gateway CIDR range that you specify when you create the Connect attachment3.

The other options are incorrect because:

The BGP inside CIDR blocks cannot be any CIDR block with /29. They must be a /29 CIDR block from the 169.254.0.0/16 range for IPv4, or a /125 CIDR block from the fd00::/8 range for IPv64. These are the inside IP addresses that are used for BGP peering over the GRE tunnel4.

The Peer GRE address is not the FortiGate internal interface IP address. The internal interface IP address is used to route traffic from the FortiGate to the VPC subnet where the third-party appliance (such as SD-WAN) is located1. The Peer GRE address is used to route traffic from the FortiGate to the transit gateway over the GRE tunnel2.

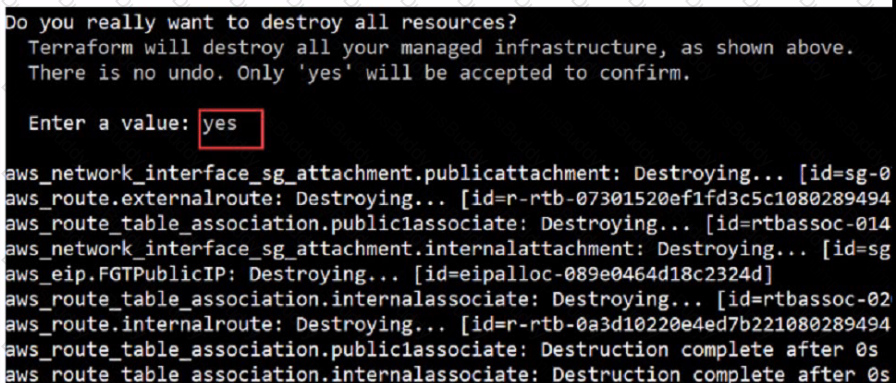

Confirming to delete all the resources in Terraform will have the following impact:

D. It destroys all the resources in the state file.

Terraform State File Role: The terraform.tfstate file contains a real-time mapping of the resources that Terraform manages, including their current configuration and relationships. This file tracks the actual state of resources provisioned by Terraform.

Impact of Destruction: When Terraform prompts for confirmation to destroy resources, and 'yes' is entered, Terraform reads the state file and systematically removes all the resources that are managed as part of that state. This is not limited to a specific .tfvars file, IAM user, or resource group—it is a global action that affects all resources tracked by the state file associated with the current Terraform workspace and configuration.

References: The function of the terraform.tfstate file and the impact of resource destruction are detailed in Terraform's official documentation. This behavior is fundamental to how Terraform manages infrastructure as code.

When an administrator decides to use the 'Use managed identity' option for the FortiGate SDN connector with Microsoft Azure and faces a connection failure, the correct action to take is:

C. Make sure to enable the system assigned managed identity on Azure.

Managed Identity Configuration: The system assigned managed identity is a feature in Azure that provides an identity for the Azure service instance (in this case, the FortiGate SDN connector) within Azure Active Directory and eliminates the need for credentials to be stored in the configuration.

Troubleshooting Connection Issues: If the SDN connector is failing to connect, it could be because the system assigned managed identity has not been enabled or configured properly in Azure for the FortiGate service.

References: Azure documentation on managed identities explains the need to enable and configure this feature for services to authenticate and interact securely with Azure resources.

Based on the provided exhibit showing an active-passive FortiGate High Availability (HA) pair with external and internal Azure load balancers and without the use of an SDN connector, the administrator should implement a Probe IP address with two static routes (Option B).

Probe IP Address: Azure load balancers use a health probe to determine the health of the instances in the backend pool. The health probe ensures that the load balancer only directs traffic to the active (primary) FortiGate in an HA pair.

Two Static Routes: Given that this is an active-passive setup, static routing should be used to ensure deterministic traffic flow. Two static routes would be configured to ensure that traffic can flow to the active unit and be correctly routed to the protected subnets in failover scenarios.

References: The recommendation for using a Probe IP address with static routes is based on Azure's best practices for load balancer configuration, particularly for HA scenarios, as well as on Fortinet's HA documentation for cloud deployments. This setup ensures high availability while allowing proper traffic distribution based on the health probe's findings.

The correct answer is C. Use FortiWebCloud.

FortiWebCloud is a SaaS cloud-based web application firewall (WAF) that protects public cloud hosted web applications from the OWASP Top 10, zero day threats, and other application layer attacks1. FortiWebCloud also includes robust features such as API discovery and protection, bot mitigation, threat analytics, and advanced reporting2. FortiWebCloud supports multiple regions across the world, and you can choose the region that is closest to your applications to minimize traffic cost3.

The other options are incorrect because:

FortiADC is an application delivery controller that provides load balancing, acceleration, and security for web applications. It is not a dedicated WAF solution and does not offer the same level of protection as FortiWebCloud4.

FortiCNP is a cloud-native platform that provides security and visibility for containerized applications. It is not a WAF solution and does not protect web applications from the OWASP Top 10 vulnerabilities5.

FortiGate is a next-generation firewall (NGFW) that provides network security and threat prevention. It is not a WAF solution and does not offer the same level of protection as FortiWebCloud for web applications. It also requires additional configuration and management to deploy in the public cloud6.

1: Overview | FortiWeb Cloud 23.3.0 - Fortinet Documentation 2: Web Application Firewall (WAF) & API Protection | Fortinet 3: [FortiWeb Cloud WAF-as-a-Service | Fortinet] 4: [Application Delivery Controller (ADC) | Fortinet] 5: [Fortinet Cloud Native Platform | Fortinet] 6: [FortiGate Next-Generation Firewall (NGFW) | Fortinet]

Network ACLs are stateless, and they evaluate each packet separately based on the rules that you define. The rules are processed in order, starting with the lowest numbered rule1. If the traffic matches a rule, the rule is applied and no further rules are evaluated1. Therefore, if you want to allow SSH traffic to a subnet, you must create a new allow SSH rule above rule number 5, which denies SSH and telnet traffic. Otherwise, the deny rule will take precedence and block the SSH traffic.

The other options are incorrect because:

Creating a new allow SSH rule below rule number 5 will not allow SSH traffic, because the deny rule will be evaluated first and block the traffic.

Creating a new allow SSH rule anywhere in the network ACL rule base will not guarantee that SSH traffic will be allowed, because it depends on the order of the rules. If the allow SSH rule is below the deny rule, it will not be effective.

You cannot rely on the default security group rule to allow SSH traffic to the subnet, because network ACLs act as an additional layer of security for your VPC. Even if your security group allows SSH traffic, your network ACL must also allow it. Otherwise, the traffic will be blocked at the subnet level.

Considering the situation where the administrator is unable to access the FortiGate VM using its public IP address and no traffic is reaching the FortiGate's external interface, the administrator should check:

D. Check the inbound network security group rules.

Network Security Group Rules: AWS uses security groups as a virtual firewall that controls inbound and outbound traffic to AWS resources such as EC2 instances. If the FortiGate VM’s public interface is not receiving HTTPS or SSH traffic, it's likely because the inbound security group rules associated with that interface are not allowing access on the necessary ports (HTTPS - port 443, SSH - port 22).

Troubleshooting: The administrator should verify that the security group rules for the FortiGate VM’s network interface allow inbound traffic on the specific ports used for management access. If these rules are absent or misconfigured, the intended traffic will be blocked, resulting in the inability to connect.

References: The role of security groups in network traffic management is a core concept in AWS and is outlined in AWS documentation. Checking security group rules is a standard troubleshooting step when dealing with connectivity issues to AWS resources.

Securing container environments from newly emerged security threats involves employing specific security mechanisms tailored to the technology and structure of containers. In this context, the use of Docker-related application control signatures (Option D) is critical for effectively managing and mitigating threats in containerized environments.

Docker-Specific Threats: Docker containers, being a prevalent form of container technology, are targeted by various security threats, including those that exploit vulnerabilities specific to the Docker environment and runtime. Using Docker-related application control signatures means implementing security measures that are specifically designed to detect and respond to anomalies and threats that are unique to Docker containers.

Application Control Signatures: These are sets of definitions that help identify and block potentially malicious activities within application traffic. By focusing on Docker-related signatures, administrators can ensure that the security tools are finely tuned to the operational specifics of Docker containers, thereby providing a robust defense against exploits that target container-specific vulnerabilities.

References: The recommendation to use Docker-related application control signatures is based on best practices for securing container environments, emphasizing the need for specialized security measures that address the unique challenges posed by container technologies.

The two best connection solutions available between your company headquarters, branch sites, and the Azure vWAN hub are A. ExpressRoute and E. VPN Gateway.

According to the Azure documentation for Virtual WAN, ExpressRoute and VPN Gateway are two of the supported connectivity options for connecting your on-premises sites and Azure virtual networks to the Azure vWAN hub1. These options provide secure, reliable, and high-performance connectivity for your network traffic.

ExpressRoute is a service that lets you create private connections between your on-premises sites and Azure. ExpressRoute connections do not go over the public internet, and offer more reliability, faster speeds, lower latencies, and higher security than typical connections over the internet2.

VPN Gateway is a service that lets you create encrypted connections between your on-premises sites and Azure over the internet using IPsec/IKE protocols. VPN Gateway also supports point-to-site VPN connections for individual clients using OpenVPN or IKEv2 protocols3.

The other options are incorrect because:

GRE tunnels are not a supported connectivity option for Azure vWAN. GRE is a protocol that encapsulates packets for tunneling purposes. GRE tunnels are established between the connect attachment and your appliance in Azure vWAN4.

SSL VPN connections are not a supported connectivity option for Azure vWAN. SSL VPN is a type of VPN that uses the Secure Sockets Layer (SSL) protocol to secure the connection between a client and a server. SSL VPN is not compatible with the Azure vWAN hub5.

An L2TP connection is not a supported connectivity option for Azure vWAN. L2TP is a protocol that creates a tunnel between two endpoints at the data link layer (Layer 2) of the OSI model. L2TP is not compatible with the Azure vWAN hub.

1: Azure Virtual WAN Overview | Microsoft Learn 2: [ExpressRoute overview - Azure ExpressRoute | Microsoft Docs] 3: [VPN Gateway - Virtual Networks | Microsoft Azure] 4: [Transit Gateway Connect - Amazon Virtual Private Cloud] 5: [SSL VPN - Wikipedia] : [Layer 2 Tunneling Protocol - Wikipedia]
