NSE6_FSM_AN-7.4 Fortinet NSE 6 - FortiSIEM 7.4 Analyst Questions and Answers

The rule is triggering on successful RDP connection events because the Next operator between the two subpatterns is set to OR . The FortiSIEM Study Guide explains that multiple subpattern rules are used when patterns must occur within a specific time period or when one of several patterns proves that an incident condition exists. It lists the OR operator as: “Subpattern X OR Subpattern Y occurred within the Time Window.” The same Study Guide further explains that if multiple patterns are used, FortiSIEM requires a next operator, and in the OR example, “an event that matches either” subpattern will trigger. It also states that because the next operator is OR, the constraint between the two subpatterns is not enforced.

In the exhibit, Subpattern 1 matches RDP traffic on TCP/UDP port 3389 from FortiGate traffic-forward events, while Subpattern 2 matches logon failure events with COUNT(Matched Events) > = 3. Because the rule uses OR, FortiSIEM can trigger when only the RDP connection subpattern matches, even if the failed-logon subpattern does not match. The correct logic should require both subpatterns to match with the intended relationship constraints, not either subpattern independently.

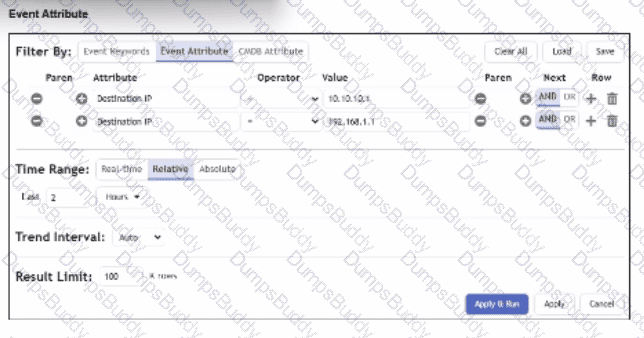

The correct answer is B because the analyst is searching for events to either of two destination IP addresses, but the filter uses the wrong Boolean relationship. The FortiSIEM Study Guide explains structured searches with multiple conditions and states that “when you use multiple conditions, you must specify the next logical operator between conditions.” It gives a direct example: when searching for events from two specific devices, the first condition is one IP address, the second condition is another IP address, and “the next logical operator between the two conditions is an OR operator, because the search is for events from condition 1 OR condition 2.” The same logic applies here. A single event cannot usually have Destination IP equal to 10.10.1.1 and Destination IP equal to 192.168.1.1 at the same time. Using AND requires both conditions to be true simultaneously, so no results are returned. The correct operator between the two Destination IP conditions is OR.

The time period must be defined under the Define Condition tab of the rule. The FortiSIEM Study Guide states that a rule has three components: General , Condition , and Action . The General section defines the overall purpose and scope of the rule, the Condition section specifies which conditions trigger the rule, and the Action section configures what happens after the rule is triggered. The Study Guide further explains that on the Define Condition page, FortiSIEM specifies “the conditions—event attributes and thresholds—that will trigger the rule and create an incident,” including “the time window” within which the subpatterns must match for the rule condition to be satisfied. It also states that when there is more than one subpattern, you must define the logic between subpatterns and their relationships or constraints.

For a 24-hour multiple-subpattern rule, the guide gives an example using an 86400-second time window, which equals 24 hours, and shows it under Resource > Rules > Define Condition. Therefore, the time period is not configured inside each individual subpattern, not under General, and not under Define Action.

The FortiSIEM Study Guide defines a nested query as a query that has another query embedded within it, where the embedded query is known as the subquery. The FortiSIEM 7.4 User Guide lists the supported nested search scenarios: Outer CMDB Query, Inner Event Query ; Outer Event Query, Inner Event Query ; and Outer Event Query, Inner CMDB Query . These supported combinations prove that the inner or subquery can be either an Event Query or a CMDB Query. LDAP Query and SNMP Query are not listed as supported nested analytics subquery types. LDAP may be used for user discovery or authentication, and SNMP may be used for monitoring or discovery, but neither is referenced as a nested analytics query type. The User Guide also explains that the outer query uses Select from Report to reference the saved inner query and that the matching attribute data types must align between the outer query and the selected display column in the inner query.

Grouping by User, Source IP, and Count means that each unique combination of those three attributes will be treated as a separate result. In the table, all six rows have distinct combinations of User, Source IP, and Count - so FortiSIEM will display 6 results.

Six because grouping by User , Source IP , and Count creates a separate result for every unique combination of those three selected attributes. The FortiSIEM Study Guide explains this grouping behavior in the single-subpattern rule example: “If multiple VPN login failure events have the same source IP address, reporting device, reporting IP address, and user, they are grouped together in one row, and the count column tracks the number of events for each of those rows.” Applying that rule here, FortiSIEM compares all selected Group By fields together. In the exhibit, every row has a unique Source IP address, even where the same user appears more than once. For example, Mike appears twice, but the Source IP and Count values are different. Alice appears twice with Count 2, but the Source IP values are different. Bob appears twice, but both Source IP and Count are different. Since no row has the same User, Source IP, and Count combination as another row, FortiSIEM displays all six rows.

FortiSIEM supports both global thresholds and per-device/per-device-object thresholds for some performance events. The Study Guide states that FortiSIEM can define “per-device-object thresholds or global thresholds” for performance events, and separately explains that global thresholds are referenced by the rules engine by default. Therefore, the correct statement is that FortiSIEM uses global and per-device thresholds for performance metrics. Options A, B, and D are too restrictive or false because FortiSIEM does not use only one fixed threshold model.

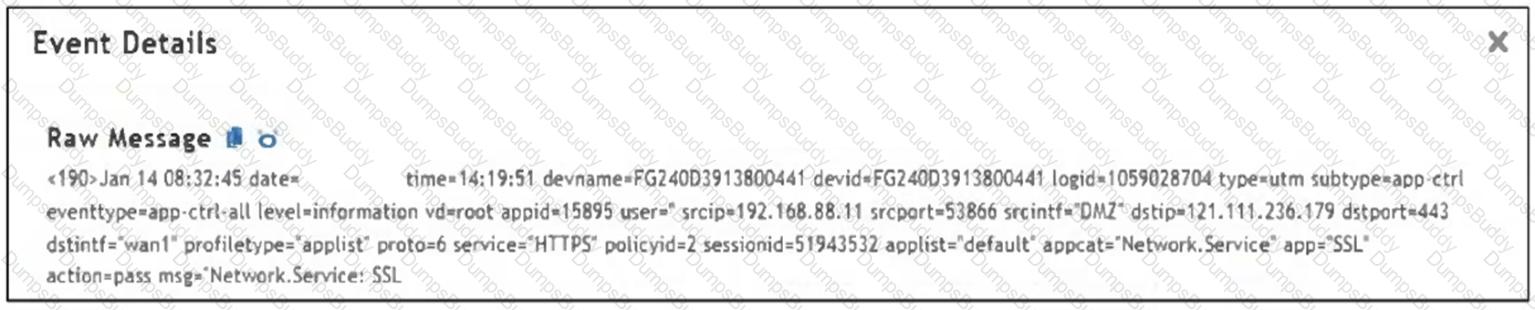

The correct answer is C. SSL . FortiSIEM receives raw logs, processes them through parsers, normalizes the extracted fields, classifies the event, and stores the structured data. The Study Guide explains the FortiSIEM process flow: data is collected, processed by the parsing engine, normalized, classified, and then stored. It further states that normalization extracts individual fields from raw events and maps those fields to a common schema. The FortiSIEM 7.4 User Guide describes a parser as a file containing instructions for the parser module to convert a raw log into event attributes. In the exhibit, the raw FortiGate log includes values such as profiletype= " applist " , appcat= " Network.Service " , and app= " SSL " . The field that directly represents the application value is app= " SSL " . Therefore, the parser would use SSL to populate the normalized Application Name field. applist describes the profile type, Network.Service is the application category, and wan1 is the interface, not the application name.

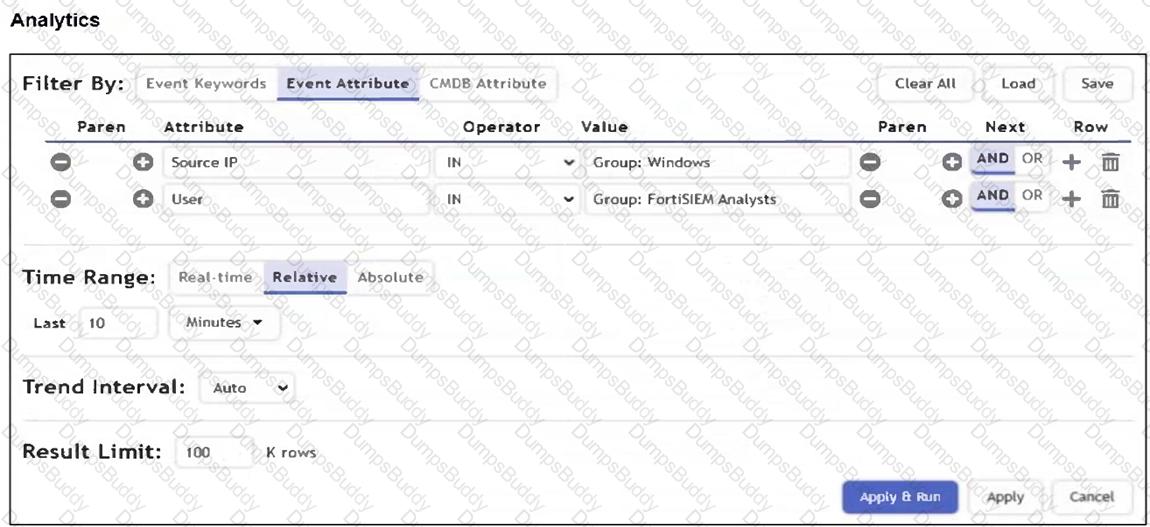

The correct answer is C. CMDB user group . In FortiSIEM, users and user groups are maintained as CMDB objects and can be referenced in analytics filters and rule logic. The FortiSIEM 7.4 User Guide table of contents explicitly includes CMDB management for users, viewing user information, adding users, editing or deleting users, performing operations on users, and working with user groups. This confirms that user groups are part of the FortiSIEM CMDB data model. The query shown in the exhibit uses the Analytics filter with the User attribute and the value Group: FortiSIEM Analysts . That syntax indicates that FortiSIEM is referencing a FortiSIEM-defined user group from CMDB, not an LDAP group directly and not an Active Directory group directly. LDAP and Active Directory can be used to discover or authenticate users, but once referenced as a FortiSIEM analytics group value, the object is a CMDB user group. FortiSIEM organization groups are tenant/organization constructs and are not the same as CMDB user groups.

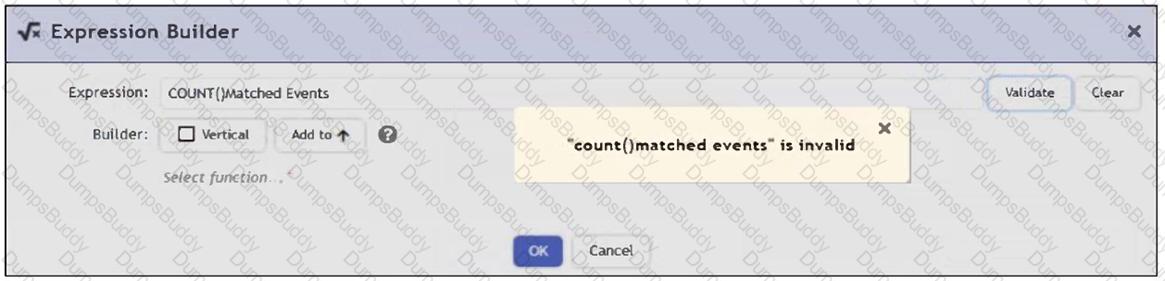

The correct syntax is COUNT(Matched Events) - with proper capitalization and spacing - to generate a total count of matched events. The error in the exhibit likely stems from a formatting issue (e.g., lowercase count() or incorrect spacing), not the logical structure of the expression.

COUNT(Matched Events) . FortiSIEM uses aggregate functions inside rule subpatterns and analytics display fields to calculate values such as the number of matched events. The Study Guide explains that rule conditions are built from subpatterns of event attribute filters and aggregation functions. It also shows that the Aggregate section is where expressions such as COUNT(Matched Events) are used to define event-count thresholds. In the exhibit, the expression is intended to generate a total count of matched events. The proper function format is the aggregate function name followed by the target field inside parentheses. Therefore, COUNT(Matched Events) is syntactically valid. Options B, C, and D are invalid because they place the function name outside the standard function-call format or attach the argument incorrectly. This matters because FortiSIEM’s Expression Builder validates expressions according to function syntax. To count matched events, the function must be written as an aggregate operation over the Matched Events field.

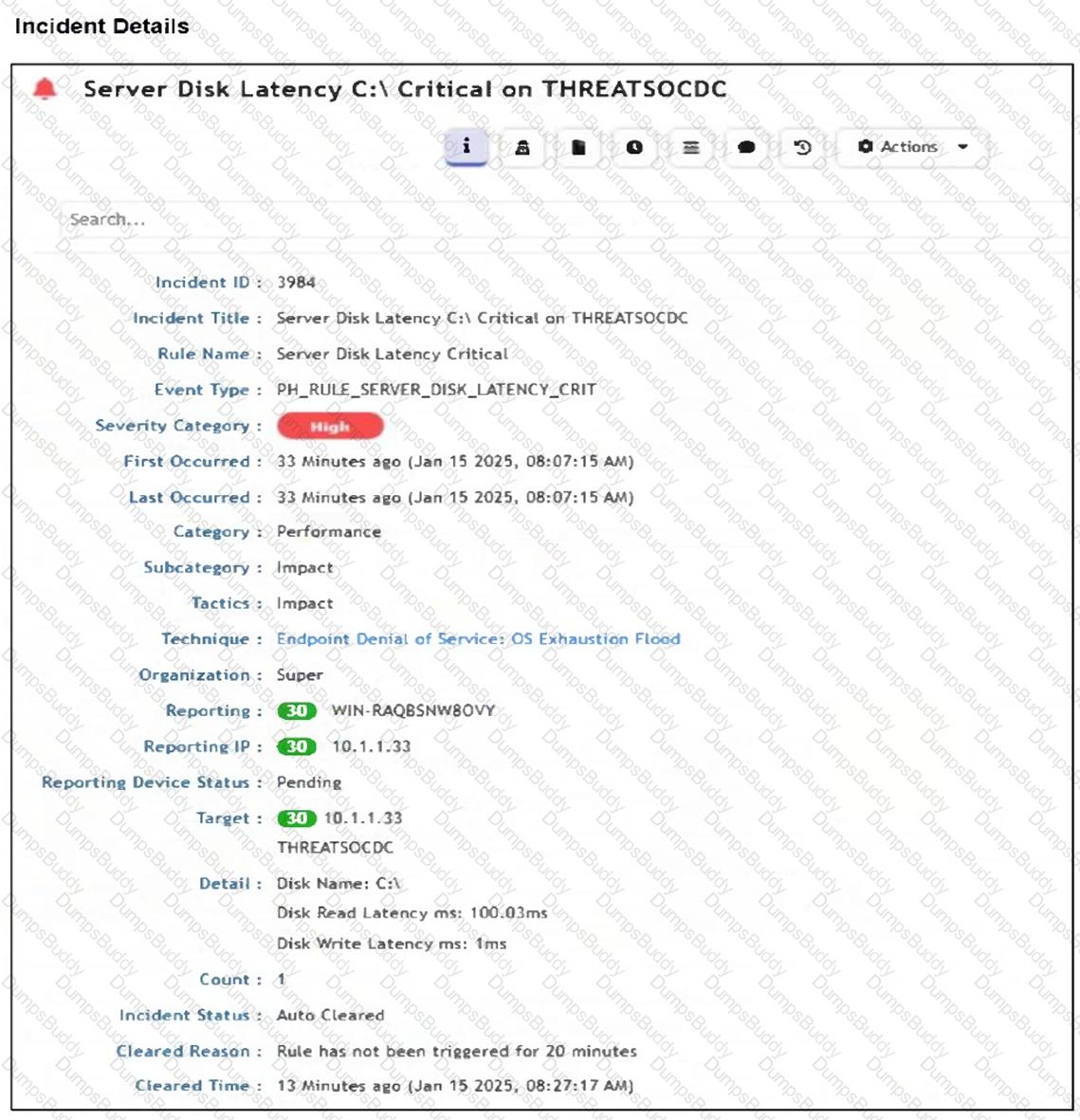

The Incident Status shows " Auto Cleared " , and the Cleared Reason states: " Rule has not been triggered for 20 minutes. " This indicates that the incident was automatically cleared by the rule logic after a defined period of inactivity.

The correct answer is C because the exhibit shows the incident status as Auto Cleared and the cleared reason indicates that the rule condition was no longer being triggered. The Study Guide explains that FortiSIEM supports clear conditions and auto-clearing behavior at the rule level. It states that if a time-based clear condition is configured, FortiSIEM can auto-clear the incident after the last occurrence if the trigger condition no longer exists. It also explains pattern-based clear behavior: FortiSIEM evaluates clear-condition subpatterns and compares attributes from the clear condition with the original incident attributes. If the configured attributes match, the incident status is set to auto cleared. In the exhibit, the cleared reason says the rule has not been triggered for a defined number of minutes. That is not a manual action by the analyst and not an endpoint-generated all-clear signal. It is FortiSIEM’s rule-based clearing logic. Option B is also wrong because the exhibit shows a specific rule inactivity period, not a generic 24-hour timeout.

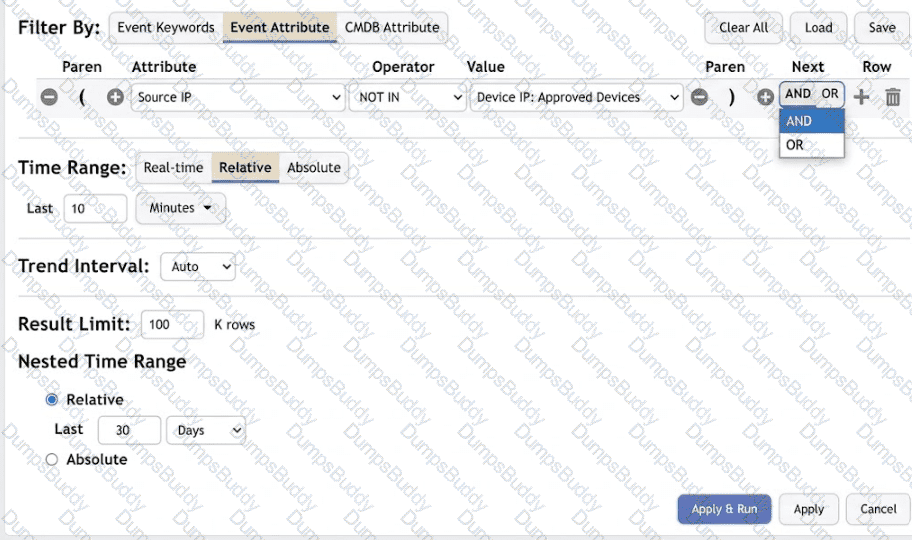

The correct answer is D. The exhibit shows an outer event query using the Event Attribute filter Source IP NOT IN Device IP: Approved Devices. The outer query time range is set to Relative — Last 10 Minutes, so FortiSIEM searches only the event data from the last 10 minutes. The exhibit also shows a separate Nested Time Range set to Relative — Last 30 Days. In FortiSIEM nested searches, the nested time range applies to the inner report/subquery, not to the outer event search. The FortiSIEM 7.4 User Guide states that nested query functionality lets one query refer to results from another query, and for outer event / inner event nested searches, it instructs the user to “choose the time range for outer query” and separately “choose Nested Time Range for the inner query.” It also states that when an existing query is used as an inner query, “time range would be set separately” in the outer query configuration. Therefore, FortiSIEM searches the last 10 minutes of outer events and compares their Source IP values against the Device IP values returned by the Approved Devices report using the last 30 days nested time range.
