NSE6_FNC_AD-7.6 Fortinet NSE 6 - FortiNAC-F 7.6 Administrator Questions and Answers

In FortiNAC-F,Security Triggersare used to identify specific security-related activities based on incoming data such as Syslog messages or SNMP traps from external security devices (like a FortiGate or an IDS). These triggers act as a filtering mechanism to determine if an incoming notification should be escalated from a standard system event to aSecurity Event.

According to theFortiNAC-F Administrator Guideand relevant training materials for versions 7.2 and 7.4, theFilter Matchsetting is the critical logic gate for this process. As seen in the exhibit, the " Filter Match " configuration is set to " All " . This means that for the Security Trigger named " Infected File Detected " to " fire " and generate a Security Event or a subsequent Security Alarm,every single filterlisted in the Security Filters table must be satisfied simultaneously by the incoming data.

In the provided exhibit, there are two filters: one looking for the Vendor " Fortinet " and another looking for the Sub Type " virus " . If only one of these filters is satisfied (for example, a message from Fortinet that does not contain the " virus " subtype), the logic for the Security Trigger is not met. Consequently, FortiNAC-F does not escalate the notification. Instead, it processes theincoming data as aNormal Event, which is recorded in the Event Log but does not trigger the automated security response workflows associated with security alarms.

" The Filter Match option defines the logic used when multiple filters are defined. If ' All ' is selected, then all filter criteria must be met in order for the trigger to fire and aSecurity Eventto be generated. If the criteria are not met, the incoming data is processed as anormal event. If ' Any ' is selected, the trigger fires if at least one of the filters matches. " —FortiNAC-F Administration Guide: Security Triggers Section.

In FortiNAC-F, theSecurity Incidentsengine is used to automate responses to security threats reported by external devices. When an administrator wants to enforce a policy, such as quarantining contractors who access restricted websites, they must create aSecurity Rule. A Security Rule acts as the " if-then " logic that correlates incoming security data with the internal host database.

The documentation specifies that a Security Rule consists of three primary configurable components:

User/Host Profile:This identifieswhoorwhatthe rule applies to (in this case, " Contractors " ).

Trigger:This is theeventthat initiates the rule evaluation. In this scenario, the Trigger would be configured to match specific syslog messages or NetFlow data indicating access to prohibited websites. Triggers use filters to match vendor-specific data, such as a " Web Filter " event from a FortiGate.

Action:This defineswhathappens when the Trigger and User/Host Profile are matched. For this scenario, the administrator would select a " Quarantine " action, which instructs FortiNAC-F to move the endpoint to a restricted VLAN or apply a restrictive ACL.

While " Methods " (A) relate to authentication and " Security Strings " (E) are used for specific SNMP or CLI matching, they are not the structural components of a Security Rule in the Security Incidents menu.

" Security Rules are used to perform a specific action based on certain criteria... To configure a Security Rule, navigate toLogs > Security Incidents > Rules. Each rule requires aTriggerto define the event criteria, anActionto define the automated response (such as Quarantine), and aUser/Host Profileto limit the rule to specific groups. " —FortiNAC-F Administration Guide: Security Rules and Incident Management.

When FortiNAC-F manages VPN clients through a FortiGate, the agent plays a fundamental role in device identification that standard network protocols cannot provide on their own. In a standard VPN connection, the FortiGate establishes a Layer 3 tunnel and assigns a virtual IP address to the client. While the FortiGate sends a syslog message to FortiNAC-F containing the username and this assigned IP address, it typically does not provide the hardware (MAC) address of the remote endpoint ' s physical or virtual adapter.

FortiNAC-F relies on theMAC addressas the primary unique identifier for all host records in its database. Without the MAC address, FortiNAC-F cannot correlate the incoming VPN session with an existing host record to apply specific policies or track the device ' s history. By running either a Persistent or Dissolvable Agent, the endpoint retrieves its own MAC address and communicates it directly to the FortiNAC-F service interface. This allows the " IP to MAC " mapping to occur. Once FortiNAC-F has both the IP and the MAC, it can successfully identify the device, verify its status, and send the appropriateFSSO tagsor group information back to the FortiGate to lift network restrictions.

Furthermore, while the agent can also perform compliance checks (Option D), the architectural requirement for the agent in a managed VPN environment is primarily driven by the need for session data correlation—specifically the collection of the IP and MAC address pairing.

" Session Data Components: • User ID (collected via RADIUS, syslog and API from the FortiGate). • Remote IP address for the remote user connection (collected via syslog and API from the FortiGate and from the FortiNAC agent). •Device IP and MAC address (collected via FortiNAC agent).... The Agent is used to provide the MAC address of the connecting VPN user (IP to MAC). " —FortiNAC-F FortiGate VPN Integration Guide: How it Works Section.

In FortiNAC-F, accountability and forensic tracking of configuration changes are managed through theAdmin Auditingfunctionality. When an administrator performs an action that modifies the system state—such as creating a policy, changing a device ' s status, or adding a switch port to anEnforcement Group—the system generates an audit record. This record is essential for troubleshooting scenarios where unauthorized or accidental configuration changes have occurred, leading to unintended network behavior.

TheAdmin Auditingview (found underLogs > Admin Auditing) provides a comprehensive log of the " Who, What, and When " for every administrative session. Each entry includes the username of the administrator, the source IP address from which they accessed the FortiNAC-F console, a precise timestamp, and a detailed description of the modification. In the scenario described, where ports have been incorrectly added to enforcement groups, the Admin Auditing view allows a supervisor to filter by the specific " Port " or " Group " object to identify exactly which administrator executed the command.

In contrast, theEvent Managementview (B) is designed to monitor system and network events, such as RADIUS authentications, host connections, and SNMP trap arrivals. While it tracks system activity, it does not typically log the manual configuration changes performed by admins. ThePort Changesview (C) tracks the operational history of a port (such as VLAN assignment changes and host movements) but does not attribute the administrative assignment of the port to a group. Finally, theSecurity Eventsview (D) is dedicated to alerts triggered by security rules and external threat feeds.

" Admin Auditing displays a record of all modifications made to the FortiNAC-F system by an administrator. This view includes the administrator ' s name, the date and time of the change, and a description of the action taken. It is the primary resource for determining which administrative user performed a specific configuration change, such as modifying port group memberships or altering policy settings. " —FortiNAC-F Administration Guide: Logging and Auditing Section.

In FortiNAC-F,MAC notification traps(also known as MAC Move or MAC Change traps) are essential for achieving real-time visibility of endpoint connections and disconnections. When a device connects to a switch port, the switch generates an SNMP trap that informs FortiNAC-F of the new MAC address on that specific interface. This allows FortiNAC-F to immediately initiate the profiling and policy evaluation process without waiting for the next scheduled L2 poll.

According to theFortiNAC-F Administration GuideandSwitch Integrationdocumentation, MAC notification traps should be configured onall ports except uplink ports. Uplink ports are the interfaces that connect one switch to another or to the core network. Because these ports see the MAC addresses of every device on the downstream switches, enabling MAC notification on uplinks would cause the switch to send a massive volume of redundant traps to FortiNAC-F every time any device anywhere in the downstream branch moves or reconnects. This can overwhelm the FortiNAC-F process queue and degrade system performance.

By only enabling these traps on " edge " or " access " ports—where individual endpoints like PCs, printers, and VoIP phones connect—FortiNAC-F receives precise data regarding exactly where a device is physically located. Uplinks should be identified in the FortiNAC-F inventory as " Uplink " or " Learned Uplink, " which tells the system to ignore MAC data seen on those specific ports.

" To ensure accurate host tracking and optimal system performance, SNMP MAC notification traps must be enabled on all access (downlink) ports.Do not enable MAC notification traps on uplink ports, as this will result in excessive and unnecessary trap processing. Uplink ports should be excluded to prevent the system from attempting to map multiple downstream MAC addresses to a single infrastructure interface. " —FortiNAC-F Administration Guide: SNMP Configuration for Network Devices.

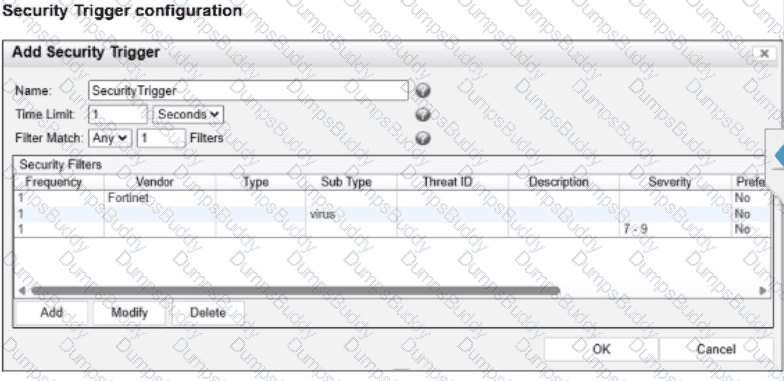

The correct answer is B . In the trigger exhibit, the Filter Match setting is configured as Any 1 Filters , meaning the security trigger is satisfied when any one of the defined filters matches within the configured time window. The contractor triggers two of the defined filters, so two separate security events are generated because FortiNAC-F creates a security event whenever a security filter matches. The study guide confirms that each matched filter generates a security event, and when a trigger contains multiple filters, multiple matched filters can be associated with the resulting alarm.

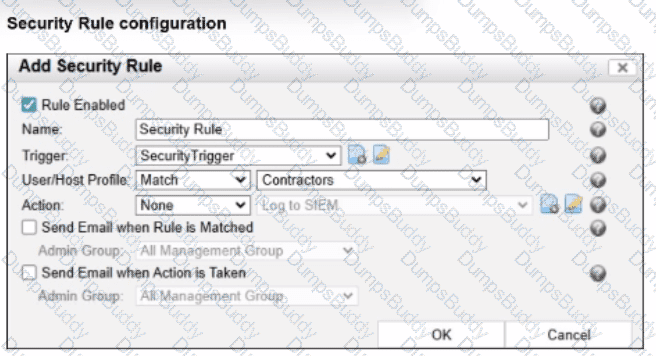

The security rule exhibit also shows User/Host Profile: Match Contractors . Because the triggering user is a contractor, the user/host profile condition is satisfied. Once the trigger is satisfied and the user/host profile matches, FortiNAC-F generates a security alarm . The fact that Action is set to None does not stop the alarm from being generated; it only means no automated or manual response action is executed from that rule. Option A is wrong because the contractor profile matches, so an alarm is generated. Option C is wrong because only two filters were triggered, not three. Option D is wrong because two filters matched, so two events are generated, not one.

The exhibits show an enabled Security Rule using the SecurityTrigger , with the User/Host Profile configured as Match → Contractors . The associated trigger contains multiple security filters and uses Filter Match = Any . Because the endpoint in the scenario is a contractor, the User/Host Profile condition is satisfied.

The critical FortiNAC-F distinction is between a security event and a security alarm . The Study Guide states that a security event is generated whenever a security filter evaluates as true . Therefore, if the contractor triggers two security filters, two separate security events are generated .

The trigger is also satisfied, and because the Contractors profile matches, the security rule matches. A successful security-rule match generates one security alarm . The guide explicitly explains that a trigger can contain multiple filters and that each matched filter generates a security event; consequently, multiple events can be associated with a single alarm.

The exhibit ' s Action = None does not suppress alarm creation—it only means no response action is executed.

Therefore: 2 matched filters = 2 security events + 1 security alarm.

Study Guide Reference: Security Device Integration and Automated Response — Security Rules, Security Events and Alarms, Security Triggers , pp. 328–333 .

The integration between FortiNAC-F and Mobile Device Management (MDM) platforms (such as Microsoft Intune, VMware Workspace ONE, or Jamf) is a critical component for providing visibility into mobile assets that do not connect directly to the managed infrastructure via standard wired or wireless protocols.

According to theFortiNAC-F MDM Integration Guide, the communication between the FortiNAC-F appliance and the MDM server is handled throughREST APIcalls. FortiNAC-F acts as an API client, periodically polling the MDM server to retrieve device metadata, compliance status, and ownership information. If communication is failing, it is most likely because the API credentials (Client ID/Secret) are incorrect, the MDM ' s API endpoint is unreachable from the FortiNAC-F service port, or the SSL certificate presented by the MDM is not trusted by the FortiNAC-F root store.

While SSH (B) is used for switch CLI management and the Security Fabric (A) uses proprietary protocols for FortiGate synchronization, neither is the primary vehicle for MDM data exchange. SOAP API (D) is an older protocol that has been largely replaced by REST in modern FortiNAC integrations.

" FortiNAC integrates with MDM systems by utilizingREST APIcommunication to query the MDM database for device information. To establish this link, administrators must configure the MDM Service Connector with the appropriateAPI URLand authentication credentials. If the ' Test Connection ' fails, verify that the FortiNAC can reach the MDM provider via theREST APIport (usually HTTPS 443). " —FortiNAC-F Administration Guide: MDM Integration and Troubleshooting.

The correct answer is C . The FortiNAC-F study guide explains that all VPN hosts are initially treated as unauthorized. For those unauthorized VPN hosts, the FortiGate firewall policy must allow traffic only to and from the FortiNAC-F VPN isolation interface and deny all other traffic. This forces the connecting VPN client into the FortiNAC-F validation process, including captive portal presentation and FortiNAC-F agent communication or download.

Options A and B are incorrect, and they appear duplicated in the question. The client is not supposed to be granted access only to the production DNS server while still unauthorized. FortiGate assigns DNS during VPN connection setup, with production DNS as primary and the FortiNAC-F VPN isolation interface as secondary, but the unauthorized firewall policy restricts useful access to FortiNAC-F so that validation can occur. Option D is wrong because the VPN client has already connected to the FortiGate VPN service; the authorization workflow requires access to the FortiNAC-F VPN isolation interface , not merely the FortiGate VPN interface.

The correct answer is C . The Port Changes view is the correct troubleshooting location when FortiNAC-F changes endpoint network access, such as moving a switch port into a different VLAN. The study guide states that any time FortiNAC-F changes network access for an endpoint, the change is documented in Network > Port Changes . This view shows the date and time of the change, whether a CLI configuration was executed, the reason for the change, the role or access policy that caused it, the port that was changed, and the VLAN the port was changed to.

This directly matches the troubleshooting requirement in the question: the administrator needs to know when the VLAN change happened and why FortiNAC-F made that network access decision. Option A , Security Event view, is used for security-related events, not detailed port-level VLAN-change history. Option B , Reports view, is too broad and not the operational audit trail for a specific access change. Option D , Admin Auditing, tracks administrative actions, but an automatic policy-driven VLAN assignment is documented under Port Changes, not primarily as an admin audit event.

The correct answer is D . For FortiGate VPN integration, FortiNAC-F depends on syslog from FortiGate to receive VPN user, IP address, and session information. The FortiNAC-F study guide states that after a remote user successfully authenticates and establishes a VPN connection, FortiGate sends user, IP, and session information to FortiNAC-F using syslog. This keeps FortiNAC-F aware of the VPN session so it can apply the correct access control state and update FortiGate when the device becomes trusted.

Option A is wrong because SNMP traps are commonly used for infrastructure events, link traps, or third-party event inputs, but this VPN workflow uses FortiGate syslog. Option B is wrong because RADIUS accounting can update session information in some NAC workflows, but the FortiGate VPN integration described in the guide uses syslog. Option C is wrong because Security Fabric integration is not the required mechanism for keeping FortiNAC-F updated with VPN session details in this scenario.

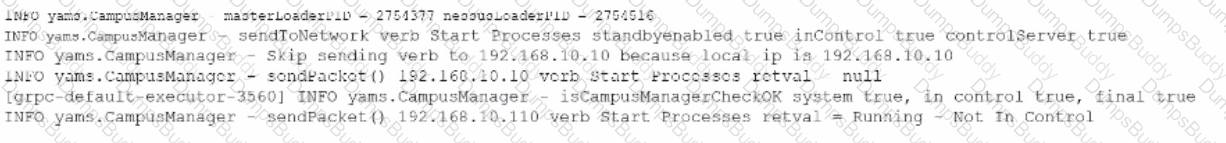

The correct answer is D . The log output shows the local IP address as 192.168.10.10 , which the question identifies as the primary FortiNAC-F server. In the same output, FortiNAC-F reports inControl true and controlServer true , which means the local primary server is currently the control server. The line showing communication to 192.168.10.110 returns Running - Not In Control , confirming that the secondary server is alive but is not the active controlling node.

This matches FortiNAC-F 1+1 HA behavior. The study guide describes a 1+1 HA pair as an active-passive deployment where one FortiNAC-F device is designated primary and the other secondary. Database and configuration synchronization keep the devices aligned, but only one server is in control at a time. If the primary fails, the secondary assumes control automatically; otherwise, the primary remains the active control server.

Option A is wrong because the secondary explicitly reports Not In Control . Option B is wrong because the output does not show database replication failure. Option C is wrong because failover is not in progress; the output shows a stable state where the primary is in control and the secondary is running as the passive node.

Comprehensive and Detailed Explanation From Exact Extract of FortiNAC-F 7.6 Administrator Guide or Knowledge:

Exact Extract:

The FortiNAC-F study guide states that MAC notification traps are preferred because FortiNAC-F does not need to connect back to the infrastructure device every time a link-up or link-down trap is received. The required MAC and port information is already included in the MAC notification trap, which makes database updates faster and uses fewer resources. It also states that hosts and devices connected through hubs or IP phones are seen immediately, even when the downstream device cannot generate link-up or link-down traps.

Technical Deep Dive:

The correct answers are B and C . With link-up/link-down traps, the trap only tells FortiNAC-F that an interface changed state. FortiNAC-F then has to perform an L2 poll against the switch forwarding table to discover which MAC address appeared or disappeared. That means extra SNMP/CLI activity, more delay, and more processing on both FortiNAC-F and the switch. The guide confirms that link traps trigger FortiNAC-F to perform a Layer 2 poll, while MAC notification traps directly contain the learned or removed MAC address and associated port.

Option A is wrong because MAC notification traps are Layer 2 visibility events. They identify MAC address and port , not IP address. IP-to-MAC correlation comes from Layer 3 polling or DHCP fingerprinting, not MAC notification traps. Option D is badly worded and should not be selected: MAC notification traps do provide faster updates, but the processing overhead is reduced, not slightly increased.

Operationally, on supported switches you enable SNMP traps for MAC address-table changes and point the trap destination to FortiNAC-F. On Cisco-style infrastructure, this is usually done with commands such as snmp-server host < FortiNAC-IP > version 2c < community > plus MAC notification trap configuration. Do not enable MAC notification traps on uplinks, because uplinks learn many downstream MAC addresses and would create misleading endpoint-location data.

The correct answers are A and C . Fortinet’s FortiNAC-F 7.6 documentation states that, to receive and interpret traps from devices or applications, those devices or applications must be modeled in FortiNAC and must have an associated IP address. That validates option A directly. The same Fortinet Trap MIB Files documentation also lists a FortiNAC-OS requirement: the snmp option must be included in the set allowaccess command. That validates option C .

Option B is wrong because Trap MIB integration is not limited to SNMPv3. Fortinet states that Trap MIB supports receiving SNMPv1 and SNMPv2 traps from external devices, while SNMPv3 is discussed separately for traps that populate host and user records.

Option D is the trap. The Fortinet documentation explicitly says IP address OID, MAC address OID, and user ID OID are not all required ; any one OID can be used to identify the host or user that triggered the trap. So the statement that both the IP address OID and MAC address OID must be configured is false.

TheFortiNAC-F Manageris designed to centralize the management of multiple Control and Application (CA) appliances, ensuring consistent security posture across a distributed enterprise. To achieve this, the Manager allows administrators to define and distribute specific types of policies globally rather than configuring them on each individual CA.

According to theFortiNAC Manager Guide, the two primary policy types that are managed globally are:

Network Access Policies (D):These policies define the " If-Then " logic for network entry. By managing these at the global level, an administrator can ensure that a " Contractor " receives the same restricted access regardless of which branch office or campus they connect to.

Endpoint Compliance Policies (B):Global management of compliance policies—which consist of scans and configurations—allows for a unified security baseline. For example, a global policy can mandate that all Windows devices across the entire organization must have a specific antivirus version installed and active before gaining access to the production network.

While the Manager provides visibility into authentication events and can synchronize directory data, the specificAuthentication(A) configurations (like local RADIUS secrets or specific LDAP server links) are often localized to the CA to account for site-specific infrastructure.Supplicant EasyConnect(C) is a feature set for onboarding, but the structural " Global Policy " engine focuses primarily on the Access and Compliance frameworks.

" The FortiNAC Manager enablesGlobal Policy Management, allowing for the creation and distribution of policies across all managed CA appliances. This includesNetwork Access Policies, which control VLAN and ACL assignment, andEndpoint Compliance Policies, which define the security requirements for hosts. Centralizing these policies ensures that security standards are enforced uniformly across the global network fabric. " —FortiNAC Manager Administration Guide: Global Policy Management Overview.

When troubleshooting network access in FortiNAC-F, it is often necessary to verify exactly why a host has been granted a specific level of access. Since FortiNAC-F evaluates policies from the top down and assigns access based on the first match, an administrator needs a clear way to see the results of this evaluation for a specific live endpoint.

ThePolicy Details (C)view is the designated tool for this purpose. By navigating to theHosts > Hosts(or Adapter View) in the Administration UI, an administrator can search for the specific MAC address or IP of the host in question. Right-clicking on the host record reveals a context menu from whichPolicy Detailscan be selected. This view provides a real-time " look " into the policy engine ' s decision for that specific host, showing theNetwork Access Policythat was matched, theUser/Host Profilethat triggered the match, and the resultingNetwork Access Configuration(VLAN/ACL) currently applied.

WhilePolicy Logs (A)provide a historical record of all policy transitions across the system, they are often too high-volume to efficiently find a single host ' s current state. TheConnections view (B)shows the physical port and basic status but lacks the granular policy logic breakdown. ThePort Properties (D)view shows the configuration of the switch interface itself, which is only one component of the final access determination.

" To identify which policy is currently applied to a specific endpoint, use thePolicy Detailsview. Navigate toHosts > Hosts, select the host, right-click and choosePolicy Details. This window displays the specificNetwork Access Policy, User/Host Profile, and Network Access Configuration currently in effect for that host record. " —FortiNAC-F Administration Guide: Policy Details and Troubleshooting.
