NSE6_FMG_AD-7.6 Fortinet NSE 6 - FortiManager 7.6 Administrator Questions and Answers

The correct answer is B because FortiManager supports ADOM-level metadata variables in scripts and templates. The study guide explicitly states that meta fields cannot be used as variables in scripts or provisioning templates; instead, you must use ADOM-level metadata variables. It further says these variables can be used in templates, and their values can be mapped depending on the device where the template is applied.

That makes metadata variables the proper method for handling per-device differences such as whether a FortiGate should use a LAN or WAN source interface for FortiAnalyzer communication. A is wrong because per-device dynamic objects apply to objects like addresses and VIPs, not template interface selection. D is wrong because meta fields are comments/attributes, not template variables. C could work operationally, but it is not the FortiManager feature intended for this use case.

=========

The FortiManager 7.6 Administrator Study Guide is explicit for the scenario where both FortiManager and FortiGate are behind NAT. It states that FortiManager can discover FortiGate through the FortiGate NATed IP address, which makes A correct. It also explains that in this scenario, the FortiManager NATed IP address is not configured on FortiGate by default under central management, which makes B correct.

C is incorrect because FortiGate must use the FortiManager NATed IP address, not the non-NATed IP, if it needs to announce itself or reestablish the FGFM tunnel. D is also incorrect because in this NAT scenario, if the tunnel is torn down, only FortiGate attempts to reestablish the connection; FortiManager does not automatically do so.

=========

The FortiManager 7.6 Administrator Study Guide states under Copying System Templates Between ADOMs: “The first step is to export the system template from the original ADOM with the execute fmprofile export-profile command” and shows the output file being written to /tmp/Training, described as “File copied in FortiManager tmp folder.”

The key point is that the command exports the system template profile from the original ADOM, while /tmp/Backup_File is only the destination path on FortiManager where the exported file is stored. The same study guide also defines system templates as a “subset of model device configuration—system-level settings”, which means they belong to the device-level side of the ADOM, not the policy database.

So the export source is the ADOM device database, and the file is saved afterward in the FortiManager /tmp folder.

Enabling a workflow with approval ensures that any policy package changes must be reviewed and approved before installation, preventing administrators from repeating configuration mistakes and enforcing change control.

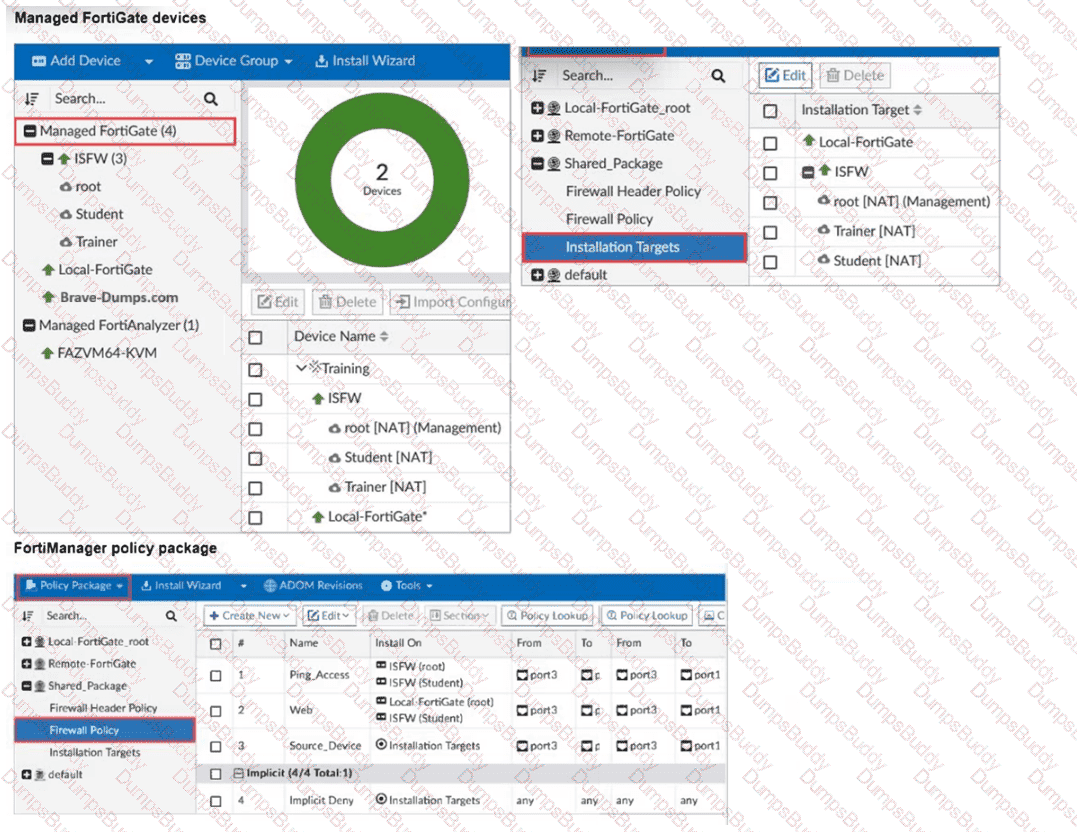

The best conclusion is A. From the exhibit, B is clearly incorrect because policy sequence #1 Ping_Access is targeted to ISFW root and ISFW Student, not to root NAT and Trainer NAT. Also, C is incorrect because FortiManager allows a rule to inherit Installation Targets. The study guide explains that a policy package can target one or more devices or VDOMs, and the Install On column is used only for per-rule exceptions in a shared policy package. A rule does not need explicit devices listed if it is meant to apply to the package’s installation targets.

D is also incorrect because global header policies are created in the Global Database ADOM and placed at the top only when a global package is assigned. The exhibit shows a shared policy package, not a global ADOM header-policy assignment.

=========

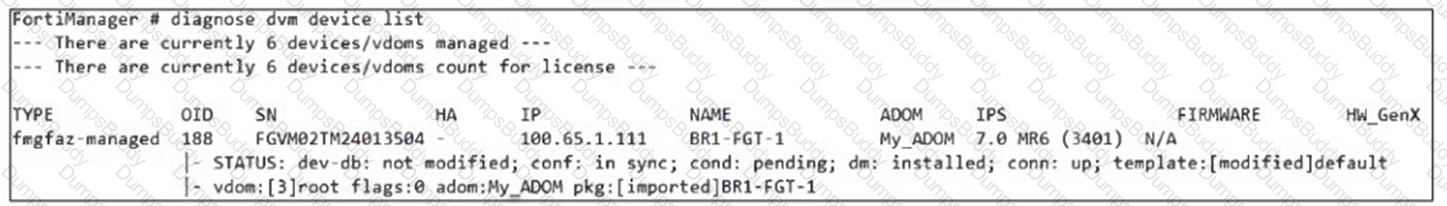

The output shows dev-db: not modified; conf: in sync, which means the device-level database is aligned with the latest revision history, so A is false. The study guide explains that “Synchronized / Auto-update: The latest revision history configuration entry … is aligned with the configuration on FortiGate,” and dev-db: not modified indicates the device-level settings are not changed on FortiManager.

For the policy layer, the output shows pkg:[imported]BR1-FGT-1. The study guide states “Imported: indicates that a policy package was successfully imported for a managed device,” so the policy package in FortiManager matches what was imported from the managed device context, making C correct.

D is also correct because the lab guide explicitly says “All Provisioning Templates applied on FortiGate devices have precedence over any configuration you apply on the device layer of the FortiManager.”

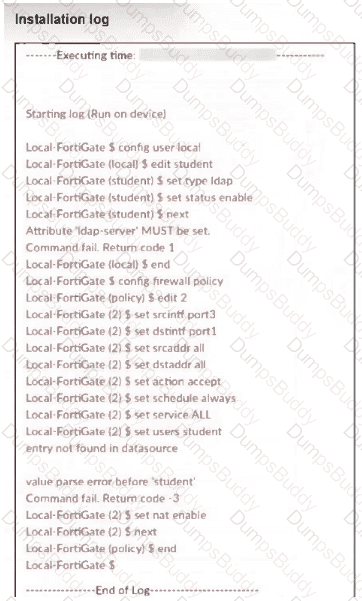

The correct answer is D. The lab guide explains that when an installation fails, the installation log shows the commands that the managed device received and accepted, as well as the commands that the managed device did not accept.

From the exhibit, FortiGate accepted the policy creation commands for policy ID 2 such as set srcintf port3, set dstintf port1, set srcaddr all, set dstaddr all, set action accept, and set schedule always. However, the line set users student failed with “entry not found in datasource” and “value parse error before ' student ' ”. That shows the user reference was not accepted, while the rest of the policy commands were processed. Therefore, policy ID 2 is still created, but without the remote user student. This rules out A, B, and C.

=========

FortiManager must have the NAT device ' s IP address and correct ports configured to communicate properly with the FortiGate behind NAT.

The NAT device must have the correct virtual IP address and ports configured to allow push updates to reach the FortiGate device.

The correct answer is D. The exact extract from the study guide says a revert operation “Reverts only the device database to the previous revision” and “Does not revert policies and objects—you must import them.” It further states: “Performing a revert operation followed by an installation only reverts device-level changes and does not revert policy packages.”

That exactly matches the CLI output. The device shows the device manager portion as installed and synchronized, while the policy package appears as unknown, which indicates the revert and installation affected the device-level configuration only. It did not reinstall or synchronize the policy package. Therefore B is incorrect. A is unsupported by the source, and C is unrelated because the firmware version is already shown in the device list output. The study guide also states that after revert you must use Import Configuration to synchronize policy information.

ADOM revisions save the current state of all policy packages and objects within an ADOM, allowing administrators to track changes over time and revert to previous configurations if needed.

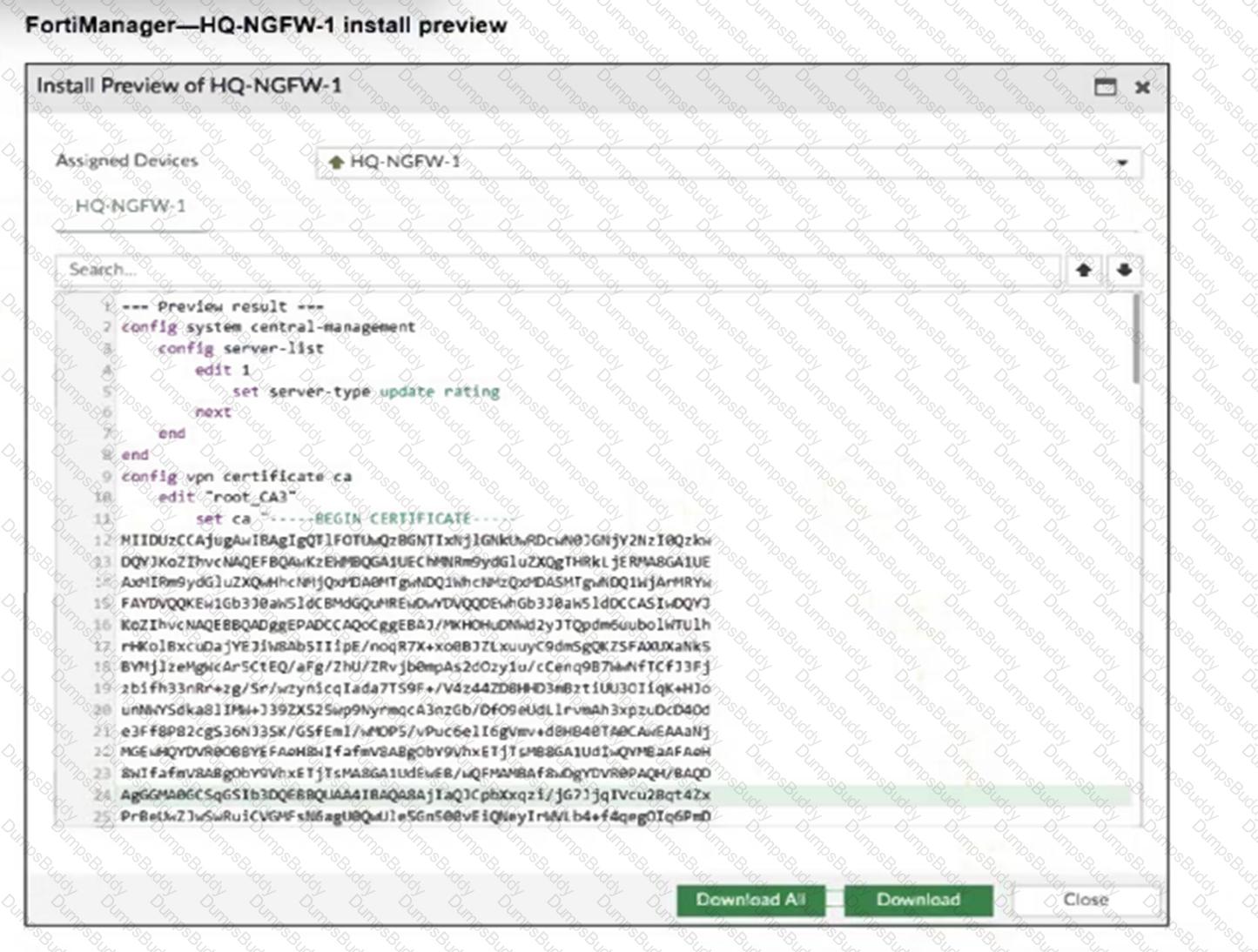

The configuration includes a server-list with server-type set to " update rating, " which enables FortiGate HQ-NGFW-1 to contact FortiManager as a FortiGuard Distribution Server (FDS) for FortiGuard updates.

The installation includes a root_CA3 certificate, which FortiManager will install on FortiGate HQ-NGFW-1 to authenticate FGFM tunnel connections between the devices.

The import report shows that a new policy package named Remote-FortiGate_root will be created in the FortiManager ADOM database, but some firewall addresses and policies failed to import due to interface binding conflicts.

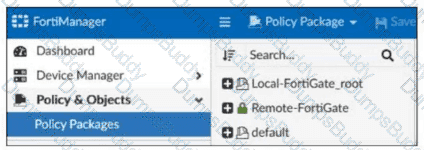

The exhibit shows Remote-FortiGate with a green closed lock icon, which indicates a locked policy package. The FortiManager 7.6 Administrator Study Guide states: “Policy locking is available in workspace normal and per-ADOM modes” and “Policy locking allows administrators to work on and lock a single policy package instead of locking the whole ADOM.” This confirms that a package such as Local-FortiGate_root can also be locked, so A is correct.

B is incorrect because the study guide and lab guide describe snapshots as ADOM revisions, not policy package snapshots: “An ADOM revision creates a snapshot of the policy and object configuration for the ADOM.”

D is incorrect because in workflow mode, sessions and approval are required before installation. The exhibit shows a normal save/lock state, not a workflow session state.

=========

Limiting ADOM revisions reduces the number of stored historical configurations, which helps avoid performance degradation and slow ADOM upgrades caused by a large volume of revisions.

FortiManager helps with mass provisioning by using templates that allow administrators to configure the same settings on multiple FortiGate devices simultaneously, streamlining deployment and management.
