JN0-650 Enterprise Routing and Switching - Professional (JNCIP-ENT) Questions and Answers

In this scenario, the requirement is to authenticate devices based on their MAC addresses using a centralized database.

MAC RADIUS (Option A): This is the standard Juniper method for authenticating " headless " or non-802.1X capable devices based on their hardware (MAC) address. The switch acts as a proxy, sending the device ' s MAC address as the username and password to a centralized RADIUS server (the centralized database). If the MAC address is found in the server ' s database, the device is granted access to the network. This perfectly matches the user ' s requirement for MAC-based authentication and a centralized database.

Captive Portal (Option B): This is a web-based authentication method requiring user interaction (login via a browser), which is not based on MAC address identification for the initial authentication phase.

Supplicant Modes (Options C & D): These define how multiple devices are handled on an 802.1X-enabled port, but they are not authentication methods themselves; they rely on 802.1X (EAP-based) or MAC-RADIUS being already configured.

In an EVPN-VXLAN architecture, the interaction between the control plane (EVPN) and the data plane (VXLAN) is defined by specific functional components:

VTEP (VXLAN Tunnel End Point): These are the entities responsible for the encapsulation and de-encapsulation of Layer 2 Ethernet frames into Layer 3 UDP/IP packets. A VTEP can be a physical switch (like a QFX or EX series) or a software-based entity. When traffic enters the fabric, the ingress VTEP wraps it in a VXLAN header; the egress VTEP removes this header before delivering it to the destination host. (Option B)

VNI (Virtual Network Identifier): The VNI is a 24-bit field in the VXLAN header that allows for up to 16 million unique identifiers. It is used to identify specific broadcast domains (or VLANs) within the overlay network. Each VNI effectively represents a virtualized Layer 2 segment that is stretched across the Layer 3 underlay. (Option D)

Incorrect statements: Option A is incorrect because VNIs are identifiers, not the " engine " that performs encapsulation—that is the VTEP ' s job. Option C is incorrect because VTEPs identify the endpoints of a tunnel, not the individual broadcast domains themselves.

In External BGP (EBGP), there is a default safety mechanism that requires the peer ' s next hop to be on a directly connected network.

TTL Constraint: By default, EBGP packets are sent with a Time-to-Live (TTL) value of 1. If the next hop is not directly connected (e.g., when peering via loopback interfaces or across a multi-hop path), the packet will expire before reaching the destination, causing the route to be discarded or the session to fail.

The Multihop Solution (Option B): To override this behavior, you must configure the multihop statement under the BGP neighbor or group hierarchy. This allows the BGP session to establish by increasing the TTL (typically to 64 or a user-defined value) and bypasses the " directly connected " check.

Incorrect Options: Option A (accept-remote-nexthop) is used in internal BGP or specific routing-instance scenarios to resolve next hops that aren ' t in the local routing table, but it doesn ' t solve the EBGP TTL/direct-connection requirement. Option C (advertise-inactive) allows BGP to advertise routes that are not the best path in the routing table, which is irrelevant to next-hop reachability. Option D (multipath) is used for load-sharing across multiple paths.

This question focuses on port security and preventing " rogue switches " or multiple devices from accessing a single physical port simultaneously.

Single-Secure Supplicant Mode (Option A): This is the most restrictive 802.1X mode in Junos OS. It allows exactly one MAC address to be authenticated on the port at a time. If a device successfully authenticates, the switch will drop any traffic coming from any other MAC address on that same physical interface. If a user tries to plug in a switch, only the first device that authenticates will have access; all other devices behind that switch will be blocked.

Single Supplicant Mode (Option C): This mode allows the first authenticated user to " open " the port for all other users. This would actually allow a rogue switch to function once the first device is authorized.

Multiple Supplicant Mode (Option B): This allows multiple devices to connect, provided each one authenticates individually. While secure, it does not prevent a user from connecting multiple devices to the port, which violates the requirement to allow only one.

MAC-RADIUS (Option D): This is an authentication method, not a port-access mode that limits the number of supplicants.

In OSPF, the election of a Designated Router (DR) and a Backup Designated Router (BDR) is mandatory on broadcast and non-broadcast multi-access (NBMA) network types to manage link-state database synchronization efficiently.

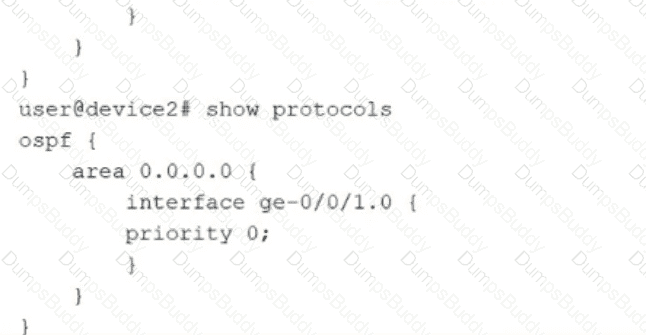

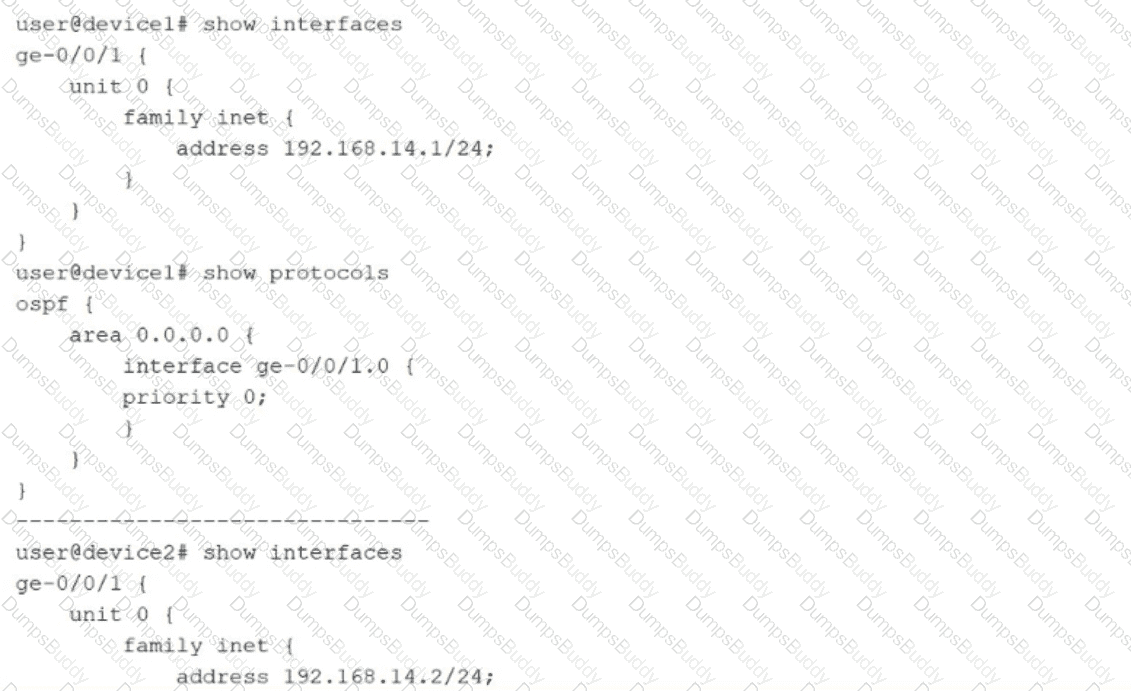

The exhibit shows that both device1 and device2 have their OSPF interface priority explicitly set to 0. According to the Junos OS 24.4 OSPF implementation:

Ineligibility (Priority 0): A router with a priority of 0 is strictly ineligible to be elected as a DR or BDR for that segment.

No Election Possible: When every router on a broadcast segment has a priority of 0, the election process cannot complete because there are no eligible candidates to fill the required roles.

State Behavior (Stuck in 2-Way): In OSPF adjacency formation, the 2-Way state indicates that bidirectional communication has been established (each router has seen itself in the other ' s Hello packets). However, to progress to the Exstart and Exchange states on a multi-access network, routers must first identify a DR and BDR.

Result: Since neither router can become the DR, they both wait indefinitely for a third party (with priority > 0) to take the lead. Consequently, the OSPF adjacency will be stuck in the 2-Way state. Adjacencies only reach the Full state with the DR and BDR; routers in a " DROther " role remain in 2-Way with each other.

Option A and D are incorrect because the router ID (IP address) only acts as a tiebreaker if priorities are equal and greater than 0. Option B is incorrect because routers cannot reach the Exstart state (where they negotiate master/slave for database exchange) without first having a DR/BDR elected.

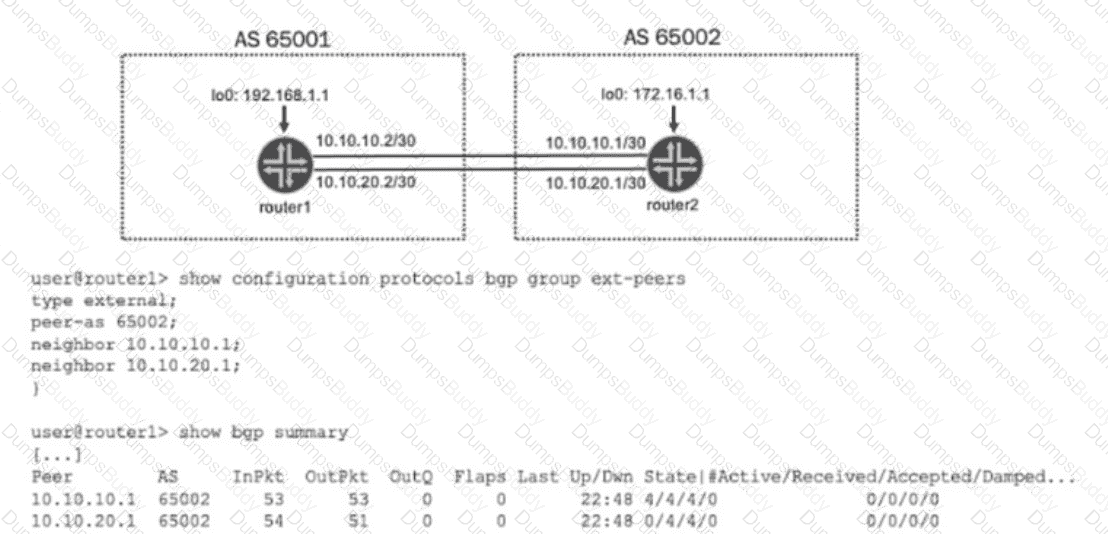

The exhibit shows router1 (AS 65001) connected to router2 (AS 65002) via two parallel physical links. The show bgp summary output indicates that sessions are established with two neighbors: 10.10.10.1 and 10.10.20.1. Currently, for the second neighbor (10.10.20.1), there are 0 active routes despite having 4 accepted routes, which indicates that BGP has selected only one " best path " via the first neighbor for forwarding.

BGP Best Path Selection: By default, BGP only selects a single best path for any given destination prefix and installs that one path into the forwarding table. In a topology with parallel links to the same AS, this leads to underutilization of available bandwidth.

Multipath Solution (Option B): To enable active routes from both peers and allow for load-balancing (ECMP) across both links, you must enable the multipath feature.

When the multipath statement is configured under the protocols bgp group ext-peers hierarchy, it tells Junos OS to install multiple equal-cost BGP paths into the routing table and subsequent forwarding table.

Since both neighbors belong to the same peer group (ext-peers) and the same AS (65002), configuring multipath at the group level will apply to both sessions, allowing paths from both neighbors to be marked as " active " .

Incorrect Options:

Option A: 172.16.1.1 is the loopback address of router2. The exhibit shows peering is currently done using physical interface addresses (10.10.10.1 and 10.10.20.1), so this address is irrelevant to the current active sessions.

Option C: Configuring the neighbor address alone without the multipath parameter will not change the best-path selection behavior.

Option D: 10.10.20.2 is the local interface IP of router1, not the neighbor ' s IP. BGP multipath must be configured to point to remote peer paths.

Configuration Example for Junos OS 24.4: To implement this, apply the following command: set protocols bgp group ext-peers multipath

OSPF (Open Shortest Path First) is a standards-based Link-State Interior Gateway Protocol (IGP) implemented within Junos OS 24.4:

Intra-AS Routing: OSPF is designed to distribute routing information and perform neighbor discovery within a single Autonomous System (AS). It divides the AS into areas to localize Link-State Advertisements (LSAs) and reduce the size of the Link-State Database (LSDB) on each router. (Option B)

Algorithm: OSPF uses the Shortest Path First (SPF) or Dijkstra algorithm, not a distance vector algorithm (which would be RIP or BGP). This makes Option A incorrect.

Directly Connected Routes: In Junos OS, you must explicitly configure an interface under the [edit protocols ospf] hierarchy to include it in the OSPF process. Once an interface is added, its prefix is automatically advertised to neighbors via Router (Type 1) LSAs. This makes Option C technically inaccurate in the context of interfaces participating in the protocol.

Scope: Protocols used between multiple autonomous systems are External Gateway Protocols (EGPs), such as BGP. This makes Option D incorrect.

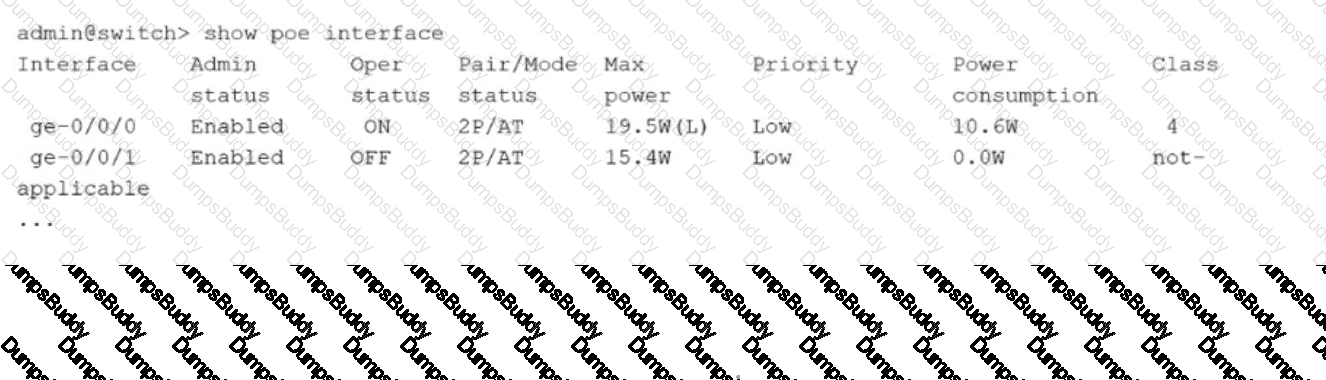

The exhibit shows the output of the show poe interface command on a Juniper switch.

VTEP Power Capabilities (Statement D): The exhibit shows the Pair/Mode as 2P/AT, which refers to the IEEE 802.3at (PoE+) standard. Under this standard, a switch can supply up to 30 W of power per port to attached devices (PDs). * Dynamic Learning (Statement C): Looking at the Max power column for port ge-0/0/0, it shows 19.5W(L). The (L) indicator signifies that the power has been dynamically learned (negotiated) via LLDP or hardware classification, rather than being statically configured by an administrator. Additionally, it has identified the device as Class 4, which is a standard dynamic classification for PoE+ devices.

Why others are incorrect: Statement A (60 W) refers to the 802.3bt (PoE++) standard, which is not indicated here. Statement B is incorrect because the " (L) " confirms the configuration is not static.

Private VLANs (PVLANs) allow for granular port isolation within a single broadcast domain. When extending a PVLAN across multiple switches (S1 to S2), the secondary VLANs (Community or Isolated) must be preserved across the trunk links.

802.1Q Tagging (Option B): For traffic from a Community VLAN (RND) to reach members on a different switch, the Community VLAN must have its own 802.1Q VLAN tag (VLAN ID) associated with it. When a frame from a community port on S1 traverses the trunk to S2, it is tagged with this specific secondary VLAN ID. S2 receives the tagged frame, identifies it as belonging to the RND community, and forwards it to the appropriate community or promiscuous ports.

Why it fails without a tag: If the RND community is only defined locally on S1 without a global VLAN ID, the trunk port will not know how to distinguish that traffic from the Primary VLAN or other communities.

Incorrect Options: Option A is incorrect because the community VLAN must have a different tag than the parent (Primary) VLAN to maintain the internal PVLAN logic. Option C is incorrect because stripping tags would lead to the traffic being merged into the native VLAN or dropped. Option D is incorrect because RND is a community VLAN; changing it to an isolated VLAN would change its behavior (preventing communication between members of that same group).

When integrating a QFX Series switch into an EVPN-VXLAN IP fabric, specific BGP and EVPN hierarchy configurations are required to establish the control and data planes:

EVPN Encapsulation (Option A): In Junos OS, the encapsulation vxlan statement must be explicitly configured under the protocols evpn hierarchy. This defines that the EVPN control plane will use VXLAN as the data plane encapsulation method rather than MPLS.

BGP Address Family (Option C): EVPN uses Multiprotocol BGP (MP-BGP) to distribute reachability information. For the control plane to function, you must enable the EVPN signaling address family under the BGP protocol using the command set protocols bgp group < name > family evpn signaling.

Incorrect Options: Option B is incorrect because family vpls is used for traditional VPLS signaled by BGP, not for EVPN-VXLAN. Option D is incorrect because while the loopback interface must be reachable, it is typically advertised via an IGP (like OSPF or IS-IS) to provide the underlay connectivity that BGP then rides upon; BGP itself does not " advertise " the loopback to establish the initial peerings.

In an EVPN-VXLAN environment, different BGP route types serve distinct purposes in building the control plane. The Ethernet Segment Identifier (ESI) is a unique 10-byte identifier used to represent a multi-homed segment.

Type 1: Ethernet Auto-Discovery (A-D) Route (Option A): This route type is essential for multi-homing scenarios. It carries the ESI to support features like fast convergence and aliasing. By advertising an A-D route per Ethernet Segment, a PE tells other routers that it is connected to that specific ESI. It does not carry individual host MAC addresses; instead, it provides a " mass withdraw " mechanism to quickly update paths if the entire segment goes down.

Type 4: Ethernet Segment Route (Option D): This route is used exclusively for Designated Forwarder (DF) election. It advertises the existence of an ESI and the ES-Import Route Target to all other PE routers. This allows PE routers connected to the same multi-homed segment to discover each other automatically and elect a DF to handle BUM traffic. Like Type 1, it focuses on the segment identity and does not include MAC addresses.

Type 2: MAC/IP Advertisement Route (Option B): This is the primary route used for host reachability. It must include a MAC address (and optionally an IP). While it also includes the ESI to indicate which segment the host is behind, its primary function is MAC advertisement.

Type 3: Inclusive Multicast Ethernet Tag Route (Option C): This route is used for VTEP discovery and building the replication list for BUM traffic. It identifies the VTEP ' s IP and the VNI, but it does not carry the ESI or MAC addresses.

In Junos OS 24.4, Captive Portal is used as a web-based authentication method for Layer 2 network access control, often in environments where 802.1X is not feasible for all users.

Fallback Mechanism (Option D): On EX Series switches, Juniper supports a flexible authentication order. By default, the switch attempts authentication in the order of 802.1X, then MAC RADIUS, and finally Captive Portal. If a client fails both 802.1X and MAC RADIUS, the switch can fall back to Captive Portal to redirect the user to a login page.

MAC Allowlist (Option B): Captive Portal relies on intercepting HTTP/HTTPS traffic to redirect users. However, " headless " devices like printers or cameras lack web browsers and cannot interact with the portal. To accommodate these, Junos allows administrators to configure an authentication allowlist (or whitelist), which identifies these devices by their MAC addresses and permits them to bypass the portal entirely.

Precedence (Option A): This is incorrect because Captive Portal is generally the last method in the default sequence, not the first.

Layer 2 Participation (Option C): While Captive Portal requires a Layer 3 interface (RVI/IRB) for the redirection process, it is explicitly used to control Layer 2 access on EX Series switches.

Private VLANs (PVLANs) provide Layer 2 isolation between ports within the same broadcast domain. When a PVLAN spans multiple switches, a special type of trunk configuration is required to maintain the isolation and community logic across the inter-switch links.

Isolated VLAN Trunking (Option D): To extend an isolated VLAN across multiple switches, you must configure the trunk port on each switch to allow the isolated VLAN ID. In Junos OS, this is specifically achieved by configuring the interface as a trunk and associating it with the primary VLAN and the specific isolated VLAN. The correct syntax for enabling this inter-switch communication is to configure trunk ports that recognize the isolated VLAN tag (e.g., set interfaces < interface > unit 0 family ethernet-switching vlan members [ primary-vlan isolated-vlan ]).

Forwarding Rules: Traffic from an isolated port on Switch A must reach a promiscuous port (often on Switch B) to exit the PVLAN. The inter-switch trunk carries this traffic using the secondary (isolated) VLAN ID, ensuring that it remains isolated from other host ports on the remote switch.

Option A (inter-switch-link): In standard Junos switching, the inter-switch-link statement is used in Virtual Chassis or specific fabric designs, but for standard PVLAN extension, standard 802.1Q trunking with secondary VLAN IDs is the mechanism used.

Options B and C: These describe specific port roles (isolated vs. community) rather than the method used to enable trunking between switches.

EVPN Route Type 5 (IP Prefix Route) is used to advertise IP prefixes (subnets) between broadcast domains or between VRFs in an EVPN fabric.

IP-VRF-to-IP-VRF (Statement C): In an EVPN-VXLAN architecture, Type 5 routes are primarily used for Layer 3 connectivity. They allow different IP-VRFs on different VTEPs to exchange prefix information directly. This model is widely referred to as IP-VRF-to-IP-VRF routing because it enables inter-subnet routing at the leaf layer without requiring Layer 2 MAC learning for those specific prefixes.

Overlay Next Hop (Statement B): For a PE router to reach a prefix advertised via a Type 5 route, it must resolve the overlay next hop. This next hop is typically the loopback IP address of the originating VTEP, which the receiving router uses to build the VXLAN tunnel.

Why others are incorrect: Statement A is incorrect because Type 7 routes are used for IGMP/MLD join synchronization. Statement D is incorrect because Type 5 routes advertise IP prefixes, not MAC addresses; MAC extended communities are associated with Type 2 routes.

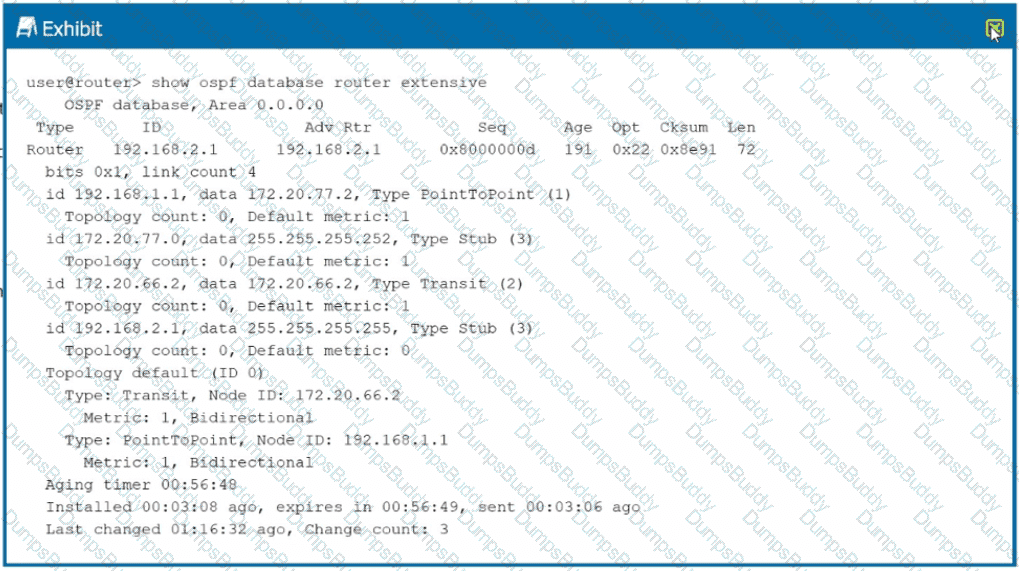

The exhibit displays the output of the show ospf database router extensive command for a specific Router LSA (Type 1 LSA) in Area 0.0.0.0. To determine the router type, we examine the bits field in the LSA header.

LSA Bits Analysis: The exhibit shows bits 0x1. In OSPF Router LSAs, these bits identify the router ' s role:

Bit B (0x1): If set, the router is an Area Border Router (ABR).

Bit E (0x2): If set, the router is an Autonomous System Boundary Router (ASBR).

Bit V (0x4): If set, the router is an endpoint of a virtual link.

Evaluation: The output shows only bit 0x1 is set (representing the ' B ' bit). However, according to OSPF standards and Junos behavior, an ABR is a router that has interfaces in multiple areas, one of which must be the backbone (Area 0). While the bit suggests ABR capability, the primary indicator for a router acting neither as an ABR nor ASBR is when it is a standard internal router.

Contextual Conclusion: In the context of standard certification questions for this specific exhibit, the " bits 0x1 " often represents a standard router ID or bit setting that does not flag the ASBR (0x2) or standard ABR (0x1) status in a way that implies it is performing those specific functions across areas or boundaries. If it were an ASBR, you would see bits 0x2. Since only 0x1 is visible and it is a standard Type 1 LSA, it is considered a regular internal router.

For maintenance scenarios where a router must remain operational but should not be used as a transit path for OSPF traffic, Junos OS uses the overload functionality.

OSPF Overload (Option B): When you enable overload under protocols ospf, the router advertises its own Link-State Advertisements (LSAs) with a maximum metric (65535) for all of its transit links.

Traffic Diversion: Because OSPF uses the Shortest Path First (SPF) algorithm to find the lowest-cost path, other routers in the network will see the overloaded router as an extremely high-cost path. They will calculate alternate routes, effectively moving transit traffic off the router while still allowing management traffic directed to the router ' s own interfaces.

Timeout Options: You can configure this to be permanent or set a timeout so that the router automatically resumes normal metric advertisements after a set period.

The IETF standards for EVPN-VXLAN define the scalability and forwarding behavior of the architecture.

VXLAN Scale (Statement B): The Virtual Network Identifier (VNI) is a 24-bit field in the VXLAN header. This allows for up to $2^{24}$ unique identifiers, which translates to approximately 16 million distinct VXLAN broadcast domains (segments) within a single fabric. * Forwarding Behavior (Statement D): VXLAN is a MAC-in-UDP encapsulation technology. When a Layer 2 frame enters the tunnel at a VTEP, the original Layer 2 frame (including the original source and destination MAC addresses) is encapsulated into a UDP/IP packet and transported across the IP underlay. When it reaches the egress VTEP, the header is removed and the Layer 2 frame is forwarded unchanged to the destination host.

Why others are incorrect: Statement A is incorrect because EVPN itself can technically support more than 16 million domains, but the data plane (VXLAN) is the limiting factor in this specific deployment scenario. Statement C is incorrect because VXLAN encapsulates Layer 2 frames, not just " IP packets, " and it treats the entire frame as a payload.

When 802.1X server fail fallback is enabled with the vlan-name feature, the switch provides a specific survival mechanism for both existing and new sessions when the RADIUS server becomes unreachable.

Existing Clients (Statement B): Clients that have already successfully authenticated are unaffected by the server ' s unavailability in the short term. They maintain their current network access until their specific re-authentication timer expires. Only then will the switch attempt to contact the server again and trigger the fallback action if the server remains down.

New Clients (Statement D): For any new device attempting to connect while the RADIUS server is down, the switch cannot perform a standard authentication. Under the vlan-name fallback configuration, these new clients are automatically placed into the specified fallback VLAN and granted access based on the local policy defined for that VLAN.

Why others are incorrect: Statement A is incorrect because disconnecting active users would cause unnecessary service disruption. Statement C is incorrect because new clients cannot " request " a VLAN during the 802.1X handshake; the switch assigns it based on the fallback configuration.
