AI-103 Developing AI Apps and Agents on Azure Questions and Answers

The correct recommendation is B. Add a connection to the Azure AI Search resource . Microsoft Foundry project connections are used to centrally define access from a project to external resources, including Azure AI Search. The official connection guidance states that you can add a connection by selecting an external service such as Azure AI Search , choosing the resource, and selecting the authentication method for that resource. This creates a reusable project-level configuration rather than requiring each agent to store or duplicate search credentials independently.

For Foundry agents that use Azure AI Search, the Azure AI Search tool requires a project_connection_id, which is the resource ID of the project connection to Azure AI Search. This allows multiple agents to reference the same managed connection while using the configured endpoint and authentication settings consistently. RBAC may be part of a keyless authentication design, but it does not by itself create a centrally managed Foundry credential configuration. Disabling key-based access improves security posture but does not connect the agents. A managed private endpoint addresses network isolation, not credential centralization. Reference topics: Microsoft Foundry project connections, Azure AI Search tool, project connection IDs, authentication, and agent grounding.

The solution does not meet the goal. A completeness evaluation flow is useful for detecting incomplete responses, but detection and blocking do not improve the response itself. Microsoft Foundry RAG evaluators define Response Completeness as a metric that measures whether a response covers all critical information from the expected response or ground truth. It is a system evaluation signal used to assess response quality and produce pass/fail or scored results.

In this scenario, the issue is that the agent omits required regulatory clauses even though the clauses are present in retrieved content. Blocking low-scoring responses would prevent incomplete answers from being returned, but it would not revise the summary, add the missing clauses, or improve the generation process. The appropriate improvement is to add a response-generation control such as a reflection or verification pass that checks the draft summary against the retrieved policy content and regenerates or amends the answer before returning it. Evaluation can support the quality gate, but by itself it is an assessment mechanism, not a completeness-enhancement mechanism. Reference topics: Microsoft Foundry RAG evaluators, response completeness, grounded generation, reflection, and response quality optimization.

The correct answer is A. Speech recognition requests will fall back to the most recent base model for the same locale . Microsoft’s custom speech model lifecycle guidance states that when a model expires, it is no longer available for transcription. For the custom endpoint route, speech recognition requests fall back to the most recent base model for the same locale. The documentation also warns that recognition results might still be returned, but the transcription may no longer reflect the domain-specific adaptation of the custom model.

This distinguishes real-time custom endpoint behavior from batch transcription behavior. Batch transcription requests that specify an expired model fail with a 4xx error, but that is not the route described in this question. The agent is using a custom endpoint for real-time recognition, so fallback to the latest base model is the expected behavior. The model is not automatically deleted merely because it expires, and it does not continue to use the expired custom model indefinitely. The operational recommendation is to update the endpoint’s model before expiration by redeploying the endpoint with a newer custom model. Reference topics: Azure Speech custom speech model lifecycle, custom endpoints, model expiration, real-time speech recognition, and endpoint redeployment.

The solution does not meet the goal. Prompt Shields for user prompts are designed to detect direct attempts by a user to manipulate the model through the prompt itself. In this scenario, the malicious instructions are embedded inside uploaded images and then introduced into the model context through extracted image text. That pattern is an indirect prompt injection or document attack, not merely a direct user-prompt attack. Microsoft’s Prompt Shields guidance distinguishes between user prompt attacks and document attacks, and states that document attacks involve harmful instructions embedded in supplied documents or third-party content.

The solution is also incomplete because users can upload unsafe images. Azure AI Content Safety includes image APIs that detect harmful content in images and support moderation across modalities. A complete mitigation would combine image moderation for unsafe visual content with Prompt Shields for document attacks, and optionally Spotlighting, so OCR-derived or embedded image text is treated as lower-trust context. Prompt Shields for user prompts alone would not reliably block unsafe images or hidden instructions extracted from those images. Reference topics: Azure AI Content Safety, Prompt Shields, user prompt attacks, document attacks, image moderation, and multimodal safety.

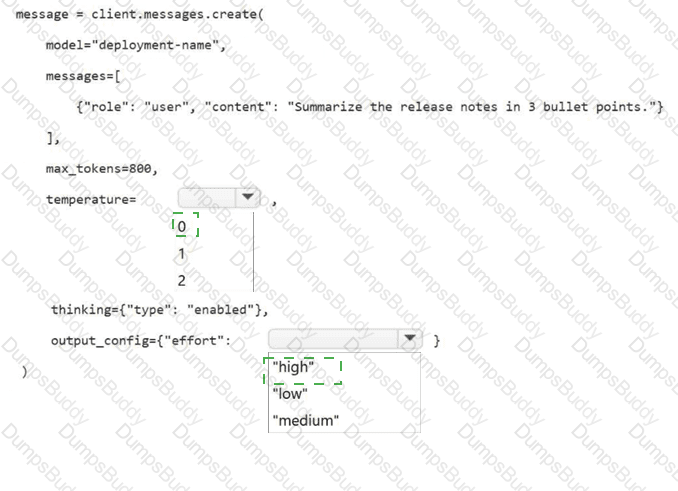

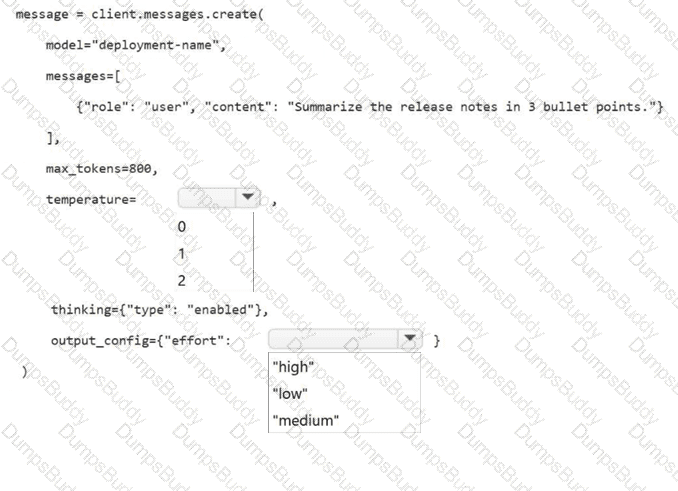

temperature = 0

output_config = { " effort " : " high " }

The correct configuration is temperature = 0 and output_config = { " effort " : " high " }. The requirement is to reduce small wording variations that are breaking automated validation. In chat completion requests, temperature controls sampling randomness. Microsoft’s Azure OpenAI reference states that temperature ranges between 0 and 2, and that higher values make output more random while lower values make output more focused and deterministic. Therefore, the most stable setting from the available choices is 0, because it minimizes randomness and improves repeatability for validation-sensitive response patterns.

The solution must also maximize reasoning quality. The code already enables thinking with thinking={ " type " : " enabled " }, so the remaining reasoning-quality control is the effort setting. Microsoft Foundry model guidance states that the effort parameter controls the quality/cost tradeoff and supports low, medium, and high effort levels. Selecting " high " maximizes reasoning quality among the available options.

Using temperature values of 1 or 2 would increase variability and make validation mismatches more likely. Selecting low or medium effort would not meet the requirement to maximize reasoning quality. Reference topics: Microsoft Foundry model inference, chat model parameters, temperature, thinking, effort, and output stability.

The correct answer is C because the requirement is structured field extraction from invoices across varying templates, not only OCR or layout preservation. Azure Content Understanding analyzers are reusable configurations that combine content extraction, AI-powered analysis, and structured data output, and Microsoft states that custom analyzers can be created for specific extraction needs. In this case, the analyzer schema should define fields such as invoice number, invoice date, vendor name, and total amount so the output can be returned as structured JSON for downstream RAG grounding.

The confidence-routing requirement also points to Content Understanding field confidence scores. Microsoft documentation states that every field can include a confidence score from 0 to 1, and that confidence scores can be used to automate high-confidence results while routing low-confidence results for human review. A threshold such as 0.80 is therefore an application routing rule based on the returned field confidence. The prebuilt-layout analyzer preserves layout but does not define invoice-specific business fields. Groundedness guardrails evaluate generated answers, not invoice field extraction. Azure AI Search search.score measures retrieval relevance, not extraction confidence. Reference topics: Content Understanding custom analyzers, document field extraction, structured JSON output, confidence scoring, and RAG grounding.

The correct answer is B. Personally Identifiable Information (PII) Detection . The case study states that Agent1 must never reveal customer information , even if a document containing customer data is added accidentally to the product sheet repository in storage1. This is a privacy and compliance control requirement, so the appropriate capability is PII Detection.

Azure Language PII Detection is a Foundry Tools capability that identifies, classifies, and redacts sensitive information across text, conversations, and native documents. Microsoft states that PII Detection can be used to implement privacy controls, reduce sensitive data exposure, and support compliance requirements. In this scenario, PII Detection should be applied to retrieved product-sheet content and generated responses so customer names, contact details, identifiers, and other sensitive values are not exposed to users.

Prompt Shields are important for a separate requirement: protecting Agent1 from malicious instructions hidden in documents or embedded text. Microsoft describes Prompt Shields for documents as protection against hidden instructions embedded in external content. However, the option that directly satisfies the requirement to prevent disclosure of customer information is PII Detection. Self-harm and violence filters address harmful-content categories, not privacy leakage.

The correct answer is B. Modify the system message instructions . The case study states that Agent1 answers general questions about Contoso products and that a business requirement is for Agent1 to answer questions only about products sold by Contoso. This requirement defines the agent’s allowed domain and refusal boundary, so it must be expressed in the agent’s system-level instructions. Microsoft Foundry guidance states that system messages steer Azure OpenAI chat model behavior and are used to define the assistant’s role, boundaries, output format, and safety or quality constraints.

The system message should instruct Agent1 to answer only Contoso-product questions, use Contoso product documentation when available, and decline questions about non-Contoso products. This directly enforces the intended business scope at the highest instruction level. Few-shot examples can reinforce desired behavior but are not the primary control for defining mandatory operating boundaries. Top-p sampling and temperature are decoding controls; they influence randomness and diversity, not whether the agent restricts answers to a specific product domain. Increasing temperature would likely reduce consistency. Reference topics: Microsoft Foundry agent instructions, system message design, prompt engineering, response boundaries, and grounded generative AI behavior.

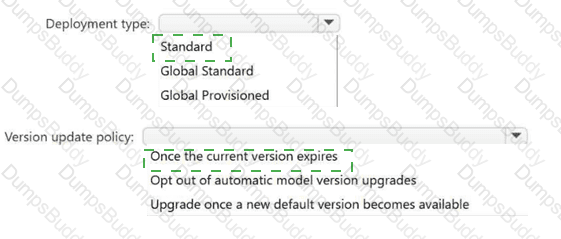

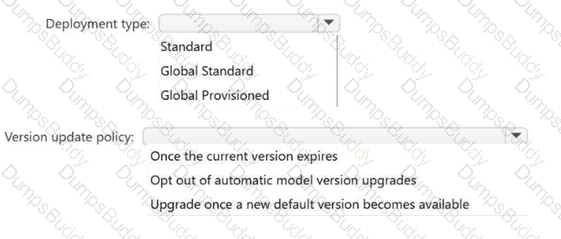

Deployment type: Standard

Version update policy: Once the current version expires

The correct deployment type is Standard . The case study specifies that Project1 is deployed in an EU Azure region and that model-processed data must remain within the EU. It also requires scalable, high-throughput generative AI workloads that dynamically handle variable customer support traffic without reserved throughput capacity. In Microsoft Foundry Models, Standard is a pay-per-token deployment type that processes data in a single Azure region, while Global Standard can process requests across regions and Global Provisioned uses reserved provisioned throughput. Microsoft’s deployment-type guidance identifies Standard as single-region, pay-per-token, whereas Global Provisioned is cross-region with reserved capacity.

The correct version update policy is Once the current version expires . This keeps Agent1 on the selected model version during its supported lifecycle, which supports stable and consistent responses, but still preserves continuity by automatically moving to a supported replacement when the current version is retired. Microsoft’s model versioning guidance states that this policy updates only when the current model version expires, while upgrading when a new default is available changes the deployment sooner and opting out can cause the deployment to stop working after retirement. Reference topics: deployment types, regional data processing, model versioning, throughput capacity, and stable production deployments.

The correct recommendation is Azure Content Understanding in Foundry Tools . The case study states that Contoso’s finance department must manually review vendor invoices to verify that invoice details match vendor contract terms, and that the invoices contain tables, logos, and varied layouts that make consistent processing difficult. It also states that the planned solution must evaluate both the visual layout and textual content of the invoices.

Azure Content Understanding is designed for this type of multimodal document-processing workload. Microsoft describes Content Understanding as a Foundry Tool that processes unstructured and multimodal content, including documents and images, and transforms it into structured output for AI applications. It can use document analyzers to extract text, layout, tables, fields, and relationships from diverse document types.

Chat completions alone would not reliably extract structured invoice fields from complex layouts. Azure Document Intelligence can extract OCR, layout, and tables, but Content Understanding is the better end-to-end Foundry capability for combining visual and textual understanding with structured extraction for downstream verification. Image Analysis focuses on image-level visual features and is insufficient for invoice field and table review. Reference topics: Content Understanding, document analyzers, multimodal extraction, invoice processing, tables, layout, and structured JSON output.

The correct answer is B. Modify the system message instructions . The case study states that Agent1 answers general questions about Contoso products and that the business requirement is for Agent1 to answer questions only about the products sold by Contoso . This is a behavioral boundary for the agent, so it should be implemented in the highest-priority instructions that define the agent’s role, allowed scope, and refusal behavior.

Microsoft Foundry guidance states that a system message is used to steer model behavior, define the assistant’s role and boundaries, and add safety or quality constraints for the scenario. The system message should instruct Agent1 to answer only when the question concerns Contoso products, use the configured Contoso product documentation as grounding, and politely refuse or redirect questions about non-Contoso products.

Top-p sampling and temperature control randomness, not business-domain scope. Increasing temperature would make responses less deterministic. Few-shot examples can support desired behavior, but examples alone are weaker than explicit system-level instructions for defining operating boundaries. Reference topics: system message design, prompt engineering, agent instructions, response constraints, and grounded generative AI behavior.

The correct recommendation is Azure AI Search. The case study states that the product detail sheets are stored as PDFs in storage1, and that Agent1 must be enabled to retrieve and use detailed product information from those sheets. It also specifies that the indexing pipeline must enable semantic and vector search, and that Agent1 must answer natural language questions about product details by using the product sheet information. Azure AI Search is the Azure service designed to ingest content from sources such as Azure Blob Storage, create searchable indexes, and support keyword, semantic, hybrid, and vector retrieval for Retrieval Augmented Generation (RAG) solutions.

Microsoft’s Azure AI Search guidance states that integrated vectorization can chunk content and generate embeddings during indexing, enabling vector search over source documents. It also states that Azure AI Search supports text and vector queries and can improve raw content for search-related scenarios through enrichment pipelines. Azure Translator is unrelated to retrieval. Document Intelligence can extract document structure, but it is not the retrieval index for Agent1. Grounding with Bing Search retrieves public web content, not Contoso’s private PDFs in storage1. Reference topics: Azure AI Search, RAG, semantic search, vector search, Azure Blob Storage indexing, and agent grounding.

The correct built-in skills are Azure OpenAI Embedding and Text Split. The case study requires an indexing pipeline that enables semantic and vector search over the product sheets stored in Azure Blob Storage, so Agent1 can retrieve relevant product information for natural language customer questions. For a RAG pipeline, long PDF content must first be broken into retrievable chunks, and each chunk must then be vectorized for semantic similarity retrieval.

Microsoft’s Azure AI Search integrated vectorization guidance states that you create a skillset that calls the Text Split skill for chunking and the Azure OpenAI Embedding skill to vectorize the chunks. The Text Split skill breaks text into chunks and provides positional metadata, making it suitable when downstream embedding skills have input-length limits. The Azure OpenAI Embedding skill connects to an embedding model deployed in Azure OpenAI or a Microsoft Foundry project and generates embeddings during indexing.

Language Detection, Entity Recognition, and key phrase extraction can enrich text, but they do not create vector embeddings. Merge is useful for combining OCR text with document text, but it does not satisfy the core vector-search requirement. Reference topics: Azure AI Search skillsets, Text Split skill, Azure OpenAI Embedding skill, integrated vectorization, and RAG indexing.

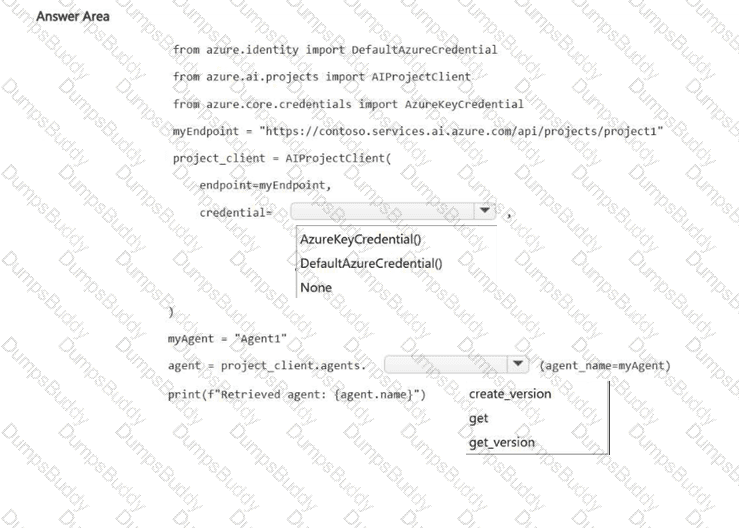

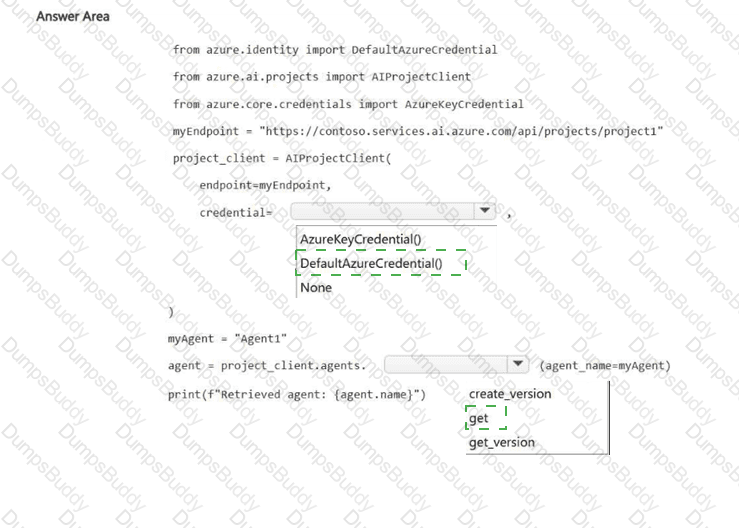

credential = DefaultAzureCredential()

agent = project_client.agents.get(agent_name=myAgent)

The correct authentication option is DefaultAzureCredential() because the case study states that API keys must not be used to access Foundry-deployed models and that Contoso developers must authenticate to Microsoft Foundry resources by using Microsoft Entra authentication. It also states that access to Project1 must be assigned to Agent1Dev Team by using the security group SC_Agent1_Dev . Microsoft Foundry authentication guidance recommends Microsoft Entra ID for production workloads because it supports least-privilege RBAC, per-principal auditing, and keyless authentication. AzureKeyCredential() would violate the no-API-key requirement, and None would not provide a valid credential.

The correct agent operation is get because the task is to access an existing agent named Agent1, not create a new version or retrieve a specific published version. Microsoft Foundry SDK examples show AIProjectClient created with DefaultAzureCredential() and then using project agent operations to create, retrieve, or interact with agents by name. To meet the compliance requirement, the group SC_Agent1_Dev must also be granted the appropriate project-scoped Foundry role, such as Foundry User, for Project1. Reference topics: Microsoft Entra authentication, Foundry RBAC, AIProjectClient, and project agent access.
