300-440 Designing and Implementing Cloud Connectivity (ENCC) Questions and Answers

To enable the OMP advertisement of BGP routes for a specific VRF instance on a Cisco IOS XE SD-WAN device, the engineer must first configure the global address-family ipv4 and then enable bgp advertisement under the vrf definition. This will allow the device to advertise the BGP routes learned from the cloud provider to the OMP control plane, which will then distribute them to the other SD-WAN devices in the overlay network1

References := 1: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Topic: Configuring BGP on the Cisco IOS XE Device, Page 3-24.

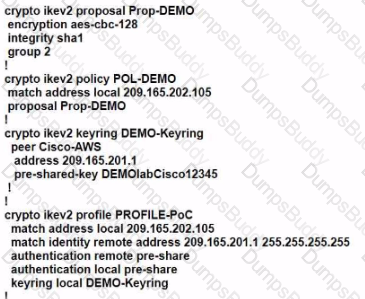

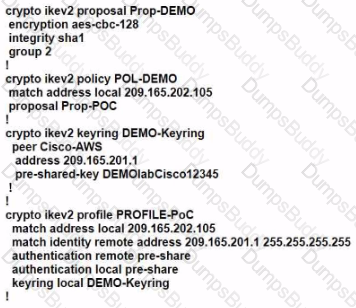

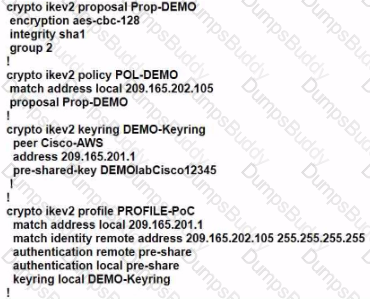

 Option C is the correct answer because it configures the IKEv2 profile with the correct match identity, authentication, and keyring parameters. It also configures the IPsecprofile with the correct transform set and lifetime parameters. Option A is incorrect because it does not specify the match identity remote address in the IKEv2 profile, which is required to match the AWS virtual private gateway IP address. Option B is incorrect because it does not specify the authentication pre-share in the IKEv2 profile, which is required to authenticate the IKEv2 peers using a pre-shared key. Option C also matches the configuration example provided by AWS1 and Cisco2 for setting up an IKEv2 IPsec site-to-site VPN between a Cisco IOS-XE router and an AWS virtual private gateway. References :=

• 1: AWS VPN Configuration Guide for Cisco IOS-XE
• 2: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services

Enhanced Policy-Based Routing (ePBR) is used to direct packets that arrive at an interface to a specified next-hop. It is very useful in managing a large number of configured access lists more efficiently. In ePBR, the router drops the traffic packets if the next hop configured in the PBR policy is not reachable. To avoid packet loss in such scenarios, you must configure multiple next hops for each access control entry.

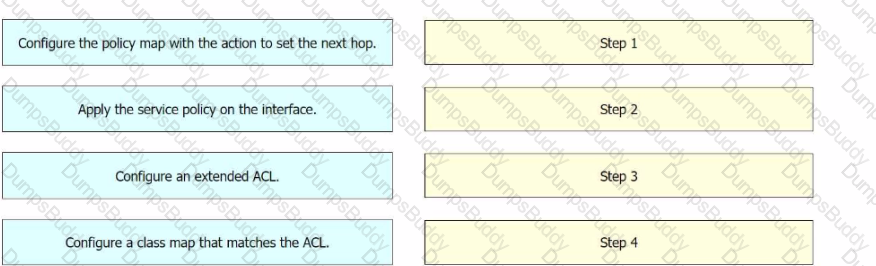

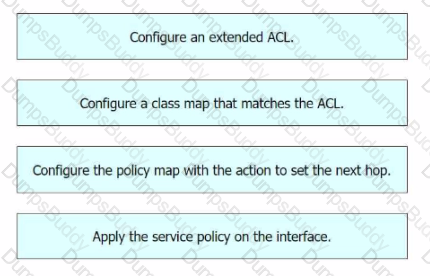

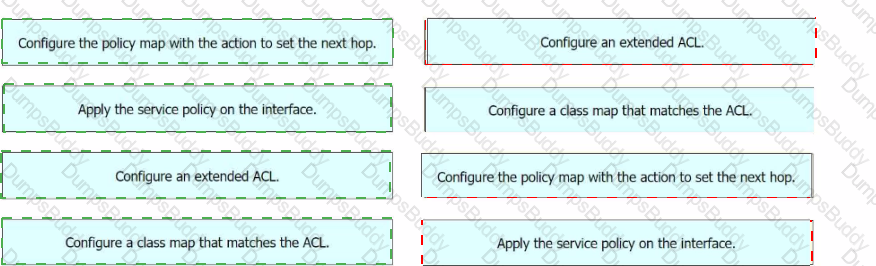

Here are the steps to configure ePBR for IPv4 using Cisco vManage:

• Configure an extended ACL: This step involves defining the network or the host. For example, you can permit IPv4 traffic from any source to specific hosts.
• Configure a class map that matches the ACL: Class maps match the parameters in the ACLs. For instance, you can create a class map of type traffic and match it with the previously created ACL.
• Configure the policy map with the action to set the next hop: Policy maps with ePBR then take detailed actions based on the set statements configured. You can configure an ePBR policy map with the class map and set the next hop.
• Apply the service policy on the interface: Finally, you apply the ePBR policy map to the interface. For example, you can apply the policy map to a GigabitEthernet interface.

References :=

• Implementing Enhanced Policy Based Routing - Cisco
• Cisco Catalyst SD-WAN Policies Configuration Guide, Cisco IOS XE
• How to configure PBR - Cisco Community

The role of service providers to establish private connectivity between on-premises networks and Google Cloud resources is to facilitate direct, dedicated network connections through Google Cloud Interconnect. Google Cloud Interconnect is a service that allows customers to connect their on-premises networks to Google Cloud through a service provider partner. This provides low latency, high bandwidth, and secure connectivity to Google Cloud services, such as Google Compute Engine, Google Cloud Storage, and Google BigQuery. Google Cloud Interconnect also supports hybrid cloud scenarios, such as extending on-premises networks to Google Cloud regions, or connecting multiple Google Cloud regions together. Google Cloud Interconnect offers two types of connections: Dedicated Interconnect and Partner Interconnect. Dedicated Interconnect provides physical connections between the customer’s network and Google’s network at a Google Cloud Interconnect location. Partner Interconnect provides virtual connections between the customer’s network and Google’s network through a supported service provider partner. Both types of connections use VLAN attachments to establish private connectivity to Google Cloud Virtual Private Cloud (VPC) networks. References:

• Designing and Implementing Cloud Connectivity (ENCC) v1.0
• [Google Cloud Interconnect Overview]
• [Google Cloud Interconnect Documentation]

According to the FedRAMP Authorization Boundary Guidance document1, the method used to create authorization boundary diagrams (ABDs) is to identify all tools as either external orinternal to the boundary. The ABD is a visual representation of the components that make up the authorization boundary, which includes all technologies, external and internal services, and leveraged systems and accounts for all federal information, data, and metadata that a Cloud Service Offering (CSO) is responsible for. The ABD should illustrate a CSP’s scope of control over the system and show components or services that are leveraged from external services or controlled by the customer1. The other options are incorrect because they do not capture the full scope and details of the authorization boundary as required by FedRAMP. References := FedRAMP Authorization Boundary Guidance document1

The connectivity model that meets the requirements of high availability, redundancy, and low latency for the company’s business applications is ExpressRoute with private peering using SDCI.

• ExpressRoute is a service that provides a dedicated, private, and high-bandwidth connection between the customer’s on-premises network and Microsoft Azure cloud network1.
• Private peering is a type of ExpressRoute circuit that allows the customer to access Azure services that are hosted in a virtual network, such as virtual machines, storage, and databases2.
• SDCI (Secure Data Center Interconnect) is a Cisco solution that enables secure and scalable connectivity between multiple data centers and cloud providers, using technologies such as MPLS, IPsec, and SD-WAN3.
• By using ExpressRoute with private peering and SDCI, the company can achieve the following benefits:

References:

• What is Azure ExpressRoute?
• Azure ExpressRoute peering
• Cisco Secure Data Center Interconnect
• ExpressRoute circuit and routing domain

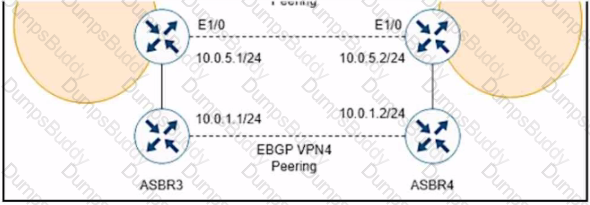

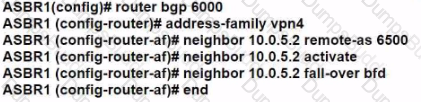

The bgp advertise-best-external command is used to enable the advertisement of the best external path to internal BGP peers. This command is useful when there are multiple exit points from the local AS to other ASes, and the local AS wants to use the closest exit point for each destination. By default, BGP only advertises the best path to its peers, and the best path is usually the one with the lowest IGP metric to the next hop. However, this may not be the optimal path for traffic leaving the local AS, as it may result in suboptimal hot-potato routing or MED oscillations. The bgp advertise-best-external command allows BGP to advertise the best external path, which is the path with the lowest MED among the paths from different neighboring ASes, in addition to the best path. This way, the internal BGP peers can choose the best exit point based on the MED value, rather than the IGP metric. In this scenario, ASBR1 is configured to receive additional paths from ASBR2, which is a route reflector. ASBR2 receivestwo paths for the same prefix from AS6500, one from ASBR3 and one from ASBR4. ASBR2 selects the best path based on the IGP metric to the next hop, and advertises it to ASBR1. However, this path may not be the best external path, as it may have a higher MED value than the other path. If the connection between ASBR1 and ASBR2 goes down, ASBR1 will not have any backup path to reach AS6500, as it does not know the other path from ASBR4. To prevent this situation, ASBR1 should be configured with the bgp advertise-best-external command, so that it can receive the best external path from ASBR2, along with the best path. This way, ASBR1 will have a backup path to reach AS6500, in case the primary path fails. References := IP Routing: BGP Configuration Guide - BGP Additional Paths … - Cisco, BGP Additional Paths
