D-XTR-OE-A-24 Dell XtremIO Operate Achievement Questions and Answers

In EMC’s AppSync, the Service Plan Administrator role is responsible for managing service plans and RPOs (Recovery Point Objectives).This role includes the ability to register applications for protection and configure their RPOs, which aligns with the responsibilities described for the new administrator1.

The Service Plan Administrator has the privileges needed to assign service levels and manage protection policies within AppSync.This role is crucial for ensuring that applications are protected according to the organization’s specific recovery requirements and service level agreements1.

The other roles mentioned, such as Data Administrator, Security Administrator, and Resource Administrator, have different sets of responsibilities and privileges that do not specifically align with the task of registering applications for protection and configuring RPOs within AppSync1. Therefore, the correct privilege level for a new administrator with these responsibilities would be the Service Plan Administrator.

The purpose of Microsoft VSS (Volume Shadow Copy Service) integration with XtremIO is to allow third-party management of volume operations.

VSS provides a framework that enables applications to create consistent snapshots, backups, and restores of data without disrupting operations.

This integration is essential for ensuring data integrity and consistency during backup and restore operations.

References:

Dell XtremIO VSS Integration Guide

Microsoft VSS Documentation

The maximum number of volumes allowed in an XtremIO Consistency Group is 512.

Consistency Groups ensure that multiple volumes can be managed and replicated together, maintaining data consistency across all included volumes.

This limit allows for efficient management and scalability of storage resources within the XtremIO environment.

References:

Dell XtremIO Configuration Guide

XtremIO Consistency Group Best Practices

This ensures that the XMS can effectively communicate with and manage each cluster, regardless of their individual configurations or the specific features they are using.

Compatibility is crucial for the XMS to perform its functions across all clusters, which includes tasks such as monitoring, reporting, and executing management operations.If the XMS code version is not compatible with a particular cluster, it may not be able to manage it properly, leading to potential issues with performance, reliability, and data integrity1.

Therefore, before adding a new XtremIO cluster to an existing XMS setup, the systems administrator must verify that the XMS code version is compatible with the firmware version running on the new cluster, as well as the versions on all other clusters currently being managed.This step is a fundamental requirement to ensure seamless management and operation of the XtremIO storage environment1.

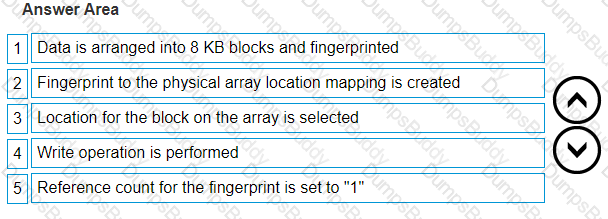

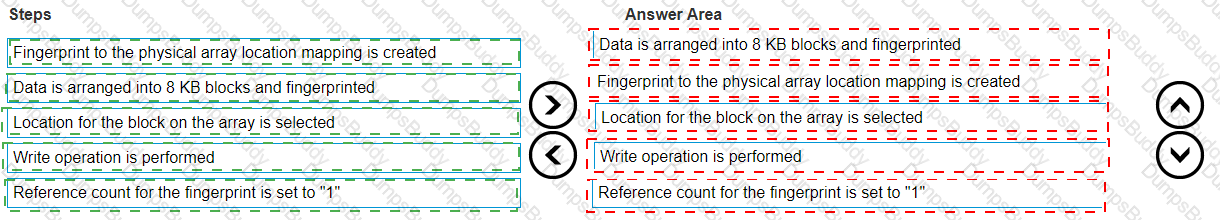

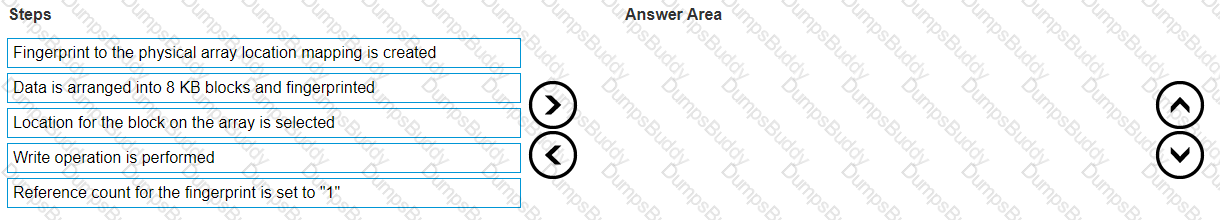

The correct sequence of operations when a host writes a unique data block to an XtremIO X1 array is as follows:

Data is arranged into 8 KB blocks and fingerprinted.

Fingerprint to the physical array location mapping is created.

Location for the block on the array is selected.

Write operation is performed.

Reference count for the fingerprint is set to “1”.

Data Arrangement and Fingerprinting: Initially, the data received from the host is organized into 8 KB blocks.Each block is then fingerprinted, which involves creating a unique identifier for the data block that can be used to detect duplicates and manage data more efficiently1.

Mapping Creation: After fingerprinting, a mapping between the fingerprint and its physical location on the XtremIO array is established.This step is crucial for the array to know where each data block is stored and to retrieve it quickly when needed1.

Location Selection: The XtremIO system then selects the most appropriate location for the data block on the array.This decision is based on various factors, including space availability and optimization algorithms1.

Write Operation: Once the location is determined, the actual write operation takes place.The data block is written to the selected spot on the SSD within the array1.

Reference Count Setting: Finally, a reference count for the data block’s fingerprint is set to “1”. This indicates that there is currently one instance of this data block stored on the array.The reference count is used to manage data deduplication and ensure efficient storage utilization1.

When managing multiple XtremIO X2 clusters, it is accurate that a single XtremIO Management Server (XMS) can manage up to 16 X-Brick clusters. The XMS is a key component of the XtremIO environment, providing centralized management and monitoring capabilities for XtremIO clusters. Here’s a detailed explanation:

XMS Capabilities: The XMS is designed to manage multiple XtremIO clusters, offering a unified view and control over the entire storage environment.It allows administrators to perform various tasks such as provisioning, monitoring, and managing the clusters from a single interface1.

Scalability: The ability to manage up to 16 X-Brick clusters with a single XMS highlights the scalability of the XtremIO architecture.This scalability is essential for large-scale deployments where multiple clusters are used to meet performance and capacity requirements1.

Virtual and Physical XMS: The XMS can be deployed as either a physical server or a virtual machine (VM), providing flexibility in deployment options.Regardless of the deployment model, the XMS retains its capability to manage multiple clusters1.

XMCLI: While the XtremIO Management Command Line Interface (XMCLI) is used for managing clusters, it is not the only way to add or remove clusters.The XMS provides a graphical user interface (GUI) as well, which can also be used for these tasks1.

XtremIO X1 and X2 Compatibility: The statement regarding XtremIO X1 XMS managing XtremIO X2 clusters (OC) would require specific compatibility information, which typically depends on the software version and feature support2.

Limitations of Virtual XMS: The statement that a virtual XMS can manage up to four X-Brick clusters (OD) may not be accurate without specific context, as the capability can depend on the XMS version and the deployment configuration1.

For Linux servers connected to an XtremIO cluster, the file systems that support the UNMAP command include Ext3, Ext4, and XFS. The UNMAP command allows these file systems to inform the storage array about blocks that are no longer in use, facilitating better space reclamation and efficiency in storage management.

References:

Dell EMC documentation on XtremIO configurations for Linux environments confirms the support for UNMAP with these specific file systems.

Linux kernel documentation also supports the use of UNMAP/TRIM operations with Ext3, Ext4, and XFS for storage optimization.

The iostat command is used for monitoring system input/output device loading by observing the time the devices are active in relation to their average transfer rates.It generates reports that can be used to change system configuration to better balance the input/output load between physical disks1.The iostat command is particularly useful for monitoring disk throughput and can help identify high disk utilization, which is essential for diagnosing performance issues related to storage2.

The iostat command provides information about input/output (I/O) statistics for block devices (like hard drives and SSDs) and CPUs, making it a valuable tool for analyzing the performance and usage of these resources on a system1.It is distributed as part of the sysstat package and is available on most Linux distributions1.

The other commands listed have different purposes:

stat (OA) is used to display file or file system status.

netstat (OB) displays network connections, routing tables, interface statistics, masquerade connections, and multicast memberships.

nbtstat (OC) is a Windows command-line utility that displays protocol statistics and current TCP/IP connections using NetBIOS over TCP/IP.

Therefore, for monitoring the performance of system input/output devices on Linux/UNIX systems, iostat (OD) is the correct command to use1.

The RESTful API method used to retrieve an existing configuration from a system like XtremIO is the HTTP GET methD.The GET method is used to request data from a specified resource and is one of the most common HTTP methods used in RESTful APIs1.

In the context of the XtremIO REST API, the GET method would be used to access various types of information about the array’s configuration.For example, to retrieve details about the volumes configured on an XtremIO array, you would issue a GET request to the appropriate endpoint of the XtremIO REST API2.

The HTTP POST method, on the other hand, is typically used to send data to the server to create or update a resource.The terms HTTP RETRIEVE and HTTP GATHER are not standard RESTful API methods and are not used in the context of the XtremIO REST API or any RESTful API1.

When integrating an XtremIO cluster into a VPLEX environment, the first activity that needs to be performed is zoning the VPLEX to the XtremIO Storage Controllers. Zoning is a SAN (Storage Area Network) configuration step that controls access between the storage and hosts, and in this case, between VPLEX and XtremIO. Here’s the process:

Zoning: This involves configuring the SAN fabric to ensure that the VPLEX directors can communicate with the XtremIO Storage Controllers.Zoning is crucial for establishing a secure and efficient connection between the two systems1.

Provisioning Storage (OA): While provisioning storage to the host is an important step, it typically comes after the zoning has been established.

Creating and Mapping Volumes (OB): Creating and mapping volumes dedicated to VPLEX is also a subsequent step that can only be performed after the zoning is in place.

Initiator Groups (OC): Creating initiator groups is necessary for mapping storage to hosts, but it is not the first step in the process.The initiator groups will be used after zoning is completed to define access control for the VPLEX directors1.

In summary, the first activity to perform when adding an XtremIO cluster to a VPLEX environment is to zone the VPLEX to the XtremIO Storage Controllers (OD), as this establishes the foundational connectivity required for further configuration and provisioning steps1.

XtremIO X1 provides continuous availability through a combination of data protection mechanisms and snapshot capabilities:

Data Protection: XtremIO X1 uses a unique data protection scheme known as XtremIO Data Protection (XDP), which offers better efficiency and rebuild performance compared to traditional RAID configurations.XDP provides high levels of fault tolerance and ensures data integrity, which is essential for continuous availability1.

Snapshots: XtremIO’s snapshot technology allows for the creation of instant, space-efficient copies of data volumes.These snapshots can be used for various purposes, including backup and recovery, testing, and development, without impacting the performance of the primary system1.

Continuous Availability: The combination of XDP and snapshots enables XtremIO X1 to provide an enterprise level of continuous availability by ensuring that data is protectedagainst hardware failures and that operations can continue uninterrupted during maintenance or in the event of a disaster1.

XtremIO’s approach to data protection and snapshots is designed to meet the demands of enterprise environments where downtime is not an option, and data must be accessible at all times1.

For integrating Oracle with XtremIO, along with path failover software, it is best practice to increase the queue depth and execution throttle to "maximum."

This configuration optimizes the handling of I/O requests, improving performance and efficiency.

Properly tuning these settings ensures that the HBA drivers can handle the high I/O demands of an Oracle environment on XtremIO.

References:

Dell XtremIO Oracle Integration Guide

XtremIO Configuration Best Practices

Small, random workloads are best suited for high IOPS in a VDI (Virtual Desktop Infrastructure) environment.

Such workloads typically consist of numerous small I/O operations, which require a high number of IOPS to maintain performance.

XtremIO's architecture is optimized for handling small, random I/O patterns efficiently, making it ideal for this type of VDI workload.

References:

Dell XtremIO VDI Best Practices

Storage Performance Fundamentals

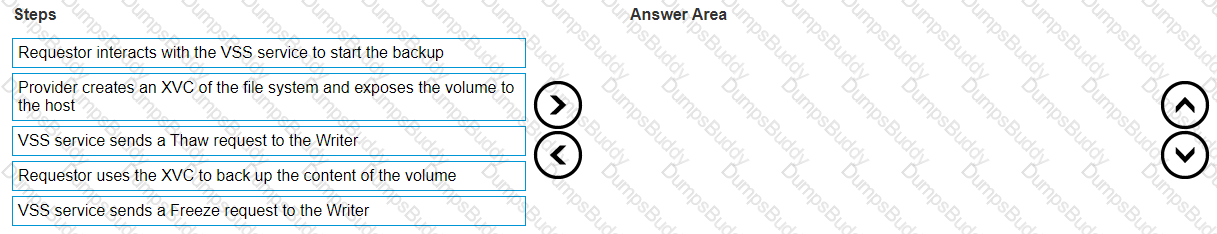

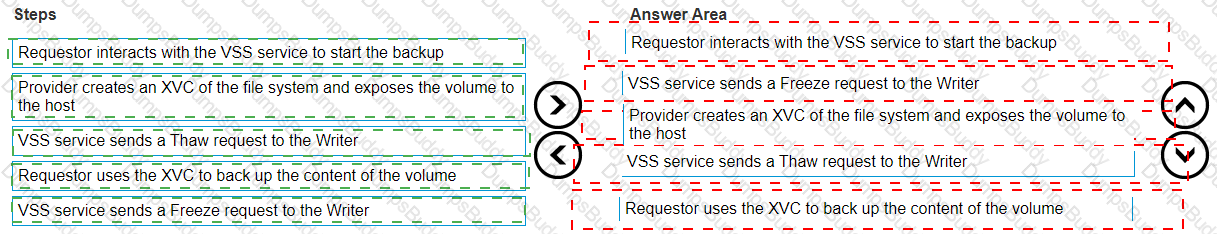

The correct sequence of steps to create a Windows volume backup using the Microsoft VSS Framework with an XtremIO cluster is:

Requestor interacts with the VSS service to start the backup

VSS service sends a Freeze request to the Writer

Provider creates an XVC of the file system and exposes the volume to the host

VSS service sends a Thaw request to the Writer

Requestor uses the XVC to back up the content of the volume

This sequence ensures that the backup is consistent and data integrity is maintained throughout the process.

References:

Dell XtremIO VSS Integration Guide

Microsoft VSS Framework Documentation

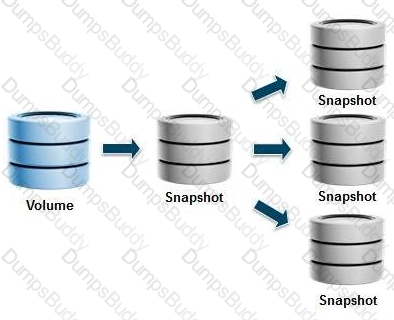

XtremIO uses a Copy-On-Write (COFW) mechanism for snapshots. When a write is performed on a snapshot, the system checks if the data block being written to has been previously written. If it has not, it copies the original data block (from the ancestor snapshot or volume) to a new location before writing the new data to ensure data consistency. This operation only happens once per block for each snapshot, thereby minimizing the performance impact.

References:

Dell's detailed explanation of the XtremIO snapshot functionality emphasizes the efficiency of their COFW mechanism, ensuring minimal performance degradation when creating and writing to snapshots.

XtremIO documentation highlights how snapshots are managed with in-memory metadata, which supports fast creation and access without substantial performance penalties.
