D-XTR-MN-A-24 Dell XtremIO Maintenance Achievement Questions and Answers

The minimum XtremIO software version required for expanding a Starter X-Brick cluster is 4.0.4. This version includes the necessary features and improvements to support the expansion process, ensuring compatibility and optimal performance.

The XtremIO Storage Array Site Preparation Guide is the document that provides detailed information about the environmental requirements, including temperature and humidity, for XtremIO storage systems.This guide is essential for ensuring that the site where the XtremIO system will be installed meets the necessary conditions for optimal operation and longevity of the equipment1.

The guide typically includes:

The acceptable temperature range for both operating and non-operating conditions.

The recommended humidity levels to prevent condensation and other moisture-related issues.

Guidelines for airflow and cooling to maintain the specified temperature and humidity levels.

It is important to adhere to these requirements to ensure the reliable performance of the XtremIO storage array and to avoid any potential environmental-related issues1.

=========================

For an XtremIO X2-S, the ports used on the InfiniBand switches for an Inter-Switch Link (ISL) connection are typically high-numbered ports, which are usually at the end of the port range on the switch.While the specific port numbers can vary depending on the switch model and configuration, ports 35 and 36 are commonly used for ISL connections in many configurations1.

The process to identify the ISL ports is as follows:

Access the InfiniBand switch via the management interface.

Use the appropriate command to list the port configuration (this command can vary based on the switch’s firmware).

Identify the ports configured for ISL, which will be indicated in the port configuration settings.

It’s important to refer to the official Dell XtremIO Maintenance Achievement document or the InfiniBand switch documentation for the exact port numbers as they can differ based on the switch model and the cluster configuration1.

XtremIO upgrade packages can be found on the support.emc.com website. This is the official support site for Dell EMC products, where customers can download software updates, including XtremIO upgrade packages.The site provides access to various resources, including documentation, knowledge articles, and software downloads for Dell EMC products12.

To find and download XtremIO upgrade packages, follow these steps:

Go to support.emc.com.

Log in with your Dell EMC support account credentials.

Navigate to the ‘Downloads’ section.

Search for XtremIO in the product list.

Select your specific XtremIO model and version.

Locate the upgrade package you need and download it.

It’s important to ensure that you have a valid support contract and the necessary permissions to access and download software updates from support.emc.com1.

=========================

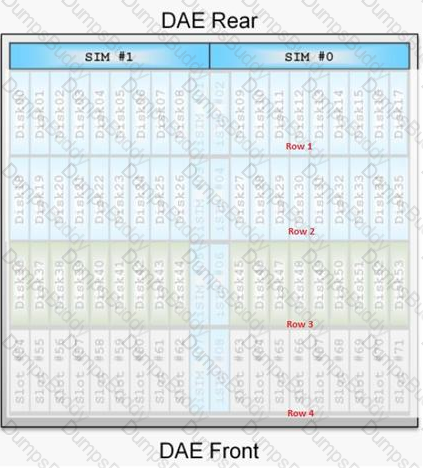

In Dell XtremIO X2 arrays, the Disk Protection Groups (DPGs) are organized in such a way that each DPG spans multiple rows of drives. Specifically, DPG-2 in an XtremIO-X2 DAE (Disk Array Enclosure) uses the drives in Row 1 and Row 2. This configuration is designed toensure redundancy and fault tolerance. The drives in these rows collectively form the DPG, which is responsible for data protection and performance optimization.

The show-storage-controllers command is used in XMCLI to verify the IP addresses of the Storage Controllers after they have been changed. This command provides detailed information about the status and configuration of the storage controllers, including their IP addresses.

For uploading the XtremApp to the XtremIO Management Server (XMS), the recommended tool isWinSCP.WinSCP is a popular SFTP client and FTP client for Microsoft Windows that allows for secure file transfer between a local and a remote computer1. It is particularly useful for uploading files like XtremApp due to its graphical user interface, which simplifies the process of transferring files.

The steps for uploading the XtremApp to the XMS using WinSCP are as follows:

Download and install WinSCP on your local machine.

Open WinSCP and enter the XMS’s hostname or IP address, as well as the username and password.

Navigate to the XtremApp file on your local machine within the WinSCP interface.

Drag and drop the XtremApp file to the desired directory on the XMS.

Verify that the upload was successful by checking the file size and timestamp on the XMS.

This method is recommended in the Official Dell XtremIO Maintenance Achievement document as it provides a secure and reliable way to manage files on the XMS1.

=========================

To successfully operate Technician Advisor on an XtremIO X2, TCP ports 80 and 443 need to be open between the XMS (XtremIO Management Server) and X1-SC1 (Storage Controller). These ports are used for HTTP and HTTPS communication, respectively, allowing for secure management and operation of the storage system.

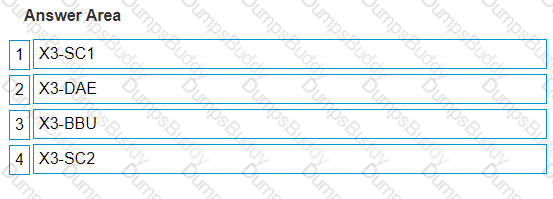

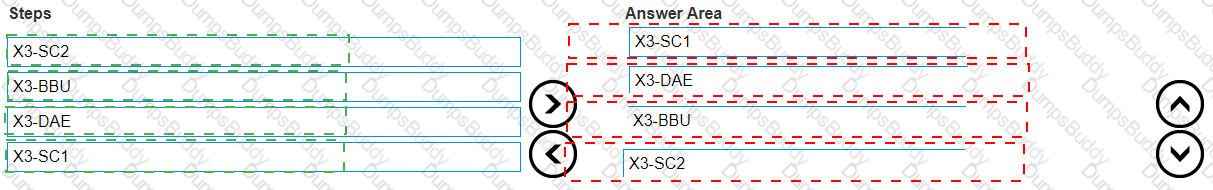

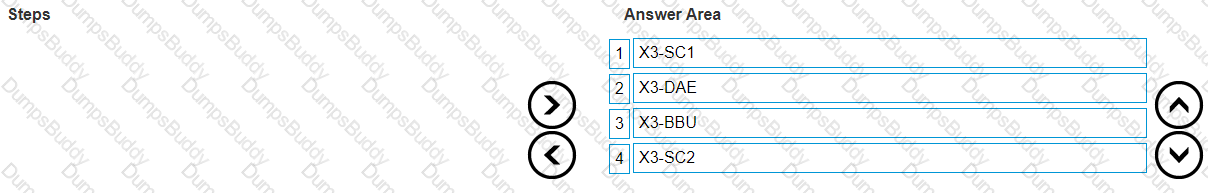

The correct racking order from bottom to top to expand an XtremIO X1 configuration from a dual X-Brick to a quad X-Brick is as follows:

X3-SC1

X3-DAE

X3-BBU

X3-SC2

As per the image provided, which appears to be a list or part of a document detailing the steps for racking components, the order listed for expanding an XtremIO X1 configuration is:

Begin with the bottom component, which is ‘X3-SC1’ (Storage Controller 1).

Above ‘X3-SC1’, install ‘X3-DAE’ (Disk Array Enclosure).

Next, install ‘X3-BBU’ (Battery Backup Unit) above ‘X3-DAE’.

Finally, at the top, place ‘X3-SC2’ (Storage Controller 2).

This order ensures that the heavier components are at the bottom for stability and likely follows Dell’s official guidelines for proper airflow and cable management within the rack1.

=========================

Questions no:Which document contains the detailed steps for re-imaging the Storage Controller when preparing for a single-to-dual X-Brick expansion?

Verified Answer:C.XtremIO Hardware Installation and Upgrade Guide

Step by Step Comprehensive Detailed Explanation with References:The detailed steps for re-imaging the Storage Controller when preparing for a single-to-dual X-Brick expansion are contained in theXtremIO Hardware Installation and Upgrade Guide.This document provides comprehensive instructions on the physical installation, initial configuration, and upgrade procedures for XtremIO hardware components, including the process of re-imaging the Storage Controller1.

The steps typically include:

Ensuring that all data is backed up before starting the re-imaging process.

Verifying the current system configuration and health status.

Following the specific instructions for re-imaging the Storage Controller as outlined in the guide.

Performing post-re-imaging tasks such as system verification and configuration as necessary.

It is important to follow the guide closely to avoid any potential issues during the expansion process1.

=========================

The Eaton 1550 Evolution BBU (Battery Backup Unit) uses 1 DB9 and 1 RJ50 connector. These connectors are used for communication and management purposes, ensuring that the BBU can interface correctly with other components of the system.

In a multi X-brick cluster, each X-brick consists of multiple Disk Array Enclosures (DAEs) that work together to provide storage and data redundancy.

If both DAE controllers in a single X-Brick fail, the impact is localized to the LUNs (Logical Unit Numbers) that store data on that particular DAE.

The entire cluster does not shut down; rather, only the data on the affected DAE becomes unavailable.

This design ensures that the rest of the cluster continues to operate normally, albeit with potential performance degradation depending on the data distribution and workload.

The virtual XtremIO Management Server (XMS) OVA file can be found in theTools & Utilitiesdownload section on support.emc.com.This is confirmed by the information provided in the Dell XtremIO Maintenance Achievement document, which details the resources and procedures for maintaining XtremIO products, including the deployment of the XMS1.
