D-XTR-DY-A-24 Dell XtremIO Deploy Achievement Questions and Answers

Backup Policy and XtremIO Virtual Copy: The system administrator needs to ensure that the backup policy using XtremIO Virtual Copy (XVC) can store the required read-only copies without exceeding the storage limits.

Calculating Days of Storage:

500 production volumes are backed up 4 times a day.

Total copies created per day: 500 volumes * 4 backups/day = 2000 copies/day.

Assuming the array can store a specific number of copies before older ones are deleted, let's determine the duration:

Duration Calculation:

If the array can store copies for 5 days, it can handle: 2000 copies/day * 5 days = 10,000 copies.

Thus, the array can store the backup copies for 5 days before the original backups are deleted to make space for new ones.

References:

Dell XtremIO 6.x User Guide

XtremIO Virtual Copy and Protection Copies Features

Dell XtremIO Deployment Services

Leaving one rack unit open at the bottom of a rack containing an XtremIO X2 is a practice recommended for allowing more efficient cooling. This space acts as a buffer zone, helping to facilitate better airflow and prevent the recirculation of hot air within the rack. It is a part of thermal management strategies in data centers to optimize the cooling systems, which are crucial for maintaining the performance and longevity of the equipment1.

The Dell Best Practices Guide for Rack Enclosures emphasizes the importance of proper cooling and airflow management within rack enclosures. It suggests that efficient cooling can help reduce inefficiencies at the rack level and is essential for maintaining the necessary thermal environment for rack-mounted equipment1. While the guide does not explicitly mention leaving a rack unit open at the bottom, the principle of optimizing airflow for cooling purposes is consistent with the practice.

To update the Install base record for Dell XtremIO in addition to the PSNT, the following data needs to be provided:

Microcode Version: This refers to the firmware version running on your XtremIO system. It’s essential to have the latest microcode version reported for support and maintenance purposes.

Installation Configuration: This includes details about the XtremIO system’s setup, such as cluster configuration, number of X-Bricks, and any custom settings applied during the installation.

The process of updating the Install base record typically involves:

Gathering Information: Collect the microcode version from the XtremIO Management Server (XMS) interface and document the installation configuration details.

Submitting the Data: Provide the collected information to Dell Support or through the appropriate channel as directed in the Dell XtremIO Deploy Achievement documentation.

Verification: Dell Support may verify the provided information against their records and the actual system configuration to ensure accuracy.

Record Update: Once verified, Dell Support will update the Install base record with the new information.

For detailed instructions and the official procedure, refer to the Dell XtremIO Deploy Achievement document1. It’s crucial to follow the official guidelines to ensure that the Install base record is accurately updated, which can be critical for effective support and maintenance of the XtremIO system.

In a heterogeneous environment where multiple storage arrays are connected to VMware vSphere along with XtremIO X2, it is recommended to set the Disk.SchedNumReqOustanding parameter to 32. This setting determines the maximum number of I/O operations that can be queued to the storage array. A value of 32 is often recommended to balance performance with resource utilization.

The Disk.SchedNumReqOustanding parameter is part of the VMware vSphere’s advanced settings and can be adjusted to optimize the performance of the storage arrays connected to the ESXi hosts. The setting of 32 is a starting point and may need to be adjusted based on the specific workload and storage array capabilities1.

When initializing an XtremIO cluster for the first time using the create-cluster command, it is essential to provide the cluster's unique identifier, known as the cluster-psnt (Product Serial Number Tag). This parameter ensures that the system can accurately identify and manage the cluster throughout its operational lifecycle. Other parameters, such as hw-package, profile, and package, may be relevant in different contexts, but the cluster-psnt is a mandatory parameter for initial cluster creation.

References:

Dell XtremIO Deployment and Learning Course Materials

XtremIO X2 Installation and Setup Guide

Before presenting XtremIO volumes to a new Linux host, it is recommended to disable the I/O elevators. This step is crucial for optimizing performance and ensuring that the storage system works efficiently with the host’s operating system.

The I/O elevator is a Linux kernel feature that controls the order in which I/O operations are submitted to storage devices. It’s designed to optimize the way the Linux kernel handles write and read requests. However, in the context of high-performance storage systems like XtremIO, the default I/O scheduling might not be optimal. Disabling the I/O elevators allows the XtremIO storage system to manage the I/O requests more efficiently, leveraging its built-in capabilities for performance optimization.

This information is corroborated by the Official Dell XtremIO Deploy Achievement document, which outlines the best practices for configuring XtremIO systems in various environments, including Linux hosts1.

When configuring Linux hosts to support XtremIO storage, it is recommended to set the LUN queue depth to 64. This setting helps to optimize the performance of the host when communicating with the XtremIO storage system.

Access Host Configuration: Log into the Linux host that will be connected to the XtremIO storage.

Modify HBA Parameters: Locate the HBA (Host Bus Adapter) parameters within the host’s configuration files.

Set Queue Depth: Adjust the queue depth parameter for the HBA to 64. This can typically be done by editing the options.conf file or similar, depending on the HBA driver in use.

Apply Changes: Save the changes and reload the HBA driver or reboot the host to apply the new configuration.

Verify Configuration: Confirm that the new queue depth setting is active and functioning as expected.

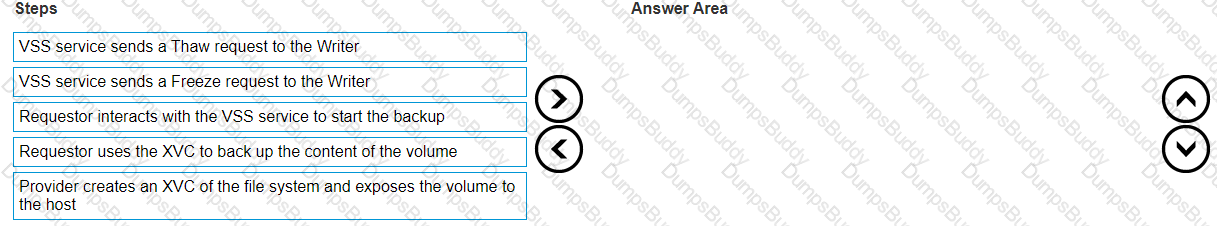

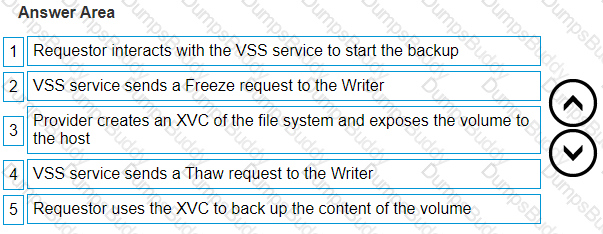

The correct sequence of steps to create a Windows volume backup using the Microsoft VSS Framework with an XtremIO cluster is as follows:

Requestor interacts with the VSS service to start the backup.

VSS service sends a Freeze request to the Writer.

Provider creates an XVC of the file system and exposes the volume to the host.

VSS service sends a Thaw request to the Writer.

Requestor uses the XVC to back up the content of the volume.

The Requestor, typically a backup application, initiates the process by interacting with Microsoft’s Volume Shadow Copy Service (VSS) to commence a snapshot backup.

The VSS service then issues a Freeze request to its Writers, which are responsible for ensuring data consistency for applications during backups.

An XtremIO Provider, which interfaces between the XtremIO storage and VSS, creates an XtremIO Virtual Copy (XVC) of the file system. This copy is then made accessible to the host system for backup purposes.

After the XVC is created, the VSS sends a Thaw request to the Writers, allowing them to resume normal operations while maintaining data integrity.

Finally, the Requestor uses the XVC to back up the content of the volume, ensuring a consistent and recoverable backup is made.

Please note that this sequence is based on the standard operation of Microsoft VSS with storage systems like XtremIO and should be verified against the most current Dell XtremIO Deploy Achievement documentation for any updates or specific instructions related to your environment.

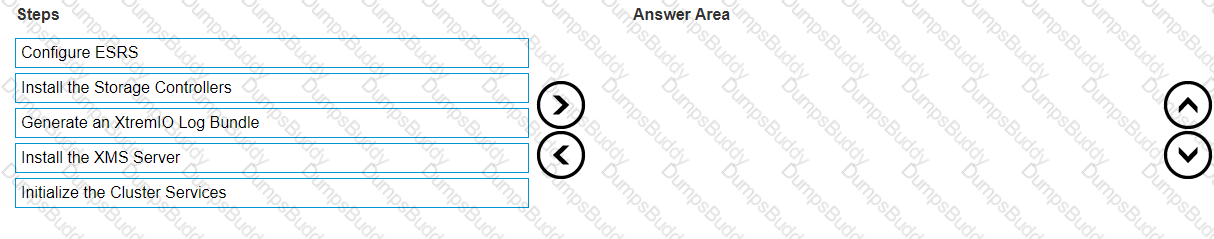

 Install the XMS Server

 Install the Storage Controllers

 Initialize the Cluster Services

 Configure ESRS

 Generate an XtremIO Log Bundle

Install the XMS Server: The XtremIO Management Server (XMS) must be installed first, as it is the central management point for the XtremIO storage array.

Install the Storage Controllers: After setting up the XMS, the next step is to install the storage controllers, which are the main components of the XtremIO array responsible for handling data operations.

Initialize the Cluster Services: Once the storage controllers are installed, you need to initialize the cluster services to configure and prepare the storage array for operation.

Configure ESRS (EMC Secure Remote Services): After the cluster services are initialized, configure ESRS for remote support and monitoring, ensuring that the system can be supported remotely by Dell EMC.

Generate an XtremIO Log Bundle: Finally, generate an XtremIO log bundle for initial diagnostics and baseline information. This step ensures that all necessary logs are collected and can be reviewed if needed.

References:

Dell XtremIO X1 Storage Array Software Installation and Upgrade Guide

Dell XtremIO Deployment Services

XtremIO X1 User and Maintenance Guide

In XtremIO, configuring email notifications involves several steps, including setting up the email server and defining alert definitions. While the email server may be correctly configured and tested, notifications will not be sent unless the alert definitions are also set up. Alert definitions specify the conditions under which notifications are sent, including the severity level of issues. If major severity alerts are not defined, the email server will not trigger notifications for those events.

References:

Dell XtremIO Deployment and Learning Course Materials

When powering up an XtremIO X2 multi X-Brick cluster, both the Disk Array Enclosures (DAEs) and the Storage Controllers will automatically power up once the rack Power Distribution Units (PDUs) are turned on. This process ensures that the essential components for storage and data management are operational immediately, facilitating a seamless startup of the storage environment. The DAEs contain the SSDs for data storage, while the Storage Controllers manage the data operations, ensuring high performance and reliability.

References:

Dell EMC XtremIO X2 documentation explains that upon powering the PDUs, the DAEs and Storage Controllers automatically power up as part of the system's startup process​

The “Small IO Alerts” feature in XtremIO is designed to notify administrators when a significant number of small I/O operations are detected, which could potentially impact the performance of the storage array. The threshold for these alerts is typically set to a default value that considers the architecture and performance characteristics of the system. In the case of XtremIO, the alert is triggered when I/O operations are smaller than 4 KB1. This threshold is set based on the understanding that smaller I/O sizes can lead to inefficient utilization of the storage array’s resources and can be an indicator of suboptimal application behavior or configuration.

To align the partitions on XtremIO volumes after an upgrade from Windows Server 2003 to Windows Server 2008, the following steps should be taken:

Backup the Data: First, ensure that all data on the existing misaligned partitions is backed up to a secure location to prevent any data loss.

Run Diskpart: Use the Diskpart utility, which is a command-line tool in Windows, to delete the existing partitions and create new aligned partitions. Diskpart allows for more control over the alignment process compared to graphical tools.

Recreate the Partition: After deleting the misaligned partitions, create new partitions using Diskpart with the correct alignment settings as per the XtremIO best practices.

Restore the Data: Once the new partitions are created and properly aligned, restore the data from the backup to the newly aligned partitions.

This process ensures that the partitions are aligned correctly, which can significantly improve performance due to more efficient disk access patterns1. It’s important to follow the detailed procedures outlined in the official Dell XtremIO Deploy Achievement documentation to ensure proper alignment and to avoid any potential issues during the process.

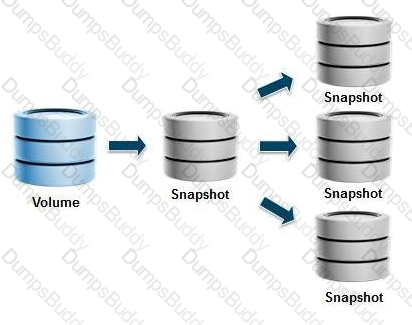

In XtremIO, snapshots are created efficiently using metadata rather than duplicating the actual data blocks. When a snapshot is made, it initially shares the same data blocks as its ancestor. When the first write occurs to a block in a snapshot, it triggers a Copy-On-First-Write (COFW) operation. This means the original data block is copied to a new location to preserve the integrity of the snapshot, ensuring that each snapshot reflects the data state at the moment of its creation.

This COFW operation ensures that the data remains consistent and unchanged for each snapshot, while allowing new writes to occur without impacting the original data or other snapshots. As a result, the first write to each snapshot impacts its ancestor by triggering a COFW operation.

References:

Dell XtremIO Deployment and Learning Course Materials

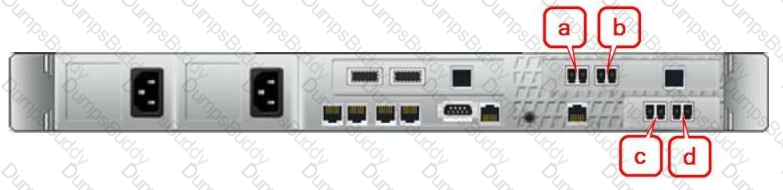

Port Identification: Based on the exhibit, ports a, b, c, and d need to be identified correctly.

Port a: Typically used for Fibre Channel (FC) connections.

Port c: Typically used for iSCSI connections.

FC2 and iSCSI 1 Connections: Ports a and c correspond to FC2 and iSCSI 1 connections respectively.

References:

Dell XtremIO Installation Guide

XtremIO User Guide

Dell XtremIO Deployment Services
