The correct order of steps for the embedded module replacement procedure is:

Power down the node

Push the orange tab to release the lever of the embedded module

Label and disconnect all cables attached to the embedded module

Remove the 4-port card from the old embedded module and install it into the new embedded module

Align the embedded module with the empty slot and carefully push it into the slot

The procedure for replacing an embedded module in a Dell PowerStore system is a critical task that should be performed with care. Here is a detailed explanation of each step:

Power down the node: Ensure that the node is properly powered down to avoid any electrical hazards or data corruption.This step is crucial for the safety of both the technician and the system1.

Push the orange tab to release the lever of the embedded module: Locate the orange tab on the embedded module and push it to release the lever.This action will unlock the module from its slot1.

Label and disconnect all cables attached to the embedded module: Before removing the embedded module, label all cables for easy reconnection later.Then, carefully disconnect each cable to free the module1.

Remove the 4-port card from the old embedded module and install it into the new embedded module: Transfer the 4-port card from the old module to the new one.Handle the card with care to avoid damage to the electronic components1.

Align the embedded module with the empty slot and carefully push it into the slot: Carefully align the new embedded module with the guides in the empty slot and gently push it into place until it is securely seated1.

After completing these steps, reconnect the cables as per the labels, and power up the node to verify the operation of the new embedded module.For detailed instructions and safety information, refer to the Dell PowerStore Installation and Service Guide2. It is important to follow these guidelines closely to ensure the replacement is performed correctly and the system operates smoothly after the procedure.

A screenshot of a computer Description automatically generated

The base enclosure is a component that is typically only replaceable by qualified personnel. This is because the base enclosure of a Dell PowerStore system contains critical components and connections that require specialized knowledge and tools to handle properly. Replacing a base enclosure involves understanding the system’s architecture, safely disconnecting and reconnecting various components, and ensuring that the system is not compromised during the process.

The memory module, embedded I/O module, and power supply are designed to be more accessible for replacement and may fall under the category of customer-replaceable units (CRUs) or field-replaceable units (FRUs), depending on the specific model and configuration of the PowerStore system1.

For detailed procedures on replacing the base enclosure or any other components, it is recommended to refer to the official Dell PowerStore Installation and Service Guide.This guide provides step-by-step instructions and safety precautions for qualified personnel to follow when performing hardware replacements1. It is crucial to adhere to these guidelines to maintain system integrity and ensure that the storage system continues to operate effectively after the replacement.

To return a node from service mode to normal mode in a Dell EMC PowerStore system, the svc_rescue_state clear command should be used.This command clears the service mode state of the node and prepares it to return to normal operational mode1.

Here are the steps to perform this action:

Log in to the appliance from an SSH client.

Run the svc_rescue_state clear command to clear the boot mode.

Then, run the svc_node reboot command to reboot the node and return it to normal mode.

After the reboot, you can verify that the node has returned to normal mode by running the svc_rescue_state list command again.

It is important to follow these steps carefully to ensure that the node transitions back to normal mode without any issues.For more detailed instructions or if you encounter any problemsduring this process, refer to the Dell EMC PowerStore Service Scripts Guide or contact Dell EMC Support for assistance1.

The Dell EMC PowerStore X series supports Ethernet connectivity through ports on the embedded module, and on optional I/O modules1. This design allows for management and discovery to use the same cables and connections as storage.The PowerStore X models support front-end NVMe connectivity with NVMe over Fibre Channel and NVMe over TCP, providing a complete end-to-end NVMe solution2.

For the PowerStore X, the management network is integrated with the storage network, which simplifies the cabling requirements and reduces the number of separate networks that need to be maintained.This integration is particularly beneficial in VMware environments where the PowerStore X can leverage internal VMware virtual switching, which further streamlines the network infrastructure1.

In summary, the front-end cabling of the Dell EMC PowerStore X is designed to consolidate management and storage networking, which simplifies the overall network design and reduces the complexity of cable management.This approach is aligned with best practices for storage connectivity and ensures efficient use of network resources3.

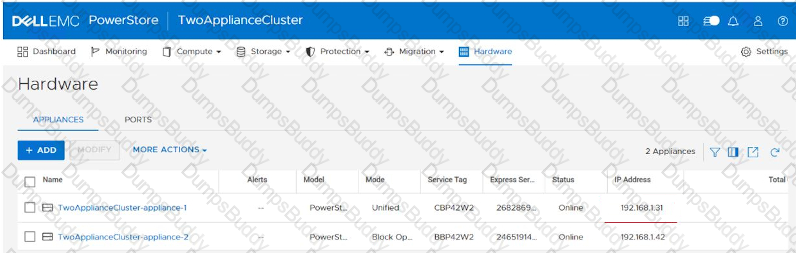

In the Dell EMC PowerStore system, the primary appliance is typically indicated by the ‘Mode’ column within the system’s user interface. The ‘Mode’ column shows the operational mode of the appliance, which can include states such as ‘Primary’, ‘Secondary’, or ‘Standby’.The primary appliance is the one that is actively servicing workloads and managing operations within the PowerStore cluster1.

The ‘Service Tag’ column represents the unique identifier for each physical appliance, the ‘Model’ column indicates the specific model of the appliance, and the ‘IP Address’ column shows the network address assigned to the appliance. While these columns provide important information, they do not indicate the role of the appliance within the cluster.

For more detailed information on identifying the primary appliance and understanding the role of each appliance in a PowerStore cluster, users can refer to the Dell PowerStore Clustering and High Availability documentation1. This documentation provides insights into the clustering architecture of PowerStore and how the primary appliance is determined during the initial configuration process.

In Dell EMC PowerStore Manager, a defective embedded module is displayed asorange with a faulted state. This color coding is used to indicate that there is a fault with the embedded module. The PowerStore Manager provides a visual representation of the system’s health and status, and the color orange is typically associated with a warning or an issue that needs attention.

The procedure for identifying and replacing a faulted embedded module involves using the PowerStore Manager to locate the faulted component. Once identified, the module displays an orange LED to indicate its faulted state.This is part of the system’s design to help administrators quickly and easily identify components that require attention1.

For detailed instructions on replacing a faulted embedded module or understanding the LED states for troubleshooting, you can refer to the PowerStore documentation provided by Dell, which includes comprehensive guides on handling such scenarios2.

A Dell EMC PowerStore node can tolerate one fan module failure.The system is designed with redundancy to ensure that if a single fan module fails, the remaining fan modules can compensate for the loss and maintain proper cooling to prevent overheating1. The system will increase the speed of the remaining fans to ensure continued cooling.

When a fan module failure occurs, the system will generate an alert to notify the administrator of the fault. The administrator should then take the following steps:

Acknowledge the alert in the PowerStore Manager.

Plan for the replacement of the faulted fan module as soon as possible to restore full redundancy.

Follow the replacement procedures as outlined in the Dell PowerStore Installation and Service Guide1.

It is important to address fan module failures promptly to ensure the long-term health and performance of the PowerStore system. The increased fan speed is a temporary measure to maintain operations until the faulted fan module can be replaced.

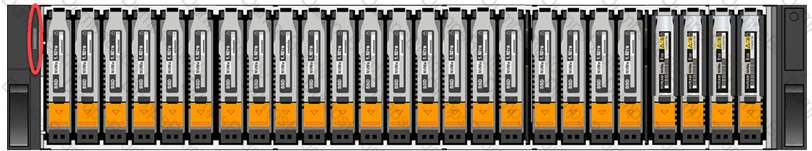

When the circled LED on the base enclosure of a Dell PowerStore system is illuminated amber, it typically indicates a fault within the base enclosure. This could be related to various issues such as power supply problems, cooling system malfunctions, or other operational faults that may affect the enclosure’s performance.

In Dell PowerStore systems, LED indicators are used to communicate the status of the system’s hardware components. An amber LED specifically suggests that there is a problem that needs to be addressed. The steps to investigate and resolve the issue usually include:

Checking the PowerStore Manager for alerts or messages that provide more details about the fault.

Inspecting the physical hardware to identify any visible signs of damage or failure.

Consulting the Dell PowerStore Hardware Guide for information on LED indicators and their meanings.

Following the recommended actions provided in the guide, which may include checking power connections, ensuring proper airflow, or other hardware checks.

If necessary, contacting Dell Support for further assistance, providing them with the details of the fault LED and any other relevant information observed.

It’s important to address any faults indicated by an amber LED promptly to maintain the integrity and reliability of the storage system. The Dell PowerStore documentation provides comprehensive information on LED indicators and troubleshooting steps to help resolve such issues effectively.

When the error “-bash: pstcli: command not found” appears after running a PSTCLI command on a Linux host, it typically means that the shell cannot locate the pstcli executable in the directories listed in the PATH environment variable. To resolve this issue, the installation directory of pstcli needs to be added to the PATH variable. This can be done by editing the shell initialization file (such as .bashrc or .bash_profile for Bash shell) and appending the installation directory to the PATH variable.

Here are the steps to resolve the problem:

Locate the installation directory of PSTCLI. If you followed the default installation, it should be in /opt/dellemc/pstcli-version/bin/.

Open the shell initialization file in a text editor. For example, if using Bash, you might edit ~/.bashrc or ~/.bash_profile.

Add the following line to the file: export PATH=$PATH:/opt/dellemc/pstcli-version/bin/. Replace /opt/dellemc/pstcli-version/bin/ with the actual installation directory if it is different.

Save the file and reload the shell configuration by running source ~/.bashrc or source ~/.bash_profile, or simply close and reopen the terminal.

Verify that pstcli can be found by running echo $PATH and ensuring the directory is listed.

Try running the pstcli command again to confirm that the issue is resolved.

By adding the PSTCLI installation directory to the PATH variable, the shell will be able to locate the pstcli executable when the command is run1. It is important to ensure that the PATH variable is correctly set to include all necessary directories for command-line tools to function properly.If the issue persists, it may be necessary to check the installation of PSTCLI or consult the Dell EMC PowerStore documentation for further troubleshooting steps1.

The Dell EMC PowerStore base enclosure contains two nodes.These nodes are configured in an Active-Standby mode to ensure high availability and load balancing1. Each node is 1U in size and stacks vertically within the base enclosure, with the top node inverted to fit within the compact design.This configuration allows for one node to be actively handling workloads while the other stands by ready to take over in case of a failure or maintenance event, ensuring continuous operation and data accessibility1.

For more detailed information on the node configuration within the PowerStore base enclosure, administrators can refer to the Dell PowerStore Introduction to the Platform documentation, which provides insights into the system’s architecture and design considerations1. It is important to understand the node roles and configurations to effectively manage and maintain the PowerStore system.

Heat dissipation in Dell EMC PowerStore systems is typically related to the power and cooling requirements of the system, which are influenced by the system’s configuration and components.Generally, lower model numbered systems, which have less processing power and storage capacity, will have lower heat dissipation specifications compared to higher model numbered systems that are more powerful and have greater storage capacity1.

The heat dissipation specification is an important factor in data center planning as it affects the environmental control requirements such as cooling and airflow. When planning for the installation of PowerStore systems, it is crucial to consider the heat output of the systems to ensure that the data center environment can maintain the optimal temperature for reliable operation.

For detailed specifications on heat dissipation for specific PowerStore models, one should refer to the official Dell EMC PowerStore Spec Sheets, which provide comprehensive information on the electrical and thermal characteristics of each model1. These documents are essential for understanding the power consumption and cooling requirements of PowerStore systems. Following the guidelines provided in these documents helps ensure that the systems are deployed in an environment that can support their thermal management needs.

When planning for a Dell EMC PowerStore T implementation, the minimum number of IP addresses required for the storage network is two. This is because each PowerStore T appliance requires a minimum of one IP address per node for the storage network.Since the PowerStore T model typically comes with two nodes (Node A and Node B), you will need at least two IP addresses—one for each node1.

It’s important to note that while two IP addresses are the minimum requirement, having additional IP addresses can be beneficial for optimization purposes.For example, the PowerStore 3000X, 5000X, 7000X, and 9000X models recommend having six IP addresses minimum per appliance for the storage network, with eight being recommended for optimization2.

In summary, for a basic PowerStore T setup, two IP addresses are required for the storage network to accommodate each node within the appliance. However, depending on the specific model and the scale of your implementation, more IP addresses may be recommended to ensure optimal performance and management of the storage network.

When a Dell EMC PowerStore node powers up in service mode, the commands and sequence used from the appliance SSH client to restore the node back to normal are as follows:

Run the svc_rescue_state clear command to clear the boot mode and take the node out of service mode1.

Then, run the svc_node reboot command to reboot the node and return it to normal operational mode1.

It is important to follow this sequence to ensure that the node exits service mode correctly and reboots into normal mode without any issues.For more detailed instructions or if you encounter any problems during this process, refer to the Dell EMC PowerStore Service Scripts Guide or contact Dell EMC Support for assistance1.

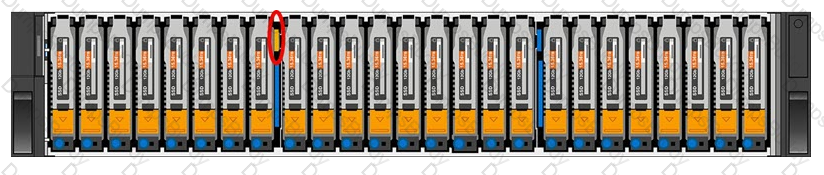

The illuminated amber LED on an expansion enclosure typically indicates a fault. In the context of Dell PowerStore expansion enclosures, an amber light can signify various issues such as power supply problems, cooling system malfunctions, or other operational faults that may affect the enclosure’s performance.

When troubleshooting, the following steps are generally taken:

Identify the specific LED that is illuminated amber using the hardware documentation.

Consult the Dell PowerStore Hardware Guide to determine the exact nature of the fault indicated by the amber LED.

Follow the recommended actions provided in the guide, which may include checking power connections, ensuring proper airflow, or other hardware checks.

If the issue persists, contact Dell Support for further assistance, providing them with the details of the fault LED and any other relevant information observed.

It’s important to address any faults indicated by an amber LED promptly to maintain the integrity and reliability of the storage system. The Dell PowerStore documentation provides comprehensive information on LED indicators and troubleshooting steps to help resolve such issues effectively.
