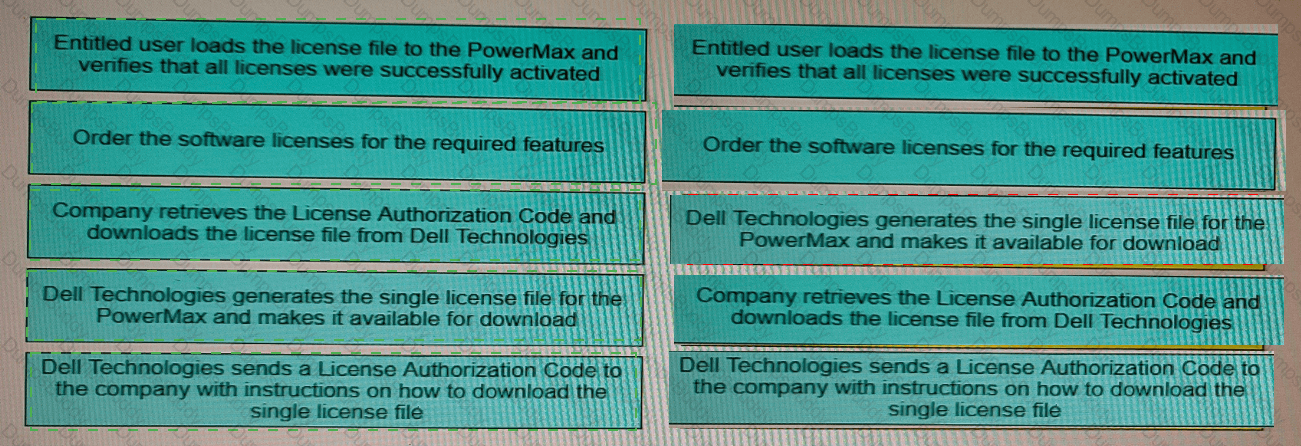

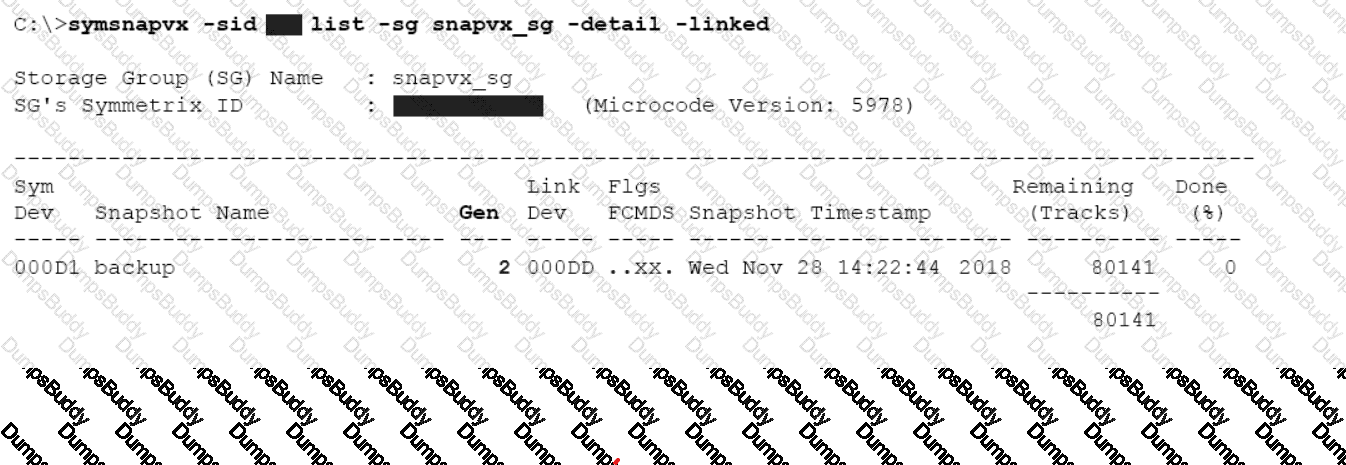

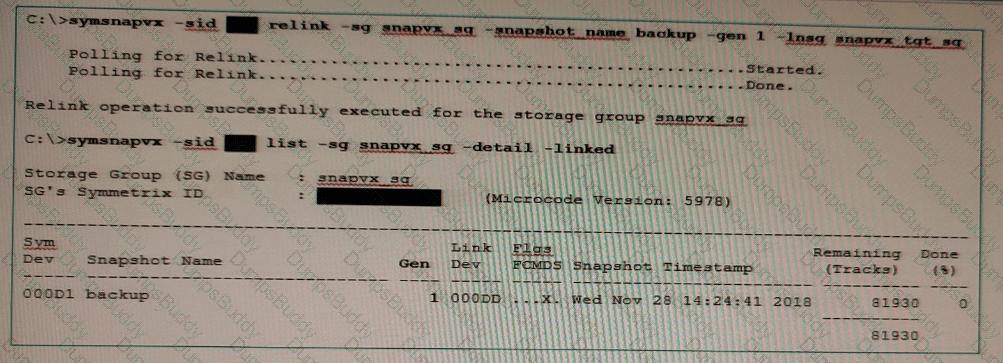

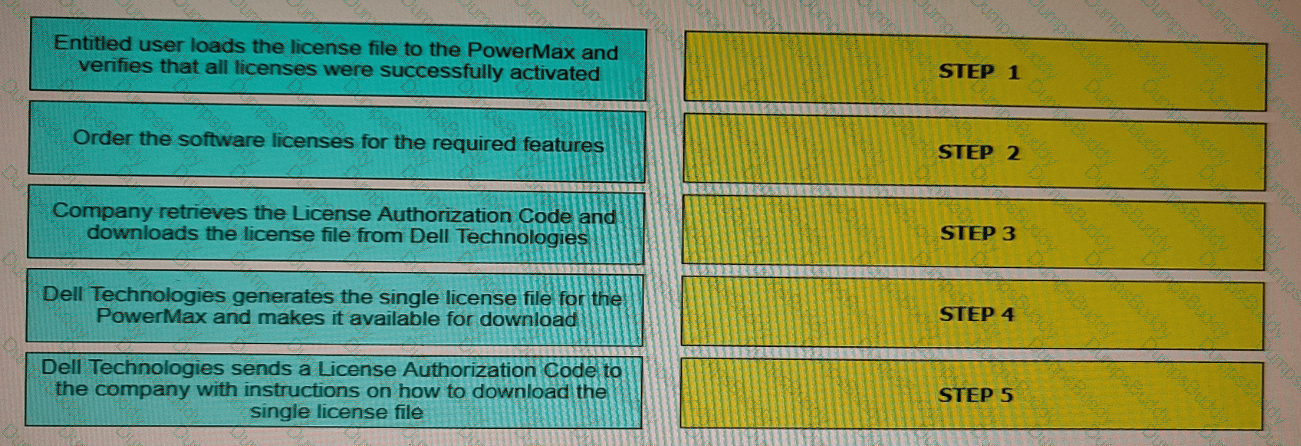

D-PVM-OE-01 Dell PowerMax Operate v.2 Questions and Answers

Step by Step Comprehensive Detailed Explanation:

Non-Disruptive Migration (NDM) is a feature in PowerMax that allows you to migrate data between storage arrays without any downtime or disruption to host applications. During NDM, SRDF (Symmetrix Remote Data Facility) is used to replicate data between the source and target arrays. Here are the configuration rules that apply to SRDF groups and connections during NDM:

A. The source and target arrays are at most one hop away from the control host:The control host, which manages the NDM process, must have direct connectivity to both the source and target arrays. This ensures efficient communication and control during the migration.

E. DM RDF groups are configured with a minimum of one path:SRDF groups used for NDM (DM RDF groups) must have at least one active path between the source and target arrays. This ensures that data can be replicated continuously during the migration.

Why other options are incorrect:

B. Two DM RDF groups are created per SG migration session:This is not a strict requirement. The number of DM RDF groups may vary depending on the configuration and the specific NDM operation.

C. RF and RE ports are supported, with RF ports being selected if both types are available:While RF and RE ports are supported for SRDF, there's no specific preference for RF ports during NDM. The choice of ports depends on the overall network configuration and availability.

D. A single array cannot have multiple DM RDF groups:An array can have multiple DM RDF groups if needed for different NDM operations or configurations.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax Family: Essentials and Best Practices Guide:This guide provides an overview of NDM and its requirements, including information about SRDF configuration.

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about SRDF commands and configuration options, which are relevant for NDM operations.

Step by Step Comprehensive Detailed Explanation:

Unisphere for PowerMax provides a "System > Hardware" view that offers insights into the physical components of your PowerMax storage array. On newly installed 2000 and 8000 series arrays, this view would typically show information about:

Front-end directors:These directors handle host connectivity and data transfer to and from the array. The view would likely display details about the number of front-end directors, their types, and their status.

Back-end directors:These directors manage the connection to the physical disks (storage media) within the array. The view may show the number of back-end directors, their types, and their status.

RDF (Remote Data Facility):If the array is configured for SRDF replication, the hardware view might display information about the RDF directors or components responsible for managing remote replication.

Why other options are incorrect:

A. Capacity, performance, and protection:While these are important aspects of a PowerMax system, they are typically found in other sections of Unisphere, such as the "Dashboard" or "Storage" views.

B. Provision, protect and set host I/O limits:These are management functions accessible through Unisphere, but not typically displayed directly under the "System > Hardware" view.

D. I/O Profile, performance thresholds, and anomaly detection:These are related to performance monitoring and analysis, which are usually found in the "Performance" section of Unisphere.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides detailed information about the different views and functionalities available within the tool. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of PowerMax systems and their management using Unisphere. It may provide context for understanding the information displayed in the "System > Hardware" view.

Step by Step Comprehensive Detailed Explanation:

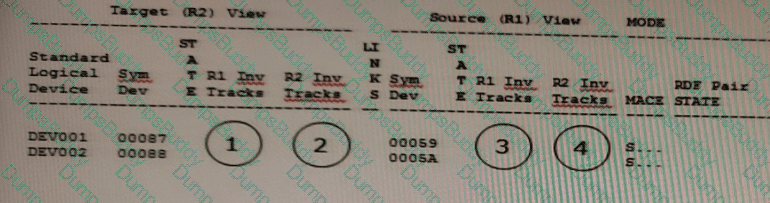

Before performing an SRDF/S (synchronous) Restore operation, it is crucial tostop all host I/O activityto both the R1 (source) and R2 (target) devices. This ensures data consistency and prevents potential data loss or corruption during the restore process.

Here's why:

Data Integrity:An SRDF/S Restore operation involves copying data from the R1 device to the R2 device, overwriting any existing data on R2. If hosts are actively accessing and modifying data on either device during this process, it can lead to inconsistencies and data integrity issues.

Synchronization:SRDF/S maintains real-time synchronization between the R1 and R2 devices.1Performing a Restore operation while hosts are writing data can disrupt this synchronization and lead to unpredictable results.

Why other options are incorrect:

A. Continue accessing the R1 devices. Stop accessing the R2 devices:This would leave R1 vulnerable to data inconsistencies.

B. Stop accessing the R1 devices. Continue accessing the R2 devices:This would make R2 susceptible to data loss or corruption.

D. Continue accessing the R1 and R2 devices:This is the most dangerous option, as it would likely lead to data integrity issues.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF operations, including Restore. It emphasizes the importance of halting host I/O before performing such operations to ensure data consistency. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about SRDF management and best practices, which would include recommendations for performing operations like Restore safely.

Step by Step Comprehensive Detailed Explanation:

The symsan command in Solutions Enabler is used for various SAN (Storage Area Network) management tasks. One of its functions is to scan the SAN environment to discover and verify the configuration of devices and paths.

When used in the context of an Open Replicator Migrator for Dell EMC (O-MDM) session, the symsan command specifically:

Verifies SAN Configuration:It checks the connectivity and configuration of the SAN fabric to ensure that the source and target devices are accessible and properly configured for the migration.

Non-Disruptive:It performs this verification without disrupting any applications or host I/O operations on the remote host. This is crucial for maintaining business continuity during the migration planning phase.

Why other options are incorrect:

A. Temporarily stops the remote application to verify the SAN configuration:symsan does not stop applications; it performs a non-disruptive scan.

B. Verifies the SAN configuration and creates an ORS session on the remote host:symsan only verifies the SAN; it doesn't create ORS (Open Replicator Solutions) sessions.

D. Temporarily stops the remote application and creates an ORS session:Again, symsan doesn't stop applications or create ORS sessions.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about the symsan command and its various options, including its use for SAN discovery and verification. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about SAN management and migration tools, providing context for understanding the role of the symsan command.

Step by Step Comprehensive Detailed Explanation:

In an SRDF (Symmetrix Remote Data Facility) disaster recovery scenario where production has been switched to the R2 devices at the target site, theResumeoperation allows the primary hosts to regain access to the R1 devices without waiting for a full data transfer from the R2 devices.

Here's how it works:

R1 Access:The Resume operation makes the R1 devices (at the primary site) accessible to the primary hosts.

Background Synchronization:While the hosts access and modify data on the R1 devices, SRDF continues to synchronize the changes from the R2 devices (at the target site) in the background. This ensures that the R1 devices are gradually updated with any changes that occurred on the R2 devices during the failover.

This approach minimizes downtime and allows for a quicker return to the primary site without waiting for a lengthy synchronization process to complete before granting host access.

Why other options are incorrect:

A. Update:This operation copies changes from R2 to R1, but it doesn't necessarily grant immediate host access to R1.

B. Fallback:This is a more comprehensive process that involves reversing replication direction and fully restoring the primary site as the production environment.

C. Failover:This operation switches production to the R2 devices, not the R1 devices.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf resume command. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "Resume" operation.

Step by Step Comprehensive Detailed Explanation:

When upgrading Solutions Enabler (SE) on a Linux host, the symcfg discover command plays a crucial role in preparing for the upgrade. Its primary function in this context is to:

Identify the running SE version:Before proceeding with the upgrade, it's essential to know the current version of Solutions Enabler installed on the host. The symcfg discover command gathers information about the existing SE environment, including the version number. This information is used to determine the appropriate upgrade path and ensure compatibility.

Why other options are incorrect:

B. Verifies that the SE daemons have been stopped:While stopping SE daemons is a necessary step before the upgrade, it's not the function of the symcfg discover command.

C. Builds the SYMAPI database:The SYMAPI database is typically built during the initial installation or after a fresh discovery.

D. Creates backups of the configuration directories:Backups are important, but they are usually handled separately as part of the upgrade process, not by the symcfg discover command itself.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 Installation Guide:This guide provides detailed instructions for upgrading Solutions Enabler on different operating systems, including Linux. It explains the steps involved and the role of the symcfg discover command in the upgrade process. You can find this document on the Dell Support website by searching for "Solutions Enabler Installation Guide."

You want a detailed, step-by-step guide on how to add three 100 GB volumes to an existing host and change the service level of the associated storage group from Gold to Platinum on a PowerMax array, using the Unisphere for PowerMax interface shown in the image.

Here's a comprehensive guide, broken down into manageable steps:

Phase 1: Provisioning the New Volumes

Step 1: Log in to Unisphere for PowerMax

Open your web browser and enter the URL for your Unisphere for PowerMax management interface.

Log in with your administrator credentials.

Step 2: Navigate to Storage Groups

In the left-hand navigation pane, click onStorageto expand the storage management section.

Click onStorage Groupsunder the Storage section. This will display a list of existing storage groups on your PowerMax array.

Step 3: Locate the Target Storage Group

Identify the storage group that currently contains the host's existing two 100 GB volumes.

Tip:You can find this by:

Looking at the "Hosts" tab within each storage group's details. It will list the hosts connected to that storage group.

If you know the host's name, you might be able to search for it using the Unisphere search bar (if available).

Step 4: Initiate Adding Volumes

Once you've found the correct storage group, select it by clicking on its name.

Look for a button or option related to adding volumes. The exact wording might vary slightly depending on your Unisphere version, but it could be:

"Add to Storage Group"

"+"(a plus icon, which often signifies adding something)

"Add Volumes"

Click this button to start the process of adding new volumes to the storage group.

Step 5: Configure Volume Details

A new window or panel will appear, allowing you to specify the characteristics of the new volumes.

Select "Create new volumes"

Number of Volumes:Enter 3 in the field for the number of volumes.

Capacity:Enter 100 in the field for the capacity of each volume. Make sure the unit is set to GB.

Volume Name (Optional):You can give the volumes a specific name or prefix, or you can let Unisphere auto-generate names.

Service Level:Since the final goal is to move the entire Storage Group to platinum, you can either set this to platinum now or change it for the whole group later.

Other Settings:Review any other available settings (e.g., thin provisioning, data reduction). In most cases, the default settings should be fine, but adjust them if needed based on your environment's best practices.

Step 6: Execute Volume Creation

After you've configured all the volume settings, review them carefully to make sure they are correct.

Click the button to execute the operation. This button might be labeled:

"Run Now"

"OK"

"Finish"

"Apply"

Unisphere will start creating the new volumes. This might take a few moments.

Phase 2: Changing the Storage Group's Service Level

Step 7: Navigate Back to Storage Groups

Once the volume creation is complete, go back to the list of storage groups. You can usually do this by clicking "Storage Groups" in the left-hand navigation pane again.

Step 8: Select the Target Storage Group

Find the same storage group you worked with in Phase 1 (the one containing the host's volumes).

Click on the storage group's name to open its properties.

Step 9: Modify the Service Level

Look for a setting related to the "Service Level." It might be a dropdown menu, a field you can edit, or a link to a separate settings page.

Change the Service Level fromGoldtoPlatinum.

Step 10: Save the Changes

Click the button to save the changes to the storage group's service level. This button might be labeled:

"Apply"

"Save"

"OK"

Phase 3: Host-Side Configuration

Step 11: Rescan for New Storage on the Host

The host needs to be made aware of the newly provisioned storage. The exact process for this depends on the host's operating system:

Windows:

OpenDisk Management(diskmgmt.msc).

Go toAction > Rescan Disks.

Linux:

Identify the SCSI host bus numbers (e.g., ls /sys/class/scsi_host).

Use the command echo "- - -" > /sys/class/scsi_host/hostX/scan, replacing hostX with the appropriate host bus number.

You might also be able to use tools like rescan-scsi-bus.sh.

VMware ESXi:

In the vSphere Client, select the host.

Go toConfigure > Storage Adapters.

Select the relevant storage adapter (e.g., your HBA).

ClickRescan Storage.

Step 12: Initialize, Partition and Mount (if needed):

Once the host detects the new volumes, you'll need to initialize them, create partitions, format them with a filesystem, and mount them, depending on your operating system and how you intend to use the storage. This is done using the host's operating system tools.

Phase 4: Verification and Monitoring

Step 13: Verify in Unisphere

Go back to the storage group in Unisphere and check the "Volumes" tab. You should see the three new 100 GB volumes listed along with the original two, and they should all have the "Platinum" service level.

Step 14: Verify on the Host

Confirm that the host can see and access the new volumes.

Step 15: Monitor Performance

After making these changes, monitor the performance of the storage group and the application using Unisphere's performance monitoring tools. Ensure that the Platinum service level is meeting your application's requirements

We need to terminate a clone session for the storage group named "DATA" in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the TimeFinder/Clone Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the provided image).

In the left-hand navigation pane, locate the section related to TimeFinder operations. This is usually found under:

Data Protection

Local Protection

TimeFinder

Expand the relevant sections and click onTimeFinder SnapVXorTimeFinder Clone(the exact wording might vary slightly in the simulator). The goal is to get to the view where you can manage clone sessions.

2. Locate the Clone Session for the "DATA" Storage Group

The TimeFinder/Clone view will display a list of existing clone sessions.

You need to find the session associated with the "DATA" storage group. Look for the following:

Storage Group Name:The "DATA" storage group should be listed as the source of the clone session.

Session Type/Mode:Verify that it's a Clone session (not a SnapVX snapshot or another type of session).

3. Select the Clone Session

Once you've found the correct clone session for the "DATA" storage group, select it.

You can usually do this by:

Clicking a checkbox next to the session.

Clicking on the session itself (if the interface allows it).

4. Terminate the Clone Session

After selecting the clone session, look for an action button or menu option to terminate it. This might be labeled:

"Terminate"

"Delete"

"Remove"

"Fracture"(in some older versions)

"Stop"

Click the appropriate button to initiate the termination process.

Confirmation:You will likely be prompted with a confirmation message to ensure you want to terminate the selected clone session. Verify that you have selected the correct session (the one for the "DATA" storage group) and confirm the termination.

The storsrvd daemon is a critical component of the Solutions Enabler (SYMCLI) software suite used to manage Dell PowerMax and VMAX storage arrays. Its primary function is to:

Listen for SYMAPI Sessions:It acts as a communication endpoint, listening for incoming SYMAPI sessions from clients or management tools like Unisphere.

Handle Management Requests:When a client connects, storsrvd receives and processes SYMAPI commands and requests, forwarding them to the appropriate components within Solutions Enabler for execution.

Essentially, storsrvd acts as an intermediary between SYMCLI clients and the storage array, facilitating communication and management operations.

Why other options are incorrect:

A. Manages Composite Groups and Device Groups:This is handled by other components within Solutions Enabler.

B. Provides centralized gatekeeper device management:While storsrvd plays a role in device management, it's not the sole component responsible for it.

C. Provides replication consistency protection:This is a function of SRDF (Symmetrix Remote Data Facility) and related components.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides information about the architecture and components of Solutions Enabler, including the role of the storsrvd daemon in handling SYMAPI communication. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

We need to remove all resources associated with a deprecated web application server named web_host_1 in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to accomplish this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the Hosts Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator.

In the left-hand navigation pane, click onHosts>Hosts. This will take you to the Hosts management view.

2. Locate the Host web_host_1

In the Hosts view, you'll see a list of all configured hosts.

Find the host named web_host_1. You might need to use the search or filtering options if there are many hosts listed.

3. Identify Associated Resources

Before deleting the host, it's crucial to identify all resources associated with it. These typically include:

Masking Views:These define the LUNs that a host can access.

Storage Groups:These contain the volumes presented to the host.

Port Groups:These define the connectivity paths (ports) used by the host.

How to Find Associated Resources:

Click on the web_host_1 host entry. This should open a details view or properties page for the host.

Look for tabs or sections labeled "Masking Views," "Storage Groups," or similar.

Note down the names of any masking views and storage groups associated with web_host_1.

4. Remove the Host from Masking Views

Navigate toHosts>Masking Views.

Locate the masking views that you identified in Step 3 as being associated with web_host_1.

Open each masking view's properties.

Remove the Host:There should be an option to edit the host list within the masking view. Find web_host_1 in the list of hosts and remove it.

Save Changes:Save the changes to the masking view.

Repeatfor all masking views associated with web_host_1.

5. Delete or Modify Storage Groups

Navigate toStorage>Storage Groups.

Locate the storage groups that were associated with web_host_1.

Two Options:

If the storage group is ONLY used by web_host_1:You can delete the entire storage group. Select the storage group and click theDeletebutton (or a similar option).

If the storage group is shared with other hosts:You need to remove the volumes associated with web_host_1 from the storage group.

Open the storage group's properties.

Go to the "Volumes" tab.

Identify the volumes that were presented to web_host_1.

Select those volumes and choose the option to "Remove from Storage Group" or a similarly worded option.

Save the changes to the storage group.

6. Delete the Host

Go back toHosts>Hosts.

Select web_host_1.

Click theDeletebutton (or a similar option, like a trashcan icon).

Confirm that you want to delete the host.

7. Verify Removal (Optional)

After deleting the host and modifying the storage groups and masking views, you can verify that the resources have been properly cleaned up.

Check theStorage GroupsandMasking Viewssections again to ensure that web_host_1 is no longer listed and that the storage groups have been either deleted or modified as intended.

Step by Step Comprehensive Detailed Explanation:

The syradm list -environment -offline command in Solutions Enabler is used to display information about migration environments that are currently offline.

Here's what it shows:

Controlled Environments:It lists the migration environments that are directly controlled by the host where the command is executed. These are the environments where the host acts as the primary control point for the migration.

Reachable Environments:It also lists environments that are reachable from the host executing the command. This includes environments controlled by other hosts that are connected and accessible within the SAN fabric.

This broader scope allows administrators to get a comprehensive view of offline migration environments across their managed systems.

Why other options are incorrect:

A. The environments where the application has been taken offline to perform the cutover:While offline environments might be associated with cutovers, the command shows all offline environments regardless of their specific stage in the migration process.

B. Only the environments controlled by the host from where the list command is run:It also includes reachable environments, not just those directly controlled by the host.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about the syradm command and its various options, including the list -environment -offline command for displaying offline migration environments. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Step by Step Comprehensive Detailed Explanation:

The "Data Protection" menu in Unisphere for PowerMax provides a centralized location for managing various data protection features and functionalities. Specifically, it allows storage administrators to:

Configure and manage SRDF groups:SRDF (Symmetrix Remote Data Facility) is a key technology for disaster recovery and data replication in PowerMax. The Data Protection menu enablesadministrators to create, modify, and monitor SRDF groups, establish replication relationships between devices, and control replication settings.

Why other options are incorrect:

A. Convert front-end ports to SRDF ports:This is typically done through the "System > Hardware" or "Connectivity" sections of Unisphere, where port configurations are managed.

C. Configure Data Protection for z Systems:While PowerMax supports mainframe environments, the specific configuration for z Systems might involve specialized tools or interfaces.

D. Review the audit log for unwanted logins:Audit logs and security-related events are usually found in the "Monitoring" or "Security" sections of Unisphere.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides a detailed explanation of the functionalities available in each menu, including the Data Protection menu. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of data protection features in PowerMax and how they are managed through Unisphere.

Host I/O Limits in PowerMax allow you to control the maximum IOPS (Input/Output Operations Per Second) or bandwidth that a storage group can consume. This helps prevent performance issues caused by one application or workload monopolizing resources.

When you associate Host I/O Limits with a Storage Group, the default Dynamic I/O distribution mode is set toNever.

Never:This means that the I/O limits are statically distributed across the directors in the associated masking view. If a director fails, its allocated portion of the I/O limit is lost. This is the most conservative setting, as it ensures that the I/O limits are strictly enforced even in the event of a director failure.

You can change this setting toBalancedorAlwaysif you need more dynamic distribution of I/O limits.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax and VMware vSphere Configuration Guide:This guide provides detailed information about Host I/O Limits, including the different distribution modes and their benefits. You can find this document on the Dell Support website by searching for "PowerMax and VMware vSphere Configuration Guide."

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides information on how to set Host I/O Limits using SYMCLI commands, including the -dynamic option for specifying the distribution mode.

Okay, I understand. We need to perform a system health check and review the compliance status for a PowerMax array with SID ending in 1762 using the Unisphere simulator, then generate and download a compliance report.

Here's how you would do it in the Unisphere for PowerMax simulator, based on the provided image and common Unisphere functionality:

Steps:

1. Launch the Simulator and Access the System Health View

Open Unisphere for PowerMax in your web browser.

You should already be logged in to the simulator, with the PowerMax array with SID 1762.

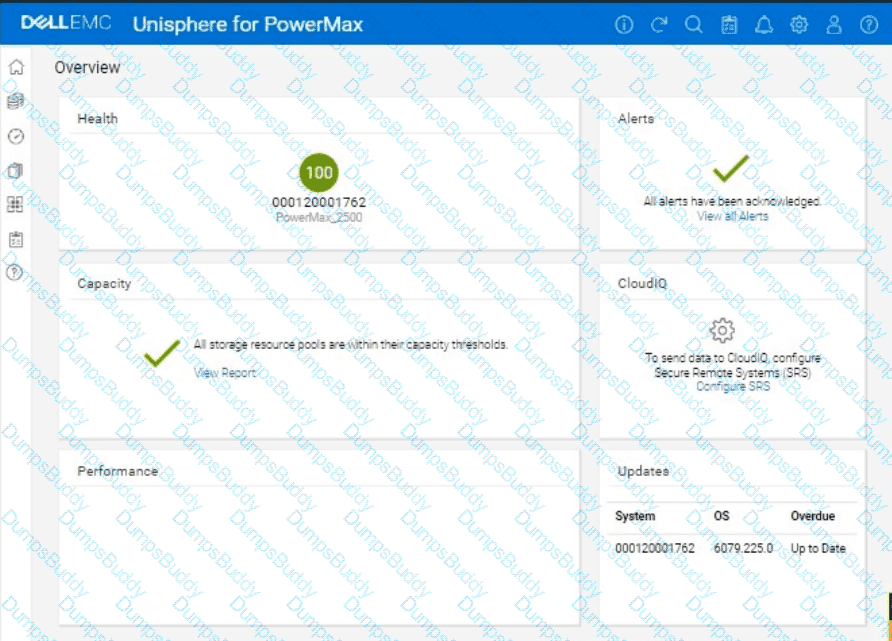

The initialOverviewpage (as shown in the image) provides a good starting point for a health check.

2. Analyze the Overview Page

Health:The "Health" section displays the overall health status of the array. In the image, it shows "100" with a green checkmark, which indicates that the array is currently healthy.

Alerts:The "Alerts" section will show if there are any active alerts. In the image, it shows a green checkmark and "All alerts have been acknowledged," meaning no unacknowledged alerts. You can click "View all Alerts" to see the alert history.

Capacity:The "Capacity" section indicates whether storage resource pools are within their capacity thresholds. The green checkmark and "All storage resource pools are within their capacity thresholds" message indicate that capacity is currently healthy. You can click "View Report" for more details.

Performance:The "Performance" section is not detailed in the image, but it would typically provide a quick overview of the array's performance.

Updates:The "Updates" section shows the system's PowerMaxOS code level and whether any updates are overdue. In the image, it shows that the system is "Up to Date."

3. Navigate to the Compliance Section

In the left-hand navigation pane, click onData Protectionto expand it.

Click onComplianceunder Data Protection.

4. Review Compliance Status

The Compliance view will show you the overall compliance status of your storage groups against the defined compliance policies.

Review the compliance status for each Storage Group.

Look for any storage groups that are marked as "Non-Compliant."

5. Generate the Compliance Report

Click on"Generate Report"(or a similarly worded button) within the Compliance view. This might also be represented as an icon in the simulator.

Select all Storage GroupsSince we need to generate the report for all storage groups.

Report Format:Choose the desired report format. Common options are usually PDF, CSV, or HTML. For this simulation, let's assume PDF is available and select it.

Download the Report:Once the report is generated, there will typically be a"Download"or similar option to save the report to your local system. Click it to download the compliance report.

6. Further Health Checks (Optional):

Detailed Performance Metrics:You can navigate to thePerformancesection in the left navigation pane (under "Dashboard") to view more detailed performance metrics for various components of the array.

Hardware Status:You can typically find a "Hardware" section (or similarly named section) that provides information about the physical components of the array (e.g., DAEs, directors, ports).
