D-PWF-DS-23 Dell PowerFlex Design 2023 Exam Questions and Answers

Before adding a Fault Set in PowerFlex, two critical aspects must be in place: a Protection Domain and Storage Pools.

• Protection Domain: This is a logical grouping of storage resources that share the same protection policy and fault tolerance settings. It defines the boundaries of failure domains and is essential for ensuring data availability and resilience1.
• Storage Pools: These are collections of storage media across multiple nodes within a Protection Domain. Storage Pools provide the physical storage where data is actually placed. They are necessary for the creation of volumes and for the distribution of data across the system1.

Fault Sets are used to group nodes that share a common risk of failure, such as being in the same rack or power circuit. When creating Fault Sets, it’s important that they are defined within an existing Protection Domain and utilize the storage resources allocated within Storage Pools. This ensures that data remains available and protected even if a Fault Set fails, as the system can rebuild the data using the remaining Fault Sets and Storage Pools1.

The information provided here is based on the best practices and design principles outlined in Dell PowerFlex documentation, which details the requirements for setting up and configuring various components of the PowerFlex system, including Fault Sets1.

In a PowerFlex appliance environment, Fault Sets are used to group Storage Data Servers (SDSs) that are managed together as a single fault unit. When Fault Sets are employed, the distributed mesh-mirror copies of data are never placed within the same fault set1. This means that each Fault Set must have enough SDSs to ensure that data can be mirrored across different Fault Sets for redundancy.

Given that there are only five Storage Only nodes available in the described environment, and considering that each node runs an SDS, it may not be possible to create Fault Sets using all available servers if the number of Fault Sets or the distribution of SDSs across those Fault Sets does not allow for proper mirroring of data. The architecture requires a certain number of SDSs to be available to form a Fault Set that can be used for data mirroring and redundancy1.

The other options, such as requiring more than one Management node (Option A) or not having enough Compute Only nodes (Option C), are not directly related to the creation of Fault Sets. The Management node’s primary role is to manage the cluster, not to participate in Fault Sets, and Compute Only nodes do not contribute storage resources to Fault Sets.

Therefore, the correct answer is B. There are not enough Storage Only nodes, as this would prevent the architect from creating Fault Sets that meet the redundancy requirements of the PowerFlex appliance environment.

FSN, or File Storage Network, is the component within the PowerFlex software suite that enables data availability over NAS (Network Attached Storage). It is designed to integrate file services into the PowerFlex system, allowing for the management of file shares alongside block storage within the same infrastructure1.

The FSN component provides the necessary functionality to create, manage, and serve file systems over the network, making it possible for clients to access shared files and directories as if they were local. This integration simplifies the storage architecture and provides a unified storage solution for both block and file data requirements1.

The other options listed, such as SDR (Storage Data Replicator), LIA (Log Integration Adapter), and SDT (Software-Defined Technology), do not specifically relate to the provision of NAS services within the PowerFlex environment. Therefore, the correct answer is A. FSN, as it is the PowerFlex software component responsible for enabling NAS capabilities within the cluster.

FNA, or Full Network Automation, in the context of PowerFlex Manager, enables customers to leverage their existing network investments and processes. This feature is designed to simplify the deployment and management of PowerFlex systems by automating the configuration of network-related settings and integrating with existing network infrastructures.

Here’s how FNA contributes to leveraging existing network investments and processes:

• Network Integration: FNA allows PowerFlex Manager to integrate seamlessly with the customer’s existing network setup, making use of current investments in network hardware and configurations1.
• Automation: It automates the network configuration process for PowerFlex nodes, reducing the need for manual intervention and minimizing the potential for human error2.
• Optimization: By automating network configurations, FNA helps optimize network performance and ensures that the PowerFlex system is utilizing the network resources efficiently1.
• Simplification: FNA simplifies the management of network settings, making it easier for customers to maintain and scale their PowerFlex environments without having to overhaul their existing network processes1.

The ability to leverage existing network investments and processes is a key advantage of using FNA with PowerFlex Manager, as it allows customers to maintain their current network strategies while benefiting from the automation and optimization that PowerFlex Manager provides1.

The cause of the snapshot creation failure when a volume has a snapshot policy assigned is likely because the snapshot is the 61st created by the policy. According to Dell PowerFlex documentation, of the 126 user-available snapshots per volume, sixty (60) can be used for policy-based snapshot scheduling1. This means that if the policy attempts to create a snapshot beyond this limit, it will fail.

Here’s a step-by-step explanation of the issue:

• Snapshot Policy Limit: Each volume in a PowerFlex system can have a maximum of 126 user-available snapshots. For policy-based snapshot scheduling, the limit is 60 snapshots per volume1.
• Policy-Based Snapshot Creation: When a snapshot policy is in place, it will automatically attempt to create snapshots based on the defined schedule and retention levels.
• Failure Point: If the snapshot policy tries to create a snapshot and it is the 61st snapshot for that volume, the creation will fail because it exceeds the limit set for policy-based snapshots1.
• Resolution: To resolve this issue, the administrator would need to adjust the snapshot policy to ensure that it does not exceed the limit of 60 snapshots. This may involve modifying the retention levels or the frequency of snapshot creation.

This explanation is based on the snapshot policy details provided in the Dell PowerFlex documentation, which outlines the restrictions and uses of snapshots within the PowerFlex storage system1.

Secure snapshots in PowerFlex are controlled by policies that define their retention and expiration periods. If a snapshot has a lock enabled, it cannot be deleted until the lock is disabled. The lock is a security feature that prevents accidental or unauthorized deletion of the snapshot before its intended retention period1.

To delete a secure snapshot that is still within its expiration period but needs to be removed, the administrator must first disable the snapshot policy lock. Here are the general steps to do so:

• Access PowerFlex Manager.
• Navigate to the Snapshots section.
• Locate the specific snapshot that needs to be deleted.
• Disable the lock on the snapshot policy associated with the snapshot.
• Once the lock is disabled, the snapshot can be deleted manually.

Changing the snapshot expiration period to 30 days (Option C) would not affect the ability to delete the snapshot if the lock is still enabled. The Dual Signature Policy agreement with Dell (Option A) is not a standard procedure for deleting snapshots within PowerFlex and is not related to the administrative controls of snapshot policies.

Therefore, the correct answer is B. Disable the snapshot policy lock on the snapshot, as this action will allow the administrator to delete the snapshot before the expiration period, provided that the snapshot is no longer needed and can be safely removed from the system1.

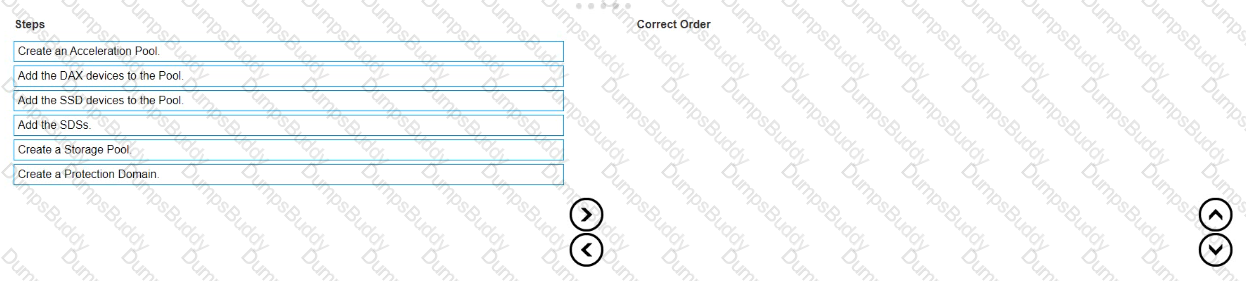

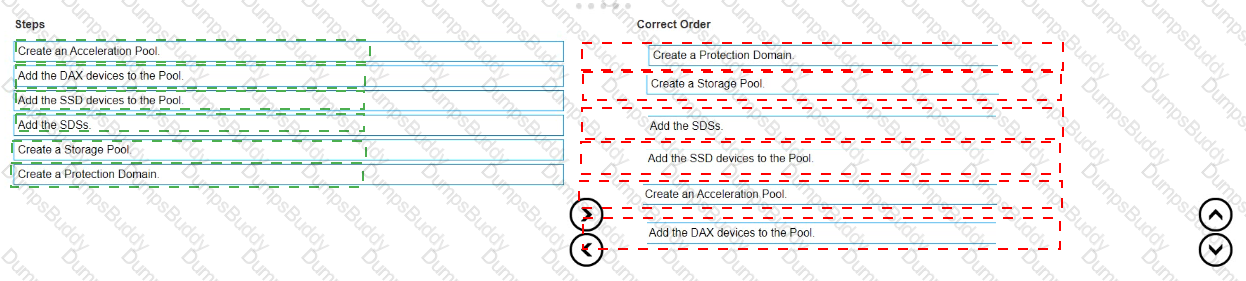

The correct sequence of steps to create an FG (Fine Granularity) Storage Pool within a PowerFlex system is as follows:

• Create a Protection Domain: This is the first step, where you define a logical grouping of storage resources that share the same protection policy and fault tolerance settings1.
• Create a Storage Pool: After establishing a Protection Domain, you create a Storage Pool within it. This pool will contain the physical storage resources1.
• Add the SDSs (Storage Data Servers): The next step is to add SDSs to the Storage Pool. SDSs are the servers that contribute storage capacity to the pool1.
• Add the SSD (Solid-State Drive) devices to the Pool: Once the SDSs are added, you then add the SSD devices to the Storage Pool to provide the actual storage capacity1.
• Create an Acceleration Pool: This step involves creating an Acceleration Pool, which is used for caching to enhance the performance of the storage system1.
• Add the DAX (Direct Access) devices to the Pool: Finally, you add the DAX devices to the Acceleration Pool. DAX devices are typically high-speed storage devices like NVMe drives that serve as cache

The process of creating an FG Storage Pool in a PowerFlex system involves a series of steps that establish the necessary components and configurations for the storage environment. The sequence starts with the creation of a Protection Domain, which sets the stage for defining how storage will be protected and managed. Within this domain, a Storage Pool is created, which is essentially a collection of storage resources. The SDSs are then added to this pool, contributing their storage capacity to the overall system. SSD devices are included next to provide the actual storage space. An Acceleration Pool is created to improve performance through caching, and DAX devices are added to this pool to serve as the cache, completing the setup of an FG Storage Pool1.

This sequence ensures that the storage system is configured for optimal performance and data protection, following the guidelines and best practices outlined in the PowerFlex documentation1. It’s important to follow these steps in order to maintain the integrity and efficiency of the PowerFlex storage system.

Tree quotas in PowerFlex are used to limit the maximum size of a directory on the file system. They are a way to manage and control the amount of disk space that can be used by a specific directory and its subdirectories. By setting tree quotas, administrators can ensure that no single directory consumes more space than intended, which helps in maintaining a balanced utilization of storage resources across the file system.

Here’s how tree quotas function:

• Setting Quotas: Administrators define tree quotas by specifying a maximum size limit for a directory.
• Enforcement: Once set, the system enforces these limits, ensuring that the total size of the directory does not exceed the specified quota.
• Monitoring: Tree quotas also allow for monitoring of storage usage, providing insights into how storage is being consumed by different directories.

The purpose of tree quotas is not to limit the overall I/O or the total storage capacity of the file system but to provide a mechanism for controlling and monitoring the storage usage at the directory level within the file system1.

This explanation aligns with the information provided in the Dell PowerFlex documentation, which details the configuration and management of storage resources, including the implementation and purpose of tree quotas1

The “Force Clean” option in PowerFlex is used when adding devices to an SDS (Storage Data Server) to ensure that any existing data on the device is overwritten during the addition process. This is particularly important when repurposing storage devices that may have been previously used and contain old data or configurations that could interfere with the new PowerFlex deployment1.

Setting the Force Clean SDS option to YES will initiate a process that clears any residual data from the device, effectively returning it to a clean state before it is integrated into the PowerFlex system. This step is crucial for maintaining data integrity and preventing potential conflicts that could arise from leftover data on the devices1.

The other options, such as ensuring the device is error-free and compatible with PowerFlex (Option A), performing a clean check on the device before adding it (Option C), or bypassing restrictions to proceed with adding the device (Option B), are not directly related to the purpose of the Force Clean SDS option. While compatibility checks and clean checks are important, they do not involve actively overwriting data on the device.

Therefore, the correct answer is D. Overwrite existing data on the device during the addition process, as it accurately describes the action taken when the Force Clean SDS option is set to YES in the PowerFlex system.
