D-PE-OE-23 Dell PowerEdge Operate 2023 Questions and Answers

Selecting the Appropriate PowerEdge Model for GPU Density and High-Capacity Storage

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Position the server in the market landscape

Understanding Customer Requirements

Optimize GPU Density for Maximum Performance: The customer needs a server that supports a high number of GPUs for intensive computational tasks.

High-Capacity Storage: Requires substantial storage capabilities within the server.

Evaluation of PowerEdge Models

Option A: XR12

Explanation: The PowerEdge XR12 is a ruggedized server designed for edge computing environments. It offers limited GPU support and is optimized for space-constrained, harsh conditions.

Conclusion: Not suitable for maximizing GPU density and high-capacity storage.

Option B: R660

Explanation: The PowerEdge R660 is a 1U rack server optimized for performance and density but has limited GPU support due to its size. It is ideal for virtualization and database applications but not for high GPU density.

Conclusion: Does not meet the GPU density requirement.

Option C: XE9640

Explanation: The PowerEdge XE9640 is designed for extreme compute performance and supports high GPU density. It can accommodate multiple high-performance GPUs and offers substantial storage options, making it ideal for HPC, AI, and data analytics workloads.

Features:

Supports up to eight double-width GPUs.

Offers high-capacity storage configurations.

Conclusion: Correct Answer.

Option D: C6620

Explanation: The PowerEdge C6620 is a high-density compute server optimized for scale-out environments. It focuses on compute density rather than GPU density and has limited support for GPUs.

Conclusion: Not the best fit for maximizing GPU density and storage.

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications: Understanding the capabilities of different server models to meet specific customer needs.

Server Components (26%)

Explain how expansion cards are connected and the features of the GPU: Knowledge of which servers support high GPU density.

Conclusion

PowerEdge XE9640 is the optimal choice for the customer's requirements, providing maximum GPU density and high-capacity storage for peak performance.

Understanding iDRAC License Types and Virtual Console Availability

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Overview of iDRAC Licensing

The Integrated Dell Remote Access Controller (iDRAC) provides administrators with remote management capabilities for Dell PowerEdge servers. iDRAC comes with different license levels, each offering various features:

iDRAC Basic

Limited remote management functionality.

Does not support Virtual Console or Virtual Media.

Included by default with most servers.

iDRAC Express

Adds basic remote management features over iDRAC Basic.

Includes monitoring and alerting capabilities.

Does not include Virtual Console access.

iDRAC Enterprise

Offers advanced management features.

Includes Virtual Console and Virtual Media support.

Provides full remote administration capabilities.

iDRAC Datacenter

Includes all features of iDRAC Enterprise.

Adds advanced data center management features, such as telemetry streaming.

Includes Virtual Console functionality.

Explanation of Options

Option A: iDRAC Basic

Incorrect: iDRAC Basic does not provide Virtual Console access.

Option B: iDRAC Datacenter

Correct: Supports Virtual Console, offering advanced remote management features.

Option C: iDRAC Express

Incorrect: Does not include Virtual Console capabilities.

Option D: iDRAC Enterprise

Correct: Provides Virtual Console access and advanced management features.

Dell Operate References

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods: Understanding the different iDRAC license levels and their associated features is crucial for effective server management.

System Administration (18%)

Configure user access: Knowing which licenses enable certain features helps in setting up appropriate user permissions.

Conclusion

The Virtual Console feature is available with both iDRAC Enterprise and iDRAC Datacenter licenses. These licenses enable administrators to perform comprehensive remote management tasks, including accessing the server's console over the network.

Understanding Easy Restore Functionality

Server Troubleshooting (32%)

Explain Easy Restore, diagnostic utilities, and hardware diagnostic options

What is Easy Restore?

Easy Restore is a feature in Dell PowerEdge servers that simplifies the process of restoring system configuration settings after replacing the system board (motherboard).

Purpose:

Reduces downtime by automatically restoring critical configuration settings.

Eliminates the need to manually reconfigure settings after hardware replacement.

Configuration Settings Restored by Easy Restore

BIOS Settings:

Restores all BIOS configurations, including boot order, system settings, and performance options.

iDRAC Settings:

Restores Integrated Dell Remote Access Controller (iDRAC) configurations, such as network settings, user accounts, and management preferences.

NIC (Network Interface Card) Settings:

Restores network configurations for onboard NICs, including IP addresses, VLAN settings, and teaming configurations.

Explanation of Options

Option A: "BIOS, iDRAC, and NIC"

Analysis:

Accurately reflects the settings restored by Easy Restore.

BIOS: System configuration and hardware settings.

iDRAC: Remote management settings.

NIC: Network configurations.

Conclusion: Correct Answer.

Option B: "Virtual console, network, and SCP"

Analysis:

Virtual Console: Part of iDRAC features but not a configuration setting restored separately.

SCP (Server Configuration Profile): Used for exporting/importing configurations but not directly restored by Easy Restore.

Conclusion: Inaccurate.

Option C: "iDRAC, BOSS, and partitions"

Analysis:

BOSS (Boot Optimized Storage Solution): A storage controller for boot drives; its settings are not restored by Easy Restore.

Partitions: Disk partitions are not restored by Easy Restore.

Conclusion: Incorrect.

Option D: "Asset tag, passwords, and RAID"

Analysis:

Asset Tag: Restored by Easy Restore.

Passwords: May or may not be restored, depending on security policies.

RAID Configuration: Not restored by Easy Restore; requires separate backup and restoration procedures.

Conclusion: Partially correct but not the best answer.

Dell Operate References

Server Troubleshooting (32%)

Explain Easy Restore, diagnostic utilities, and hardware diagnostic options: Understanding what configurations Easy Restore handles is essential for efficient troubleshooting and system recovery.

Server Components (26%)

Define the different processor, memory options, and memory configurations: Knowing how system configurations are managed and restored.

Conclusion

Easy Restore reinstalls configuration settings for the BIOS, iDRAC, and NIC. This feature ensures that critical system configurations are preserved after replacing the system board, minimizing downtime and administrative effort.

To prevent unwanted configuration changes in the iDRAC UI, you can adjust user roles, permissions, or enable specific security settings to restrict access for junior IT staff. Here are the steps to secure the iDRAC configuration:

Step-by-Step Guide:

Access User Settings:

In the iDRAC interface, navigate to iDRAC Settings from the main menu.

Choose User Authentication or Users to manage user accounts and permissions.

Adjust User Roles and Permissions:

Identify the accounts associated with junior IT staff.

For each user account, adjust the role to Read-Only if you want them to have view-only access without making configuration changes.

Alternatively, set their permissions to exclude configuration changes. This may involve assigning a custom role with limited access based on your needs.

Enable Configuration Lock (if available):

Some versions of iDRAC offer a Configuration Lock feature, which prevents any configuration changes until the lock is removed by an administrator.

Navigate to Configuration > System Security or User Authentication, depending on the version, and enable the Configuration Lock option.

Set Up Two-Factor Authentication (Optional):

For added security, enable Two-Factor Authentication under iDRAC Settings > Network or Security settings. This step ensures only authorized users can access and make changes to the iDRAC UI.

Save and Apply Security Changes:

After setting up the desired restrictions and permissions, save the settings to apply the changes.

Verify that junior IT staff accounts now have restricted access and cannot make configuration changes.

Log Out and Test the Changes:

Log out of the administrator account and log in with a junior IT staff account to confirm that the permissions are set correctly.

Ensure that configuration changes are disabled and that the user can only view the iDRAC interface as per the restrictions.

By following these steps, you can restrict junior IT staff from making any configuration changes within the iDRAC interface, thus preventing accidental or unauthorized modifications.

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power Supply Configuration.

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0. In this configuration, there will be no redundancy, and both power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU. Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without automatic failover to another power supply.

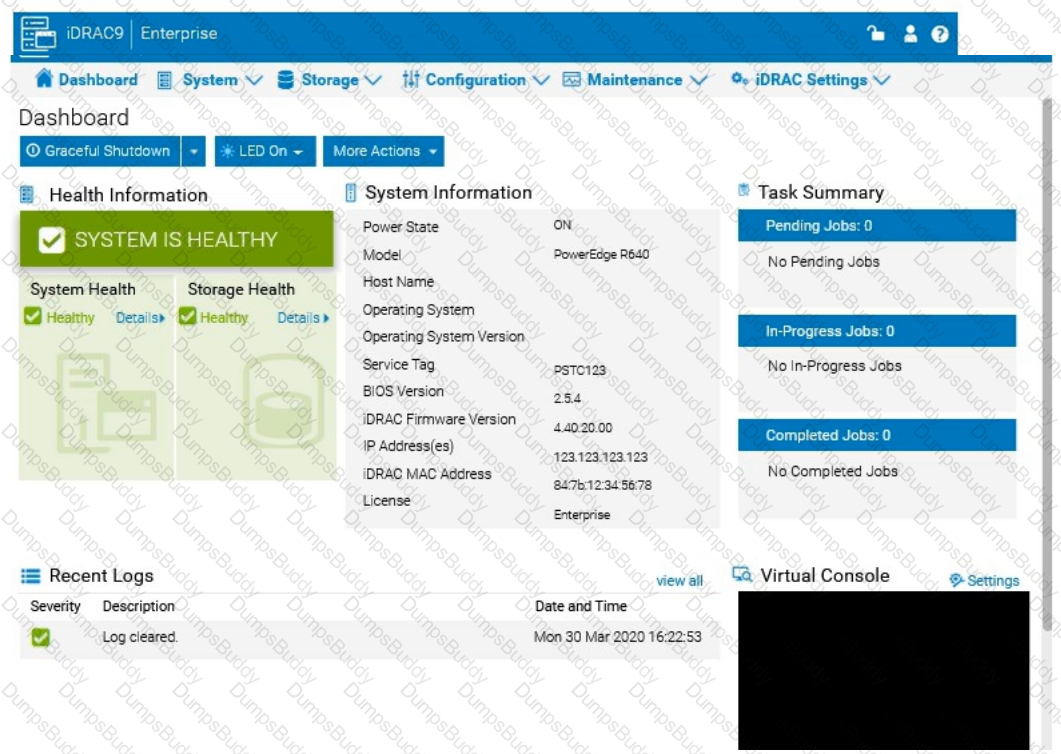

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it’s a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

 Launch the Simulator:

Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

 Navigate to System Information:

In the top menu bar, select the "Configuration" tab.

From the options that appear, choose "Storage". This section will display details and configurations for the storage controllers installed on the server.

 Check the H965i Storage Controller:

Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

Look for the field labeled "Cache Memory Size". This will provide the cache memory size value for the controller.

To create and save a server configuration profile with specific components in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access Configuration Profiles:

Go to the "Configuration" tab on the top menu bar.

From the dropdown options, select "Server Configuration Profile."

Create a New Profile:

Within the Server Configuration Profile section, choose the option to Create a New Profile.

You will likely see options to specify which components to include in the configuration profile.

Select Components:

When prompted, select only the components required for the configuration:

NIC: Network Interface Card settings.

RAID: Storage controller and RAID configuration.

iDRAC: iDRAC management settings.

Ensure that other components are not selected to meet the requirement.

Save the Configuration:

Enter the file name "PE-server" for the profile.

Choose the option to Save or Export the configuration profile. This should save the configuration to the specified name, typically on the server or local storage available through iDRAC.

Verify the Profile Creation:

After saving, verify that the profile appears in the list of server configuration profiles with the name "PE-server."

Confirm that it includes only the selected components.

By following these steps, you should successfully create and save the configuration profile with the specified components.

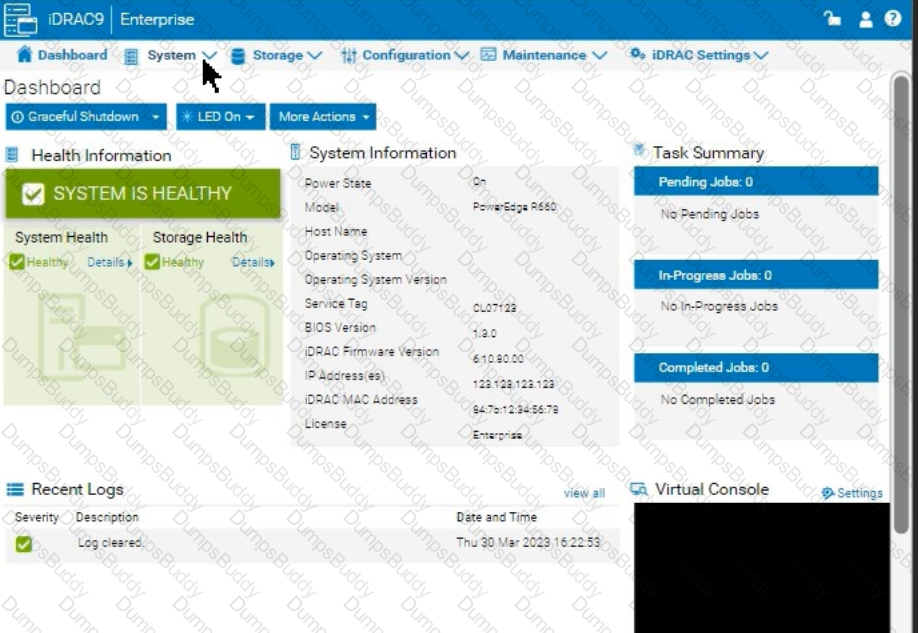

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here's how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A. Under voltage fault detection on power supply 1: Indicates a voltage issue was detected on PSU1.

B. Power supply 2 has failed: Indicates PSU2 has completely failed.

C. Under voltage fault detected on power supply 2: Indicates a voltage issue was detected on PSU2.

D. Power supply 1 has failed: Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue, the most likely scenario involves a failure or under-voltage detection.

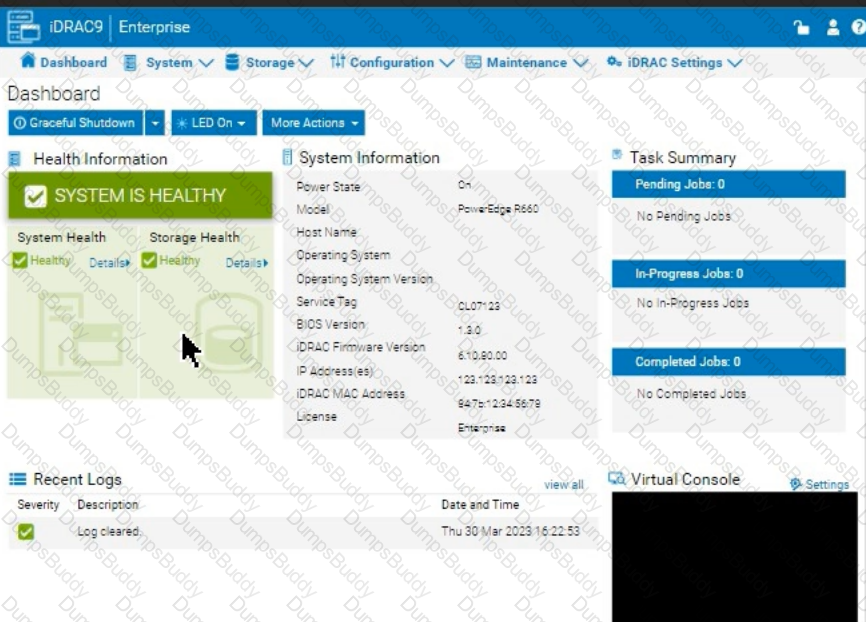

To enable capturing the full POST (Power-On Self-Test) sequence using the iDRAC interface, follow these steps:

Step-by-Step Guide:

Log into the iDRAC Interface:

Access the iDRAC UI using the server’s IP address from a web browser.

Enter your credentials to log in.

Navigate to System BIOS Settings:

Go to the Configuration tab on the top menu.

Select BIOS Settings from the dropdown menu. This will take you to the settings where you can manage BIOS-related configurations.

Enable POST Sequence Logging:

In the BIOS Settings, look for an option related to POST Behavior or Boot Sequence Capture.

Enable Verbose Mode or Capture Full POST Sequence. This setting ensures that the entire POST process is logged in detail during the next boot attempt.

Alternatively, if there is a specific setting for Capture System Boot Logs, enable it to ensure detailed logging during POST.

Apply the Changes:

After enabling the POST capture option, click Apply or Save.

iDRAC may prompt for confirmation or inform you that changes will take effect upon the next reboot. Confirm any prompts as required.

Restart the Server (if necessary):

If the server is currently off, attempt to power it on. If it’s on, you may need to perform a Graceful Shutdown followed by a restart to initiate the POST sequence.

Review POST Logs After Reboot:

Once the server attempts to boot, return to the iDRAC Logs section to review the captured POST logs.

Go to Maintenance > System Event Log or Lifecycle Log to view the detailed logs from the POST sequence. This can help diagnose why the server is failing to boot.

By enabling this setting, you will capture detailed information during the POST process, which can then be reviewed to identify any hardware or configuration issues preventing the server from booting successfully.

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

ocating Lifecycle Logs in the iDRAC UI

Server Troubleshooting (32%)

Explain the server logs and memory error

Understanding Lifecycle Logs

The Lifecycle Controller logs (Lifecycle Logs) are essential for tracking system events related to hardware configuration, firmware updates, and system health. These logs provide valuable information for troubleshooting and auditing purposes.

Accessing Lifecycle Logs in iDRAC UI

In the iDRAC web interface, administrators can navigate through various sections to access system information and logs.

To locate the Lifecycle Logs:

Log into the iDRAC Web Interface using your administrative credentials.

Navigate to the "Maintenance" Tab:

This section is dedicated to maintenance tasks and logs.

Select "System Event Log" or "Lifecycle Log" under the Maintenance section to view the detailed logs.

Explanation of Options

Option A: System

Incorrect: This section provides system overview and hardware information but does not contain the Lifecycle Logs.

Option B: System Event Log

Incorrect: While this log contains events, the Lifecycle Logs are specifically found under the Maintenance section.

Option C: Diagnostics

Incorrect: This area is used for running diagnostic tests, not for accessing Lifecycle Logs.

Option D: Maintenance

Correct Answer: The Lifecycle Logs are located under the Maintenance heading in the iDRAC UI.

Dell Operate References

Server Troubleshooting (32%): Accessing and interpreting server logs is vital for diagnosing issues.

Explain the server logs and memory error: Understanding where logs are stored helps in efficient troubleshooting.

Server Management and Configuration Tools (14%): Navigating the iDRAC UI is crucial for system administration tasks.

Conclusion

By knowing that the Lifecycle Logs are located under the Maintenance section, administrators can quickly access important system event information necessary for troubleshooting and maintaining server health.
