JN0-280 Data Center, Associate (JNCIA-DC) Questions and Answers

In aspine-leaf fabric architecture, which is commonly used in data center designs, each device has a distinct role to ensure efficient and scalable network traffic flow.

Step-by-Step Breakdown:

Spine Nodes:

Thespine nodesform the backbone of the fabric and are responsible fortransit traffic between leaf nodes. They connect to every leaf switch and provide multiple paths for traffic between leaf nodes, ensuring redundancy and load balancing.

Leaf Nodes:

Theleaf nodesare used forhost connectivity. These switches connect to servers, storage, or edge routers. They also connect to the spine switches to reach other leaf switches.

Juniper Reference:

Spine-Leaf Architecture: In Juniper's IP fabric designs,spine switcheshandle inter-leaf communication, whileleaf switchesmanage host and endpoint connectivity.

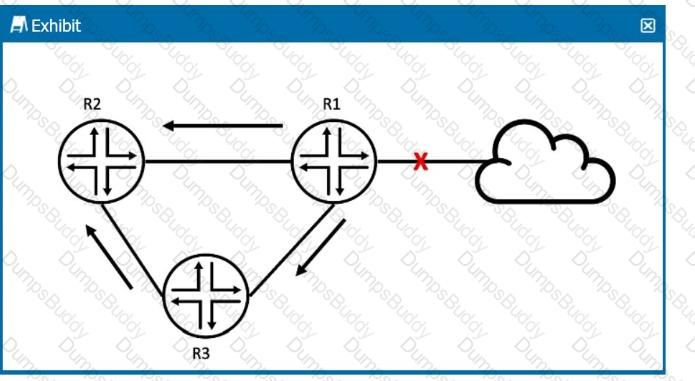

In the exhibit, R2 receives the same OSPF update from both R1 and R3. OSPF has mechanisms toprevent unnecessary processing of duplicate LSAs (Link-State Advertisements).

Step-by-Step Breakdown:

OSPF LSA Processing:

OSPF uses LSAs to exchange link-state information between routers. When a router receives an LSA, it checks if it already has a copy of the LSA in its Link-State Database (LSDB).

Duplicate LSAs:If R2 has already received and processed the update from R1, it willignore the update from R3because it already has the same LSA in its database. OSPF uses the concept of flooding, but it does not reprocess LSAs that it already knows about.

R2 Behavior:R2 will keep the update from R1 (the first one it received) and will ignore the same LSA from R3, as it is already in the LSDB.

Juniper Reference:

OSPF LSA Processing: Junos adheres to OSPF standards, ensuring that duplicate LSAs are not processed multiple times to avoid unnecessary recalculations.

In Junos OS, routing information is stored in different routing tables depending on the protocol and address family. For IPv6 addresses, the routing table used isinet6.0.

Step-by-Step Explanation:

Routing Tables in Junos:

inet.0: This is the primary routing table for IPv4 unicast routes.

inet6.0: This is the primary routing table for IPv6 unicast routes.

inet.3: This routing table is used for MPLS-related routing.

Other routing tables, like inet.1, inet.2, are used for multicast and other specific purposes.

inet6.0 Routing Table:When IPv6 is enabled on a Juniper router, all the IPv6 routes are stored in theinet6.0table. This includes both direct routes (connected networks) and learned routes (from dynamic routing protocols like OSPFv3, BGP, etc.).

Verification:To view IPv6 routes, the command show route table inet6.0 is used. This will display the contents of the IPv6 routing table, showing the network prefixes, next-hop addresses, and protocol information for each route.

Juniper Reference:

Junos Command: Use show route table inet6.0 to check IPv6 routing entries.

IPv6 Routing: Ensure that the IPv6 protocol is enabled on interfaces and that routingprotocols like OSPFv3 or BGP are properly configured for IPv6 traffic handling.

In Junos OS, the default route preference for a static route is 5. Route preference values are used to determine which route should be installed in the routing table when multiple routes to the same destination are available.

Step-by-Step Breakdown:

Static Route Preference:

A static route, by default, has a preference of 5, making it a highly preferred route. Lower preference values are more preferred in Junos, meaning static routes take precedence over most dynamic routing protocol routes, such as OSPF (preference 10) or BGP (preference 170).

Route Preference:

Route preference is a key factor in the Junos routing decision process. Routes with lower preference values are preferred and installed in the forwarding table.

Juniper Reference:

Static Routes: In Junos, the default preference for static routes is 5, making them more preferred than most dynamic routes.

Inlegacy hierarchical network design, three key layers are used to create a scalable and structured network:

Step-by-Step Breakdown:

Access Layer:

The access layer is where end devices, such as computers and IP phones, connect to the network. It typically involves switches that provide connectivity for devices at the edge of the network.

Aggregation Layer (Distribution Layer):

The aggregation layer (also called the distribution layer) aggregates traffic from multiple access layer devices and applies policies such as filtering and QoS. It also provides redundancy and load balancing.

Core Layer:

The core layer provides high-speed connectivity between aggregation layer devices and facilitates traffic within the data center or between different network segments.

Juniper Reference:

Legacy Hierarchical Design: Juniper networks often follow the traditional three-layer design (Access, Aggregation, and Core) to ensure scalability and high performance.

A trunk interface on a switch is used to carry traffic for multiple VLANs between switches or between a switch and another network device, like a router. Trunk interfaces use 802.1Q tagging to identify which VLAN the traffic belongs to.

Step-by-Step Breakdown:

Trunk Ports:

Trunk ports are typically used for inter-switch links or switch-to-router links where multiple VLANs need to be carried over the same physical connection.

VLAN traffic is tagged with a VLAN ID to ensure that it is properly identified as it crosses the trunk link.

802.1Q VLAN Tagging:

Trunk ports use 802.1Q to tag Ethernet frames with the VLAN ID. This ensures that frames are correctly forwarded to the appropriate VLANs on the other side of the trunk.

Juniper Reference:

Trunk Interface Configuration: In Juniper switches, trunk ports are configured to carry tagged traffic for multiple VLANs, which is essential for interconnecting multiple network segments.

Per-flow load balancingensures that packets within the same flow are always forwarded over the same path, ensuring that packet order is preserved.

Step-by-Step Breakdown:

Flow Definition:A flow is typically defined by a combination of packet attributes like source/destination IP, source/destination port, and protocol type. Packets that belong to the same flow are routed over the same path to avoid reordering.

Per-Flow Behavior:Inper-flow load balancing, the hashing algorithm ensures that all packets in a particular flow use thesame egress port, maintaining order across the network.

Juniper Reference:

Load Balancing in Juniper: This method ensures that flows are balanced across multiple paths while preventing packet reordering within a single flow.

In Layer 2 switching, switches learn MAC addresses based on thesource MAC addressof incoming frames and forward frames based on thedestination MAC address.

Step-by-Step Breakdown:

MAC Learning:When a switch receives a frame, it records thesource MAC addressand the port on which it arrived. This allows the switch to know where to send traffic destined for that MAC address.

Forwarding Based on Destination:The switch then looks at thedestination MAC addressand forwards the frame out of the port associated with that MAC address. If the MAC is unknown, the switch floods the frame to all ports.

Juniper Reference:

Layer 2 Switching: Juniper switches use source MAC addresses to build MAC tables and forward traffic based on the destination MAC address.

In athree-stage IP fabric(also known as a Clos fabric), traffic between any two points (ingress to egress) in the fabric isonly two hops away.

Step-by-Step Breakdown:

Three-Stage IP Fabric:

Leaf Layer: Leaf switches connect directly to servers and edge devices.

Spine Layer: Spine switches provide connectivity between leaf switches but do not connect to each other directly.

Two-Hop Communication:In this architecture, every leaf switch is connected to every spine switch. Therefore, when a packet enters the fabric via an ingress leaf switch, it is forwarded to a spine switch, which then directs the packet to the correct egress leaf switch. This path always involves exactly two hops:

Ingress leaf → Spine → Egress leaf.

Benefits:This consistent two-hop path ensures predictable latency and makes the network highly scalable while maintaining low complexity.

Juniper Reference:

IP Fabric Architecture: This two-hop property of Clos fabrics is a hallmark of spine-leaf designs, as supported by Juniper's QFX and EX switches in data centers.

When configuring anaggregate route, you have options for how to handle traffic that matches the route but does not match any more specific route in the routing table. Two actions can be taken:discardandreject.

Step-by-Step Breakdown:

Discard:

Thediscardoption will silently drop packets that match the aggregate route. No notification is sent to the sender, and the packet is simply dropped.

Reject:

Therejectoption will drop the packet and also send anICMP Destination Unreachablemessage back to the sender. This informs the sender that the packet could not be delivered because there is no specific route available.

Juniper Reference:

Aggregate Routes: The reject and discard next-hop options provide different levels of feedback when packets cannot be routed, and they can be used to control how unreachable destinations are handled.

EVPN (Ethernet Virtual Private Network)is a standard protocol used for building Layer 2 and Layer 3 VPNs over an IP or MPLS network. Thesignaling protocolused for EVPN isBGP(Border Gateway Protocol).

Step-by-Step Breakdown:

BGP as the EVPN Signaling Protocol:EVPN uses BGP to exchange MAC address reachability information between routers (PE devices). This enables devices to learn which MAC addresses are reachable through which PE devices, facilitating Layer 2 forwarding across an IP or MPLS core.

BGP Extensions for EVPN:BGP is extended with new address families (e.g., EVPN NLRI) to carry both MAC and IP address information, allowing for scalable and efficient multi-tenant network solutions.

Juniper Reference:

Junos EVPN Configuration: Juniper uses BGP as the control plane for EVPN to exchange MAC and IP route information between different data center devices.

EBGP (External BGP)andIBGP (Internal BGP)operate with different rules due to the nature of their relationships.

Step-by-Step Breakdown:

TTL Differences:

EBGP: By default, EBGP peers have a TTL of 1, meaning they must be directly connected, or the TTL needs to be manually increased for multihop EBGP.

IBGP: IBGP peers within the same AS have a TTL of 255, as they are expected to communicate over multiple hops within the AS.

Preference for EBGP Routes:

Routes learned viaEBGPare typically preferred over IBGP routes. This is because EBGP routes are considered more reliable since they originate outside the AS, while IBGP routes are internal.

Juniper Reference:

BGP Configuration: The different handling of TTL and route preferences between EBGP and IBGP ensures proper route selection and security within Junos-based networks.

Bidirectional Forwarding Detection (BFD)is a protocol used to detect faults in the forwarding path between two routers. It provides rapid failure detection, enhancing the performance of routing protocols like OSPF, BGP, and IS-IS.

Step-by-Step Breakdown:

Per Interface Configuration:BFD can be configured on aper-interfacebasis within the protocol stanza (e.g., OSPF, BGP). This allows granular control over where BFD is enabled and the failure detection intervals for specific interfaces.

Minimum Interval and Multiplier:BFD uses aminimum interval(the time between BFD control packets) and amultiplier(the number of missed packets before the path is declared down). The combination of these two defines the detection time for failures.

Juniper Reference:

BFD Configuration: In Juniper, BFD is configurable within routing protocol stanzas, with the failure detection mechanism always based on minimum intervals and multipliers.

When aMAC limiting violationoccurs on a Juniper switch, the switch will perform the following actions by default:

Step-by-Step Breakdown:

Port Disabled:When the number of MAC addresses on an interface exceeds the configured limit, the port isautomatically disabledto prevent further violations. This is a protective mechanism to prevent MAC address flooding.

Packet Dropped:Additionally, packets from the violating MAC address aredroppedto prevent any further communication from that address. This ensures that only valid MAC addresses are allowed to communicate through the interface.

Example Configuration:

set ethernet-switching-options secure-access-port interface mac-limit 5

If more than five MAC addresses are learned, the port is disabled, and excess packets are dropped.

Juniper Reference:

MAC Limiting: When the switch detects a MAC limiting violation, it disables the port and drops further packets from the violating MAC addresses to maintain network security.

OSPF (Open Shortest Path First)calculates the best path based on thecostof the route, which is derived from the bandwidth of the interfaces along the path.

Step-by-Step Breakdown:

OSPF Path Selection:

OSPF assigns a cost to each link, typically based on the link's bandwidth (higher bandwidth equals lower cost).

The OSPF algorithm computes the shortest path to a destination by adding the costs of all links in the path. The path with thenumerically lowest total costis chosen as the best path.

Cost Calculation:The OSPF cost can be manually adjusted or automatically calculated using the default formula:

Cost=Reference BandwidthLink Bandwidth\text{Cost} = \frac{\text{Reference Bandwidth}}{\text{Link Bandwidth}}Cost=Link BandwidthReference Bandwidth​

Juniper Reference:

OSPF Best Path Selection: OSPF selects the path with the lowest cumulative cost, ensuring efficient use of higher-bandwidth links in Junos networks.

AnIP fabricis a network topology designed to provide a scalable, low-latency architecture that is typically implemented in modern data centers. It usesspine and leafswitches and enables efficienttraffic load sharingacross the network.

Step-by-Step Breakdown:

Spine-Leaf Architecture:

Leaf Devices: These switches connect to servers and edge devices within the data center. Each leaf switch connects to every spine switch.

Spine Devices: These high-performance switches interconnect all the leaf switches. There are no direct connections between leaf switches or spine switches. This architecture ensures that any two endpoints within the fabric are only one hop away from each other, minimizing latency.

Traffic Load Sharing:

An IP fabric leveragesEqual-Cost Multipath (ECMP)to distribute traffic evenly across all available paths between leaf and spine switches, providing effective load balancing. This ensures that no single link becomes a bottleneck and that traffic is distributed efficiently across the network.

Juniper Reference:

Juniper providesQFX Seriesswitches optimized for IP fabric topologies, allowing for scalable deployments in modern data centers.

EVPN-VXLAN: Often used in IP fabrics to extend Layer 2 services across the fabric with Layer 3 underlay, enabling both efficient routing and bridging.
