N10-009 CompTIA Network+ Certification Exam Questions and Answers

The correct answer is B. An IDS is less disruptive during the initial deployment of the technology. An Intrusion Detection System (IDS) is designed to monitor and alert on suspicious activity, but it does not sit inline to actively block traffic the way an Intrusion Prevention System (IPS) does. Because of that, deploying an IDS usually has less immediate impact on production traffic. It can be introduced to observe network behavior and generate alerts without risking accidental interruption of legitimate communications.

That makes IDS a safer first step in many environments, especially when teams are still tuning signatures, thresholds, or alert rules. If an IPS is deployed too aggressively before it is properly tuned, it may block valid traffic and create service issues. An IDS avoids that risk because it focuses on visibility rather than enforcement.

The other options are weaker. A is not always guaranteed, since processing needs depend on implementation and traffic volume. C is not a defining advantage of IDS over IPS. D is also not reliable, because false positives can occur with either technology depending on configuration and signatures.

For Network+ study purposes, the standard advantage of IDS is that it is passive and less disruptive, especially during initial rollout and monitoring phases.

The switch with the lowest STP priority becomes the root bridge.In the given table, core-sw01 has the lowest priority value of 24576. Therefore, it will be elected as the root bridge in the Spanning Tree Protocol topology.

Introduction to Administrative Distance

Administrative distance (AD) is a value used by routers to rank routes from different routing protocols. AD represents the trustworthiness of the source of the route. Lower AD values are more preferred. If a router has multiple routes to a destination from different sources, it will choose the route with the lowest AD.

Static Routes and Backup Routes

When a dynamic routing protocol is not used, static routes can be employed. Static routes are manually configured routes. To ensure a backup route, multiple static routes to the same destination can be configured with different AD values.

Configuring Static Routes with Administrative Distance

The primary route is configured with a lower AD value, making it the preferred route. The backup route is configured with a higher AD value. In the event of the primary route failure, the router will then use the backup route.

Example Configuration:

plaintext

Copy code

ip route 192.168.1.0 255.255.255.0 10.0.0.1 1

ip route 192.168.1.0 255.255.255.0 10.0.0.2 10

In the above example, 192.168.1.0/24 is the destination network.

10.0.0.1 is the next-hop IP address for the primary route with an AD of 1.

10.0.0.2 is the next-hop IP address for the backup route with an AD of 10.

Verification:

After configuration, use the show ip route command to verify that the primary route is in use and the backup route is listed as a candidate for use if the primary route fails.

The best solution here is band steering. Band steering allows modern wireless access points to automatically direct dual-band capable clients toward the 5 GHz band instead of the crowded 2.4 GHz band. The 5 GHz band has more available non-overlapping channels and can provide faster speeds with less interference, especially in dense environments. Devices that only support 2.4 GHz will remain on that band, while compatible devices enjoy the improved performance of 5 GHz.

A. 802.1X is a port-based network access control method for authentication. While important for security, it does not affect wireless channel utilization or client throughput.

B. MIMO (Multiple Input, Multiple Output) is a technology that improves throughput by using multiple antennas to send/receive simultaneously, but it does not actively steer clients between frequency bands.

C. ESSID (Extended Service Set Identifier) is just the network name for a set of APs in the same WLAN; it has no role in optimizing performance by band.

By implementing band steering, administrators reduce channel overlap on the 2.4 GHz band, improve spectral efficiency, and provide higher performance to capable devices, directly meeting the requirements described in the scenario.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — Wireless optimization, band steering, dual-band client management.

When traffic moves laterally between VMs within the same network or subnet, it is known as east-west traffic. This contrasts with north-south traffic, which refers to communication between internal and external networks.

Breakdown of Options:

A. East-west – Correct answer. This refers to traffic between internal servers or VMs, which is a common security concern.

B. Point-to-point – Point-to-point describes a direct connection between two devices, but does not specifically define lateral movement.

C. Horizontal-scaling – This refers to adding more instances or nodes in cloud computing, unrelated to traffic flow.

D. Hub-and-spoke – This network topology describes a centralized design, not lateral traffic.

IPsec (Internet Protocol Security) is the most secure way to provide site-to-site connectivity. It provides robust security services, such as data integrity, authentication, and encryption, ensuringthat data sent across the network is protected from interception and tampering. Unlike other options, IPsec operates at the network layer and can secure all traffic that crosses the IP network, making it the most comprehensive and secure choice for site-to-site VPNs.References: CompTIA Network+ study materials and NIST Special Publication 800-77.

A load balancer is the best answer because it sits in the traffic path and distributes client requests across multiple backend servers. Since a load balancer tracks sessions, health checks, connection states, and response timers, incorrect timeout values or overloaded backend systems can cause client sessions to expire before the server responds. When that happens, packets or connections may be dropped, reset, or redirected, creating symptoms that appear as packet loss or failed application communication.

The CompTIA Network+ N10-009 objectives include availability concepts, load balancing, traffic management, and network performance troubleshooting. Load balancers are useful for improving scalability and fault tolerance, but they also introduce another decision point in the traffic path. If persistence, health checks, or timeout settings are misconfigured, application traffic can be interrupted.

An IDS is usually passive and monitors copied traffic, so it is less likely to directly cause packet loss. A CDN generally reduces latency and improves delivery by serving content closer to users. QoS is designed to prioritize important traffic and reduce delay, jitter, and packet loss for sensitive applications such as VoIP. Therefore, the most likely technology to increase packet loss due to timeout is a load balancer.

BGP (Border Gateway Protocol) is used for routing data between different ISPs, making it essential for the functioning of the internet. Its primary use is for exchanging routing information between autonomous systems, especially different ISPs. Preventing loops within a LAN ishandled by protocols like Spanning Tree Protocol (STP), while improving reconvergence times and sharing routes with a Layer 3 switch are functions of other protocols or internal mechanisms.

In Windows-based environments, Server Message Block, or SMB, is the primary protocol used for file sharing, printer sharing, and access to network shares. SMB commonly uses TCP port 445 for direct hosting over TCP/IP. Therefore, the correct answers are SMB and port 445. This matches the CompTIA Network+ N10-009 objectives related to common networking protocols, ports, and their purposes.

Port 21 is associated with FTP, which is used for file transfer but is not the standard protocol for Windows network shares. Port 443 is used by HTTPS, which secures web traffic using TLS. HTTPS can be used for web-based file access portals, but it is not the normal protocol used by Windows clients to access shared folders such as \\server\share. SMB specifically supports Windows file sharing functions, including authentication, permissions, folder browsing, and file transfer across a local network. Because SMB relies on TCP port 445 in modern Windows networks, the best two answers are C and E.

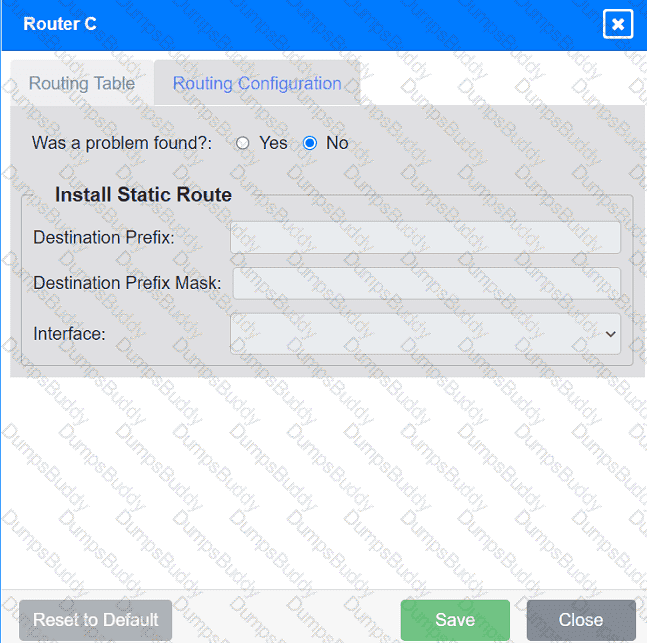

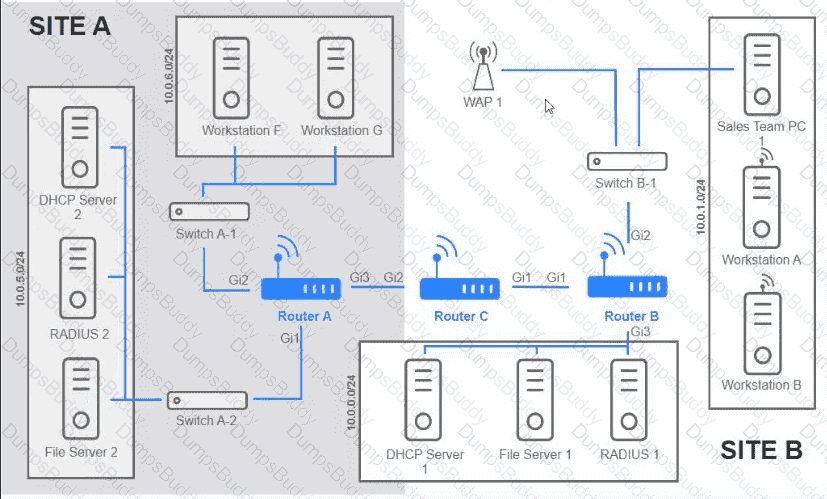

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

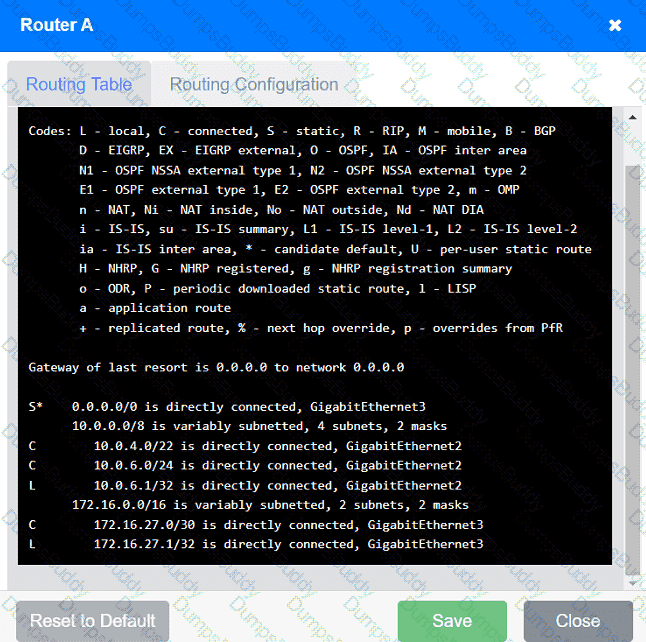

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

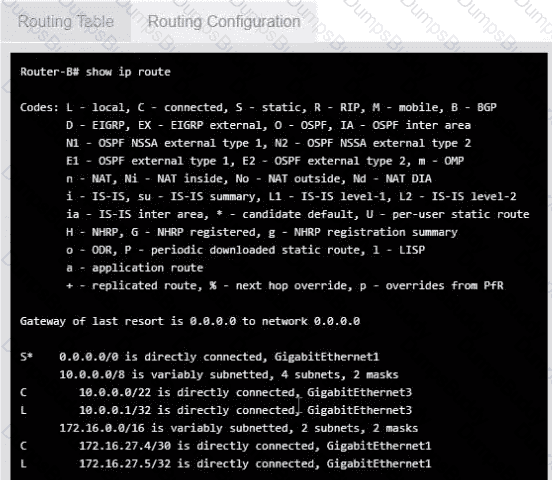

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

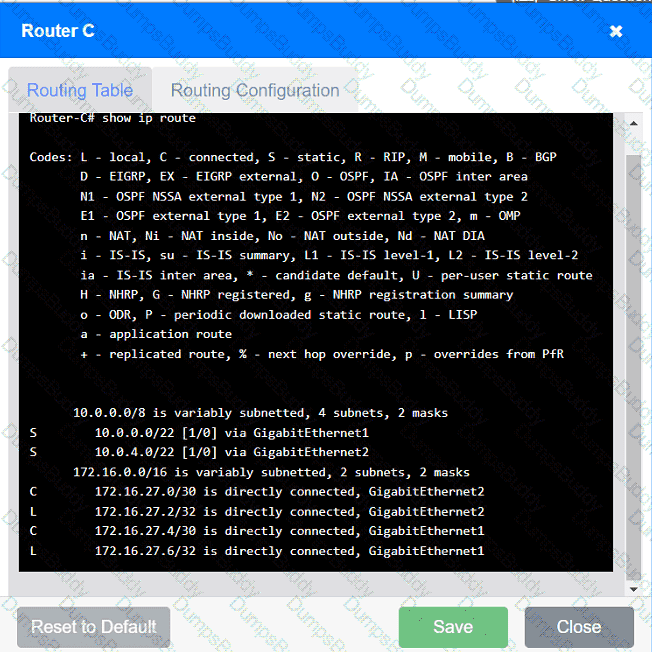

Routing Table:

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

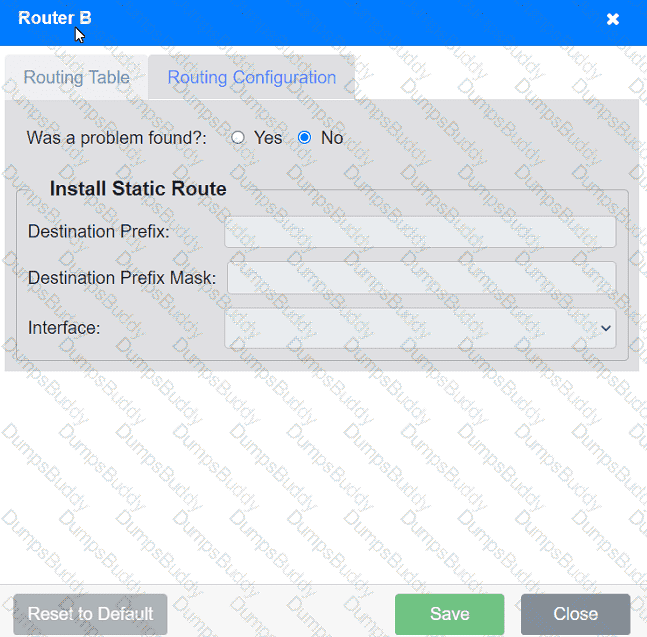

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C ' s IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C ' s IP is 172.16.27.5):

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A ' s IP is 172.16.27.2):

Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B ' s IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

A large number of collisions and input errors typically indicates a duplex mismatch, such as when one device is set to full duplex and the other to half duplex. This leads to communication issues and poor performance. The document explains:

“Collisions and input errors are clear signs of duplex mismatches… typically caused when one device operates in half duplex while the other is in full duplex, causing performance and connectivity issues.”

Link aggregation (also known as port trunking or EtherChannel) combines multiple network connections in parallel to increase throughput and provide redundancy. When two switches are connected with multiple links without any additional configuration, a Layer 2 loop may occur. Link aggregation prevents these loops by treating the multiple connections as a single logical link, using a protocol such as LACP (Link Aggregation Control Protocol).

From Andrew Ramdayal’s guide:

“Link aggregation allows you to combine multiple network connections to increase the bandwidth and provide redundancy. It helps prevent Layer 2 loops when connecting switches with multiple links by making them operate as a single logical interface.”

In the router route selection process, the first priority is the longest prefix match, also known as prefix length. According to CompTIA Network+ (N10-009) routing concepts, routers examine the destination IP address in the packet and compare it to entries in the routing table. When multiple routes exist, the router selects the route with the most specific match, meaning the route with the longest subnet mask (largest number of matching bits). For example, a /30 route is preferred over a /24, and a /24 is preferred over a /16 if all match the destination.

Only after the longest prefix match is determined do other factors come into play. Administrative distance (AD) is used to determine which routing source is more trustworthy when the same network is learned from different routing protocols (e.g., OSPF vs. RIP). Metric is then used within the same routing protocol to determine the best path (e.g., hop count, cost, bandwidth). A default route (0.0.0.0/0) is used only when no more specific match exists.

Therefore, prefix length is always evaluated first in route selection.

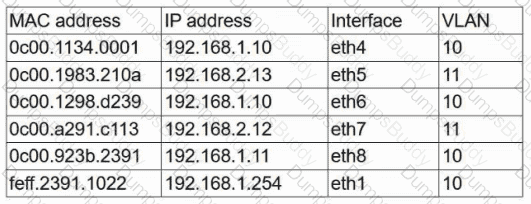

The arp command is the best choice for locating a node with a duplicate IP address. Address Resolution Protocol maps IPv4 addresses to MAC addresses on the local network. When a duplicate IP address warning appears, an administrator can use the ARP table to identify the MAC address associated with the conflicting IP address. After the MAC address is known, the administrator can check the switch MAC address table to determine which switch port the device is connected to.

This matches the CompTIA Network+ N10-009 troubleshooting objectives, which include using command-line tools to diagnose network issues. The arp -a command is especially useful when troubleshooting local IPv4 addressing conflicts because it displays known IP-to-MAC mappings.

The ping command can test reachability, but it does not reliably identify the physical node causing the conflict. The ipconfig command displays or refreshes IP settings on the local Windows host, but it does not locate another device on the network. The nslookup command troubleshoots DNS name resolution, not duplicate IP addresses. Therefore, arp is the best command for this situation.

PaaS (Platform as a Service) is best suited for application development because it provides a managed platform that includes the runtime environment, development frameworks, middleware, databases (often), and build/deployment tooling. In a PaaS model, the cloud provider manages the underlying infrastructure (servers, storage, networking, OS patching, and often the application runtime), allowing developers to focus on writing code, testing, and releasing applications quickly. This aligns with Network+ cloud concepts where service models are compared by responsibility: PaaS reduces operational overhead for the customer and accelerates development through standardized environments and automation.

Mobile access is a use case for remote access solutions (VPN, zero trust access, MDM), not specifically PaaS. An e-commerce site could be hosted using many models (IaaS, PaaS, SaaS), so it’s not the most specific match. Cloud-native software describes an architectural style (microservices, containers, managed services) and can be built using PaaS components, but it is broader than a single “use case” and is not as directly tied to the PaaS definition as application development is. Therefore, application development is the clearest and most accurate PaaS use case.

===========

The key difference is that an Intrusion Prevention System (IPS) is installed in line with network traffic, allowing it to actively block threats. In contrast, an Intrusion Detection System (IDS) only monitors and alerts without actively blocking traffic.

Breakdown of Options:

A. An IPS needs to be installed in line with traffic and an IDS does not. ✅ Correct answer. IPS actively prevents threats, while IDS only detects them.

B. An IPS is signature-based and an IDS is not. – False, both can use signature-based detection.

C. An IPS is less susceptible to false positives than an IDS. – False, both can produce false positives, depending on configurations.

D. An IPS requires less administrative overhead than an IDS. – False, IPS requires more administrative effort due to real-time blocking decisions.

A hybrid cloud deployment model is the best choice for the CTO ' s requirements. It allows the organization to run key services from the on-site data center while leveraging the cloud for enterprise services. This approach provides flexibility, scalability, and cost savings, while also minimizing disruptions to users by keeping critical services local. The hybrid model integrates both private and public cloud environments, offering the benefits of both.References: CompTIA Network+ study materials and cloud computing principles.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

Understanding the Vulnerability:

Vulnerabilities in the router CPU can be exploited to cause performance degradation, unauthorized access, or other security issues.

Firmware Update:

Firmware Role: The firmware is low-level software that controls the hardware of a device. Updating the firmware can address vulnerabilities by providing patches and enhancements from the manufacturer.

Procedure: Download the latest firmware from the vendor’s website, follow the manufacturer ' s instructions to apply the update, and verify that the update resolves the vulnerability.

Comparison with Other Options:

Replace the System Board: This is a costly and often unnecessary step if the issue can be resolved with a firmware update.

Patch the OS: Patching the OS is relevant for devices with a full operating system but not directly applicable to addressing a CPU vulnerability on a router.

Isolate the System: Temporarily isolating the system can mitigate immediate risk but does not resolve the underlying vulnerability.

Best Practice:

Regularly check for and apply firmware updates to ensure that network devices are protected against known vulnerabilities.

To increase overall security after a recent breach, implementing least privilege network access and central policy management are effective strategies.

Least Privilege Network Access: This principle ensures that users and devices are granted only the access necessary to perform their functions, minimizing the potential for unauthorized access or breaches. By limiting permissions, the risk of an attacker gaining access to critical parts of the network is reduced.

Central Policy Management: Centralized management of security policies allows for consistent and streamlined implementation of security measures across the entire network. This helps in quickly responding to security incidents, ensuring compliance with security protocols, and reducing the chances of misconfigurations.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses network security principles, including least privilege and policy management.

Cisco Networking Academy: Provides training on implementing security policies and access controls.

Network+ Certification All-in-One Exam Guide: Covers strategies for enhancing network security and managing policies effectively.

Fiber connections require Tx on one end to connect to Rx on the other end. If the patch cord is replaced and link lights remain off, the most common cause is that the connectors are reversed. Swapping (transposing) the connectors ensures proper transmit/receive alignment.

A. Replacing the transceiver may eventually be necessary, but only after verifying correct connections.

B. Restarting the switchport won’t resolve a physical misconnection.

D. Using multimode fiber would be incorrect here, as the link was designed for single-mode (10 miles/16 km requires SMF).

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Fiber connectivity, Tx/Rx alignment, link light diagnostics.

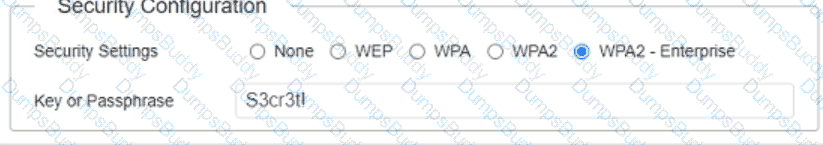

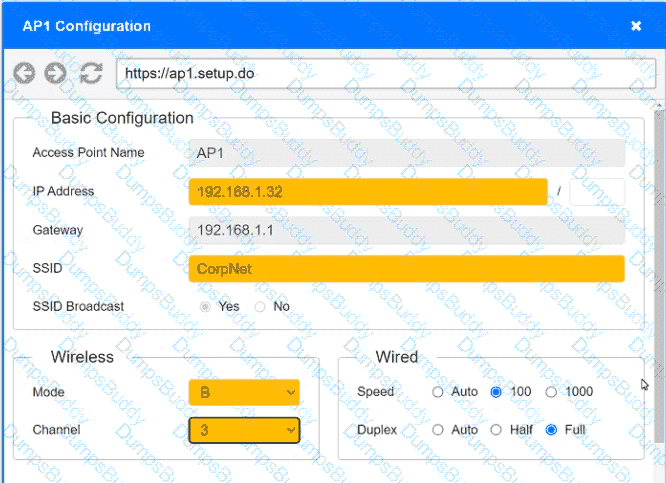

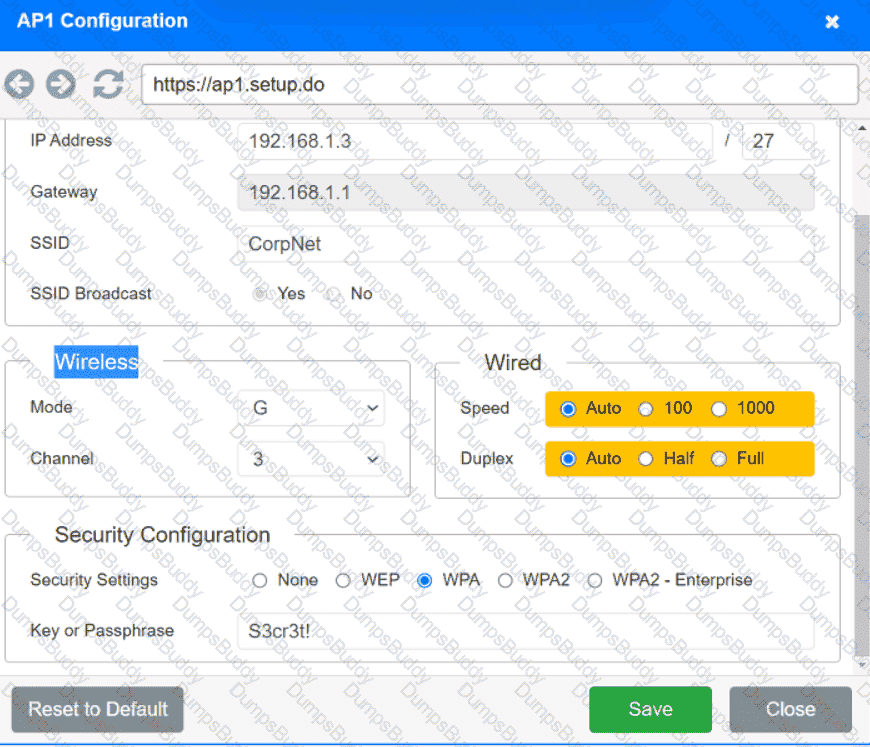

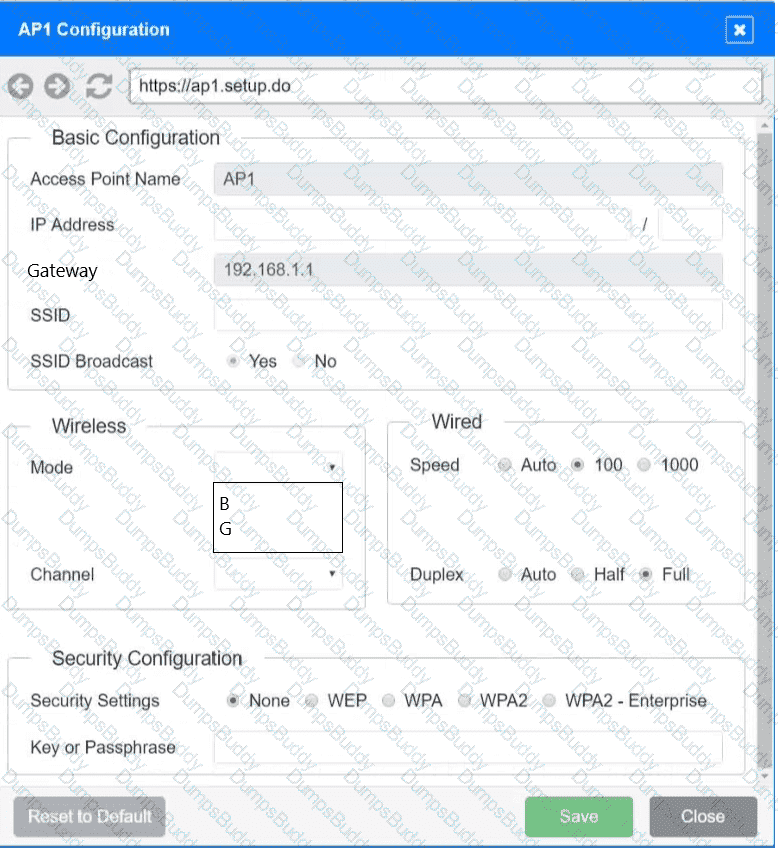

On the first exhibit, the layout should be as follows

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

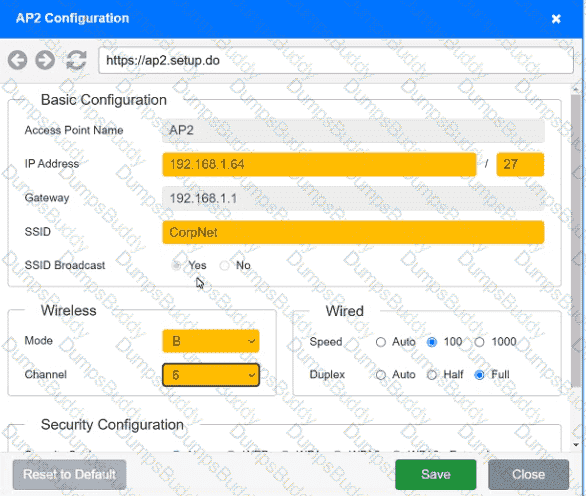

Exhibit 2 as follows

Access Point Name AP2

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

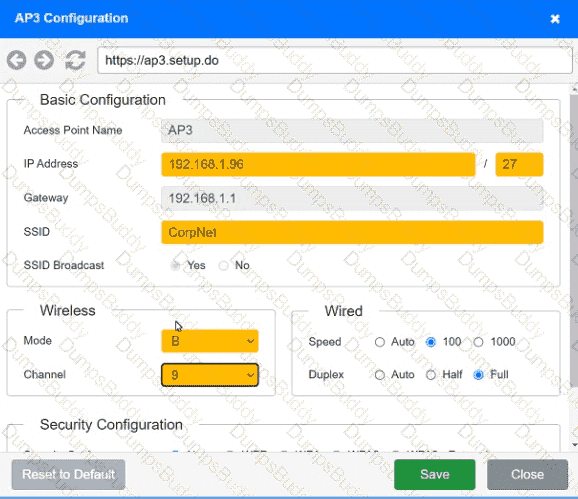

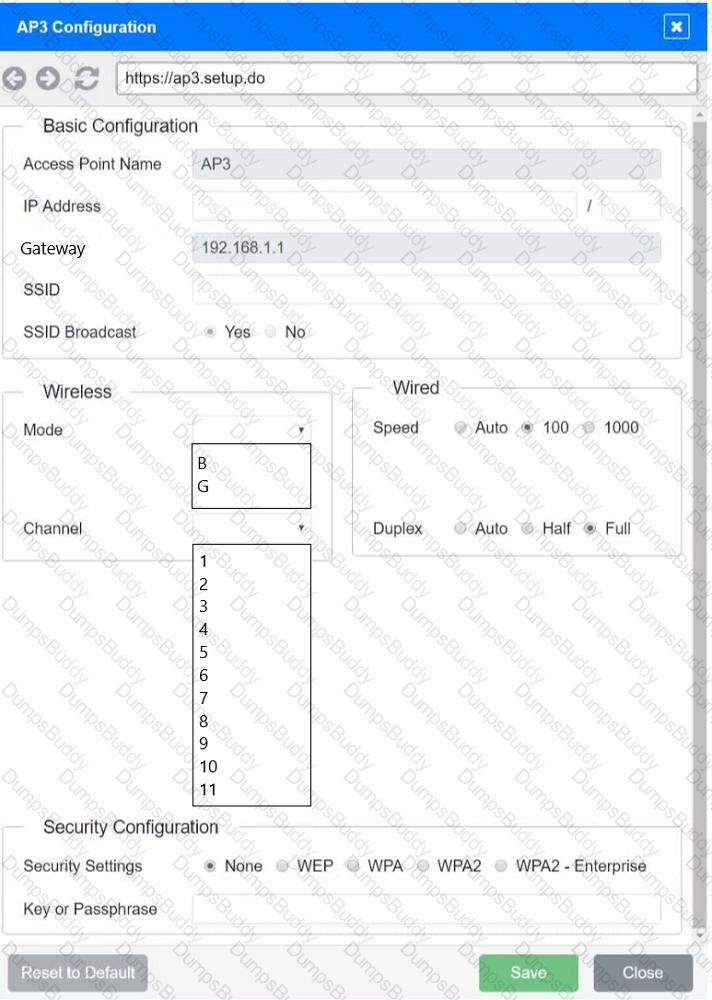

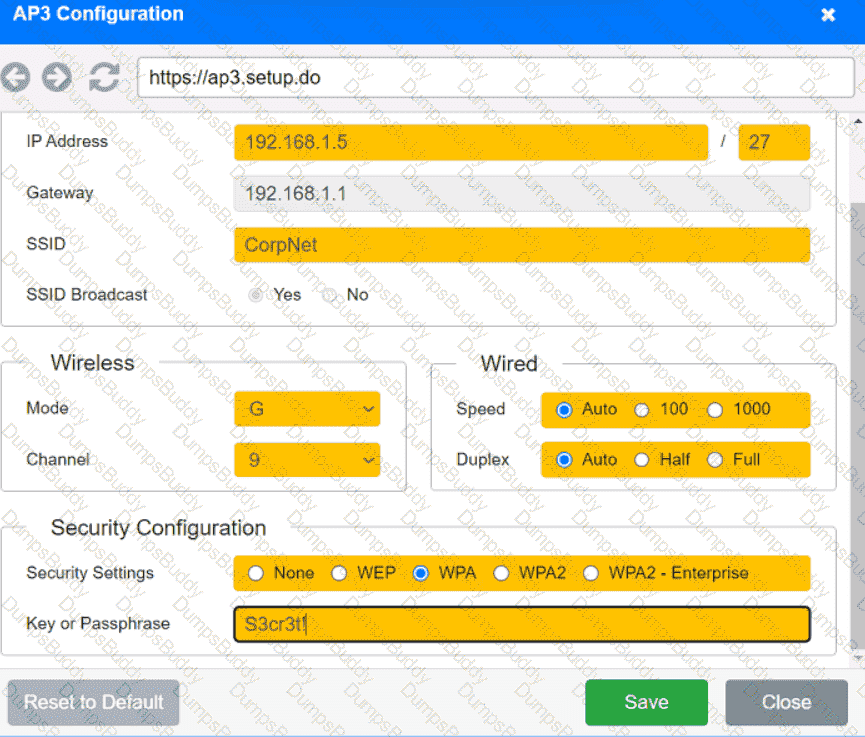

Exhibit 3 as follows

Access Point Name AP3

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

Nmap (Network Mapper) is a powerful network scanning tool used to discover hosts and services on a computer network. It can be used to identify which ports are open on a remote server, which can help diagnose access issues to services like a remote file server.

Port Scanning: Nmap can perform comprehensive port scans to determine which ports are open and what services are running on those ports.

Network Discovery: It provides detailed information about the host’s operating system, service versions, and network configuration.

Security Audits: Besides troubleshooting, Nmap is also used for security auditing and identifying potential vulnerabilities.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers network scanning tools and their uses.

Nmap Documentation: Official documentation provides extensive details on how to use Nmap for port scanning and network diagnostics.

Network+ Certification All-in-One Exam Guide: Discusses various network utilities, including Nmap, and their applications in network troubleshooting.

MIBs (Management Information Bases) define the variables and objects that SNMP can query on a device. If the monitoring server authenticates but cannot interpret the data, it likely lacks the correct MIB for that vendor or model. Importing the proper MIB allows the monitoring server to correctly display device status and metrics.

A. Using a public community string is insecure and not related to missing MIBs.

C. Switchport analyzer (SPAN) captures traffic for packet analysis, not SNMP monitoring.

D. SNMPv3 privacy adds encryption but doesn’t fix missing MIB interpretation.

References (CompTIA Network+ N10-009):

Domain: Network Operations — SNMP, MIBs, network monitoring systems.

A Power Distribution Unit (PDU) provides multiple power outlets in a data center or IDF (Intermediate Distribution Frame), while offering features like surge protection, load balancing, and sometimes remote monitoring, making it a cost-effective and reliable solution. The document confirms:

“PDUs (Power Distribution Units) are a cost-effective way to expand outlet capacity in a structured cabling environment like an IDF. They ensure safe power delivery to networking equipment and often include monitoring features.”

Content filtering blocks access to restricted or malicious websites. When a user attempts to visit a site that violates company policies, they are redirected to a restriction page.

This is a common security measure to prevent employees from accessing phishing or malware-infected sites.

Content filters work by scanning URLs, keywords, or categories and blocking inappropriate or harmful content.

Option A (DLP - Data Loss Prevention): Focuses on preventing sensitive data leaks rather than blocking web access.

Option B (Captive portal): Used mainly in public Wi-Fi to authenticate users before granting access, not to restrict sites.

Option D (DNS sinkholing): Redirects malicious domain requests to a safe address but is not responsible for policy-based restrictions on general content.

? Reference: CompTIA Network+ (N10-009) Official Study Guide – Section: Security Solutions

Installing server equipment in a rack increases compute density by allowing multiple servers to be organized efficiently in a vertical configuration, saving space while housing more devices in a smaller footprint. This is critical for data centers and businesses with high hardware demands.

Simplified troubleshooting process (A): While racks can aid in organizing equipment, this is a secondary benefit, not the primary purpose.

Decreased power consumption (B): Rack installation does not directly reduce power usage; equipment power consumption remains the same.

Improved network performance (C): Racking servers does not inherently improve network performance; that depends on network configurations.

A DoS (Denial of Service) attack directly targets availability, one of the core security goals (CIA triad) emphasized in Network+ (N10-009) security objectives. A web-based customer portal depends on reachable services (web servers, load balancers, DNS, upstream bandwidth). In a DoS, an attacker attempts to overwhelm the portal or its supporting infrastructure—consuming bandwidth, exhausting server resources, or saturating state tables—so legitimate users cannot connect or experience severe degradation. This is the most direct and common scenario where “availability” is impacted for a public web service.

MAC flooding aims to overflow a switch’s CAM table and can lead to traffic being broadcast out ports, which is more commonly associated with enabling sniffing or disruption within a local switched network segment—not typically the primary attack described for a web portal’s availability. ARP spoofing is a local network man-in-the-middle/redirection technique affecting integrity/confidentiality and potentially availability for local hosts, but it is not the best match for a public portal availability impact. Rogue devices can introduce risk, but the option is broad and indirect; DoS is the clearest availability-focused threat.

===========

The correct solution is a Data Center Interconnect (DCI). DCIs extend Layer 2 networks across geographically dispersed data centers, enabling seamless replication of services such as SAN storage, backup synchronization, or VM migrations. This ensures workloads and data can move between sites while maintaining the same VLANs and addressing.

A. Security Service Edge (SSE) provides cloud-delivered security functions like secure web gateways and CASB, not Layer 2 extension.

C. Infrastructure as code (IaC) automates deployment and management of network infrastructure but is unrelated to extending Layer 2 domains.

D. Zero Trust architecture is a security framework ensuring strict access control but doesn’t address network connectivity between sites.

In scenarios where backups need replication between sites, Layer 2 extension is often required so systems can communicate as if they are in the same broadcast domain. DCI is specifically designed to provide this functionality reliably and securely.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — WAN technologies, data center interconnect, backup replication.

If the company’s SSID is not visible in some areas while other networks are still visible, the most likely cause is insufficient wireless coverage. The wireless signal does not reach those areas, meaning additional access points or signal boosters may be required.

Breakdown of Options:

A. Interference or channel overlap – Would cause slow or unstable connections, but the SSID should still be visible.

B. Insufficient wireless coverage – ✅ Correct answer. If the SSID is not appearing, the signal is too weak in that area.

C. Roaming misconfiguration – Would cause devices to stay on weaker APs instead of switching, but the SSID should still be visible.

D. Client disassociation issues – This would disconnect users, but they should still see the network.

Comprehensive and Detailed Explanation (paraphrased, aligned to N10-009):

A proxy server (specifically a caching HTTP/HTTPS proxy) stores frequently accessed web objects and serves them locally to clients, reducing external bandwidth consumption and improving response times.

B. Load balancer distributes traffic across servers but does not inherently cache internet content.

C. Open relay is a misconfigured mail server that permits unauthorized relaying—this is a security issue, not a caching solution.

D. Code repository (e.g., for source control) isn’t related to web content caching.

References (CompTIA Network+ N10-009):

Domain: Network Standards, Protocols, and Implementations — Application-layer services (HTTP/HTTPS), proxies and caching behavior, performance optimization.

===========

A transceiver is the correct answer because it is the Layer 1 (Physical Layer) component that physically terminates and converts fiber-optic signals on an SFP-capable switch. In CompTIA Network+ N10-009 objectives, transceivers—such as SFP, SFP+, QSFP, and QSFP+ modules—are explicitly identified as physical interface components that handle signal transmission and reception. These modules convert electrical signals from the switch into optical signals for fiber cabling (and vice versa), enabling communication over different media types and distances.

A modem is also a Layer 1 device, but its purpose is to modulate and demodulate signals for WAN technologies such as DSL or cable—it does not terminate fiber connections on switches. An Ethernet NIC provides network access for end devices like computers and servers and typically terminates copper Ethernet, not modular fiber interfaces on switches. A repeater regenerates and amplifies signals to extend cable distances but does not provide fiber termination or media conversion at a switch port.

According to Network+ standards, SFP transceivers are essential for flexible network design, allowing administrators to select appropriate fiber types (single-mode or multi-mode), wavelengths, and distances while remaining compliant with physical layer requirements.

To support about 800 workstations with minimal IP waste, you choose the smallest subnet that provides at least 800 usable host addresses. In IPv4, usable hosts per subnet are calculated as 2^(host bits) − 2 (subtracting network and broadcast addresses). A /22 leaves 10 host bits (32 − 22 = 10), providing 2^10 − 2 = 1024 − 2 = 1022 usable addresses—enough for 800 devices with relatively low waste.

Check the other options: /23 leaves 9 host bits, giving 2^9 − 2 = 512 − 2 = 510 usable addresses, which is not enough. A /21 provides 2^11 − 2 = 2048 − 2 = 2046 usable addresses—enough, but wastes more than /22. A /20 provides 2^12 − 2 = 4096 − 2 = 4094 usable addresses—much more waste.

Therefore, 10.0.100.0/22 is the best choice that meets the workstation requirement while minimizing unused addresses.

Recovery Point Objective (RPO) defines the maximum acceptable amount of data loss measured in time. If leadership states “no more than eight hours of data loss,” they are describing how far back the organization is willing to roll data after an outage or disaster—meaning backups, replication, snapshots, or journaling must ensure recoverable data is no older than eight hours. In Network+ terms, this is a core availability and resiliency planning concept: you choose an RPO based on business impact, then implement backup frequency/replication strategy to meet it. By contrast, Recovery Time Objective (RTO) is about how quickly services must be restored (downtime duration), not how much data can be lost. MTTR (Mean Time to Repair/Recover) is an operational reliability metric describing typical time to restore a system, and MTBF (Mean Time Between Failures) indicates expected time between failures—neither directly states acceptable data loss. Therefore, the metric matching “eight hours of data loss” is RPO.

The correct answer is Switch because the question references a new logical layout segmenting the network using tagging, which indicates VLAN (Virtual Local Area Network) configuration. VLAN tagging (IEEE 802.1Q) is performed on switches to logically separate broadcast domains within the same physical infrastructure.

According to CompTIA Network+ (N10-009) objectives under switching technologies, VLANs are used to improve security, reduce broadcast traffic, and logically segment network traffic. When VLAN tagging is misconfigured—such as incorrect trunk ports, access port assignments, or mismatched VLAN IDs—devices may lose connectivity to required network resources.

Since the issue began after changes involving tagging, the most likely cause is an incorrect switch configuration, such as improper VLAN assignments or trunking settings.

An access point (Option A) may use VLANs for SSID segmentation, but core tagging configuration is handled at the switch. A firewall (Option B) filters traffic but does not control VLAN tagging at Layer 2 in typical deployments. A load balancer (Option D) distributes traffic among servers and is unrelated to VLAN segmentation.

Therefore, reviewing the switch configuration is the appropriate action to restore connectivity.

•nslookup allows querying DNS records to verify if the new server is correctly resolving domain names.

•ping (A) tests basic connectivity, not DNS configuration.

•tracert (B) shows network path latency but doesn’t test DNS.

•tcpdump (C) captures packets but isn’t ideal for DNS verification.

???? Reference: CompTIA Network+ N10-009 Official Documentation – DNS Testing Tools.

An evil twin attack occurs when an attacker creates a fraudulent AP with an SSID very similar (or identical) to the legitimate one. Users may accidentally connect, allowing the attacker to capture traffic and credentials.

A. On-path is the consequence of connecting to the evil twin, not the initial attack itself.

B. Rogue AP is any unauthorized access point, but the key here is the malicious mimicry of a legitimate SSID — specifically an evil twin.

D. Tailgating is a physical social engineering attack, unrelated to Wi-Fi.

References (CompTIA Network+ N10-009):

Domain: Network Security — Wireless threats (rogue APs, evil twins).

The 802.11n standard supports MIMO (Multiple Input Multiple Output), which allows multiple antennas to increase data throughput and improve reliability. Additionally, it uses non-overlapping channels in the 5 GHz band (and optionally the 2.4 GHz band), making it a good choice for high-speed, interference-resistant wireless connections. (Reference: CompTIA Network+ Study Guide, Chapter on Wireless Technologies)

Inconsistent arrival of RTP (Real-Time Protocol) packets indicates jitter or latency variation. A protocol analyzer (packet sniffer, e.g., Wireshark) can capture and analyze RTP streams, showing delay, jitter, and packet loss statistics.

A. Toner and probe locates cable runs, not packet analysis.

C. Cable tester checks wiring faults, not packet timing.

D. Spectrum reader is for identifying wireless interference, not analyzing RTP traffic.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Protocol analyzers, VoIP troubleshooting, jitter analysis.

A Content Delivery Network (CDN) caches website content across multiple geographically distributed servers to reduce latency and improve load times for users worldwide.

Breakdown of Options:

A. VPN – Encrypts network connections, does not distribute website content.

B. CDN – ✅ Correct answer. A network of caching servers that delivers web content faster.

C. SAN – Storage Area Network, not related to web content distribution.

D. SDN – Software-defined networking, which controls network flows but does not stage website content.

The Network layer (Layer 3 of the OSI model) can utilize the connectionless protocol IP (Internet Protocol) to send data packets independently without establishing a connection. This approach is typical for protocols like IP, which provide best-effort delivery rather than guaranteed delivery. The document explains:

“The OSI Network Layer is responsible for logical addressing and routing, and it can utilize connectionless protocols like IP to send packets without requiring a session setup. This layer does not guarantee packet delivery, relying on higher layers for error detection or correction if needed.”

LDAP (Lightweight Directory Access Protocol) uses port 389 for standard connections and port 636 for LDAP over SSL (LDAPS), which secures directory service communication.

Breakdown of Options:

A. 22 – SSH port, not used for directory services.

B. 389 – Used for LDAP, but not encrypted.

C. 445 – Used for SMB file sharing, not LDAP.

D. 636 – Correct answer. LDAPS (LDAP over SSL/TLS) secures directory authentication.

An evil twin attack is when an attacker sets up a rogue access point (AP) with the same SSID as a legitimate one to trick users into connecting. Once users connect, attackers often present fake login pages or capture unencrypted session data to steal login credentials.

A. DNS poisoning manipulates DNS resolution but is not inherent to evil twin.

C. ARP spoofing is a Layer 2 attack involving MAC/IP mapping manipulation.

D. Denial of service can be a side effect but is not the primary objective of evil twin attacks.

The main purpose of an evil twin is credential theft, enabling further unauthorized access to networks or systems.

References (CompTIA Network+ N10-009):

Domain: Network Security — Wireless attacks, rogue APs, evil twins.

SSO (Single Sign-On) allows an organization to use an identity provider (IdP) to centrally manage authentication and access across multiple SaaS applications. In the Network+ (N10-009) objectives, identity and access management concepts include federated authentication, centralized account control, and reducing password sprawl. With SSO, users authenticate once to the IdP, and the IdP then provides assertions/tokens to SaaS services (commonly using federation standards such as SAML or OIDC in real environments). This improves security (fewer reused passwords, easier MFA enforcement), streamlines user experience, and simplifies administration (provisioning/deprovisioning from one place).

PKI supports certificates and encryption/signing, but it is not the core mechanism for managing access across many SaaS apps via an IdP. TACACS+ is typically used for device administration (AAA) on network equipment, and RADIUS commonly supports network access (802.1X, VPN) AAA—both are important AAA protocols but do not describe the SaaS-wide “one login across many apps” capability. Therefore, SSO is the best answer.

===========

Broadcast traffic is sent to all nodes on the network. In a broadcast, a single packet is transmitted to all devices in the network segment. This is commonly used for tasks like ARP (Address Resolution Protocol) requests.

Broadcast Domain: All devices within the same broadcast domain will receive broadcast traffic.

Network Types: Ethernet networks commonly use broadcast traffic for certain functions, including network discovery and addressing.

IPv4 Broadcast: An IPv4 broadcast address (e.g., 255.255.255.255) ensures the packet is sent to all devices on the network.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Explains network traffic types, including broadcast, unicast, and multicast.

Cisco Networking Academy: Provides training on network communication methods and traffic types.

Network+ Certification All-in-One Exam Guide: Discusses different types of network traffic and their uses in various network scenarios.

Broadcast traffic is essential for network operations that require communication with all nodes, such as ARP requests or DHCP discovery messages.

Border Gateway Protocol (BGP) is the primary protocol used to route traffic on the public internet. It allows ISPs and large networks to exchange routing information, making it an Exterior Gateway Protocol (EGP).

Breakdown of Options:

A. BGP – Correct answer. Used for internet routing and exchanges routing information between ISPs.

B. OSPF – An Interior Gateway Protocol (IGP) used for routing within an autonomous system (not the public internet).

C. EIGRP – Cisco’s proprietary IGP, used within private networks, not the public internet.

D. RIP – An older distance-vector protocol, not scalable for the internet.

The correct answer is A. Nmap. Nmap (Network Mapper) is a powerful network scanning and reconnaissance tool specifically designed to gather detailed information about hosts on a network. According to CompTIA Network+ N10-009 objectives, Nmap can be used to identify open ports, running services, and even the operating system of a target device through techniques such as TCP/UDP scanning and OS fingerprinting.

This makes Nmap the best choice when a systems administrator needs a comprehensive view of a server’s exposure and configuration. It can enumerate services (e.g., HTTP, SSH), detect service versions, and determine which ports are open, closed, or filtered.

The other options are more limited in scope. Traceroute is used to map the path packets take across a network and identify latency or routing issues, but it does not provide service or OS details. Netstat shows active connections and listening ports on a local machine but does not perform remote OS detection or full service enumeration. Ping simply tests connectivity and reachability using ICMP and does not provide detailed system information.

Therefore, Nmap is the most appropriate and comprehensive tool for this requirement.

•Since this issue occurred after a configuration change on a Layer 3 switch, the most likely cause is misconfigured ACLs (Access Control Lists).

•ACLs control which traffic is allowed or denied, so an incorrect ACL may be blocking access to the file server.

•Why not the other options?

•Switching loop (B): A switching loop occurs at Layer 2 (not Layer 3) and causes network-wide broadcast storms, not just loss of access to a file server.

•Duplicate IP addresses (C): This would cause connectivity issues for the devices with the conflict, but not necessarily prevent all users from accessing the file server.

•Wrong default route (D): The default route is used for traffic leaving the local network. If users are unable to access an internal file server, this is unlikely to be the issue.

The engineer should implement a PTR record. A PTR record is used for reverse DNS lookup, which maps an IP address back to a hostname. This is the opposite of an A record, which maps a hostname to an IPv4 address. Mail systems commonly use reverse DNS lookups as part of anti-spam and mail reputation checks. If an SMTP relay server does not have a valid PTR record, receiving mail servers may reject, delay, or flag messages as suspicious.

The CompTIA Network+ N10-009 objectives include DNS record types, name resolution, email-related records, and troubleshooting network services. PTR records are specifically associated with reverse lookup zones and are the correct record type when the problem involves resolving an IP address to a domain name.

DNSSEC adds cryptographic validation to DNS responses, helping protect against DNS spoofing or tampering, but it does not create reverse DNS mappings. An MX record identifies mail exchangers for a domain, but it does not resolve an IP address back to a name. DoT, or DNS over TLS, encrypts DNS queries. Therefore, PTR is the correct answer.

Top of Form

The engineer should use the device’s MAC address to isolate it in a packet capture. A MAC address uniquely identifies a network interface at Layer 2. When troubleshooting wireless disconnections, filtering a packet capture by the client’s MAC address allows the engineer to focus on frames sent to and from that specific device. This can reveal authentication problems, association failures, deauthentication frames, roaming issues, retransmissions, signal-related problems, or other wireless communication events.

The CompTIA Network+ N10-009 objectives include wireless troubleshooting, packet capture analysis, Layer 2 addressing, and identifying network clients. In wireless networks, frames include source and destination MAC addresses, making the MAC address one of the most useful identifiers for isolating a specific client.

ESSID refers to the wireless network name used by clients to identify a WLAN. PSK is the pre-shared key used for authentication in some wireless security configurations. BSSID identifies a specific wireless access point radio, usually represented by the AP’s MAC address. While BSSID can help isolate traffic for a specific AP, the question asks to isolate the affected device. Therefore, the client MAC address is the best answer.

A subinterface is a logical interface created on a single physical router interface that allows routing between VLANs (known as Router-on-a-Stick (ROAS)). This method is commonly used when only one physical router is available, allowing inter-VLAN communication without additional hardware.

•Why not the other options?

•VXLAN (B) – This is used for extending Layer 2 networks over a Layer 3 infrastructure, primarily in data centers. It does not directly enable inter-VLAN communication.

•Layer 3 switch (C) – A Layer 3 switch can route between VLANs, but the scenario states that purchasing additional hardware is not an option.

•VIR (D) – This is not a standard networking term in the context of VLAN communication.

Comprehensive and Detailed Explanation (aligned to N10-009):

APIs (Application Programming Interfaces) allow automation tools and scripts to push configurations to network devices programmatically. Modern network automation platforms rely on APIs to ensure consistency and scalability.

A. RDP is remote desktop for Windows systems, not automation.

B. Telnet is insecure and manual.

C. GUI requires manual configuration, not automation.

References (CompTIA Network+ N10-009):

Domain: Network Operations — Automation, orchestration, APIs in network management.

Comprehensive and Detailed Explanation (aligned to N10-009):

For a log collector server, the primary needed service is Syslog, which typically uses UDP port 514. Other ports may be open for management (e.g., 22 for SSH) or SNMP traps (162) if integrated. However, port 80 (HTTP) should not be open unless required, as it increases attack surface and does not directly serve the log collection purpose. Disabling it hardens the server.

A. 22 (SSH) is needed for secure management.

C. 162 (SNMP trap) may be required for monitoring/log correlation.

D. 514 (Syslog) is essential for log collection.

References (CompTIA Network+ N10-009):

Domain: Network Security — Hardening servers, disabling unnecessary services and ports.

To monitor server availability, SNMP traps are the best choice. SNMP (Simple Network Management Protocol) allows devices to send alerts (traps) when certain conditions are met, such as server downtime or high resource usage.

Breakdown of Options:

A. Packet capture – Capturing packets provides insights into network traffic but does not actively monitor server availability.

B. Data usage reports – These analyze network traffic consumption but do not indicate whether a server is available or not.

C. SNMP traps – Correct answer. SNMP traps notify administrators of server issues in real time.

D. Configuration monitoring – This tracks configuration changes rather than availability.

VLAN hopping occurs when an attacker tricks a switch into believing the host is another switch by generating tagged frames or exploiting trunk negotiation (DTP). This allows the attacker to access traffic from multiple VLANs, potentially stealing sensitive data.

B. Evil twin is a rogue wireless AP attack, unrelated to switch impersonation.

C. DNS poisoning corrupts name resolution, not VLAN access.

D. ARP spoofing is a Layer 2 on-path attack, not masquerading as a switch.

References (CompTIA Network+ N10-009):

Domain: Network Security — VLAN hopping attacks, switch spoofing techniques.

Importance of Proper Termination:

Cat 8 cabling requires precise termination practices to ensure signal integrity and reduce interference. One common requirement is to wrap the end connections in copper tape to maintain shielding and reduce electromagnetic interference (EMI).

Interference Troubleshooting:

Interference in high-frequency cables like Cat 8 can be caused by improper shielding or grounding. Checking the end connections for proper wrapping in copper tape is a crucial step.

Why Other Options are Less Likely:

Passthrough modular crimping plugs: Not specifically related to interference issues and are typically used for ease of cable assembly.

Connecting RX/TX wires to different pins: Would likely result in no connection or incorrect data transmission rather than interference.

Running a speed test on a device that can only achieve 100Mbps speeds: This would not diagnose interference and would not provide relevant information for Cat 8 cabling rated for higher speeds.

Corrective Actions:

Verify that all end connections are properly wrapped with copper tape before termination.

Ensure that the shielding is continuous and properly grounded throughout the installation.

Retest the cabling for interference after making corrections.

On Core-SW01, the ports are configured with LACP (mode active) for link aggregation. On Core-SW02, the ports are configured as independent trunks, not as part of an LACP group. Because of this mismatch, LACP cannot form the bundle, and the aggregated ports on SW01 will go into a suspended state.

A. CRC errors suggest cabling or signal integrity issues, not config mismatch.

B. Error disabled occurs when a violation (like BPDU guard or port security) disables the port, not LACP mismatch.

C. Administratively down indicates a shutdown command, not the case here.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Port-channel/LACP configuration issues, interface states.

This scenario describes a duplicate IP address. The ARP table shows two different MAC addresses (0c00.1134.0001 and 0c00.1298.d239) associated with the same IP address (192.168.1.10), which leads to ARP table conflicts and intermittent connectivity.

From Andrew Ramdayal’s guide:

“Duplicate IP addresses occur when two devices on the same network are assigned the same IP address, causing network conflicts. Common issues include manual configuration errors or DHCP lease issues. Resolution includes using IP management tools and avoiding overlaps in DHCP and static IP assignments.”

Class D IPv4 address space is used for multicast traffic. The multicast IPv4 range is 224.0.0.0 through 239.255.255.255. Multicast is a one-to-many communication method in which a source sends traffic to a multicast group, and only devices that have joined that group receive the traffic. This is more efficient than broadcast because the traffic is not sent to every host on the network. It is also different from unicast, which is one-to-one communication between a single source and a single destination.

The CompTIA Network+ N10-009 objectives include understanding IPv4 addressing, traffic types, and network communication methods such as unicast, broadcast, multicast, and anycast. Multicast is commonly used for streaming media, routing protocol updates, conferencing systems, and other services where the same data must be delivered to multiple interested receivers.

Anycast allows multiple systems to share the same address, with routing directing users to the nearest or best destination. Broadcast sends traffic to all hosts in a broadcast domain. Unicast sends traffic to one specific host. Since Class D is reserved for multicast, option A is correct.

The correct answer is The port ' s VLAN assignment on the switch because the symptoms indicate a Layer 2 segmentation issue. According to CompTIA Network+ (N10-009) troubleshooting methodology and VLAN concepts, if the IP configuration is correct and the TCP/IP stack is functioning, but the default gateway is unreachable, the issue often involves improper VLAN configuration.

In a switched environment, devices must be assigned to the correct VLAN to communicate with the appropriate default gateway interface (often configured on a router or Layer 3 switch). If the user’s switch port is assigned to the wrong VLAN, the workstation may have a valid IP address but will not be able to reach the gateway because it is logically separated into a different broadcast domain.

Option A is unlikely since the IP configuration is already confirmed correct. Option C is not relevant because the issue is localized to a specific user, not a widespread DHCP failure. Option D refers to switch management configuration, which does not affect user traffic routing to the gateway.

Therefore, verifying the switch port’s VLAN assignment is the most appropriate next troubleshooting step.

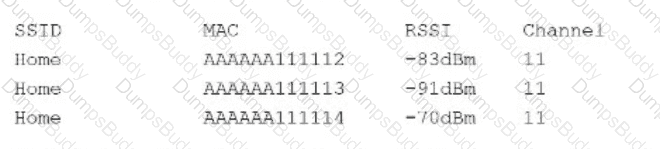

If APs are changing channels frequently, it indicates automatic channel selection due to interference. This can cause temporary disconnections as the APs switch frequencies.

Breakdown of Options:

A. Channel interference – ✅ Correct answer. APs change channels automatically to avoid interference, causing disconnections.

B. Roaming misconfiguration – Roaming only affects moving users, but users report issues while stationary.

C. Network congestion – Causes slow speeds, not frequent disconnects.

D. Insufficient wireless coverage – Would cause weak signals, but not channel switching issues.

Out-of-band (OOB) managementallows administrators to manage devices remotely even if the primary network is down. This is especially useful when physical access to the server is not possible. OOB management often uses a separate management interface, ensuring access regardless of the server ' s operational state.

VXLAN (Virtual Extensible LAN) encapsulates Ethernet frames inside UDP packets, increasing packet size. This can lead to fragmentation and performance degradation unless Jumbo Frames are enabled.

Breakdown of Options:

A. 802.1Q tagging – VLAN tagging enables segmentation but does not address fragmentation issues.

B. Spanning tree – STP prevents loops but does not improve performance for VXLAN traffic.

C. Link aggregation – LACP combines links for higher bandwidth but does not prevent fragmentation.

D. Jumbo frames – Correct answer. Enabling Jumbo Frames allows larger packet sizes, reducing fragmentation and improving VXLAN performance.

The CIA triad (Confidentiality, Integrity, Availability) is a foundational security model used in Network+ (N10-009) to evaluate risk and guide prioritization of mitigations. By categorizing assets and threats based on how they could impact confidentiality (data exposure), integrity (unauthorized alteration), or availability (service disruption), administrators can better understand which attacks from external actors matter most to the business and which controls to apply first. For example, a public-facing portal might prioritize availability protections (DDoS mitigation, redundancy), while sensitive customer records demand strong confidentiality controls (encryption, access control), and financial systems require integrity controls (logging, validation, change control). This model helps translate “threats” into business impact, which is central to deciding what to mitigate.

Compliance benchmarks support meeting regulatory/industry requirements, but they don’t inherently provide a conceptual lens for analyzing external attacker impact across all systems. SAML is a federation/authentication standard, not a risk model. A honeypot can provide insight into attacker behavior, but it doesn’t broadly structure risk prioritization the way CIA does. Therefore, CIA triad is the best answer.

===========

The correct answer is D. IP address management. In the CompTIA Network+ N10-009 objectives, network documentation and operational procedures include maintaining accurate records for addressing, device configurations, and infrastructure changes. When a network engineer deploys new virtual servers and configures their NICs, the most directly affected documentation is the IP address management, often called IPAM. IPAM tracks assigned IP addresses, subnets, gateways, DNS settings, DHCP reservations, static assignments, and address availability.

Because the scenario specifically states that the engineer configured the NICs, the key networking detail is that each virtual server’s network interface likely received IP addressing information. Updating IP address management prevents duplicate IP assignments, supports troubleshooting, and helps administrators understand which addresses are in use across the environment.

The other options are less appropriate. Asset inventory may need updating when new servers are created, but the question emphasizes NIC configuration, making IPAM the better answer. Warranty support applies mainly to physical hardware and vendor support contracts, which is not the main concern for virtual servers. Rack diagrams document physical rack placement, power, and cabling, but virtual servers do not occupy rack space individually. Therefore, the best documentation to update after configuring NICs on new virtual servers is IP address management.

The correct answer is D. Use a cable tester. Even though the technician sees that the cable is terminated, the note about the incorrect color code suggests there may be a wiring issue such as crossed pairs, reversed pairs, split pairs, or another pinout problem. The proper next troubleshooting step is to test the cable rather than assume immediately that it must be replaced.

A cable tester helps verify continuity, pin mapping, and whether the conductors are in the correct order. That gives the technician evidence about whether the cable is actually faulty and what type of fault may exist. In troubleshooting, testing first is the best practice because it confirms the problem before taking corrective action.

The other choices are less appropriate as the next step. Implementing fiber is unnecessary and unrelated to the current copper issue. Replacing the Ethernet cable may eventually be needed, but it skips the diagnostic step the question is asking for. Changing the switchport speed does not address incorrect pair termination.

Network+ often emphasizes using the correct diagnostic tool before replacing hardware. Since the issue centers on cable termination and color sequence, the technician should use a cable tester to validate the wiring and identify the fault accurately.

The correct answer is SAML (Security Assertion Markup Language). SAML is an XML-based standard used for single sign-on (SSO) and identity federation. It allows identity providers (IdPs) to share authentication and authorization data with service providers (SPs), passing secure tokens containing user attributes and credentials.

A. IAM (Identity and Access Management) is the broader framework, not specifically XML-based.

B. MFA enforces multiple factors for authentication but does not involve XML assertions.

C. RADIUS is an AAA protocol, but it uses UDP, not XML assertions.

SAML is widely used in federated identity systems, enabling secure authentication across different domains and applications without requiring multiple credentials.

References (CompTIA Network+ N10-009):

Domain: Network Security — Authentication methods, SAML, SSO.

VLAN hopping allows an attacker to send traffic into another VLAN without authorization, often by impersonating a switch and negotiating a trunk link. This lets the attacker traverse into normally inaccessible VLANs.

A. MAC flooding disrupts switch operations but does not cross VLANs.

B. DNS poisoning corrupts name resolution.

D. ARP spoofing reroutes local traffic but doesn’t grant VLAN traversal.

References (CompTIA Network+ N10-009):

Domain: Network Security — VLAN attacks, unauthorized lateral movement.

The errors described — dropped packets and CRC (Cyclic Redundancy Check) errors — often indicate electromagnetic interference (EMI) on unshielded twisted pair (UTP) cabling. The correct replacement is STP (Shielded Twisted Pair), which has shielding that protects signals from external interference, ensuring better reliability in noisy environments such as data centers or near heavy electrical equipment.

A. Coaxial is not used for modern Ethernet server-switch links.

B. Shorter UTP cable does not solve EMI issues.

C. Plenum cable refers to cable jacket type for fire safety, not electrical shielding.

STP cabling reduces interference and ensures reliable gigabit+ Ethernet connections between servers and switches.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Cabling issues, UTP vs. STP, EMI.

Single sign-on, or SSO, allows a user to access multiple applications, systems, or websites using one set of credentials. With SSO, the user authenticates once through an identity provider, and that authentication can then be trusted by multiple service providers. This improves user convenience, reduces password fatigue, and allows organizations to centralize authentication policies.

The CompTIA Network+ N10-009 objectives include authentication methods, identity and access management, and security concepts. SSO is commonly implemented using protocols or standards such as SAML, OAuth, or OpenID Connect, but SSO is the overall concept being described in the question.

SAML is a protocol often used for browser-based federated authentication, especially in enterprise environments. OpenID Connect is an authentication layer built on OAuth 2.0 and is also commonly used for federated login. However, both are implementation methods rather than the general capability described. A one-time password is a temporary authentication code, often used as part of multifactor authentication, but it does not by itself allow access to multiple websites using one credential set. Therefore, SSO is the correct answer.

GDPR (General Data Protection Regulation)is alegal frameworkenforced by the European Union to protect personal data and privacy. Unlike internal organizational policies such as AUPs or codes of conduct, GDPR is alegislated regulation, and organizations must comply or face legal consequences.

The correct answer is OSPF (Open Shortest Path First). OSPF is a link-state routing protocol known for its fast convergence and use of the Dijkstra algorithm to calculate the shortest loop-free path. It efficiently scales to large enterprise networks and avoids routing loops by maintaining a complete topology map.

A. BGP is primarily an external routing protocol used between ISPs, not internal.

B. STP is not a routing protocol; it prevents loops at Layer 2.

D. RIP is an older distance-vector protocol with slower convergence and a maximum hop limit of 15.

OSPF’s design makes it the preferred internal gateway protocol (IGP) for medium-to-large organizations requiring speed and loop-free reliability.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — IGPs, OSPF, routing protocols.

DNS filtering blocks access to known malicious websites by comparing domain requests against a list of allowed or blocked URLs. It is an effective defense against phishing and other web-based attacks.

From Andrew Ramdayal’s guide:

“URL filtering restricts access to specific websites or web content by comparing URLs against a predefined list of allowed or blocked sites…commonly used to prevent users from accessing malicious sites.”

The most likely cause of buffering issues when moving outdoors is signal degradation. Wireless signals weaken as they travel through obstacles such as walls, glass, and air, leading to weaker connections and reduced data rates.

Breakdown of Options:

A. Network congestion – While congestion can slow down network speeds, it affects all users, not just those moving outdoors.

B. Wireless interference – Interference is possible but is more likely caused by other wireless signals rather than outdoor movement.

C. Signal degradation – Correct answer. Wireless signals weaken with distance and obstacles such as walls, reducing performance.

D. Client disassociation – Disassociation occurs when clients lose connection to the AP, but the question states that users experience buffering, indicating they are still connected but with a weak signal.

Changing the default password is a fundamental step in device hardening, as default credentials are widely known and published online, posing a significant security risk if not updated. The document notes:

“Default passwords are often known by attackers and published on the internet. Changing them to unique, strong passwords is a critical first step in securing network devices against unauthorized access.”

The correct answer is 802.1X, which is an identity-based Network Access Control (NAC) framework emphasized in the CompTIA Network+ N10-009 objectives under network security and access control. 802.1X uses a policy-driven authentication process to determine whether a user or device is allowed network access based on verified credentials, such as usernames, passwords, or digital certificates.

802.1X operates using three main components: the supplicant (the client requesting access), the authenticator (the network device such as a switch or wireless access point), and the authentication server (typically a RADIUS server). Once the user’s identity is authenticated, predefined policies determine the level of access granted—full access, limited access, or denial. This makes 802.1X a cornerstone of zero trust and enterprise-grade NAC implementations.

A standard ACL controls traffic based on IP addresses and ports, not user identity. MAC filtering allows or denies access based on device MAC addresses, which can be easily spoofed and does not verify user identity. SSO (Single Sign-On) simplifies authentication across multiple systems but does not control network-layer access.

Network+ highlights 802.1X as a secure, scalable solution for enforcing identity-based network access policies in both wired and wireless environments.

A Change Advisory Board (CAB) reviews and approves network changes. Before approval, they need a detailed action plan outlining the change, potential impacts, and mitigation strategies.

A Plan of Action includes risk assessments, rollback procedures, and deployment steps, which are critical for decision-making.

? Reference: CompTIA Network+ (N10-009) Official Study Guide – Section: Network Troubleshooting Methodologies

Port security is a Layer 2 security feature that restricts the number of devices connecting to a network switch port. It helps prevent unauthorized devices, such as an unmanaged switch, from being connected to the network.

How Port Security Works:

Limits the number of MAC addresses that can connect to a port.

Can shut down or restrict the port if an unauthorized device is detected.

Prevents users from plugging in unauthorized networking equipment (e.g., unmanaged switches, hubs).

Incorrect Options:

A. Screened Subnet: A screened subnet (DMZ) is used for isolating external-facing servers, not for controlling unauthorized network connections.

B. 802.1X: Provides authentication for devices but requires a RADIUS server, which is a more complex solution than port security.

C. MAC Filtering: Controls which MAC addresses can connect but is difficult to manage and can be spoofed.

If the user cannot communicate with 192.168.10.1, they might be on a different subnet. Changing the subnet mask to 255.255.255.0 ensures the user and the file server are in the same subnet.

Breakdown of Options:

A. Changing the IPv4 address to 192.168.10.1 – This would conflict with the server ' s IP.

B. Changing the subnet mask to 255.255.255.0 – ✅ Correct answer. Ensures both the user and the server are on the same subnet.

C. Changing the DNS servers – DNS does not affect local network connectivity.

D. Changing the physical address – The MAC address does not impact subnet communication.

Availability refers to ensuring that data is accessible when needed. If a customer ' s data is accidentally deleted, it impacts availability, as the data can no longer be accessed.

=================

For a secure 802.1X design that includes BYOD access to a trusted wireless network, the engineer should implement NAC (Network Access Control). In the Network+ (N10-009) objectives, 802.1X provides authentication (commonly via EAP to a RADIUS server), but NAC expands this by enforcing policy-based access decisions—such as device posture checks, user/device identity validation, and dynamic assignment to the appropriate VLAN/role. With BYOD, the organization often needs to confirm whether devices meet requirements (OS version, encryption, security software) and then grant the correct level of access (full, limited, or quarantine/remediation). NAC is the architecture that ties these controls together in a scalable way for wireless networks.

An ACL can restrict traffic after a device connects, but it doesn’t perform authentication/posture assessment. MAC filtering is weak because MAC addresses can be spoofed and it does not provide strong identity assurance. Port security is mainly a wired switch control (limiting MAC addresses per port) and is not the right control set for secure BYOD wireless access. NAC best matches the requirement of secure, policy-driven 802.1X BYOD access.

===========

BYOD (Bring Your Own Device) policies define rules for using personal devices on the company network. Since the new employee is using a personal laptop, this policy applies.

Breakdown of Options:

A. IAM (Identity and Access Management) – Governs user permissions, not device policies.

B. BYOD (Bring Your Own Device) – ✅ Correct answer. Covers using personal devices for work.

C. DLP (Data Loss Prevention) – Focuses on preventing sensitive data leaks, not device usage policies.

D. AUP (Acceptable Use Policy) – Covers internet and system usage, but not personal device rules.

Tailgating is a physical security breach where someone follows an authorized person into a restricted area without proper credentials. Once inside, the attacker can install rogue devices like unauthorized APs.

A. Evil twin is a wireless attack where an attacker sets up a fake AP.

B. Honeytrap is used to attract attackers for analysis.

C. Wardriving involves scanning for unsecured Wi-Fi networks while driving, not physical intrusion.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 4.2 – Identify common security threats and vulnerabilities.

The correct answer is Spanning Tree because broadcast storms are typically caused by Layer 2 switching loops in Ethernet networks. According to the CompTIA Network+ (N10-009) objectives under switching concepts, the Spanning Tree Protocol (STP) is specifically designed to prevent loops in networks that have redundant switch connections.

In a Layer 2 environment, switches forward broadcast frames out all ports except the one on which they were received. If redundant paths exist without STP, frames can circulate indefinitely, creating a broadcast storm. This results in excessive traffic, high CPU utilization on switches, MAC address table instability, and significant network performance degradation.

STP prevents this by logically blocking redundant paths while maintaining them as backups. If the active path fails, STP recalculates and activates a previously blocked path, preserving redundancy without loops.

The other options—EIGRP and BGP (routing protocols) and CDP and LLDP (device discovery protocols)—do not prevent Layer 2 loops.

Therefore, configuring Spanning Tree Protocol is the appropriate solution to mitigate broadcast storms.

Shielded twisted pair, or STP, is the best choice because the problem is related to electromagnetic interference, and the requirement is to keep costs low. STP cabling includes shielding around the twisted pairs or cable bundle to reduce the effects of external interference from electrical equipment, appliances, fluorescent lighting, microwave ovens, motors, and other sources. Since the cable is routed near a break room with known interference, replacing unshielded cabling with shielded twisted pair is the most practical and cost-effective solution.

The CompTIA Network+ N10-009 objectives require understanding copper cabling types, interference, and appropriate media selection. Fiber-optic cabling, including single-mode and multimode fiber, is immune to electromagnetic interference and could solve the issue, but it is generally more expensive than copper due to optics, termination, installation, and equipment requirements. Unshielded twisted pair is inexpensive but provides less protection against interference. Because the issue is caused by interference and the organization wants to control cost, STP provides the best balance of performance, protection, and affordability.

•The issue described is a network bottleneck due to increased traffic after a merger.

•A collapsed core architecture consolidates the core and distribution layers into a single layer to improve efficiency and reduce latency.

•Until the 40GB switch is acquired, Link Aggregation (LAG) (IEEE 802.3ad / LACP) can be used to combine multiple physical links into a single logical link, increasing bandwidth and reducing bottlenecks.

•FHRP (First Hop Redundancy Protocol) (A) is used for gateway redundancy, not link aggregation.

•Route selection metric changes (B) help with routing decisions but don’t address physical link congestion.

•Load balancers (C) distribute traffic for applications, not network links.

???? Reference: CompTIA Network+ N10-009 Official Documentation – Network Architecture and Performance Optimization.

The correct answer is VLSM (Variable Length Subnet Masking). According to the CompTIA Network+ N10-009 objectives, VLSM allows a network administrator to create subnets of different sizes within the same network, making it ideal for environments where subnet host requirements vary.

In this scenario, the technician must support multiple subnet sizes—60 hosts, 15 hosts, and seven hosts—within a single Class C network. Using a single subnet mask for all eight subnets would either waste a large number of IP addresses or fail to meet host requirements. VLSM solves this problem by allowing each subnet to be assigned a custom subnet mask that closely matches its host needs, maximizing address efficiency.

CIDR enables classless addressing and route aggregation but does not, by itself, describe creating multiple subnet sizes within a single address block. APIPA is a self-assigned addressing mechanism used when DHCP fails and has no relevance to subnet design. RFC 1918 defines private IP address ranges but does not address subnetting strategies.

The Network+ objectives emphasize VLSM as a best practice for efficient IP address management, especially in enterprise environments where conserving address space and meeting diverse departmental requirements are critical. In this case, VLSM is the only solution capable of meeting all stated constraints.

To verify ownership of a domain, providers commonly require adding a TXT record to DNS containing a specific validation token (a name/value pair). A TXT (text) record is designed to store arbitrary text data associated with a domain or hostname, which makes it ideal for domain verification workflows used by certificate authorities, email security (SPF/DKIM/DMARC-related entries), and third-party services that need proof of administrative control over DNS. This fits Network+ DNS objectives that cover common record types and their practical purposes in real deployments.

An A record maps a hostname to an IPv4 address and is used for name-to-address resolution, not ownership verification. A PTR record provides reverse DNS mapping (IP address to hostname) and is stored in reverse lookup zones, not typically used for validating web domain ownership. A CNAME record creates an alias from one hostname to another canonical hostname; while sometimes used in service integrations, the classic “record name + token value” ownership verification is most directly and universally satisfied by a TXT record. Therefore, TXT is the correct choice given the requirement and the provided record name and value.

Adding more access points can improve coverage, but it also increases the risk of co-channel interference if APs are configured on the same or overlapping channels. Channel overlap causes contention and interference, leading to retries, unstable performance, and symptoms that feel like frequent disconnect/reconnect events—especially in dense deployments. Network+ (N10-009) wireless troubleshooting objectives highlight proper channel planning (non-overlapping channels, appropriate channel width) as critical when increasing AP density. If adjacent APs are competing on the same channel (or overlapping channels in 2.4 GHz), clients may experience poor signal-to-noise ratios and repeated reassociations as they struggle to maintain a stable link.

Roaming misconfiguration can cause sticky clients or poor handoffs, but the classic problem introduced immediately after “adding more APs” is interference from bad channel design. Throughput capacity is about available bandwidth and airtime efficiency; it can make things slow, but it doesn’t inherently cause repeated disconnect/reconnect loops like interference does. Packet loss is a symptom that may occur due to interference, but the root cause in the options that best fits the scenario is channel overlap.

Definition of Jumbo Frames:

Jumbo frames are Ethernet frames with more than 1500 bytes of payload, typically up to 9000 bytes. They are used to improve network performance by reducing the overhead caused by smaller frames.

Why Switches Support Jumbo Frames:

Switches are network devices designed to manage data packets and can be configured to support jumbo frames. This capability enhances throughput and efficiency, particularly in high-performance networks and data centers.

Incompatibility of Other Devices:

Access Point: Primarily handles wireless communications and does not typically support jumbo frames.

Bridge: Connects different network segments but usually operates at standard Ethernet frame sizes.

Hub: A simple network device that transmits packets to all ports without distinguishing between devices, incapable of handling jumbo frames.

Practical Application:

Enabling jumbo frames on switches helps in environments where large data transfers are common, such as in storage area networks (SANs) or large-scale virtualized environments.

A warm site is a compromise between a hot site and a cold site, providing a balance between cost and recovery time. It is partially equipped with the necessary hardware, software, and infrastructure, allowing for a quicker recovery compared to a cold site but at a lower cost than a hot site.

Recovery Time: Warm sites can be operational within hours to a day, making them suitable for non-critical applications that can tolerate short downtimes.

Cost-Effectiveness: Warm sites are more economical than hot sites as they do not require all systems to be fully operational at all times.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses disaster recovery strategies and the different types of recovery sites.

Cisco Networking Academy: Provides training on disaster recovery planning and site selection.

Network+ Certification All-in-One Exam Guide: Explains the characteristics of hot, warm, and cold sites and their use cases in disaster recovery planning.

Warm sites offer a practical solution for maintaining business continuity for non-critical applications, balancing the need for availability with cost considerations.

The correct answer is Integrity because a hashing algorithm ensures that data has not been altered. According to CompTIA Network+ (N10-009) security objectives, hashing is a cryptographic process that takes input data of any size and produces a fixed-length output known as a hash value or digest. If even a single bit of the original data changes, the resulting hash value will be significantly different.

Hashing is commonly used to verify file integrity, validate message authenticity, and securely store passwords. For example, when downloading software, the vendor may publish a hash value so users can calculate the hash of the downloaded file and confirm it matches, ensuring the file was not tampered with.

Non-repudiation (Option A) typically requires digital signatures that combine hashing with asymmetric encryption to verify the sender’s identity. Confidentiality (Option C) is achieved through encryption, which protects data from unauthorized access. Availability (Option D) refers to ensuring systems and data are accessible when needed and is not related to hashing functions.

Therefore, hashing primarily provides data integrity verification.

Testing the theory to determine the cause is the troubleshooting step used to strategically eliminate possible causes before confirming the main source of the issue. After the problem is identified and a theory of probable cause is established, the technician must test that theory. If the test confirms the theory, the technician can move toward creating a plan of action. If the theory is not confirmed, the technician should establish a new theory or escalate the issue.

The CompTIA Network+ N10-009 troubleshooting methodology emphasizes a structured process to avoid guessing and unnecessary changes. Testing a theory may include checking configurations, replacing a suspected cable, reviewing logs, verifying connectivity, testing DNS resolution, checking VLAN assignments, or comparing results against known-good systems. This process helps narrow the issue by ruling out causes that do not match the evidence.

Identifying the problem is the first step and involves gathering information. Establishing a theory means forming a likely explanation. Establishing a plan of action happens after the cause is confirmed. Therefore, the step that best matches strategically eliminating known issues is testing the theory to determine the cause.

Multimode fiber optic cables involve the transmission of light signals that bounce off the core ' s cladding as they travel down the fiber. This characteristic differentiates it from single-mode fiber, where the light travels directly down the fiber without reflecting off the cladding.

Here are some detailed points about multimode fiber cables:

Construction: Multimode fibers have a larger core diameter, typically 50 or 62.5 microns, compared to single-mode fibers, which have a core diameter of about 9 microns.

Light Propagation: The larger core of multimode fiber allows multiple light modes to propagate. These modes travel at different angles, leading to reflections off the core-cladding boundary.

Distance and Bandwidth: Due to modal dispersion, where different light modes arrive at the receiver at different times, multimode fibers are suited for shorter distance applications compared to single-mode fibers. Typical distances are up to 550 meters for 10 Gbps Ethernet using OM4 multimode fiber.

Applications: Multimode fibers are commonly used in LANs (Local Area Networks), data centers, and for shorter distance data transmission due to their cost-effectiveness and ease of installation.

Network References:

CompTIA Network+ N10-007 Official Certification Guide, which covers fiber optic technologies, including the differences between multimode and single-mode fibers.

Cisco Networking Academy: Provides training materials and reference guides on the properties of different fiber optic cables.

Fiber Optic Association (FOA): A professional society dedicated to fiber optics, offering extensive information and certification on fiber optic technologies.

Multimode fibers are specifically designed for short-range communication with higher data rates and are typically used in environments like data centers, where high bandwidth over shorter distances is crucial. The reflections off the cladding, inherent to multimode fiber, facilitate this high-capacity communication.

NetFlow (and similar flow technologies like IPFIX/sFlow in concept) is used to collect traffic-flow metadata such as source/destination IPs, ports, protocols, interfaces, and byte/packet counts over time. In Network+ (N10-009) operations and monitoring objectives, flow data is ideal for identifying top talkers and top destinations across the network on a given day because it provides summarized, queryable information at scale without capturing every packet payload. An administrator can review reports to determine which destination IPs/hosts consumed the most bandwidth, which applications were most active, and what time ranges saw spikes—perfect for historical analysis.

SNMP is great for polling device counters (interface utilization, errors, CPU) but it does not natively tell you the “top destination” by conversation/flow without additional flow awareness. Packet capture can reveal exact conversations and payloads, but it is heavy, localized, and not efficient for infrastructure-wide daily top-destination reporting. traceroute maps the path to a destination and helps isolate routing/path issues; it does not provide usage statistics. Therefore, NetFlow is the best fit.

===========

IPSec (Internet Protocol Security) is the best choice for secure communication over the internet, as it provides encryption, authentication, and data integrity. It is widely used in VPNs and site-to-site secure tunnels.

Breakdown of Options:

A. DCI (Data Center Interconnect) – A general term for linking data centers, but it doesn’t specify a secure tunneling protocol.

B. GRE (Generic Routing Encapsulation) – Encapsulates traffic but lacks encryption, making it less secure than IPSec.

C. VXLAN (Virtual Extensible LAN) – Used for Layer 2 network overlays, not for securing communication over the internet.

D. IPSec – ✅ Correct answer. Provides encryption, authentication, and integrity for data over the internet.

Power over Ethernet (PoE) delivers power to devices such as VoIP phones over the same cables used for data. If the total power requirement of connected devices exceeds the PoE power budget of the switch or injector, some devices may not receive adequate power and could intermittently reboot. This issue would not affect the workstation, which is likely receiving power separately. References: CompTIA Network+ Exam Objectives and official study guides.

Building materials and electrical interference are the two best factors to consider when designing a wireless network for maximum coverage and signal strength. Wireless signals can be weakened or blocked by concrete, brick, metal, glass, insulation, elevator shafts, walls, and other structural materials. These materials can absorb, reflect, or scatter radio frequency signals, creating weak coverage areas or dead zones.

Electrical interference is also important because wireless networks can be affected by devices that generate electromagnetic or radio frequency interference. Examples include microwaves, motors, fluorescent lighting, cordless devices, industrial equipment, and neighboring wireless networks. Interference can reduce signal quality, increase retransmissions, and cause unstable connectivity.

The CompTIA Network+ N10-009 objectives include wireless site surveys, signal strength, antenna placement, interference, and environmental factors. These considerations are central to proper wireless design. Distance from the server room does not directly determine wireless signal coverage. Encryption affects security, not radio signal strength. Power over Ethernet affects how APs receive power but not coverage by itself. Client device type can affect performance, but the best design factors for coverage and signal strength are building materials and electrical interference.

When a user connects to a VPN and experiences connectivity issues to an external server, the problem is often related to routing or network path issues.

E. tracert:

Traces the path packets take from the user ' s device to the destination server.

Helps determine if the traffic is being blocked or misrouted.

F. route print:

Displays the device ' s routing table.

Helps diagnose whether traffic is being sent to the VPN tunnel instead of the correct external server.

Incorrect Options:

A. nslookup: Used for resolving domain names to IPs (DNS troubleshooting), but this issue is likely routing-related.

B. tcpdump: Captures packets for deep packet analysis, not typically the first step in diagnosing a VPN-related access issue.

C. arp: Used for resolving local network MAC addresses, not relevant for external VPN issues.

D. dig: Like nslookup, used for DNS queries, but not useful for routing problems.

Network Address Translation (NAT) is a process that allows a device, typically a firewall or router, to map private IP addresses to public IP addresses. This enables internal network devices to communicate over the internet using a single or a limited number of public IP addresses.

Static NAT (One-to-One Mapping): Maps a single private IP address to a single public IP address, commonly used for servers that need to be accessible from the internet.

Dynamic NAT (Many-to-Many Mapping): Dynamically assigns a public IP from a pool to internal devices.

PAT (Port Address Translation): A type of NAT where multiple private IPs share a single public IP using different port numbers.

Incorrect Options:

B. VIP (Virtual IP Address): Used in load balancing and high-availability configurations, not for NAT.

C. PAT (Port Address Translation): A specific form of NAT, but the question refers to general NAT, making option A the best choice.

D. BGP (Border Gateway Protocol): A routing protocol used to exchange information between different networks, not related to NAT.

A jump box is a hardened, isolated system that provides secure access to critical infrastructure devices like routers and firewalls.

Twinaxial (Direct Attach Copper / DAC) cables can plug directly into QSFP ports without needing separate optical transceivers. They are cost-effective for short-distance, high-speed connections (commonly in data centers).

A. Multimode fiber requires SFP/QSFP transceivers to convert electrical signals to optical.

C. RG11 is coaxial cable for broadband/cable TV, not used in QSFP ports.

D. Category 6 is twisted-pair Ethernet cabling, not directly compatible with QSFP ports.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — Cable types, QSFP, DAC (Twinaxial), transceiver requirements.

802.1X provides port-based Network Access Control (NAC). Ports remain in a blocked state until a device authenticates (usually with RADIUS). This is ideal for public or semi-public areas where ports should not be “always on.”

A. Port security restricts by MAC addresses but does not authenticate users.

C. MAC filtering is easily spoofed and weaker than 802.1X.

D. ACLs filter traffic but do not enforce port-based authentication.

References (CompTIA Network+ N10-009):

Domain: Network Security — NAC, 802.1X authentication, port-based security.

The correct answer is C. Address pool exhaustion. The laptop has assigned itself an address in the 169.254.x.x range, which is an APIPA address. That happens when the device is configured to use DHCP but cannot successfully obtain an address lease from a DHCP server. The missing default gateway and DHCP server entries support that conclusion.

Among the choices, the most likely reason is that the DHCP scope has run out of available addresses. When the pool is exhausted, new clients cannot receive a valid IP configuration and fall back to an automatic private address. As a result, the laptop will not be able to reach internal company resources like the intranet because it is not properly configured for the network.

The other answers do not fit the evidence. A short DHCP lease duration may cause more frequent renewals, but it does not directly explain the self-assigned APIPA address. An IIS server malfunction would affect the web service itself, not the client’s local IP configuration. An IDS misconfiguration also would not normally result in a 169.254 address on the host.

The output clearly indicates a DHCP assignment failure, and from the options provided, address pool exhaustion is the best match.

The failure of a ping to 127.0.0.1 (the loopback address) indicates a problem with the workstation’s TCP/IP stack or network interface card (NIC). Since 127.0.0.1 is a local address, the issue is not related to the network, router, or DNS. The first step in diagnosing this issue is to verify the NIC interface status to ensure the network adapter is functioning and properly configured.

Why not Verify the network is not congested? Network congestion affects external connectivity, not the loopback address.

Why not Verify the router is not dropping packets? Router issues are irrelevant since the loopback ping fails locally.

Why not Verify that DNS is resolving correctly? DNS resolution is not involved in pinging 127.0.0.1, which uses a direct IP address.

The correct answer is A. TACACS+. This protocol is commonly used for authentication, authorization, and accounting (AAA) when administrators need to access network infrastructure devices such as routers, switches, and firewalls. The key part of the question is not just authentication, but also logging capabilities. TACACS+ supports accounting functions, which means it can record administrative actions and login events. That makes it especially useful when organizations want traceability for device access and configuration changes.

The other options do not fit as well. SAML is primarily used for federated identity and web-based authentication between identity providers and service providers. SSO is a general authentication convenience feature that allows one login to access multiple systems, but it does not itself provide detailed device-level accounting. MFA strengthens authentication by requiring multiple factors, but it is not the protocol best known for centralized access control and activity logging on network devices.

For Network+ exam purposes, TACACS+ is strongly associated with administrative access to network equipment and with maintaining an audit trail of who accessed devices and what actions were performed. Because the question asks for both simple authentication and logging, TACACS+ is the best match.

Packet capture is the best tool for identifying the cause of a network issue in real time. A packet capture allows a technician or administrator to inspect live network traffic between the client and server. It can reveal retransmissions, dropped connections, DNS problems, TCP handshake failures, latency symptoms, protocol errors, authentication issues, and application-level communication problems. This aligns with the CompTIA Network+ N10-009 troubleshooting objectives, which include using appropriate tools to diagnose network performance and connectivity issues.

Port mirroring can be useful, but it is a switch feature that copies traffic from one port or VLAN to another monitoring port. It helps collect traffic, but by itself it does not analyze the packets. A packet capture tool is what actually records and inspects the traffic. Syslog reports are valuable for reviewing device logs, but they may not show real-time packet-level behavior between the user and the server. Baseline metrics are useful for comparison against normal performance, but they do not directly identify the immediate cause of a live issue. Therefore, packet capture is the most appropriate answer.

An Intrusion Detection System (IDS) monitors and analyzes traffic to detect suspicious activity but does not sit in the traffic path, meaning it doesn’t affect latency. In contrast, an IPS is in-line and can introduce delay.

From Andrew Ramdayal’s guide:

“IDS monitors and alerts on malicious activity but does not block traffic, making it suitable for environments where low latency is critical.”

Introduction to OSI Model:

The OSI model is a conceptual framework used to understand network interactions in seven layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

Application Layer:

The application layer (Layer 7) is the topmost layer in the OSI model. It provides network services directly to end-user applications. This layer facilitates communication between software applications and lower layers of the network protocol stack.

Reliance on Other Layers:

The application layer relies on the transport layer (Layer 4) for data transfer across the network. The transport layer ensures reliable data delivery through protocols like TCP and UDP.

The network layer (Layer 3) is responsible for routing packets to their destination.

The data link layer (Layer 2) handles node-to-node data transfer and error detection.

The physical layer (Layer 1) deals with the physical connection between devices.

Explanation of the Options:

A. It relies upon other layers for packet delivery: This is correct. The application layer depends on the lower layers (transport, network, data link, and physical) for the actual delivery of data packets.

B. It checks independently for packet loss: This is incorrect. Packet loss detection is typically handled by the transport layer (e.g., TCP).

C. It encrypts data in transit: This is incorrect. Encryption is typically handled by the presentation layer or at the transport layer (e.g., TLS/SSL).

D. It performs address translation: This is incorrect. Address translation is performed by the network layer (e.g., NAT).

Conclusion:

The application layer’s primary role is to interface with the end-user applications and ensure that data is correctly presented to the user. It relies on the underlying layers to manage the actual data transport and delivery processes.

A toner and probe tool, also known as a tone generator and probe, is used to trace and identify individual cables within a bundle or to locate the termination points of cables in wiring closets and patch panels. It generates a tone that can be picked up by the probe, helping technicians quickly and accurately identify and label wall plates and wiring. This is the best tool for identifying proper wiring in the Intermediate Distribution Frame (IDF). References: CompTIA Network+ Exam Objectives and official study guides.

The correct answer is B. Installing a network tap in-line with the web server. A network tap (Test Access Point) is a hardware device placed directly in-line between network devices, allowing it to capture all traffic flowing across the link. Because it operates at the physical layer, a tap can capture 100% of packets, including malformed frames and Layer 1 errors, which are often missed by other methods.

This solution also minimizes impact on infrastructure, as taps are passive devices that do not introduce significant latency or processing overhead. They do not rely on switch configuration or consume switch resources, making them ideal for high-fidelity packet capture during troubleshooting.

Other options do not meet all requirements. Port mirroring (SPAN) can capture traffic but may drop packets under heavy load and typically does not capture Layer 1 errors. Installing a protocol analyzer on the server only captures traffic processed by the server’s NIC and may miss certain low-level issues. Running Nmap is an active scanning tool used for discovery and security auditing, not packet capture.

Therefore, a network tap is the best solution for complete, accurate, and low-impact packet capture.

To confirm a theory in the troubleshooting process, the technician should duplicate (replicate) the problem under controlled conditions. In the Network+ (N10-009) methodology, confirming a theory means validating that the suspected cause actually produces the observed symptoms. Replicating the issue helps ensure the technician is not chasing a coincidence, and it allows changes to be tested safely (for example, reproducing the issue with a specific user account, endpoint, cable, port, SSID, or configuration). If the problem can be duplicated, the technician can then try targeted actions to see whether the symptoms change in predictable ways—strengthening or disproving the hypothesis.

The other choices occur earlier as part of forming the theory. Identify the symptoms is an initial step to define the problem clearly. Gather information is part of the discovery phase—collect logs, error messages, topology details, and user observations. Determine any changes is also an early step used to correlate recent modifications (patches, new devices, config changes) with the onset of the issue. Those steps help create a theory; duplication helps confirm it before implementing a full fix.

===========

An SLA (Service Level Agreement) defines performance expectations, including response time, prioritization, and resolution time for services and support issues. It helps the technician determine which task has higher priority based on business impact.

A. NDA (Non-Disclosure Agreement) relates to confidentiality, not task prioritization.

B. AUP (Acceptable Use Policy) defines user behavior, not issue handling.

D. MOU (Memorandum of Understanding) outlines informal agreements and doesn ' t define ticket priorities.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 4.1 – Compare and contrast common documentation types.

The correct solution is to establish a trunk connection between Switch A and Switch B. Computer A and Computer B are both connected to access VLAN 1 on their local switches. However, the inter-switch link appears to be configured as an access port in VLAN 8. Because the link between the switches is not carrying VLAN 1 traffic, devices in VLAN 1 on separate switches cannot communicate across that connection.

The CompTIA Network+ N10-009 objectives include VLANs, switching, trunking, access ports, and troubleshooting Layer 2 connectivity. Access ports carry traffic for a single VLAN. Trunk ports carry traffic for multiple VLANs between switches, usually using tagging such as IEEE 802.1Q. To allow VLAN 1 devices on both switches to communicate, the inter-switch connection must carry VLAN 1 traffic. A trunk would allow VLAN 1 and other required VLANs to pass between the switches.

Link aggregation is not the issue, and Gi0/10 is administratively down. Spanning Tree Protocol prevents loops but does not fix missing VLAN transport. Changing both hosts to a /24 would not solve the VLAN separation problem and could make IP reachability worse. Therefore, trunking is required.

Configuration monitoring and management tools (often part of network management systems) maintain version-controlled records of device configurations, track changes, and log who made them. This provides accountability and supports compliance audits.

A. Network access control (NAC) manages endpoint access policies but does not track device config changes.

C. Zero Trust is a security framework requiring strict identity verification, not a configuration tracking tool.

D. Syslog collects system logs, but without a config monitoring system, it does not directly compare documentation to device state.

References (CompTIA Network+ N10-009):

Domain: Network Operations — Change management, configuration management, auditing.

The best answer is B. Elasticity. Quantum computing workloads are highly specialized and often require access to extremely expensive, limited, and on-demand processing resources. In cloud terms, elasticity is the ability to rapidly allocate and release resources as demand changes. That makes it a strong fit for environments where usage may spike for short periods and then drop off again.

A quantum host would not usually be designed around ordinary shared-office priorities. Instead, it would favor the ability to obtain powerful compute capacity exactly when needed, without keeping that level of capacity permanently assigned. That is the practical value of elasticity in a cloud model.

Scalability is close, but it usually describes the broader ability to increase capacity over time or as demand grows. Elasticity is more specific to dynamic, responsive adjustment of resources, which matches specialized compute workloads much better. Multitenancy refers to multiple customers sharing underlying infrastructure, and cost is always important, but neither is the main technical characteristic being highlighted here.

For exam purposes, when a scenario describes advanced or highly variable compute demand in the cloud, elasticity is usually the strongest answer because it focuses on rapid resource expansion and reduction as needed.

Single Sign-On (SSO) enables a user to access multiple resources or applications with one set of credentials, improving usability and security. The document confirms:

“Single Sign-On (SSO) allows a user to authenticate once and gain access to multiple resources or applications without needing to log in again for each. It streamlines the login process and improves security by reducing the number of passwords that need to be managed.”

A screened subnet, also commonly called a DMZ, is the best and most cost-effective deployment for isolating an external-facing web server from the internal organization. A screened subnet places publicly accessible systems in a separate network segment between the internet and the trusted internal network. Firewall rules can then strictly control what traffic is allowed between the internet, the screened subnet, and the internal network. This reduces the risk that a compromised public web server can directly communicate with or attack internal systems.

The CompTIA Network+ N10-009 objectives include network segmentation, security zones, screened subnets, firewalls, and access control. A screened subnet is a standard design for services that must be reachable from untrusted networks while protecting internal resources.

An IPS can detect or block malicious traffic, but it does not provide the same segmentation design by itself. A WAF protects web applications from application-layer attacks, but it does not necessarily prevent the web server from communicating with internal systems. An ACL may help, but a screened subnet provides the better architectural control. Therefore, the correct answer is a screened subnet for the web server.

An API (Application Programming Interface) is the best choice when a development team needs to integrate a device’s reporting data directly into custom software. In Network+ (N10-009) objectives, network operations commonly include device management, monitoring, and automation, and APIs are a key method for programmatic access to operational data (often via REST/HTTPS with structured formats like JSON). This enables the internal support application to pull dashboards, health metrics, events, configuration details, and reporting outputs in a controlled, developer-friendly way.

SNMPv2c is primarily used for network monitoring and polling counters/alerts, but it is less secure (community strings) and is not as flexible for modern application integration as an API. A MIB is not a data-access “feature” by itself; it’s the schema/definitions SNMP uses to describe managed objects. A SIEM is a separate security analytics platform that collects and correlates logs/events—useful for security operations, but not the direct interface a custom support tool would typically call to retrieve device reporting data.

Spanning Tree Protocol (STP) uses bridge priority values to determine the root bridge in a switched network topology. Correctly configuring bridge priority helps in maintaining a loop-free and efficient network. The document explains:

“Spanning Tree Protocol (STP) uses bridge priority values to determine which switch will be the root bridge, ensuring loop prevention and efficient path selection within the network.”

The option that most directly secures sensitive information on the network is data-in-transit encryption. This ensures that data packets are unreadable to attackers who intercept them while moving across the network. Protocols such as TLS, HTTPS, IPsec, and SSH protect confidentiality and integrity of sensitive information.

B. Principle of least privilege (PoLP) secures access control but does not directly protect data in motion.

C. Role-based access control (RBAC) enforces permissions but again does not secure the data while transmitted.

D. Multifactor authentication (MFA) strengthens identity verification but does not directly protect the data itself once transmitted.

Thus, while all options contribute to overall security, encryption of data-in-transit most directly addresses protection of sensitive information on the network.

References (CompTIA Network+ N10-009):

Domain: Network Security — Encryption methods, confidentiality, data-in-transit protection.

Border Gateway Protocol is the best answer when considering BGP’s internal administrative distance value. Administrative distance is used by routers to decide which route source is more trustworthy when multiple routing sources advertise a path to the same destination. Lower values are preferred. A static route normally has an administrative distance of 1, internal EIGRP is commonly 90, OSPF is 110, external EIGRP is 170, external BGP is 20, and internal BGP is 200.

The CompTIA Network+ N10-009 objectives include routing protocol behavior, dynamic routing, route selection, and administrative distance. Because internal BGP has an administrative distance of 200, BGP can have the highest administrative distance among the listed options.

This question is slightly tricky because BGP has different administrative distance values depending on whether the route is learned through external BGP or internal BGP. If a question specifically said external BGP, its value would be 20, which would not be the highest. However, among the listed technologies, BGP is the best exam-style answer because iBGP has the highest default administrative distance listed here.

WPA2/WPA3 mixed mode provides compatibility for older devices (that only support WPA2) while allowing newer devices to take advantage of stronger WPA3 encryption. This ensures maximum compatibility and security in a mixed-device environment.

A. WPA3 only is most secure but not compatible with legacy devices.

B. WPA2 only is secure but does not future-proof against WPA3-capable devices.

D. WPA/WPA2 mixed mode is weaker due to WPA (deprecated, insecure).

References (CompTIA Network+ N10-009):

Domain: Network Security — Wi-Fi encryption standards, WPA2 vs WPA3, mixed-mode compatibility.

When a host fails to obtain an IP address from a DHCP server, it assigns itself an APIPA (Automatic Private IP Addressing) address in the 169.254.x.x range, commonly described as a “self-assigned IP.” This prevents communication outside the local link, including reaching the default gateway.

B. RFC1918 addresses are private ranges (10.x.x.x, 172.16–31.x.x, 192.168.x.x), but these are not self-assigned.

C. If the TCP/IP stack were disabled, the host wouldn’t have any IP at all.

D. If a static IP were assigned, it would show a configured value, not self-assigned.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — IP addressing issues, DHCP failures, APIPA behavior.

When working with fiber optic cables, one common issue is that the transmit (TX) and receive (RX) fibers might be reversed. The first step in troubleshooting should be to reverse the fibers at one end to ensure they are correctly aligned (TX to RX and RX to TX). This is a simple and quick step to rule out a common issue before moving on to more complex troubleshooting.References: CompTIA Network+ study materials.

The issue is that no root bridge has been identified. In STP, a root bridge is necessary to manage redundant paths and avoid loops in the network. Without a root bridge, all switches will assume they can forward traffic, causing a network loop and connectivity problems.

=================

The correct answer is D. Link aggregation. Link aggregation combines multiple physical switch links into one logical connection. This increases available bandwidth and can also add redundancy, all without replacing the switch hardware itself. If users are experiencing slow throughput and the goal is to improve capacity using existing equipment, bundling links is a common and effective solution.

The other options do not directly increase throughput. SVI configuration provides Layer 3 interfaces for VLANs, but it does not add link capacity. VLAN trunking allows multiple VLANs to traverse one connection, but that does not increase bandwidth by itself. 802.1Q tagging identifies VLAN membership on tagged frames; it is related to trunking, not throughput expansion.

In many enterprise environments, link aggregation is implemented through standards such as LACP. This lets several ports act together as one logical channel, which can help distribute traffic more efficiently across the bundled interfaces. For Network+ exam scenarios, when the requirement is to improve throughput using the current switch hardware rather than buying faster switches, link aggregation is the most appropriate answer.

The first step of troubleshooting is always to identify the problem, which includes verifying the symptoms (incorrect time), asking the user clarifying questions, and checking system logs. Only after confirming the problem can the administrator proceed to form a theory and plan.

A. Plan of action is later.

B. Implement solution comes after testing a theory.

D. Test the theory requires a defined problem first.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Troubleshooting methodology (Identify → Theory → Test → Plan → Implement → Verify → Document).

After implementing a solution and putting preventive measures in place, the next step is to verify that the system is functioning correctly. This ensures that the issue has been fully resolved.

=================

The ST (Straight Tip) fiber connector is round with a bayonet twist-lock mechanism. It is older but still used in some fiber installations.

B. BNC is a coaxial connector.

C. SC (Subscriber Connector) is a square push-pull fiber connector.

D. LC (Lucent Connector) is a small form-factor fiber connector.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — Fiber connectors (ST, SC, LC).

To change where the outside DNS records are hosted, the network administrator needs to update the NS (Name Server) records at the domain registrar. NS records specify the authoritative name servers for a domain, directing where DNS queries should be sent.

NS (Name Server) Records: These records indicate the servers that are authoritative for a domain. Changing the NS records at the registrar points DNS resolution to the new hosting provider.

SOA (Start of Authority): Contains administrative information about the domain, including the primary name server.

PTR (Pointer) Records: Used for reverse DNS lookups, mapping IP addresses to domain names.

CNAME (Canonical Name) Records: Used to alias one domain name to another, not relevant for changing DNS hosting.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses DNS records, their purposes, and how to manage them.

Cisco Networking Academy: Provides training on DNS management and the role of different DNS record types.

Network+ Certification All-in-One Exam Guide: Explains DNS records and their configuration for domain management.

BGP (Border Gateway Protocol) uses an Autonomous System (AS) number for its operations. An AS is a collection of IP networks and routers under the control of a single organization that presents a common routing policy to the Internet. BGP is used to exchange routing information between different ASes on the Internet, making it the only protocol among the listed options that uses an AS number.References: CompTIA Network+ study materials and RFC 4271.

OSPF (Open Shortest Path First) is a link-state routing protocol that uses the Dijkstra algorithm, also known as the shortest path first (SPF) algorithm, to determine the most efficient routes.

From Andrew Ramdayal’s guide:

“OSPF is a link-state routing protocol that provides fast, efficient path selection using the shortest path first (SPF) algorithm.”

The correct answer is SNMP (Simple Network Management Protocol) because it is specifically designed to collect and transmit network management and status information between managed devices and management systems. According to CompTIA Network+ (N10-009) objectives, SNMP is used for monitoring and managing network devices such as routers, switches, servers, and printers.

SNMP operates using a manager-agent model. The SNMP manager (such as a network monitoring server) communicates with SNMP agents installed on network devices. Agents send traps and inform messages, which are unsolicited status alerts indicating events such as device failures, high CPU usage, or link outages. The manager can also poll agents to retrieve performance metrics and configuration details stored in the Management Information Base (MIB).

SSH (Option A) is used for secure remote administration. DHCP (Option B) dynamically assigns IP addresses. NTP (Option C) synchronizes time between devices. None of these protocols are designed for network status monitoring and alert messaging.

Therefore, SNMP is the correct protocol for sending networking status messages between devices and management systems.

Bottom of Form

UESTION NO: 21 [Network Infrastructure]

Which of the following physical installation factors is the most important when a network switch is installed in a sealed enclosure?

A. Fire suppression

B. Power budget

C. Temperature

D. Humidity

Answer: C

The correct answer is Temperature because a sealed enclosure restricts airflow, which can cause heat to accumulate rapidly. According to CompTIA Network+ (N10-009) objectives under physical installations and environmental factors, maintaining proper temperature control is critical for network equipment reliability and longevity.

Network switches generate heat during operation, particularly models with high port density or Power over Ethernet (PoE) capabilities. In a sealed enclosure without proper ventilation or cooling mechanisms, excessive heat buildup can lead to thermal throttling, unexpected shutdowns, hardware degradation, or permanent equipment failure. Manufacturers specify operating temperature ranges, and exceeding these limits significantly reduces device lifespan and performance.

While humidity (Option D) is important to prevent condensation and corrosion, temperature fluctuations pose a more immediate risk in a sealed environment. Power budget (Option B) is relevant when calculating PoE load capacity but does not directly address environmental installation conditions. Fire suppression (Option A) is important in data centers but is not the primary concern specific to a sealed enclosure scenario.

Therefore, ensuring proper temperature management is the most critical installation factor.

At the transport layer, connectionless communication is typically handled using the User Datagram Protocol (UDP), which transmits data in units called datagrams. Unlike TCP, UDP does not establish a connection before sending data and does not guarantee delivery, making datagrams the correct term for the transmission format in this context. References: CompTIA Network+ Exam Objectives and official study guides.

An SFP (Small Form-factor Pluggable) transceiver is a modular device that provides the interface between fiber-optic or copper cabling and the networking equipment (e.g., switch or router). It operates primarily at Layer 2 (Data Link), converting optical or electrical signals into frames usable by the network device.

A. SC is a fiber connector type, not the transceiver.

B. DAC (Direct Attach Copper) is a passive copper cable assembly with fixed transceivers, not a general-purpose module.

D. Twinaxial cable is a copper medium, not an interface device.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — Transceivers (SFP, GBIC, QSFP), fiber connectivity, OSI model mapping.

The most likely reason an insurance brokerage would enforce VPN usage is to encrypt sensitive data in transit. VPNs (Virtual Private Networks) create a secure tunnel between the user ' s device and the corporate network, ensuring that data is encrypted and protected from interception.

Encryption: VPNs encrypt data, preventing unauthorized access and ensuring data privacy during transmission over public or unsecured networks.

Data Protection: Essential for industries handling sensitive information, such as insurance brokerages, to protect customer data and comply with regulatory requirements.

Security: Enhances overall network security by providing secure remote access for employees.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses the role of VPNs in securing data in transit.

Cisco Networking Academy: Provides training on VPN technologies and their importance in data security.

Network+ Certification All-in-One Exam Guide: Explains VPN usage and its benefits in protecting sensitive information.

SNMPv3 is the version of the Simple Network Management Protocol that introduces security enhancements, including message integrity, authentication, and encryption. Unlike previous versions (v1 and v2c), SNMPv3 supports encrypted communication, ensuring that data is not transmitted in plaintext. This provides confidentiality and protects against eavesdropping and unauthorized access.References: CompTIA Network+ study materials.

A captive portal is a web page that users must view and interact with before being granted access to a network. It is commonly used in guest networks to enforce terms of use agreements. When a user connects to the network, they are redirected to this portal where they must accept the terms of use before proceeding. This method ensures that users are aware of and agree to the network ' s policies, making it the best choice for this scenario. References: CompTIA Network+ Exam Objectives and official study guides.

The most likely cause is that the PoE power budget has been exceeded. Wireless access points commonly receive power through Power over Ethernet. If newly installed APs are not broadcasting at all, one of the first things to verify is whether the switch has enough available PoE capacity to power them. A switch can have enough physical ports available but still lack sufficient PoE wattage. When the total PoE budget is exhausted, some APs may fail to power on, partially boot, reboot repeatedly, or never begin broadcasting an SSID.

The CompTIA Network+ N10-009 objectives include network devices, wireless infrastructure, PoE, power budgets, and troubleshooting physical connectivity. Wireless APs must have both data connectivity and sufficient power before they can operate normally. An improper VLAN assignment could prevent clients from reaching network resources or receiving DHCP addresses, but the AP would usually still power on and broadcast. Limited signal strength would affect coverage, not prevent broadcasting entirely. An uplink transceiver issue applies more to fiber or modular uplink connections and is less likely for newly installed APs. Therefore, the best answer is PoE power budget exceeded.

Dynamic routing is most beneficial in a growing/changing network because it can automatically learn, adapt, and update routes as the topology changes. In Network+ (N10-009) routing objectives, dynamic routing protocols exchange routing information between routers and recalculate paths when links go down, new networks are added, or metrics change. This reduces the operational burden and the risk of human error that increases as the environment scales. With dynamic routing, adding a new subnet or branch often requires far fewer manual updates because routers propagate new route information automatically, and convergence mechanisms help restore connectivity after failures.

Option A can be partly true in large environments, but the core “best reason” emphasized for dynamic routing is the automatic adaptation to topology changes. Option B is incorrect—dynamic routing may introduce additional security considerations (route filtering, authentication, neighbor control). Option C is not a defining advantage; monitoring visibility depends on tools/telemetry rather than routing type. Therefore, the strongest and most correct reason is automatic changes and updates in network topology.

===========

•Too much overlap on the same channel (all devices on channel 11) causes interference, leading to retransmissions and high latency.

•Same SSIDs (A) are expected in mesh networks.

•Device compatibility (C) would show different symptoms.

•Node power (D) affects coverage, not congestion.

???? Reference: CompTIA Network+ N10-009 Official Documentation – Wireless Troubleshooting & Signal Interference.

A cable tester is a tool that can help identify issues with the physical cabling, such as breaks or improper terminations, which may prevent the access point from reaching the internet.

=================

The correct answer is B. Active-passive approach. CompTIA Network+ N10-009 includes high availability and disaster recovery concepts such as failover, redundancy, and recovery strategies. An active-passive approach uses a primary production system, site, or service that actively handles traffic, while a secondary standby environment remains ready to take over if the primary environment fails. This design helps ensure data center services can be restored and made accessible quickly after a disaster because the standby environment is already planned and prepared for failover.

Backup and replication software is important for data protection, but backups alone do not guarantee that services will be quickly available. Restoring systems from backups may require significant time. Cloud computing can support disaster recovery, but it is a broad deployment model rather than a specific recovery strategy. Remote manual failover can restore services, but manual failover usually takes longer and increases the chance of administrative delay or error.

Because the question emphasizes quickly restored and accessible services after a disaster, an active-passive approach is the most appropriate option. It provides a standby recovery environment designed to assume operations when the active data center service becomes unavailable.

When a network administrator installs a new Network Interface Card (NIC) and users are unable to reach the server, one of the common issues is the use of an incorrect cable type. Network cables must match the specifications required by the NIC and the network infrastructure (e.g., Cat5e, Cat6 for Ethernet).

NIC Compatibility: The new NIC might require a specific type of cable to function properly. Using a cable not rated for the NIC ' s required speeds or capabilities can result in connectivity issues.

Cable Standards: Different NICs and network devices might need different cabling standards (straight-through vs. crossover cables, or specific fiber optic types).

Connection Types: Ensuring that the cable connectors are appropriate for the NIC ports (e.g., RJ45 for Ethernet, LC connectors for fiber optics).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses network cabling standards and NIC specifications.

Cisco Networking Academy: Provides insights into cabling and NIC configurations for optimal network performance.

Network+ Certification All-in-One Exam Guide: Offers comprehensive details on troubleshooting network connectivity issues, including cabling problems.

The best answer is D. TXT. When a provider asks an administrator to prove ownership of a domain, the most common method is to have the administrator place a specific verification value inside a DNS TXT record. The provider then checks public DNS for that value. If the expected text is present, it confirms that the person managing the migration has control over the domain’s DNS settings.

This matches how TXT records are commonly used in real network environments. They are flexible and can store readable text strings for verification, policy, and security-related purposes. In Network+ study material, TXT records are frequently associated with things like domain validation and email-related configurations such as SPF and other verification mechanisms.

The other record types do not fit this task. An A record maps a hostname to an IPv4 address. A CNAME points one name to another name. A PTR record is used for reverse DNS, mapping an IP address back to a hostname. None of those are typically created just to prove domain ownership during provider onboarding.

The key clue is the phrase “domain ownership proof”, which strongly points to a TXT record.

Site-to-Site VPN: A site-to-site VPN is used to securely connect two networks, such as a company ' s headquarters and a branch location, over the internet. This type of VPN creates a secure tunnel for data transmission, ensuring confidentiality and integrity.

Split-tunnel VPN (A): Allows some traffic to bypass the VPN tunnel, which may not secure all communications.

Clientless VPN (B): Used for individual users to access the network without VPN client software.

Full-tunnel VPN (C): Typically used for individual user traffic rather than connecting two networks.

Port Address Translation (PAT) allows multiple internal devices to share a single public IP address by assigning each device a unique port number. This is the most common method used in environments where many systems need internet access but there are limited public IP addresses.

The correct answer is D: Increase the scope to 10.8.100.50 – 10.8.100.175. According to the CompTIA Network+ N10-009 objectives, proper DHCP scope configuration is essential to ensure all hosts can obtain valid IP addresses and communicate beyond their local segment.

In this scenario, the DHCP scope is configured for 10.8.100.50 through 10.8.100.150, while a reservation range exists from 10.8.100.151 through 10.8.100.175. The network scan shows that IP addresses up to 10.8.100.175 are already in use. This indicates that some devices are either statically assigned addresses outside the active scope or are failing to receive valid DHCP leases, causing the new laptops to communicate only with each other—often a sign of APIPA or improper addressing.

To ensure full connectivity, the DHCP scope must be expanded to include the entire range of addresses that are actively in use, including the reserved addresses. Option D correctly extends the scope to 10.8.100.175 without overlapping lower addresses that may be statically assigned or intentionally excluded.

The Network+ objectives emphasize avoiding address conflicts and ensuring DHCP scopes align with real-world network usage. Expanding the scope to include all valid addresses ensures that all laptops can obtain proper IP configuration, default gateway information, and full network connectivity.

Ping sends ICMP Echo Request packets and waits for Echo Replies to verify host reachability and measure round-trip time.

A. tcpdump captures packets but does not test reachability.

B. netstat displays open ports and network sessions.

C. nslookup queries DNS servers for name resolution.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — ICMP operation, troubleshooting tools.

A jump box is a hardened system that provides secure access to isolated or sensitive devices on a separate network.

Breakdown of Options:

A. Jump box – ✅ Correct answer. Acts as a middle point for secure remote access.

B. API gateway – Used for managing API calls, not remote access to isolated devices.

C. Secure Shell (SSH) – Requires direct connectivity, which may not be available for an isolated device.

D. Clientless VPN – Allows web-based VPN access, but does not guarantee access to isolated devices.

A split-tunnel VPN allows certain traffic (e.g., cloud-based services) to bypass the VPN and go directly to the Internet. This reduces the amount of traffic that needs to traverse the company ' s VPN and Internet connection, conserving bandwidth and reducing costs. It also means that not all traffic is subject to the same level of inspection or filtering, which can improve performance for cloud-based services.References: CompTIA Network+ study materials.

OSPF is the most suitable routing protocol because it provides fast convergence and is commonly used as an interior gateway protocol within organizations. OSPF is a link-state routing protocol that builds a topology database and calculates the best path using cost. When a network change occurs, OSPF can converge much faster than older distance-vector protocols such as RIPv2. It is also widely supported by enterprise routing equipment and is appropriate for campus, school, and organizational networks.

The CompTIA Network+ N10-009 objectives include routing technologies, dynamic routing protocols, administrative distance, convergence, and routing protocol selection. OSPF is often preferred in internal networks because it scales better than RIP and can be configured in a single area for relatively simple deployments, reducing configuration complexity.

IS-IS is also a link-state protocol and can converge quickly, but it is less commonly used in typical small or medium enterprise environments and may require more specialized knowledge. RIPv2 has simpler configuration but slower convergence and hop-count limitations. BGP is mainly used for external routing between autonomous systems and is not the best choice for an internal school network. Therefore, OSPF is correct.

Ascreened subnet, also known as aDMZ (Demilitarized Zone), is aboundary networkthat separates an organization ' s internal network from external-facing systems. It is used to host public services like web or email servers while protecting internal systems from exposure.

The correct answer is /25, which is the appropriate subnet mask for dividing an existing Class C network into two equal subnets. According to the CompTIA Network+ N10-009 objectives, subnetting is a core networking concept used to improve network segmentation, performance, and security.

A Class C network uses a default subnet mask of /24 (255.255.255.0), which provides 256 total addresses (254 usable). To split this network into two sections, the administrator must borrow one host bit from the last octet. Borrowing one bit results in a /25 subnet mask (255.255.255.128). This creates two subnets, each with 128 total addresses (126 usable)—an ideal solution for separating two departments such as finance and marketing.

A /24 would not create any segmentation, as it represents the original single network. A /26 would create four subnets, and a /27 would create eight subnets, both of which exceed the requirement of only two sections and unnecessarily reduce the number of available host addresses per subnet.

The Network+ objectives emphasize selecting subnet masks based on organizational requirements, balancing the number of subnets with sufficient host capacity. In this scenario, /25 is the most efficient and correct choice.

Port 25 is associated with SMTP, which is traditionally used for Simple Mail Transfer Protocol traffic. In basic port-mapping questions for CompTIA Network+, SMTP on port 25 is commonly treated as the non-encrypted mail transport option. If the organization is migrating to encrypted mail protocols, closing port 25 can help deny non-encrypted SMTP access while allowing encrypted mail submission or web-based secure access to continue through other ports.

The CompTIA Network+ N10-009 objectives require candidates to recognize common protocols, port numbers, and their secure alternatives. Port 587 is commonly used for SMTP message submission with TLS support, so it should remain available when encrypted mail submission is required. Port 443 is HTTPS and may be used for secure webmail access. Port 22 is SSH, which is encrypted remote administration, not a mail protocol. Port 23 is Telnet, which is unencrypted, but it is not a mail protocol.

Because the question specifically asks about denying non-encrypted mail protocols, port 25 is the best answer among the listed options.

A central repository describes a single location where critical network infrastructure configurations are stored and managed. This can include switch configurations, router configurations, firewall rules, wireless controller settings, diagrams, templates, backup files, and standard operating procedures. A central repository helps administrators maintain consistency, improve recovery time, simplify audits, and reduce the risk of losing important configuration data.

The CompTIA Network+ N10-009 objectives include network documentation, configuration management, change management, and operational best practices. Storing configurations in a central repository supports backup and recovery because administrators can quickly retrieve known-good configurations if a device fails or a change causes an outage. It also helps teams collaborate by giving authorized personnel access to the same current documentation and configuration files.

Version control is related but refers specifically to tracking changes, revisions, and rollback history over time. Conflict mitigation involves reducing conflicts when multiple people work on the same files or configurations. Branching is a version-control feature that allows separate lines of development or change testing. Since the question focuses on housing all configurations in one location, the best answer is central repository.

Top of Form

Bottom of Form

Understanding ACLs:

Access Control Lists (ACLs): A set of rules used to control network traffic and restrict access to network resources by filtering packets based on IP addresses, protocols, or ports.

Implementing Security Zones:

Defining Zones: ACLs can be used to create security zones by applying specific rules to different departments, ensuring that only authorized traffic is allowed between these zones.

Control Traffic: ACLs control inbound and outbound traffic at network boundaries, enforcing security policies and preventing unauthorized access.

Comparison with Other Options:

Port Security: Limits the number of devices that can connect to a switch port, preventing MAC address flooding attacks, but not used for defining security zones.

Content Filtering: Blocks or allows access to specific content based on predefined policies, typically used for web filtering rather than network segmentation.

NAC (Network Access Control): Controls access to the network based on the security posture of devices but does not define security zones.

Implementation Steps:

Define ACL rules based on the requirements of each department.

Apply these rules to the appropriate network interfaces or firewall policies to segment the network into security zones.

Understanding Rack Size Determination:

The size of a rack for installation is determined by the dimensions of the equipment to be housed in it, primarily focusing on the depth and height of the devices.

Switch Depth:

Depth of Equipment: The depth of network switches and other rack-mounted devices directly influences the depth of the rack. If the equipment is deeper, a deeper rack is required to accommodate it.

Industry Standards: Most racks come in standard depths, but it is essential to match the depth of the rack to the deepest piece of equipment to ensure proper fit and airflow.

Server Height:

Height of Equipment: The height of servers and other devices is measured in rack units (U), where 1U equals 1.75 inches. The total height of all equipment determines the overall height requirement of the rack.

Rack Units: A rack ' s height is typically described in terms of the number of rack units it can accommodate, such as 42U, 48U, etc.

Why Other Options are Less Relevant:

KVM Size: While important for management, KVM (Keyboard, Video, Mouse) switches do not typically determine rack size.

Hard Drive Size: Individual hard drives are installed within servers or storage devices, not directly influencing rack dimensions.

Cooling Fan Speed: Fan speed affects cooling but not the physical size of the rack.

Outlet Amperage: Power requirements do not determine rack dimensions but rather the electrical infrastructure supporting the rack.

Role of NTP (Network Time Protocol):

NTP is used to synchronize the clocks of network devices to a reference time source. Accurate time synchronization is critical for correlating events and logs from different systems.

Importance for SIEM Systems:

Event Correlation: SIEM (Security Information and Event Management) systems collect and analyze log data from various sources. Accurate timestamps are essential for correlating events across multiple systems.

Time Consistency: Without synchronized time, it is challenging to piece together the sequence of events during an incident, making forensic analysis difficult.

Comparison with Other Protocols:

DNS (Domain Name System): Translates domain names to IP addresses but is not related to time synchronization.

LDAP (Lightweight Directory Access Protocol): Used for directory services, such as user authentication and authorization.

DHCP (Dynamic Host Configuration Protocol): Assigns IP addresses to devices on a network but does not handle time synchronization.

Implementation:

Ensure that all network devices, servers, and endpoints are synchronized using NTP. This can be achieved by configuring devices to use an NTP server, which could be a local server or an external time source.

The first command IT support should use is ipconfig. Since the issue appears to affect one user while IT support and other users can reach the printer successfully, the printer and general network path are likely functioning. The next logical troubleshooting step is to verify the affected client’s IP configuration. The ipconfig command can show whether the user has a valid IP address, subnet mask, default gateway, DNS configuration, and whether the device may have received an Automatic Private IP Addressing address, such as 169.254.x.x.

The CompTIA Network+ N10-009 troubleshooting methodology emphasizes identifying the scope of the problem and checking the most likely local causes first. arp displays address resolution information and can help identify MAC-to-IP mappings, but it is not usually the first command for checking a single client’s basic network configuration. tracert identifies the route to a remote destination, which is more useful for routed network path issues. nmap is a scanning tool and is not the best first step for a user-specific printing problem. Therefore, ipconfig is the best first command.

To prioritize traffic and utilize a constrained link more effectively, the engineer should implement QoS (Quality of Service). QoS is a set of mechanisms that classifies and marks traffic (for example, voice, video, business-critical apps) and then applies queuing and scheduling behaviors to ensure important traffic receives preferential treatment during congestion. Network+ objectives commonly connect QoS to supporting real-time applications (VoIP/video) by reducing latency, jitter, and packet loss, while preventing less critical traffic (bulk transfers, updates) from consuming all available bandwidth. Techniques can include traffic classification, DSCP marking, priority queuing, and traffic shaping/policing.

A CDN improves content delivery by caching closer to users, but it doesn’t provide link-level prioritization for all traffic types. A VPN provides secure tunneling/encryption, not prioritization. TTL (Time To Live) is an IP header value used to prevent routing loops by limiting packet lifespan; it does not manage bandwidth or prioritize flows. QoS is the standard solution when the goal is to control how bandwidth is allocated under load and to ensure critical services remain performant.

===========

If a network appliance fails to start, standard remote access methods like SSH won ' t work. Instead, Out-of-Band (OOB) management provides a dedicated access path (e.g., a console port or iDRAC/iLO), allowing administrators to troubleshoot devices even when the network is down.

Breakdown of Options:

A. Crash cart – A physical monitor/keyboard setup, not a remote solution.

B. Jump box – A hardened system used for secure remote access but requires the device to be operational.

C. Secure Shell (SSH) – Requires the device to be fully booted and network-connected.

D. Out-of-band management – ✅ Correct answer. Provides independent access for troubleshooting failed network devices.

Understanding Tracert:

tracert (Traceroute in Windows) is a command-line tool used to trace the path that packets take from the source to the destination. It records the route (the specific gateways at each hop) and measures transit delays of packets across an IP network.

Output Analysis:

The output shows a series of IP addresses with corresponding round-trip times (RTTs) in milliseconds.

The asterisks (*) indicate that no response was received from those hops, which is typical for routers or firewalls that block ICMP packets used by tracert.

Comparison with Other Tools:

netstat: Displays network connections, routing tables, interface statistics, and more, but does not trace packet routes.

tcpdump: Captures network packets for analysis, used for detailed network traffic inspection.

nmap: A network scanning tool used to discover hosts and services on a network, not for tracing packet routes.

Usage:

tracert helps identify the path to a destination and locate points of failure or congestion in the network.

Multitenancy is a cloud computing architecture where a single instance of software serves multiple customers or tenants. Each tenant ' s data is isolated and remains invisible to other tenants. Hosting a company application in the cloud to be available for both internal and third-party users fits this concept, as it allows shared resources and infrastructure while maintaining data separation and security. References: CompTIA Network+ Exam Objectives and official study guides.

Misconfigured QoS is the most likely cause because the symptoms are specific to VoIP quality: dropped calls and audio latency. Voice traffic is highly sensitive to delay, jitter, and packet loss. Quality of Service allows administrators to classify and prioritize voice packets so they are handled ahead of less time-sensitive traffic such as file transfers or general web browsing. If QoS is missing or incorrectly configured, voice packets may compete equally with other traffic and suffer from congestion-related delay or loss.

The CompTIA Network+ N10-009 objectives include VoIP, QoS, traffic shaping, latency, jitter, and performance troubleshooting. The fact that local file transfers and web traffic are functional indicates the general network is working. The problem is with real-time traffic quality rather than total connectivity.

A conflicting firewall rule could block call setup or media streams, but the question emphasizes audio latency, which strongly points to QoS. A spanning tree issue would more likely cause broader Layer 2 instability. An incorrect voice VLAN could prevent phones from receiving proper addressing or access, but users are able to use the VoIP system with poor quality. Therefore, misconfigured QoS is correct.

The server’s subnet mask is 255.255.255.224 (/27), which covers IPs from 192.168.100.224 to 192.168.100.255. However, the router only recognizes 192.168.100.0/24, indicating a mismatch between the server’s subnet and the router ' s network.

Correct mask for the /24 network is 255.255.255.0, allowing 256 IPs from 192.168.100.0 to 192.168.100.255.

This mismatch would result in routing issues, especially with the gateway outside of the subnet range.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 5.2 – Given a scenario, troubleshoot common wired connectivity issues.

A proxy server can filter internet access by controlling which websites or services users can reach. It enforces content policies and can provide caching and monitoring.

A. A router directs traffic but doesn’t filter internet sites by itself.

B. A cloud gateway could also filter, but the most direct answer is proxy.

D. An IDS detects suspicious activity but doesn’t filter browsing access.

References (CompTIA Network+ N10-009):

Domain: Network Security — Proxy servers, filtering, access control.

The correct choice is B. Using a single public IP. PAT (Port Address Translation) is a form of NAT that allows many internal private IP addresses to share one public IP address by tracking sessions with port numbers. This is one of the most common edge-network designs for homes, small offices, and many enterprise branch environments.

The reason PAT is so useful is that it conserves public IPv4 addresses. Internal hosts keep their private addressing, and when they access external resources, the firewall or router translates those connections so they appear to come from one public address, while still keeping each session unique through port mapping.

The other options are unrelated to PAT’s primary purpose. BGP is a routing protocol for route exchange between networks. Redundant ISPs deal with resiliency and multihoming, not port-based address translation. A dual-stack IP scheme means running IPv4 and IPv6 together, which is separate from the NAT/PAT function.

This question is really asking what situation most naturally calls for PAT. When an organization wants multiple internal devices to reach the internet without assigning each device its own public IPv4 address, PAT is the standard solution. That makes using a single public IP the best answer.

An incorrect pinout on the patch cable could prevent network connectivity due to mismatched wiring. Even if the cables are the correct length and type, a pinout issue can cause continuity problems and prevent data transmission. Proper crimping with the correct pinout is essential for network cables to function. (Reference: CompTIA Network+ Study Guide, Chapter on Network Media and Topologies)

Understanding End-of-Support:

End-of-Support Status: When a vendor declares a device as end-of-support, it means the device will no longer receive updates, patches, or technical support. This poses a security risk as new vulnerabilities will not be addressed.

Risks of Keeping an End-of-Support Device:

Security Vulnerabilities: Without updates, the switch becomes susceptible to new security threats.

Compliance Issues: Many regulatory frameworks require that critical infrastructure be maintained with supported and secure hardware.

Best Next Step - Replacement:

Decommission and Replace: The most secure approach is to replace the end-of-support switch with a new, supported model. This ensures the infrastructure remains secure and compliant with current standards.

Planning and Execution: Plan for the replacement by evaluating the network ' s needs, selecting a suitable replacement switch, and scheduling downtime for the hardware swap.

Comparison with Other Options:

Apply the Latest Patches: While helpful, this does not address future vulnerabilities since no further patches will be provided.

Ensure the Current Firmware Has No Issues: This is only a temporary measure and does not mitigate future risks.

Isolate the Switch from the Network: Isolating the switch may disrupt network operations and is not a viable long-term solution.

The correct answer is A. Multicast. In IPv4 addressing, Class D refers to the address range 224.0.0.0 through 239.255.255.255, and that range is reserved specifically for multicast traffic. Multicast allows one sender to communicate with a group of receivers that have joined a particular multicast address.

This differs from the other traffic types. Unicast is one source to one destination. Broadcast is sent to all hosts on the local network segment. Anycast is not represented by the IPv4 Class D block and instead refers to sending traffic to the nearest member of a group using the same address. Therefore, the only traffic type directly associated with Class D space is multicast.

This is a straightforward address-class recognition concept that appears frequently in Network+ preparation. Once a student remembers that Class D equals multicast, these questions become much easier to answer. Multicast is useful for applications such as video streams, routing protocol updates, and other scenarios where data must reach multiple selected hosts efficiently without sending separate unicast copies to each one. That is why the correct answer is multicast.
