The correct answer is D. Data is being throttled.

Data throttling refers to the intentional slowing down of internet speeds by a mobile carrier after a user reaches a certain data usage limit or during network congestion. In this scenario, the employee can still successfully upload files, but the speed has decreased compared to before—this is a classic symptom of throttling.

Why the other options are incorrect:

A. Wireless is turned off

If wireless were turned off, the employee would not be able to upload anything at all. The question clearly states that uploads are still successful.

B. 5G is disabled

Disabling 5G could reduce speeds slightly if the device falls back to 4G/LTE, but it would not typically cause a significant or noticeable degradation unless compared under ideal conditions. It is not the most likely cause.

C. Roaming is turned on

Roaming allows connectivity outside the home network. While it may incur additional charges, it does not inherently cause significant speed reduction in most modern networks. It is less likely than throttling.

Exam Tip (Core 1 220-1201):

Slow but working connection → Think throttling or congestion

No connection → Think disabled wireless or network issues

Final Answer: D. Data is being throttled

The correct answer is B. Secure Boot.

According to CompTIA A+ Core 1 220-1201 objectives under Security:

Secure Boot is a UEFI firmware feature that ensures a computer boots only with software that is trusted and digitally signed by the manufacturer.

This prevents malicious or unauthorized bootloaders and operating systems from loading, protecting the system from rootkits and other boot-time attacks.

Secure Boot does not require disabling USB devices; it simply checks that any bootable device contains a signed operating system.

Why the other options are incorrect:

A. BIOS password: Protects access to BIOS/UEFI settings but does not verify trusted software during boot.

C. USB settings: Can control USB access but cannot enforce boot validation for signed OS or prevent unauthorized boot devices.

D. Single sign-on: Provides authentication convenience for users, unrelated to boot security.

The correct answer is A. 2.4GHz.

In the CompTIA A+ Core 1 220-1201 networking objectives, wireless networking technologies include frequency bands such as 2.4GHz, 5GHz, and 6GHz, along with related concepts like channels, regulations, channel selection, Bluetooth, 802.11 standards, NFC, and RFID.

The 2.4GHz band supports the most devices because it is the oldest and most widely adopted Wi-Fi frequency listed. Many legacy devices, including older laptops, printers, IoT devices, smart home devices, and wireless peripherals, still rely on 2.4GHz. It also has better range and wall penetration than higher-frequency bands, although it is usually more crowded and slower.

Why the other options are incorrect:

B. 5GHz

5GHz is newer than 2.4GHz and generally provides faster speeds with less interference, but it does not support as many older legacy devices.

C. 6GHz

6GHz is the newest Wi-Fi frequency option used with newer Wi-Fi standards, so it has the least legacy device support among the Wi-Fi frequency choices.

D. NFC

NFC is a short-range communication technology, not a Wi-Fi frequency band. It is used for close-proximity functions such as tap-to-pay, pairing, and access cards, so it is not the best answer.

Final Answer: A. 2.4GHz

In CompTIA A+ Core 1 (220-1201) cloud concepts, the key differentiator between cloud deployment models is where the service is hosted and who owns/uses the underlying infrastructure. If a company’s directory services server (for example, a domain controller providing authentication/authorization and centralized identity management) is located on premises, that points to infrastructure that is owned and operated by the organization for its own internal use. This aligns best with a private cloud model, which is defined as cloud resources dedicated to a single organization and can be implemented on-premises (internally hosted) or in a dedicated off-site environment.

It is not a public cloud because public cloud services are hosted by a third-party provider and shared across multiple customers. It is not hybrid cloud because hybrid requires a mix of on-prem resources and public cloud resources working together (the question only specifies on-prem). It is not community cloud because that involves shared infrastructure among multiple organizations with common needs.

The correct answer is A. NFC (Near Field Communication).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices, NFC is commonly used for short-range wireless communication between devices. In the context of mobile printing:

NFC-enabled printers allow a user to tap a mobile device (phone or tablet) to the printer to initiate a print job instantly without needing to configure Wi-Fi credentials or use cables.

This is particularly common in mobile-friendly environments like offices or public kiosks.

Why the other options are incorrect:

B. Hotspot: Provides an Internet connection, not a direct mobile-to-printer interface.

C. Infrared: Legacy technology largely replaced by NFC and Wi-Fi; rarely used in modern printers.

D. USB: Requires a wired connection, not suitable for sending a print job wirelessly from a mobile device.

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

A printer with text boxes AI-generated content may be incorrect.

Answer of both steps below.

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is A. Duplex.

In the CompTIA A+ Core 1 (220-1201) exam objectives under printer settings and configuration, duplex printing refers to printing on both sides of the paper automatically.

Using duplex printing is the best way to reduce resource consumption because:

It cuts paper usage in half, which is the primary resource being conserved.

It is ideal for multi-page documents and multiple copies.

It reduces physical storage and handling requirements.

Why the other options are incorrect:

B. Orientation

Orientation (portrait or landscape) changes the layout of the document but does not reduce resource usage.

C. Tray settings

Tray settings determine which paper tray is used (e.g., plain paper, letterhead), but they do not impact resource consumption.

D. Quality

Print quality (draft, normal, high) may affect ink/toner usage, but it does not reduce paper consumption as effectively as duplex printing, which is the main resource concern in this scenario.

Final Answer: A. Duplex

The correct answer is B. Change the fuser temperature.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

A laser printer fuses toner onto paper using heat and pressure. Thicker paper often requires a higher fuser temperature to properly adhere the toner.

If the output smudges on thick paper but prints fine on standard paper, adjusting the fuser temperature is the first step before performing more invasive maintenance or replacing parts.

Why the other options are incorrect:

A. Install a maintenance kit: Typically includes rollers, belts, and other parts; this is not the first action if the issue is temperature-related.

C. Clean the transfer roller: Cleaning may improve print quality, but smudging on thick paper usually relates to insufficient fusing heat.

D. Install an OEM toner cartridge: The issue is unlikely to be caused by non-OEM toner if standard paper prints correctly.

A firewall examines network traffic and permits or blocks it according to configured security rules. Rules can be based on characteristics such as:

Source or destination IP address.

Network protocol.

Source or destination port.

Connection state.

Application or service.

Direction of communication.

This makes a firewall the device that most directly blocks unauthorized or unwanted network traffic.

An access point provides wireless network connectivity.

A switch forwards Ethernet frames between devices on a local network.

A router directs packets between different IP networks. Some routers contain integrated firewall functionality, but routing itself is not the primary security control described by the question.

CompTIA objective 2.5 includes firewalls among common network hardware devices. Microsoft describes a firewall as a technology that filters network traffic and blocks unauthorized access.

==========

The correct answers are E. NFC and F. Location services.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC (Near-Field Communication): Enables the device to communicate with contactless payment terminals, which is essential for detecting nearby stores that accept contactless payments.

Location services: Allows the application to determine the user’s geographic location so it can provide notifications only when the user is near a participating store.

Why the other options are incorrect:

A. MDM (Mobile Device Management): Manages device policies but does not enable location-based notifications or contactless payments.

B. Contact syncing: Synchronizes contacts; unrelated to payment notifications.

C. Bluetooth: Can be used for some proximity services, but NFC is required for contactless payment detection.

D. Hotspot: Provides internet access; not required for proximity detection in this context.

In the CompTIA A+ Core 1 (220-1201) networking concepts, satellite internet is commonly associated with higher (increased) latency compared with terrestrial options like cable, fiber, or DSL. Latency is the delay between sending data and receiving a response. With satellite, signals must travel from the user’s dish up to a satellite and then back down to a ground station (and return again for responses). That long travel distance adds noticeable delay, which can affect real-time activities such as VoIP, video conferencing, and online gaming. Even though newer low-earth-orbit (LEO) systems can reduce latency compared with older geostationary systems, satellite service is still generally discussed in A+ as having higher latency characteristics to consider.

The other options do not best fit satellite internet. Proximity to urban infrastructure (A) is more relevant to cable/fiber availability. An eSIM requirement (B) relates to cellular/mobile service, not satellite broadband. Line of sight to a nearby tower (C) describes cellular or fixed wireless services that depend on tower connectivity; satellite instead needs a clear view of the sky toward the satellite (not a nearby tower). Therefore, increased latency is the best characteristic to consider.

In the CompTIA A+ Core 1 (220-1201) exam objectives, cloud deployment models describe how and where computing resources are hosted and who has access to them. A private cloud is defined as a cloud environment that is dedicated to a single organization and may be hosted on-premises within the company’s own data center or in a dedicated external facility. Since the question states that the directory services server is located on premises, it indicates that the organization is hosting and managing its own infrastructure internally. This aligns directly with the definition of a private cloud deployment model.

Directory services—such as Microsoft Active Directory or LDAP-based services—are commonly deployed internally to manage user authentication, authorization, group policies, and resource access within an organization. When these services run on company-owned hardware inside the organization’s network, the infrastructure remains under the organization’s full administrative control, security policies, and management.

The other options do not match this scenario. A public cloud is hosted by third-party providers and shared among multiple customers ☁. A hybrid cloud combines on-premises infrastructure with public cloud services. A community cloud is shared by multiple organizations with similar requirements. Because the system is hosted internally for a single organization, the correct classification is Private Cloud .

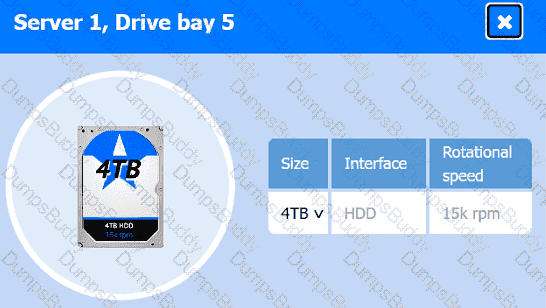

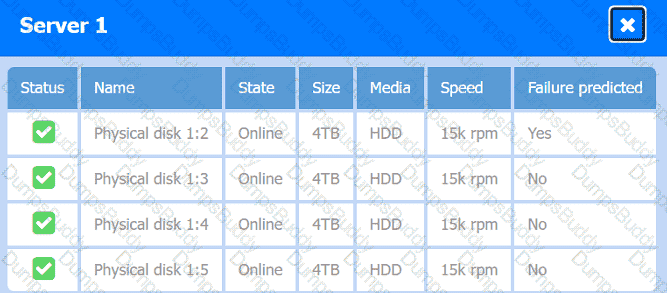

The correct answer is D. RAID 10 (also called RAID 1+0).

According to CompTIA A+ Core 1 220-1201 objectives under Storage:

RAID 10 combines the mirroring of RAID 1 with the striping of RAID 0. This provides both high data availability (because each drive has a mirror) and improved performance (because data is striped across multiple disks).

RAID 10 requires a minimum of four drives and is suitable for servers that handle high I/O workloads while maintaining redundancy.

Why the other options are incorrect:

A. RAID 1: Provides mirroring for redundancy but does not improve performance as effectively as RAID 10.

B. RAID 0: Provides striping for performance but has no redundancy; a single drive failure results in data loss.

C. RAID 5: Provides parity and can tolerate one drive failure with decent read performance, but write performance is lower than RAID 10 and rebuilds can impact system performance under heavy load.

CompTIA A+ Core 1 (220-1201) display technology objectives emphasize that contrast ratio is strongly influenced by how well a screen can produce true black. OLED (Organic Light-Emitting Diode) panels are known for the highest contrast ratios because each pixel is self-emissive—meaning it generates its own light. When an image requires black, OLED can turn individual pixels completely off, producing near-perfect black levels and extremely high (often “infinite”) contrast in practical terms.

By comparison, LCD panels require a backlight, so black areas still allow some light leakage through the liquid crystal layer, reducing contrast. LED in this context is typically an LED-backlit LCD, not a fundamentally different pixel technology; it improves brightness and efficiency but still relies on backlighting, so contrast is limited by backlight bleed and panel design. QLED is also a type of LCD technology that uses a quantum dot layer to enhance color and brightness, but it still uses a backlight, so it cannot match OLED’s per-pixel shutoff for black levels. Therefore, OLED is the best choice for the highest contrast ratios.

The correct answer is D. Channel width.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Wireless:

Channel width refers to the size of the frequency band used for Wi-Fi communication.

Increasing channel width (e.g., from 20 MHz to 40 MHz, 80 MHz, or 160 MHz) allows more data to be transmitted at once, effectively increasing wireless throughput speed.

Why the other options are incorrect:

A. Licensed bands: Licensed spectrum is used for certain types of communication and does not directly increase Wi-Fi throughput.

B. Maximum transmission unit (MTU): MTU defines the largest packet size transmitted over a network but is not the primary factor for increasing Wi-Fi throughput.

C. Transmit power: Adjusting transmit power affects signal range and coverage but does not significantly increase throughput; it may improve connectivity but not data rates.

The correct answer is B. Change the resolution.

According to the CompTIA A+ Core 1 220-1201 objectives, troubleshooting display issues involves checking the display settings, including resolution, scaling, and orientation. When a projector is only showing part of a laptop screen:

The most common cause is that the laptop’s output resolution does not match the projector ' s native resolution. If the laptop is set to a resolution larger than what the projector supports, only a portion of the screen is visible.

The technician should first adjust the laptop ' s resolution to match the projector’s native resolution before attempting other options like extending or mirroring the desktop.

Why the other options are incorrect:

A. Extend the desktop: This is only used if the user wants to have two separate screens (dual monitors), not to fix partial display issues.

C. Mirror the desktop: Mirroring duplicates the laptop display but does not solve issues caused by resolution mismatch.

D. Switch the input source: Necessary only if the projector is on the wrong input, but the problem here is a partial display, not no display.

The correct answer is A. Adjust the SMTP server configurations for email.

Scan-to-email functionality on a multifunction printer relies on proper configuration of an SMTP (Simple Mail Transfer Protocol) server. The printer must know how to send outgoing email, which requires settings such as:

SMTP server address

Port number (commonly 25, 465, or 587)

Authentication credentials (username/password)

Encryption method (SSL/TLS if required)

If scan-to-email is not working, the most common cause is incorrect or missing SMTP configuration. Without this setup, the printer cannot send scanned documents via email.

Why the other options are incorrect:

B. Check the printer ' s IP address configuration

This ensures network connectivity, but since the printer is already in use and the issue is specific to email functionality, IP configuration is unlikely the root cause.

C. Install the printer ' s driver software on all computers

Drivers are needed for printing from computers, but scan-to-email is handled directly by the printer and does not depend on client-side drivers.

D. Configure user authentication settings for email access

While authentication may be required in some setups, it is part of the broader SMTP configuration. The primary and most direct fix is ensuring SMTP settings are correct.

Exam Tip (Core 1 220-1201):

Scan-to-email issues → Check SMTP settings first

Multifunction printers rely on network services (email protocols), not just drivers

Final Answer: A. Adjust the SMTP server configurations for email

The correct answer is D. SMTP (Simple Mail Transfer Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

SMTP is the standard protocol used to send emails from a client to a mail server or between servers.

POP3 (Post Office Protocol 3) and IMAP (Internet Message Access Protocol) are used for receiving emails, not sending them.

LDAP (Lightweight Directory Access Protocol) is used for accessing and managing directory services, such as authentication and organizational information, not for email transport.

To ensure seamless connectivity during (and after) migrating an application server, the best DNS approach in CompTIA A+ Core 1 (220-1201) terms is to use a CNAME (Canonical Name) record, which creates an alias from one hostname to another. Instead of users connecting directly to a server’s changing hostname, they connect to a consistent service name (for example, app.company.com). That name can be configured as a CNAME pointing to the current host (such as server1.company.com). When the application is moved to a new server, the technician updates what the alias ultimately resolves to (or updates the target host’s A/AAAA record), and clients continue using the same familiar application URL/name—minimizing disruption and avoiding the need to reconfigure endpoints across devices.

The other record types are not designed for this purpose. TXT records store text-based information (often verification or policy data). SPF and DKIM are email authentication-related mechanisms (typically implemented via TXT records) used to validate authorized mail senders and message integrity—not application server migration. Because the goal is maintaining a stable name for a service while the underlying host changes, CNAME is the correct record type.

The correct answer is A. The internal antenna has been damaged.

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Networking:

Many laptop Wi-Fi antennas are embedded in the display panel and connected via small cables to the wireless card on the motherboard.

If the display panel is replaced and the Wi-Fi antenna is disconnected, damaged, or improperly routed, the laptop will experience weak or intermittent Wi-Fi connectivity.

Why the other options are incorrect:

B. Airplane mode is enabled: Would completely disable wireless radios; the question specifies difficulty staying connected, not a total lack of connectivity.

C. The inverter is not connected: The inverter powers the backlight of the display, unrelated to wireless connectivity.

D. The wireless drivers have not been updated: While outdated drivers can cause connectivity issues, a sudden problem after a display replacement strongly points to physical antenna damage.

For the highest possible stability, the best power-supply choice is a redundant power supply. In CompTIA A+ Core 1 (220-1201) hardware concepts, redundant PSUs are used in systems where uptime and reliability are critical. A redundant PSU configuration typically includes two power supply units operating together (often in a hot-swappable bay). If one PSU fails, the other continues supplying power, allowing the workstation to remain operational and preventing unexpected shutdowns that could interrupt CAD work or corrupt data. This directly matches the requirement for maximum stability.

A UPS improves resilience to power loss and brownouts by providing battery backup and line conditioning, but it is not a power supply type and doesn’t protect against the PSU itself failing. A surge protector helps guard against voltage spikes, but it also does not ensure system operation if the PSU fails. A modular PSU mainly improves cable management and airflow by allowing detachable cables; it can be convenient and neat, but it does not inherently increase stability compared with redundancy. Therefore, the most stability-focused PSU option is Redundant.

The correct answer is A. Better compatibility.

According to CompTIA A+ Core 1 220-1201 objectives under Software Troubleshooting and Virtualization:

Application virtualization allows applications to run in an isolated environment on a client device without being installed directly on the operating system.

This improves compatibility, as applications can operate regardless of OS differences, avoiding conflicts with other installed applications or system configurations.

Why the other options are incorrect:

B. Reduced network latency: Application virtualization does not inherently reduce network latency; network performance depends on connectivity.

C. Secure telnet access: Telnet is unrelated to application virtualization.

D. Metered utilization: Metering refers to cloud service usage or billing, not a benefit of application virtualization itself.

The correct answer is D. Dual channel.

In the CompTIA A+ Core 1 (220-1201) hardware objectives, memory bandwidth refers to the amount of data that can be transferred between RAM and the CPU in a given amount of time.

Dual channel memory architecture increases bandwidth by:

Allowing the memory controller to access two memory modules simultaneously

Effectively doubling the data transfer rate compared to single-channel configurations

Improving overall system performance, especially in memory-intensive tasks

Why the other options are incorrect:

A. CAS latency

CAS latency measures the delay before data is available after a request. Lower latency improves response time, but it does not significantly increase total bandwidth.

B. ECC

ECC (Error-Correcting Code) improves reliability by detecting and correcting errors, but it does not increase data transfer bandwidth.

C. High clock speed

Higher clock speed does increase bandwidth, but not as significantly as enabling dual channel, which allows parallel data transfer paths and provides a greater overall increase.

Final Answer: D. Dual channel

The correct answer is C. ECC (Error-Correcting Code).

In the CompTIA A+ Core 1 (220-1201) hardware objectives, RAM types and features include technologies designed to improve reliability and data integrity.

ECC memory is specifically designed to detect and correct data errors (faults) in memory automatically. It uses additional bits to store error-checking information, allowing the system to:

Detect single-bit and some multi-bit errors

Automatically correct errors without system interruption

Improve system stability, especially in servers and critical systems

This makes ECC the best choice for recovering from data faults.

Why the other options are incorrect:

A. Capacity

Capacity refers to how much data the RAM can hold (e.g., 8GB, 16GB). It has nothing to do with error detection or correction.

B. Speed

Speed (measured in MHz or MT/s) affects performance but does not provide any fault recovery capability.

D. DDR

DDR (Double Data Rate) refers to the generation/type of RAM (e.g., DDR3, DDR4, DDR5). It improves performance but does not handle errors.

E. Parity

Parity memory can detect errors but cannot correct them. Since the question specifically asks for recovery from faults, ECC is the correct answer because it both detects and corrects errors.

Final Answer: C. ECC

The correct answer is D. Restart the device.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

Warning messages like this can be caused by malicious pop-ups or temporary software glitches. Restarting the device is the safest and quickest first step to clear temporary processes, refresh the system, and remove transient malware or pop-up overlays.

This approach addresses the issue without risking data loss or unnecessary downtime.

Why the other options are incorrect:

A. Force close all running applications: May help if a specific app is causing the pop-up, but restarting achieves this more reliably and fully resets background processes.

B. Replace the tablet with a newer device: Unnecessary and costly for a potentially temporary software issue.

C. Reset the device to default settings: This is a last-resort action, as it erases personal data and settings; it is not the first step.

The correct answer is B. Elasticity.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud Concepts:

Elasticity refers to the cloud computing capability to automatically allocate and deallocate resources based on current demand. This ensures that applications have the necessary compute, storage, and network capacity during peak loads, and resources can be scaled down when demand decreases, optimizing efficiency and cost.

Why the other options are incorrect:

A. Hybrid deployment: Refers to using a combination of public and private clouds; it does not describe dynamic resource allocation.

C. Multitenancy: Describes the architecture where multiple users share the same infrastructure securely.

D. Metered utilization: Refers to charging based on resource consumption; it is a billing mechanism, not a dynamic allocation feature.

An MX, or Mail Exchanger, record is a type of DNS resource record. It identifies the mail server responsible for accepting email for a particular domain. Consequently, an MX record is created or modified in the domain’s DNS zone , which is hosted on a DNS server.

Although the MX record points to a mail server, the record itself is configured through DNS. The mail server is the destination identified by the record, not the service in which the DNS record is stored.

A proxy server intermediates network requests, commonly for filtering, caching, or privacy.

A mail server sends, receives, and stores email, but DNS tells other systems how to locate it.

A print server manages printers and print jobs.

CompTIA objective 2.4 specifically includes DNS record types such as A, AAAA, CNAME, MX, and TXT. Microsoft also defines an MX record as a DNS resource record that identifies a domain’s mail server.

==========

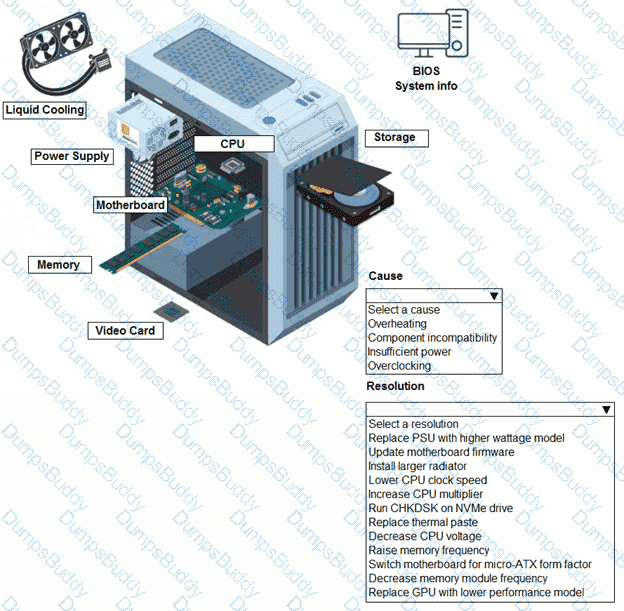

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

The correct answer is B. NVMe SSD.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Storage:

NVMe (Non-Volatile Memory Express) SSDs provide the fastest data access and retrieval speeds compared to other storage types, especially on laptops. NVMe SSDs use the PCIe interface, which allows significantly higher throughput and lower latency than SATA-based storage.

This improves boot times, application load times, and overall system responsiveness.

Why the other options are incorrect:

A. SATA M.2: While faster than traditional 2.5” SSDs and HDDs, SATA M.2 is limited by the SATA III interface (~600 MB/s), which is slower than NVMe SSDs (~3,000–7,000 MB/s).

C. Optical disk: Optical media (CD/DVD/Blu-ray) is extremely slow and not suitable for quick access or retrieval.

D. 7,200rpm HDD: Mechanical hard drives have the slowest access times and throughput compared to SSDs.

The correct answer is C. Virtualization.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Virtualization allows a single physical server to host multiple virtual machines (VMs), each running its own operating system and applications.

This reduces hardware costs because fewer physical servers are required to run multiple workloads, and it improves resource utilization, scalability, and management.

Why the other options are incorrect:

A. Containerization: Optimizes application deployment by packaging applications and dependencies, but containers share the host OS kernel and are not full OS instances.

B. Cloud computing: Refers to delivering computing services over the internet; it can use virtualization but is broader and not specifically focused on reducing physical hardware.

D. Remote desktop services: Provides remote access to desktops or applications; it does not reduce hardware requirements for hosting multiple OS environments.

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

The correct answer is B. Switches connect devices within a network; routers connect networks.

According to the CompTIA A+ Core 1 220-1201 networking objectives:

Switches operate at the Data Link layer (Layer 2) and sometimes Layer 3, connecting multiple devices within the same local area network (LAN). They manage data traffic between devices by using MAC addresses to forward frames only to the intended recipient.

Routers operate at the Network layer (Layer 3) and connect different networks together, such as connecting a LAN to the internet. They use IP addresses to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Routers are programmable; switches are not programmable: Both devices can have programmable configurations in enterprise environments, so this is not a defining difference.

C. Switches are programmable; routers are not programmable: Same reasoning as above; not accurate.

D. Routers connect devices within a network; switches connect networks: This reverses the actual roles and is incorrect.

The correct answer is D. Router.

According to the CompTIA A+ Core 1 (220-1201) objectives for Networking, routers are devices that operate at Layer 3 (Network layer) and are primarily used to connect multiple networks, including LANs, WANs, and the Internet. Routers use IP addressing to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Controller: Generally refers to a device that manages a network or hardware component but does not inherently connect different networks.

B. Bridge: Connects two segments of the same network, not different networks, and operates at Layer 2 (Data Link layer).

C. Hub: Connects devices within the same network segment, simply repeating signals, and does not perform routing between networks.

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

solution as

A screenshot of a network settings AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is B. VGA.

VGA (Video Graphics Array) is an analog video interface. It transmits video signals as continuous electrical waves, which means the signal can degrade over distance or due to interference. VGA uses a 15-pin connector and is considered legacy hardware in modern systems, but it is still important for CompTIA A+ because you may encounter it in older equipment.

Why the other options are incorrect:

A. DVI

DVI can support both digital and analog signals, but in most modern contexts and exam questions, it is primarily treated as a digital interface (especially DVI-D). Since the question asks for a clearly analog cable, VGA is the best answer.

C. USB-C

USB-C is a digital interface that can carry video signals using protocols like DisplayPort Alternate Mode. It does not transmit analog video.

D. HDMI

HDMI is a fully digital interface used for high-definition video and audio transmission. It does not support analog signals.

Exam Tip (Core 1 220-1201):

Analog video = VGA

Digital video = HDMI, DisplayPort, USB-C, most DVI types

Final Answer: B. VGA

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive

Network jitter is variation in the amount of time packets take to reach their destination. Real-time video and audio applications require packets to arrive at relatively consistent intervals.

When jitter becomes excessive, video packets may arrive late or out of sequence. The videoconferencing application may temporarily run out of usable video data, causing the displayed image to freeze. When sufficient packets arrive again, the video resumes.

High bandwidth generally improves the ability to carry video traffic.

Port flapping means a network switch port repeatedly transitions between up and down states. It can cause intermittent connectivity, but a temporary freeze followed by recovery is more directly associated with jitter.

Low latency is desirable because it means packets are delivered with little delay.

CompTIA objective 5.5 explicitly identifies jitter as a common network troubleshooting symptom. Cisco also states that network impairments such as jitter, delay, and packet loss can negatively affect videoconferencing quality.

==========

The best answer provided is A, although it is important to note that the question is somewhat misleading because it asks about motherboard selection but provides mostly incorrect or irrelevant motherboard-related options.

For high-performance workloads such as video editing and virtual reality (VR) using an Intel Core i9 processor and multiple graphics cards (multi-GPU setup), system design considerations include high power consumption and significant heat output. In the CompTIA A+ Core 1 220-1201 objectives under hardware planning and troubleshooting, high-performance CPUs and multiple GPUs require adequate thermal management solutions, including advanced cooling systems (air or liquid cooling) to ensure system stability and prevent thermal throttling.

Why A is the best answer:

High-end CPUs like Intel Core i9 and multiple GPUs generate substantial heat.

Proper cooling is essential for maintaining performance under sustained load (video rendering, VR workloads).

While not strictly a motherboard feature, cooling is a critical system requirement for such a build.

Why the other options are incorrect:

B. Use DDR3 RAM for increased compatibility

Incorrect because modern Intel Core i9 platforms use DDR4 or DDR5, not DDR3, which is obsolete and incompatible with current high-performance motherboards.

C. Verify there are two PCIe x1 slots for additional devices

Incorrect because PCIe x1 slots are used for low-bandwidth devices (sound cards, network cards), not graphics cards.

Multiple GPUs require PCIe x16 slots, not x1.

D. Select a motherboard with integrated graphics to support video output

Incorrect because high-performance systems with discrete GPUs rely on those GPUs for rendering. Integrated graphics are unnecessary and sometimes disabled when a dedicated GPU is installed.

Exam Insight (CompTIA A+ perspective):

In real-world A+ Core 1 scenarios, the correct motherboard selection for this requirement would focus on:

Multiple PCIe x16 slots (for multi-GPU support)

Compatible socket for Intel Core i9

Support for modern RAM (DDR4/DDR5)

Adequate chipset and power delivery (VRM design)

Proper cooling solution for thermal management

However, since those correct motherboard specifications are not provided in the options, A is the only viable system-level requirement relevant to stability under high-performance load.

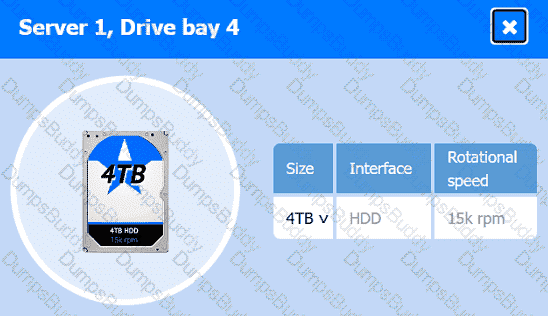

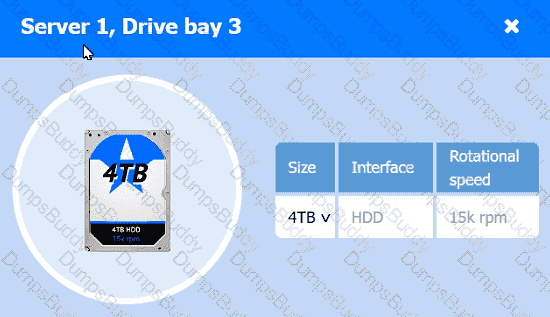

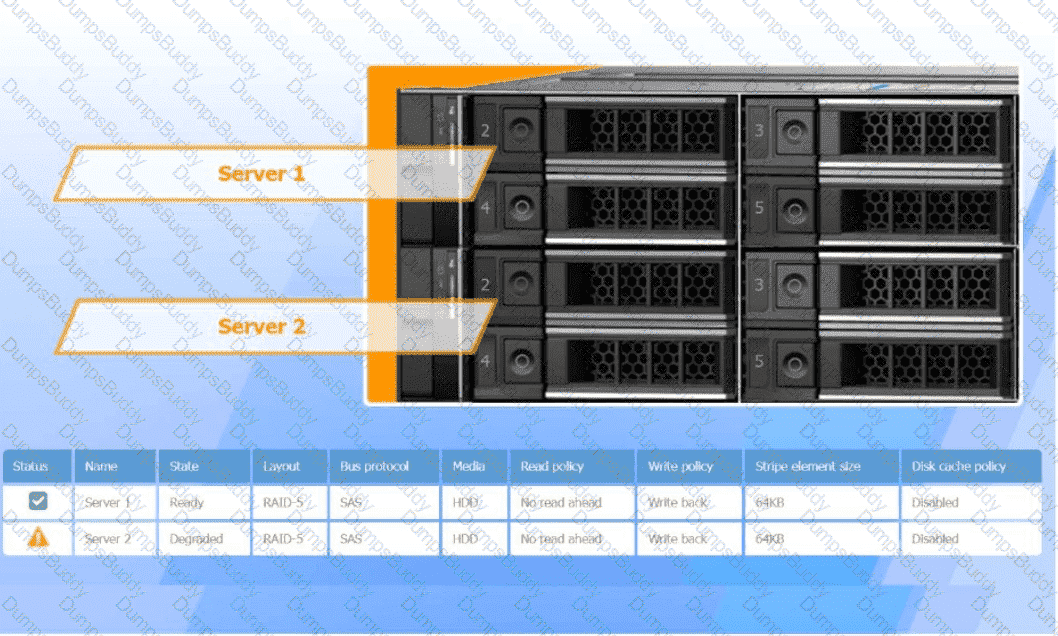

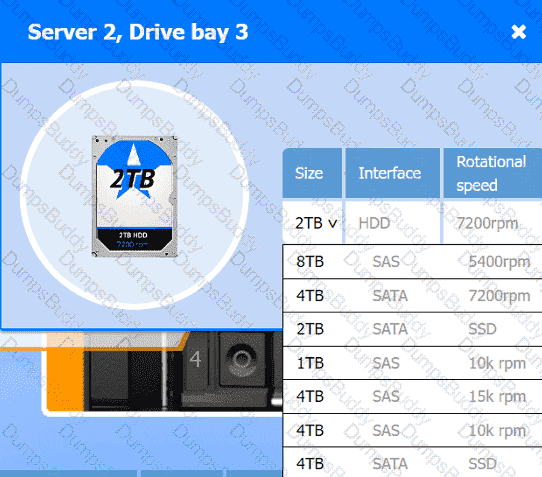

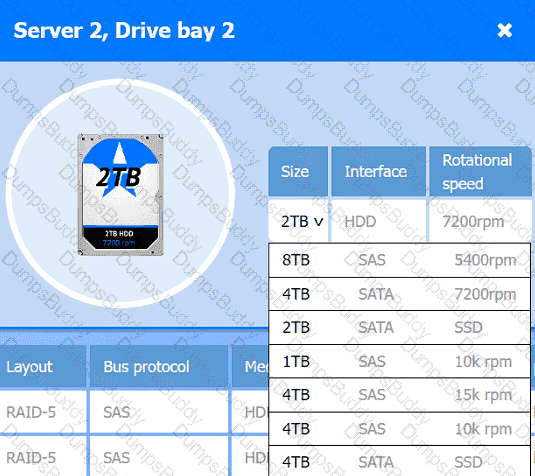

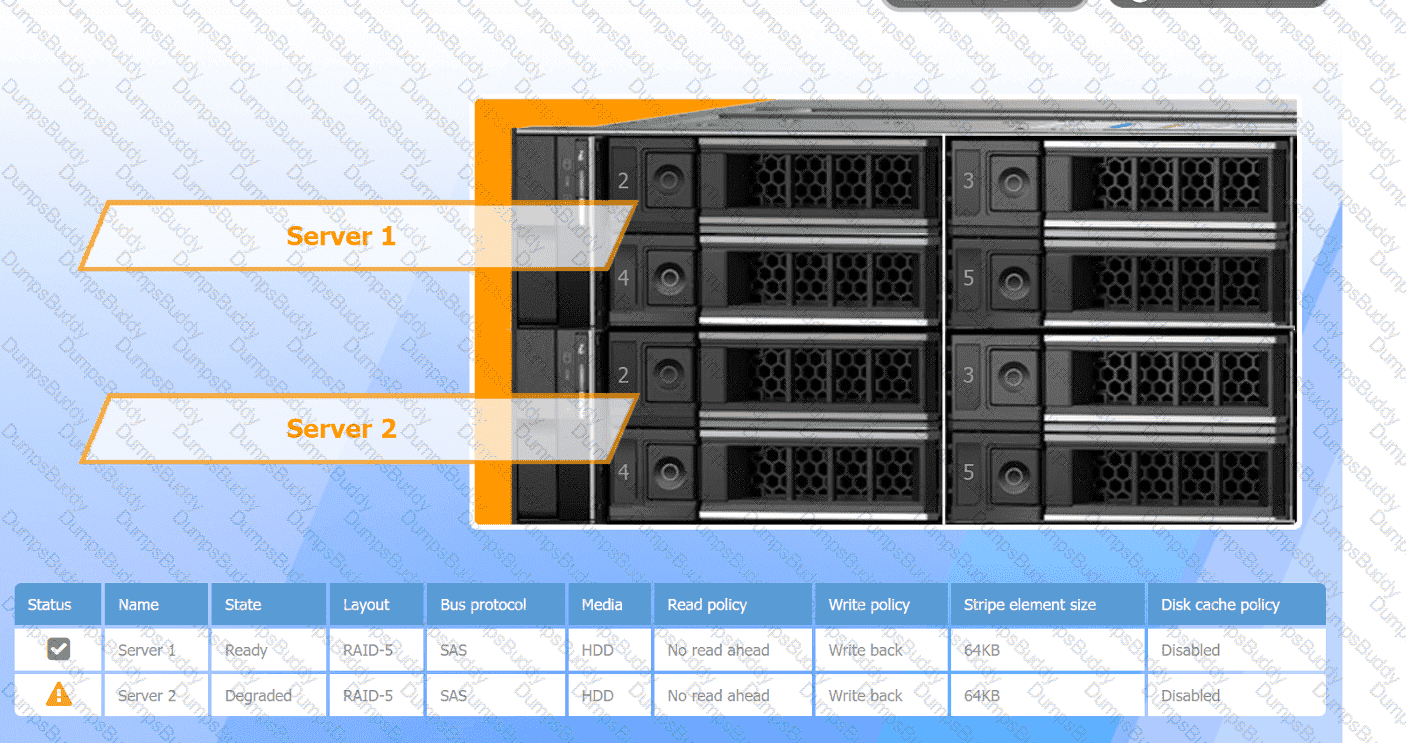

The correct answer is D. Replace the drive with a cold-swappable drive.

According to CompTIA A+ Core 1 220-1201 objectives under Storage and RAID:

RAID 5 provides both data striping and parity for fault tolerance, but if the RAID controller does not support hot swapping, replacing a failed drive while the system is running is not possible.

Cold-swappable drives are designed to be safely removed and replaced when the system is powered down, which allows maintenance without damaging the array or system.

Why the other options are incorrect:

A. Update the RAID controller firmware to support hot swapping: Firmware updates may add hot swap functionality, but this is not guaranteed and may require a system reboot.

B. Implement a software-based RAID solution: Software RAID requires a system reconfiguration and downtime; it does not immediately resolve the degraded RAID 5 array.

C. Change the drive during off-peak hours: While feasible, this is essentially the same as using a cold-swappable drive but is less precise; using cold-swappable drives ensures safe replacement without downtime considerations.

The correct answer is A. Virtual LAN (VLAN).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

VLANs are used to segment a physical network into multiple logical networks. By assigning the accounting department to a separate VLAN, users on other VLANs cannot access its network traffic without routing, thereby isolating sensitive departments while using the same physical switch.

VLANs improve security, reduce broadcast traffic, and allow network administrators to enforce access controls at the layer 2 level.

Why the other options are incorrect:

B. DHCP reservations: Ensure that specific devices always receive the same IP address, but do not restrict network access.

C. Content filtering: Controls web or application traffic based on content, not segmenting network access between departments.

D. Port security: Limits which devices can connect to a port but does not provide full network segmentation for an entire department.

Packet loss

Plug an Ethernet cable into the workstation

A screenshot of a computer AI-generated content may be incorrect.

According to the CompTIA A+ Core 1 (220-1201) virtualization objectives, a Type 1 hypervisor is known as a bare-metal hypervisor because it installs directly onto the physical hardware of a system rather than running on top of a traditional operating system. This architecture allows the hypervisor to manage hardware resources—such as CPU, memory, storage, and networking—without the overhead of a host operating system. Because of this direct interaction with the hardware, Type 1 hypervisors typically provide higher performance, better scalability, and improved stability compared to Type 2 hypervisors.

Examples of Type 1 hypervisors include VMware ESXi, Microsoft Hyper-V (bare-metal deployment), and Citrix XenServer. These hypervisors are commonly used in enterprise data centers, cloud infrastructure, and large virtualization environments where multiple virtual machines must run efficiently on a single physical server. ???? ️

Option A (Host OS required) describes a Type 2 hypervisor, such as VMware Workstation or Oracle VirtualBox, which runs on top of an existing operating system. Option C (Lightweight OS) may describe some hypervisor environments but is not the defining characteristic. Option D (Local configuration options) is also not specific to Type 1 hypervisors.

Therefore, the key characteristic that defines a Type 1 hypervisor is that it performs a bare-metal server installation directly on the hardware

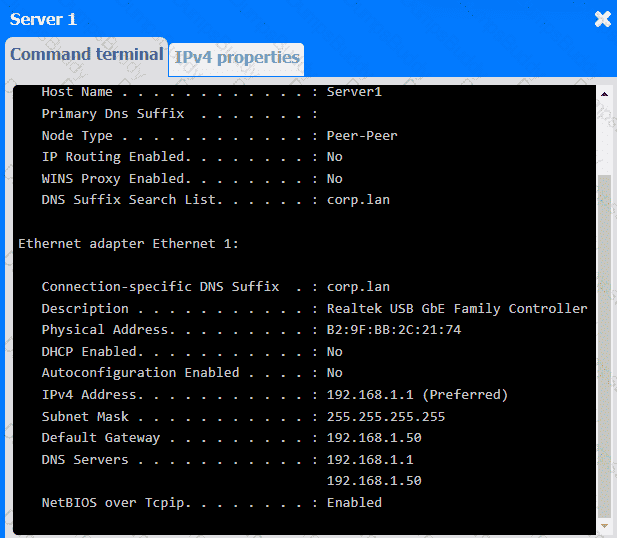

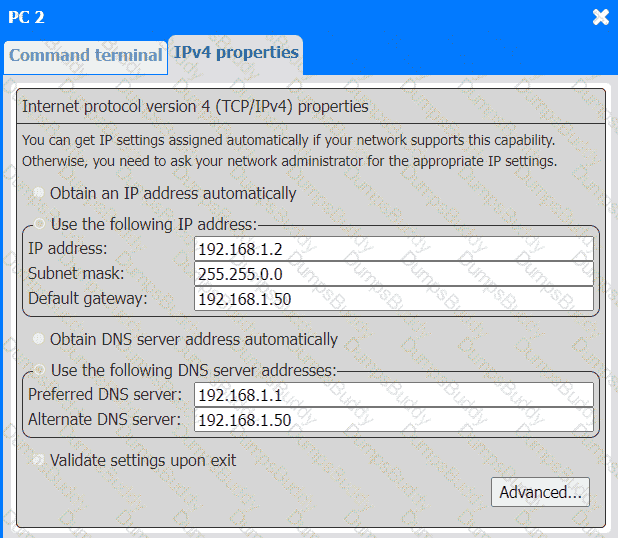

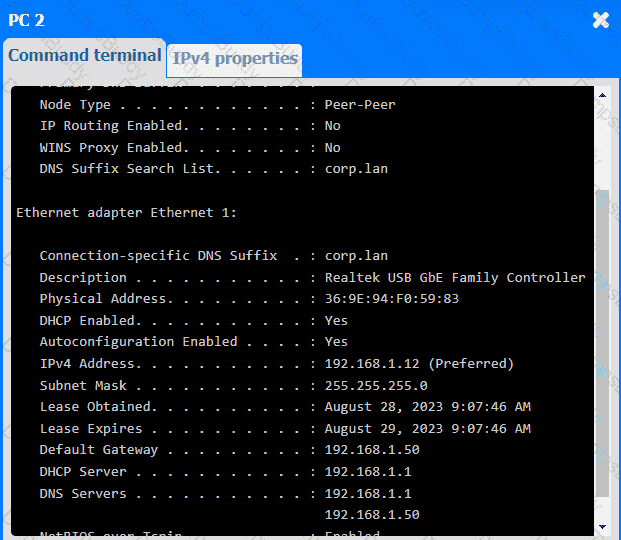

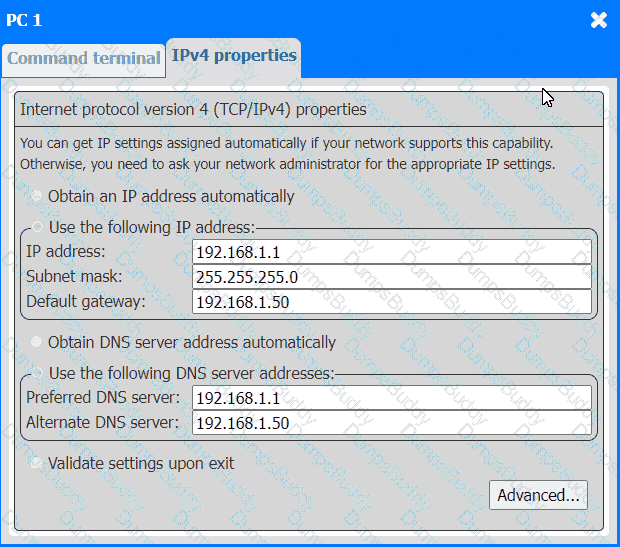

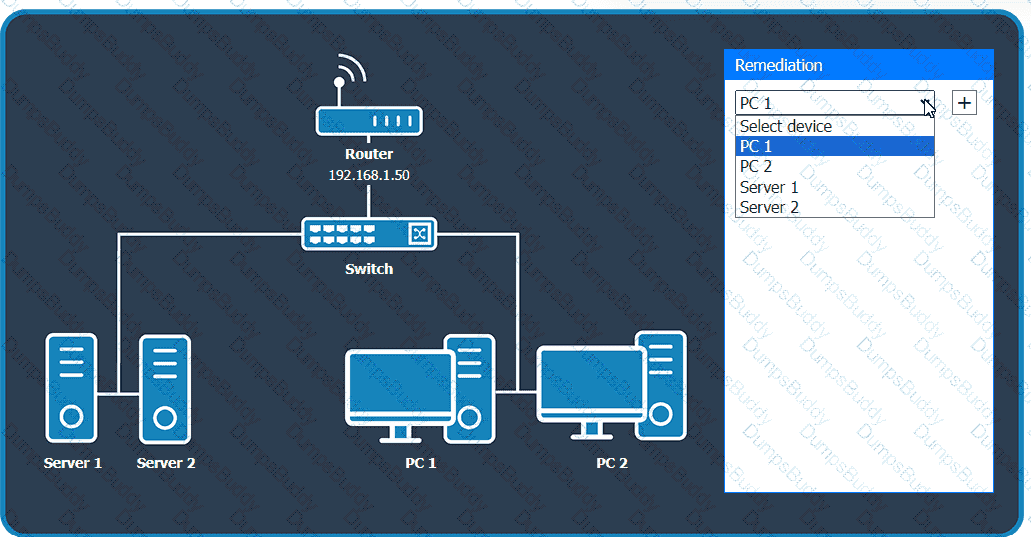

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

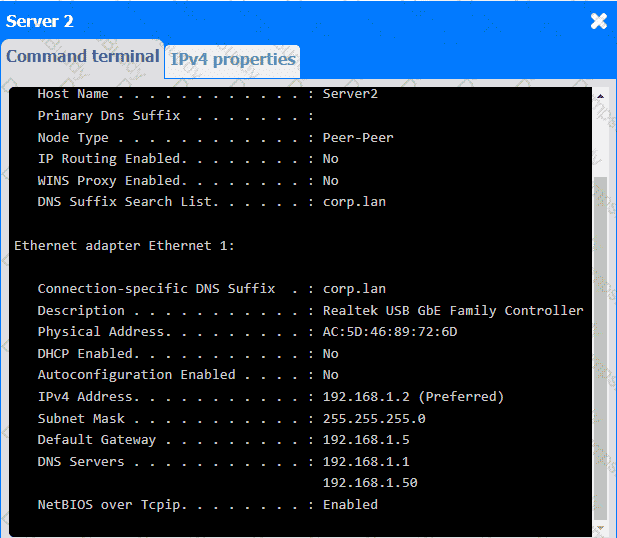

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

The correct answer is D. Injector.

Power over Ethernet (PoE) allows network cables to carry electrical power to devices such as wireless access points, IP cameras, and VoIP phones, eliminating the need for separate power supplies. According to the CompTIA A+ Core 1 220-1201 objectives under Networking, PoE can be implemented in the following ways:

PoE-enabled switches: Switches that can supply power directly over the Ethernet ports.

PoE injectors: Devices that add power to an existing Ethernet connection when the switch or router does not provide PoE.

Why the other options are incorrect:

A. Modem: A modem connects a network to the Internet but does not provide PoE functionality.

B. Range extender: Extends the range of a wireless network; does not supply power over Ethernet.

C. Media converter: Converts one type of network media to another (e.g., fiber to copper) but does not implement PoE.

Therefore, when a switch does not natively provide PoE, a PoE injector is the standard solution to add power to the Ethernet line.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

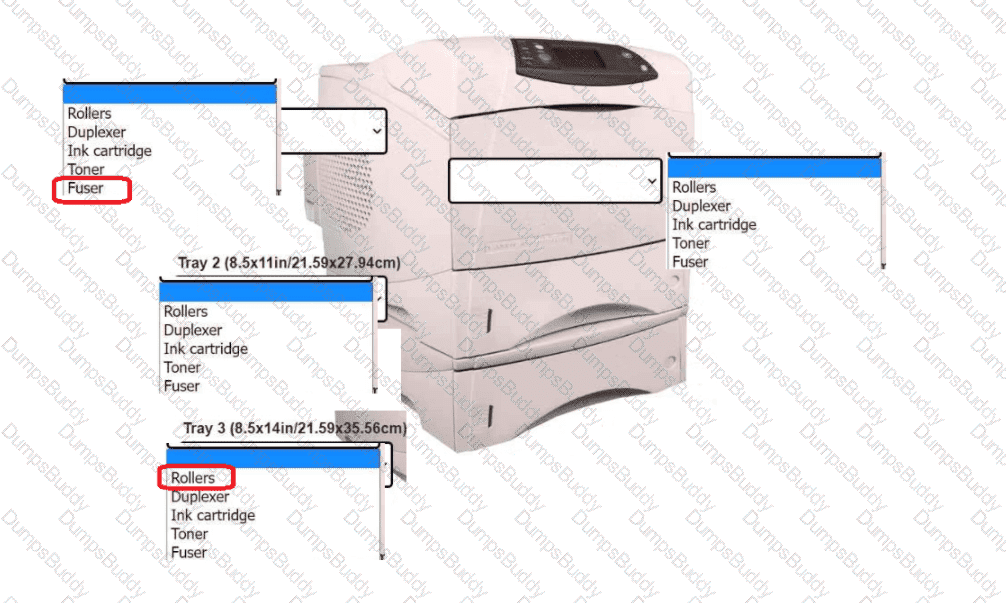

The correct answer is A. Clean the feed rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams, particularly in high-use shared printers, are commonly caused by dirty or worn feed rollers.

Cleaning the feed rollers removes dust, paper debris, and toner residue that can prevent smooth paper feeding, especially when printing double-sided documents.

This is a standard preventive maintenance procedure that improves reliability and extends the printer’s operational life.

Why the other options are incorrect:

B. Use a different paper weight: A4 standard paper is appropriate; changing paper weight is unnecessary unless the paper is damaged or incompatible.

C. Replace the fuser unit: Fuser problems generally cause smudging or incomplete fusing, not frequent paper jams.

D. Change the toner cartridge: Toner issues affect print quality (light or streaky prints), not paper feeding or jamming.

When a printout is being cut off, CompTIA A+ Core 1 (220-1201) troubleshooting emphasizes checking the simplest, most likely configuration mismatch first—the printer’s paper size/source settings. Even if the user physically loaded the correct paper, the print job can still be formatted incorrectly if the printer driver, application, or printer itself is set to use a different paper size or a different tray. If the printer thinks it is using a smaller paper size (or a tray configured for smaller paper), it may clip the printable area and truncate the image at the edges.

Changing tray settings (paper size and paper source) aligns the printer’s configuration with the actual media installed, which is a standard first-step for issues related to formatting, clipping, and page boundaries. Image quality (DPI) affects sharpness, not cropping. File type rarely causes consistent edge cutoff compared with page setup mismatches. Adjusting image size could work as a workaround, but CompTIA best practice is to correct the paper/tray and page setup settings first so all prints format properly without editing the document each time.

The technician is creating a DHCP reservation . A DHCP reservation associates a specific IP address with a particular network interface. The network interface is normally identified by its MAC address , also called its physical address or hardware address.

When the printer requests an address from DHCP, the DHCP service recognizes the printer’s MAC address and repeatedly assigns the reserved IP address. This allows computers and print servers to reach the printer consistently without requiring the printer to be manually configured with a static address.

The printer driver version affects how the operating system communicates with the printer, not DHCP addressing.

A spool target relates to print-job processing.

A serial number identifies the physical product but is not normally used by DHCP.

CompTIA objective 2.4 includes DHCP reservations, while objective 2.5 identifies the MAC address as the physical address of a network interface card. Microsoft confirms that DHCP reservations assign an address to a particular client NIC based on its MAC address.

==========

Because the smudges are not in the original document, CompTIA A+ troubleshooting logic indicates the problem is occurring inside the print process, not in the application or file. For laser printers, smudging commonly points to an issue with the imaging components—especially the drum/photoconductor unit (and sometimes the fuser). A+ Core 1 (220-1201) printer troubleshooting emphasizes starting with the most likely, easiest-to-verify causes before replacing parts. Inspecting the drum is a diagnostic step that can reveal visible defects such as scratches, toner buildup, contamination, or worn surfaces that cause toner to transfer incorrectly, leading to streaks or smears on output.

Replacing the toner (D) is a corrective action and may be unnecessary if the drum is damaged. Changing paper type (A) can help with some issues (like poor fusing or humidity-related problems), but it’s less directly tied to consistent smudges caused by the imaging process. Firmware updates (C) are rarely the first step for print-quality defects; they’re more relevant to compatibility, bugs, or feature issues—not physical smearing. Therefore, inspecting the printer drum first best matches A+ methodology and common laser printer failure points.

The correct answer is A. Loopback plug.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A loopback plug is used to test a network interface card (NIC) port by sending a signal out of the port and back into the same port, verifying that the NIC can send and receive data properly.

This is a common diagnostic tool when troubleshooting network connectivity issues on individual devices.

Why the other options are incorrect:

B. Toner probe: Used for tracing and locating cables, not for testing NIC ports.

C. Cable tester: Checks the integrity of network cables but does not verify NIC send/receive functionality.

D. Network tap: Passively monitors network traffic but does not test the NIC port itself.

The correct answer is D. Verify the audio output assignment.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Troubleshooting:

HDMI carries both video and audio signals. If video displays correctly but audio is not heard, it is often because the computer is still outputting sound to its internal speakers rather than the HDMI-connected device.

The user should check the audio output settings in the operating system and ensure the HDMI device (TV or projector) is selected as the audio output device.

Why the other options are incorrect:

A. Adjust the volume settings: Volumes are already at 50%, so adjusting them will not solve the problem if the audio output is assigned incorrectly.

B. Swap the HDMI cable: The video is working fine, so the cable is likely functional.

C. Reinsert the HDMI cable: Unlikely to resolve audio assignment issues if the connection is already working for video.

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

The correct answer is D. Check for loose connections on the display.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Troubleshooting:

Flickering or strange colored lines on a monitor are often caused by loose or damaged video cable connections (internal or external).

Before considering costly or time-consuming solutions like replacement, the technician should verify that the display cable, internal ribbon cables, or connectors are properly seated.

Why the other options are incorrect:

A. Suggest a secondary monitor: Provides a temporary workaround but does not resolve the underlying hardware issue.

B. Conduct a factory reset: Resets software settings but will not correct physical connection problems that cause flickering or colored lines.

C. Install a screen protector: Does not affect video signal or display functionality; irrelevant for flickering issues.

The technician should first open Disk Management and determine whether the disk or volume is still recognized by Windows.

Disk Management can reveal whether the volume:

Is present but does not have a drive letter.

Has been assigned a different drive letter.

Is offline.

Is unallocated or not initialized.

Has a partition or file-system problem.

Is no longer detected by the operating system.

This follows proper troubleshooting practice: inspect the existing configuration before making destructive or unnecessary changes.

There is no evidence that hardware was stolen, so escalation for theft is premature.

Creating a new partition could alter the existing disk layout and does not locate the missing F: volume.

Installing a new hard drive is unnecessary before determining what happened to the existing volume.

CompTIA objective 5.2 includes “missing drives in OS” as a drive-troubleshooting symptom. Microsoft identifies Disk Management as the Windows utility for viewing volumes and assigning or changing drive letters.

==========

The correct answer is D. Replace the failed drive.

RAID 6 is a redundant array of independent disks that can tolerate up to two drive failures while still maintaining data integrity. According to CompTIA A+ Core 1 (220-1201) objectives, a red LED on a drive in a RAID array indicates that the drive has failed or is in a critical state.

Next Step: In RAID 6, a single failed drive should be replaced immediately to prevent additional failures and maintain redundancy. The array can continue to operate in a degraded state, but performance may be slow during rebuilds. Replacing the failed drive allows the RAID controller to rebuild data onto the new drive, restoring full redundancy.

Why the other options are incorrect:

A. Reconfigure the RAID array: This would erase existing data; unnecessary if only one drive failed.

B. Run a S.M.A.R.T. test: While useful for diagnosing drive health, the red LED already indicates failure, so immediate replacement is required.

C. Reinstall the controller drivers: This does not address a physically failed drive and would not fix the degraded RAID array.

The correct answer is B. USB.

In the CompTIA A+ Core 1 (220-1201) objectives under mobile devices and connectivity methods, tethering refers to sharing a mobile device’s internet connection with another device such as a laptop. There are several tethering methods, including USB tethering, Bluetooth tethering, and Wi-Fi hotspot.

USB tethering is considered the most stable and reliable (tethered) connection because:

It uses a physical cable connection, eliminating wireless interference.

It provides consistent bandwidth and low latency.

It also charges the phone while connected, which is an added benefit.

It is less prone to disconnections compared to wireless methods.

Why the other options are incorrect:

A. Bluetooth

Bluetooth tethering is slower and less stable due to limited bandwidth and susceptibility to interference. It is not ideal for high-performance or stable connections.

C. Hotspot

A mobile hotspot uses Wi-Fi, which is wireless, not tethered. While convenient, it is less stable than a wired USB connection and can be affected by interference and signal range.

D. NFC

NFC (Near Field Communication) is used for very short-range communication like payments or quick pairing. It is not used for maintaining a continuous network connection.

Final Answer: B. USB

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is C. Synchronized system clocks.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Server Services, NTP (Network Time Protocol) is used to synchronize the clocks of computers across a network to a common time source. This is critical for:

Ensuring accurate timestamps for logs and events.

Coordinating scheduled tasks across multiple systems.

Preventing authentication issues in environments that rely on time-based credentials (e.g., Kerberos).

Why the other options are incorrect:

A. Defined network transport protocols: NTP itself is a protocol that uses UDP, but its primary purpose is not defining transport protocols.

B. Enabled print services on the server: NTP does not relate to printing.

D. Defined server options in DHCP: NTP may be referenced by DHCP options, but the act of adding NTP to a server is focused on time synchronization, not DHCP configuration.

The correct answer is C. DHCP (Dynamic Host Configuration Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

DHCP is used to automatically assign IP addresses and related network configuration (such as subnet mask, default gateway, and DNS servers) to devices on a network.

This eliminates the need for manually configuring IP addresses on each PC and helps prevent conflicts.

Why the other options are incorrect:

A. VLAN (Virtual Local Area Network): VLANs segment a network into logical subnets but do not assign IP addresses.

B. DNS (Domain Name System): DNS translates domain names to IP addresses; it does not assign IP addresses to devices.

D. TCP (Transmission Control Protocol): TCP is a transport layer protocol used for reliable communication between devices, not for IP assignment.

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

A computer tower with a computer and a hard drive AI-generated content may be incorrect.

The correct answer is B. Near-field communication (NFC).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC is commonly used for secure access control. Many organizations implement NFC-enabled ID badges or mobile devices to unlock doors, gates, or secure areas.

The mobile device communicates over a very short range (a few centimeters) with a reader to authenticate the user.

Why the other options are incorrect:

A. Hotspot: Provides internet access, not physical building access.

C. Infrared scanner: While used in some legacy devices, it is not commonly implemented for secure mobile access.

D. Geolocation: Can provide location awareness but does not grant direct access to secure physical spaces.

The correct answer is D. Decreased burn-in.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

Mini-LED displays use an array of tiny LEDs as a backlight for LCD panels.

Unlike OLED displays, which are susceptible to burn-in (permanent image retention when static content is displayed for long periods), mini-LEDs reduce the risk because the pixels themselves do not emit light individually and are less prone to permanent image retention.

Why the other options are incorrect:

A. Increased contrast: OLED typically provides better contrast because it can turn off individual pixels completely.

B. No backlight: Mini-LEDs still use a backlight, whereas OLEDs do not.

C. Improved viewing angle: OLEDs generally offer wider viewing angles than mini-LED LCDs.

The correct answer is D. WLAN (Wireless Local Area Network).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A WLAN is a wireless network that covers a limited area such as an office, building, or campus.

Using a heat map helps administrators determine optimal placement of access points, identify areas of weak signal, and plan coverage for employees’ devices.

Why the other options are incorrect:

A. SAN (Storage Area Network): Connects storage devices over a network; not used for wireless coverage.

B. PAN (Personal Area Network): Covers a very small area, such as a single person’s devices (Bluetooth, USB, etc.), not a whole office.

C. MAN (Metropolitan Area Network): Covers a city or large geographic area; too large for a floor plan.

The correct answer is A. RJ11.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

RJ11 connectors are commonly used for telephone lines and data cables that use two pairs of wires (four wires total).

This connector is standard for analog telephone connections and DSL connections.

Why the other options are incorrect:

B. F-type: Used for coaxial cables, commonly in cable TV or broadband internet, not for two-pair data cables.

C. ST: A type of fiber optic connector, not used for copper two-pair wiring.

D. Molex: Primarily used for power connections in computer hardware, not for network or phone cabling.

The correct answer is B. Reconnect the wireless antennas.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Laptop Maintenance:

Many laptop wireless antennas are routed through the display assembly to provide optimal Wi-Fi and Bluetooth signal strength.

When replacing a laptop display, it is essential to disconnect and then reconnect the wireless antennas to ensure proper connectivity.

Failing to reconnect these antennas can result in weak or no wireless signal.

Why the other options are incorrect:

A. Reattach the heat sinks: Heat sinks are part of the CPU/GPU cooling assembly and are unrelated to replacing the display.

C. Install a new CPU fan: CPU fans are part of the cooling system, not the display assembly.

D. Reset the BIOS to default settings: Not required for physically replacing the display; the BIOS retains settings independently of display hardware.

The most likely cause is system overheating . Laptops have limited internal space and depend on properly functioning fans, heat sinks, vents, and thermal controls. Dust accumulation, blocked vents, a malfunctioning fan, dried thermal compound, or sustained high processing load can cause the internal temperature to increase.

When the CPU or another component reaches a critical temperature, the laptop may shut down automatically to prevent permanent hardware damage. These shutdowns may appear unpredictable because they depend on temperature and workload rather than the displayed battery percentage.

Malware can increase processor usage and indirectly contribute to heat, but it is not the most direct answer.

RAM corruption generally produces crashes, freezes, memory errors, or operating-system stop errors.

Outdated drivers can cause instability but are less closely associated with repeated thermal shutdown behavior.

CompTIA objective 5.4 specifically lists overheating as a common mobile-device issue. Dell also identifies random shutdowns and reboots as symptoms of an overheating laptop.

==========

The correct answer is B. Header pinouts.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware:

Header pinouts on a motherboard are designated connectors for internal components such as USB ports, audio connectors, and front panel buttons/LEDs.

When adding additional internal USB ports, a technician typically connects them to the motherboard’s USB header pinouts. These headers provide the necessary data and power connections to enable USB functionality for front-panel or expansion USB ports.

Why the other options are incorrect:

A. TPM (Trusted Platform Module): Used for hardware-based security functions like encryption, not USB connectivity.

C. M.2 connector: Used primarily for SSDs and other small-form-factor expansion devices, not standard USB ports.

D. Expansion slots: Typically PCIe or PCI slots are used for expansion cards such as GPUs, network cards, or USB controller cards, but not for connecting internal USB headers directly.

Comprehensive and Detailed Explanation:

Laptop Wi-Fi antennas run through the display bezel and connect via small coaxial clips. After motherboard replacement, these are often not fully seated, causing weak or unstable Wi-Fi.

CompTIA Concepts:

Laptop hardware troubleshooting

Antenna connector checks after repair

WLAN performance issues caused by antenna misalignment

The correct answer is A. Containers.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Containers provide lightweight, portable environments that package applications and their dependencies, allowing them to run consistently across multiple environments.

Containers are ideal for development teams because they require minimal underlying infrastructure, can be quickly deployed or destroyed, and isolate applications from the host system, making it easier to manage multiple applications simultaneously.

Why the other options are incorrect:

B. IaaS (Infrastructure as a Service): Provides virtualized hardware over the cloud but is more general-purpose; it includes virtual machines, storage, and networking, not minimal isolated application environments.

C. SaaS (Software as a Service): Provides fully managed software to end-users; not intended for deploying custom web applications by a development team.

D. Desktop virtualization: Provides virtual desktop environments to users; it does not provide a minimal, disposable platform for web application development.

When a legacy application is running on multiple physical servers, and the organization wants to maintain it until retirement, the best CompTIA-aligned solution is virtualization. Virtualization allows the engineer to convert existing physical servers into virtual machines (VMs), a process known as P2V (Physical-to-Virtual) migration. This reduces hardware footprint, simplifies management, and isolates the application within a controlled environment. CompTIA A+ emphasizes virtualization for legacy support because it eliminates dependence on aging physical hardware while preserving application functionality exactly as before.

Virtual machines also provide snapshots, backups, failover capabilities, and easier resource allocation, making them more reliable than maintaining old hardware. A SAN (A) provides storage, not application hosting. FaaS (B) is a serverless model inappropriate for legacy applications that require full OS environments. A configuration management platform (D) manages software deployments and settings but does not replace or consolidate physical servers.

Thus, virtualization is the most suitable and industry-standard method for sustaining legacy applications.

A modular power supply is the best choice when cable management is a priority. According to CompTIA Core 1 (220-1201) power supply objectives, modular PSUs allow technicians to connect only the cables that are needed for the system’s components, reducing clutter inside the case.

This improves airflow, simplifies troubleshooting, and creates a cleaner internal layout, which is especially beneficial in home-built desktop systems. Semi-modular and fully modular power supplies offer varying degrees of flexibility, but all modular designs reduce unused cables compared to standard power supplies.

A standard (non-modular) power supply has all cables permanently attached, often resulting in excess unused cables that obstruct airflow. A backup power supply refers to an uninterruptible power supply (UPS), which provides battery backup but does not improve internal cable management. A redundant power supply is typically found in enterprise servers and includes multiple PSUs for fault tolerance, not cable management.

CompTIA emphasizes modular power supplies as a best practice for clean builds and efficient system design, making this the correct answer.

Overheating is a common cause of projectors shutting down after extended use. A clogged air filter can cause overheating, resulting in intermittent shutdowns.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshooting displays:

“If a projector shuts down after running for a period, clean or replace the filter to prevent overheating and automatic shutdown.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Display Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.1

============

CompTIA A+ teaches that the default gateway is required for any device to communicate with external networks such as the internet. Without a configured default gateway, the computer can communicate only with devices on the same local subnet explaining why the file server is reachable.

DNS and IPv6 settings are not the issue; without a gateway, external routing cannot occur. Flushing DNS affects hostname resolution, not routing. NetBIOS settings have no effect on internet connectivity.

Adding or correcting the default gateway (usually the router’s LAN IP, such as 192.168.1.1) will allow the PC to route traffic beyond its local network.

This aligns precisely with CompTIA’s troubleshooting steps for missing or incorrect gateway configuration.

Channel configuration(e.g.,dual-channel,quad-channel) determines how memory modules communicate with the memory controller. Usingmatched pairs in dual- or quad-channel setupscan significantlyincrease memory bandwidth, improving performance especially for gaming and video-intensive tasks.

Option A (Error correction):ECC RAM is used in servers for reliability, not performance or gaming.

Option B (RAM voltage):Affects compatibility and overclocking but not bandwidth.

Option D (Physical size):Refers to module form factor (e.g., DIMM, SO-DIMM) and does not impact bandwidth.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.2: Given a scenario, install RAM types.

CompTIA A+ details that an Automatic Document Feeder (ADF) allows multi-page documents to be scanned automatically without manually placing each sheet on the flatbed. This drastically increases scanning efficiency for large documents.

Flatbed scanners require manual placement for every page. Duplexing scans both sides of a page but does not feed multiple sheets by itself. Orientation configuration only affects image alignment.

The ADF is explicitly highlighted in the A+ study guide as the primary feature used in business environments when scanning high-volume documents efficiently.

Thus, the ADF is the correct solution because it automates page feeding and dramatically reduces scanning time, especially for hundreds of pages.

A USB-C-to-HDMI adapter is the most appropriate choice for a modern laptop that lacks built-in VGA and HDMI ports. Many current laptops provide display output through a USB-C port that supports DisplayPort Alternate Mode or Thunderbolt. A compatible adapter can convert that digital signal to HDMI, which carries both high-definition video and audio to the projector through one connection. MicroUSB is primarily an older mobile-device charging and data connector and does not normally provide native laptop display output. DisplayPort-to-VGA would require the laptop to have a full-size or Mini DisplayPort connection, which is not stated. DVI-to-HDMI would similarly require a DVI output on the laptop, and standard DVI generally does not carry audio. Provided the laptop’s USB-C port supports video output, USB-C to HDMI is the most practical and capable adapter.

Infrastructure as a Service (IaaS) provides virtualized computing resources over the internet. This includes virtual servers, storage, and networking. Deploying server machines falls under IaaS since the organization is responsible for managing the OS and applications on top of the infrastructure.

A hybrid environment combines both on-premises infrastructure and cloud-based resources, allowing virtual machines to operate seamlessly between the two. CompTIA A+ describes hybrid cloud as a deployment model where organizations maintain their own private servers or virtualization hosts while also leveraging public cloud platforms such as AWS, Azure, or Google Cloud. This model supports flexibility, scalability, and gradual migration, making it ideal for businesses not ready to fully abandon local infrastructure.

In this model, workloads can move between the local environment and the cloud depending on performance requirements, cost considerations, or redundancy needs. Additionally, hybrid clouds allow resource sharing, data synchronization, and load balancing across both environments.

A public cloud hosts resources entirely in the provider’s data center, offering no on-premises integration. A private cloud exists solely within the organization’s infrastructure with no external shared resources. SaaS delivers applications, not infrastructure, meaning it cannot host or manage virtual machines.

Therefore, an environment where VMs exist both on-site and in the cloud is best described as a Hybrid cloud.

A cable modem connects to an ISP’s wall jack using a coaxial cable, and the standard connector used for coaxial connections is the F-type connector. According to CompTIA Core 1 (220-1201) networking hardware and cabling objectives, F-type connectors are specifically designed for coaxial cabling used in cable television and cable internet (DOCSIS) installations. These connectors screw onto the coaxial wall outlet and the cable modem, ensuring a secure physical connection and proper signal transmission.

An LC connector is a fiber-optic connector commonly used with single-mode or multimode fiber cables and is not associated with cable modems. An RJ45 connector is used for Ethernet networking and is typically used to connect the cable modem to a router or computer, not to the wall jack. Lightning is a proprietary Apple connector used for charging and data transfer on mobile devices and has no role in network uplinks.

CompTIA expects candidates to clearly distinguish between different cable types and connectors based on the service being installed. When the scenario involves a cable modem and ISP wall jack, the correct and standard connector is the F-type.

Port 110 is used by POP3, a protocol designed for downloading emails from a remote server to a local client. POP3 does not inherently synchronize changes (such as read status, folder organization, or deletions) between devices. The customer wants a more secure connection that automatically synchronizes with the server, which directly aligns with the functions of IMAP (Internet Message Access Protocol).

IMAP typically uses port 143 for unencrypted connections and 993 for secure, encrypted connections (IMAPS). It is designed for modern email usage—supporting multi-device access, live synchronization across clients, and server-stored mail. When a user reads, deletes, or moves an email using IMAP, these changes are reflected on the server and visible on every device logged into the same account.

CompTIA A+ emphasizes that IMAP is preferred for users requiring constant synchronization, mobile access, and cloud-based email management, while POP3 is considered outdated. IMAP also supports secure, encrypted communication when paired with SSL/TLS.

HTTPS and SFTP do not handle email retrieval, and SMTP is a sending protocol, not a retrieval protocol. Therefore, IMAP is the only correct and CompTIA-aligned upgrade option.

A managed switch provides advanced features such as traffic monitoring and VLAN configuration, allowing a technician to view network statistics for devices on the local subnet.

Why Not B (Router): A router connects different networks and directs traffic between them but does not provide detailed subnet-level statistics.

Why Not C (Access point): Access points provide wireless connectivity but lack traffic monitoring features.

Why Not D (Firewall): A firewall filters traffic but is not used for monitoring detailed statistics on a local subnet.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, network monitoring tools​.

The scan-to-SMB feature allows the printer to send scanned documents to a shared folder (SMB share) on the network. Setting up a network share enables the device to securely and conveniently save files for user access.

NVMe (Non-Volatile Memory Express) drives commonly use the M.2 interface and provide the highest performance for SSDs.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Storage devices:

“NVMe drives connect via the M.2 slot and provide the fastest data transfer rates available for storage devices.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Storage Technologies

CompTIA Exam Objectives 220-1101, Domain 3.2

APrivate Cloudis operated solely for a single organization. It ishosted on-premises or in a dedicated off-site data center, giving the company full control over data, security, and compliance often hosted in theorganization’s own local data center.

Option B (Public):Hosted by third-party providers and shared by multiple clients.

Option C (Hybrid):Combines private and public cloud resources.

Option D (Community):Shared by several organizations with similar goals.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

System overheating is the most likely cause of repeated shutdowns when the battery still has sufficient charge. Modern laptops monitor CPU, GPU, and internal system temperatures. If temperatures exceed safe limits, the system may first reduce processor performance through thermal throttling and then shut down automatically to prevent permanent component damage. Common causes include blocked ventilation openings, accumulated dust, a failed cooling fan, dried thermal compound, or using the laptop on a surface that obstructs airflow. Malware, corrupted RAM, and outdated drivers can cause instability, crashes, or performance problems, but they are less directly associated with protective power shutdowns. The technician should inspect airflow, verify fan operation, check internal temperatures, and clean the cooling system before replacing other hardware. Repeated shutdowns during demanding workloads provide especially strong evidence of a thermal problem.

When a laptop screen is replaced, the technician typically removes the display assembly components and works near the hinge area where the Wi-Fi antenna leads are routed. In most laptops, the Wi-Fi antennas are built into the display bezel and connect to the wireless adapter using thin coax cables labeled MAIN/AUX. If one or both antenna leads are left disconnected, pinched, or not fully seated during reassembly, the Wi-Fi adapter may still appear in the OS, but the radio signal strength becomes extremely weak. A common symptom is no SSIDs found or only very close/strong networks intermittently.

Bluetooth working does not rule this out because Bluetooth can have separate antennas or may still function at short range even when Wi-Fi reception is poor. Ethernet working confirms general network access and suggests the issue is isolated to the Wi-Fi radio path rather than the router, ISP, or OS networking stack. The wireless access point is unlikely to be the cause if the issue started immediately after hardware service and other devices can see SSIDs. Therefore, the first hardware check should be the wireless antenna connections and routing.

A Trusted Platform Module (TPM) is a hardware chip used to enable encryption technologies such as BitLocker, providing secure key storage for system-wide encryption.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.5 – Security features:

“A TPM chip is required for system encryption, storing encryption keys securely on the hardware.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Security Hardware

CompTIA Exam Objectives 220-1101, Domain 3.5

============

The technician should reinstall the printer driver software. Continuous pages of random characters usually indicate that the printer is receiving data in an unsupported or incorrectly interpreted printer language. This commonly occurs when the wrong driver is installed, the driver has become corrupted, or a driver configured for a different printer model sends incompatible PCL, PostScript, or proprietary commands. Reinstalling the correct manufacturer-supported driver restores proper translation between the operating system and printer. DPI settings control print resolution and image detail but do not cause raw characters or command data to print continuously. A toner problem would produce faded, blank, uneven, or smudged output rather than correctly formed random symbols. Updating firmware might help with compatibility in some cases, but the established first corrective action for garbled character output is to remove and reinstall the appropriate printer driver.

Cable internet is the most appropriate recommendation because it commonly uses coaxial cabling between the service provider’s network and the customer’s cable modem. A coaxial wall jack normally terminates with an F-type connector and indicates that the building may already have cable television or DOCSIS-compatible broadband infrastructure. A technician can connect a cable modem to this outlet and then connect the modem or gateway to the business network. Fiber service requires optical fiber and an optical network terminal rather than a standard coaxial outlet. DSL operates over copper telephone wiring and typically uses an RJ11 connection. Satellite internet requires an externally mounted satellite dish and does not depend on an existing coaxial broadband wall jack, although coaxial cable may connect the dish to indoor equipment. The installed jack therefore most strongly indicates cable internet availability.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

When assigning a static IP address to a network device such as a printer, the administrator must manually enter all information that a DHCP server would normally provide automatically.

CompTIA A+ networking fundamentals explain that a statically assigned host requires:

IP address (set manually)

Subnet mask (must be manually configured to define the network boundary)

Default gateway (must be manually assigned so the device can communicate outside its subnet)

DNS (also typically required, but in SOHO printer configs, it is not always mandatory unless name resolution is needed)

The question asks specifically: Which must be set manually?

The two required components for every static IP assignment in a CompTIA-compliant small office network are:

✔ B. Subnet mask

Defines the network and host portions of the IP address. Must be manually entered for static IPs.

✔ C. Default gateway

Allows communication outside the local network. Must also be manually set for static IP devices.

Why the other options are incorrect

A. DHCP

Not used in static addressing. DHCP is automatic; static addressing bypasses it.

D. DNS

Not always required for printers unless hostname resolution is needed. The question asks for what must be set manually.

E. Reservations

DHCP reservations create “static-like” addresses via DHCP, not manual configuration.

F. Exclusions

Used to prevent DHCP from assigning certain IPs; not part of configuring a static IP on a device.

If two devices have thesame static IP address, anIP conflictoccurs. This results in both devices being intermittently disconnected or unable to communicate on the network. It’s a common mistake when copying configurations manually.

Option B:DNS conflicts wouldn’t cause total disconnection and wouldn ' t occur just from copying IP settings.

Option C:A cable issue would only affect one workstation.

Option D:Switchport security issues wouldn ' t affect both machines simultaneously unless port security was configured very specifically.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.6: Given a scenario, configure and troubleshoot network connectivity.

A Power over Ethernet injector is the simplest solution because the unmanaged switch does not provide PoE. The injector is installed inline between the switch and the wireless access point. It adds electrical power to the Ethernet connection while allowing network data to travel over the same cable. This eliminates the need to install a separate electrical outlet in the attic, reducing installation complexity and cost. A patch panel organizes and terminates network cabling but does not provide power. Mounting an antenna on the roof would not solve the access point’s power requirement and could create additional environmental and cabling concerns. Installing an electrical outlet would work, but it requires electrical work and is less convenient. A PoE injector is specifically designed to power devices such as access points and IP cameras when the existing switch lacks PoE capability.

Asandboxis an isolated virtual environment used totest or run applications securelywithout risk to the host or network. It prevents the VM from communicating with external systems, making it ideal for testing malware or suspicious software.

Option A (VDI):Virtual Desktop Infrastructure allows network communication; it does not restrict it.

Option B (Private cloud):Refers to a cloud deployment model, not a communication barrier.

Option D (Type 1 hypervisor):Runs VMs directly on hardware and doesnotinherently block communication.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

The customer wants to consolidate multiple physical servers running different operating systems, including Windows, Linux, and Unix, while maintaining strong isolation between systems. CompTIA A+ identifies Infrastructure as a Service (IaaS) as the best model for hosting fully isolated virtual machines in a cloud environment, allowing each OS to run independently on its own virtual hardware.

IaaS provides virtualized computing resources—CPU, RAM, networking, and storage—while allowing the customer full control over the OS and application layer. This means Windows, Linux, and Unix VMs can coexist without compatibility concerns because each VM runs its native OS without modification.

Containers (B) are unsuitable because they share the host OS kernel, meaning they cannot run different OS families. A Type 2 hypervisor (C) is workstation-based and not designed for enterprise server consolidation. VDI (D) provides user desktops, not server workload consolidation.

Thus, IaaS is the correct solution for compatibility, isolation, and consolidation across multiple OS types.

AVLAN (Virtual LAN)is used to logically segment a network without requiring physical separation. It enables grouping devices based on function or department regardless of their physical location.

Option A (DHCP):Assigns IP addresses dynamically but doesn’t create network segments.

Option C (DNS):Resolves domain names to IP addresses, not used for network segmentation.

Option D (VPN):Provides secure remote access but does not relate to logical segmentation within a local network.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.3: Explain common logical networking concepts.

When both charging and dock-connected peripherals fail at the same time, the problem is most likely with the dock itself or its internal controller circuitry rather than the laptop’s operating system or a single peripheral device. The technician has already verified key prerequisites: the dock has power, the laptop ports show no physical damage, and system firmware (BIOS/UEFI) is current. Those checks reduce the likelihood of a simple firmware incompatibility or a damaged laptop connector.

In CompTIA A+ troubleshooting methodology, the next step is to substitute with a known-good component to isolate the fault quickly. Replacing (or testing with) another dock confirms whether the original docking station has failed. If the replacement dock restores charging and peripherals immediately, the root cause is confirmed without unnecessary invasive actions.

Switching the power supply could be a valid step if power was questionable, but the prompt states the dock already has power and still provides no function—pointing to dock failure. Reinstalling the OS is excessive and unlikely because charging through a dock is not primarily OS-dependent. Rolling back BIOS updates is also not indicated because the issue persists despite current firmware and there is no evidence the BIOS update caused it.

Unexpected system shutdowns that occur after a few minutes of activity—especially during resource-intensive tasks such as virtual meetings—are a strong indicator of overheating. According to CompTIA Core 1 (220-1201) laptop and hardware troubleshooting objectives, thermal issues commonly cause systems to power off automatically to prevent hardware damage.

Virtual meeting applications place sustained load on the CPU and GPU, increasing heat output. If the cooling system is malfunctioning (dust buildup, failed fan, dried thermal paste), the CPU temperature can rise rapidly and trigger a thermal shutdown. Checking the CPU temperature in the BIOS or UEFI is an appropriate first step to confirm whether overheating is occurring.

Running the application in safe mode or switching applications does not address the root hardware issue. Verifying the battery charge is unlikely to resolve repeated shutdowns that occur only after several minutes of operation.

CompTIA emphasizes identifying environmental and thermal causes early in the troubleshooting process, especially when symptoms are repeatable and load-dependent.

A bulge under the trackpad on a laptop is a strong and well-known indicator of a swollen lithium-ion battery. According to CompTIA Core 1 (220-1201) mobile device hardware and troubleshooting objectives, laptop batteries are often located directly beneath the palm rest or trackpad area. When a lithium-ion battery begins to fail, it can swell due to internal chemical reactions, causing physical deformation of nearby components.

This swelling can interfere with the normal operation of the trackpad, leading to cursor control issues, clicking problems, or unresponsive behavior. More importantly, a swollen battery presents a serious safety risk, including the potential for overheating, leakage, or fire. For this reason, CompTIA emphasizes that battery replacement should be the first corrective action when physical swelling is observed.

Replacing the trackpad would not resolve the underlying pressure caused by the expanding battery. The motherboard and heat sink are unrelated to the physical bulge and cursor control symptoms described. Proper troubleshooting requires identifying and addressing the root cause, not the secondary symptom.

CompTIA best practices also stress safe handling and immediate replacement of damaged or swollen batteries to prevent further hardware damage or personal injury.

If a desktopfails to power on entirely, the most probable cause is afaulty Power Supply Unit (PSU). If there are no lights, fans, or POST beeps, the PSU may have failed, cutting off all power to the motherboard and components.

Option B (GPU):Could prevent video output, but the system would still power on and beep.

Option C (RAM):Missing or faulty RAM would cause POST errors but not prevent startup entirely.

Option D (CPU):A bad CPU may cause POST failure, but the system would usually at least power on.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

===========

A spam gateway is specifically designed to inspect incoming email and prevent unwanted or malicious messages from reaching users’ inboxes. It can analyse sender reputation, message content, attachments, URLs, headers, and known spam patterns. Messages identified as spam, phishing, or malware can be rejected, quarantined, or marked before reaching the mail server or user. A proxy server primarily intermediates web or network requests and may provide URL filtering, but it is not primarily responsible for email filtering. An intrusion detection system monitors network or system activity for suspicious behaviour and generates alerts rather than directly filtering ordinary unwanted email. A firewall controls network traffic according to addresses, protocols, and ports, but it generally cannot perform the detailed email-content inspection provided by a dedicated spam gateway. Therefore, the spam gateway is the purpose-built solution.

A. Run the maintenance application:

Most modern printers include a built-in maintenance application that can calibrate the print heads and correct alignment issues. Running this tool is the first step to address misalignment.

Incorrect Options:

B. Clean the rollers: Cleaning rollers is typically done to resolve paper feed or jamming issues, not alignment problems.

C. Upgrade the firmware: While updating firmware is beneficial for performance improvements, it is not the first step for fixing alignment.

D. Reinstall the drivers: Misaligned printing is usually hardware-related, not a driver issue.

Key Takeaway: The maintenance application should be run first to resolve alignment issues in a newly installed printer.

When port issues persist after moving to a different switch port, the next logical troubleshooting step is to test the patch cable. Faulty or damaged cables are a common cause of network connectivity problems. Using a cable tester between the computer and the network closet verifies the integrity of the cable and rules out a physical layer issue.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.2 – Troubleshoot wired and wireless networks:

“If a device continues to experience connectivity issues after switching ports, test the cabling with a cable tester to check for continuity, shorts, or pinout issues before replacing hardware.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting Network Connectivity

CompTIA Exam Objectives 220-1101, Domain 4.2

============

A blinking orange light typically indicates a failed hard drive in the RAID array. In RAID 1 (mirroring), you can replace the failed drive and rebuild the array without data loss.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – RAID configuration and troubleshooting:

" In the event of a hard drive failure in RAID 1, replace the failed disk and allow the array to rebuild using the remaining mirrored disk. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: RAID and Storage

CompTIA Exam Objectives 220-1101, Domain 3.4

============

CompTIA A+ teaches that vertical lines on scanned or copied documents but not printed documents indicate a dirty or smudged scanner glass or ADF glass strip. Dust, ink smears, or debris create a line because the scanning sensor repeatedly passes over the same contaminated area.

If printing works normally, internal printer components such as the transfer roller or pickup rollers are not at fault. Maintenance kits apply to internal wear components like rollers, belts, or fusers not scanning artifacts.

Cleaning the scanner glass or ADF strip directly addresses this common problem. The A+ exam frequently includes troubleshooting questions about print vs. scan artifacts, and this scenario is a classic example.

Therefore, the correct solution is to clean the glass bed (or ADF strip).

A power-redundant server typically has two power supplies so the system can continue operating if one power supply or one power feed fails. To gain the full benefit of redundancy, each PSU should be connected to independent power sources—commonly separate PDUs that are backed by different UPS units (and ideally separate circuits). This design removes a single point of failure: if one UPS

Comprehensive and Detailed 150 to 250 words of Explanation From CompTIA Core 1 Knowledge trips, fails, or is taken offline for maintenance, the other UPS still provides power and the server stays online.

Option C is best because it explicitly describes distributing the connections across different UPSs, which is the correct redundancy practice in a rack environment. Option A defeats redundancy because a single outlet/UPS failure would still bring the server down. Option B also wastes redundancy and can cause immediate downtime if the connected PSU fails, since the second PSU isn’t actively providing standby power. Option D still leaves a single UPS as the single point of failure. Therefore, splitting the two PSU power cords across separate UPS-backed outlets is the best approach.

The most likely cause isthird-party or ill-fitting casesobstructing the contact between the stylus and the tablet charging mechanism. Some cases may not be designed with stylus charging in mind, particularly if users are purchasing their own accessories.

Option B:A software update might fix OS-related issues, but would not typically affect physical charging.

Option C:If some devices had defects, the issue would likely be consistent, not isolated to some users.

Option D:Firmware issues could be a factor but are less likely than physical obstructions when users are using different accessories.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

To run Secure Boot, the system must have:

✔ UEFI firmware (not legacy BIOS)

Secure Boot is a UEFI feature that validates bootloaders using digitally signed keys stored in secure firmware.

✔ TPM (Trusted Platform Module)

The TPM stores cryptographic keys in tamper-resistant hardware, enabling secure key management that cannot be altered by normal users.

CompTIA materials describe TPM as essential for enhanced platform security and for storing validated boot keys when Secure Boot is enabled.

Together, UEFI + TPM provide:

Verified boot loader

Hardware-level key protection

Prevention of unauthorized OS tampering

Non-user-controllable secure key storage

Why the other options are incorrect

A. VDI – Virtual desktops; unrelated to Secure Boot hardware requirements.

B. BIOS password – Helps protect firmware settings but is not required for Secure Boot.

E. Disabled boot drive – Irrelevant to Secure Boot.

F. USB permissions – Not part of Secure Boot requirements.

Final Answer: C, D

When a printer refuses to use paper that is physically present in the tray, CompTIA A+ identifies tray configuration settings as the most likely cause. Printers require a match between tray settings (paper size, paper type, orientation) and the incoming print job’s specifications. If the tray is incorrectly configured—such as being set to Letter (8.5×11 in) or A4—then the printer will keep prompting for the correct paper even though 11×17 paper is loaded.

The fact that the technician successfully prints the same diagram on another identical printer proves that the driver, print job format, and user permissions are correct. This isolates the issue to the local printer’s configuration. Incorrect drivers (B) would affect printing on both printers. Connectivity issues (C) would prevent printing entirely, not cause paper prompts. Permissions (D) do not affect paper-size recognition.

Therefore, the most likely cause is improper tray settings on the user’s printer.

In Wi-Fi, the 2.4GHz band contains 14 total channels (depending on region), but only channels 1, 6, and 11 are considered non-overlapping in most countries. CompTIA A+ highlights the importance of selecting these channels to minimize interference, especially in environments with multiple wireless networks or access points.

The 2.4GHz band is narrower than 5GHz, causing adjacent channels to overlap significantly. Using channels 1, 6, and 11 prevents overlap and reduces signal interference, improving performance and stability.

5GHz (B) has many non-overlapping channels and does not use the 1/6/11 scheme. The 6GHz band (C) is part of Wi-Fi 6E and uses entirely different channel planning. The 60GHz band (D) supports short-range high-speed connections like WiGig, not traditional Wi-Fi channels.

Therefore, the 2.4GHz band is the correct answer.

An IP address in the 169.254.x.x range indicates the device has assigned itself an APIPA address (Automatic Private IP Addressing). This happens when the device is configured to obtain an IP address automatically but cannot reach a DHCP server to receive a valid IP configuration for the local network. With an APIPA address, the device can sometimes communicate only with other devices in the same 169.254.x.x range on the local link, but it typically will not have a correct default gateway or DNS server settings. Without a valid gateway, the device cannot route traffic to the internet, which explains why it cannot access internet websites.

Option C is therefore the most likely cause: the DHCP assignment cannot be obtained due to issues such as a disconnected network cable, disabled Wi-Fi, DHCP server outage, VLAN misconfiguration, or a blocked DHCP request/response on the network.

Option B (DNS failure) could prevent name resolution, but it would not by itself cause an APIPA address. Option A suggests a static configuration problem, yet APIPA usually appears when the device is set to DHCP, not static. Option D could also break internet access, but it would not specifically result in a 169.254 address on the client.

Comprehensive and Detailed Explanation

The wireless environment is crowded, and the office is using:

WEP encryption → obsolete, insecure, and supported only by outdated hardware

Default channel → likely causes interference in a busy area

CompTIA A+ emphasizes:

WEP should be replaced with WPA2 or WPA3

Older APs that only support WEP cannot simply be updated

Newer APs also allow dual-band / multiple channels to avoid interference

Therefore, the best solution is:

✔ Replace the access point with a modern WPA2/WPA3-capable AP that supports improved channel selection.

Why the other options are incorrect

B. Disabling SSID broadcast – Does nothing for performance or security.

C. MAC filtering – Ineffective for performance and easily bypassed.

D. Updating firmware – Cannot upgrade WEP hardware to WPA2/3 if hardware limitations exist.

Final Answer: A

ECC (Error-Correcting Code) RAM is commonly used in servers to provide error detection and correction, improving reliability in critical systems. It is designed to detect and correct single-bit errors, ensuring data integrity in environments where stability is paramount.

Option A (SODIMM): Incorrect. SODIMM is typically used in laptops, not servers.

Option B (Rambus): Incorrect. Rambus is an outdated RAM type and not commonly used today.

Option C (DDR3): Incorrect. While DDR3 is a type of RAM, it is not specific to servers and does not provide error correction.

Single-mode fiber (as well as multi-mode fiber) transmits data using beams of light, allowing for high-speed data transfer over flexible fiber-optic cables.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.1 – Networking media:

“Fiber optic cables transmit data using light. Single-mode fiber is used for long-distance, high-speed communication.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Media

CompTIA Exam Objectives 220-1101, Domain 2.1

============

Excessive heat buildup due to insufficient cooling is a primary cause of unexpected shutdowns. A high-performance heat sink improves thermal transfer, dissipates more heat, and helps maintain CPU temperature within safe limits. When CPU temperatures reach levels like 208°F (98°C), the system may shut down to prevent damage.

Comprehensive and Detailed Explanation From Exact Extract:

MDM (Mobile Device Management) enforces security policies, such as encryption, remote wipe, and access control. It could have remotely wiped the device or locked it down to prevent data theft.

Mobile Application Management (MAM) enforces policies restricting access to apps and services based on location, ensuring security at external sites.

Why Not A (MOW): " Mobile Only Workplace " (MOW) is not a recognized term in this context.

Why Not B (MAN): Metropolitan Area Network (MAN) is unrelated to mobile device policies.

Why Not C (MFA): Multi-Factor Authentication secures user accounts but does not enforce app restrictions.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.7, mobile device security policies​.

Firewalls are specifically designed to monitor, filter, and control network traffic using Access Control Lists (ACLs). ACLs define which traffic is allowed or denied based on parameters like IP address, protocol, or port.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Networking hardware and security:

“Firewalls use access control lists (ACLs) to allow or deny traffic based on rules. Unmanaged switches and PoE injectors do not support ACLs.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Security Devices

CompTIA Exam Objectives 220-1101, Domain 2.2

============

CompTIA A+ emphasizes that satellite internet connections inherently suffer from extremely high latency because the data must travel from the user ' s antenna to satellites orbiting tens of thousands of miles above Earth and back. Although satellite systems offer broad geographic coverage, this long travel distance introduces noticeable delays often 500ms or more.

Fiber, cable, and DSL operate through terrestrial wiring and have far lower latency due to short signal paths. Fiber, in particular, is the fastest and lowest-latency connection type.

Satellite delay significantly impacts VoIP calls, video conferencing, online gaming, and real-time applications. The A+ exam specifically notes latency as a major performance characteristic of satellite service, distinguishing it from other broadband technologies.

A. Check the product manual for the procedure:

When hardware is not easily accessible, always consult the product manual for proper disassembly procedures. Forcing the cover can damage the laptop or void the warranty.

Product manuals often provide step-by-step instructions for safely accessing internal components.

Incorrect Options:

B. Use a pry tool to force the cover open: Forcing the cover can cause physical damage to the device.

C. Insert the wireless card into the M.2 slot: This step cannot be performed until the cover is properly removed.

D. Try to move the cover by sliding it in all directions: Randomly sliding the cover can cause damage if the correct removal method is not followed.

Key Takeaway: Always refer to the product manual to ensure safe and proper disassembly of laptop components.

High resource usage along with frequentpop-upsare strong signs of amalware infection. The next logical step is toupdate anti-malware definitionsandrun a full scanto detect and remove threats.

Option A:Network performance is likely not the root cause local system behavior points to malware.

Option B:Drivers affect hardware functionality; they don’t resolve malware-related slowness.

Option D:DHCP issues usually cause IP conflicts or no network access, not CPU spikes or pop-ups.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.2: Given a scenario, detect, remove, and prevent malware using appropriate tools and methods.

Port 22 is used by SSH (Secure Shell), which is the standard protocol for secure remote administration of network devices such as switches, routers, firewalls, and Linux-based systems. CompTIA A+ Core 1 emphasizes knowing common ports and selecting secure management methods. SSH provides encrypted communication for both authentication and the session data, protecting usernames, passwords, and command output from being intercepted by packet sniffers. This makes it the preferred choice over older remote access methods.

In contrast, port 23 is Telnet, which is also used for remote terminal access but sends traffic in cleartext, making it insecure and generally discouraged in modern environments. Port 21 is FTP control traffic, used for file transfers and typically not secure unless paired with FTPS or replaced by SFTP (which actually runs over SSH on port 22). Port 25 is SMTP, used for sending email between mail servers and is unrelated to remote device management. Therefore, for secure remote access to a network device, SSH on port 22 is the correct answer.

The correct DNS record used to map a device to an IPv6 address is the AAAA record. According to CompTIA Core 1 (220-1201) networking fundamentals, DNS uses different record types to associate domain names with specific resources, and each record type serves a distinct purpose.

An AAAA (Quad-A) record maps a fully qualified domain name (FQDN) to an IPv6 address, which is a 128-bit address written in hexadecimal format. As IPv6 adoption increases to address IPv4 exhaustion, CompTIA expects technicians to understand how DNS supports both addressing schemes.

An A record maps a hostname to an IPv4 address only and cannot be used for IPv6. A CNAME record creates an alias that points one domain name to another domain name, not directly to an IP address. An MX record is used for mail server routing and email delivery, not for host address resolution.

CompTIA emphasizes knowing DNS record types and their specific use cases, especially distinguishing between A vs. AAAA records when working with IPv4 and IPv6 networks. When the requirement is explicitly to map a device to an IPv6 address, the AAAA record is the correct and only valid choice.

Software as a Service (SaaS) provides users access to fully managed applications hosted in the cloud. CompTIA A+ explains that SaaS is subscription-based and typically billed monthly or annually, which aligns perfectly with the phrase “recurring fee.” Business productivity applications—such as Microsoft 365, Google Workspace, Zoom, Slack, and Salesforce—are classic examples of SaaS offerings.

SaaS applications run entirely in the provider’s cloud environment, eliminating the need for installation, maintenance, or management by the customer. This makes SaaS ideal for businesses that need reliable, scalable tools without maintaining their own infrastructure.

DaaS (Desktop as a Service) provides virtual desktops.

PaaS (Platform as a Service) offers a development framework for building applications.

IaaS (Infrastructure as a Service) provides virtual servers, storage, and networking—not end-user productivity apps.

Thus, SaaS is the correct and only model that matches the description of subscription-based access to productivity applications.

Comprehensive and Detailed Step-by-Step Explanation:

When delivering 10Gbps speeds over long distances, fiber optic cables are the best choice. Here’s the breakdown:

A. Multimode Fiber (Correct Answer):

Multimode fiber is designed for relatively short to medium distances (up to 1,312 feet or 400 meters) while supporting high-speed data transfer (10Gbps and above).

It uses LED light sources and is cost-effective for environments like data centers or within buildings.

For the specified distance of over 328ft but under 1,312ft, multimode fiber is the most suitable option.

Incorrect Options:

B. Single-mode Fiber: While single-mode fiber supports much greater distances (up to several miles or kilometers) and higher speeds, it is more expensive and unnecessary for the specified range. Single-mode fiber is generally used for long-haul networking or telecommunications.

C. Cat 6a: Cat 6a is capable of 10Gbps speeds but only up to 328ft (100 meters). It cannot reliably handle the specified distance of over 328ft.

D. Cat 6: Cat 6 is also limited to 10Gbps speeds at distances up to 328ft (100 meters). Beyond this range, it is unsuitable.

Key Takeaway:

For delivering 10Gbps speeds over distances longer than 328ft (100m) but under 1,312ft (400m), Multimode Fiber is the best choice due to its ability to support high-speed data over medium distances at a reasonable cost.

Application virtualization allows legacy software to run in a virtualized environment while the operating system remains current. It isolates the application from the OS, ensuring compatibility without downgrading the OS.

Why Not A (Shared resources): This relates to resource sharing, not application compatibility.

Why Not B (System sandbox): Sandboxes isolate applications for security testing, not compatibility.

Why Not C (Test development): Test environments are used for development, not running legacy applications.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 4.2, virtualization concepts​.

A container is the ideal environment for software testing when access to the underlying operating system must be restricted. CompTIA A+ explains that containers isolate applications from the host OS by packaging the app and all its dependencies into a controlled environment. This prevents the application from modifying or interfering with the host system and ensures predictable, consistent behavior across environments.

Unlike virtual machines, containers do not include a full OS installation; they share the host OS kernel but run in isolated user-space environments. This makes them lightweight, fast to deploy, and secure—perfect for developers testing new or potentially unstable applications.

A Type 2 hypervisor hosts full virtual machines but does not inherently limit OS access. A VDI provides remote desktops but is not designed for controlled application testing. A quarantined PC is used for isolating infected or suspicious systems, not structured development testing.

Thus, containers provide the controlled, restricted environment required.

When a workstation automatically assigns itself an IP address that is not part of the DHCP lease pool, the system has most likely configured an APIPA (Automatic Private IP Addressing) address. According to CompTIA Core 1 (220-1201) networking fundamentals, APIPA addresses fall within the range 169.254.0.0/16 and are assigned when a device cannot communicate with a DHCP server.

APIPA allows limited local network communication but does not provide access to the internet or network resources such as internal file shares that require routing or proper IP configuration. This explains why the workstation experiences connectivity issues.

A static IP address is manually configured and would not be automatically assigned. A DHCP address would come from the defined lease pool, which the technician has confirmed is not the case. A public IP address is assigned by an ISP and is not used directly on internal workstations.

CompTIA highlights APIPA as a key troubleshooting indicator of DHCP failure or network connectivity issues, making it the correct answer.

If only one key is not functioning and debris has been checked, replacing the individual keycap is the most cost-effective next step. It ' s a simple, low-cost option before considering more extensive repairs like replacing the entire keyboard.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

CompTIA networking fundamentals describe VLANs (Virtual Local Area Networks) as a method to segment network traffic logically, even while using the same physical switch hardware.

A VLAN allows a company to:

Separate traffic by department

Improve security

Reduce broadcast domains

Control inter-department access

To separate accounting and customer service networks, VLANs are the industry-standard and the CompTIA-approved method.

Why the other options are incorrect

A. VPN – Used for secure remote connections, not internal LAN segmentation.

B. DNS – Resolves hostnames to IPs, not used for network separation.

D. DHCP – Assigns IP addresses; does not isolate network groups.

Final Answer: C

Comprehensive and Detailed Step-by-Step Explanation:

LC Connector (Lucent Connector):

LC is a type of fiber optic connector commonly used in optical networking cables. It is small, compact, and widely used for high-speed data transfer over fiber optic networks.

LC connectors are specifically designed for fiber optic cables, making them the correct answer.

Incorrect Options:

A. RJ45: RJ45 connectors are used for Ethernet cables (twisted-pair copper cabling) and are not compatible with optical networking cables.

C. USB-C: USB-C is a connector type used for general-purpose data transfer, charging, and video output, not for optical networking.

D. Lightning: Lightning connectors are proprietary to Apple devices and are not used in optical networking.

Key Takeaway:

The LC connector is specifically designed for fiber optic cables, making it the correct answer for optical networking.

Laptop display assemblies typically include not only the LCD panel but also the webcam, microphone, display cable, and critically, the Wi-Fi antennas. In most laptops, Wi-Fi antennas are built into the display bezel, because the elevated position allows for stronger wireless signal reception. When replacing the entire display assembly, the antennas must be carefully disconnected and reconnected during reinstallation.

CompTIA A+ emphasizes proper cable routing and antenna reattachment as essential steps in laptop hardware disassembly and reassembly. Failing to reconnect these antennas results in weak or nonfunctional wireless connectivity, even though the display replacement itself may be successful.

Heat sinks and CPU fans are located on the motherboard and are unrelated to display assembly replacement. Resetting BIOS settings is unnecessary unless troubleshooting firmware-related issues, not replacing hardware components like a display. Therefore, the only action that aligns with standard laptop design and CompTIA A+ procedures is ensuring that the wireless antennas are reconnected.

Thus, the correct answer is B.

A hybrid cloud combines on-premises infrastructure with public cloud services. One significant advantage is that it allows organizations to keep sensitive data in a private environment to meet regulatory or data residency requirements, while still utilizing the scalability and cost-efficiency of the public cloud for other workloads. This ensures compliance with legal mandates about data location.

802.11ac is a Wi-Fi standard that primarily operates in the 5GHz band and is known for higher throughput and improved performance compared with older 2.4GHz-focused standards. In CompTIA A+ Core 1 networking objectives, you are expected to recognize which IEEE 802.11 standards map to which frequency bands and the typical trade-offs. The 5GHz band generally provides more available non-overlapping channels and less interference from common household devices (like microwaves and many Bluetooth peripherals), which can improve real-world performance. While 5GHz typically has shorter range and weaker wall penetration than 2.4GHz, it often delivers better speeds in the same-room or nearby-room scenarios, which aligns with how 802.11ac is commonly deployed.

Bluetooth primarily uses the 2.4GHz ISM band and is designed for short-range personal area networking rather than high-speed WLAN connections. NFC operates at 13.56MHz for very short-range tap-based communications. RFID can operate at several bands (low frequency, high frequency, ultra-high frequency) depending on the use case, but it is not a Wi-Fi networking standard and does not “primarily” operate at 5GHz. Therefore, the correct answer is 802.11ac.

A switch is designed to connect multiple devices within the same local network so they can communicate efficiently. In a typical LAN, a switch provides multiple Ethernet ports and forwards traffic between connected devices by using MAC addresses. When a frame enters a switch port, the switch learns the source MAC address and associates it with that port in a MAC address table. When the destination MAC is known, the switch sends the frame only out the correct port, which reduces unnecessary traffic and improves performance compared to older hub-based networks. This is exactly what is meant by allowing multiple network devices to communicate “across a single platform” (the switching fabric).

A NIC is an adapter in an endpoint device that provides network connectivity, but it does not interconnect multiple devices by itself. A firewall focuses on filtering and controlling traffic based on security rules, not primarily on providing multi-device LAN connectivity. Routers connect different networks and forward traffic based on IP addresses (Layer 3), which is not the primary device for multi-device communication within the same network segment. Therefore, the correct answer is Switch.

Refresh rate is the most relevant display attribute for reducing perceived motion blur and improving motion smoothness in fast-paced video or gaming. Refresh rate, measured in hertz, indicates how many times the display can update the image each second. A 120Hz or 144Hz display can present more individual frames per second than a 60Hz display, producing smoother movement and making rapidly moving objects easier to follow. Response time also affects ghosting because it measures how quickly pixels change from one state to another, but refresh rate is the broader attribute governing how frequently new frames are displayed. Resolution controls the number of pixels and therefore image detail, not motion smoothness. Color accuracy determines how faithfully colours are reproduced and does not directly reduce blur. For the best result, a high refresh rate should be paired with a low pixel-response time.

GigabitEthernet interfaces are capable of 1000 Mbps, but the actual link speed is determined by negotiation between the switch port and the connected device, along with the quality/type of cabling. In this configuration, Sales and CustomerService ports are manually set to speed 1000 and duplex full, which forces gigabit operation. However, the Marketing port is set to speed auto and duplex auto. If the connected endpoint, patch cable, wall jack, or intermediate wiring for Marketing cannot support gigabit (or has a termination problem), the link may auto-negotiate down to 100 Mbps or 10 Mbps. That creates a clear performance bottleneck for that department compared to the other two ports running at 1 Gbps.

The IP addresses shown are consistent within the same /24 network and do not indicate an obvious addressing problem, so “incorrect IP addresses” is unlikely. “Subnet error” is not supported by the given config, and Cat 5e is generally capable of gigabit at typical distances, so “outdated” cable is not the best explanation from these choices. The most likely cause is Marketing running at 10/100 due to negotiation.

The virtualization platform described matches the characteristics of containers. According to CompTIA Core 1 (220-1201) virtualization concepts, containers are lightweight virtualization solutions that share the host operating system and kernel, rather than running separate guest operating systems. This design allows containers to start almost instantly and be deployed rapidly, making them highly efficient and scalable.

Because containers share kernel resources, they use significantly fewer system resources compared to traditional virtual machines. However, this also results in limited isolation, since applications are not fully separated at the OS level. This tradeoff is a defining characteristic of container-based virtualization.

A Type 1 hypervisor runs directly on hardware and hosts fully isolated virtual machines, each with its own operating system, which does not align with the shared OS and kernel described. A virtual machine also includes a full guest OS, leading to slower startup times and greater resource usage. A virtual desktop refers to user desktop virtualization, not application-level virtualization.

CompTIA highlights containers as an example of application virtualization that prioritizes speed, efficiency, and portability over complete isolation.

The requirements describe an environment transitioning gradually from on-site hardware to scalable cloud services. The business wishes to continue using its existing local equipment until end of life, while also expanding computing resources beyond what the on-premises infrastructure can handle. Additionally, the cloud environment must be able to share data with the internal data center.

This aligns perfectly with a hybrid cloud model, which CompTIA A+ defines as a combination of private (on-premises) and public cloud resources operating together. Hybrid cloud enables secure data sharing, workload distribution, and scaling without eliminating existing hardware investments. It allows organizations to offload high-demand processes to the cloud while maintaining sensitive data or critical services on-site.

A private cloud (D) would not allow scaling into a public provider efficiently. A public cloud (A) replaces internal resources instead of complementing them. A community cloud (B) is shared among organizations with similar compliance requirements—not applicable here. SaaS (E) refers to hosted applications, not infrastructure scalability.

Thus, a Hybrid cloud model fulfills all stated requirements: seamless data sharing, scalable computing, and continued use of on-site equipment.

Large electrical motors can emit electromagnetic interference (EMI), which can disrupt wireless signals and prevent connectivity.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.4 – Wireless troubleshooting:

“Sources of external interference such as motors or other electrical equipment can disrupt wireless network connectivity.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 2.4

============

An SSD (Solid-State Drive) is the correct choice because it stores data using flash memory (NAND) and is commonly available in large capacities suitable for operating systems, applications, and mass storage. In CompTIA A+ Core 1 terms, SSDs contain no moving parts, which makes them faster and more reliable than mechanical drives for many workloads. They provide significantly improved read/write performance, lower latency, reduced heat output, and better shock resistance—important for both desktops and especially laptops. SSDs are also widely used in modern systems via SATA or NVMe (PCIe) interfaces, with NVMe offering the highest performance for large data transfers.

The other options do not match “flash memory”: DVD-RW is optical media with limited capacity and slower speeds, intended for removable storage rather than large-volume primary storage. An HDD can store large volumes of data but uses magnetic platters and moving heads, not flash memory. Tape is also magnetic media, typically used for backups and archival storage, and while it can store large amounts, it does not use flash and is designed for sequential access rather than fast random access. Therefore, SSD is the best answer.

A DHCP reservation ensures a specific device always receives the same IP address from the DHCP server whenever it requests an address. The reservation is typically created by associating the device’s MAC address with a chosen IP address inside the DHCP scope. When that device connects and performs the DHCP process, the server recognizes the MAC address and offers the reserved IP instead of assigning the next available dynamic address. This is commonly used for devices that benefit from consistent addressing (for example, printers, servers, or network appliances) while still centrally managing addressing through DHCP rather than configuring a manual static IP on the endpoint.

An exclusion is the opposite idea: it defines a range of IP addresses within a scope that the DHCP server will not hand out (often because those addresses are used for statically assigned devices). A lease is the time period that a dynamically assigned IP address is valid before it must be renewed; it does not guarantee the same IP every time. A scope is the overall pool/range of IP addresses and DHCP options (gateway, DNS, etc.) available for a given subnet. Therefore, the component that guarantees the same IP is a reservation.

From the configuration, the Sales and Customer Service ports are hard-set to full duplex, 1000 Mbps, while the Marketing interface (GigabitEthernet0/3) is set to duplex auto and speed auto. CompTIA A+ explains that mismatched or lower-negotiated speeds and duplex settings can cause noticeable network slowdowns, collisions, and retransmissions—especially at busy times of the day when utilization is high.

Because all cabling is Cat 5e, it fully supports Gigabit Ethernet, so the cabling is not the limiting factor. The IP addresses are all in the same subnet (192.168.1.0/24) and formatted correctly, so there is no subnet or addressing problem. That rules out options A and C.

With speed auto, the Marketing port may be negotiating only 10/100 Mbps, or even a duplex mismatch (e.g., half duplex vs full). This would severely limit throughput compared to the gigabit links used by the other departments. In peak periods, that slower link would become congested first, which matches the users’ reports of performance degradation only in Marketing.

Therefore, the most likely cause is that the Marketing interface is operating at 10/100 instead of 1000 Mbps, making option D correct.

Dynamic Host Configuration Protocol (DHCP) is a network service used to automatically assign IP addresses and other network configuration details (such as subnet masks and default gateways) to devices on an enterprise-wide network.

Why Not A (DNS): DNS resolves domain names to IP addresses but does not allocate IP addresses.

Why Not B (Syslog): Syslog is used for logging system events, not IP address management.

Why Not C (Telnet): Telnet is a protocol for remote access, not for IP allocation.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, DHCP concepts​.

Mobile devices can share their LTE or cellular data connection using a feature called tethering, more commonly known as hotspot mode. According to CompTIA A+ objectives on mobile networking technologies, a hotspot allows a smartphone or tablet to become a mini wireless router, broadcasting a Wi-Fi signal that nearby devices can connect to. The LTE (or 5G) connection is then shared over Wi-Fi, enabling laptops, tablets, or other phones to access the internet through the mobile device.

Bluetooth is capable of tethering but provides much lower bandwidth and slower speeds—not ideal for sharing LTE widely. NFC is used for close-range data exchange or payment transactions and cannot share internet service. " Cellular " refers to the phone’s own mobile network connection, not the mechanism for sharing it with others.

Hotspot functionality is specifically built into modern mobile OSs and supports WPA2/3 encryption, password protection, and device whitelisting. This makes it the most common and efficient method to share LTE connectivity with multiple nearby devices.

Thus, Hotspot (D) is the correct answer.
