CKS Certified Kubernetes Security Specialist (CKS) Questions and Answers

Explanation[desk@cli] $vim runtime.yaml

apiVersion: node.k8s.io/v1

kind: RuntimeClass

metadata:

 name: not-trusted

handler: runsc

[desk@cli] $ k apply -f runtime.yaml

[desk@cli] $ k get pods

NAME READY STATUS RESTARTS AGE

nginx-6798fc88e8-chp6r 1/1 Running 0 11m

nginx-6798fc88e8-fs53n 1/1 Running 0 11m

nginx-6798fc88e8-ndved 1/1 Running 0 11m

[desk@cli] $ k get deploy

NAME READY UP-TO-DATE AVAILABLE AGE

nginx 3/3 11 3 5m

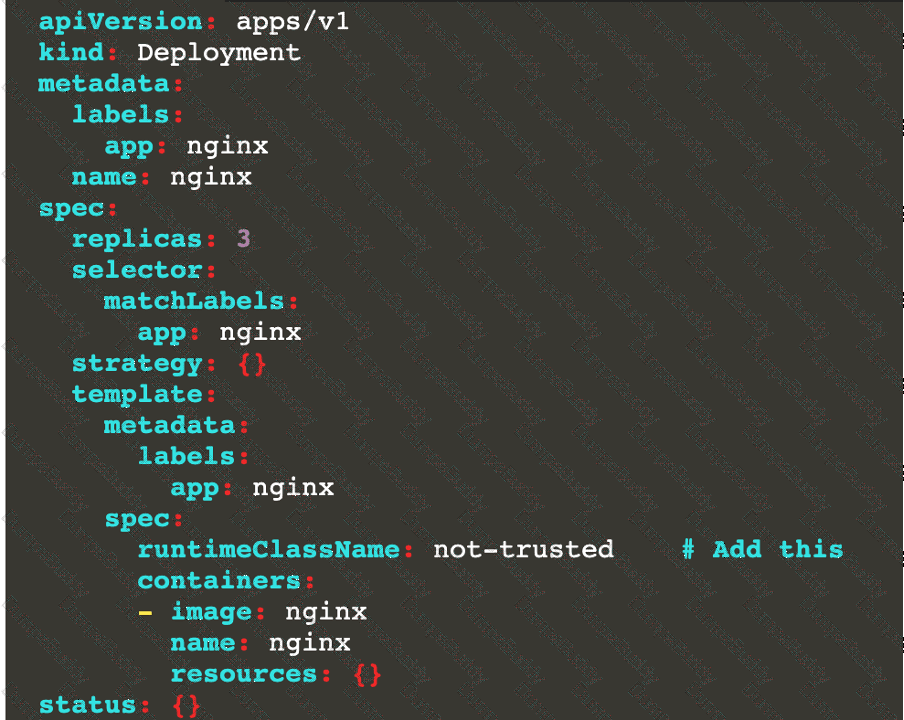

[desk@cli] $ k edit deploy nginx

1) Connect to the correct host

ssh cks000031

sudo -i

2) Use admin kubeconfig (safe default)

export KUBECONFIG=/etc/kubernetes/admin.conf

PART A — Deny ALL ingress traffic in prod namespace

Requirement:

NetworkPolicy name: deny-policy

Namespace: prod (namespace is labeled env=prod)

Effect: block all ingress

3) Create deny-policy in prod

Create the policy directly with kubectl (fastest & safest):

cat <

apiVersion: networking.k8s.io/v1

kind: NetworkPolicy

metadata:

name: deny-policy

namespace: prod

spec:

podSelector: {}

policyTypes:

- Ingress

EOF

✅ What this does:

podSelector: {} → selects all Pods in prod

No ingress: rules → deny all ingress traffic

4) Verify

kubectl -n prod get networkpolicy deny-policy

PART B — Allow ingress to data ONLY from Pods in prod

Requirement:

NetworkPolicy name: allow-from-prod

Namespace: data (namespace is labeled env=data)

Allow ingress only from Pods in prod namespace

Use namespace label (env=prod)

5) Create allow-from-prod policy in data

cat <

apiVersion: networking.k8s.io/v1

kind: NetworkPolicy

metadata:

name: allow-from-prod

namespace: data

spec:

podSelector: {}

policyTypes:

- Ingress

ingress:

- from:

- namespaceSelector:

matchLabels:

env: prod

EOF

✅ What this does:

Applies to all Pods in data

Allows ingress only from namespaces labeled env=prod

All other ingress traffic is denied by default

6) Verify

kubectl -n data get networkpolicy allow-from-prod

FINAL CHECK (What the examiner expects)

kubectl get networkpolicy -n prod

kubectl get networkpolicy -n data

You should see:

deny-policy in prod

allow-from-prod in data

To add a Kubernetes cluster to your project, group, or instance:

Navigate to your:

Project’s Operations > Kubernetes page, for a project-level cluster.

Group’s Kubernetes page, for a group-level cluster.

Admin Area > Kubernetes page, for an instance-level cluster.

Click Add Kubernetes cluster.

Click the Add existing cluster tab and fill in the details:

Kubernetes cluster name (required) - The name you wish to give the cluster.

Environment scope (required) - The associated environment to this cluster.

API URL (required) - It’s the URL that GitLab uses to access the Kubernetes API. Kubernetes exposes several APIs, we want the “base” URL that is common to all of them. For example, https://kubernetes.example.com  rather than https://kubernetes.example.com/api/v1 .

Get the API URL by running this command:

kubectl cluster-info | grep -E 'Kubernetes master|Kubernetes control plane' | awk '/http/ {print $NF}'

CA certificate (required) - A valid Kubernetes certificate is needed to authenticate to the cluster. We use the certificate created by default.

List the secrets with kubectl get secrets, and one should be named similar to default-token-xxxxx. Copy that token name for use below.

Get the certificate by running this command:

kubectl get secret -o jsonpath="{['data']['ca\.crt']}"

Fix all of the following violations that were found against the API server:-

 a. Ensure that the RotateKubeletServerCertificate argument is set to true.

apiVersion: v1

kind: Pod

metadata:

creationTimestamp: null

labels:

component: kubelet

tier: control-plane

name: kubelet

namespace: kube-system

spec:

containers:

- command:

- kube-controller-manager

+ - --feature-gates=RotateKubeletServerCertificate=true

image: gcr.io/google_containers/kubelet-amd64:v1.6.0

livenessProbe:

failureThreshold: 8

httpGet:

host: 127.0.0.1

path: /healthz

port: 6443

scheme: HTTPS

initialDelaySeconds: 15

timeoutSeconds: 15

name: kubelet

resources:

requests:

cpu: 250m

volumeMounts:

- mountPath: /etc/kubernetes/

name: k8s

readOnly: true

- mountPath: /etc/ssl/certs

name: certs

- mountPath: /etc/pki

name: pki

hostNetwork: true

volumes:

- hostPath:

path: /etc/kubernetes

name: k8s

- hostPath:

path: /etc/ssl/certs

name: certs

- hostPath:

path: /etc/pki

name: pki

  b. Ensure that the admission control plugin PodSecurityPolicy is set.

audit: "/bin/ps -ef | grep $apiserverbin | grep -v grep"

tests:

test_items:

- flag: "--enable-admission-plugins"

compare:

op: has

value: "PodSecurityPolicy"

set: true

remediation: |

Follow the documentation and create Pod Security Policy objects as per your environment.

Then, edit the API server pod specification file $apiserverconf

on the master node and set the --enable-admission-plugins parameter to a

value that includes PodSecurityPolicy :

--enable-admission-plugins=...,PodSecurityPolicy,...

Then restart the API Server.

scored: true

c. Ensure that the --kubelet-certificate-authority argument is set as appropriate.

audit: "/bin/ps -ef | grep $apiserverbin | grep -v grep"

tests:

test_items:

- flag: "--kubelet-certificate-authority"

set: true

remediation: |

Follow the Kubernetes documentation and setup the TLS connection between the

apiserver and kubelets. Then, edit the API server pod specification file

$apiserverconf on the master node and set the --kubelet-certificate-authority

parameter to the path to the cert file for the certificate authority.

--kubelet-certificate-authority=

scored: true

Fix all of the following violations that were found against the ETCD:-

a. Ensure that the --auto-tls argument is not set to true

Edit the etcd pod specification file $etcdconf on the master

node and either remove the --auto-tls parameter or set it to false.

--auto-tls=false

b. Ensure that the --peer-auto-tls argument is not set to true

Edit the etcd pod specification file $etcdconf on the master

node and either remove the --peer-auto-tls parameter or set it to false.

--peer-auto-tls=false

$ kubectl get ing -n

NAME HOSTS ADDRESS PORTS AGE

cafe-ingress cafe.com 10.0.2.15 80 25s

$ kubectl describe ing -n

Name: cafe-ingress

Namespace: default

Address: 10.0.2.15

Default backend: default-http-backend:80 (172.17.0.5:8080)

Rules:

Host Path Backends

---- ---- --------

cafe.com

/tea tea-svc:80 ()

/coffee coffee-svc:80 ()

Annotations:

kubectl.kubernetes.io/last-applied-configuration: {"apiVersion":"networking.k8s.io/v1","kind":"Ingress","metadata":{"annotations":{},"name":"cafe-ingress","namespace":"default","selfLink":"/apis/networking/v1/namespaces/default/ingresses/cafe-ingress"},"spec":{"rules":[{"host":"cafe.com","http":{"paths":[{"backend":{"serviceName":"tea-svc","servicePort":80},"path":"/tea"},{"backend":{"serviceName":"coffee-svc","servicePort":80},"path":"/coffee"}]}}]},"status":{"loadBalancer":{"ingress":[{"ip":"169.48.142.110"}]}}}

Events:

Type Reason Age From Message

---- ------ ---- ---- -------

Normal CREATE 1m ingress-nginx-controller Ingress default/cafe-ingress

Normal UPDATE 58s ingress-nginx-controller Ingress default/cafe-ingress

$ kubectl get pods -n

NAME READY STATUS RESTARTS AGE

ingress-nginx-controller-67956bf89d-fv58j 1/1 Running 0 1m

$ kubectl logs -n ingress-nginx-controller-67956bf89d-fv58j

-------------------------------------------------------------------------------

NGINX Ingress controller

Release: 0.14.0

Build: git-734361d

Repository: https://github.com/kubernetes/ingress-nginx

-------------------------------------------------------------------------------

Kubernetes auditing provides a security-relevant chronological set of records about a cluster. Kube-apiserver performs auditing. Each request on each stage of its execution generates an event, which is then pre-processed according to a certain policy and written to a backend. The policy determines what’s recorded and the backends persist the records.

You might want to configure the audit log as part of compliance with the CIS (Center for Internet Security) Kubernetes Benchmark controls.

The audit log can be enabled by default using the following configuration in cluster.yml:

services:

kube-api:

audit_log:

enabled: true

When the audit log is enabled, you should be able to see the default values at /etc/kubernetes/audit-policy.yaml

The log backend writes audit events to a file in JSONlines format. You can configure the log audit backend using the following kube-apiserver flags:

--audit-log-path specifies the log file path that log backend uses to write audit events. Not specifying this flag disables log backend. - means standard out

--audit-log-maxage defined the maximum number of days to retain old audit log files

--audit-log-maxbackup defines the maximum number of audit log files to retain

--audit-log-maxsize defines the maximum size in megabytes of the audit log file before it gets rotated

If your cluster's control plane runs the kube-apiserver as a Pod, remember to mount the hostPath to the location of the policy file and log file, so that audit records are persisted. For example:

--audit-policy-file=/etc/kubernetes/audit-policy.yaml \

--audit-log-path=/var/log/audit.log

[desk@cli] $ k create sa backend-qa -n qa

sa/backend-qa created

[desk@cli] $ k get role,rolebinding -n qa

No resources found in qa namespace.

[desk@cli] $ k create role backend -n qa --resource pods,namespaces,configmaps --verb list

# No access to secret

[desk@cli] $ k create rolebinding backend -n qa --role backend --serviceaccount qa:backend-qa

[desk@cli] $ vim /home/cert_masters/frontend-pod.yaml

apiVersion: v1

kind: Pod

metadata:

 name: frontend

spec:

 serviceAccountName: backend-qa # Add this

  image: nginx

  name: frontend

[desk@cli] $ k apply -f /home/cert_masters/frontend-pod.yaml

pod created

[desk@cli] $ k create sa backend-qa -n qa

serviceaccount/backend-qa created

[desk@cli] $ k get role,rolebinding -n qa

No resources found in qa namespace.

[desk@cli] $ k create role backend -n qa --resource pods,namespaces,configmaps --verb list

role.rbac.authorization.k8s.io/backend created

[desk@cli] $ k create rolebinding backend -n qa --role backend --serviceaccount qa:backend-qa

rolebinding.rbac.authorization.k8s.io/backend created

[desk@cli] $ vim /home/cert_masters/frontend-pod.yaml

apiVersion: v1

kind: Pod

metadata:

 name: frontend

spec:

 serviceAccountName: backend-qa # Add this

  image: nginx

  name: frontend

[desk@cli] $ k apply -f /home/cert_masters/frontend-pod.yaml

pod/frontend created

https://kubernetes.io/docs/tasks/configure-pod-container/configure-service-account/

Create psp to disallow privileged container

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

 name: deny-access-role

rules:

- apiGroups: ['policy']

 resources: ['podsecuritypolicies']

 verbs:     ['use']

 resourceNames:

 - “deny-policy”

k create sa psp-denial-sa -n development

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRoleBinding

metadata:

 name: restrict-access-bing

roleRef:

 kind: ClusterRole

 name: deny-access-role

 apiGroup: rbac.authorization.k8s.io

subjects:

- kind: ServiceAccount

 name: psp-denial-sa

 namespace: development

Explanationmaster1 $ vim psp.yaml

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: deny-policy

spec:

privileged: false # Don't allow privileged pods!

seLinux:

rule: RunAsAny

supplementalGroups:

rule: RunAsAny

runAsUser:

rule: RunAsAny

fsGroup:

rule: RunAsAny

volumes:

- '*'

master1 $ vim cr1.yaml

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

 name: deny-access-role

rules:

- apiGroups: ['policy']

 resources: ['podsecuritypolicies']

 verbs:     ['use']

 resourceNames:

 - “deny-policy”

master1 $ k create sa psp-denial-sa -n development

master1 $ vim cb1.yaml

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRoleBinding

metadata:

 name: restrict-access-bing

roleRef:

 kind: ClusterRole

 name: deny-access-role

 apiGroup: rbac.authorization.k8s.io

subjects:

# Authorize specific service accounts:

- kind: ServiceAccount

 name: psp-denial-sa

 namespace: development

master1 $ k apply -f psp.yaml

master1 $ k apply -f cr1.yaml

master1 $ k apply -f cb1.yaml

kubesec scan k8s-deployment.yaml

cat < kubesec-test.yaml

apiVersion: v1

kind: Pod

metadata:

name: kubesec-demo

spec:

containers:

- name: kubesec-demo

image: gcr.io/google-samples/node-hello:1.0

securityContext:

readOnlyRootFilesystem: true

EOF

kubesec scan kubesec-test.yaml

docker run -i kubesec/kubesec:512c5e0 scan /dev/stdin < kubesec-test.yaml

kubesec http 8080 &

[1] 12345

{"severity":"info","timestamp":"2019-05-12T11:58:34.662+0100","caller":"server/server.go:69","message":"Starting HTTP server on port 8080"}

curl -sSX POST --data-binary @test/asset/score-0-cap-sys-admin.yml http://localhost:8080/scan

[

{

"object": "Pod/security-context-demo.default",

"valid": true,

"message": "Failed with a score of -30 points",

"score": -30,

"scoring": {

"critical": [

{

"selector": "containers[] .securityContext .capabilities .add == SYS_ADMIN",

"reason": "CAP_SYS_ADMIN is the most privileged capability and should always be avoided"

},

{

"selector": "containers[] .securityContext .runAsNonRoot == true",

"reason": "Force the running image to run as a non-root user to ensure least privilege"

},

// ...

1) Connect to the correct host

ssh cks000036

sudo -i

export KUBECONFIG=/etc/kubernetes/admin.conf

2) Confirm the failing Pods + see the PSA error (fast)

kubectl -n confidential get deploy

kubectl -n confidential get pods

kubectl -n confidential describe deploy | sed -n '/Events/,$p'

(You’ll usually see “violates PodSecurity ‘restricted’ …” with the exact missing fields.)

3) Edit the provided manifest

vi /home/candidate/nginx-unprivileged.yaml

You must ensure the Pod template becomes compliant. Add/ensure the following exact blocks:

4) Add Pod-level securityContext (under spec.template.spec)

Find:

spec:

template:

spec:

Add this block under it (or merge if securityContext: already exists):

securityContext:

runAsNonRoot: true

runAsUser: 65535

seccompProfile:

type: RuntimeDefault

5) Add Container-level securityContext (under the nginx container)

Find:

containers:

- name: ...

image: ...

Under that container, add (or adjust) this exact block:

securityContext:

allowPrivilegeEscalation: false

readOnlyRootFilesystem: true

capabilities:

drop:

- ALL

If there are multiple containers, apply the same container securityContext to each one.

Save and exit:

wq

6) Apply the manifest to the confidential namespace

kubectl -n confidential apply -f /home/candidate/nginx-unprivileged.yaml

Wait rollout:

kubectl -n confidential rollout status deployment/

If you don’t know the deployment name from the file, list:

kubectl -n confidential get deploy

7) Verify Pods are running

kubectl -n confidential get pods -o wide

If still failing, show the exact PSA violation (this tells you what else to fix):

kubectl -n confidential describe pod | sed -n '/Events/,$p'

Quick “if it still fails” fixes (common restricted blockers)

Open the manifest again and ensure these are NOT set (or are removed/false):

hostNetwork: true

hostPID: true

hostIPC: true

any hostPort:

privileged: true

capabilities.add:

seccompProfile: Unconfined

runAsUser: 0 or runAsNonRoot: false

Then re-apply.

Minimal compliant result (what the grader expects)

Your Pod template should include:

seccompProfile: RuntimeDefault

runAsNonRoot: true (and a non-root UID like 65535)

container: allowPrivilegeEscalation: false

container: capabilities.drop: [ALL]

container: readOnlyRootFilesystem: true
