1Y0-205 Citrix Virtual Apps and Desktops 7 Administration (CCA-V) Questions and Answers

 Profile streaming ensures that only the files and folders that a user needs are downloaded to the VDA during logon and logoff. This reduces logon and logoff times and allows users to access their profiles in the event of network interruptions or VDA failures1

1: https://docs.citrix.com/en-us/profile-management/current-release/configure/profile-streaming.html

According to the Manage | Citrix Virtual Apps and Desktops 7 2308 document, the order of evaluation of rewrite policies is determined by the following factors:

The priority of the policy. A lower number indicates a higher priority.

The bind point of the policy. A global policy has a lower priority than a policy bound to a specific virtual server.

The type of the policy. A request policy has a higher priority than a response policy.

In this scenario, the policies are all bound to the same virtual server and have the same type (response). Therefore, the order of evaluation is based on the priority of the policy. The policy with the lowest priority number (POL_2) is evaluated first, followed by the policy with the next lowest priority number (POL_3), and so on. The policy with the highest priority number (POL_1) is evaluated last. Therefore, the correct answer is C.

B. Citrix Print Manager Service: Monitors session events like logon, logoffs, and session termination to manage printing tasks within the session.

C. Security Descriptor: Sets the default security descriptor for auto-created printers, enhancing the security of client printers in a session.

E. Impersonation: The Citrix Print Manager Service processes print requests by impersonating the session user, ensuring that the user’s permissions are applied to the printing process.

According to the Citrix documentation1, the No-Monitor option allows the administrator to remove health checks from specific bound services. This option is useful when the administrator wants to reduce the number of health checks sent to the backend resources, or when the administrator knows that a particular service is always up and does not need to be monitored.

According to the Citrix documentation1, the weight option assigns a numerical weight to a service. The higher the weight, the more requests the service can handle. By default, the weight is 1, which means equal distribution of requests. To make the new servers receive twice the connections of the old servers, the administrator needs to assign a weight of 2 to the services attached to the new servers.

Citrix Cloud Connector requires the machine to be joined to a domain as part of its prerequisites for installation. If the machine is not domain-joined, it could prevent the Cloud Connector from installing properly. This is because Cloud Connector needs to communicate with Citrix Cloud services and typically relies on domain credentials for authentication and other functions within a domain environment.

According to Citrix documentation, to make a configuration change for a StoreFront server group, the change should be made on one StoreFront server in the group, and then the Propagate Changes feature should be used to synchronize the change across the group1

 Process Explorer is a tool that can be used to get further details on orphaned processes in the session. According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, Process Explorer can be used to “identify processes that are preventing a session from logging off” (Module 6: Troubleshooting User Connection Issues, Lesson: Troubleshooting Session Logon and Logoff Issues, Slide 8). Additionally, according to the Citrix Virtual Apps and Desktops 7 Administration Exam Guide, one of the objectives is to “use Process Explorer to identify orphaned processes” (Objective 6.3: Troubleshoot Session Logon and Logoff Issues). Therefore, Process Explorer is the correct answer.

 According to the Access Control Lists documentation, the add ns acl command is used to create an extended ACL that can filter packets based on various parameters, such as source IP address, source port, action, and protocol. An extended ACL can define the conditions that a packet must satisfy for the Citrix ADC to process the packet, bridge the packet, or drop the packet. Therefore, to bridge traffic originating from 192.168.10.200, a Citrix Administrator can use the following command:

add ns acl bridge_192.168.10.200 BRIDGE -srcIP 192.168.10.200

This command creates an extended ACL named bridge_192.168.10.200 with the action BRIDGE and the source IP address 192.168.10.200. Any packet that matches these conditions will be bridged to the destination without processing by the Citrix ADC.

 According to the Citrix documentation, the -denySSLReneg parameter specifies the type of SSL renegotiation that the Citrix ADC denies. The possible options are:

NONSECURE: Deny renegotiation requests from a client if the initial handshake between the Citrix ADC and the client is not secure. A secure handshake is one in which both parties prove their identities to each other by presenting valid certificates.

FRONTEND_CLIENT: Deny renegotiation requests from a client on a front-end SSL connection, regardless of whether the initial handshake is secure or not. A front-end SSL connection is one in which the Citrix ADC communicates with the client over SSL.

ALL: Deny all renegotiation requests from a client on a front-end SSL connection and from a server on a back-end SSL connection. A back-end SSL connection is one in which the Citrix ADC communicates with the server over SSL.

NO: Allow all renegotiation requests.

Therefore, the correct answer is A and C.

The Citrix Application Delivery Management appliance, when used with Citrix Director, allows administrators to monitor various aspects of the infrastructure. It provides detailed insights into latency and bandwidth effects for specific user sessions ©, average ICA round trip time for specific user sessions (D), and peak concurrent total sessions for specific applications and desktops (E), enhancing the ability to manage and optimize the Citrix environment.

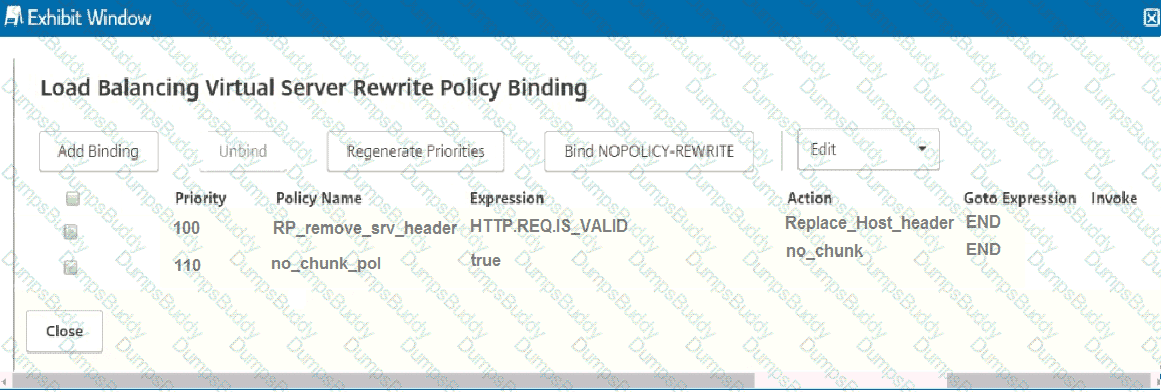

The issue is caused by the policy expression of the no_chunk_pol being ‘true’ and ‘NOT HTTP.REQ.IS_VALID’. This means that the policy will always be true and thus, always be invoked, preventing the other policy from being used. This is explained in the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, under the section “Load Balancing Virtual Server Rewrite Policy Binding”.

When adding a new Delivery Controller to an existing Citrix Virtual Apps and Desktops Site, the Controller must register itself and update configuration information stored in the Site database. Citrix documentation explains that specific SQL Server permissions are required for this operation.

To successfully add a Delivery Controller to an existing Site, the administrator performing the task must have:

securityadmin – Allows management of logins and permissions required so the Controller can create and configure its service accounts in the database.

db_owner – Ensures the Controller can modify schema objects, write necessary configuration data, and register itself correctly within the existing Site database.

These permissions are the minimum required for joining a Controller to a Site. Other permission combinations listed (such as dbcreator or db_datawriter) are used for different tasks, such as creating new databases or running maintenance, and are not sufficient for joining a Controller to an existing environment.

Documentation References:

Citrix Virtual Apps and Desktops Installation Guide → Database Permissions Requirements

Citrix Delivery Controller Installation Requirements → SQL Role Requirements for Joining an Existing Site

According to the Prepare to install article, the First-Time wizard automatically pops up when the appliance is configured with the default IP address (192.168.100.1) or when licenses are not present on the appliance. Therefore, options C and D are correct. Options A and B are not related to the First-Time wizard.

 To enable Azure AD authentication for the Workspace Experience, the administrator needs to enable Azure AD authentication under Workspace Configuration in Citrix Cloud and add Azure AD Account under Identity Providers in Citrix Cloud. This allows users to authenticate using their Azure AD credentials to access their applications and desktops through the Workspace Experience. The Cloud Connectors are not directly involved in the Azure AD authentication process for Workspace Experience12.

 The Secure Ticket Authority (STA) server locations must be configured on the Citrix Gateway and StoreFront to facilitate secure external access. The Citrix Gateway uses STA to validate session requests and the StoreFront communicates with the STA to manage user sessions securely.

The Cloud Connector requires outbound connectivity on port 443 for communication with the internet2

According to the Citrix Virtual Apps and Desktops 7 Advanced Administration guide1, the administrator can use custom access in Citrix Cloud to grant the contractor access to specific services and features, such as the Citrix Virtual Apps and Desktops Service. The administrator can also use the Delivery Group Administrator role in the Citrix Virtual Apps and Desktops Service to allow the contractor to deliver applications, desktops, and machines, and manage the associated sessions. This role has the minimum permissions required to administer the inventory application. The other roles are either too broad or too restrictive for the scenario.

 According to the IBM documentation1, the Corrupt qualifier is used to modify the HTTP header of an HTTP request. The Corrupt qualifier changes the current value to a different value for a request or response header. If a value exists for the header, then this value is changed equivalent to a regular expression search and replace.

Option B is the correct answer because it uses the DROP action to block access to the URLs that match the BAD_URL pattern set. The other options use the RESET action, which only resets the connection but does not prevent access. Also, option C has a typo in the bind responder global command, which would cause an error. Option D has an invalid type argument for the bind responder global command, which should be DNS_REQ_OVERRIDE instead of DNS_REQ. For more information, see the following resources:

Manage | Citrix Virtual Apps and Desktops 7 2308

Applications | Citrix Virtual Apps and Desktops 7 2308

Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS …

CWS-215: Citrix Virtual Apps and Desktops 7 Deployment and …

EDUCATION CWS-215: Citrix Virtual Apps and Desktops 7 Administration On …

The Group Policy Object administrative template, which includes the ADMX and ADML files, is recommended for configuring Citrix Workspace app settings at the domain level. This allows the settings to be applied across various user devices within the enterprise

Typically, the migration of existing profiles to a new profile management system occurs during the user’s first logon after the policy has been applied, as this is when the user’s profile is first accessed and can be migrated.

https://docs.citrix.com/en-us/workspace-environment-management/current-release/user-interface-description/policies-and-profiles/citrix-upm-settings.html

According to the Default policy settings document for Citrix Virtual Apps and Desktops 7 2308, the default compression policies are stored in the site database and are applied to the VDAs when they register with the broker or when a user connects to them. To use the default compression policies, a Citrix administrator needs to bind them to the virtual server that handles the ICA traffic. This can be done using the Web Studio console or the Local Group Policy Editor. The other options are not related to the default compression policies.

The commands in the screenshot create a responder action and policy that modify the DNS response from the Citrix ADC to the client. The responder action uses the DNS.NEW_RESPONSE function, which creates a new DNS response with the specified parameters. The first parameter is true, which means the response will have the TC (truncated) bit set. The second parameter is true, which means the response will have the AA (authoritative answer) bit set. The third parameter is NOERROR, which means the response will have the rcode (response code) set to NOERROR. The responder policy matches the DNS requests that use UDP as the transport protocol and applies the responder action to them. Therefore, the effect of this configuration is to create a DNS response with TC bit set and rcode as NOERROR for UDP requests. This can be used to prevent DNS amplification attacks by limiting the size of the DNS response.

The Logon Performance report in Citrix Director provides insights into the various stages of the logon process and can help identify which stage is causing the delay. It includes details such as Brokering, VM Start, HDX Connection, Authentication, and Interactive Session times, allowing administrators to pinpoint the bottleneck in the logon process.

When using Machine Creation Services, the Delivery Controller must communicate with the configured hosting connection (such as VMware, Hyper-V, Citrix Hypervisor, Nutanix AHV). This communication enables provisioning, power management, and information retrieval from the hypervisor.

Citrix documentation defines the Citrix Host Service as the Delivery Controller service responsible for:

Managing hypervisor connections

Sending provisioning and power-action commands

Communicating with hosting infrastructure APIs

Initiating VM creation and updates for MCS catalogs

The Citrix Broker Service manages session brokering, not hypervisor communication.

The Citrix Environment Test Service focuses on diagnostics.

“Citrix Hypervisor Service” is not a Citrix Delivery Controller service.

Therefore, the correct service enabling Controller-to-hypervisor communication is the Citrix Host Service.

Documentation References:

Citrix Virtual Apps and Desktops → Delivery Controller Services Overview

Citrix Host Service Description within Hosting Connections

 According to the Citrix documentation1, the correct syntax for adding a simple ACL rule is:

add simpleacl < aclname > < ALLOW | DENY > -srcIP < IPAddress > [-destIP < IPAddress > ] [-TTL < timeInSeconds > ]

The correct syntax for adding an extended ACL rule is:

add ns acl < aclname > < ALLOW | DENY > -srcIP < IPAddress > [-destIP < IPAddress > ] [-TTL < timeInSeconds > ]

Therefore, the correct answer is B, because it uses the extended ACL rule format and specifies the destination IP address of the load balancing virtual server (192.168.100.25) and the TTL value of 10 minutes (600 seconds).

1: https://docs.citrix.com/en-us/citrix-adc/13/networking/acl.html

 According to the Plan your StoreFront deployment document, for single server deployments you can install StoreFront on a non-domain-joined server but certain functionality will be unavailable; otherwise, StoreFront servers must reside either within the Active Directory domain containing your users’ accounts or within a domain that has a trust relationship with the user accounts domain unless you enable delegation of authentication to the Citrix Virtual Apps and Desktops sites or farms. All the StoreFront servers in a group must reside within the same domain. Therefore, server groups are not supported for non-domain-joined StoreFront servers (option D). Also, according to the User authentication document, when you configure a store, you specify the type of authentication service to use. By default, users are authenticated on StoreFront. Alternatively, you can delegate authentication to Citrix ADC or to the Delivery Controllers (option E). Authentication does not occur at the Domain Controller (option A) or at the Citrix ADC (option C) by default. Two-factor authentication is supported for non-domain-joined StoreFront servers (option B) as long as the authentication is delegated to Citrix ADC or Delivery Controllers.

According to the Citrix Printing Quick Start Guide1, Citrix recommends that you disable Direct connections to print servers if your Worker VMs and print servers are not in the same LAN. This is because in this situation the print job sent direct to the print server is not compressed. When the print job is routed via ICA it is compressed. This setting can be configured via Citrix policy under Printing > Client Printers > Direct connections to print servers2. Disabling this setting will allow users to print to both print servers via the ICA protocol. The other options are not relevant to the issue or the scenario.

According to the Citrix Virtual Apps and Desktops service on Citrix Cloud documentation, the control layer is always managed by Citrix when hosting Citrix Virtual Apps and Desktops on the Citrix Cloud platform. The control layer consists of the Citrix Cloud Connector, Studio, Director, and other components that orchestrate the delivery of applications and desktops. The resource layer, which contains the VDAs, hypervisors, and storage, is managed by the customer or a service provider. The user layer, which contains the user profiles, policies, and data, is also managed by the customer or a service provider. The access layer, which contains the StoreFront and NetScaler Gateway components, can be either managed by Citrix or the customer, depending on the deployment scenario.

When a printer is a network printer mapped on the VDA, the printing workflow follows standard server-based printing logic:

The user prints from an application running on the VDA.

The print job is generated and sent from the VDA directly to the network print server.

The print server processes the job and forwards it to the print device.

This creates a “server-side printing path,” which means the job never routes through the endpoint device. The VDA communicates with the print server using the native network printing protocol (typically SMB or IPP), not HDX.

Why the other options are incorrect:

A: Endpoint is not involved — native network printing is VDA → print server.

B: HDX is not used for network printers; HDX printing applies primarily to client printers or universal printing.

D: Network printing is fully supported in HDX sessions.

Documentation References:

Citrix Virtual Apps and Desktops → Printing Pathways

Citrix Printing Guide → Network Printing Architecture

 According to the Citrix documentation, the Citrix Cloud Connector is a Citrix component that serves as a channel for communication between Citrix Cloud and the resource locations, enabling cloud management without requiring any complex networking or infrastructure configuration. This removes all the hassle of managing delivery infrastructure. The Cloud Connector also provides services for the Citrix Cloud Delivery Controllers to configure the resource location where Citrix Provisioning runs. Therefore, the administrator needs to install Citrix Cloud Connectors on the Citrix Provisioning servers to migrate the Citrix Provisioning environment to Citrix Cloud1

 Session Reliability allows connection brokering operations in a site to continue when the connection between a Delivery Controller and the site database fails. It also allows users to continue working on their applications or desktops, even if the network is interrupted1.

1: Manage | Citrix Virtual Apps and Desktops 7 2308

According to the HDX Insight documentation, HDX Insight is the integration of NetScaler Network Inspector and Performance Manager with Director. It captures data about ICA traffic and provides a dashboard view of real time and historical details. To monitor NetScaler appliances deployed in this mode, first add the NetScaler appliance to the NetScaler Application Delivery Management (ADM) inventory, enable AppFlow, and then view the reports on the dashboard. External users who access Citrix Virtual App and Desktop applications must authenticate themselves on the NetScaler Gateway. Therefore, the three components that the administrator will need to review are:

Citrix Application Delivery Management: This is the platform that collects and analyzes the AppFlow records generated by the NetScaler appliance.

Citrix Gateway: This is the component that provides secure access to the Citrix Virtual App and Desktop applications and generates the AppFlow records for HDX Insight.

Citrix Director: This is the web-based tool that displays the HDX Insight reports and allows the administrator to troubleshoot performance issues.

Application Probing is a monitoring feature in Citrix Director that automatically launches configured probes to test the availability and responsiveness of published applications.

Citrix added full support for application probing in Citrix Virtual Apps and Desktops 2203 LTSR. Therefore:

2203 LTSR is the oldest LTSR that supports application probing

1912 LTSR and 7.15 LTSR → Do not support application probing

2402 LTSR → Supports probing, but it is newer, not the oldest

Thus, the earliest LTSR with application probe support is 2203 LTSR.

Documentation References

Citrix Director → Application Probe Requirements

CVAD 2203 LTSR Feature Introduction

CVAD 2402 LTSR Monitoring Enhancements

 Featured App Groups in Citrix Virtual Apps and Desktops can be created based on Application names, Keywords, and Application categories. This allows administrators to organize and highlight applications for users based on these criteria

According to the Citrix Virtual Apps and Desktops service documentation1, the Citrix Virtual Apps and Desktops service allows administrators to manage on-premises resources from the cloud, while providing users with secure access to those resources from any device. The Citrix Gateway service2 provides secure remote access to the on-premises resources through the Citrix Cloud Connector. The Citrix Provisioning service3 enables administrators to stream a single desktop image to multiple virtual machines, reducing storage and maintenance costs.

The Citrix Virtual Apps and Desktops documentation specifies that the Local Host Cache feature allows connection brokering operations in a site to continue when the connection between a Delivery Controller and the site database fails1. This implies that the Delivery Controller, which is part of the FlexCast Management Architecture (FMA) services, uses the Local System account to access the Citrix Virtual Apps and Desktops SQL databases in scenarios where the primary database connection is unavailable.

HA Fail-safe mode is a feature that allows the Citrix ADCs to continue processing traffic even if both nodes become unavailable or fail a health check. This feature can be configured on each Citrix ADC independently, and it is recommended to enable it on both nodes for maximum availability. If HA Fail-safe mode is disabled on one node, that node will not process any traffic if it becomes unavailable or fails a health check, and it will not fail over to the other node. This could result in a loss of service for the business websites. Therefore, the correct answer is B.

Citrix Virtual Apps and Desktops supports multiple hosting platforms, but only certain platforms are designed for on-premises datacenter deployments.

According to the Citrix Virtual Apps and Desktops Product Documentation under “Connections and Resources – Hosting Connections”, Citrix identifies the following as on-premises hypervisors:

Citrix Hypervisor (formerly XenServer)

Microsoft Hyper-V

Nutanix Acropolis (AHV)

VMware vSphere

These platforms run entirely inside the organization ' s datacenter, allowing full administrative control and ensuring that all workloads remain local.

Because the question requires resources to remain in the corporate datacenter, the valid choices are:

✔ Nutanix Acropolis (A)

Supported as an on-prem hypervisor platform with native Citrix integration.

✔ Microsoft Hyper-V (B)

Fully supported as an on-prem virtualization platform via SCVMM hosting connections.

✔ XenServer (Citrix Hypervisor) (D)

The native Citrix hypervisor designed for on-prem deployments.

Why Not AWS (C) or Azure (E)?

Both Amazon Web Services and Microsoft Azure are classified in Citrix documentation under “Public Cloud Connections”, not on-prem hosting.

These platforms require workloads to run in the cloud, which violates the requirement that resources must remain inside the corporate datacenter.

Documentation References

Citrix Virtual Apps and Desktops – Connections and Resources: Supported On-Premises Hosting Platforms

Citrix Hypervisor (XenServer) System Requirements

Nutanix Acropolis (AHV) Support in Citrix Virtual Apps and Desktops

Microsoft Hyper-V Hosting Connection Requirements

A SSL profile is a collection of SSL settings that define the SSL behavior of a virtual server. A Citrix Administrator can use SSL profiles to apply the same SSL settings to multiple SSL virtual servers, which simplifies the configuration and management of SSL parameters1.

1: SSL Profiles

VDA registration can be configured using:

Group Policy Object (GPO): Policy-based configuration using LGPO or GPO.

Organizational Unit (OU) based Controller discovery: Legacy OU discovery method.

MCS-based PERSONALITY.INI: Using the personality.ini file for MCS-based deployments.

These methods ensure that the VDA has accurate and current Controller or Cloud Connector information as Controllers are added, moved, and removed in the site1.

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, the Citrix ADC can optimize the responses by using HTTP protocol for the services and SSL protocol for the virtual server. This configuration allows the Citrix ADC to terminate the SSL connection from the client and then communicate with the server using HTTP. This way, the data is encrypted between the client and the Citrix ADC, and the Citrix ADC can perform optimization tasks such as compression and caching1: Page 95, Module 5: Citrix Gateway and Citrix StoreFront Integration.

The Resource Utilization view in Citrix Director accesses historical trend information of CPU, memory, and disk latency for each machine running the VDA. This view helps the administrator to monitor the resource consumption and performance of the machines1

1: Monitor historical trends across a site | Director

Citrix Cloud is the hosting platform that minimizes management and maintenance for administrators while maintaining control of the VDA machines1.

To enable Citrix XML Service trust for user access within a Citrix Virtual Apps and Desktops infrastructure, the administrator must run the Set-BrokerSite -TrustRequestsSentToTheXMLServicePort $true PowerShell command from within a Controller. This configures the site to trust requests sent to the XML Service port1.

To get application enumeration working in a Citrix Cloud migration scenario with on-premises StoreFront and Citrix ADC, the administrator needs to add the Citrix Cloud Connectors as Secure Ticket Authority (STA) servers on both Citrix ADC and StoreFront12.

This is because having multiple Cloud Connectors can provide redundancy and high availability in case one of the connectors fails or needs maintenance. Therefore, based on my last update, option B would be the correct approach.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide, the expression CLIENT.SSL.CLIENT_CERT.VALID_NOT_AFTER.EQ(GMT2020) checks whether the client certificate is valid until the specified date (GMT2020). The other expressions are either incorrect or irrelevant for this requirement.

Citrix Profile Streaming is a feature that, when enabled, allows profile files and folders to be fetched from the user store to the local computer only when users access them after logon. Registry entries and files in the pending area are fetched immediately. By default, profile streaming is disabled23.

The Virtual Delivery Agent (VDA) is a software component that enables machines to deliver applications and desktops to users. The VDA registers with a Delivery Controller and communicates session information to the Controller, which brokers connections between users and their resources. Users access their resources through Citrix Workspace app or a compatible web browser1

1: Virtual Delivery Agent (VDA) | Citrix Virtual Apps and Desktops 7 2308

According to the Citrix documentation, “When you configure the Citrix ADC appliance for Active Directory authentication, you must configure DNS to assign fully qualified domain names (FQDNs) to the authentication and traffic management virtual servers. This is because the domain session cookie that is used during authentication is based on the FQDN of the virtual server.” 1

1: Configure DNS to Support Active Directory Authentication

Virtual MAC is a feature that allows the Citrix ADC to use the same MAC address for the primary and secondary nodes in an HA pair. This way, the upstream router does not need to update its ARP table when a failover occurs. This feature can be enabled or disabled using the command set ha node -hamac yes|no or the GUI1

1: Citrix ADC High Availability (HA) - Citrix Docs

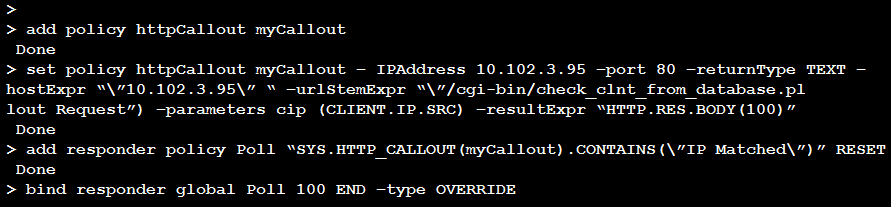

 The administrator should negate the expression of the Responder policy to avoid the HTTP callout recursion issue. According to the Citrix documentation, “If you configure an HTTP callout policy that is bound globally, you must ensure that the policy expression does not match the callout request. Otherwise, the callout request will trigger the policy, resulting in a callout recursion.” The expression in option B ensures that the policy does not match the callout request by adding the NOT operator at the end.

https://docs.citrix.com/en-us/citrix-adc/13/appexpert/http-callout/http-callout-policy.html

Pass-through from NetScaler Gateway is the authentication method that allows external users to access internal resources through StoreFront without having to enter their credentials again. This method requires that users authenticate on NetScaler Gateway, which then passes the user identity to StoreFront. This option is only available if it has been enabled for the store. See Pass-through from Citrix Gateway for more details.

The Citrix Workspace Control settings can be modified in the StoreFront console to enable or disable the automatic reconnection of applications and desktops as users move between devices1. This feature is not available in Citrix Studio, Group Policy, or Citrix Workspace app.

Workspace Control allows users to reconnect to their disconnected sessions automatically when they roam between devices or reconnect after a network disruption. It is designed to provide a seamless user experience by maintaining the user’s session state, allowing them to pick up where they left off without starting a new session. This feature can be managed within the Citrix Virtual Apps and Desktops management consoles and is essential for scenarios where users need to maintain continuity in their work, such as in the given scenario where users leave work and expect to reconnect to their sessions later.

Citrix power management requires:

A hypervisor connection (Citrix Hypervisor, Hyper-V, VMware, Nutanix AHV)

Machines created or managed by Citrix Studio

The ability for Delivery Controllers to send power commands through the hypervisor API

Citrix documentation clearly states:

✔ Only virtual machines registered in a hosting connection support power actions such as:

Power on

Power off

Restart

Suspend / resume (depending on hypervisor)

✔ Virtual Desktop OS VDAs (typically Windows 10/11 or Windows 365-style desktops) support full power management because they run as virtual machines on the hypervisor.

Why the other options are incorrect:

Remote PC Access machines (A):Are physical desktops; power actions cannot be controlled via hypervisor APIs.

Virtual Server OS machines (B):Although virtual, they are normally used as multi-session hosts; Citrix power management is not intended for them in standard deployments.

Physical Server OS machines (D):Physical hardware is not managed through hosting connections, so no power control is possible.

Thus, Virtual Desktop OS machines are the correct answer.

Documentation References

Citrix Virtual Apps and Desktops → Power Management Requirements

Citrix Delivery Controller Services → Host Service Power Actions

MCS and Hosting Connection Specifications for VM Power Control
