PEGACPSA23V1 Certified Pega System Architect Questions and Answers

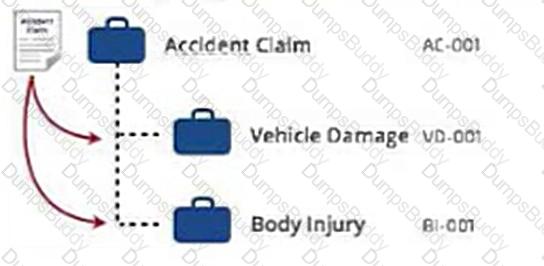

To ensure that the processing of an Accident Claim case is paused until the resolution of both Vehicle Damage and Body Injury child cases:

A. Add a wait shape to the parent case pausing the parent case until the child cases resolve. The wait shape is used in Pega to halt the process flow until specified conditions are met, in this case, the resolution of both child cases. This ensures that the parent case does not proceed until all necessary assessments and repairs documented in the child cases are completed, providing a coherent and controlled case management process.

To display multiple options (like balance transfer offers) on a form where only one can be selected at a time, the suitable control types are:

B. Radio buttons. Radio buttons are ideal for allowing users to select one option from multiple choices. They are mutually exclusive, which means selecting one option deselects any other previously selected option.

D. Drop-down list. A drop-down list also allows users to select one option from multiple choices presented in a compact form. It ensures that only one selection can be made at any time, fitting the requirement to prevent multiple selections.

To localize correspondence into a language not provided by the Pega language pack:

C. Create the Translation rule manually and include the rule in the application ruleset. When a specific language pack is unavailable, manually creating a Translation rule allows for custom translations to be added to the system. This rule should be included in the application ruleset to ensure it is applied throughout the application, catering to the specific language needs.

Service Level Agreements (SLAs) with specific configurations like passed deadlines are typically set up in a more technical environment within Pega:

C. Dev Studio. Dev Studio provides advanced configuration capabilities needed for setting up complex SLAs, including those involving deadlines. It offers the tools required to define and manage the intricate aspects of SLAs that impact the processing timelines of cases.

When designing a mobile app, it's important to consider how users interact with the device and how the app will be presented across different devices:

B. Test applications in the mobile preview. Using the mobile preview feature allows designers to test how the application will look and operate on mobile devices, ensuring usability and optimal user experience.

C. Design for finger taps. Mobile interfaces should be designed for touch interaction, with controls that are sized and spaced to accommodate finger taps, which is the primary mode of interaction on mobile devices.

For displaying book cover pictures in a grid or list format on an online bookstore form:

C. Repeating dynamic layout. This layout type is ideal for displaying collections of items such as book covers, as it can dynamically repeat content based on the data source. It allows for an organized, responsive, and visually appealing presentation of new arrivals, each represented by their respective cover image.

In these examples, each path notation accesses properties from presumably a single-record data structure (where each record corresponds to a single instance of an Address or similar object). "Single record data relationship" refers to accessing data from a single instance, rather than multiple records or a list. Each path is structured to directly access specific properties within a singular data context, which is characteristic of single record relationships.

In the context of configuring dynamic layouts in Pega, the options that are typically configurable include:

B. Label Positioning. This option allows the developer to define where the labels of fields will appear relative to the fields themselves (e.g., left, right, top) within the layout, aiding in creating a user-friendly and accessible form structure.

C. Number of columns in each row. This setting controls how many columns can be included in each row of the layout, which is crucial for structuring complex forms and ensuring that they are presented in an organized and visually coherent manner.

For the requirement that the tax identification number must contain 10 digits, configuring the field to enforce this specific format is crucial.

• B. Use an edit validate rule: This rule type is designed to enforce specific patterns or formats in data input. By configuring an edit validate rule for the tax identification number field, the system can ensure that only values matching the 10-digit pattern are accepted, directly meeting the requirement.

Setting the minimum and maximum values in a text field (A) might control the length of input but does not enforce numeric or pattern-specific constraints. Using a decimal property type (C) ensures numeric input but does not restrict the field to exactly 10 digits or to being treated as a non-numeric pattern. Configuring a validate rule (D) could enforce certain conditions but is generally broader and less specific than an edit validate rule for pattern enforcement.

To test a report, specifically the recent hire training report within a human resources application, the most direct and effective method is to run the report definition against actual data. This approach allows for the evaluation of the report's functionality, ensuring it meets the requirements and accurately reflects the data.

• D. Run the report definition using the contents of a database table: This option involves executing the report definition to generate the report using data stored in a database table. It allows for the assessment of how well the report handles real data, including the correctness of the information displayed, the performance of the report, and whether it meets the product manager's requirements for reviewing hiring practices.

Creating a copy of the rule (A) and initializing the rule with test data using the run rule window (B) can be part of the development or debugging process but might not fully test the report under realistic conditions. Identifying a data test page to unit test the rule (C) is more applicable to testing rule logic rather than report output.

Routing an assignment to a work queue is the appropriate method to allow any available member of a department to perform the task. Work queues are designed to hold assignments that can be picked up by any qualified user who has access to that queue. This differs from a work list, which is typically specific to an individual user. Routing to a work queue ensures efficient task allocation and flexibility in task management within a team or department.

To configure duplicate case search logic to exclude resolved cases:

D. Add a must match condition where the work status of potential duplicates does not contain "Resolved". This configuration ensures that the duplicate search logic explicitly filters out cases that have been resolved, thereby focusing only on active cases when evaluating for potential duplicates. This prevents already resolved cases from being considered in the duplication check, maintaining the relevance and accuracy of the duplicate search process.

For accommodating passengers traveling with service animals, efficiently capturing necessary information (type of animal, size, and medical information) is critical. This requirement is conditional, triggered only when a passenger declares travel with a service animal.

• A. Add a process to the case life cycle for service animal accommodation and apply a condition: This option allows for the integration of a dedicated process within the overall case life cycle specifically for gathering service animal information. The process is conditionally executed, based on whether the passenger has declared the need for service animal accommodation. This ensures that the additional information is requested only when relevant, keeping the case life cycle streamlined and focused.

Applying an optional action (B) offers flexibility but might not guarantee the collection of this information as part of the standard workflow. Configuring a separate stage (C) could unnecessarily segment the case life cycle, especially if service animal accommodation is a conditional step rather than a distinct phase. Creating a child case (D) for service animal accommodation could complicate case management, especially for a requirement that is inherently part of the main travel arrangement process rather than a standalone case.

To ensure data validity within Pega applications, it is crucial that data meets specific criteria:

A. The data fits the business logic. Ensuring that data conforms to defined business rules and logic is vital for maintaining the integrity of processes and decisions based on this data. Valid data must align with the operational and decision-making frameworks of the business.

D. The data is the correct type. Data type validation is fundamental to ensuring that the system functions correctly and that data processing errors are minimized. For example, ensuring a field expecting a date does not receive alphanumeric text.

Indicating the progress of a case towards resolution is effectively achieved by updating the case status at various steps throughout the case lifecycle. This method provides real-time, visible markers that reflect where the case is in its process, what has been completed, and what steps remain. Updating the case status is a straightforward way to communicate progress to all stakeholders involved, ensuring clarity and transparency in case handling.

To populate the clipboard with valid data before testing a rule:

C. Run a data transform to create the test page. Data transforms are used to set up or alter data pages and clipboard pages, making them ideal for configuring the necessary test environment by establishing the required data structures and values.

D. Copy data from an existing clipboard page. Utilizing existing data by copying it to the test page allows for a quick and efficient way to prepare for unit testing, ensuring that the data used is representative of real-case scenarios.

Direct Capture of Objectives (DCO) in Pega is designed to enhance the accuracy and speed of application delivery. By capturing requirements directly within the development environment, DCO ensures that there is less miscommunication between business and IT teams, leading to more accurate representations of business requirements in the application. Furthermore, this method speeds up the development process by reducing the need to rework requirements and by allowing for a more agile response to changes.

To dynamically calculate remaining vacation and sick time after timesheet submission:

B. Use declarative processing. Whenever the vacation time or sick time entries change, the remaining vacation and sick time calculate. This configuration utilizes Pega’s declarative processing capabilities to ensure that changes in vacation or sick time are immediately reflected in the calculations of remaining balances, keeping the employee’s leave records up to date automatically.

Statements true about Configuration sets:

B. Used to organize Configuration settings with a common element. Configuration sets in Pega are used to group related settings, which can be managed collectively and applied consistently across the application.

D. Enables the business to control application behavior. Configuration sets allow business users to change certain aspects of the application behavior without modifying the underlying code directly, providing greater agility and control over the application.

The appropriate scope for a data page that lists products purchased by a customer viewed in an online portal is "Requestor". This scope ensures that the data page is unique to each user session and is accessible across multiple requests within that session. The "Requestor" scope is suitable because it persists for the duration of the user's interaction with the application, across multiple threads or cases, making it ideal for situations where a user might be working on multiple support requests during a single login session.

For ABC BankCorp's mobile app experience related to the Transaction Dispute application, certain requirements necessitate configuring distinct mobile app channels to accommodate different functionalities or visual designs for users and CSRs.

• A. CSRs can create other case type instances on the mobile app: This functionality difference between what CSRs and users can do within the app indicates the need for separate app channels. The ability of CSRs to handle additional case types beyond what is available to general users requires a distinct channel configuration to support the specialized functionalities needed by CSRs.
• B. Mobile app color palettes are different for users and CSRs: The requirement for different color palettes for users and CSRs pertains to the app's visual design and branding. To ensure that each group experiences the app with the intended branding elements, separate app channels are required to implement the distinct color palettes and themes.

Customizing currency units and date/time format according to the user's location (C) can typically be achieved within a single app channel through localization settings and does not inherently necessitate separate channels. Supporting all mobile phone operating systems (D) is a compatibility requirement that is also not a determining factor for creating distinct channels but rather relates to the app's development and testing across platforms.

To increase the font size on all field placeholder value components specifically to aid visually impaired users, applying global styling changes is the most effective approach. Among the options provided, adding a new theme text entry to the application theme allows for targeted styling adjustments to be applied broadly across the application.

• C. Add a new theme text entry to the application theme: This approach allows for the customization of specific UI elements, such as field placeholder values, at the application level. By adding a new text entry with increased font size to the application theme, all instances of field placeholder values throughout the application will inherit this styling, ensuring a consistent and accessible user experience for visually impaired users.

Updating the existing Default theme text entry (A) could affect more elements than intended. Running a case type and changing the font on the view (B) only applies changes locally and lacks scalability. Uploading a new application theme (D) could be an option but is less direct and more complex than simply adding a new text entry specifically for placeholder values.

Grouping a set of existing actions into a multistep form as per a stakeholder's request involves adding new functionality or modifying the existing functionality of an application. This type of change request is best captured as a User Story in Agile Workbench.

• D. User Story: User stories are a way to document specific requirements or changes in an agile development environment. They focus on the value or outcome of the change from the perspective of the end-user or stakeholder. In this case, creating a user story allows for the clear articulation of the stakeholder's preference for a multistep form, including the rationale and the expected benefit, facilitating prioritization and implementation during the development cycle.

Bugs (A) are used to report issues or errors in the existing application functionalities. Feedback (B) can capture general comments or suggestions but lacks the structured approach of a user story for implementing new features or changes. Status (C) is not a work item but an attribute used to track the progress of items like bugs, feedback, or user stories.

Adding an external data source to a data object in Pega requires specific details to ensure proper integration and functionality:

A. The authenticating information, if required by the corresponding service. Secure access to external data services often requires authentication details, such as API keys or login credentials, to ensure that interactions are authorized.

D. The uniform resource identifier that identifies the web service. The URI is crucial as it specifies the exact location and endpoint of the web service from which data is to be fetched, acting as a link between the Pega application and the external data source.

For a scenario where account information is recorded at the time the case is created and does not update when the case is further processed, while also being stored in an external system and accessed by a data page, the appropriate configuration is:

• D. Select copy from a data page on the page property: This configuration ensures that when the case is created, the account information is fetched from the external system via the data page and then copied to the page property on the case. This copy is static and remains unchanged regardless of any updates to the external system or the data page after the case creation. This approach meets the requirement of capturing account information at case creation that remains constant throughout the case lifecycle.

Option A, B, and C involve referencing the data page directly in various ways, which would not fulfill the requirement for the account information to remain static after the case is created, as any updates to the data page would be reflected in the case.

Collaboration tools that enhance team communication and information sharing:

C. Tags. Tags allow users to categorize and reference specific information within cases, making it easier for teams to search and communicate about case-related topics efficiently.

D. Pulse. Pulse is a social collaboration tool within Pega that enables team members to communicate in real-time, share information, and collaborate directly within the context of a case.

To apply consistent visual styles across all parts of a Pega application, the most direct method is to specify a skin in the application rule. A skin in Pega defines the styles for various UI components used throughout the application, ensuring uniformity and adherence to branding guidelines. By specifying the skin at the application rule level, it ensures that all sections, harnesses, and other UI elements inherit these styles, promoting a consistent user experience across the application.

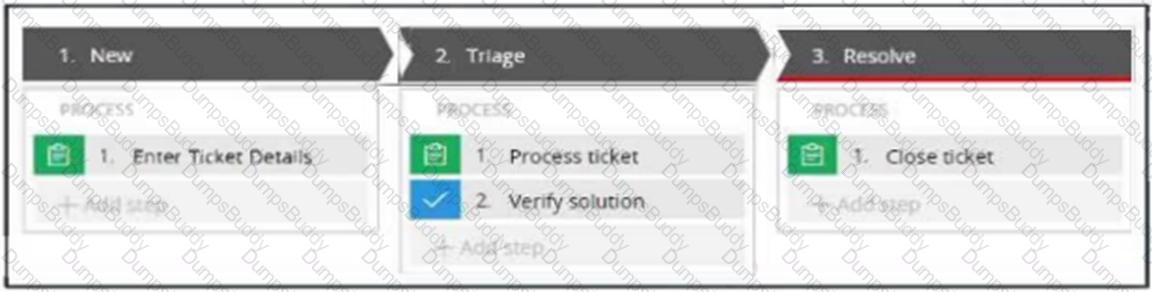

In the context of the case life cycle displayed in the image:

A. When the Process ticket step starts. The status of the case is typically set to a new value at the beginning of a step where that status is configured. Therefore, when the Process ticket step begins, the case status would change to Pending-Triage, reflecting that the case is now in the process of being triaged. This status remains until the step is completed or until the status is explicitly changed by another step in the process.

Data transforms in Pega are primarily used for setting property values and manipulating data as it moves from one context to another, which makes them ideal for tasks such as converting data types (e.g., from integer to text) and copying data from existing entities to create new instances (e.g., copying order details to a new case). Data transforms provide a powerful way to define how data should be processed and altered during the lifecycle of a case or data flow.

To prevent duplicate insurance coverage request cases from being entered into the database, the following configurations would be appropriate:

A. Add a duplicate search step to the case life cycle design. This step is integrated into the case life cycle to automatically check for duplicates at a specific point in the case processing, typically before the data is submitted for further processing or saved to the database.

B. Configure a duplicate search decision table and add it to a Decision shape. This approach uses a decision table to define the criteria for what constitutes a duplicate (e.g., matching patient name, procedure type, and date). The decision shape then uses this table to determine if the current case is a duplicate, preventing it from proceeding if it is.

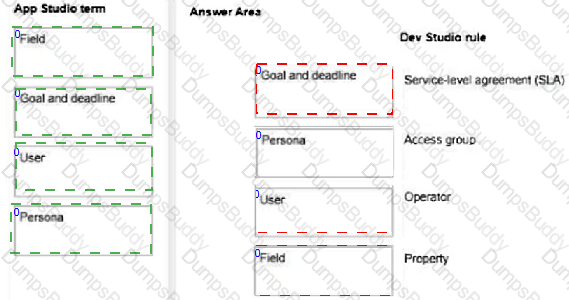

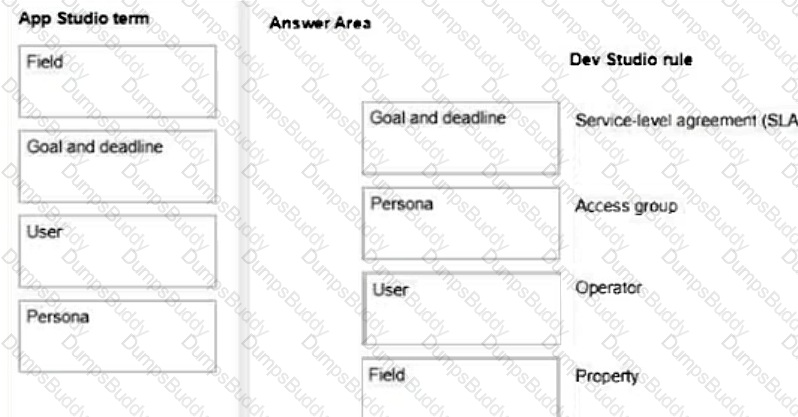

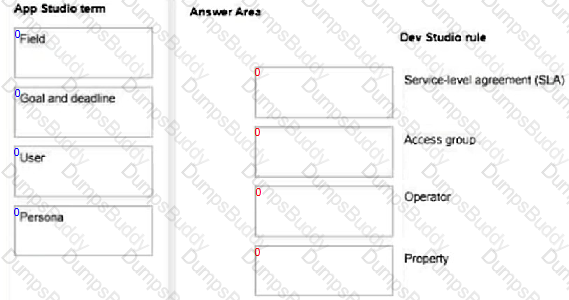

• Field: In the context of Pega's App Studio, a field represents an individual data element that can be placed on a user interface. In Dev Studio, the corresponding rule type for a field is a Property rule, which defines the characteristics and behavior of a single piece of data that can be used in various parts of the application, such as forms, data objects, or calculations.
• Goal and deadline: This term in App Studio refers to the objectives and time frames associated with a task or a case. The counterpart in Dev Studio is a Service-level agreement (SLA) rule. An SLA rule in Pega defines the time goals for the assignment, stages, and processes in a case, including the deadlines and what actions should be taken if those are not met.
• User: In App Studio, the term user typically refers to the human end-user interacting with the application, often associated with a specific role or set of permissions. In Dev Studio, a Operator rule is used to define the characteristics of a user, including their credentials, roles, skills, preferences, and the access group(s) they belong to.
• Persona: A persona in App Studio is a semi-fictional character created to represent different user types that might use a service, product, site, or brand in a similar way. When translating this to Dev Studio, it aligns with an Access group rule. An access group in Pega is a rule that defines a set of application roles, permissions, and other settings that correspond to the needs and permissions of a particular type of user or persona.

References:

• Pega Academy and official documentation provide information on how these terms in App Studio relate to rules in Dev Studio.
• Knowledge articles and developer help resources within the Pega platform can give further explanations on how to use these rules within the context of building applications.

In a scenario where an organization operates two lines of business with similar UI needs but differing payment methods, applying the Situational Layer Cake™ concept allows for efficient reuse of common functionalities while accommodating specific differences.

• B. Place the UI rules and generic payment method rules in the base layer, and create a new layer for the division-specific payment rules: This approach maximizes reuse by placing the shared UI components and any generic payment functionalities that apply to both divisions in the base layer of the application. Division-specific payment methods are then managed in separate layers on top of the base layer, allowing for tailored handling of payment options without duplicating the common UI elements.

Option A suggests a new layer for both lines of business, which might not efficiently leverage the commonalities between them. Creating a parallel base layer for payment rules (C) deviates from the hierarchical structure intended by the Situational Layer Cake™. Option D, creating a new layer for each division's payment rule, aligns with option B but is less clearly articulated regarding the placement of shared UI rules.

Given a data page set to reload if older than 30 minutes, understanding the timing for when the data page is reloaded is essential for ensuring that users have the most current information. The data page is created at 7:43. Based on the Reload if Older Than setting, it will reload if accessed after 30 minutes from its creation or the last reload.

• C. 8:40: The data page would be reloaded at 8:40 because this is the next access time that falls outside the 30-minute validity period established from the data page's last known load time or creation. Although the user refreshes the product information at 8:10 and 8:45, the key moment for reload based on the given timeline and settings would be 8:40, which is 30 minutes after the 8:10 refresh, not 8:45 since that's the time of access, not reload.

The options 8:13 (A) and 8:10 (B) are too soon for a reload based on the initial creation time and do not account for the 30-minute refresh policy correctly. Option D (8:45) represents a time of user action, not the actual reload based on the described criteria.

To grant User A access to the "My Cases" page, which User B has, the most effective method would be:

C. Update the User A account to access the same portal as User B. This solution ensures that User A has the same structural access as User B, including all the pages and capabilities available in the portal. The portal configuration typically includes access to various pages like the "My Cases" page.

Options A, B, and D do not specifically ensure that User A gains access to the "My Cases" page as they do not address portal-level access settings.

To guide users through an application form effectively without requiring formal training, adding instructions directly to the assignment is the most direct and effective method. This approach allows specific guidance to be provided at the point of interaction, where users are making decisions or entering data. Instructions can include context-specific tips, examples of expected input, or clarifications on the task requirements. This ensures that users understand exactly what is needed at each step, facilitating smoother and more accurate completion of forms.

To configure an application that allows users to download a mobile app by selecting a platform and then directing them to the appropriate app store:

A. Add a button for each platform and configure an action set for each button. In each action set, specify a click event and add an action that opens the vendor's URL in a window. This method allows distinct actions to be set for each platform button, providing direct and relevant responses to the user's choice. Each button’s action set specifically targets the corresponding platform's store URL, ensuring users are directed correctly based on their selection.

When configuring a Declare Expression that evaluates a circumstanced decision tree, ensuring accuracy and expected behavior is crucial. The steps necessary involve:

• A. Test the declare expression: This ensures that the Declare Expression, which automatically sets the value of a property based on changes in other properties, works as expected. Testing confirms the logic encapsulated in the decision tree is correctly evaluated and applied by the Declare Expression.
• B. Configure a test page with data to satisfy the circumstancing condition: This involves setting up a scenario that meets the specific circumstances under which the decision tree's logic is evaluated. Circumstancing allows different versions of a rule to be applied based on specific conditions. By creating a test page that mimics these conditions, you ensure that the circumstanced version of the decision tree is invoked, allowing for accurate testing.

Options C and D, while important in broader testing contexts, are less directly involved in the specific task of ensuring the correct configuration of a circumstanced decision tree via a Declare Expression.

The Wait step in Pega is used to pause a case until a specific condition or event occurs, making it suitable for scenarios where progression is dependent on external approvals or actions:

C. A payroll user cannot process a salary increase until the department manager approves the increase. In this scenario, the Wait step can be used to halt the process until approval is received from the manager. This ensures that the case only moves forward once the necessary approval is secured, maintaining process integrity and control.

To enable the manager to access a new report in the Report Browser under a specific category for the sales group:

B. Create a report category rule for sales office reports. This configuration step involves setting up a new report category that is specifically tailored for sales-related reports, helping to organize and segregate reports based on their functional relevance.

C. Select the report definition option that displays your report in the Report Browser. This ensures that the report is visible in the Report Browser, making it accessible to users who need to view and interact with sales data.

To validate the minimum age of a potential customer in a specific assignment step within Pega:

B. Reference the Edit Validate rule on the Collect Account Information flow action. Although typically, an Edit Validate rule would be used to check formats rather than conditions like age, referencing a validation rule within the flow action is the right approach to ensure data correctness before the user progresses past this step.

F. Create a Validate rule to check the customer age. A Validate rule is suited for checking conditions such as age requirements, ensuring that only eligible individuals can proceed. It checks that the age meets a specified minimum before allowing the process to continue.

Certain updates require the capabilities of Dev Studio because of their complexity and the need for custom configuration:

D. A new confirmation view displays a read-only text property. Creating and configuring new UI components, particularly those that involve specific behavior such as displaying read-only properties, typically necessitates using Dev Studio. This environment provides the necessary tools and features to design and implement detailed user interface requirements.

To ensure that a confirmation email is sent after a purchase is completed within a case, incorporating this functionality directly into the case life cycle is crucial. The most straightforward and effective way to achieve this is by designing it as a distinct step in the process.

• D. As a separate process step: Adding the action of sending a confirmation email as a separate process step immediately following the completion of a purchase allows for clear, logical sequencing in the case design. This approach ensures that the email is sent as an integral part of the case progression, directly linked to the purchase completion event.

Configuring it as part of the stage configuration (A) or as an alternate stage (B) might not provide the direct, immediate linkage to the purchase completion action that is necessary for timely email dispatch. Considering it as part of the general case configuration (C) is too broad and does not specify where in the case life cycle the email should be sent.

When diagnosing a problem with a calculated property value that is returning an unexpected result, the Trace tool in Pega is invaluable for investigating the issue without impacting application performance. Specifically, the use of Breakpoints and the Watch function can provide deep insights:

• A. Breakpoints: Allow you to pause the execution of the process at specific points, making it easier to examine the state and values of properties at those moments. This can help in identifying where in the process the unexpected value is being set or calculated.
• C. The Watch function: Enables you to monitor the values of specified properties as the process executes. This can be particularly useful for tracking how the value of the calculated property changes over time or at specific steps in the process, helping to pinpoint the cause of the unexpected result.

The Event monitor (B) and The Clipboard tool (D) are valuable features within Pega's diagnostic tools suite, but they serve different purposes. The Event monitor is more about tracking and analyzing system events, while The Clipboard tool is used for viewing and manipulating the current state of clipboard pages, not specifically designed for diagnosing problems with property calculations in the same direct manner as Breakpoints and the Watch function.

When building a form that involves selecting multiple items, such as courses for enrollment:

B. Create a field group list property and make the property a data reference. This step is essential for defining a structured property that can hold multiple course records, which users can select. Setting it as a data reference allows the property to dynamically pull in course data from an external source or data page.

D. Edit the field group list property and set data access to copy data from a data page. This configuration ensures that the course data available for selection is current and accurately reflects the offerings stored in a data page, facilitating accurate and up-to-date selections by users.

For recording a unit test for automated testing in Pega, the following steps are crucial:

A. Add a test case to the Automated Testing landing page. This step involves defining the test case by specifying the conditions and the scenario that the test will cover. It is the starting point for building a structured automated test in Pega.

D. Add an assertion to define an expected result. Assertions are key to automated tests because they specify the expected outcomes that validate whether the test has passed or failed based on the system's response to the test inputs.

To fulfill the manager's request for a report showing only customers who are on a monthly billing cycle, use a MoreCash or Vista credit card, and whose credit card expires within 60 days, the filtering conditions need to precisely combine these criteria.

• B. Credit Card equals MoreCash OR Credit Card equals Vista AND Billing Cycle equals monthly AND Expiration Date equals next 60 days: This set of conditions accurately captures the required filters. The use of "OR" between the Credit Card conditions allows for the inclusion of customers with either MoreCash or Vista credit cards. The "AND" conjunction with Billing Cycle equals monthly ensures that only those on a monthly billing cycle are included. Lastly, specifying that the Expiration Date equals the next 60 days filters for credit cards expiring within the specified timeframe. This combination of conditions ensures the report displays precisely the desired data.

Option A incorrectly uses "AND" for credit card types, which is logically impossible since a credit card cannot be both types simultaneously. Option C inaccurately suggests using a condition on the billing cycle that is not aligned with the requirement and incorrectly frames the expiration date condition. Option D simplifies the conditions but lacks the precise logical structure provided in option B, potentially leading to confusion or incorrect implementation.

Unit testing in Pega involves verifying specific conditions within the application to ensure they function as intended:

A. A data page populates without any errors. This test confirms that the data page is configured correctly and can retrieve and display data without issues, which is crucial for ensuring the reliability of data-dependent features in the application.

B. A property value is set correctly by a data transform. Testing this condition ensures that data transforms, which are used to manipulate data within the application, are correctly modifying and setting values as expected, which is fundamental for maintaining data integrity and application logic.

Calculated fields in Pega are used to compute values based on other data elements within the application, suitable for:

A. A sales representative wants to quote the cost of an insurance policy based on selected coverage options. Calculated fields can dynamically compute the total cost of an insurance policy as different coverage options are selected, providing real-time pricing information.

C. A project manager wants to estimate the cost of painting a banquet hall based on labor and materials required. Similarly, calculated fields can be used to aggregate costs of materials and labor to provide an overall estimate for a project, facilitating budget management.

For routing loan requests to specific loan officers based on the type of loan, the configuration needs to precisely match the type of loan to the designated officer.

• D. Route the case to a worklist using a When condition: This approach utilizes Pega's conditional logic capabilities to evaluate the type of loan and route the case accordingly. A "When" condition can be configured for each loan type to determine the appropriate loan officer's worklist (Adam Ross for mortgages, Julia Samuels for automobile loans, and Don Smith for equity lines). This ensures that each loan request advances directly to the correct officer's attention based on the specified criteria.

Routing the case to a worklist or work queue using a skilled router (A and C) could be used in scenarios where assignment is based on skill levels or capabilities rather than specific conditional logic. Routing the case to a work queue using a When condition (B) is close but less direct than using worklists for individual officers, as work queues are typically used for groups or teams rather than individuals.

The Tracer tool in Pega is used for debugging and provides real-time diagnostics of rule execution. It can trace various events, including:

C. Data transforms. Tracer can be used to trace the execution of data transforms, which are rules that define how data is set or copied from one or more sources to a target.

D. Service-level agreements. The tool can also trace the execution of service-level agreements (SLAs) to ensure that they are triggered and actioned as configured, particularly useful for understanding and troubleshooting the timing and escalation actions within case processing.

While Tracer is a powerful tool for rule execution diagnostics, it is not typically used for tracing user authentication events directly; other logging and auditing mechanisms would generally handle that. Data sources are usually traced through the use of the Data Page debugging tools rather than the Tracer, although the Tracer can show the execution of rules that interact with data sources.

For a scenario where a customer is viewing a product available in multiple color options and must select only one color for each product, radio buttons are the ideal UI control. Radio buttons allow all options to be presented to the user simultaneously, without the need for any additional action to view the choices. Importantly, they enforce a single selection, ensuring the user can only choose one of the available color options.

• A. Radio buttons: This control type is specifically designed for cases where a single choice must be made out of multiple options presented. It is user-friendly and visually communicates that only one option can be selected, making it perfect for selecting a product color.

The other options, such as Text input (B), Drop-down (C), and Check box (D), do not fulfill the requirements as effectively. Text input doesn't provide predefined choices, a drop-down requires an additional click to view options, and check boxes allow multiple selections, which does not match the requirement of selecting only one option.

For the requirement where an auditor needs to receive an email notification if the refund is greater than twice the price of the item, it's important to select a participant role that accurately reflects the auditor's involvement in the case.

• B. Interested individual: This role is designed to represent parties who need to be informed about certain events or milestones within a case but are not directly responsible for actioning the case. In this scenario, the auditor's role is to be notified under specific conditions for oversight purposes, making "Interested individual" the appropriate choice. This setup allows the application to send targeted notifications to the auditor without assigning them case responsibilities that are not part of their role.

The other options, such as Customer (Option A), Owner (Option C), and Work queue (Option D), do not accurately represent the auditor's role in relation to the specific notification requirement.

When configuring a data page that needs to retrieve details of a single record, the appropriate source to use is:

D. Lookup. Lookup is specifically used in Pega to retrieve a single record based on a key or a set of keys from a data type. This makes it suitable for data pages that are intended to provide detailed information about a particular entity, ensuring efficient and accurate data retrieval based on specific criteria.

When configuring the "Search duplicate cases" step in a Pega application, especially for IT ticketing systems, the primary aim is to identify multiple tickets raised for the same underlying issue. The most straightforward and effective criterion for identifying duplicates in this context is the issue type, such as "the office Wi-Fi is down."

• B. Issue type is same: This option targets the core reason behind the creation of a ticket. Since multiple individuals can report the same issue from various departments or locations, filtering by the issue type ensures that all reports concerning a single problem (e.g., Wi-Fi outage) are identified as duplicates. This approach helps in consolidating the efforts to address and resolve the issue efficiently, avoiding redundant work.

Filtering by the name of the submitter, department, or office location (Options A, C, and D) might miss duplicates reported by different users or from different areas, making "Issue type is same" the most logical and effective criterion for identifying duplicates in IT ticketing scenarios.

In the context of service levels in Pega, the "passed deadline" interval starts immediately after the "end of the goal interval". This setup helps in distinguishing between the targeted resolution time (goal) and the ultimate deadline by which the task must be completed, allowing for escalated actions or notifications to be triggered if the deadline is approached or passed, ensuring timely completion of assignments.

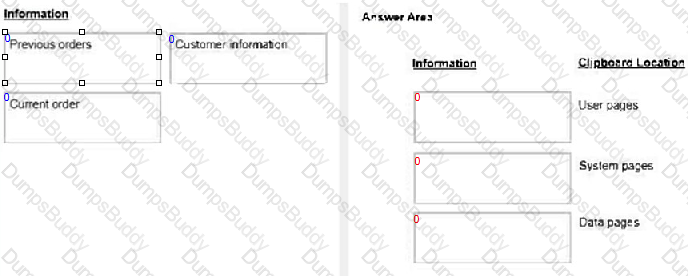

• Customer information: This usually pertains to session-specific data that is relevant to the current user, such as user ID and locale. In Pega, this type of information is typically stored in user pages, which are clipboard pages that contain data related to the current user of the application. User pages are created for each session and include data that pertains to that particular user.
• Previous orders: These are typically a list of orders that are not specific to a session but need to be readily accessible and possibly shared across multiple sessions or users. In Pega, this kind of information is best stored in data pages. Data pages are used to hold data that is loaded once and can be used by multiple users, cases, or processes. They are efficient for data that doesn't change often and is required to be accessed frequently, such as a list of previous orders.
• Current order: This refers to the specific details of the order the customer is currently placing. It is specific to the user's current session and the case they are working on. Therefore, it should be stored in user pages, which are specific to an individual user session and can manage data related to the work they are currently performing.

References:

• Pega's official documentation on Clipboard and Clipboard pages explains how data is categorized and managed within the application.
• Training materials from Pega Academy, which go into detail on the types of clipboard pages and their uses within a Pega application.

In Pega Platform, creating a new rule is an effective way to define and encapsulate specific behaviors or functionalities that can be reused across the application, enhancing maintainability and consistency. When a designer reuses a UI section frequently across different parts of the application, creating a rule for this UI section ensures that it maintains uniform behavior wherever it is used. This approach prevents duplication of design efforts and ensures that any updates to the UI section are centrally managed and uniformly propagated throughout the application.

For an on-demand transportation application collecting conversation preferences from customers, the nature of the data—preferences stated during the booking process—suggests it is generated dynamically rather than stored in a pre-existing database.

• B. No system of record: This option acknowledges that conversation preferences are specified by customers in real-time and are specific to each ride request, rather than being pulled from a pre-established database (local or external). The data is generated by user input within the application itself and used for analysis without necessitating a traditional system of record for storage.

A local system of record (A) refers to data stored within the application's database but is more relevant for static or semi-static data rather than dynamic preferences. An external system of record (C) is used for data that the application retrieves from outside sources, which does not

To manage the progression of a Visa application case type, contingent upon the resolution of an Interview child case:

B. Following the Create Case step, add a Wait step that pauses the parent case until the Interview reaches the Resolved status. This approach is ideal for ensuring that the main Visa case does not proceed until the Interview child case is fully resolved, aligning the case progression with the actual completion of necessary procedural steps, thus maintaining process integrity and dependency.

For the requirement that a credit check must be completed for a credit card to be approved, incorporating the credit check as part of the credit card application process is necessary. The most straightforward way to model this is by using case type relationships.

• C. Make credit check a child case of credit card request: This configuration establishes the credit check as an integral step within the credit card request process, ensuring that the credit check is completed before the credit card can be approved. Making the credit check a child case means it is directly associated with and dependent on the parent credit card request case, aligning perfectly with the requirement.

Making both the loan request and credit check top cases (A) does not establish the necessary dependency. Creating a spin-off case (B) suggests a parallel or subsequent process not inherently dependent on the completion of the credit check for the credit card request, which could misalign with the requirement. Making the credit card request a child case of credit check (D) inverts the intended relationship and does not accurately represent the process flow described in the requirement.

To ensure that hospital staff can efficiently provide patients with a summary of their visit, the system needs to generate a document (PDF) and then email it. Configuring a "Create PDF" automation that references the detailed Patient visit summary view allows for the automatic generation of a comprehensive document containing all relevant visit details. Following this, adding a "Send Email" step with the capability to include attachments enables the system to attach the newly created PDF to the email sent to the patient. This combination ensures a streamlined process for distributing important healthcare information securely and efficiently.

To achieve reuse and consistency between the Payment view and the Order Summary view in an application that sells office supplies, converting the layout that groups the order items into a reusable section is an effective solution. This reusable section can then be embedded in both the Payment and Order Summary views. This approach ensures that any updates to the order items are automatically reflected in both views, maintaining a single source of truth and reducing maintenance overhead.

In a hiring application that includes tasks performed by different teams—HR creating and sending the offer letter, IT assigning the workstation, and Facilities assigning the work desk—the personas to be created correspond to each team handling specific responsibilities. Each persona represents a user or team involved in the process with distinct roles and access requirements. Therefore, the personas for HR, IT, and Facilities should be created to accurately reflect the workflow and ensure that system permissions and interfaces are appropriately configured for each group's tasks.

Pega Mobile Preview is a tool within the Pega Platform that facilitates mobile app development by allowing developers to view how applications will look and behave on mobile devices:

A. Pega Mobile Preview simulates the application user interface for various mobile devices. This feature allows developers to test and refine the user interface of their applications by providing a simulated environment that replicates how the app will appear and function on different mobile devices, helping ensure that the UI is optimized for mobile usage.

The Estimator tool is primarily used for project management and planning in Pega, particularly for determining the scope and scale of development efforts:

D. A stakeholder needs to know how much time and effort is needed to build MLP2. This use case describes the fundamental function of the Estimator tool, which is to provide stakeholders with detailed estimates of time, effort, and resources required to build a specified part of an application, such as MLP2.

To automatically calculate the total hours worked, including vacation and sick time, on a timesheet entry form:

B. Use declarative processing. When the value of any work, vacation, or sick time changes, the total hours change. Declarative processing in Pega is ideal for this situation as it allows the total hours to automatically update whenever the constituent values change. This approach ensures real-time accuracy and reduces the need for manual recalculations or procedural coding.

Given the updated business requirement allowing the parent Accident Claim case to continue independently of the status of the child cases:

D. Configure the step so that users can continue with the parent case process regardless of child case status. The Wait step previously used to pause the parent case should be removed or configured to not halt the parent case processing, thereby permitting the parent case to proceed without dependency on the child cases' progress or resolution. This change reflects the new requirement for the parent case to operate independently from the Vehicle Damage (VD-001) and Body Injury (BI-001) child cases.

A statement about channel interfaces:

D. Channel interfaces are user interfaces that meet business requirements. Channel interfaces in Pega are tailored to fit the specific needs of a business process or user group, ensuring that the user interface supports the business goals and provides an effective means of interaction for the end-users.

In a Credit Card Payment case type, configuring the pySetFieldDefaults data transform to set the default value of the payment amount to the minimum amount due is the most straightforward approach. This data transform is used to initialize default values for properties when a case is created. It ensures that whenever a new case is started, the payment amount field is automatically populated with the minimum amount due, simplifying the user's task and reducing the likelihood of errors.

To create a visualization for managers to track the number and status of Customer Support Request cases:

D. Create a new Insight on the Explore data landing page. Insights in Pega allow you to create visual representations of data, which can include reports and dashboards. Managers can use these insights to track case metrics over specified time frames, such as the last 30 days.

Field values in Pega are specifically designed to support localization of content, which is ideal for displaying static content in multiple languages:

B. A global hotel chain application can display current amenities in 23 languages. This requirement is perfectly aligned with the purpose of field values, which is to provide localized text for labels, button texts, tooltips, and other interface elements across different locales. Using field values, a hotel chain application can manage and display amenity descriptions in multiple languages, enhancing the user experience for international customers.

To configure a case type that properly manages the progression of a visa application contingent upon the resolution of an Interview child case:

C. Add a Create Case step that creates the Interview child case. Following this step, add a Wait step that pauses the parent case until the Interview case reaches a status of Resolved. This approach ensures that the main Visa case does not proceed to the next phase until the Interview child case is fully resolved, aligning the process flow with the actual completion of necessary steps. The 48-hour period for decision-making is likely internal to the consulate's process and does not affect the configuration of the wait condition in the case type.

For a purchase request case type where requests should automatically go to a manager of an employee, the most straightforward configuration is to design a step within the case lifecycle that specifically routes the case to the manager. This routing logic ensures that once an employee submits a purchase request, it is automatically forwarded to their manager for approval, streamlining the workflow and enforcing organizational approval hierarchies.
